Sayfa 8-10 - Isuzu EPC

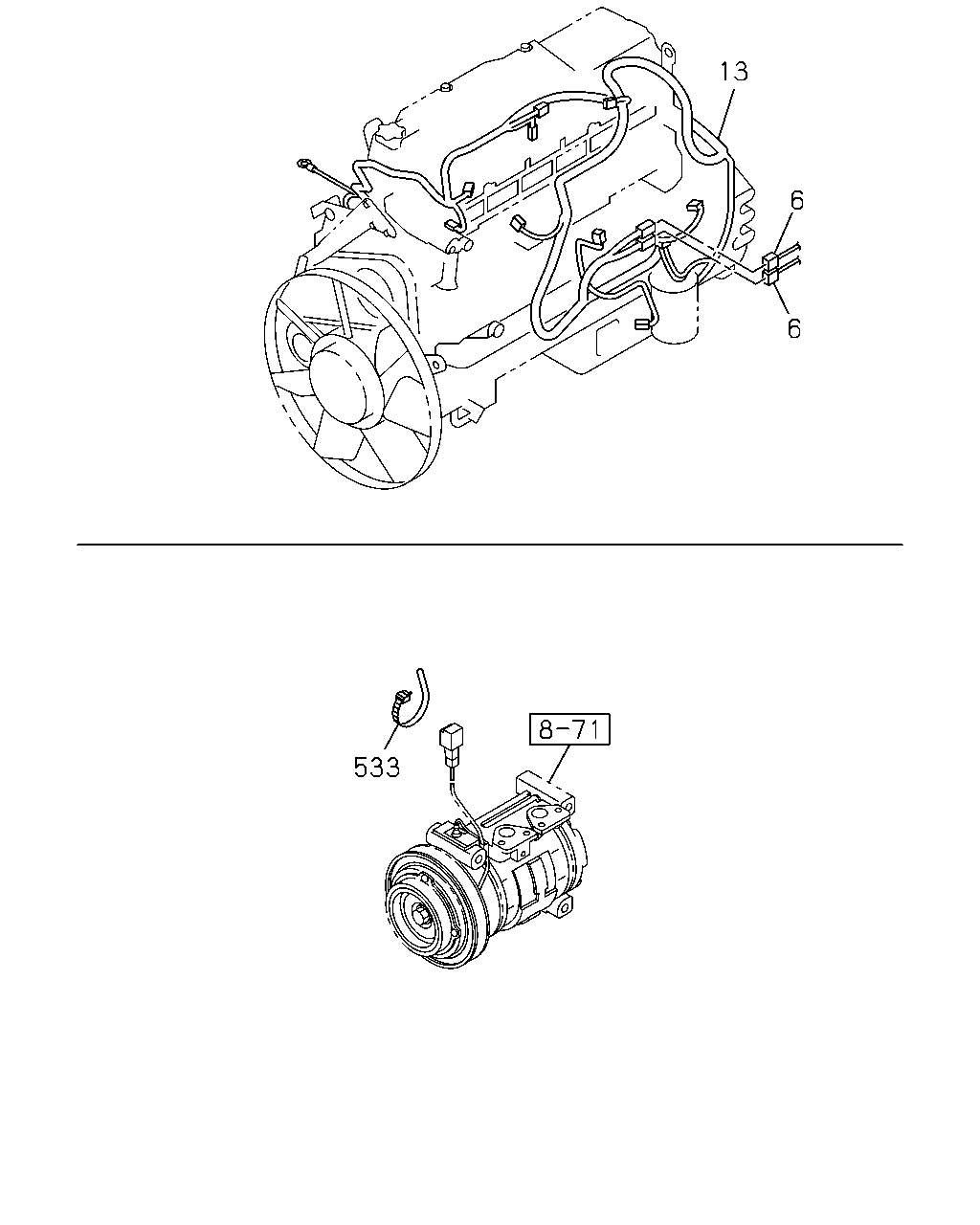

8-10 — WIRING HARNESS AND FUSE (#58726) — 438 parça

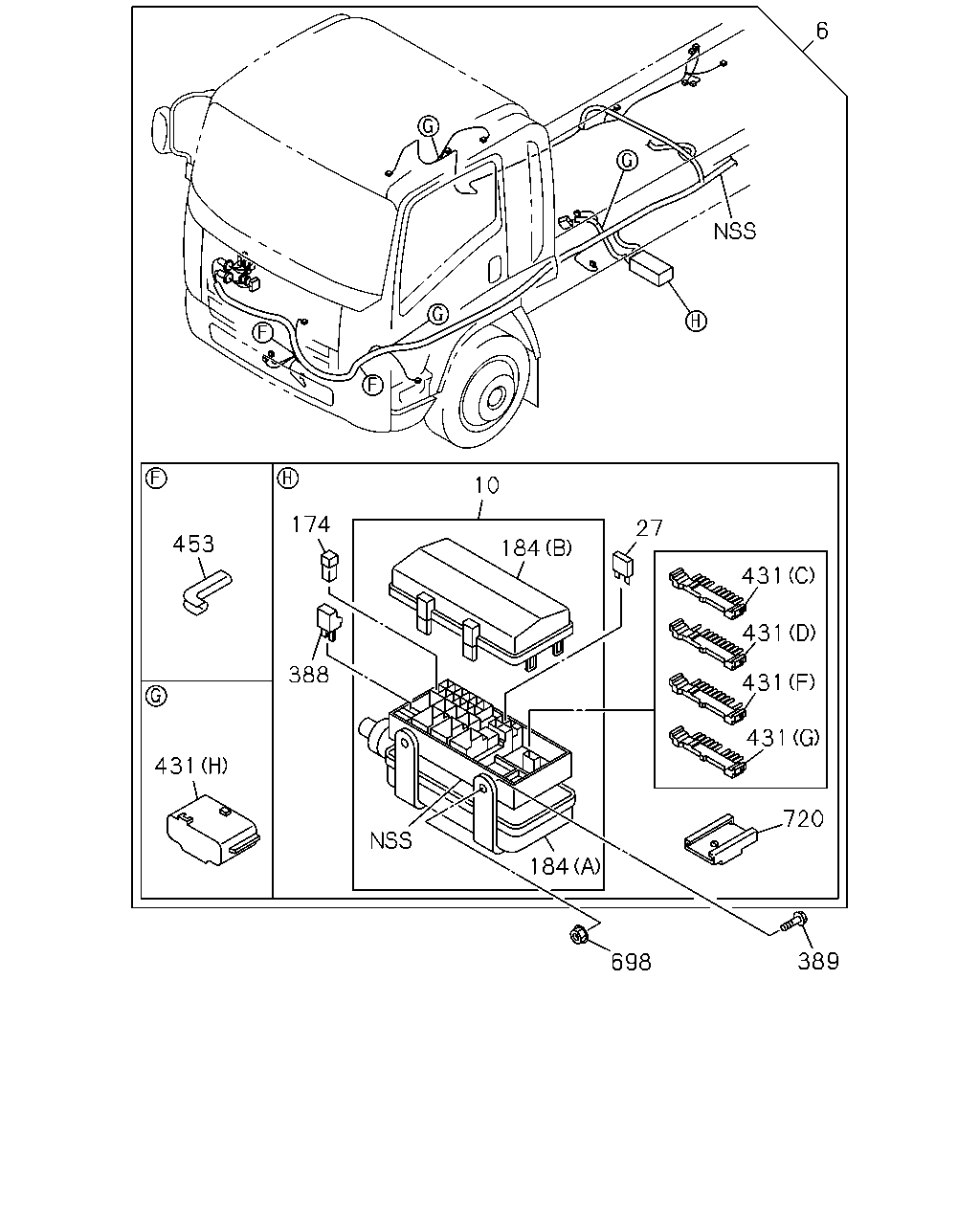

6 10 174 27 453 184 431 431 388 431 431 431 720 184 389 698

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98126-941-4	01	1	0906-
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98126-942-3	01	1	0906-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	0906-
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	0906-
27	FUSE UNIT 15A BLUE	8-98054-258-0	03	1	0906-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1107-
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	0906-
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	0906-
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	0906-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	03	1	0906-1106
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1107-
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	0906-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	0906-
388	DIODE; RELAY BOX EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 2P-1.5A	8-94422-639-1	01	1	1305-1405
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	0906-1304
388	DIODE; RELAY BOX MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 2P-1.5A	8-94422-639-1	02	1	1305-1405
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	02	1	1406-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	0906-
431	CONNECTOR; JOINT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	04	1	1305-1405
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0906-1206
431	CONNECTOR; JOINT FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 10P BLUE	1-82699-598-0	01	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	01	1	1207-
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 10P BLUE	1-82699-598-0	01	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 10P BLUE	1-82699-598-0	01	1	1207-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0906-1304
431	CONNECTOR; JOINT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	05	1	1305-1405
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	1406-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0906-1206
431	CONNECTOR; JOINT FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 10P GREEN	1-82699-599-0	01	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 10P GREEN	1-82699-599-0	01	1	1207-
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G) 10P GREEN	1-82699-599-0	01	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G) 10P GREEN	1-82699-599-0	01	1	1207-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-1206
431	CONNECTOR; JOINT FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 10P BROWN	1-82699-601-0	09	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BROWN	1-82699-601-0	09	1	1207-
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 10P BROWN	1-82699-601-0	09	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 10P BROWN	1-82699-601-0	09	1	1207-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-1206
431	CONNECTOR; JOINT FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 10P	8-97077-943-0	02	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 10P	8-97077-943-0	02	1	1207-
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 10P	8-97077-943-0	02	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 10P	8-97077-943-0	02	1	1207-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0906-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	0906-
698	NUT; COVER,RELAY BOX M8 FLANGE	0-91180-108-0	02	1	0906-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	0906-

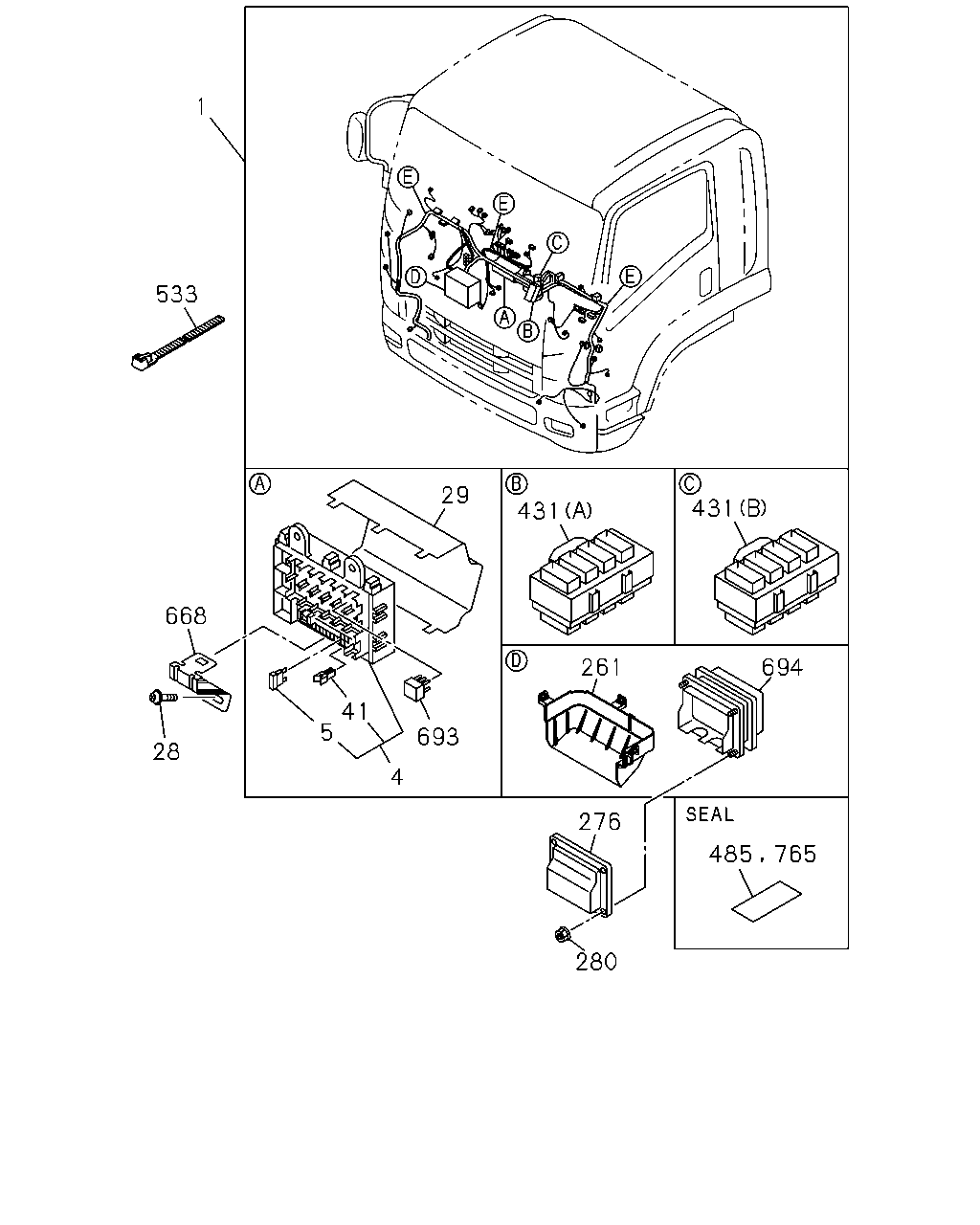

1 533 668 28 29 693 4 41 5 431 431 694 261 276 280 485 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-009-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-009-0	01	1	1204-1206
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98208-098-0	01	1	1207-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-008-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-008-0	01	1	1204-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-011-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-011-0	01	1	1204-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-010-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-010-0	01	1	1204-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-850-0	01	1	1110-1203
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-850-0	01	1	1204-1206
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98208-079-0	01	1	1207-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98187-849-0	01	1	1110-1203
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98187-849-0	01	1	1204-
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98189-003-0	01	1	1110-1203
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98189-003-0	01	1	1204-
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-002-0	01	1	1110-1203
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-002-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-013-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-013-0	01	1	1204-1206
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98208-099-0	01	1	1207-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-012-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-012-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-015-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-015-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-014-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-014-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98189-005-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98189-005-0	01	1	1204-1206
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98208-097-0	01	1	1207-
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-004-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-004-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98189-007-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98189-007-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-006-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-006-0	01	1	1204-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98133-696-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98133-696-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98133-695-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-695-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98133-693-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-693-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98133-694-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98133-694-0	01	1	1110-1203
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98133-688-0	01	1	0906-1109
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98133-688-0	01	1	1110-1203
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98133-687-0	01	1	0906-1109
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-687-0	01	1	1110-1203
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98083-928-2	01	1	0906-1109
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98083-928-2	01	1	1110-1203
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98083-929-2	01	1	0906-1109
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-929-2	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98133-699-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-699-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98133-700-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98133-700-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98133-697-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-697-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98133-698-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98133-698-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98133-692-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98133-692-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98133-691-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-691-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98133-689-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-689-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98133-690-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98133-690-0	01	1	1110-1203

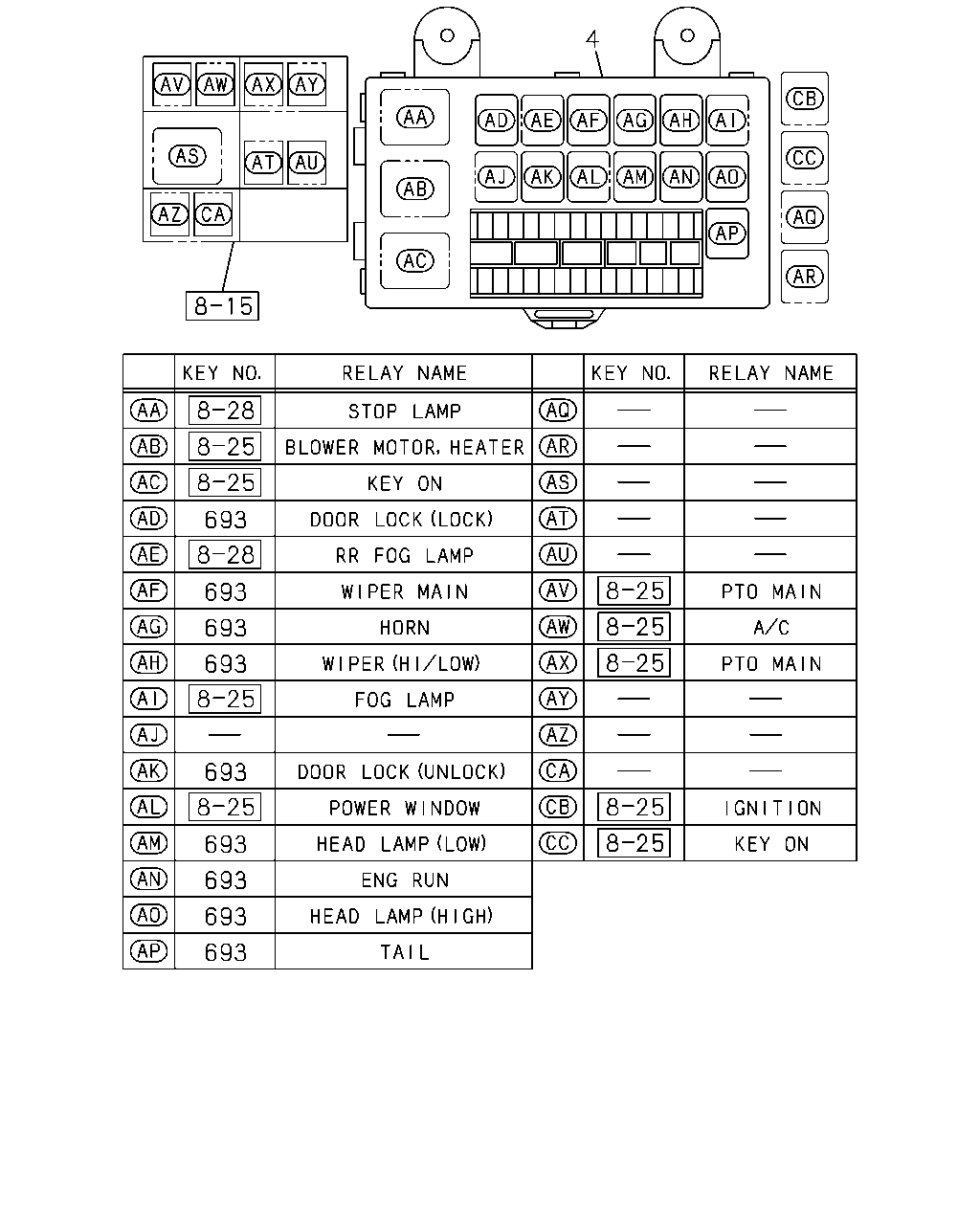

4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0906-
5	FUSE; FACIA HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 25A WHITE	8-98062-982-0	AR	1	1207-
5	FUSE; FACIA HARNESS MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) 25A WHITE	8-98062-982-0	AR	1	1207-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0906-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0906-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0906-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	01	1	0906-1206
5	FUSE; FACIA HARNESS FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 25A WHITE	8-98062-982-0	01	1	1207-
5	FUSE; FACIA HARNESS MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) 25A WHITE	8-98062-982-0	01	1	1207-
5	FUSE; FACIA HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 25A WHITE	8-98062-982-0	01	1	1207-
5	FUSE; FACIA HARNESS MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 25A WHITE	8-98062-982-0	01	1	1207-
28	SCREW; FUSE BOX T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	0906-
29	COVER; FUSE BOX	8-98056-968-0	01	1	0906-
41	PULLER; FUSE	8-98054-260-0	01	1	0906-
261	COVER; CONNECTOR BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98065-986-1	01	1	1207-
261	COVER; CONNECTOR BOX MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98065-986-1	01	1	1207-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	0906-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	0906-
431	CONNECTOR; JOINT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	04	1	1305-1405
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0906-1206
431	CONNECTOR; JOINT FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 10P BLUE	1-82699-598-0	01	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	01	1	1207-
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 10P BLUE	1-82699-598-0	01	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 10P BLUE	1-82699-598-0	01	1	1207-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0906-1304
431	CONNECTOR; JOINT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	05	1	1305-1405
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	1406-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0906-1206
431	CONNECTOR; JOINT FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 10P GREEN	1-82699-599-0	01	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 10P GREEN	1-82699-599-0	01	1	1207-
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G) 10P GREEN	1-82699-599-0	01	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G) 10P GREEN	1-82699-599-0	01	1	1207-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-1206
431	CONNECTOR; JOINT FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 10P BROWN	1-82699-601-0	09	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BROWN	1-82699-601-0	09	1	1207-
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 10P BROWN	1-82699-601-0	09	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 10P BROWN	1-82699-601-0	09	1	1207-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-1206
431	CONNECTOR; JOINT FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 10P	8-97077-943-0	02	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 10P	8-97077-943-0	02	1	1207-
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 10P	8-97077-943-0	02	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 10P	8-97077-943-0	02	1	1207-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0906-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	0909-
533	CLIP L=180	1-09707-162-1	01	1	0906-1206
533	CLIP L=180	1-09707-162-1	01	1	0906-1206
533	CLIP L=180	1-09707-162-1	01	1	1207-
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=180	1-09707-162-1	01	1	1207-
668	BRACKET; HARNESS	8-98095-653-2	01	1	0906-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0906-
694	BOX ASM; CONNECTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98057-771-0	01	1	1207-
694	BOX ASM; CONNECTOR MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-771-0	01	1	1207-
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	0906-1206
694	BOX ASM; CONNECTOR FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98063-269-1	01	1	1207-
694	BOX ASM; CONNECTOR MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98063-269-1	01	1	1207-
694	BOX ASM; CONNECTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98063-269-1	01	1	1207-
694	BOX ASM; CONNECTOR MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98063-269-1	01	1	1207-
765	TAPE 100X40	1-72498-022-1	01	1	1409-

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0906-
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0906-

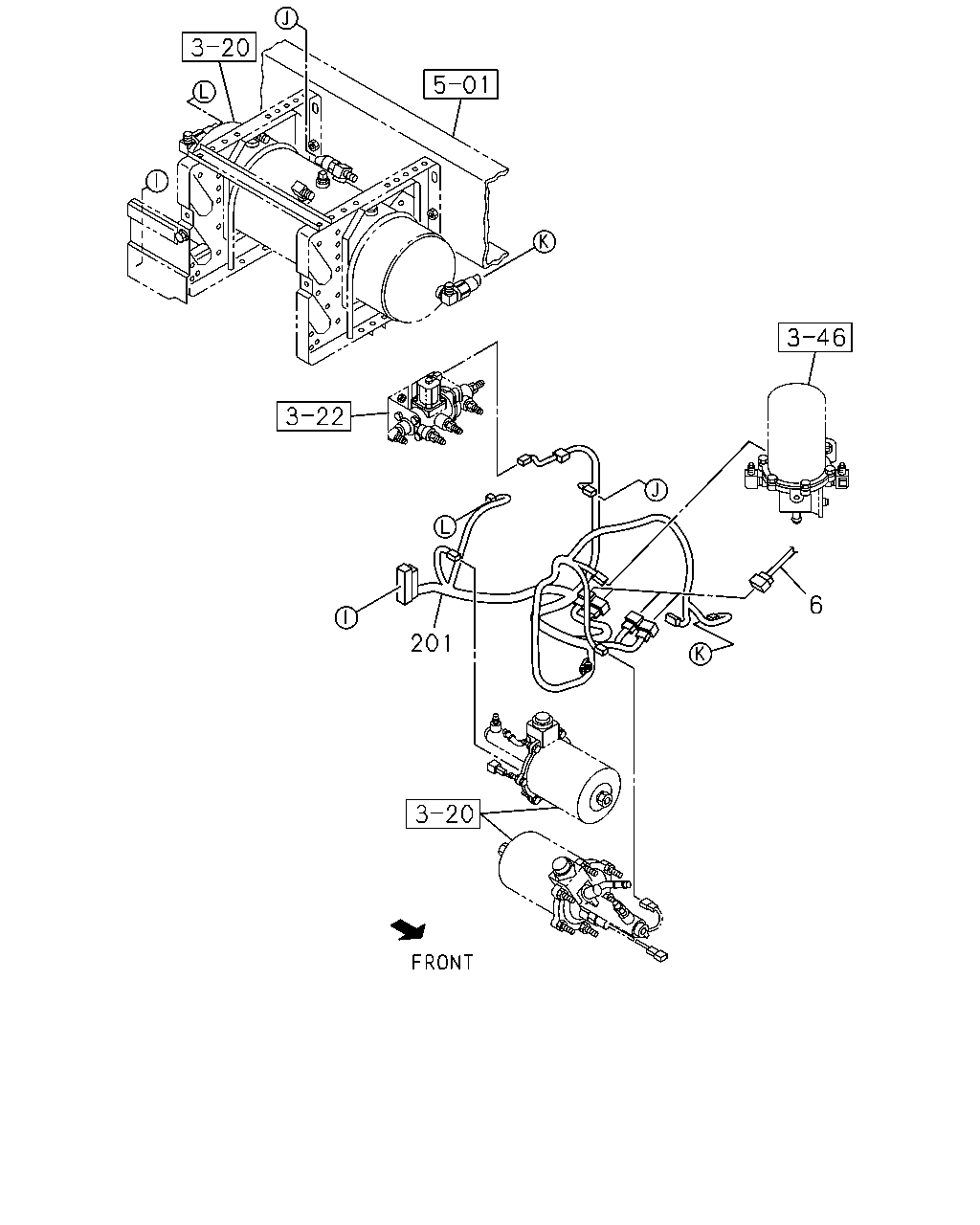

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98126-941-4	01	1	0906-
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98126-942-3	01	1	0906-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98064-339-2	01	1	0906-1001
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98156-704-2	01	1	1002-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98090-507-1	01	1	0906-1001
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-705-2	01	1	1002-
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	8-98107-561-0	01	1	0906-1001
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	8-98156-709-2	01	1	1002-
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98107-559-0	01	1	0906-1001
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98156-707-2	01	1	1002-

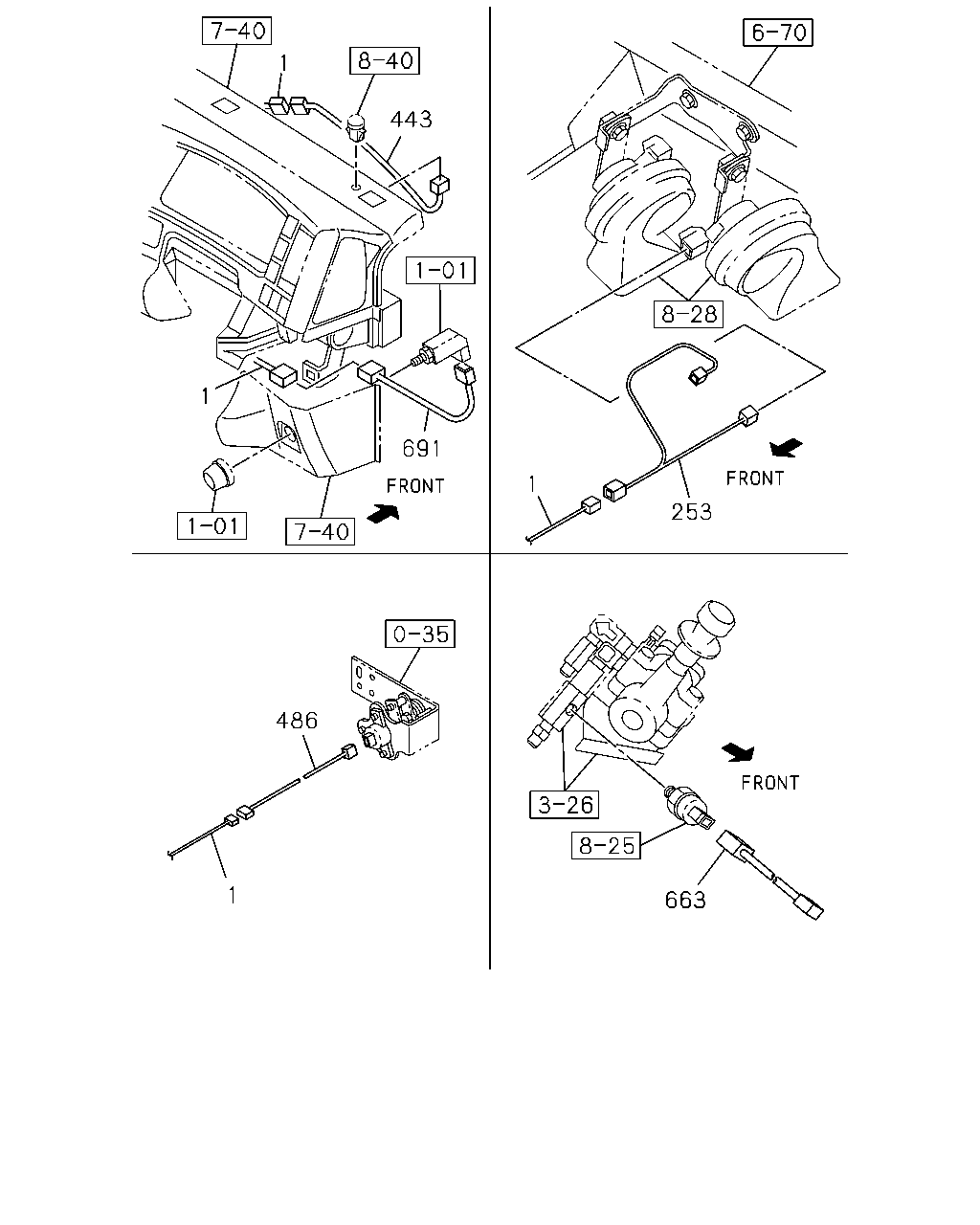

1 443 1 691 1 253 486 1 663

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-009-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-009-0	01	1	1204-1206
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98208-098-0	01	1	1207-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-008-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-008-0	01	1	1204-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-011-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-011-0	01	1	1204-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-010-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-010-0	01	1	1204-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-850-0	01	1	1110-1203
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-850-0	01	1	1204-1206
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98208-079-0	01	1	1207-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98187-849-0	01	1	1110-1203
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98187-849-0	01	1	1204-
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98189-003-0	01	1	1110-1203
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98189-003-0	01	1	1204-
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-002-0	01	1	1110-1203
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-002-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-013-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-013-0	01	1	1204-1206
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98208-099-0	01	1	1207-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-012-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-012-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-015-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-015-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-014-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-014-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98189-005-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98189-005-0	01	1	1204-1206
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98208-097-0	01	1	1207-
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-004-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-004-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98189-007-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98189-007-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-006-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-006-0	01	1	1204-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98133-696-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98133-696-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98133-695-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-695-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98133-693-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-693-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98133-694-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98133-694-0	01	1	1110-1203
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98133-688-0	01	1	0906-1109
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98133-688-0	01	1	1110-1203
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98133-687-0	01	1	0906-1109
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-687-0	01	1	1110-1203
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98083-928-2	01	1	0906-1109
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98083-928-2	01	1	1110-1203
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98083-929-2	01	1	0906-1109
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-929-2	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98133-699-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-699-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98133-700-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98133-700-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98133-697-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-697-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98133-698-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98133-698-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98133-692-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98133-692-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98133-691-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-691-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98133-689-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-689-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98133-690-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98133-690-0	01	1	1110-1203
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	0906-
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	0906-
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	0906-
663	HARNESS; EXTENSION,RR WHEEL PARKING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98126-779-2	01	1	1008-
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	0906-

1 2 2 314 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-009-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-009-0	01	1	1204-1206
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98208-098-0	01	1	1207-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-008-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-008-0	01	1	1204-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-011-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98189-011-0	01	1	1204-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-010-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-010-0	01	1	1204-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-850-0	01	1	1110-1203
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-850-0	01	1	1204-1206
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98208-079-0	01	1	1207-
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98187-849-0	01	1	1110-1203
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98187-849-0	01	1	1204-
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98189-003-0	01	1	1110-1203
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98189-003-0	01	1	1204-
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-002-0	01	1	1110-1203
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-002-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-013-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-013-0	01	1	1204-1206
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98208-099-0	01	1	1207-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-012-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-012-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-015-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-015-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-014-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98189-014-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98189-005-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98189-005-0	01	1	1204-1206
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98208-097-0	01	1	1207-
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-004-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-004-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98189-007-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98189-007-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-006-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98189-006-0	01	1	1204-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98133-696-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98133-696-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98133-695-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-695-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98133-693-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-693-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98133-694-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98133-694-0	01	1	1110-1203
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98133-688-0	01	1	0906-1109
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98133-688-0	01	1	1110-1203
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98133-687-0	01	1	0906-1109
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-687-0	01	1	1110-1203
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98083-928-2	01	1	0906-1109
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98083-928-2	01	1	1110-1203
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98083-929-2	01	1	0906-1109
1	HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-929-2	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98133-699-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-699-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98133-700-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98133-700-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98133-697-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-697-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98133-698-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98133-698-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98133-692-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98133-692-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98133-691-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-691-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>	8-98133-689-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB>,IN HOUSE PRODUCTION<TKF>	8-98133-689-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98133-690-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98133-690-0	01	1	1110-1203
2	DIODE; CABLE HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK 10P	1-82699-703-0	AR	1	1207-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 10P	1-82699-703-0	AR	1	1207-
2	DIODE; CABLE HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1207-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1207-
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	0906-1206
2	DIODE; CABLE HARNESS FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK 10P	1-82699-703-0	01	1	1207-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 10P	1-82699-703-0	01	1	1207-
2	DIODE; CABLE HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK 10P	1-82699-703-0	01	1	1207-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK 10P	1-82699-703-0	01	1	1207-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0906-1206
2	DIODE; CABLE HARNESS FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) BLACK 2P-1.5A	8-94422-639-1	02	1	1207-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) BLACK 2P-1.5A	8-94422-639-1	02	1	1207-
2	DIODE; CABLE HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 2P-1.5A	8-94422-639-1	02	1	1207-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 2P-1.5A	8-94422-639-1	02	1	1207-
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	0906-1206
314	RESISTOR; HARNESS FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLUE	1-82691-204-0	01	1	1207-
314	RESISTOR; HARNESS MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) BLUE	1-82691-204-0	01	1	1207-
314	RESISTOR; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> BLUE	1-82691-204-0	01	1	1207-
314	RESISTOR; HARNESS MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> BLUE	1-82691-204-0	01	1	1207-
431	CONNECTOR; JOINT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	04	1	1305-1405
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0906-1206
431	CONNECTOR; JOINT FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 10P BLUE	1-82699-598-0	01	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	01	1	1207-
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 10P BLUE	1-82699-598-0	01	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 10P BLUE	1-82699-598-0	01	1	1207-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0906-1304
431	CONNECTOR; JOINT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	05	1	1305-1405
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	1406-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0906-1206
431	CONNECTOR; JOINT FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 10P GREEN	1-82699-599-0	01	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 10P GREEN	1-82699-599-0	01	1	1207-
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G) 10P GREEN	1-82699-599-0	01	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (G) 10P GREEN	1-82699-599-0	01	1	1207-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-1206
431	CONNECTOR; JOINT FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 10P BROWN	1-82699-601-0	09	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BROWN	1-82699-601-0	09	1	1207-
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 10P BROWN	1-82699-601-0	09	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 10P BROWN	1-82699-601-0	09	1	1207-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-1206
431	CONNECTOR; JOINT FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 10P	8-97077-943-0	02	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 10P	8-97077-943-0	02	1	1207-
431	CONNECTOR; JOINT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 10P	8-97077-943-0	02	1	1207-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILATOR &DEFROSTER WO/HEATER(SAZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 10P	8-97077-943-0	02	1	1207-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0906-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-

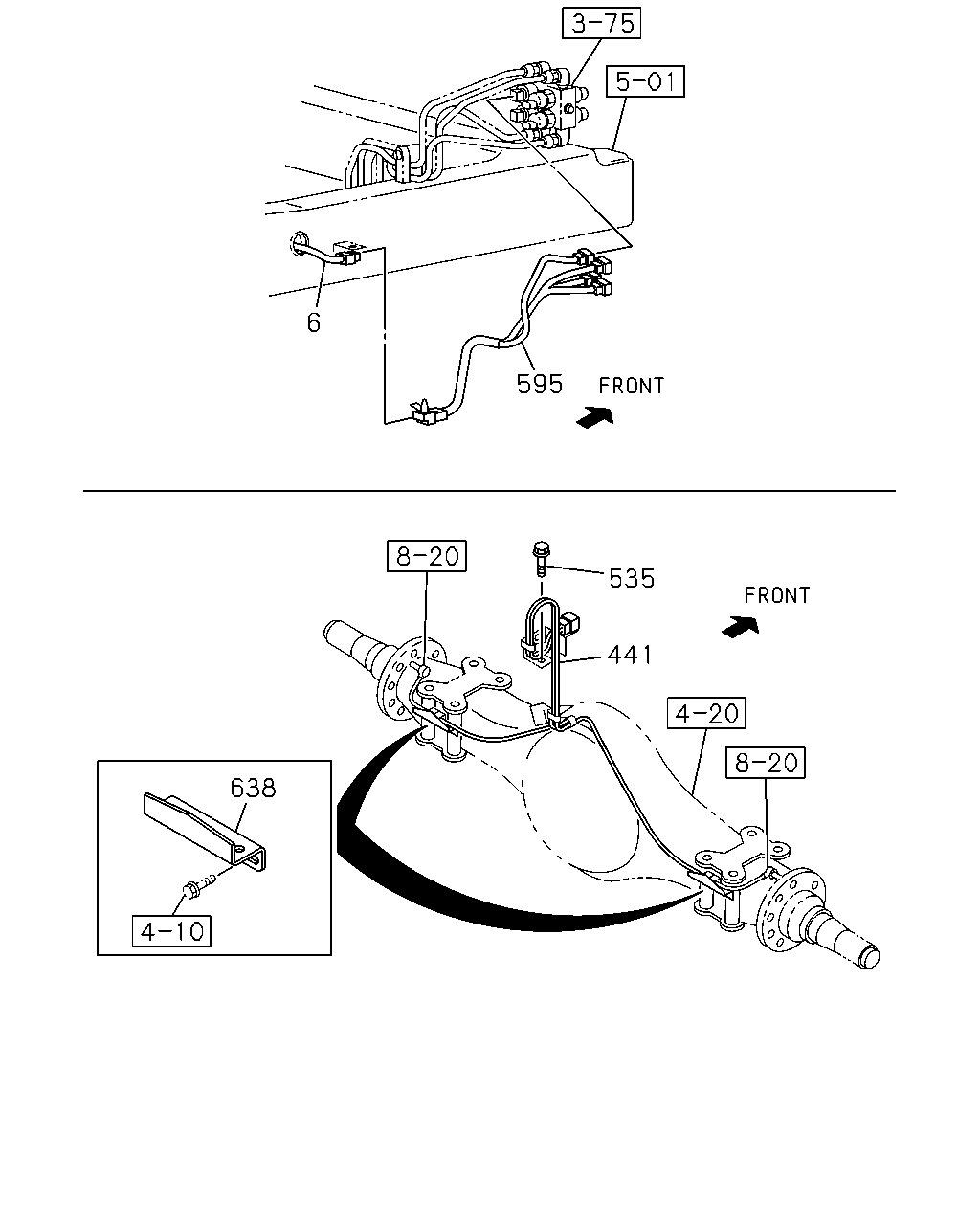

6 595 535 441 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98126-941-4	01	1	0906-
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98126-942-3	01	1	0906-
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	0906-
535	BOLT; BRKT FIX M8X10 W/LK WASHER	8-98029-928-0	02	1	0906-
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-005-3	01	1	0906-
595	HARNESS; WARNING,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-003-3	01	1	0906-
638	BRACKET; SPD SENSOR	8-98012-580-1	02	1	0906-

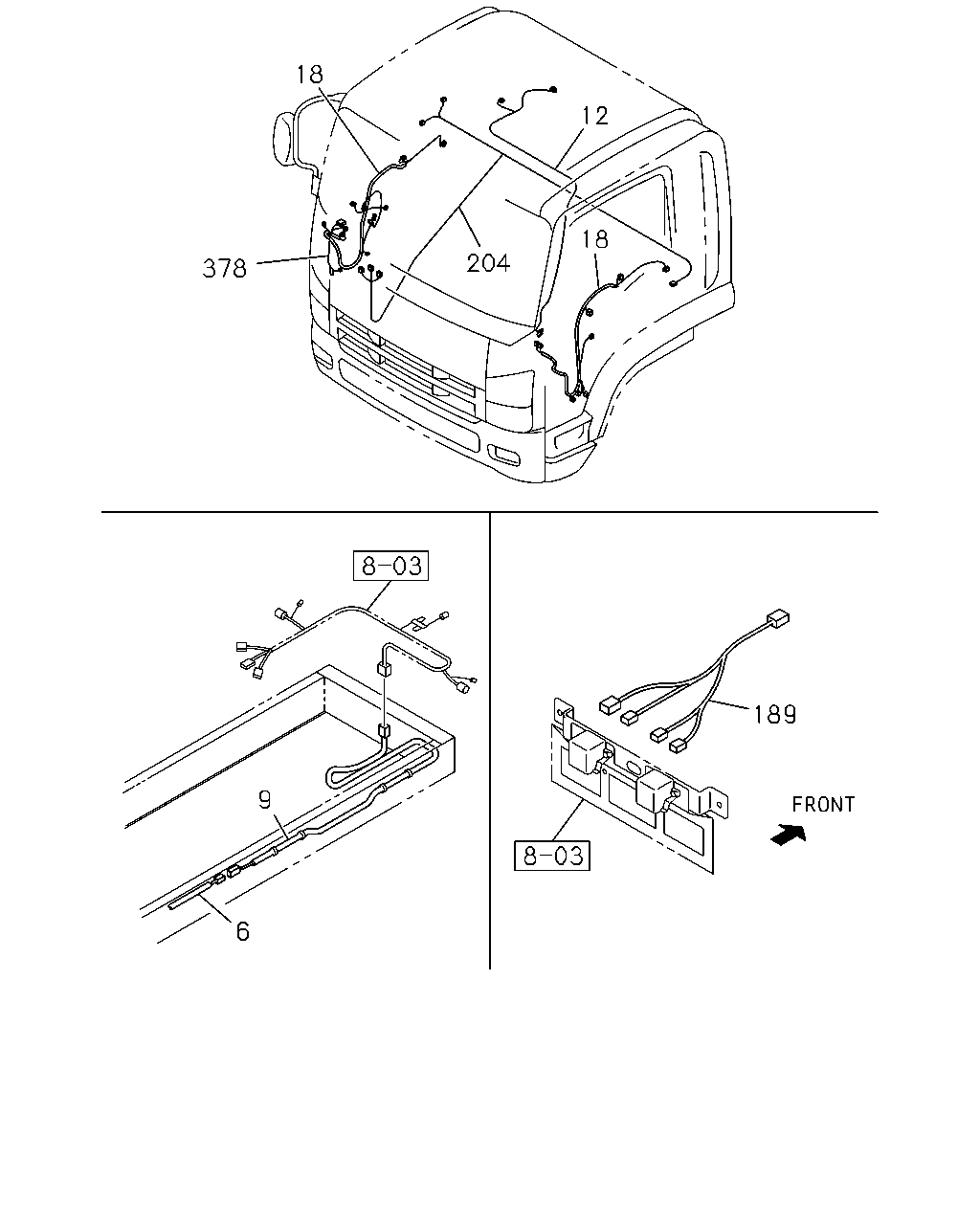

18 12 18 204 378 189 9 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98126-941-4	01	1	0906-
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98126-942-3	01	1	0906-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98079-239-3	01	1	0906-1007
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98168-595-0	01	1	1008-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W)	8-98064-328-1	01	1	0906-1007
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W)	8-98168-583-0	01	1	1008-
12	HARNESS; ROOF FLUORESCENT LAMP<6UC> EXC. LAMPS TWO ROOF MARKER<TEC>	8-98048-930-2	01	1	0906-
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> FLUORESCENT LAMP<6UC>	8-98079-071-1	01	1	0906-
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> EXC. FLUORESCENT LAMP<6UC>	8-98084-247-0	01	1	0906-
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC>,FLUORESCENT LAMP<6UC>	8-98041-948-2	01	1	0906-
18	HARNESS; DOOR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98108-439-1	01	1	0906-1202
18	HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98108-439-1	01	1	1203-
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98108-439-1	01	1	1203-
18	HARNESS; DOOR O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98108-440-1	01	1	0906-1202
18	HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98108-440-1	01	1	1203-
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98108-440-1	01	1	1203-
18	HARNESS; DOOR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98084-283-3	01	1	0906-1202
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98084-283-3	01	1	1203-
18	HARNESS; DOOR EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98084-288-3	01	1	0906-1202
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98084-288-3	01	1	1203-
189	HARNESS; EXT	8-98131-066-0	01	1	0906-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-194-0	01	1	0906-1008
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-194-0	01	1	1009-
204	HARNESS; CABLE,FLOOR AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98084-188-0	01	1	0906-1008
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98084-188-0	01	1	1009-
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-208-1	01	1	0906-
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98084-204-0	01	1	0906-
378	HARNESS; EXT,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98125-653-0	02	1	0906-
378	HARNESS; EXT,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98022-717-1	01	1	0906-
378	HARNESS; EXT,MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>	8-98125-654-0	02	1	0906-

13 6 6 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98126-941-4	01	1	0906-
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98126-942-3	01	1	0906-
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98088-066-1	01	1	0906-1010
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98177-206-0	01	1	1011-
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98088-067-1	01	1	0906-1010
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98177-207-0	01	1	1011-
533	CLIP L=180	1-09707-162-1	01	1	0906-1206
533	CLIP L=180	1-09707-162-1	01	1	0906-1206
533	CLIP L=180	1-09707-162-1	01	1	1207-
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=180	1-09707-162-1	01	1	1207-

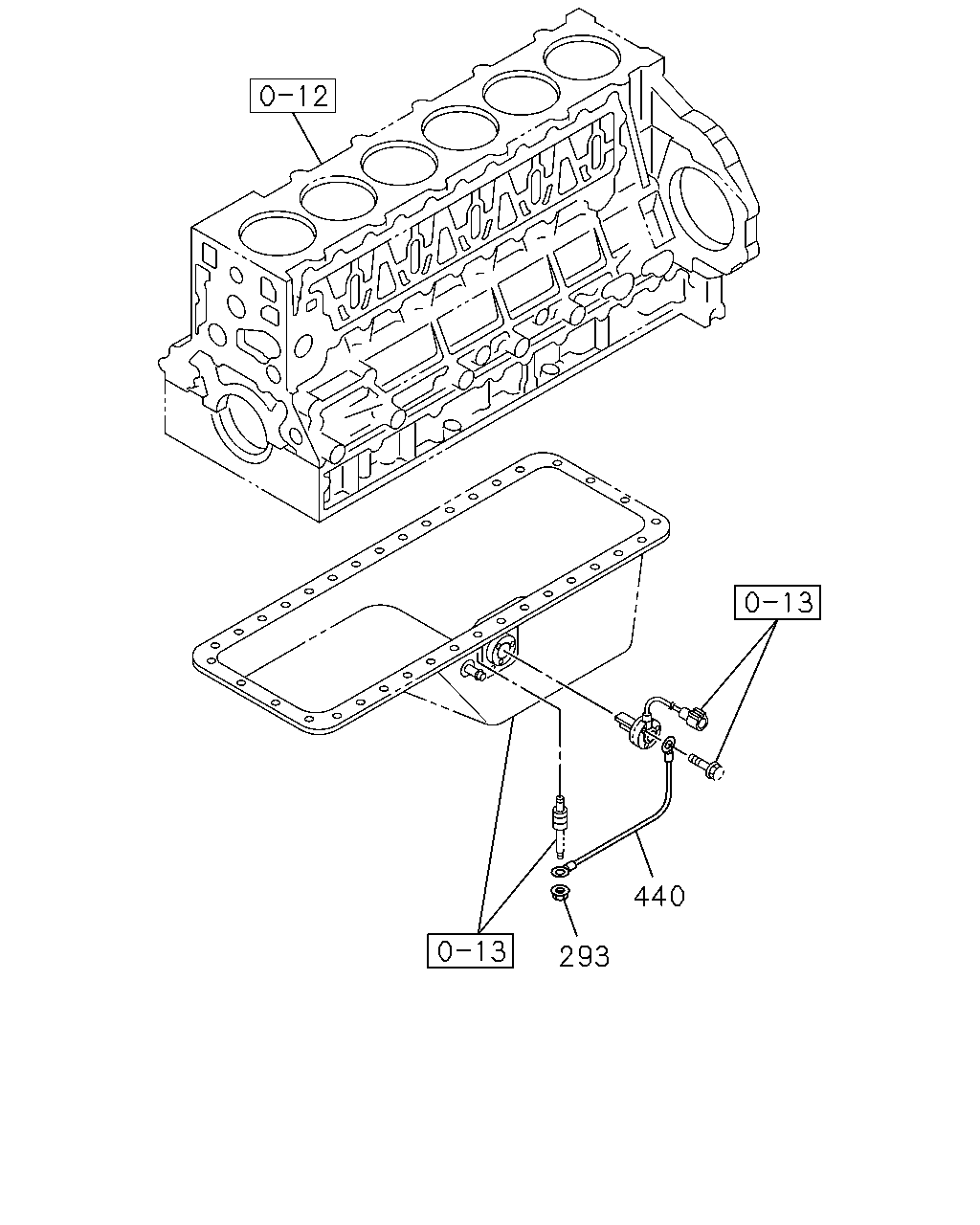

440 293

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	293	NUT M8 FLANGE	0-91180-108-0	01	1	0906-
	440	CABLE; EARTH	8-97606-639-0	01	1	0906-

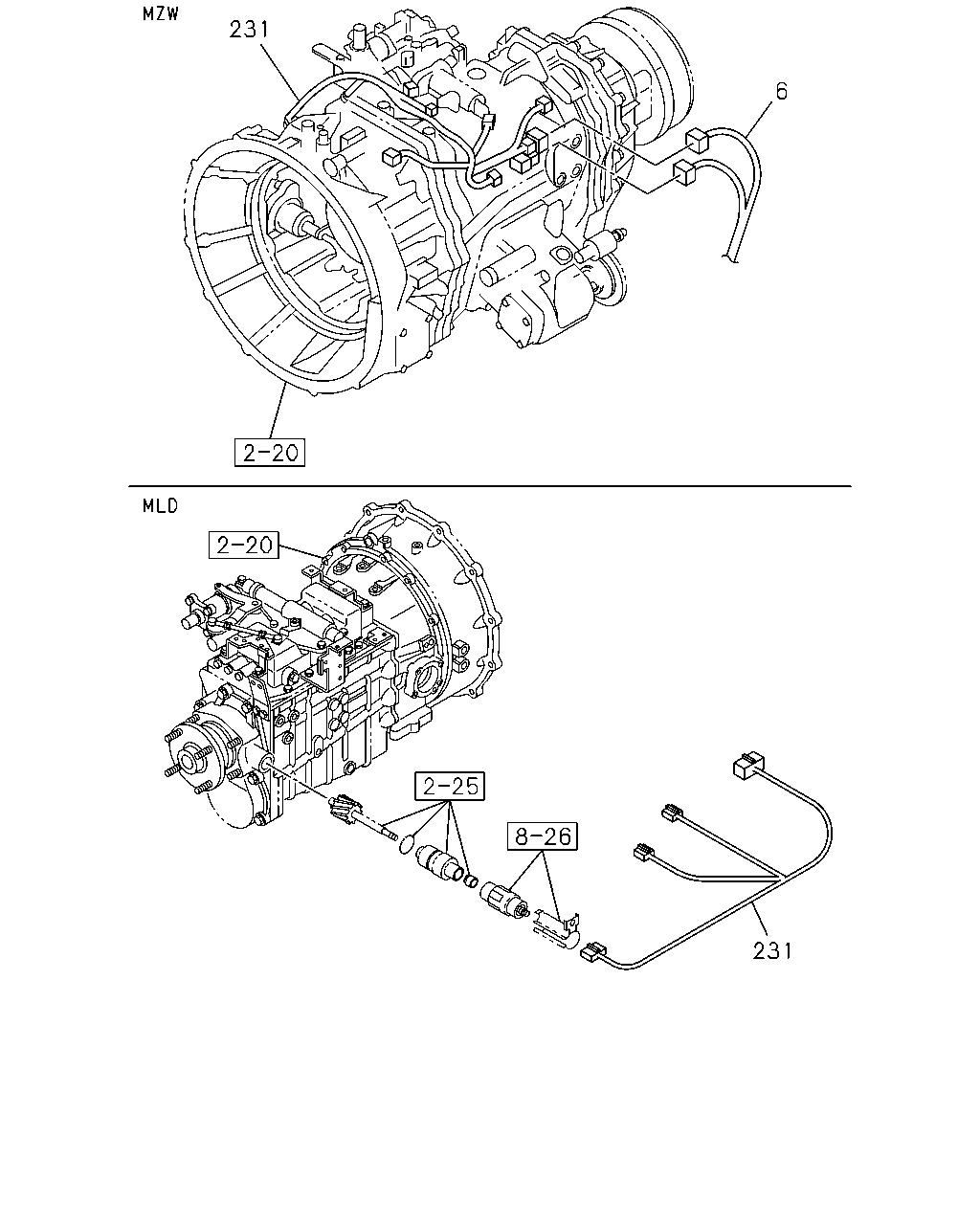

231 6 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98126-941-4	01	1	0906-
6	HARNESS; FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98126-942-3	01	1	0906-
231	HARNESS; TRANS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97626-769-1	01	1	0906-
231	HARNESS; TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97620-317-3	01	1	0906-
231	HARNESS; TRANS MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97618-932-2	01	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
