Isuzu WW
▶
TRUCKS
▶
FRR
▶
11232 - FRR RHD EURO5 EXC.SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶

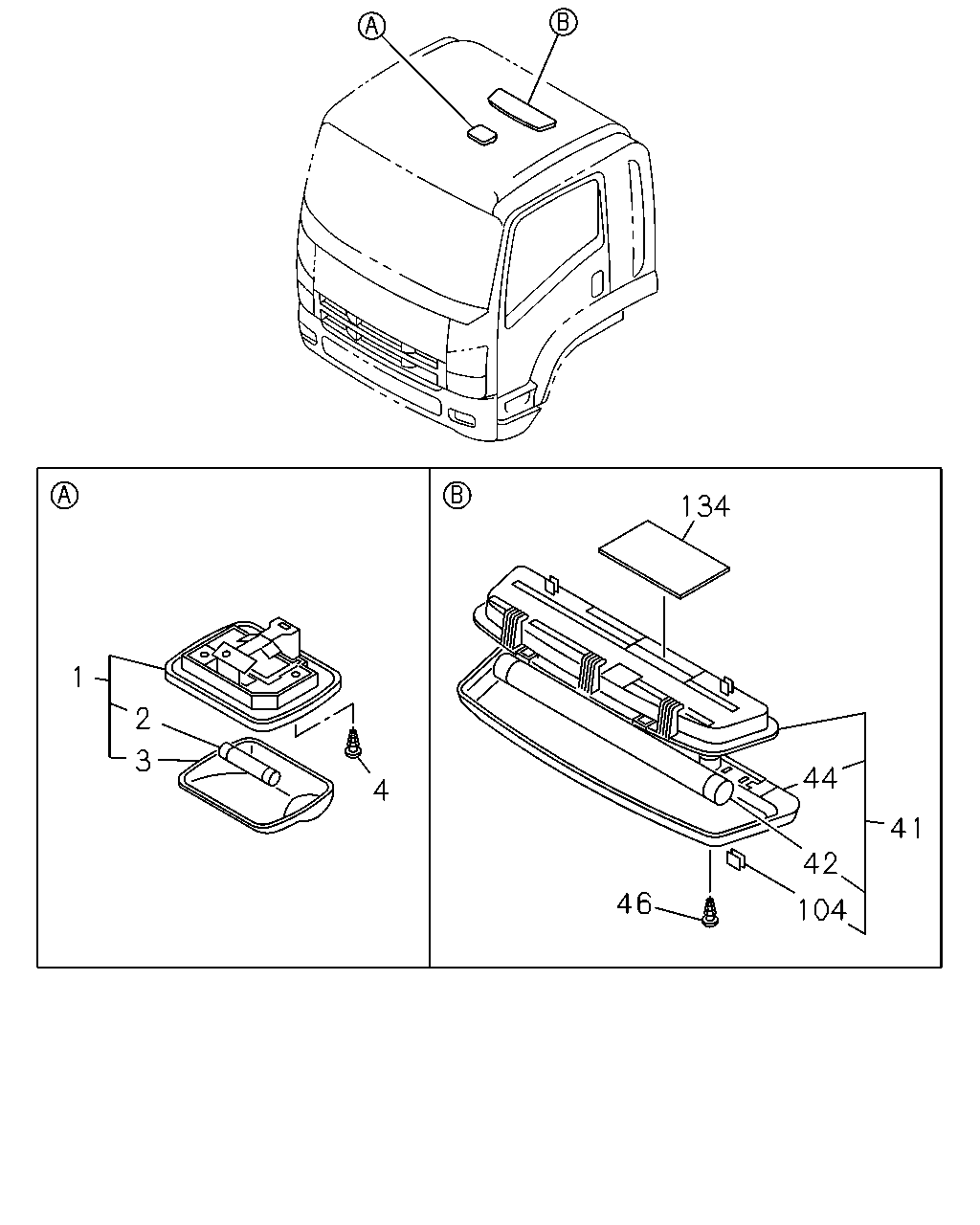

8-05 — INTERIOR LAMP
(#58725) — 10 parça
134
1
2
3
44
4
41
42
46
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; ROOM
8-98013-421-3
01
1
0906-
2
BULB; ROOM LAMP
24V 10W
5-82194-030-0
01
1
0906-
3
LENS; ROOM LAMP
8-98047-272-0
01
1
0906-
4
SCREW; ROOM LAMP
M5X14 W/WASHER
8-98075-766-0
02
1
0906-
41
LAMP ASM; FLUORESCENT
FLUORESCENT LAMP<6UC>
8-97387-587-1
01
1
0906-
42
LAMP; FLUORESCENT
FLUORESCENT LAMP<6UC> FL20SD
8-98056-311-0
01
1
0906-
44
LENS; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC>
8-98056-315-0
01
1
0906-
46
SCREW; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC> M6X12 FLANGE
0-28060-612-0
02
1
0906-
104
CLIP; LAMP
FLUORESCENT LAMP<6UC>
8-98056-322-0
02
1
0906-
134
SEAL; FLUORESCENT LAMP
FLUORESCENT LAMP<6UC>
8-98076-275-0
01
1
0906-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
