Isuzu WW
▶
BUSES
▶
LT
▶
11206 - LT134 LHD EURO2/3/5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#58716) — 20 parça
◀
[826A] NO.1 (11 parça)
[826A] NO.2 (9 parça)
▶
37
67
485
158
507
90
466
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; BRKT FIX
M6X16 FLANGE
0-28650-616-0
02
1
0909-
67
BRACKET; CONT UNIT
1-82699-720-0
01
1
0909-
90
BOLT; QOS CONTROLLER
ANTILOCK BRAKE SYSTEM<BFA> M6X20 W/LK&PL WASHER
8-94279-202-0
04
1
0909-1007
90
BOLT; QOS CONTROLLER
ANTILOCK BRAKE SYSTEM<BFA> M6X16 FLANGE
0-28650-616-0
04
1
1008-
158
CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM<BFA>
1-80119-261-0
01
1
0909-1201
158
CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM<BFA>
8-98170-648-0
01
1
1202-
466
NUT; CLIP
ANTILOCK BRAKE SYSTEM<BFA> M6 FLANGE
0-91180-106-0
04
1
0909-
485
CONTROL UNIT; SPEED SENSOR
1-80190-059-1
01
1
0909-1008
485
CONTROL UNIT; SPEED SENSOR
8-98140-862-0
01
1
1009-1109
485
CONTROL UNIT; SPEED SENSOR
1-80190-059-1
01
1
1110-
507
CONNECTOR
1-82690-974-0
01
1
0909-

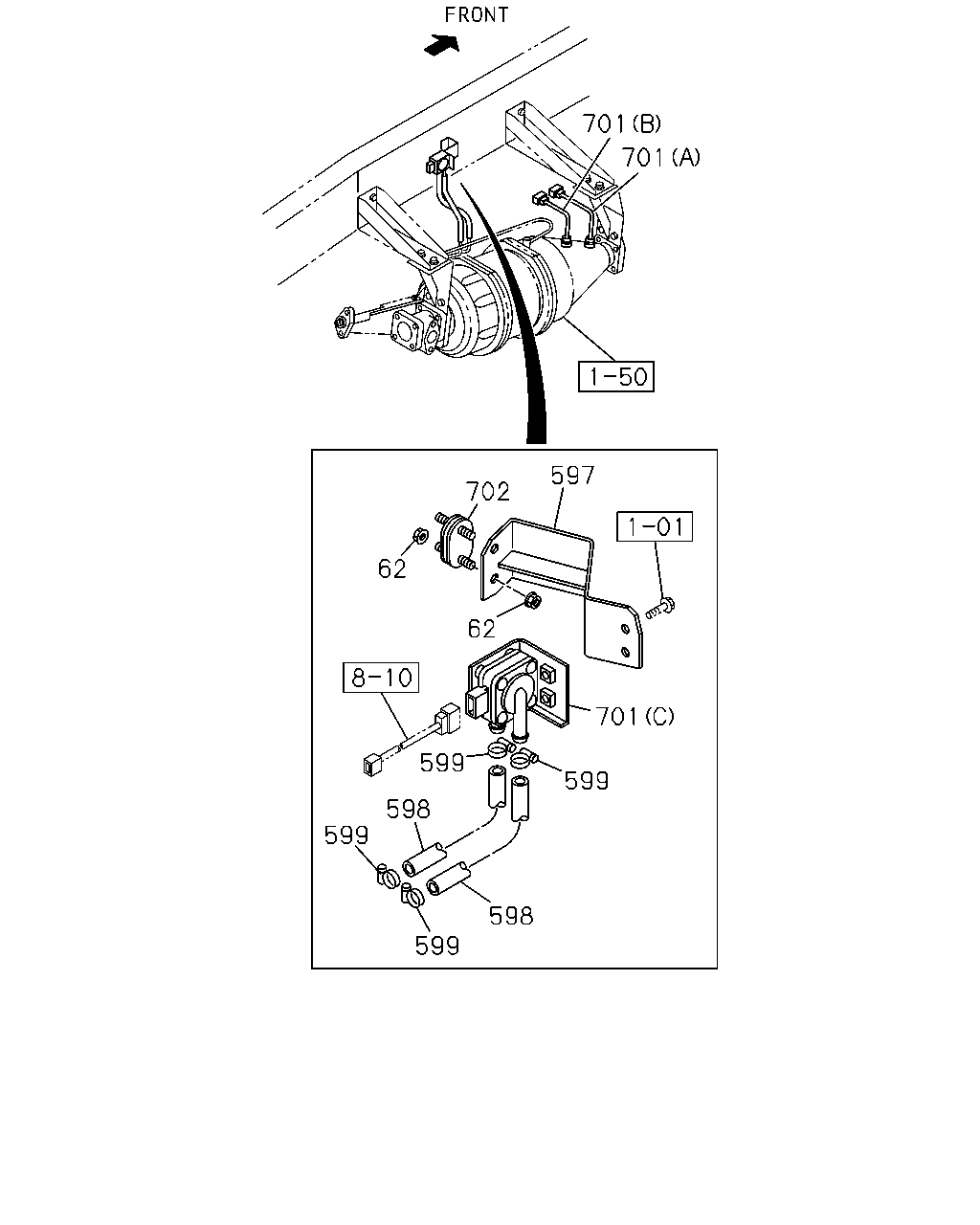

701
701
597
702
62
62
701
599
599
598
599
599
598
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
NUT; BRKT
EURO5 SPECIFICATION(NT5) M8 FLANGE
0-91180-108-0
04
1
1501-
597
BRACKET; SENSOR
EURO5 SPECIFICATION(NT5)
1-81359-032-1
01
1
1501-
598
HOSE; RUBBER,SENSOR
EURO5 SPECIFICATION(NT5) L=230 SERVICED BY L=3000
0-01558-300-0
01
1
1501-
598
HOSE; RUBBER,SENSOR
EURO5 SPECIFICATION(NT5) L=250 SERVICED BY L=3000
0-01558-300-0
01
1
1501-
599
CLIP; HOSE
EURO5 SPECIFICATION(NT5) ID=13
8-97329-627-0
04
1
1501-
701
SENSOR; DPD
EURO5 SPECIFICATION(NT5) (A)
8-97359-987-5
01
1
1501-
701
SENSOR; DPD
EURO5 SPECIFICATION(NT5) (B)
8-97359-989-5
01
1
1501-
701
SENSOR; DPD
EURO5 SPECIFICATION(NT5) (C)
8-97360-368-2
01
1
1501-
702
RUBBER; MOUNTING
EURO5 SPECIFICATION(NT5)
1-22159-379-0
01
1
1501-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
