8-21 — METER ASM (#58714) — 56 parça

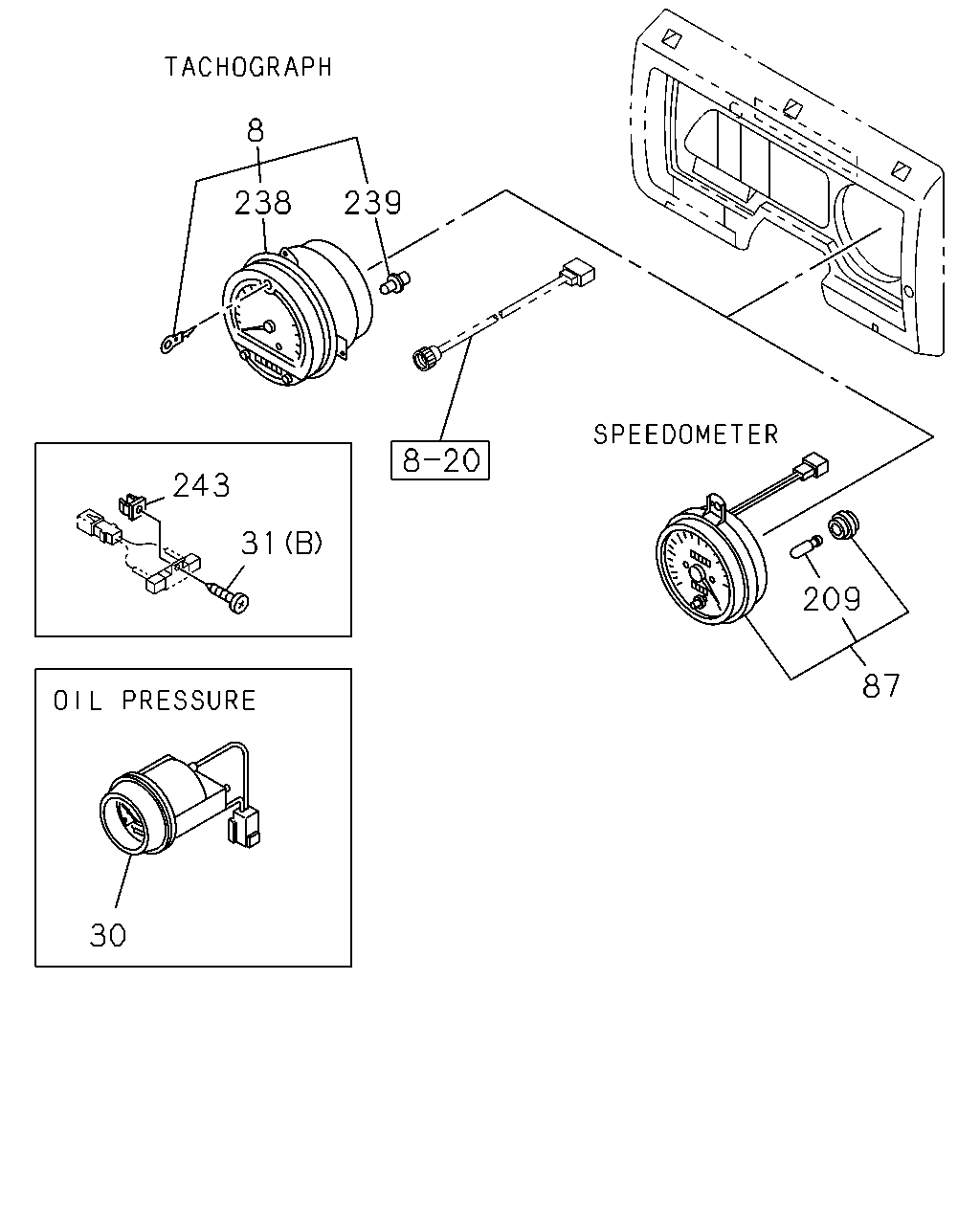

çizim 163418
8 238 239 243 31 30 209 87
BalonParca AdiParca NoAdetTipApplied Date
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 1DAY<SCX> 		8-98083-549-0 01 1 0909-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-98039-288-0 01 1 0909-
30 GAUGE; OIL PRESSURE
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-83150-232-0 01 1 0909-
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		0-71040-416-0 01 1 0909-
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		0-36230-620-0 08 1 0909-
87 SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> 		8-98039-480-0 01 1 0909-
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 0909-
238 PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> 		1-83129-311-0 01 1 0909-
239 BULB; TACHOGRAPH
TACHOGRAPH 140KM/H 1DAY<SCX>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		1-82194-101-0 03 1 0909-
243 GROMMET; SCREW
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> D=7.5X7.5 L=7 		8-94430-147-0 01 1 0909-

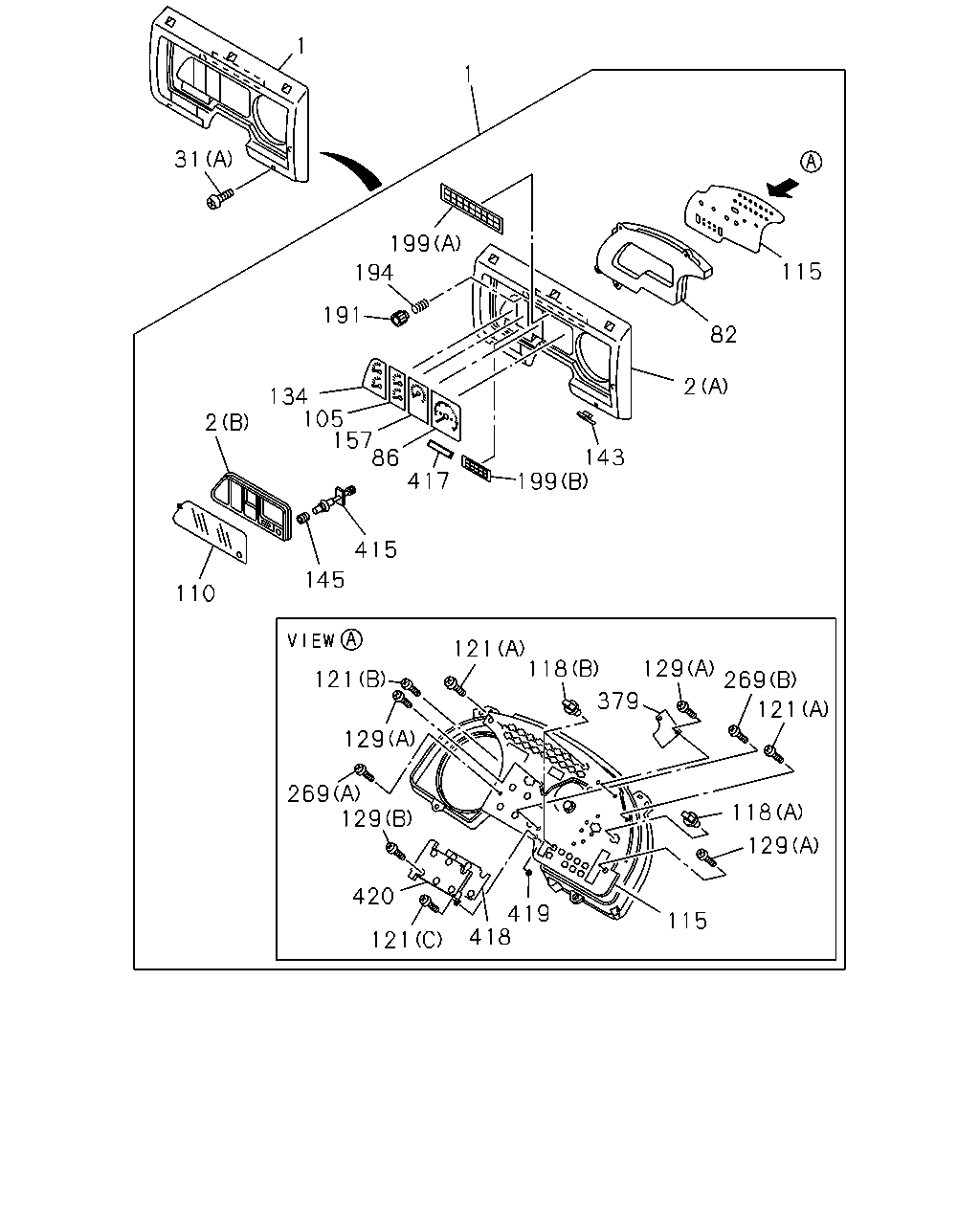

çizim 163423
1 1 31 199 194 191 134 105 157 86 417 415 145 2 110 121 129 269 129 420 121 418 115 419 129 118 121 269 121 118 379 129 199 143 2 82 115
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
EURO2 SPECIFICATION(NT2) 		8-98116-902-1 01 1 0909-
1 METER COMPL; CLUSTER
EURO3 SPECIFICATION(NT3) 		8-98052-850-1 01 1 0909-1105
1 METER COMPL; CLUSTER
EURO3 SPECIFICATION(NT3) 		8-98195-489-0 01 1 1106-1412
1 METER COMPL; CLUSTER
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) 		8-98195-489-0 01 1 1501-
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 0909-
2 PANEL; CLUSTER
(A) 		8-98045-366-0 01 1 0909-
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		0-71040-416-0 01 1 0909-
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		0-36230-620-0 08 1 0909-
82 CASE ASM; CLUSTER METER 8-98045-367-0 01 1 0909-
86 TACHOMETER; CLUSTER METER
EURO2 SPECIFICATION(NT2) 		1-83119-937-0 01 1 0909-
86 TACHOMETER; CLUSTER METER
EURO3 SPECIFICATION(NT3) 		1-83120-911-0 01 1 0909-1412
86 TACHOMETER; CLUSTER METER
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) 		1-83120-911-0 01 1 1501-
105 GAUGE; THERMO & FUEL,CLUSTER METER 8-98054-833-0 01 1 0909-
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 0909-
115 CIRCUIT; PRINTED,CLUSTER METER
EURO3 SPECIFICATION(NT3) 		8-98195-040-0 01 1 1106-1412
115 CIRCUIT; PRINTED,CLUSTER METER
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) 		8-98195-040-0 01 1 1501-
115 CIRCUIT; PRINTED,CLUSTER METER 8-98045-371-0 01 1 0909-1105
115 CIRCUIT; PRINTED,CLUSTER METER
EURO2 SPECIFICATION(NT2) 		8-98045-371-0 01 1 1106-
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0909-
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 26 1 0909-
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-084-0 01 1 0909-
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-515-0 05 1 0909-
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-676-0 02 1 0909-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-657-0 09 1 0909-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-675-0 06 1 0909-
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-284-0 01 1 0909-
143 COVER; CLUSTER METER 1-83119-516-0 05 1 0909-
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 0909-
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-261-0 01 1 0909-
191 KNOB; BULB CHECK 1-83119-672-0 01 1 0909-
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 0909-
199 LENS; WARNING LAMP
(A) 		8-98045-368-0 01 1 0909-
199 LENS; WARNING LAMP
(B) 		8-98045-369-1 01 1 0909-
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 0909-
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 05 1 0909-
379 CIRCUIT; DROP 1-83189-369-0 01 1 0909-
415 KNOB; TRIP,METER 1-83119-674-0 01 1 0909-
417 DISPLAY; ODO & TRIP,METER
EURO3 SPECIFICATION(NT3) 		8-98195-041-0 01 1 1106-1412
417 DISPLAY; ODO & TRIP,METER
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) 		8-98195-041-0 01 1 1501-
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 0909-1105
417 DISPLAY; ODO & TRIP,METER
EURO2 SPECIFICATION(NT2) 		1-83119-671-0 01 1 1106-
418 CIRCUIT; CONTROL,METER
EURO2 SPECIFICATION(NT2) 		1-83119-940-0 01 1 0909-
418 CIRCUIT; CONTROL,METER
EURO3 SPECIFICATION(NT3) 		8-98055-104-0 01 1 0909-1412
418 CIRCUIT; CONTROL,METER
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) 		8-98055-104-0 01 1 1501-
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 0909-
420 HEAT SINK; METER 1-83119-679-0 01 1 0909-
