Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#58712) — 540 parça

1 1 1 1 178 178 178 178 596 596 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER EURO3 SPECIFICATION(NT3) (B) ID=17 OD=21 L=40	1-09337-012-0	03	1	0909-1412
1	SLEEVE; RUBBER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) ID=17 OD=21 L=40	1-09337-012-0	03	1	1501-
1	SLEEVE; RUBBER EURO3 SPECIFICATION(NT3) (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	0909-1412
1	SLEEVE; RUBBER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	1501-
1	SLEEVE; RUBBER EURO3 SPECIFICATION(NT3) (D) ID=6 L=30	5-09360-352-0	01	1	0909-1412
1	SLEEVE; RUBBER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (D) ID=6 L=30	5-09360-352-0	01	1	1501-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	02	1	0909-
1	SLEEVE; RUBBER EURO2 SPECIFICATION(NT2) (B) ID=17 OD=21 L=40	1-09337-012-0	01	1	0909-
1	SLEEVE; RUBBER EURO2 SPECIFICATION(NT2) (C) ID=14 OD=18 L=60	1-09337-030-0	02	1	0909-
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=24 OD=30 T=17	9-09956-092-1	02	1	0909-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=17	9-09956-256-2	01	1	0909-1412
178	GROMMET; HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=28 OD=35 T=17	9-09956-256-2	01	1	1501-
178	GROMMET; HARNESS (B) ID=15 OD=20 T=17.5	1-09332-130-0	02	1	0909-
178	GROMMET; HARNESS (C) ID=24 OD=30 T=12	9-09956-093-1	01	1	0909-
503	CONNECTOR EURO5 SPECIFICATION(NT5) EXC. LOW DECK WO/REAR BODY<PK4>	1-82690-666-0	01	1	1501-
596	GROMMET EURO5 SPECIFICATION(NT5) (A) ID=32 OD=40 T=18	1-09891-003-0	01	1	1501-
596	GROMMET EURO5 SPECIFICATION(NT5) (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	1501-

305 489 264 206 194 102 16 48 14 163 170 102 48 16 162 14 16 16 489 171 264 218 206 102 16 14 251 212 208 194 171 166 165 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) L=250	1-09707-126-0	02	1	0909-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION(NT3) (C) L=250	5-09707-030-1	17	1	0909-1205
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION(NT3) (C) L=250	8-98216-430-0	17	1	1206-1412
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) L=250	8-98216-430-0	17	1	1501-
14	CLIP; BAND,HARNESS (B) L=180	1-09707-162-1	01	1	0909-1207
14	CLIP; BAND,HARNESS (B) L=180	8-98216-427-0	01	1	1208-
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION(NT2) (C) L=250	5-09707-030-1	12	1	0909-1205
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION(NT2) (C) L=250	8-98216-430-0	12	1	1206-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	01	1	0909-
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (C) ID=11 L=41	1-09700-403-0	01	1	1501-
16	CLIP; HARNESS MZW6P M/T(RSZ) (P) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1501-
16	CLIP; HARNESS MZW6P M/T(RSZ) (T) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	1501-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20	1-09700-871-0	02	1	0909-1510
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20	1-09700-871-0	01	1	1511-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (N) ID=11 L=16	0-95235-025-0	02	1	0909-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (O) ID=11 L=28	0-95235-055-0	02	1	0909-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (D) ID=11 L=20	0-95235-035-0	04	1	0909-
16	CLIP; HARNESS FULLER FS6306 M/T(MWO) (K) L=250	5-09707-030-1	03	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (C) ID=11 L=41	1-09700-403-0	04	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (P) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (R) ID=15 L=22 H=30	1-09701-215-1	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (S) L=382	1-09707-196-0	01	1	0909-
16	CLIP; HARNESS (M) L=350	1-09707-183-0	02	1	0909-1412
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (M) L=350	1-09707-183-0	02	1	1501-
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3) (E) ID=18 H=23 L=28	1-09700-860-0	01	1	0909-
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3) (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0909-1412
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1501-
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3) (J) L=180	1-09707-162-1	01	1	0909-1412
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (J) L=180	1-09707-162-1	01	1	1501-
16	CLIP; HARNESS LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	05	1	0909-1412
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3) (C) ID=11 L=41	1-09700-403-0	05	1	0909-1412
16	CLIP; HARNESS LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	05	1	1501-
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) ID=11 L=41	1-09700-403-0	05	1	1501-
16	CLIP; HARNESS LOW DECK WO/REAR BODY<PK4> (K) L=250	5-09707-030-1	04	1	0909-
16	CLIP; HARNESS MLD6Q M/T(X5J) (H) ID=14.5 L=20	1-09701-012-0	02	1	0909-
16	CLIP; HARNESS MLD6Q M/T(X5J) (L) OD=9 H=6	1-09709-178-0	01	1	0909-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	0909-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0909-
16	CLIP; HARNESS (B) ID=20 L=50	9-09917-430-0	07	1	0909-
16	CLIP; HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	02	1	0909-
16	CLIP; HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (I) ID=40 L=90	1-09701-290-0	04	1	0909-
16	CLIP; HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (K) L=250	5-09707-030-1	05	1	0909-
48	CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (F) ID=20 H=23 L=27	1-09700-861-0	04	1	1501-
48	CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (L) ID=25 L=75	1-09701-275-0	03	1	1501-
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0909-
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (I) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0909-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) (P) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0909-
48	CLIP; FRAME HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	03	1	0909-1412
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (F) ID=20 H=23 L=27	1-09700-861-0	03	1	1501-
48	CLIP; FRAME HARNESS (L) ID=25 L=75	1-09701-275-0	04	1	0909-1412
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L) ID=25 L=75	1-09701-275-0	04	1	1501-
48	CLIP; FRAME HARNESS EURO3 SPECIFICATION(NT3) (D) ID=18 H=23 L=28	1-09700-860-0	01	1	0909-
48	CLIP; FRAME HARNESS LOW DECK WO/REAR BODY<PK4> (S) ID=28 L=58	1-09700-400-0	03	1	0909-
48	CLIP; FRAME HARNESS LOW DECK WO/REAR BODY<PK4> (C) ID=33 L=63	1-09700-807-0	25	1	0909-
48	CLIP; FRAME HARNESS LOW DECK WO/REAR BODY<PK4> (R) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	0909-
48	CLIP; FRAME HARNESS LOW DECK WO/REAR BODY<PK4> (G) ID=35 L=33	1-09700-945-0	05	1	0909-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41	1-09700-403-0	01	1	0909-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140	5-09707-031-1	01	1	0909-
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0909-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50	9-09917-430-0	01	1	0909-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (T) ID=33 L=83	1-09701-291-0	19	1	0909-
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (T) ID=33 L=83	1-09701-291-0	21	1	0909-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	04	1	0909-
48	CLIP; FRAME HARNESS (Q) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0909-
48	CLIP; FRAME HARNESS (R) ID=34.5 H=23 L=27.5	1-09700-905-0	06	1	0909-
48	CLIP; FRAME HARNESS (J) ID=31.5 H=23 L=25	1-09701-017-0	02	1	0909-
48	CLIP; FRAME HARNESS (K) ID=28 L=40	1-09701-261-0	01	1	0909-
48	CLIP; FRAME HARNESS (N) L=180	1-09707-162-1	01	1	0909-
48	CLIP; FRAME HARNESS (O) L=350	1-09707-183-0	01	1	0909-
48	CLIP; FRAME HARNESS (M) ID=40 L=90	1-09701-290-0	04	1	0909-
48	CLIP; FRAME HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (M) ID=40 L=90	1-09701-290-0	04	1	0909-
48	CLIP; FRAME HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (P) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0909-
48	CLIP; FRAME HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (G) ID=35 L=33	1-09700-945-0	04	1	0909-
49	CLIP; GEN HARNESS EURO2 SPECIFICATION(NT2) (C) ID=26 L=26	1-09701-236-0	01	1	0909-
49	CLIP; GEN HARNESS EURO2 SPECIFICATION(NT2) (D) L=140	5-09707-031-1	01	1	0909-
49	CLIP; GEN HARNESS EURO3 SPECIFICATION(NT3) (C) ID=26 L=26	1-09701-236-0	02	1	0909-1412
49	CLIP; GEN HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) ID=26 L=26	1-09701-236-0	02	1	1501-
49	CLIP; GEN HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0909-
49	CLIP; GEN HARNESS (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0909-
102	CLIP; BAND MLD6Q M/T(X5J) (B) L=250	5-09707-030-1	01	1	0909-1412
102	CLIP; BAND MZW6P M/T(RSZ),MLD6Q M/T(X5J) (B) L=250	5-09707-030-1	01	1	1501-
102	CLIP; BAND FULLER M/T<X9B> (C) L=180	1-09707-162-1	02	1	0909-
102	CLIP; BAND (A) L=350	1-09707-183-0	02	1	0909-
162	CLIP; SW HARNESS (A) ID=32 L=35	1-09701-244-0	01	1	0909-
162	CLIP; SW HARNESS (B) L=300	1-09707-001-1	02	1	0909-
162	CLIP; SW HARNESS (C) ID=20 L=50	9-09917-430-0	03	1	0909-
162	CLIP; SW HARNESS (D) ID=22 L=52	9-09917-431-0	01	1	0909-
163	CLIP; METER HARNESS (A) L=500	1-09707-082-1	02	1	0909-
163	CLIP; METER HARNESS (B) ID=14 L=44	9-09917-427-0	01	1	0909-
163	CLIP; METER HARNESS (C) ID=20 L=50	9-09917-430-0	01	1	0909-
165	CLIP; BAND COMB SW L=140	5-09707-031-1	01	1	0909-
166	CLIP; HARNESS CLU SW (A) ID=11 L=41	1-09700-403-0	04	1	0909-
166	CLIP; HARNESS CLU SW (B) L=140	5-09707-031-1	01	1	0909-
170	CLIP; ELEC HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	03	1	0909-
170	CLIP; ELEC HARNESS (B) ID=11 L=41	1-09700-403-0	02	1	0909-
170	CLIP; ELEC HARNESS (C) ID=28 L=40	1-09700-995-1	01	1	0909-
170	CLIP; ELEC HARNESS (D) ID=14 L=44	9-09917-427-0	04	1	0909-
170	CLIP; ELEC HARNESS (E) ID=20 L=50	9-09917-430-0	02	1	0909-
170	CLIP; ELEC HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	01	1	0909-
171	CLIP; STARTER HARNESS EURO5 SPECIFICATION(NT5) (B) L=140	5-09707-031-1	05	1	1501-
171	CLIP; STARTER HARNESS EURO2 SPECIFICATION(NT2) (A) L=152	1-09707-193-0	04	1	0909-
171	CLIP; STARTER HARNESS EURO3 SPECIFICATION(NT3) (A) L=152	1-09707-193-0	02	1	0909-
194	CLIP; BAND EURO5 SPECIFICATION(NT5) EXC. LOW DECK WO/REAR BODY<PK4> (B) L=180	1-09707-162-1	06	1	1501-
194	CLIP; BAND (B) L=180	1-09707-162-1	05	1	0909-1412
194	CLIP; BAND EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=180	1-09707-162-1	05	1	1501-
194	CLIP; BAND EURO5 SPECIFICATION(NT5) LOW DECK WO/REAR BODY<PK4> (B) L=180	1-09707-162-1	05	1	1501-
194	CLIP; BAND DOOR CONTROL AIR W/SUB AIR TANK<SGW> AIR HORN(WB8) (A) L=140	5-09707-031-1	01	1	0909-
194	CLIP; BAND EXC. LOW DECK WO/REAR BODY<PK4> (A) L=140	5-09707-031-1	01	1	0909-
206	CLIP; FUEL TANK HARNESS TAIWAN EQUIPMENT(WW5) (C) L=180	8-98216-427-0	01	1	1501-
206	CLIP; FUEL TANK HARNESS LOW DECK WO/REAR BODY<PK4> (B) L=250	5-09707-030-1	04	1	0909-
206	CLIP; FUEL TANK HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0909-
206	CLIP; FUEL TANK HARNESS LOW DECK WO/REAR BODY<PK4> (A) ID=11 L=41	1-09700-403-0	02	1	0909-
206	CLIP; FUEL TANK HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (B) L=250	5-09707-030-1	02	1	0909-
208	CLIP; HARNESS,MAG VLV EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=41	1-09700-403-0	02	1	0909-
208	CLIP; HARNESS,MAG VLV (A) L=140	5-09707-031-1	01	1	0909-
212	CLIP; HORN HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	0909-
212	CLIP; HORN HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	0909-
212	CLIP; HORN HARNESS EXC. AIR HORN(WB8) (C) ID=11 L=41	1-09700-403-0	01	1	0909-
212	CLIP; HORN HARNESS EXC. AIR HORN(WB8) (D) L=140	5-09707-031-1	01	1	0909-
218	CLIP; BAND,RR COMB L=250	5-09707-030-1	02	1	0909-
251	CLIP; WATER LEVEL HARNESS (B) ID=11 L=40	0-95235-075-0	01	1	0909-
251	CLIP; WATER LEVEL HARNESS (A) ID=11 L=50	0-95235-085-0	02	1	0909-
251	CLIP; WATER LEVEL HARNESS (C) L=140	5-09707-031-1	01	1	0909-
264	CLIP; HARNESS,HEADLAMP (A) L=180	1-09707-162-1	02	1	0909-
264	CLIP; HARNESS,HEADLAMP (B) L=250	5-09707-030-1	02	1	0909-
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (E) ID=16 L=28	0-95235-556-0	03	1	1501-
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (H) L=140	8-97122-360-0	01	1	1501-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	0909-1412
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	1501-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (E) ID=16 L=28	0-95235-556-0	01	1	0909-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (B) ID=21 L=47.5	8-94178-108-0	01	1	0909-1412
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) ID=21 L=47.5	8-94178-108-0	01	1	1501-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0909-1412
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1501-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (D) ID=18 L=44	8-97367-985-1	04	1	0909-1412
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (D) ID=18 L=44	8-97367-985-1	04	1	1501-
305	CLIP; ENG HARNESS (A) T=1.2 ID=11 L=20	0-95235-036-0	01	1	0909-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (F) ID=25 H=30 L=35	1-09700-875-0	01	1	0909-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (D) ID=18 L=44	8-97367-985-1	02	1	0909-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (G) ID=21 L=24	8-98019-191-0	03	1	0909-
489	CLIP; HARNESS,OIL PRESS SW EURO2 SPECIFICATION(NT2) (A) L=202	1-09707-194-0	02	1	0909-
489	CLIP; HARNESS,OIL PRESS SW EURO3 SPECIFICATION(NT3) (B) L=180	1-09707-162-1	01	1	0909-1412
489	CLIP; HARNESS,OIL PRESS SW EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) L=180	1-09707-162-1	01	1	1501-

16 166 48 167 206 170 208 223 212 235 163 425 612 230 170 16 425 48 162 163 170 162 48 48 48 581 48 48 16 48 48 48 48 305 49 49 48 16 48 16 48 16 16 48 16 16 170 49 612 305 16 16 16 251 305 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (C) ID=11 L=41	1-09700-403-0	01	1	1501-

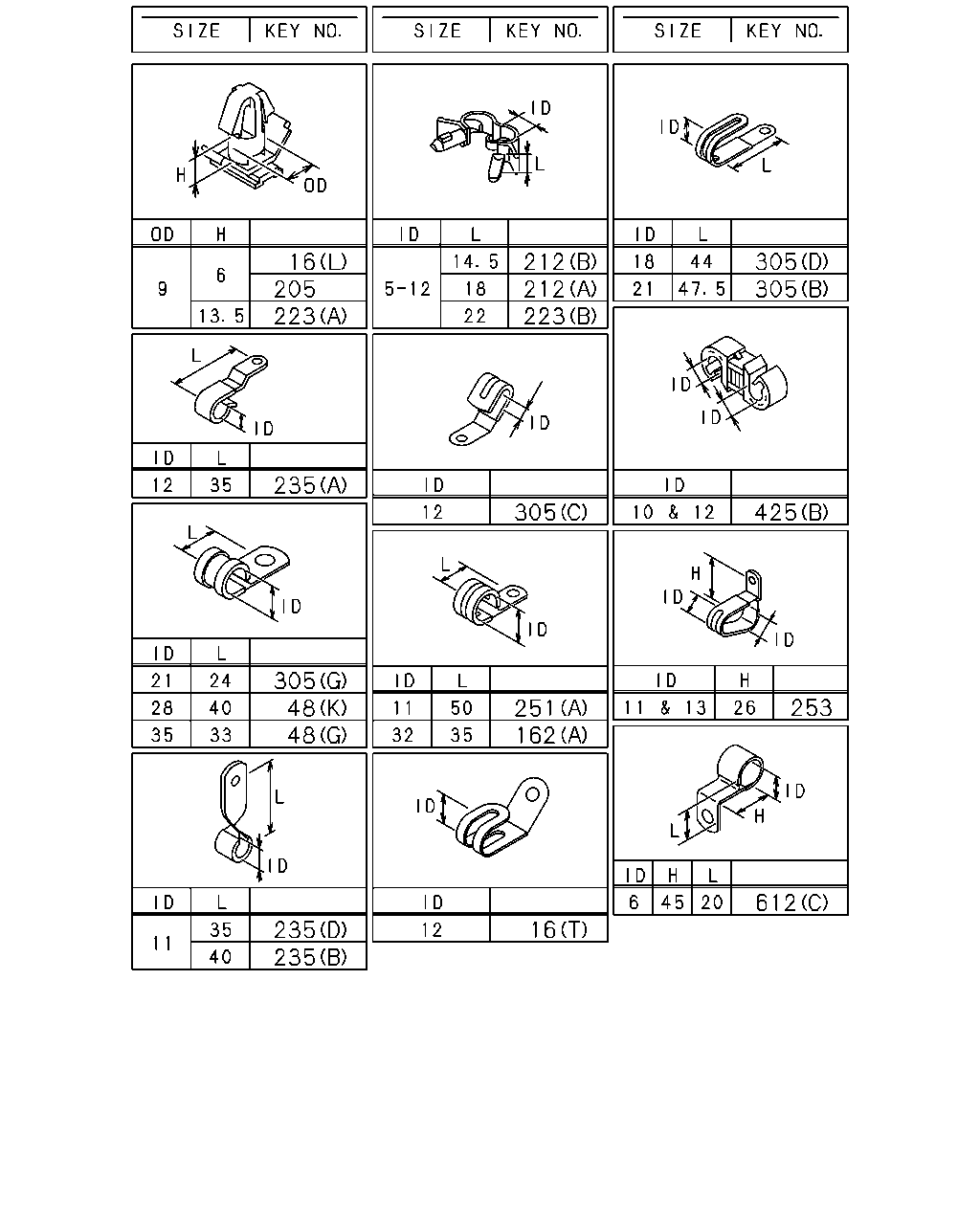

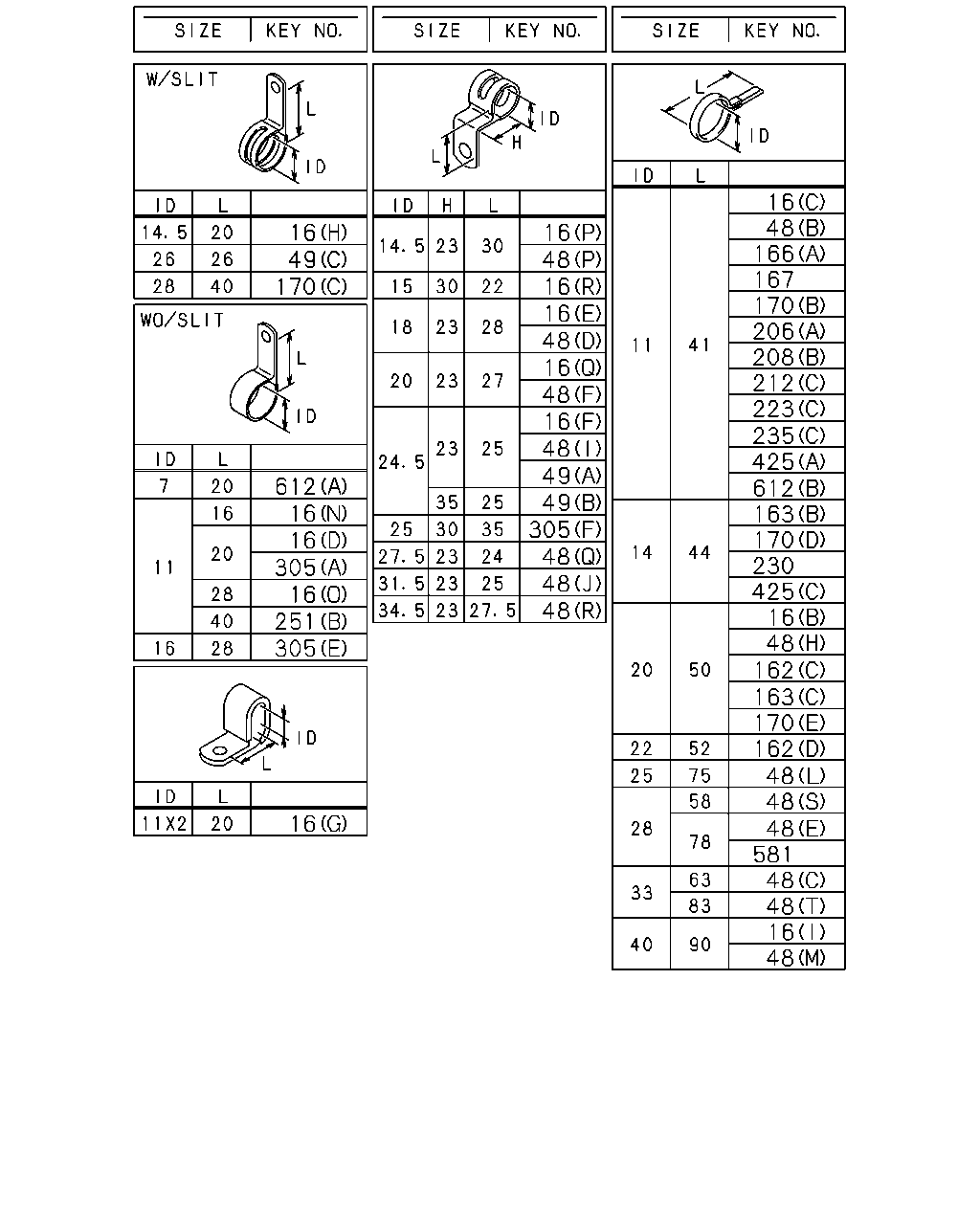

16	CLIP; HARNESS MZW6P M/T(RSZ) (P) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1501-
16	CLIP; HARNESS MZW6P M/T(RSZ) (T) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	1501-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20	1-09700-871-0	02	1	0909-1510
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20	1-09700-871-0	01	1	1511-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (N) ID=11 L=16	0-95235-025-0	02	1	0909-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (O) ID=11 L=28	0-95235-055-0	02	1	0909-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (D) ID=11 L=20	0-95235-035-0	04	1	0909-
16	CLIP; HARNESS FULLER FS6306 M/T(MWO) (K) L=250	5-09707-030-1	03	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (C) ID=11 L=41	1-09700-403-0	04	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (P) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (R) ID=15 L=22 H=30	1-09701-215-1	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (S) L=382	1-09707-196-0	01	1	0909-
16	CLIP; HARNESS (M) L=350	1-09707-183-0	02	1	0909-1412
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (M) L=350	1-09707-183-0	02	1	1501-
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3) (E) ID=18 H=23 L=28	1-09700-860-0	01	1	0909-
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3) (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0909-1412
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1501-
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3) (J) L=180	1-09707-162-1	01	1	0909-1412
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (J) L=180	1-09707-162-1	01	1	1501-
16	CLIP; HARNESS LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	05	1	0909-1412
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3) (C) ID=11 L=41	1-09700-403-0	05	1	0909-1412
16	CLIP; HARNESS LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	05	1	1501-
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) ID=11 L=41	1-09700-403-0	05	1	1501-
16	CLIP; HARNESS LOW DECK WO/REAR BODY<PK4> (K) L=250	5-09707-030-1	04	1	0909-
16	CLIP; HARNESS MLD6Q M/T(X5J) (H) ID=14.5 L=20	1-09701-012-0	02	1	0909-
16	CLIP; HARNESS MLD6Q M/T(X5J) (L) OD=9 H=6	1-09709-178-0	01	1	0909-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	0909-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0909-
16	CLIP; HARNESS (B) ID=20 L=50	9-09917-430-0	07	1	0909-
16	CLIP; HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	02	1	0909-
16	CLIP; HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (I) ID=40 L=90	1-09701-290-0	04	1	0909-
16	CLIP; HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (K) L=250	5-09707-030-1	05	1	0909-
48	CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (F) ID=20 H=23 L=27	1-09700-861-0	04	1	1501-
48	CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (L) ID=25 L=75	1-09701-275-0	03	1	1501-
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0909-
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (I) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0909-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) (P) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0909-
48	CLIP; FRAME HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	03	1	0909-1412
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (F) ID=20 H=23 L=27	1-09700-861-0	03	1	1501-
48	CLIP; FRAME HARNESS (L) ID=25 L=75	1-09701-275-0	04	1	0909-1412
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L) ID=25 L=75	1-09701-275-0	04	1	1501-
48	CLIP; FRAME HARNESS EURO3 SPECIFICATION(NT3) (D) ID=18 H=23 L=28	1-09700-860-0	01	1	0909-
48	CLIP; FRAME HARNESS LOW DECK WO/REAR BODY<PK4> (S) ID=28 L=58	1-09700-400-0	03	1	0909-
48	CLIP; FRAME HARNESS LOW DECK WO/REAR BODY<PK4> (C) ID=33 L=63	1-09700-807-0	25	1	0909-
48	CLIP; FRAME HARNESS LOW DECK WO/REAR BODY<PK4> (R) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	0909-
48	CLIP; FRAME HARNESS LOW DECK WO/REAR BODY<PK4> (G) ID=35 L=33	1-09700-945-0	05	1	0909-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41	1-09700-403-0	01	1	0909-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140	5-09707-031-1	01	1	0909-
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0909-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50	9-09917-430-0	01	1	0909-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (T) ID=33 L=83	1-09701-291-0	19	1	0909-
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (T) ID=33 L=83	1-09701-291-0	21	1	0909-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	04	1	0909-
48	CLIP; FRAME HARNESS (Q) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0909-
48	CLIP; FRAME HARNESS (R) ID=34.5 H=23 L=27.5	1-09700-905-0	06	1	0909-
48	CLIP; FRAME HARNESS (J) ID=31.5 H=23 L=25	1-09701-017-0	02	1	0909-
48	CLIP; FRAME HARNESS (K) ID=28 L=40	1-09701-261-0	01	1	0909-
48	CLIP; FRAME HARNESS (N) L=180	1-09707-162-1	01	1	0909-
48	CLIP; FRAME HARNESS (O) L=350	1-09707-183-0	01	1	0909-
48	CLIP; FRAME HARNESS (M) ID=40 L=90	1-09701-290-0	04	1	0909-
48	CLIP; FRAME HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (M) ID=40 L=90	1-09701-290-0	04	1	0909-
48	CLIP; FRAME HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (P) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0909-
48	CLIP; FRAME HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (G) ID=35 L=33	1-09700-945-0	04	1	0909-
49	CLIP; GEN HARNESS EURO2 SPECIFICATION(NT2) (C) ID=26 L=26	1-09701-236-0	01	1	0909-
49	CLIP; GEN HARNESS EURO2 SPECIFICATION(NT2) (D) L=140	5-09707-031-1	01	1	0909-
49	CLIP; GEN HARNESS EURO3 SPECIFICATION(NT3) (C) ID=26 L=26	1-09701-236-0	02	1	0909-1412
49	CLIP; GEN HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) ID=26 L=26	1-09701-236-0	02	1	1501-
49	CLIP; GEN HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0909-
49	CLIP; GEN HARNESS (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0909-
162	CLIP; SW HARNESS (A) ID=32 L=35	1-09701-244-0	01	1	0909-
162	CLIP; SW HARNESS (B) L=300	1-09707-001-1	02	1	0909-
162	CLIP; SW HARNESS (C) ID=20 L=50	9-09917-430-0	03	1	0909-
162	CLIP; SW HARNESS (D) ID=22 L=52	9-09917-431-0	01	1	0909-
163	CLIP; METER HARNESS (A) L=500	1-09707-082-1	02	1	0909-
163	CLIP; METER HARNESS (B) ID=14 L=44	9-09917-427-0	01	1	0909-
163	CLIP; METER HARNESS (C) ID=20 L=50	9-09917-430-0	01	1	0909-
166	CLIP; HARNESS CLU SW (A) ID=11 L=41	1-09700-403-0	04	1	0909-
166	CLIP; HARNESS CLU SW (B) L=140	5-09707-031-1	01	1	0909-
167	CLIP; HARNESS ACCEL & STOP ID=11 L=41	1-09700-403-0	02	1	0909-
170	CLIP; ELEC HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	03	1	0909-
170	CLIP; ELEC HARNESS (B) ID=11 L=41	1-09700-403-0	02	1	0909-
170	CLIP; ELEC HARNESS (C) ID=28 L=40	1-09700-995-1	01	1	0909-
170	CLIP; ELEC HARNESS (D) ID=14 L=44	9-09917-427-0	04	1	0909-
170	CLIP; ELEC HARNESS (E) ID=20 L=50	9-09917-430-0	02	1	0909-
170	CLIP; ELEC HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	01	1	0909-
206	CLIP; FUEL TANK HARNESS TAIWAN EQUIPMENT(WW5) (C) L=180	8-98216-427-0	01	1	1501-
206	CLIP; FUEL TANK HARNESS LOW DECK WO/REAR BODY<PK4> (B) L=250	5-09707-030-1	04	1	0909-
206	CLIP; FUEL TANK HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0909-
206	CLIP; FUEL TANK HARNESS LOW DECK WO/REAR BODY<PK4> (A) ID=11 L=41	1-09700-403-0	02	1	0909-
206	CLIP; FUEL TANK HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (B) L=250	5-09707-030-1	02	1	0909-
208	CLIP; HARNESS,MAG VLV EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=41	1-09700-403-0	02	1	0909-
208	CLIP; HARNESS,MAG VLV (A) L=140	5-09707-031-1	01	1	0909-
212	CLIP; HORN HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	0909-
212	CLIP; HORN HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	0909-
212	CLIP; HORN HARNESS EXC. AIR HORN(WB8) (C) ID=11 L=41	1-09700-403-0	01	1	0909-
212	CLIP; HORN HARNESS EXC. AIR HORN(WB8) (D) L=140	5-09707-031-1	01	1	0909-
223	CLIP; AIR TANK HARNESS LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	02	1	0909-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=13.5	1-09709-180-0	01	1	0909-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	0909-
223	CLIP; AIR TANK HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	04	1	0909-
230	CLIP; C/MBR HARNESS ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> ID=14 L=44	9-09917-427-0	04	1	0909-
235	CLIP; HARNESS,SPD SENSOR,SSPS MZW6P M/T(RSZ) (D) ID=11 L=35	9-09917-036-1	01	1	1501-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	11	1	0909-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (B) ID=11 L=40	8-94123-171-1	02	1	0909-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6Q M/T(X5J) (A) ID=12 L=35	5-09700-206-0	01	1	0909-
251	CLIP; WATER LEVEL HARNESS (B) ID=11 L=40	0-95235-075-0	01	1	0909-
251	CLIP; WATER LEVEL HARNESS (A) ID=11 L=50	0-95235-085-0	02	1	0909-
251	CLIP; WATER LEVEL HARNESS (C) L=140	5-09707-031-1	01	1	0909-
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (E) ID=16 L=28	0-95235-556-0	03	1	1501-
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (H) L=140	8-97122-360-0	01	1	1501-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	0909-1412
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	1501-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (E) ID=16 L=28	0-95235-556-0	01	1	0909-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (B) ID=21 L=47.5	8-94178-108-0	01	1	0909-1412
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) ID=21 L=47.5	8-94178-108-0	01	1	1501-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0909-1412
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1501-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (D) ID=18 L=44	8-97367-985-1	04	1	0909-1412
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (D) ID=18 L=44	8-97367-985-1	04	1	1501-
305	CLIP; ENG HARNESS (A) T=1.2 ID=11 L=20	0-95235-036-0	01	1	0909-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (F) ID=25 H=30 L=35	1-09700-875-0	01	1	0909-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (D) ID=18 L=44	8-97367-985-1	02	1	0909-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (G) ID=21 L=24	8-98019-191-0	03	1	0909-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (A) ID=11 L=41	1-09700-403-0	07	1	0909-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (B) ID=10 & 12	1-09709-278-1	01	1	0909-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (C) ID=14 L=44	9-09917-427-0	03	1	0909-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=11 L=41	1-09700-403-0	01	1	0909-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=10 & 12	1-09709-278-1	02	1	0909-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (C) ID=14 L=44	9-09917-427-0	02	1	0909-
581	CLIP; HARNESS,REAR SUSP LOW DECK WO/REAR BODY<PK4> ID=28 L=78	1-09700-858-0	04	1	0909-
612	CLIP; HARNESS DPD EURO5 SPECIFICATION(NT5) (A) ID=7 L=20	0-95234-635-0	01	1	1501-
612	CLIP; HARNESS DPD EURO5 SPECIFICATION(NT5) (B) ID=11 L=41	1-09700-403-0	04	1	1501-
612	CLIP; HARNESS DPD EURO5 SPECIFICATION(NT5) (C) ID=6 H=45 L=20	1-09700-824-0	01	1	1501-

53 53 53 53 53 53 53 53 59 279 308 308 308 308 308

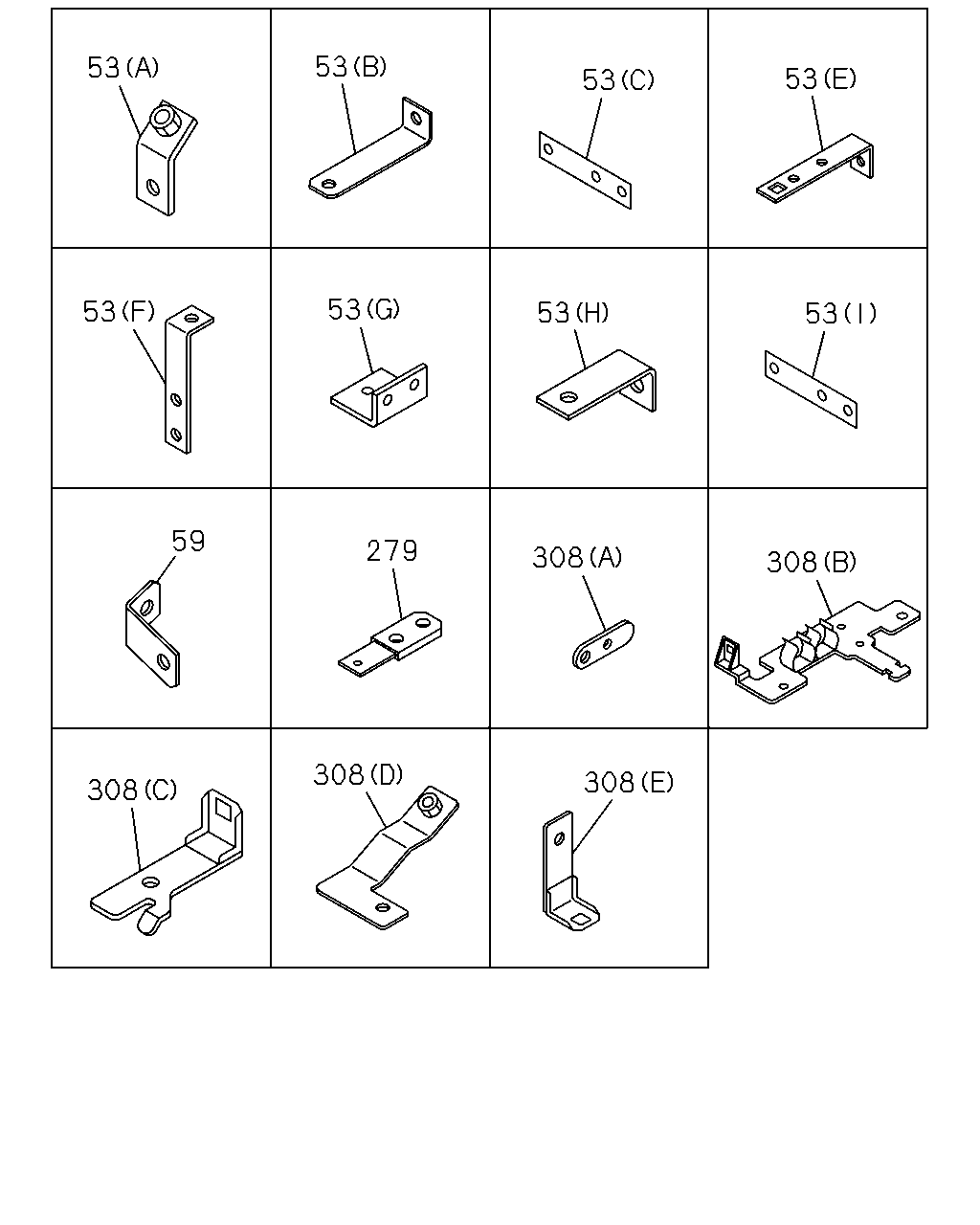

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS EURO5 SPECIFICATION(NT5) (H) L=55	1-47476-177-0	01	1	1501-
53	BRACKET; HARNESS EURO5 SPECIFICATION(NT5) (I)	1-47479-118-0	01	1	1501-
53	BRACKET; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A)	8-98014-419-0	01	1	0909-
53	BRACKET; HARNESS (F) L=90	1-47477-755-1	01	1	0909-1412
53	BRACKET; HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (F) L=90	1-47477-755-1	01	1	1501-
53	BRACKET; HARNESS LOW DECK WO/REAR BODY<PK4> (D) L=95	1-82699-085-0	01	1	0909-
53	BRACKET; HARNESS EURO3 SPECIFICATION(NT3) (D) L=95	1-82699-085-0	01	1	0909-
53	BRACKET; HARNESS (D) L=95	1-82699-085-0	01	1	0909-
53	BRACKET; HARNESS LOW DECK WO/REAR BODY<PK4> (G)	1-47478-422-0	01	1	0909-
53	BRACKET; HARNESS LOW DECK WO/REAR BODY<PK4> (C) L=130	1-47478-959-0	01	1	0909-
53	BRACKET; HARNESS (B) L=145	1-47475-655-0	03	1	0909-
53	BRACKET; HARNESS (E) L=120	1-82699-963-0	02	1	0909-
59	BRACKET; FRAME HARNESS EXC. LOW DECK WO/REAR BODY<PK4>	1-82699-199-0	03	1	0909-
279	STAY; HARNESS	1-82699-873-0	02	1	0909-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION(NT3) (A)	8-97601-310-0	01	1	0909-1412
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-97601-310-0	01	1	1501-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION(NT3) (C)	8-98021-291-2	01	1	0909-1412
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C)	8-98021-291-2	01	1	1501-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97612-280-1	01	1	0909-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION(NT2) (D)	8-98032-178-0	01	1	0909-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION(NT2) (E)	8-98075-824-0	01	1	0909-

612 253 25 305 305 223 212 212 223 205 16 235 305 48 48 251 162 16 235 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (C) ID=11 L=41	1-09700-403-0	01	1	1501-
16	CLIP; HARNESS MZW6P M/T(RSZ) (P) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1501-
16	CLIP; HARNESS MZW6P M/T(RSZ) (T) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	1501-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20	1-09700-871-0	02	1	0909-1510
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20	1-09700-871-0	01	1	1511-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (N) ID=11 L=16	0-95235-025-0	02	1	0909-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (O) ID=11 L=28	0-95235-055-0	02	1	0909-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (D) ID=11 L=20	0-95235-035-0	04	1	0909-
16	CLIP; HARNESS FULLER FS6306 M/T(MWO) (K) L=250	5-09707-030-1	03	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (C) ID=11 L=41	1-09700-403-0	04	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (P) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (R) ID=15 L=22 H=30	1-09701-215-1	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (S) L=382	1-09707-196-0	01	1	0909-
16	CLIP; HARNESS (M) L=350	1-09707-183-0	02	1	0909-1412
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (M) L=350	1-09707-183-0	02	1	1501-
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3) (E) ID=18 H=23 L=28	1-09700-860-0	01	1	0909-
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3) (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0909-1412
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1501-
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3) (J) L=180	1-09707-162-1	01	1	0909-1412
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (J) L=180	1-09707-162-1	01	1	1501-
16	CLIP; HARNESS LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	05	1	0909-1412
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3) (C) ID=11 L=41	1-09700-403-0	05	1	0909-1412
16	CLIP; HARNESS LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	05	1	1501-
16	CLIP; HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) ID=11 L=41	1-09700-403-0	05	1	1501-
16	CLIP; HARNESS LOW DECK WO/REAR BODY<PK4> (K) L=250	5-09707-030-1	04	1	0909-
16	CLIP; HARNESS MLD6Q M/T(X5J) (H) ID=14.5 L=20	1-09701-012-0	02	1	0909-
16	CLIP; HARNESS MLD6Q M/T(X5J) (L) OD=9 H=6	1-09709-178-0	01	1	0909-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	0909-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0909-
16	CLIP; HARNESS (B) ID=20 L=50	9-09917-430-0	07	1	0909-
16	CLIP; HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	02	1	0909-
16	CLIP; HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (I) ID=40 L=90	1-09701-290-0	04	1	0909-
16	CLIP; HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (K) L=250	5-09707-030-1	05	1	0909-
48	CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (F) ID=20 H=23 L=27	1-09700-861-0	04	1	1501-
48	CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (L) ID=25 L=75	1-09701-275-0	03	1	1501-
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0909-
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (I) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0909-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) (P) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0909-
48	CLIP; FRAME HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	03	1	0909-1412
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (F) ID=20 H=23 L=27	1-09700-861-0	03	1	1501-
48	CLIP; FRAME HARNESS (L) ID=25 L=75	1-09701-275-0	04	1	0909-1412
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L) ID=25 L=75	1-09701-275-0	04	1	1501-
48	CLIP; FRAME HARNESS EURO3 SPECIFICATION(NT3) (D) ID=18 H=23 L=28	1-09700-860-0	01	1	0909-
48	CLIP; FRAME HARNESS LOW DECK WO/REAR BODY<PK4> (S) ID=28 L=58	1-09700-400-0	03	1	0909-
48	CLIP; FRAME HARNESS LOW DECK WO/REAR BODY<PK4> (C) ID=33 L=63	1-09700-807-0	25	1	0909-
48	CLIP; FRAME HARNESS LOW DECK WO/REAR BODY<PK4> (R) ID=34.5 H=23 L=27.5	1-09700-905-0	04	1	0909-
48	CLIP; FRAME HARNESS LOW DECK WO/REAR BODY<PK4> (G) ID=35 L=33	1-09700-945-0	05	1	0909-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41	1-09700-403-0	01	1	0909-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140	5-09707-031-1	01	1	0909-
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0909-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50	9-09917-430-0	01	1	0909-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (T) ID=33 L=83	1-09701-291-0	19	1	0909-
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (T) ID=33 L=83	1-09701-291-0	21	1	0909-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	04	1	0909-
48	CLIP; FRAME HARNESS (Q) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0909-
48	CLIP; FRAME HARNESS (R) ID=34.5 H=23 L=27.5	1-09700-905-0	06	1	0909-
48	CLIP; FRAME HARNESS (J) ID=31.5 H=23 L=25	1-09701-017-0	02	1	0909-
48	CLIP; FRAME HARNESS (K) ID=28 L=40	1-09701-261-0	01	1	0909-
48	CLIP; FRAME HARNESS (N) L=180	1-09707-162-1	01	1	0909-
48	CLIP; FRAME HARNESS (O) L=350	1-09707-183-0	01	1	0909-
48	CLIP; FRAME HARNESS (M) ID=40 L=90	1-09701-290-0	04	1	0909-
48	CLIP; FRAME HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (M) ID=40 L=90	1-09701-290-0	04	1	0909-
48	CLIP; FRAME HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (P) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0909-
48	CLIP; FRAME HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (G) ID=35 L=33	1-09700-945-0	04	1	0909-
162	CLIP; SW HARNESS (A) ID=32 L=35	1-09701-244-0	01	1	0909-
162	CLIP; SW HARNESS (B) L=300	1-09707-001-1	02	1	0909-
162	CLIP; SW HARNESS (C) ID=20 L=50	9-09917-430-0	03	1	0909-
162	CLIP; SW HARNESS (D) ID=22 L=52	9-09917-431-0	01	1	0909-
205	CLIP; BACK LAMP HARNESS MZW6P M/T(RSZ) OD=9 H=6	8-97368-793-0	02	1	1501-
205	CLIP; BACK LAMP HARNESS MLD6Q M/T(X5J) OD=9 H=6	1-09709-178-0	01	1	0909-
212	CLIP; HORN HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	0909-
212	CLIP; HORN HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	03	1	0909-
212	CLIP; HORN HARNESS EXC. AIR HORN(WB8) (C) ID=11 L=41	1-09700-403-0	01	1	0909-
212	CLIP; HORN HARNESS EXC. AIR HORN(WB8) (D) L=140	5-09707-031-1	01	1	0909-
223	CLIP; AIR TANK HARNESS LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	02	1	0909-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=13.5	1-09709-180-0	01	1	0909-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	0909-
223	CLIP; AIR TANK HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	04	1	0909-
235	CLIP; HARNESS,SPD SENSOR,SSPS MZW6P M/T(RSZ) (D) ID=11 L=35	9-09917-036-1	01	1	1501-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (C) ID=11 L=41	1-09700-403-0	11	1	0909-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (B) ID=11 L=40	8-94123-171-1	02	1	0909-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6Q M/T(X5J) (A) ID=12 L=35	5-09700-206-0	01	1	0909-
251	CLIP; WATER LEVEL HARNESS (B) ID=11 L=40	0-95235-075-0	01	1	0909-
251	CLIP; WATER LEVEL HARNESS (A) ID=11 L=50	0-95235-085-0	02	1	0909-
251	CLIP; WATER LEVEL HARNESS (C) L=140	5-09707-031-1	01	1	0909-
253	CLIP; CABLE FIX LOW DECK WO/REAR BODY<PK4> ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0909-
253	CLIP; CABLE FIX EXC. LOW DECK WO/REAR BODY<PK4> ID=11 & 13 H=26 L=48	1-09701-270-0	06	1	0909-
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (E) ID=16 L=28	0-95235-556-0	03	1	1501-
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (H) L=140	8-97122-360-0	01	1	1501-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	0909-1412
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	1501-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (E) ID=16 L=28	0-95235-556-0	01	1	0909-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (B) ID=21 L=47.5	8-94178-108-0	01	1	0909-1412
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) ID=21 L=47.5	8-94178-108-0	01	1	1501-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0909-1412
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1501-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3) (D) ID=18 L=44	8-97367-985-1	04	1	0909-1412
305	CLIP; ENG HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (D) ID=18 L=44	8-97367-985-1	04	1	1501-
305	CLIP; ENG HARNESS (A) T=1.2 ID=11 L=20	0-95235-036-0	01	1	0909-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (F) ID=25 H=30 L=35	1-09700-875-0	01	1	0909-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (D) ID=18 L=44	8-97367-985-1	02	1	0909-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (G) ID=21 L=24	8-98019-191-0	03	1	0909-
612	CLIP; HARNESS DPD EURO5 SPECIFICATION(NT5) (A) ID=7 L=20	0-95234-635-0	01	1	1501-
612	CLIP; HARNESS DPD EURO5 SPECIFICATION(NT5) (B) ID=11 L=41	1-09700-403-0	04	1	1501-
612	CLIP; HARNESS DPD EURO5 SPECIFICATION(NT5) (C) ID=6 H=45 L=20	1-09700-824-0	01	1	1501-

312 312 312 324 334 334 324 324 334 375 375 542 312 312 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS EURO5 SPECIFICATION(NT5) (H) L=55	1-47476-177-0	01	1	1501-
53	BRACKET; HARNESS EURO5 SPECIFICATION(NT5) (I)	1-47479-118-0	01	1	1501-
53	BRACKET; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A)	8-98014-419-0	01	1	0909-
53	BRACKET; HARNESS (F) L=90	1-47477-755-1	01	1	0909-1412
53	BRACKET; HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (F) L=90	1-47477-755-1	01	1	1501-
53	BRACKET; HARNESS LOW DECK WO/REAR BODY<PK4> (D) L=95	1-82699-085-0	01	1	0909-
53	BRACKET; HARNESS EURO3 SPECIFICATION(NT3) (D) L=95	1-82699-085-0	01	1	0909-
53	BRACKET; HARNESS (D) L=95	1-82699-085-0	01	1	0909-
53	BRACKET; HARNESS LOW DECK WO/REAR BODY<PK4> (G)	1-47478-422-0	01	1	0909-
53	BRACKET; HARNESS LOW DECK WO/REAR BODY<PK4> (C) L=130	1-47478-959-0	01	1	0909-
53	BRACKET; HARNESS (B) L=145	1-47475-655-0	03	1	0909-
53	BRACKET; HARNESS (E) L=120	1-82699-963-0	02	1	0909-
312	BRACKET; CLIP HARNESS MZW6P M/T(RSZ) (D)	1-47479-630-1	01	1	1501-
312	BRACKET; CLIP HARNESS MZW6P M/T(RSZ) (E) L=82 B=20	8-98259-390-0	01	1	1501-
312	BRACKET; CLIP HARNESS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (C) L=40	1-47478-410-0	01	1	0909-1412
312	BRACKET; CLIP HARNESS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (C) L=40	1-47478-410-0	01	1	1501-
312	BRACKET; CLIP HARNESS MZW6P M/T(RSZ) (C) L=40	1-47478-410-0	01	1	1501-
312	BRACKET; CLIP HARNESS FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J) (A) L=60	1-47475-455-0	01	1	0909-
312	BRACKET; CLIP HARNESS FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J) (B) L=75	1-47478-323-0	01	1	0909-
324	BRACKET; CLIP ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (C)	8-98133-729-0	02	1	0909-
324	BRACKET; CLIP ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-47476-393-0	02	1	0909-
324	BRACKET; CLIP ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (A)	8-98044-308-0	01	1	0909-
324	BRACKET; CLIP ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (A)	8-98044-309-0	01	1	0909-
334	BRACKET ANTILOCK BRAKE SYSTEM<BFA> (B) L=110	1-82699-589-0	01	1	0909-
334	BRACKET LOW DECK WO/REAR BODY<PK4> (C) L=130	1-47478-959-0	01	1	0909-
334	BRACKET (A)	1-82698-495-2	02	1	0909-
375	BRACKET; AC GEN HARNESS CLIP EURO3 SPECIFICATION(NT3) (B)	8-98056-647-0	01	1	0909-1412
375	BRACKET; AC GEN HARNESS CLIP EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-98056-647-0	01	1	1501-
375	BRACKET; AC GEN HARNESS CLIP (A)	1-47475-702-0	01	1	0909-
542	TUBE; DISTANCE,FUEL	8-97377-804-0	01	1	0909-

38 38 139 304 242 38 304 304 313 38 38 55 423 38 313 169 371 38 150 139 242 38 139 313 313 38 139 313 242 38 173 242 38 173 219 47 219 294 297 340 515 525 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

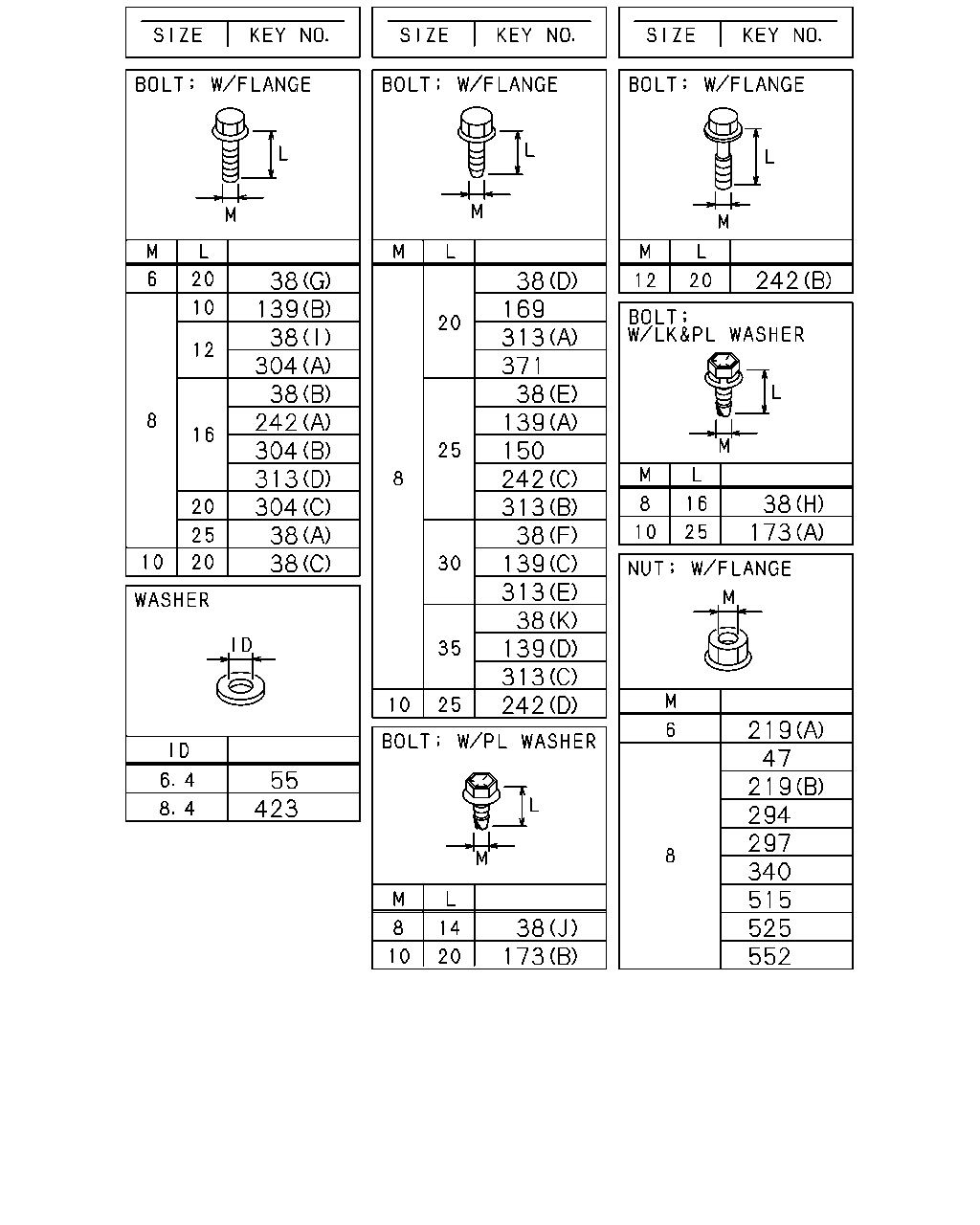

38	BOLT; CLIP,HARNESS EURO5 SPECIFICATION(NT5) (K) M8X35 FLANGE	0-28650-835-0	01	1	1501-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (D) M8X20 FLANGE	0-28650-820-0	06	1	0909-1510
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (D) M8X20 FLANGE	0-28650-820-0	05	1	1511-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) M8X30 FLANGE	0-28650-830-0	01	1	0909-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE	0-28650-825-0	02	1	0909-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	0909-
38	BOLT; CLIP,HARNESS FULLER FS6306 M/T(MWO) (D) M8X20 FLANGE	0-28650-820-0	01	1	0909-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	0909-1412
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (E) M8X25 FLANGE	0-28650-825-0	01	1	1501-
38	BOLT; CLIP,HARNESS LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE	0-28650-825-0	05	1	0909-
38	BOLT; CLIP,HARNESS LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE	0-28650-825-0	07	1	0909-
38	BOLT; CLIP,HARNESS MLD6Q M/T(X5J) (D) M8X20 FLANGE	0-28650-820-0	03	1	0909-1412
38	BOLT; CLIP,HARNESS MZW6P M/T(RSZ),MLD6Q M/T(X5J) (D) M8X20 FLANGE	0-28650-820-0	03	1	1501-
38	BOLT; CLIP,HARNESS MLD6Q M/T(X5J) (C) M10X20 FLANGE	0-28751-020-0	01	1	0909-
38	BOLT; CLIP,HARNESS (I) M8X12 FLANGE	0-28050-812-0	01	1	0909-
38	BOLT; CLIP,HARNESS (B) M8X16 FLANGE	0-28050-816-0	02	1	0909-
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28050-825-0	03	1	0909-
38	BOLT; CLIP,HARNESS (G) M6X20 FLANGE	0-28650-620-0	02	1	0909-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	16	1	0909-
38	BOLT; CLIP,HARNESS (H) M8X16 W/LK&PL WASHER	8-97087-055-0	02	1	0909-1201
38	BOLT; CLIP,HARNESS (J) M8X14 W/PL WASHER	8-98164-837-0	02	1	1202-
38	BOLT; CLIP,HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (F) M8X30 FLANGE	0-28650-830-0	04	1	0909-
38	BOLT; CLIP,HARNESS EXC. LOW DECK WO/REAR BODY<PK4> (F) M8X30 FLANGE	0-28650-830-0	06	1	0909-
47	NUT; GEN TERMINAL EURO2 SPECIFICATION(NT2) M8 FLANGE	0-91180-108-0	02	1	0909-
47	NUT; GEN TERMINAL EURO3 SPECIFICATION(NT3) M8 FLANGE	0-91180-108-0	03	1	0909-1412
47	NUT; GEN TERMINAL EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	03	1	1501-
55	WASHER; PL,CLIP ID=6.4	0-91610-606-0	02	1	0909-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> (B) M8X10 FLANGE	0-28050-810-0	01	1	0909-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (A) M8X25 FLANGE	0-28650-825-0	04	1	0909-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (A) M8X25 FLANGE	0-28650-825-0	06	1	0909-
139	BOLT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> (C) M8X30 FLANGE	0-28650-830-0	03	1	0909-
139	BOLT; BRKT EURO3 SPECIFICATION(NT3) (A) M8X25 FLANGE	0-28650-825-0	01	1	0909-1412
139	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X25 FLANGE	0-28650-825-0	01	1	1501-
139	BOLT; BRKT LOW DECK WO/REAR BODY<PK4> (D) M8X35 FLANGE	0-28650-835-0	05	1	0909-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	05	1	0909-
150	BOLT; CLIP EURO5 SPECIFICATION(NT5) M8X25 FLANGE	0-28650-825-0	02	1	1501-
169	BOLT; ELEC HARNESS M8X20 FLANGE	0-28650-820-0	01	1	0909-
173	BOLT; STARTER EARTH (A) M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0909-1201
173	BOLT; STARTER EARTH (B) M10X20 W/PL WASHER	8-98164-838-0	01	1	1202-
219	NUT MZW6P M/T(RSZ) (B) M8 FLANGE	0-91180-108-0	03	1	1501-
219	NUT ANTILOCK BRAKE SYSTEM<BFA> (B) M8 FLANGE	0-91180-108-0	01	1	0909-
219	NUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M8 FLANGE	0-91180-108-0	01	1	0909-
219	NUT FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J) (B) M8 FLANGE	0-91180-108-0	01	1	0909-
219	NUT EXC. LOW DECK WO/REAR BODY<PK4> (B) M8 FLANGE	0-91180-108-0	06	1	0909-
219	NUT ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (B) M8 FLANGE	0-91180-108-0	06	1	0909-
219	NUT LOW DECK WO/REAR BODY<PK4> (B) M8 FLANGE	0-91180-108-0	05	1	0909-
219	NUT LOW DECK WO/REAR BODY<PK4> (B) M8 FLANGE	0-91180-108-0	07	1	0909-
219	NUT (A) M6 FLANGE	0-91180-106-0	02	1	0909-
219	NUT (B) M8 FLANGE	0-91180-108-0	21	1	0909-
219	NUT EXC. LOW DECK WO/REAR BODY<PK4> (B) M8 FLANGE	0-91180-108-0	04	1	0909-
242	BOLT; BRKT,HARNESS EURO5 SPECIFICATION(NT5) (C) M8X25 FLANGE	0-28650-825-0	01	1	1501-
242	BOLT; BRKT,HARNESS EURO5 SPECIFICATION(NT5) (D) M10X25 FLANGE	0-28651-025-0	01	1	1501-
242	BOLT; BRKT,HARNESS EURO3 SPECIFICATION(NT3) (B) M12X20 FLANGE	0-28151-220-0	01	1	0909-1412
242	BOLT; BRKT,HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M12X20 FLANGE	0-28151-220-0	01	1	1501-
242	BOLT; BRKT,HARNESS (A) M8X16 FLANGE	0-28050-816-0	01	1	0909-
294	NUT ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	05	1	0909-
294	NUT ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	06	1	0909-
294	NUT M8 FLANGE	0-91180-108-0	01	1	0909-
294	NUT LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	01	1	0909-
294	NUT M8 FLANGE	0-91180-108-0	01	1	0909-
294	NUT EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0909-
297	NUT; HARNESS ELEC PANEL M8 FLANGE	0-91180-108-0	01	1	0909-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION(NT3) (A) M8X12 FLANGE	0-28050-812-0	04	1	0909-1412
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X12 FLANGE	0-28050-812-0	04	1	1501-
304	BOLT; ENG HARNESS CLIP (B) M8X16 FLANGE	0-28050-816-0	03	1	0909-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION(NT2) (A) M8X12 FLANGE	0-28050-812-0	05	1	0909-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION(NT2) (C) M8X20 FLANGE	0-28050-820-0	01	1	0909-
313	BOLT; BRKT MZW6P M/T(RSZ) (D) M8X16 FLANGE	0-28050-816-0	01	1	1501-
313	BOLT; BRKT MZW6P M/T(RSZ) (E) M8X30 FLANGE	0-28650-830-0	01	1	1501-
313	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> LOW DECK WO/REAR BODY<PK4> (B) M8X25 FLANGE	0-28650-825-0	01	1	0909-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0909-
313	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	0909-1412
313	BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) M8X35 FLANGE	0-28650-835-0	01	1	1501-
313	BOLT; BRKT FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J) (A) M8X20 FLANGE	0-28650-820-0	01	1	0909-1412
313	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1501-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	01	1	0909-
371	BOLT; GEN HARNESS EURO2 SPECIFICATION(NT2) M8X20 FLANGE	0-28650-820-0	03	1	0909-
371	BOLT; GEN HARNESS EURO3 SPECIFICATION(NT3) M8X20 FLANGE	0-28650-820-0	04	1	0909-1412
371	BOLT; GEN HARNESS EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M8X20 FLANGE	0-28650-820-0	04	1	1501-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	02	1	0909-
515	NUT; BRKT EURO3 SPECIFICATION(NT3) M8 FLANGE	0-91180-108-0	01	1	0909-1412
515	NUT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	01	1	1501-
515	NUT; BRKT LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0909-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0909-
525	NUT; CLIP EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	02	1	1501-
525	NUT; CLIP EURO2 SPECIFICATION(NT2) M8 FLANGE	0-91180-108-0	01	1	0909-
552	NUT; BRKT,HARNESS EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	01	1	1501-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
