◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11206 - LT134 LHD EURO2/3/5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#58711) — 84 parça
çizim 163398
560 164 280 399 267 290 560 277 277 277
BalonParca AdiParca NoAdetTipApplied Date
164 HARNESS; ELEC
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82678-307-0 01 1 0909-
267 BOLT; BRKT
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X25 FLANGE 		0-28650-825-0 04 1 0909-
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X20 FLANGE 		0-28650-820-0 04 1 0909-
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X12 WING 		1-09064-006-0 02 1 0909-
280 NUT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 04 1 0909-
290 NUT; BRKT
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 04 1 0909-
399 BRACKET; BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-48495-200-2 02 1 0909-
560 BOX; ELECTRIC
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82698-163-1 01 1 0909-

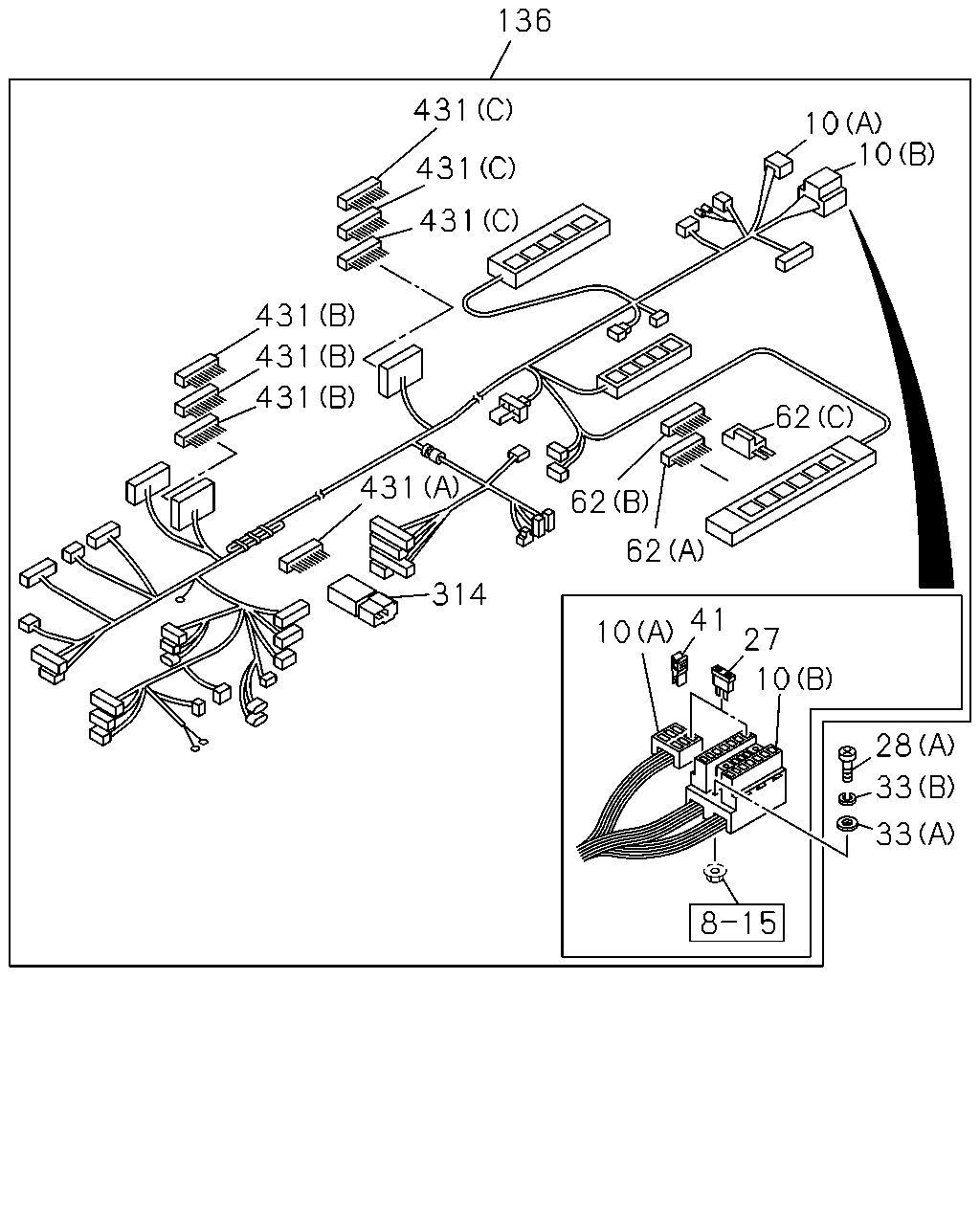

çizim 163399
136 10 431 10 431 431 431 431 431 431 62 62 62 314 10 27 41 10 28 33 33
BalonParca AdiParca NoAdetTipApplied Date
10 BOX; FUSE,HARNESS
(A) 10AX1 25AX1 		1-82510-579-0 01 1 0909-
10 BOX; FUSE,HARNESS
(B) 		1-82510-665-0 01 1 0909-
27 FUSE UNIT
10A RED 		5-82516-002-0 15 1 0909-
27 FUSE UNIT
15A BLUE 		5-82516-003-0 05 1 0909-
27 FUSE UNIT
25A CLEAR 		5-82516-005-0 04 1 0909-
27 FUSE UNIT
30A GREEN 		8-94159-008-0 01 1 0909-
28 SCREW; FUSE BOX
(A) M6X42 		8-97811-324-0 02 1 0909-
28 SCREW; FUSE BOX
(B) M5X12 		9-93490-512-0 02 1 0909-
33 WASHER; LK,FUSE BOX FIX
(A) ID=6 		1-09985-179-0 02 1 0909-1202
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		0-91510-606-0 02 1 1203-
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 0909-
41 PULLER; FUSE
L=31.0 B=10.0 		8-94369-144-0 01 1 0909-
62 DIODE; HARNESS
(B) BLACK 3P-1.5A 		8-94416-438-1 02 1 0909-
62 DIODE; HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 03 1 0909-
62 DIODE; HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 03 1 0909-
136 HARNESS; DASH 8-98072-835-1 01 1 0909-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 02 1 0909-
431 CONNECTOR; JOINT
(A) 3P & 3P 		1-82698-170-0 02 1 0909-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 03 1 0909-
431 CONNECTOR; JOINT
(B) 10P BROWN 		1-82699-601-0 04 1 0909-

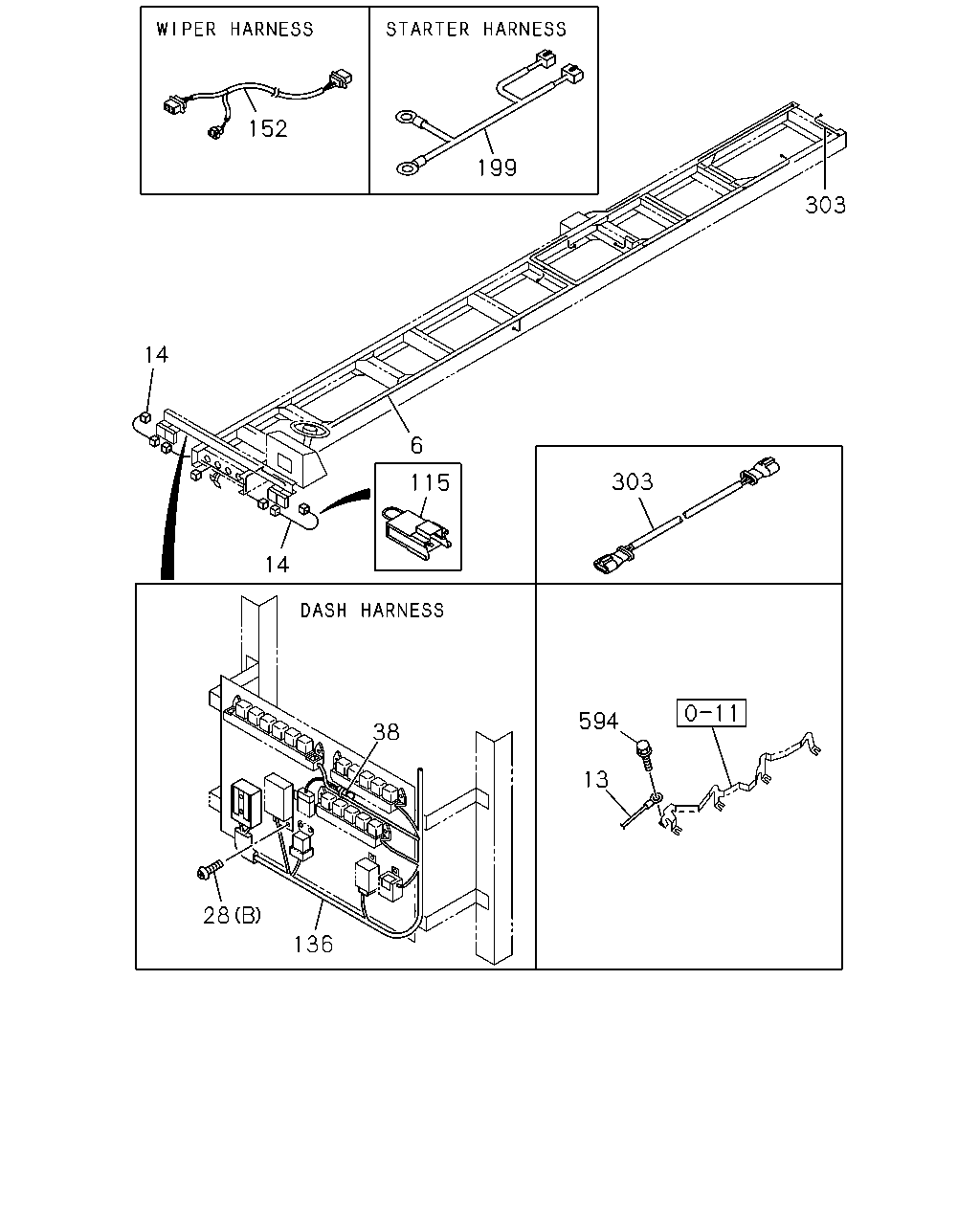

çizim 163401
152 199 303 14 14 6 115 303 38 28 136 594 13
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) ANTILOCK BRAKE SYSTEM<BFA> EURO5 SPECIFICATION(NT5) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98133-759-0 01 1 1501-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM<BFA> EURO5 SPECIFICATION(NT5) LOW DECK WO/REAR BODY<PK4> 		8-98105-670-1 01 1 1501-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM<BFA> EURO5 SPECIFICATION(NT5) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98133-760-0 01 1 1501-
6 HARNESS; FRAME
FULLER FS6306 M/T(MWO) WHEEL BASE 5000MM(50W) ANTILOCK BRAKE SYSTEM<BFA> EURO2 SPECIFICATION(NT2) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98133-718-1 01 1 0909-
6 HARNESS; FRAME
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) ANTILOCK BRAKE SYSTEM<BFA> EURO2 SPECIFICATION(NT2) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98133-708-1 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) ANTILOCK BRAKE SYSTEM<BFA> EURO3 SPECIFICATION(NT3) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98133-719-1 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION(NT2) EXC. ANTILOCK BRAKE SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> 		8-98133-709-2 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) EURO3 SPECIFICATION(NT3) EXC. ANTILOCK BRAKE SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> 		8-98153-877-0 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM<BFA> EURO2 SPECIFICATION(NT2) LOW DECK WO/REAR BODY<PK4> 		8-98133-715-2 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM<BFA> EURO2 SPECIFICATION(NT2) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98116-682-1 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM<BFA> EURO3 SPECIFICATION(NT3) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98133-711-1 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) EURO2 SPECIFICATION(NT2) EXC. ANTILOCK BRAKE SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> 		8-98133-712-2 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) EURO3 SPECIFICATION(NT3) EXC. ANTILOCK BRAKE SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> 		8-98153-876-0 01 1 0909-
13 HARNESS; ENG
EURO3 SPECIFICATION(NT3) 		8-97610-212-4 01 1 0909-1412
13 HARNESS; ENG
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) 		8-97610-212-4 01 1 1501-
13 HARNESS; ENG
EURO2 SPECIFICATION(NT2) 		8-97632-048-0 01 1 0909-
14 HARNESS; HEADLAMP 1-82678-048-0 02 1 0909-
28 SCREW; FUSE BOX
(A) M6X42 		8-97811-324-0 02 1 0909-
28 SCREW; FUSE BOX
(B) M5X12 		9-93490-512-0 02 1 0909-
38 HARNESS; CHAS
ENGINE OVERRUN BUZZER<SK4> 		1-82625-451-0 01 1 0909-
115 HARNESS; FOG LAMP
LIGHTING SYSTEM ECE<SLC> FOG LAMP<T96> 		1-82625-451-0 01 1 0909-
136 HARNESS; DASH 8-98072-835-1 01 1 0909-
152 HARNESS; WIPER
WIPER MOTOR KIT<ST7> 		1-82625-630-0 01 1 0909-
199 HARNESS; STARTER
EURO2 SPECIFICATION(NT2) 		8-98149-243-0 01 1 0909-
303 HARNESS; WATER LEVEL 1-82670-567-0 01 1 0909-
594 BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0909-

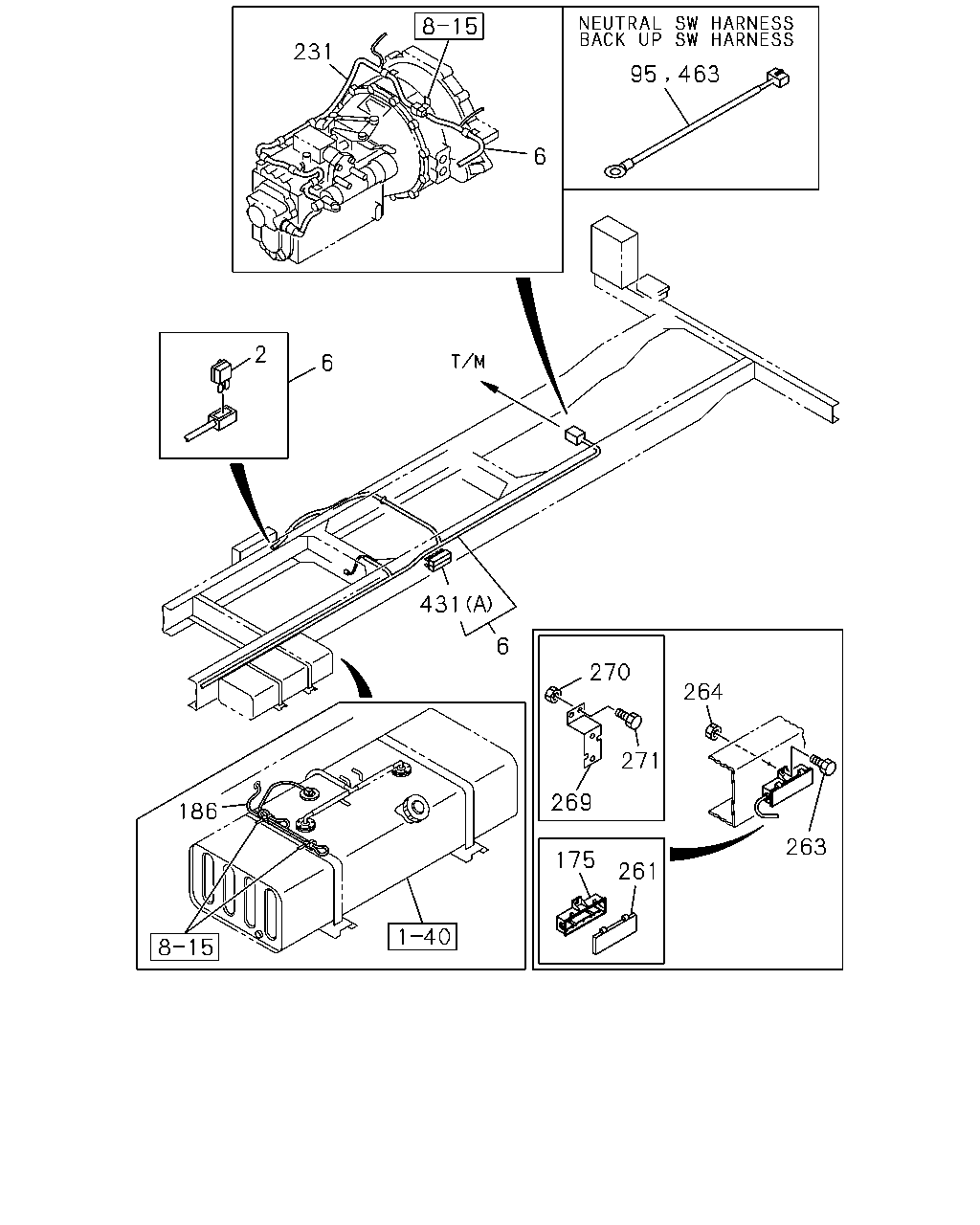

çizim 163416
231 6 95 463 2 6 431 6 270 271 269 264 263 261 175 186
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) ANTILOCK BRAKE SYSTEM<BFA> EURO5 SPECIFICATION(NT5) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98133-759-0 01 1 1501-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM<BFA> EURO5 SPECIFICATION(NT5) LOW DECK WO/REAR BODY<PK4> 		8-98105-670-1 01 1 1501-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM<BFA> EURO5 SPECIFICATION(NT5) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98133-760-0 01 1 1501-
6 HARNESS; FRAME
FULLER FS6306 M/T(MWO) WHEEL BASE 5000MM(50W) ANTILOCK BRAKE SYSTEM<BFA> EURO2 SPECIFICATION(NT2) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98133-718-1 01 1 0909-
6 HARNESS; FRAME
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) ANTILOCK BRAKE SYSTEM<BFA> EURO2 SPECIFICATION(NT2) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98133-708-1 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) ANTILOCK BRAKE SYSTEM<BFA> EURO3 SPECIFICATION(NT3) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98133-719-1 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION(NT2) EXC. ANTILOCK BRAKE SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> 		8-98133-709-2 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) EURO3 SPECIFICATION(NT3) EXC. ANTILOCK BRAKE SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> 		8-98153-877-0 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM<BFA> EURO2 SPECIFICATION(NT2) LOW DECK WO/REAR BODY<PK4> 		8-98133-715-2 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM<BFA> EURO2 SPECIFICATION(NT2) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98116-682-1 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM<BFA> EURO3 SPECIFICATION(NT3) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98133-711-1 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) EURO2 SPECIFICATION(NT2) EXC. ANTILOCK BRAKE SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> 		8-98133-712-2 01 1 0909-
6 HARNESS; FRAME
WHEEL BASE 5700MM(57W) EURO3 SPECIFICATION(NT3) EXC. ANTILOCK BRAKE SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> 		8-98153-876-0 01 1 0909-
95 HARNESS; NEUTRAL SW
FULLER FS6306 M/T(MWO) 		1-82639-626-0 01 1 0909-
175 BOX; CONNECTOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-82699-467-0 03 1 0909-
186 HARNESS; FUEL TANK
TAIWAN EQUIPMENT(WW5) 		8-98301-136-0 01 1 1501-
231 HARNESS; TRANS
MZW6P M/T(RSZ) 		8-98105-672-0 01 1 1501-
231 HARNESS; TRANS
FULLER FS6306 M/T(MWO) 		8-98125-655-0 01 1 0909-
231 HARNESS; TRANS
MLD6Q M/T(X5J) 		1-82678-047-2 01 1 0909-
261 COVER; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM<BFA> 		1-82699-320-0 03 1 0909-
263 BOLT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM<BFA> M8X30 W/LK&PL WASHER 		8-94279-144-0 03 1 0909-
264 NUT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 02 1 0909-
269 BRACKET; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM<BFA> 		1-82699-547-0 01 1 0909-
270 NUT; BRKT,CONNECTOR BOX
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 02 1 0909-
271 BOLT; BRKT CONNECTOR BOX
ANTILOCK BRAKE SYSTEM<BFA> M8X30 FLANGE 		0-28650-830-0 02 1 0909-
431 CONNECTOR; JOINT
(A) 3P & 3P 		1-82698-170-0 02 1 0909-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 03 1 0909-
431 CONNECTOR; JOINT
(B) 10P BROWN 		1-82699-601-0 04 1 0909-
463 HARNESS; SW,BACK UP
FULLER FS6306 M/T(MWO) 		1-82639-626-0 01 1 0909-
