◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#5871) — 178 parça
çizim 6855
250 253 186 101 187
BalonParca AdiParca NoAdetTipApplied Date A B
101 BRACKET; SEARCH LIGHT 1-53318-344-0 01 1 9603- ● ●
186 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 9603-9606 ● ●
186 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 9607- ● ●
187 NUT; BRKT
M10 		9-09110-410-0 02 1 9603-9606 ● ●
187 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9607- ● ●
250 LAMP ASM; SEARCH LIGHT 1-82180-013-0 01 1 9603-9906 ● ●
250 LAMP ASM; SEARCH LIGHT 1-82180-014-0 01 1 9907- ● ●
253 BULB; SEARCH LIGHT
24V 70W 		1-82194-087-0 01 1 9603- ● ●

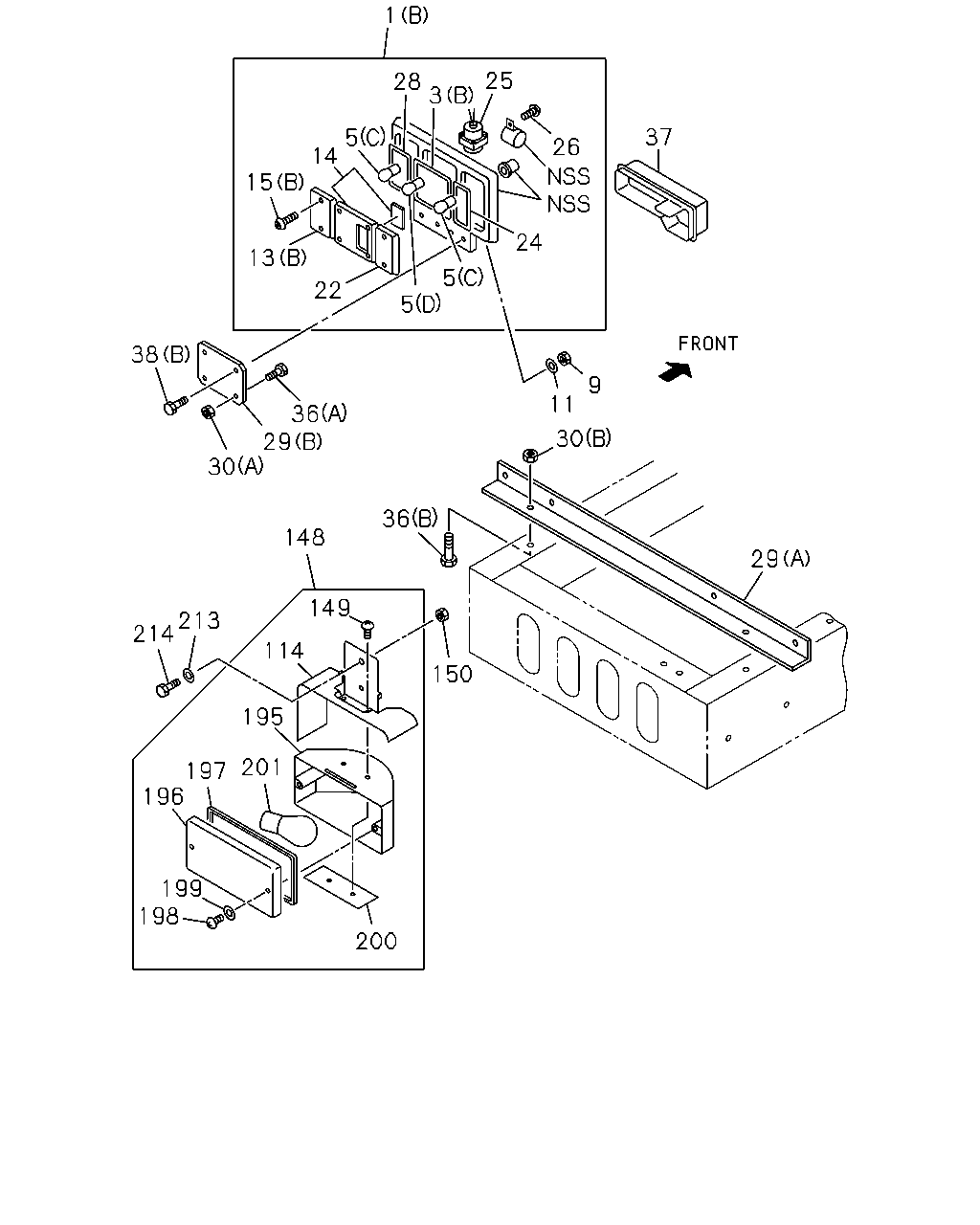

çizim 8856
1 25 28 3 37 5 14 15 26 24 13 5 5 22 38 9 11 36 29 30 30 36 148 29 149 213 214 114 150 195 201 197 196 199 198 200
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
(A) 		1-82230-160-1 01 1 9603-9904 ● ●
1 LAMP ASM; RR COMB
(A) 		1-82230-160-2 01 1 9905- ●
1 LAMP ASM; RR COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-82230-160-2 01 1 9905- ●
1 LAMP ASM; RR COMB
(A) 		1-82230-159-1 01 1 9603-9904 ● ●
1 LAMP ASM; RR COMB
(A) 		1-82230-159-2 01 1 9905- ●
1 LAMP ASM; RR COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-82230-159-2 01 1 9905- ●
1 LAMP ASM; RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82230-135-2 01 1 9905- ●
1 LAMP ASM; RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> (B) 		1-82230-132-2 01 1 9905- ●
1 LAMP ASM; RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> (B) 		1-82230-134-2 01 1 9905- ●
3 GASKET; RR COMB LAMP
(A) 		1-82236-003-0 04 1 9603-9904 ● ●
3 GASKET; RR COMB LAMP
(A) 		1-82236-003-0 04 1 9905- ●
3 GASKET; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-82236-003-0 04 1 9905- ●
3 GASKET; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		8-94257-505-0 01 1 9905- ●
3 GASKET; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		8-94257-505-0 01 1 9905- ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 9603-9904 ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 9905- ●
5 BULB; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 24V 21W 		1-82194-036-0 02 1 9905- ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 9603-9904 ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 9905- ●
5 BULB; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 24V 21/5W 		1-82194-038-0 02 1 9905- ●
5 BULB; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 24V 21W 		8-94125-956-0 02 1 9905- ●
5 BULB; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 24V 21W 		8-94125-956-0 02 1 9905- ●
5 BULB; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) 24V 21/5W 		8-94125-957-0 01 1 9905- ●
5 BULB; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) 24V 21/5W 		8-94125-957-0 01 1 9905- ●
9 NUT; LAMP,RR COMB
M8 		9-09110-408-0 02 1 9607-9609 ● ●
9 NUT; LAMP,RR COMB
M8 FLANGE 		0-91150-108-0 02 1 9610-9904 ● ●
9 NUT; LAMP,RR COMB
M8 FLANGE 		0-91150-108-0 02 1 9905- ●
9 NUT; LAMP,RR COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8 FLANGE 		0-91150-108-0 02 1 9905- ●
9 NUT; LAMP,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6 		9-09110-406-0 04 1 9905- ●
11 WASHER; PL,LAMP,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=6.4 OD=18 		9-09160-706-0 04 1 9905- ●
13 LENS; TURN SIGNAL
(A) 		1-82235-016-0 02 1 9603-9904 ● ●
13 LENS; TURN SIGNAL
(A) 		1-82235-016-0 02 1 9905- ●
13 LENS; TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-82235-016-0 02 1 9905- ●
13 LENS; TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82235-015-0 01 1 9905- ●
13 LENS; TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82235-014-0 01 1 9905- ●
14 LENS; TAIL & STOP,RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		8-94257-511-0 01 1 9905- ●
14 LENS; TAIL & STOP,RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		8-94257-510-0 01 1 9905- ●
15 SCREW; RR COMB LAMP
(A) 		1-82239-019-0 16 1 9603-9904 ● ●
15 SCREW; RR COMB LAMP
(A) 		1-82239-019-0 16 1 9905- ●
15 SCREW; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-82239-019-0 16 1 9905- ●
15 SCREW; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9905- ●
15 SCREW; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9905- ●
22 LENS; BACKUP,RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		8-94257-512-0 01 1 9905- ●
22 LENS; BACKUP,RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		8-94257-512-0 01 1 9905- ●
24 GASKET; BACK,LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		8-94257-506-0 01 1 9905- ●
24 GASKET; BACK,LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		8-94257-506-0 01 1 9905- ●
25 HORN ASM; BACK
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 9905- ●
26 SCREW; BACK HORN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M4X12 TAPPING 		9-07076-412-0 01 1 9905- ●
26 SCREW; BACK HORN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> M4X14 TAPPING 		9-07076-414-0 02 1 9905- ●
26 SCREW; BACK HORN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> M4X10 TAPPING 		9-07076-410-0 01 1 9905- ●
28 GASKET; TURN,LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		8-94257-507-0 01 1 9905- ●
28 GASKET; TURN,LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		8-94257-507-0 01 1 9905- ●
29 BRACKET; LAMP,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-82237-037-3 01 1 9905- ●
29 BRACKET; LAMP,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82237-050-1 02 1 9905- ●
30 NUT; BRKT,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8 FLANGE 		0-91150-108-0 02 1 9905-9911 ●
30 NUT; BRKT,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8 FLANGE 		0-91150-108-0 04 1 9912- ●
30 NUT; BRKT,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M10 FLANGE 		0-91150-210-0 02 1 9905- ●
36 BOLT; BRKT,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE 		0-28680-825-0 02 1 9905-9911 ●
36 BOLT; BRKT,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE 		0-28680-825-0 04 1 9912- ●
36 BOLT; BRKT,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M10X40 FLANGE 		0-28681-040-0 02 1 9905- ●
37 COVER; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82239-008-0 01 1 9905- ●
37 COVER; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82239-007-0 01 1 9905- ●
38 BOLT; LAMP,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) (A) M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 9603-9604 ●
38 BOLT; LAMP,RR COMB
(A) M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 9605-9904 ● ●
38 BOLT; LAMP,RR COMB
(A) M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 9905- ●
38 BOLT; LAMP,RR COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 9905- ●
38 BOLT; LAMP,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M6X30 W/LK&PL WASHER 		0-50140-630-0 04 1 9905- ●
114 BRACKET; RR FOG LAMP
FOG LAMP REAR<NHD> 		8-97108-583-0 01 1 0002- ●
148 LAMP ASM; RR FOG
FOG LAMP REAR<NHD> 		8-97181-002-0 01 1 0002- ●
149 SCREW; BRKT TO LAMP BODY
FOG LAMP REAR<NHD> 		8-94336-372-0 02 1 0002- ●
150 NUT; RR FOG LAMP
FOG LAMP REAR<NHD> M6 FLANGE 		5-09440-004-0 01 1 0002- ●
195 LAMP UNIT; RR FOG
FOG LAMP REAR<NHD> 		8-94336-322-0 01 1 0002- ●
196 LENS; RR FOG LAMP
FOG LAMP REAR<NHD> 		8-94336-325-0 01 1 0002- ●
197 GASKET; RR FOG LAMP
FOG LAMP REAR<NHD> 		8-94336-324-0 01 1 0002- ●
198 SCREW; LENS TO BODY
FOG LAMP REAR<NHD> 		0-71190-416-0 02 1 0002- ●
199 WASHER; LENS,RR FOG LAMP
FOG LAMP REAR<NHD> 		8-94336-326-0 02 1 0002- ●
200 PLATE; SET,RR FOG LAMP
FOG LAMP REAR<NHD> 		8-94336-323-0 01 1 0002- ●
201 BULB; RR FOG LAMP
FOG LAMP REAR<NHD> 24V 21W 		1-82194-036-0 01 1 0002- ●
213 WASHER; PL,RR FOG LAMP
FOG LAMP REAR<NHD> 		1-09985-144-0 01 1 0002- ●
214 BOLT; RR FOG LAMP
FOG LAMP REAR<NHD> M6X20 FLANGE 		0-28680-620-0 01 1 0002- ●

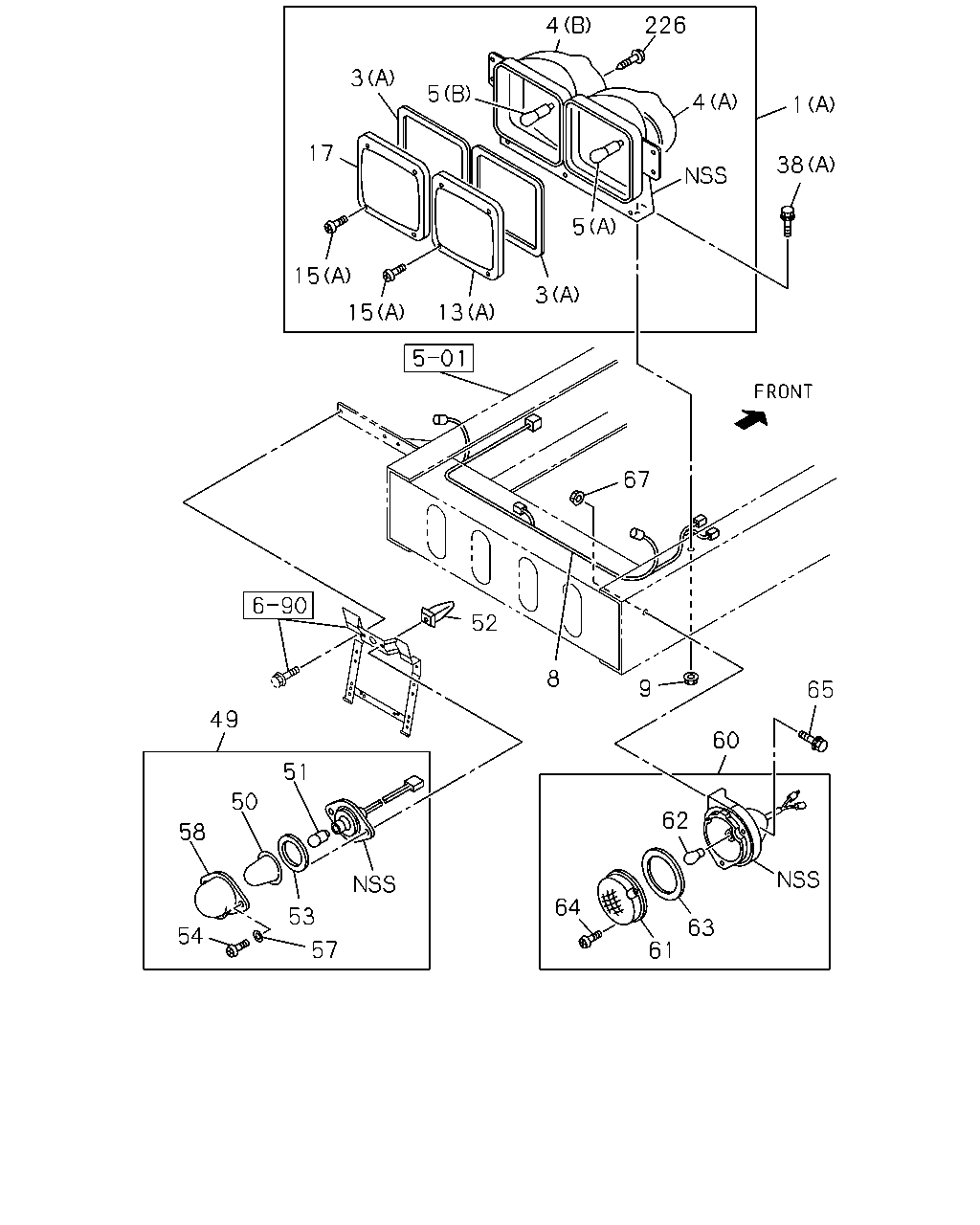

çizim 41930
226 4 3 5 4 1 17 38 5 15 3 15 13 67 52 8 9 65 49 60 51 50 62 58 64 53 63 54 57 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
(A) 		1-82230-160-1 01 1 9603-9904 ● ●
1 LAMP ASM; RR COMB
(A) 		1-82230-160-2 01 1 9905- ●
1 LAMP ASM; RR COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-82230-160-2 01 1 9905- ●
1 LAMP ASM; RR COMB
(A) 		1-82230-159-1 01 1 9603-9904 ● ●
1 LAMP ASM; RR COMB
(A) 		1-82230-159-2 01 1 9905- ●
1 LAMP ASM; RR COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-82230-159-2 01 1 9905- ●
1 LAMP ASM; RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82230-135-2 01 1 9905- ●
1 LAMP ASM; RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> (B) 		1-82230-132-2 01 1 9905- ●
1 LAMP ASM; RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> (B) 		1-82230-134-2 01 1 9905- ●
3 GASKET; RR COMB LAMP
(A) 		1-82236-003-0 04 1 9603-9904 ● ●
3 GASKET; RR COMB LAMP
(A) 		1-82236-003-0 04 1 9905- ●
3 GASKET; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-82236-003-0 04 1 9905- ●
3 GASKET; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		8-94257-505-0 01 1 9905- ●
3 GASKET; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		8-94257-505-0 01 1 9905- ●
4 COVER; RR,RR COMB LAMP
(A) 		1-82239-033-0 02 1 9603-9904 ● ●
4 COVER; RR,RR COMB LAMP
(A) 		1-82239-033-0 02 1 9905- ●
4 COVER; RR,RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-82239-033-0 02 1 9905- ●
4 COVER; RR,RR COMB LAMP
(B) 		1-82239-034-0 02 1 9603-9904 ● ●
4 COVER; RR,RR COMB LAMP
(B) 		1-82239-034-0 02 1 9905- ●
4 COVER; RR,RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-82239-034-0 02 1 9905- ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 9603-9904 ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 9905- ●
5 BULB; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 24V 21W 		1-82194-036-0 02 1 9905- ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 9603-9904 ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 9905- ●
5 BULB; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 24V 21/5W 		1-82194-038-0 02 1 9905- ●
5 BULB; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 24V 21W 		8-94125-956-0 02 1 9905- ●
5 BULB; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 24V 21W 		8-94125-956-0 02 1 9905- ●
5 BULB; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) 24V 21/5W 		8-94125-957-0 01 1 9905- ●
5 BULB; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) 24V 21/5W 		8-94125-957-0 01 1 9905- ●
8 HARNESS; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82672-439-0 01 1 9905- ●
8 HARNESS; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82672-440-0 01 1 9905- ●
9 NUT; LAMP,RR COMB
M8 		9-09110-408-0 02 1 9607-9609 ● ●
9 NUT; LAMP,RR COMB
M8 FLANGE 		0-91150-108-0 02 1 9610-9904 ● ●
9 NUT; LAMP,RR COMB
M8 FLANGE 		0-91150-108-0 02 1 9905- ●
9 NUT; LAMP,RR COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8 FLANGE 		0-91150-108-0 02 1 9905- ●
9 NUT; LAMP,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6 		9-09110-406-0 04 1 9905- ●
13 LENS; TURN SIGNAL
(A) 		1-82235-016-0 02 1 9603-9904 ● ●
13 LENS; TURN SIGNAL
(A) 		1-82235-016-0 02 1 9905- ●
13 LENS; TURN SIGNAL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-82235-016-0 02 1 9905- ●
13 LENS; TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82235-015-0 01 1 9905- ●
13 LENS; TURN SIGNAL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82235-014-0 01 1 9905- ●
15 SCREW; RR COMB LAMP
(A) 		1-82239-019-0 16 1 9603-9904 ● ●
15 SCREW; RR COMB LAMP
(A) 		1-82239-019-0 16 1 9905- ●
15 SCREW; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-82239-019-0 16 1 9905- ●
15 SCREW; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9905- ●
15 SCREW; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9905- ●
17 LENS; STOP,RR COMB LAMP 1-82235-002-0 02 1 9603-9904 ● ●
17 LENS; STOP,RR COMB LAMP 1-82235-002-0 02 1 9905- ●
17 LENS; STOP,RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82235-002-0 02 1 9905- ●
38 BOLT; LAMP,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) (A) M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 9603-9604 ●
38 BOLT; LAMP,RR COMB
(A) M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 9605-9904 ● ●
38 BOLT; LAMP,RR COMB
(A) M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 9905- ●
38 BOLT; LAMP,RR COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 9905- ●
38 BOLT; LAMP,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M6X30 W/LK&PL WASHER 		0-50140-630-0 04 1 9905- ●
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-0 01 1 9603- ● ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 9603- ● ●
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 9603- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 9603- ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 9603- ● ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 9603- ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 9603- ● ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 9603- ● ●
60 LAMP; BACKUP 1-82130-016-1 01 1 9603- ●
60 LAMP; BACKUP 1-82130-023-0 01 1 9603-9904 ●
60 LAMP; BACKUP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82130-023-1 01 1 9905- ●
61 LENS; BACKUP LAMP 1-82135-003-0 01 1 9603-9904 ● ●
61 LENS; BACKUP LAMP 1-82135-003-0 01 1 9905- ●
61 LENS; BACKUP LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82135-003-0 01 1 9905- ●
62 BULB; BACKUP LAMP
24V 25W 		9-82691-347-0 01 1 9603- ●
62 BULB; BACKUP LAMP
24V 21W 		1-82194-036-0 01 1 9603-9904 ●
62 BULB; BACKUP LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 01 1 9905- ●
63 GASKET; BACKUP LAMP 1-82136-002-0 01 1 9603-9904 ● ●
63 GASKET; BACKUP LAMP 1-82136-002-0 01 1 9905- ●
63 GASKET; BACKUP LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82136-002-0 01 1 9905- ●
64 SCREW; BACKUP LAMP 1-82139-002-0 03 1 9603-9904 ● ●
64 SCREW; BACKUP LAMP 1-82139-002-0 03 1 9905- ●
64 SCREW; BACKUP LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82139-002-0 03 1 9905- ●
65 BOLT; LAMP,BACKUP
M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9603-9709 ● ●
65 BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9710-9904 ● ●
65 BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9905- ●
65 BOLT; LAMP,BACKUP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9905- ●
67 NUT; FLANGE
M10 		9-09110-510-0 02 1 9603-9606 ● ●
67 NUT; FLANGE
M10 		9-09110-410-0 02 1 9607-9709 ● ●
67 NUT; FLANGE
M10 FLANGE 		0-91150-210-0 02 1 9710-9904 ● ●
67 NUT; FLANGE
M10 FLANGE 		0-91150-210-0 02 1 9905- ●
67 NUT; FLANGE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M10 FLANGE 		0-91150-210-0 02 1 9905- ●
226 SCREW; PROTECTOR 1-82239-032-0 08 1 9603-9904 ● ●
226 SCREW; PROTECTOR 1-82239-032-0 08 1 9905- ●
226 SCREW; PROTECTOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82239-032-0 08 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
