◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11206 - LT134 LHD EURO2/3/5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶

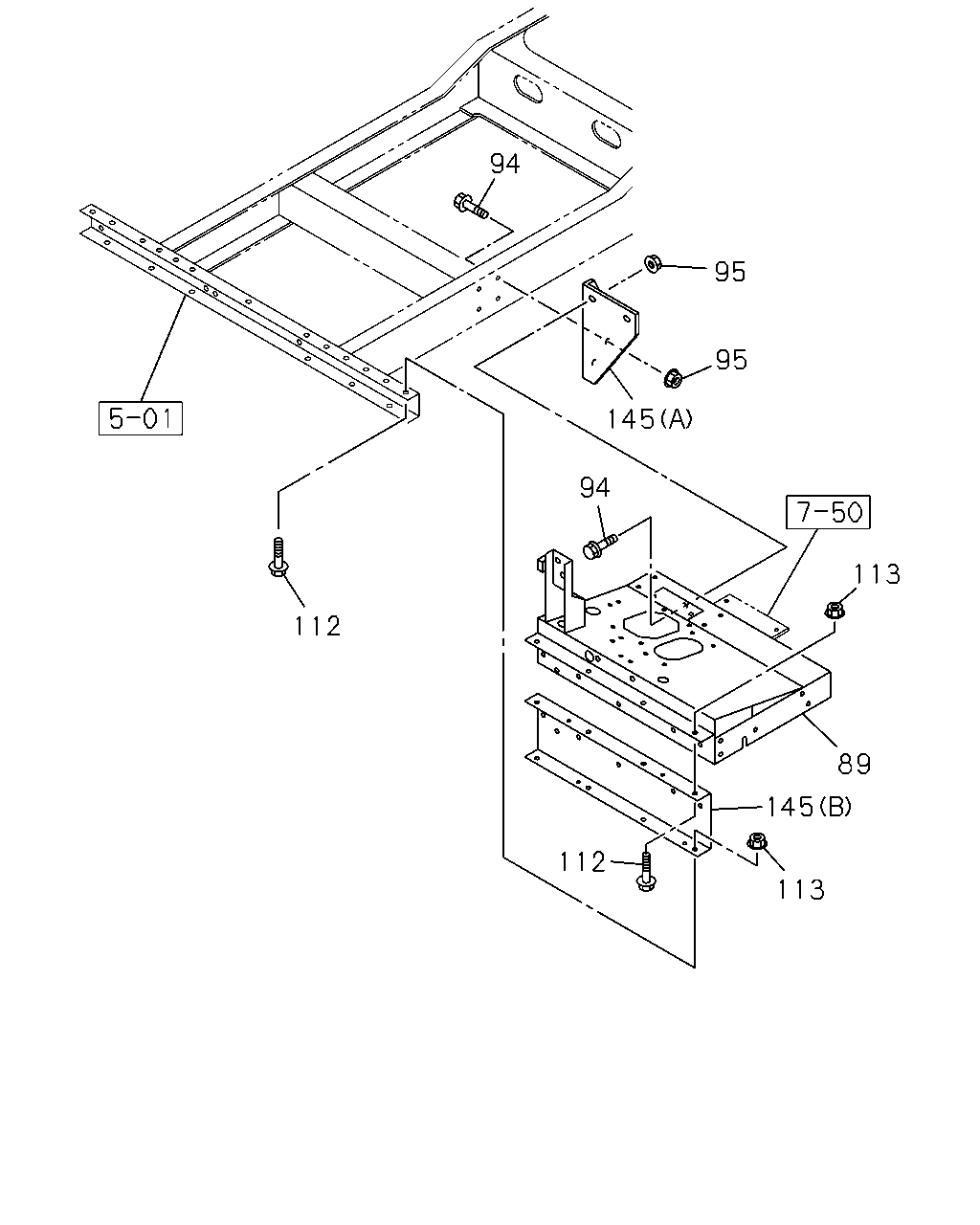

6-70 — FLOOR PANEL (#58701) — 14 parça
çizim 163379
94 95 95 145 94 113 89 145 113 112 112
BalonParca AdiParca NoAdetTipApplied Date
89 BOARD ASM; PEDAL 1-65600-721-3 01 1 0909-1212
89 BOARD ASM; PEDAL 8-98231-846-0 01 1 1301-1302
89 BOARD ASM; PEDAL 8-98232-614-0 01 1 1303-
94 BOLT; BRKT,PEDAL BOARD
LOW DECK WO/REAR BODY<PK4> M10X35 FLANGE 		0-28651-035-0 06 1 0909-
94 BOLT; BRKT,PEDAL BOARD
EXC. LOW DECK WO/REAR BODY<PK4> M10X35 FLANGE 		0-28651-035-0 04 1 0909-
95 NUT; BRKT,PEDAL BOARD
LOW DECK WO/REAR BODY<PK4> M10 FLANGE 		0-91180-210-0 06 1 0909-
95 NUT; BRKT,PEDAL BOARD
EXC. LOW DECK WO/REAR BODY<PK4> M10 FLANGE 		0-91180-210-0 04 1 0909-
112 BOLT; PEDAL BOARD
LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE 		0-28651-235-0 10 1 0909-
112 BOLT; PEDAL BOARD
EXC. LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE 		0-28651-235-0 06 1 0909-
113 NUT; PEDAL BOARD
LOW DECK WO/REAR BODY<PK4> M12 FLANGE 		0-91180-212-0 10 1 0909-
113 NUT; PEDAL BOARD
EXC. LOW DECK WO/REAR BODY<PK4> M12 FLANGE 		0-91180-212-0 06 1 0909-
145 BRACKET; PEDAL BOARD
LOW DECK WO/REAR BODY<PK4> (A) 		8-98072-380-2 01 1 0909-
145 BRACKET; PEDAL BOARD
LOW DECK WO/REAR BODY<PK4> (B) 		8-98072-381-0 01 1 0909-
145 BRACKET; PEDAL BOARD
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-47478-510-2 01 1 0909-
