Sayfa 8-01 - Isuzu EPC

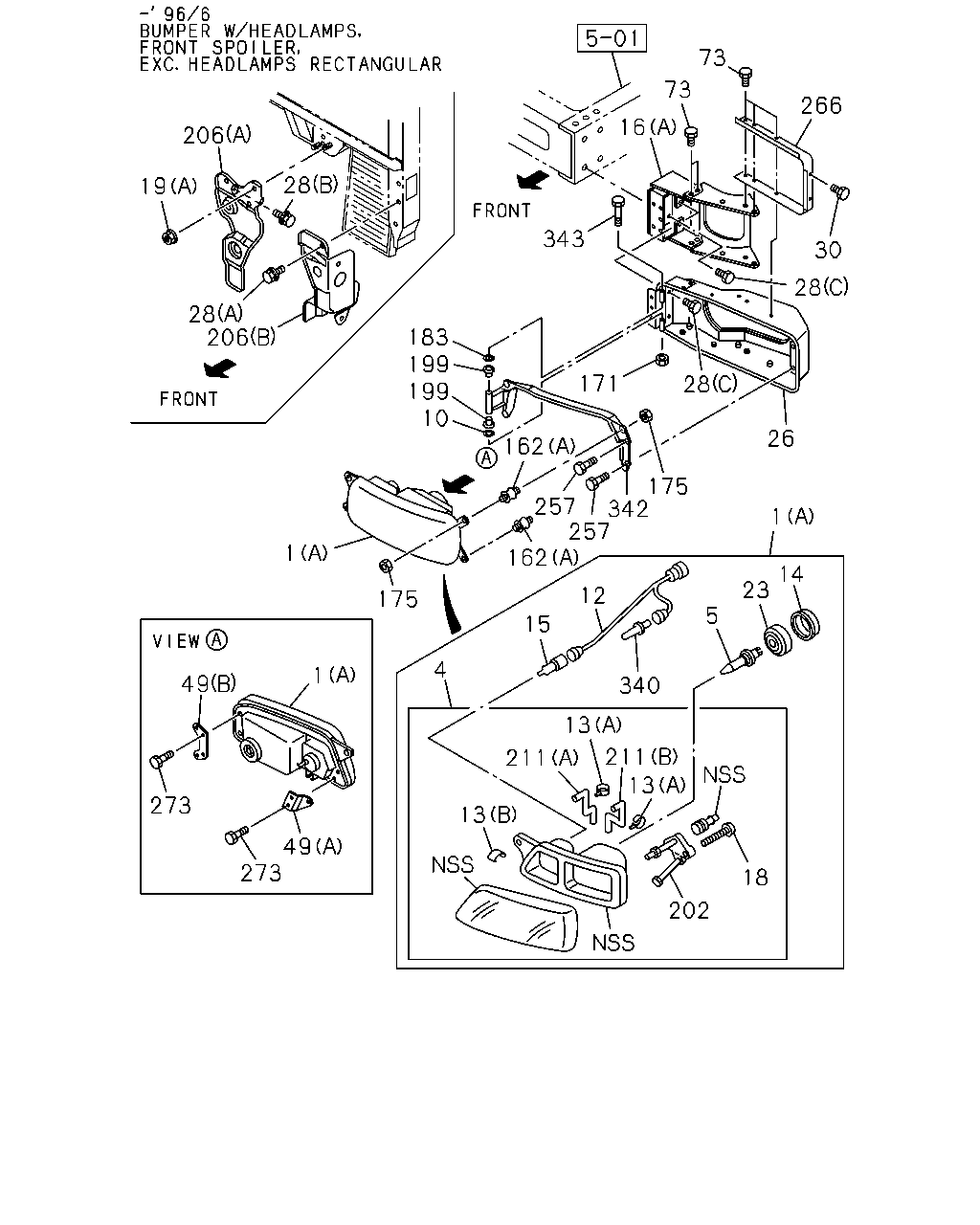

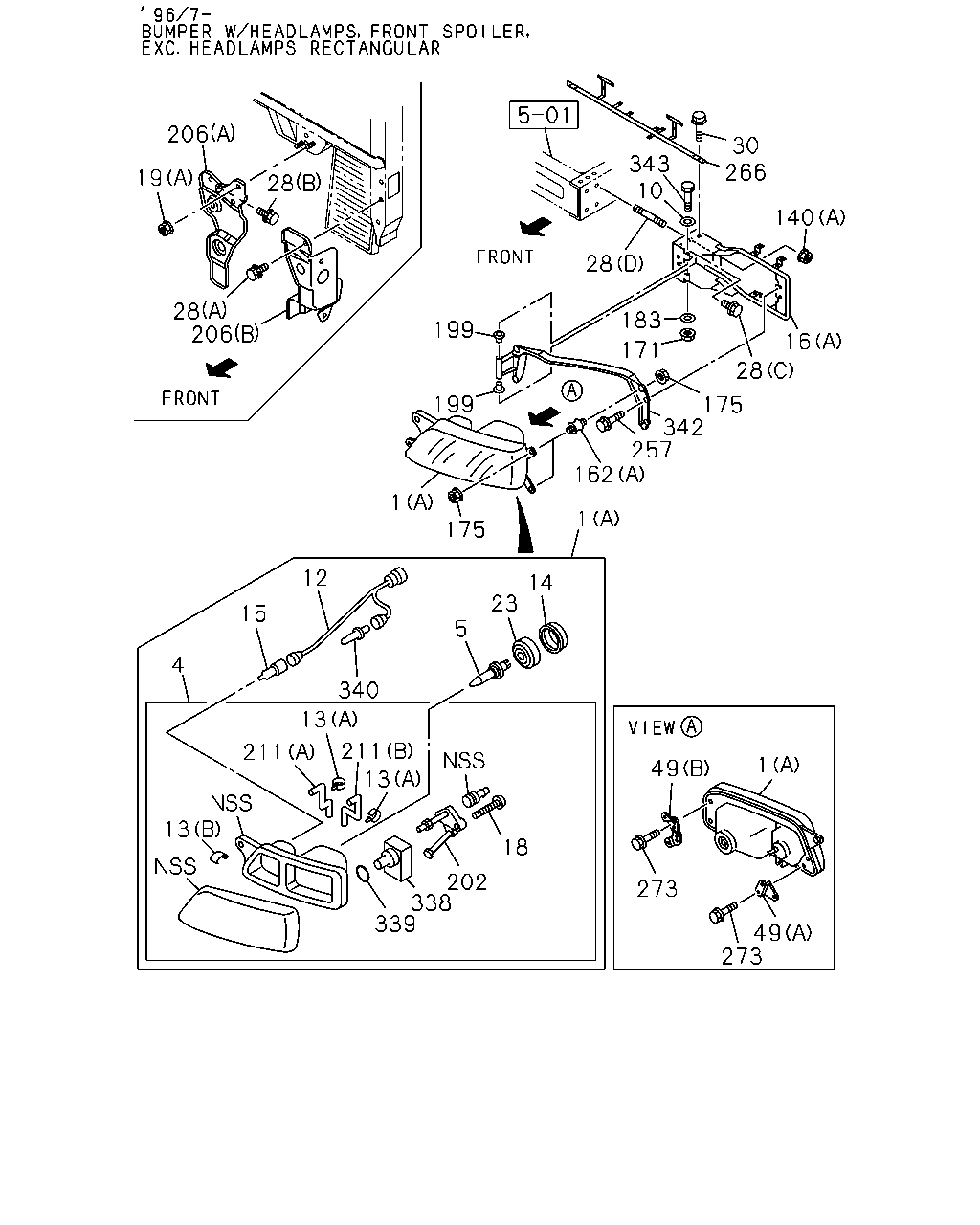

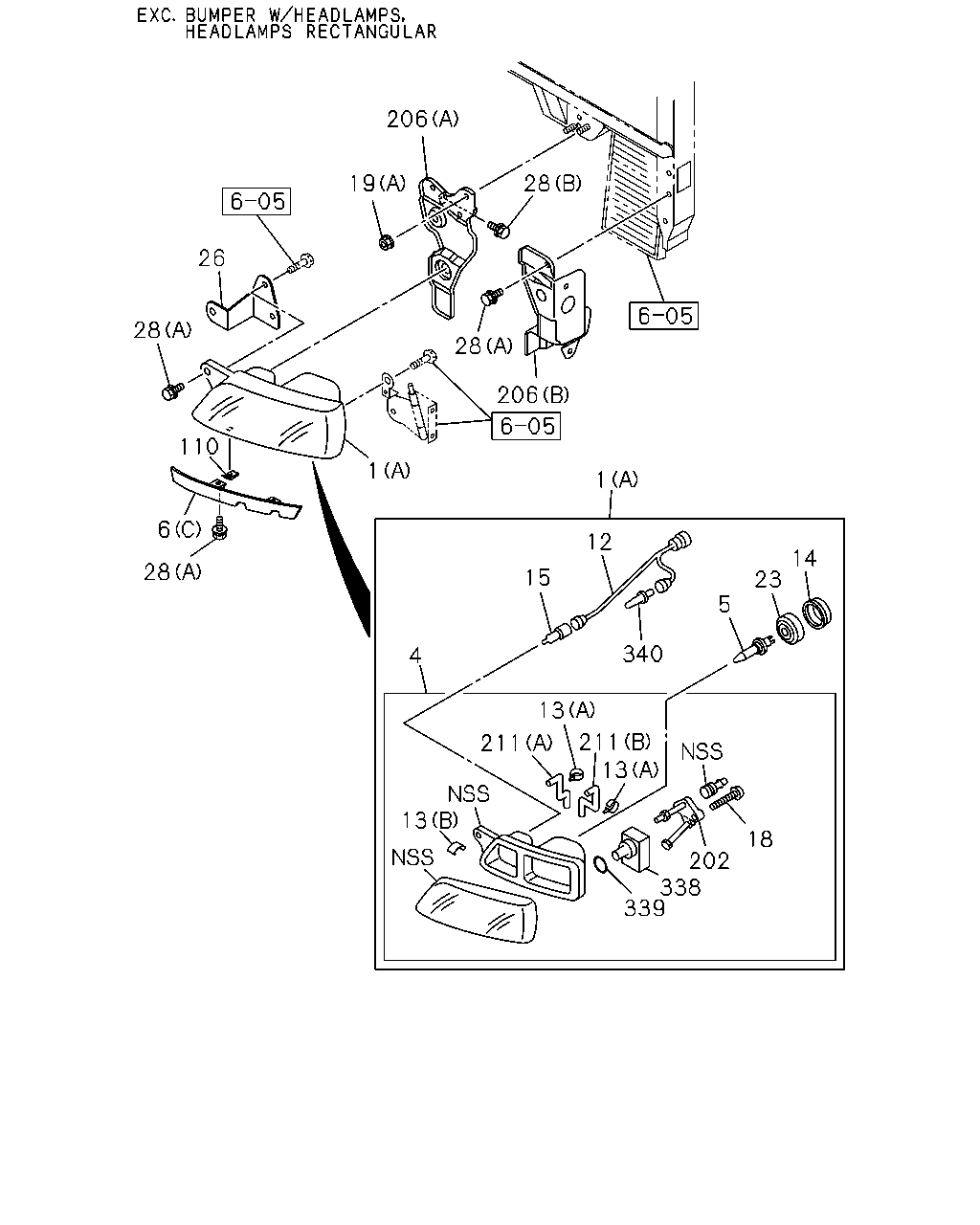

8-01 — LAMP; FRONT AND FRONT SIDE (#5870) — 617 parça

73 73 266 16 206 28 19 343 30 28 28 206 183 199 199 10 171 28 162 26 175 257 342 257 1 1 162 14 23 12 175 5 15 4 1 49 340 13 211 13 211 273 13 49 273 18 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD (A)	1-82110-306-4	01	1	9603-9609	●
1	LAMP ASM; HEAD (A)	1-82110-305-4	01	1	9603-9609	●
1	LAMP ASM; HEAD (A)	1-82110-326-1	01	1	9610-9807	●
1	LAMP ASM; HEAD (A)	1-82110-396-2	01	1	9808-	●
1	LAMP ASM; HEAD (A)	1-82110-325-1	01	1	9610-9807	●
1	LAMP ASM; HEAD (A)	1-82110-395-2	01	1	9808-	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	9603-		●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	9603-		●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	9603-		●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	9603-		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-310-0	01	1	9603-9609		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-309-0	01	1	9603-9609		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-330-0	01	1	9610-9807		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-400-2	01	1	9808-		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-329-0	01	1	9610-9807		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-399-2	01	1	9808-		●
4	HEADLAMP UNIT	1-82119-114-0	01	1	9603-9609	●
4	HEADLAMP UNIT	1-82119-113-0	01	1	9603-9710	●
4	HEADLAMP UNIT 24V 75/70W	1-82119-128-0	01	1	9711-	●
4	HEADLAMP UNIT 24V 75/70W	1-82119-129-0	01	1	9610-	●
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> INNER TYPE 1 24V 70W	1-82191-032-0	02	1	9603-		●
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> OUTER TYPE 2 24V 75/70W	1-82191-037-0	02	1	9603-		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-122-0	01	1	9603-9609		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-121-0	01	1	9603-9609		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-133-0	01	1	9610-		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-132-0	01	1	9610-		●
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9603-9807	●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	9603-9807		●
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9808-9904	●
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9905-	●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	9905-		●
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> OUTER 24V 75/70W	1-82193-006-0	02	1	9603-		●
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> INNER 24V 70W	1-82193-007-0	02	1	9603-		●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	01	1	9808-9904		●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	8-94405-657-0	01	1	9808-9904		●
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	02	1	9603-	●	●
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	9603-9807	●
12	HARNESS; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	9603-9807		●
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	9808-9904	●
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	9905-	●
12	HARNESS; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	9905-		●
13	CLIP; HEADLAMP (A)	1-82119-084-0	04	1	9603-	●
13	CLIP; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-084-0	04	1	9603-		●
13	CLIP; HEADLAMP (B)	8-94381-588-0	14	1	9603-	●
13	CLIP; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-94381-588-0	14	1	9603-		●
14	CAP; BULB,LAMP	1-86830-148-0	02	1	9603-	●
14	CAP; BULB,LAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-148-0	02	1	9603-		●
15	BULB; FOG LAMP 24V 55W	1-82194-079-0	02	1	9603-	●
15	BULB; FOG LAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 55W	1-82194-079-0	02	1	9603-		●
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 55W	8-97093-860-0	02	1	9701-0001		●
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 70W	8-97203-926-0	02	1	0002-		●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-82117-120-2	01	1	9905-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-82117-119-2	01	1	9905-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-082-5	02	1	9603-9606	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-116-1	02	1	9607-9904	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-82117-116-1	02	1	9905-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-103-1	04	1	9603-9904		●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B)	1-82117-103-1	04	1	9905-		●
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	9603-	●
18	SCREW; GEAR CASE EXC. HEADLAMPS RECTANGULAR<TR4> M4X16 TAPPING	1-82119-067-0	08	1	9603-		●
19	NUT; HEADLAMP (A) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-	●	●
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	9603-		●
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	9603-	●
23	COVER; BULB,HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-147-0	02	1	9603-		●
26	BRACKET ASM; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-114-0	02	1	9603-9606	●	●
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	9603-	●	●
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	9603-	●	●
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9603-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9603-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE	0-28081-035-0	08	1	9603-9606	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE	0-28081-035-0	06	1	9607-9904	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE	0-28081-035-0	06	1	9905-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	9607-	●	●
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9603-	●	●
30	BOLT; STAY BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10X20 FLANGE	0-28081-020-0	04	1	9603-9606	●	●
30	BOLT; STAY CAB UP +110MM<TGG> FRONT SPOILER<VP1> M10X25 FLANGE	0-28681-025-0	04	1	9607-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-100-0	02	1	9603-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-102-0	01	1	9603-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-101-0	01	1	9603-	●	●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	8-97104-091-0	01	1	9701-0001		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	8-97104-090-0	01	1	9701-0001		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (D)	1-82117-149-0	01	1	0002-0004		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (D)	1-82117-151-0	01	1	0005-		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (D)	1-82117-150-0	01	1	0002-0004		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (D)	1-82117-152-0	01	1	0005-		●
73	BOLT; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10X20 FLANGE	0-28081-020-0	28	1	9603-9606	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-086-0	08	1	9603-	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> (B)	1-82117-304-0	16	1	9603-9904		●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B)	1-82117-304-1	16	1	9905-		●
171	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6 FLANGE	0-91150-106-0	02	1	9603-	●	●
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	9603-	●	●
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.5	9-09855-333-0	02	1	9603-	●	●
199	BUSHING BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	5-15549-001-1	04	1	9603-	●	●
202	GEAR UNIT; HEADLAMP	1-86830-139-0	04	1	9603-	●
202	GEAR UNIT; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-139-0	04	1	9603-		●
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	9603-	●	●
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	9603-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	9603-	●	●
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	9603-	●	●
211	TUBE; HEADLAMP (A)	1-86830-142-0	01	1	9603-9911	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-142-0	01	1	9603-9911		●
211	TUBE; HEADLAMP (A)	1-86830-329-0	01	1	9912-	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-329-0	01	1	9912-		●
211	TUBE; HEADLAMP (B)	1-86830-144-0	01	1	9603-9911	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-144-0	01	1	9603-9911		●
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	9912-	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-331-0	01	1	9912-		●
211	TUBE; HEADLAMP (A)	1-86830-141-0	01	1	9603-9911	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-141-0	01	1	9603-9911		●
211	TUBE; HEADLAMP (A)	1-86830-328-0	01	1	9912-	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-328-0	01	1	9912-		●
211	TUBE; HEADLAMP (B)	1-86830-143-0	01	1	9603-9911	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-143-0	01	1	9603-9911		●
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	9912-	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-330-0	01	1	9912-		●
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 FLANGE	0-28080-820-0	04	1	9603-	●	●
266	STAY; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-115-0	02	1	9603-9606	●	●
266	STAY; BRKT,HEADLAMP CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-82117-128-1	01	1	9607-		●
266	STAY; BRKT,HEADLAMP CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-82117-137-1	01	1	9607-	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 W/LK WASHER	0-50040-616-0	04	1	9603-9904	●	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE	0-28080-616-0	04	1	9603-9904	●	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE	0-28680-616-0	08	1	9905-	●	●
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	9603-	●
340	BULB; POSITION EXC. HEADLAMPS RECTANGULAR<TR4> 24V 5W	1-82194-042-0	02	1	9603-		●
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-087-2	01	1	9603-	●	●
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-088-2	01	1	9603-	●	●
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82119-096-1	02	1	9603-	●	●

206 30 266 343 10 28 19 140 28 28 206 183 199 16 171 28 199 175 342 257 162 1 1 175 12 14 23 15 5 4 340 13 211 211 1 49 13 13 18 202 338 339 273 49 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD (A)	1-82110-306-4	01	1	9603-9609	●
1	LAMP ASM; HEAD (A)	1-82110-305-4	01	1	9603-9609	●
1	LAMP ASM; HEAD (A)	1-82110-326-1	01	1	9610-9807	●
1	LAMP ASM; HEAD (A)	1-82110-396-2	01	1	9808-	●
1	LAMP ASM; HEAD (A)	1-82110-325-1	01	1	9610-9807	●
1	LAMP ASM; HEAD (A)	1-82110-395-2	01	1	9808-	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	9603-		●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	9603-		●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	9603-		●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	9603-		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-310-0	01	1	9603-9609		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-309-0	01	1	9603-9609		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-330-0	01	1	9610-9807		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-400-2	01	1	9808-		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-329-0	01	1	9610-9807		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-399-2	01	1	9808-		●
4	HEADLAMP UNIT	1-82119-114-0	01	1	9603-9609	●
4	HEADLAMP UNIT	1-82119-113-0	01	1	9603-9710	●
4	HEADLAMP UNIT 24V 75/70W	1-82119-128-0	01	1	9711-	●
4	HEADLAMP UNIT 24V 75/70W	1-82119-129-0	01	1	9610-	●
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> INNER TYPE 1 24V 70W	1-82191-032-0	02	1	9603-		●
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> OUTER TYPE 2 24V 75/70W	1-82191-037-0	02	1	9603-		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-122-0	01	1	9603-9609		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-121-0	01	1	9603-9609		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-133-0	01	1	9610-		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-132-0	01	1	9610-		●
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9603-9807	●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	9603-9807		●
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9808-9904	●
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9905-	●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	9905-		●
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> OUTER 24V 75/70W	1-82193-006-0	02	1	9603-		●
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> INNER 24V 70W	1-82193-007-0	02	1	9603-		●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	01	1	9808-9904		●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	8-94405-657-0	01	1	9808-9904		●
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	02	1	9603-	●	●
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	9603-9807	●
12	HARNESS; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	9603-9807		●
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	9808-9904	●
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	9905-	●
12	HARNESS; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	9905-		●
13	CLIP; HEADLAMP (A)	1-82119-084-0	04	1	9603-	●
13	CLIP; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-084-0	04	1	9603-		●
13	CLIP; HEADLAMP (B)	8-94381-588-0	14	1	9603-	●
13	CLIP; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-94381-588-0	14	1	9603-		●
14	CAP; BULB,LAMP	1-86830-148-0	02	1	9603-	●
14	CAP; BULB,LAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-148-0	02	1	9603-		●
15	BULB; FOG LAMP 24V 55W	1-82194-079-0	02	1	9603-	●
15	BULB; FOG LAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 55W	1-82194-079-0	02	1	9603-		●
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 55W	8-97093-860-0	02	1	9701-0001		●
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 70W	8-97203-926-0	02	1	0002-		●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-82117-120-2	01	1	9905-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-82117-119-2	01	1	9905-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-082-5	02	1	9603-9606	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-116-1	02	1	9607-9904	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-82117-116-1	02	1	9905-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-103-1	04	1	9603-9904		●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B)	1-82117-103-1	04	1	9905-		●
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	9603-	●
18	SCREW; GEAR CASE EXC. HEADLAMPS RECTANGULAR<TR4> M4X16 TAPPING	1-82119-067-0	08	1	9603-		●
19	NUT; HEADLAMP (A) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-	●	●
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	9603-		●
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	9603-	●
23	COVER; BULB,HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-147-0	02	1	9603-		●
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9603-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9603-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE	0-28081-035-0	08	1	9603-9606	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE	0-28081-035-0	06	1	9607-9904	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE	0-28081-035-0	06	1	9905-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	9607-	●	●
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9603-	●	●
30	BOLT; STAY BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10X20 FLANGE	0-28081-020-0	04	1	9603-9606	●	●
30	BOLT; STAY CAB UP +110MM<TGG> FRONT SPOILER<VP1> M10X25 FLANGE	0-28681-025-0	04	1	9607-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-100-0	02	1	9603-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-102-0	01	1	9603-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-101-0	01	1	9603-	●	●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	8-97104-091-0	01	1	9701-0001		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	8-97104-090-0	01	1	9701-0001		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (D)	1-82117-149-0	01	1	0002-0004		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (D)	1-82117-151-0	01	1	0005-		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (D)	1-82117-150-0	01	1	0002-0004		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (D)	1-82117-152-0	01	1	0005-		●
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-110-0	02	1	9607-9608	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-210-0	02	1	9609-	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> (B) M5 FLANGE	1-09984-170-0	12	1	9603-9904		●
140	NUT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M5 FLANGE	1-09984-170-0	12	1	9905-		●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-086-0	08	1	9603-	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> (B)	1-82117-304-0	16	1	9603-9904		●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B)	1-82117-304-1	16	1	9905-		●
171	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6 FLANGE	0-91150-106-0	02	1	9603-	●	●
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	9603-	●	●
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.5	9-09855-333-0	02	1	9603-	●	●
199	BUSHING BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	5-15549-001-1	04	1	9603-	●	●
202	GEAR UNIT; HEADLAMP	1-86830-139-0	04	1	9603-	●
202	GEAR UNIT; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-139-0	04	1	9603-		●
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	9603-	●	●
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	9603-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	9603-	●	●
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	9603-	●	●
211	TUBE; HEADLAMP (A)	1-86830-142-0	01	1	9603-9911	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-142-0	01	1	9603-9911		●
211	TUBE; HEADLAMP (A)	1-86830-329-0	01	1	9912-	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-329-0	01	1	9912-		●
211	TUBE; HEADLAMP (B)	1-86830-144-0	01	1	9603-9911	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-144-0	01	1	9603-9911		●
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	9912-	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-331-0	01	1	9912-		●
211	TUBE; HEADLAMP (A)	1-86830-141-0	01	1	9603-9911	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-141-0	01	1	9603-9911		●
211	TUBE; HEADLAMP (A)	1-86830-328-0	01	1	9912-	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-328-0	01	1	9912-		●
211	TUBE; HEADLAMP (B)	1-86830-143-0	01	1	9603-9911	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-143-0	01	1	9603-9911		●
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	9912-	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-330-0	01	1	9912-		●
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 FLANGE	0-28080-820-0	04	1	9603-	●	●
266	STAY; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-115-0	02	1	9603-9606	●	●
266	STAY; BRKT,HEADLAMP CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-82117-128-1	01	1	9607-		●
266	STAY; BRKT,HEADLAMP CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-82117-137-1	01	1	9607-	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 W/LK WASHER	0-50040-616-0	04	1	9603-9904	●	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE	0-28080-616-0	04	1	9603-9904	●	●
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE	0-28680-616-0	08	1	9905-	●	●
338	LEVELING; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-138-0	02	1	9808-9904		●
339	GASKET; LEVELING EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-158-0	02	1	9808-9904		●
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	9603-	●
340	BULB; POSITION EXC. HEADLAMPS RECTANGULAR<TR4> 24V 5W	1-82194-042-0	02	1	9603-		●
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-087-2	01	1	9603-	●	●
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-088-2	01	1	9603-	●	●
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82119-096-1	02	1	9603-	●	●

206 19 28 26 28 28 206 110 1 1 6 12 14 28 15 23 5 340 4 13 211 13 211 13 18 202 338 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD (A)	1-82110-306-4	01	1	9603-9609	●
1	LAMP ASM; HEAD (A)	1-82110-305-4	01	1	9603-9609	●
1	LAMP ASM; HEAD (A)	1-82110-326-1	01	1	9610-9807	●
1	LAMP ASM; HEAD (A)	1-82110-396-2	01	1	9808-	●
1	LAMP ASM; HEAD (A)	1-82110-325-1	01	1	9610-9807	●
1	LAMP ASM; HEAD (A)	1-82110-395-2	01	1	9808-	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	9603-		●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	9603-		●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	9603-		●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	9603-		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-310-0	01	1	9603-9609		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-309-0	01	1	9603-9609		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-330-0	01	1	9610-9807		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-400-2	01	1	9808-		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-329-0	01	1	9610-9807		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-399-2	01	1	9808-		●
4	HEADLAMP UNIT	1-82119-114-0	01	1	9603-9609	●
4	HEADLAMP UNIT	1-82119-113-0	01	1	9603-9710	●
4	HEADLAMP UNIT 24V 75/70W	1-82119-128-0	01	1	9711-	●
4	HEADLAMP UNIT 24V 75/70W	1-82119-129-0	01	1	9610-	●
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> INNER TYPE 1 24V 70W	1-82191-032-0	02	1	9603-		●
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> OUTER TYPE 2 24V 75/70W	1-82191-037-0	02	1	9603-		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-122-0	01	1	9603-9609		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-121-0	01	1	9603-9609		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-133-0	01	1	9610-		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-132-0	01	1	9610-		●
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9603-9807	●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	9603-9807		●
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9808-9904	●
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9905-	●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	9905-		●
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> OUTER 24V 75/70W	1-82193-006-0	02	1	9603-		●
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> INNER 24V 70W	1-82193-007-0	02	1	9603-		●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	01	1	9808-9904		●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	8-94405-657-0	01	1	9808-9904		●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-024-0	01	1	9603-	●	●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-023-0	01	1	9603-	●	●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-079-0	01	1	9603-9904		●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-079-0	01	1	9905-		●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-078-0	01	1	9603-9904		●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-078-0	01	1	9905-		●
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) INNER 24V 70W	1-82114-018-0	02	1	9603-		●
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) OUTER 24V 75/70W	1-82114-019-0	02	1	9603-		●
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	9603-9807	●
12	HARNESS; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	9603-9807		●
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	9808-9904	●
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	9905-	●
12	HARNESS; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	9905-		●
13	CLIP; HEADLAMP (A)	1-82119-084-0	04	1	9603-	●
13	CLIP; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-084-0	04	1	9603-		●
13	CLIP; HEADLAMP (B)	8-94381-588-0	14	1	9603-	●
13	CLIP; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-94381-588-0	14	1	9603-		●
14	CAP; BULB,LAMP	1-86830-148-0	02	1	9603-	●
14	CAP; BULB,LAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-148-0	02	1	9603-		●
15	BULB; FOG LAMP 24V 55W	1-82194-079-0	02	1	9603-	●
15	BULB; FOG LAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 55W	1-82194-079-0	02	1	9603-		●
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 55W	8-97093-860-0	02	1	9701-0001		●
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 70W	8-97203-926-0	02	1	0002-		●
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	9603-	●
18	SCREW; GEAR CASE EXC. HEADLAMPS RECTANGULAR<TR4> M4X16 TAPPING	1-82119-067-0	08	1	9603-		●
19	NUT; HEADLAMP (A) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-	●	●
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	9603-		●
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	9603-	●
23	COVER; BULB,HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-147-0	02	1	9603-		●
26	BRACKET ASM; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-114-0	02	1	9603-9606	●	●
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	9603-	●	●
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	9603-	●	●
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9603-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9603-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE	0-28081-035-0	08	1	9603-9606	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE	0-28081-035-0	06	1	9607-9904	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE	0-28081-035-0	06	1	9905-	●	●
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	9607-	●	●
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9603-	●	●
110	CLIP; RIM,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-213-0	04	1	9603-	●	●
202	GEAR UNIT; HEADLAMP	1-86830-139-0	04	1	9603-	●
202	GEAR UNIT; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-139-0	04	1	9603-		●
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	9603-	●	●
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	9603-	●	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	9603-	●	●
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	9603-	●	●
211	TUBE; HEADLAMP (A)	1-86830-142-0	01	1	9603-9911	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-142-0	01	1	9603-9911		●
211	TUBE; HEADLAMP (A)	1-86830-329-0	01	1	9912-	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-329-0	01	1	9912-		●
211	TUBE; HEADLAMP (B)	1-86830-144-0	01	1	9603-9911	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-144-0	01	1	9603-9911		●
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	9912-	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-331-0	01	1	9912-		●
211	TUBE; HEADLAMP (A)	1-86830-141-0	01	1	9603-9911	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-141-0	01	1	9603-9911		●
211	TUBE; HEADLAMP (A)	1-86830-328-0	01	1	9912-	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-328-0	01	1	9912-		●
211	TUBE; HEADLAMP (B)	1-86830-143-0	01	1	9603-9911	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-143-0	01	1	9603-9911		●
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	9912-	●
211	TUBE; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-330-0	01	1	9912-		●
338	LEVELING; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-138-0	02	1	9808-9904		●
339	GASKET; LEVELING EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-158-0	02	1	9808-9904		●
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	9603-	●
340	BULB; POSITION EXC. HEADLAMPS RECTANGULAR<TR4> 24V 5W	1-82194-042-0	02	1	9603-		●

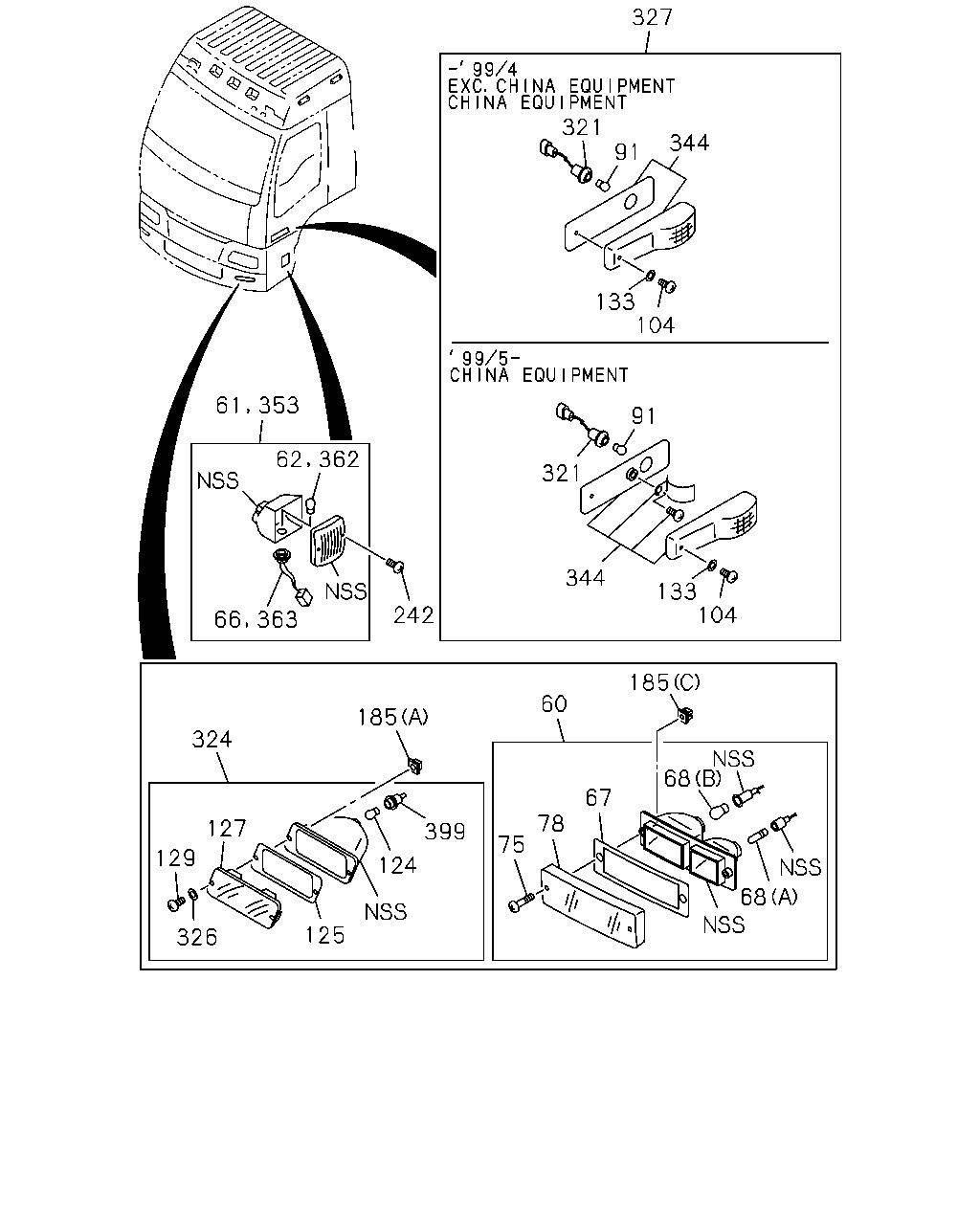

327 321 344 91 133 104 61 353 91 62 362 321 344 133 104 242 66 363 185 60 185 324 68 67 78 127 399 75 129 124 68 125 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
60	LAMP ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	1-86830-273-0	01	1	9603-	●	●
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-86830-273-0	01	1	9603-		●
60	LAMP ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	1-86830-272-0	01	1	9603-	●	●
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-86830-272-0	01	1	9603-		●
61	LAMP ASM; CORNERING CORNARING LAMP<TDS> 24V 30W	1-86830-188-2	01	1	9603-	●
61	LAMP ASM; CORNERING CORNARING LAMP<TDS> 24V 30W	1-86830-187-2	01	1	9603-	●	●
61	LAMP ASM; CORNERING CORNARING LAMP<TDS>	1-86830-247-2	01	1	9603-		●
62	BULB; CORNERING LAMP CORNARING LAMP<TDS> 24V 30W	8-97010-179-0	01	1	9603-	●	●
62	BULB; CORNERING LAMP CORNARING LAMP<TDS> 24V 30/10W	1-82194-065-0	01	1	9603-		●
66	HARNESS; CORNERING LAMP CORNARING LAMP<TDS>	1-86830-146-0	01	1	9603-	●	●
66	HARNESS; CORNERING LAMP CORNARING LAMP<TDS>	1-86830-297-0	01	1	9603-		●
67	GASKET; FRT COMB LAMP REINFORCEMENT BUMPER<VG7>	8-94149-259-0	02	1	9603-	●	●
67	GASKET; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	8-94149-259-0	02	1	9603-		●
68	BULB; FRT COMB LAMP REINFORCEMENT BUMPER<VG7> (A) 24V 5W	1-82194-089-0	02	1	9603-	●	●
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 5W	1-82194-089-0	02	1	9603-		●
68	BULB; FRT COMB LAMP REINFORCEMENT BUMPER<VG7> (B) 24V 21W	1-82194-090-0	02	1	9603-	●	●
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (B) 24V 21W	1-82194-090-0	02	1	9603-		●
75	SCREW; FRT COMB LAMP REINFORCEMENT BUMPER<VG7>	0-91190-435-0	04	1	9603-	●	●
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	0-91190-435-0	04	1	9603-		●
78	LENS ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	8-94151-265-0	01	1	9603-	●	●
78	LENS ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	8-94151-265-0	01	1	9603-		●
78	LENS ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	8-94151-264-0	01	1	9603-	●	●
78	LENS ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	8-94151-264-0	01	1	9603-		●
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	9810-	●
91	BULB; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 12W	1-82194-030-0	02	1	9810-		●
91	BULB; SIDE TURN SIGNAL 24V 10W	1-82194-037-0	02	1	9603-9809	●	●
91	BULB; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 10W	1-82194-037-0	02	1	9810-9904		●
91	BULB; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 21W	1-82194-036-0	02	1	9905-		●
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	9603-	●	●
124	BULB; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> 24V 21W	1-82194-036-0	02	1	9603-	●	●
125	GASKET; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82216-033-0	02	1	9603-	●	●
127	LENS; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> ORANGE	1-82215-065-0	01	1	9603-	●	●
127	LENS; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> ORANGE	1-82215-064-0	01	1	9603-	●	●
129	SCREW; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82219-026-0	04	1	9603-	●	●
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	9603-	●	●
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	9603-	●	●
185	GROMMET; SCREW EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9603-9606	●	●
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9607-9904	●
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9607-9904		●
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9905-	●	●
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9603-9904	●	●
185	GROMMET; SCREW HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9603-9904		●
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9905-	●	●
185	GROMMET; SCREW HEADLAMPS RECTANGULAR<TR4> (C) M4	5-09470-002-0	04	1	9905-		●
242	SCREW; CORNERING LAMP CORNARING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	9603-	●	●
242	SCREW; CORNERING LAMP EXC. CORNARING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	02	1	9603-		●
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	9603-9904	●	●
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	9905-	●
321	HARNESS; SIDE FLASHER LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-253-0	02	1	9905-		●
321	HARNESS; SIDE FLASHER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82218-002-0	02	1	9905-		●
324	LAMP; FRT FLASHER EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82210-203-1	01	1	9603-	●	●
324	LAMP; FRT FLASHER EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82210-202-1	01	1	9603-	●	●
326	WASHER; PL,FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82216-032-0	04	1	9603-	●	●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-263-0	01	1	9603-9809	●
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-263-0	01	1	9603-9809		●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	9810-	●
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-011-6	01	1	9810-		●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-262-0	01	1	9603-9809	●
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-262-0	01	1	9603-9809		●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	9810-	●
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-007-6	01	1	9810-		●
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-265-1	01	1	9603-9904		●
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82210-228-1	01	1	9905-		●
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-264-1	01	1	9603-9904		●
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82210-227-1	01	1	9905-		●
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	9603-	●
344	LAMP UNIT; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-241-1	01	1	9603-		●
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	9603-	●
344	LAMP UNIT; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-240-1	01	1	9603-		●
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-267-1	01	1	9603-9904		●
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-266-1	01	1	9603-9904		●
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82213-021-0	01	1	9905-		●
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82213-020-0	01	1	9905-		●
353	LAMP ASM; STEP EXC. CORNARING LAMP<TDS> 24V 5W	1-86830-248-2	01	1	9603-		●
362	BULB; STEP LAMP EXC. CORNARING LAMP<TDS> 24V 5W	1-82194-042-0	01	1	9603-		●
363	HARNESS; STEP LAMP EXC. CORNARING LAMP<TDS>	1-86830-296-0	01	1	9603-		●
399	SOCKET; TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82219-034-0	02	1	9603-	●	●

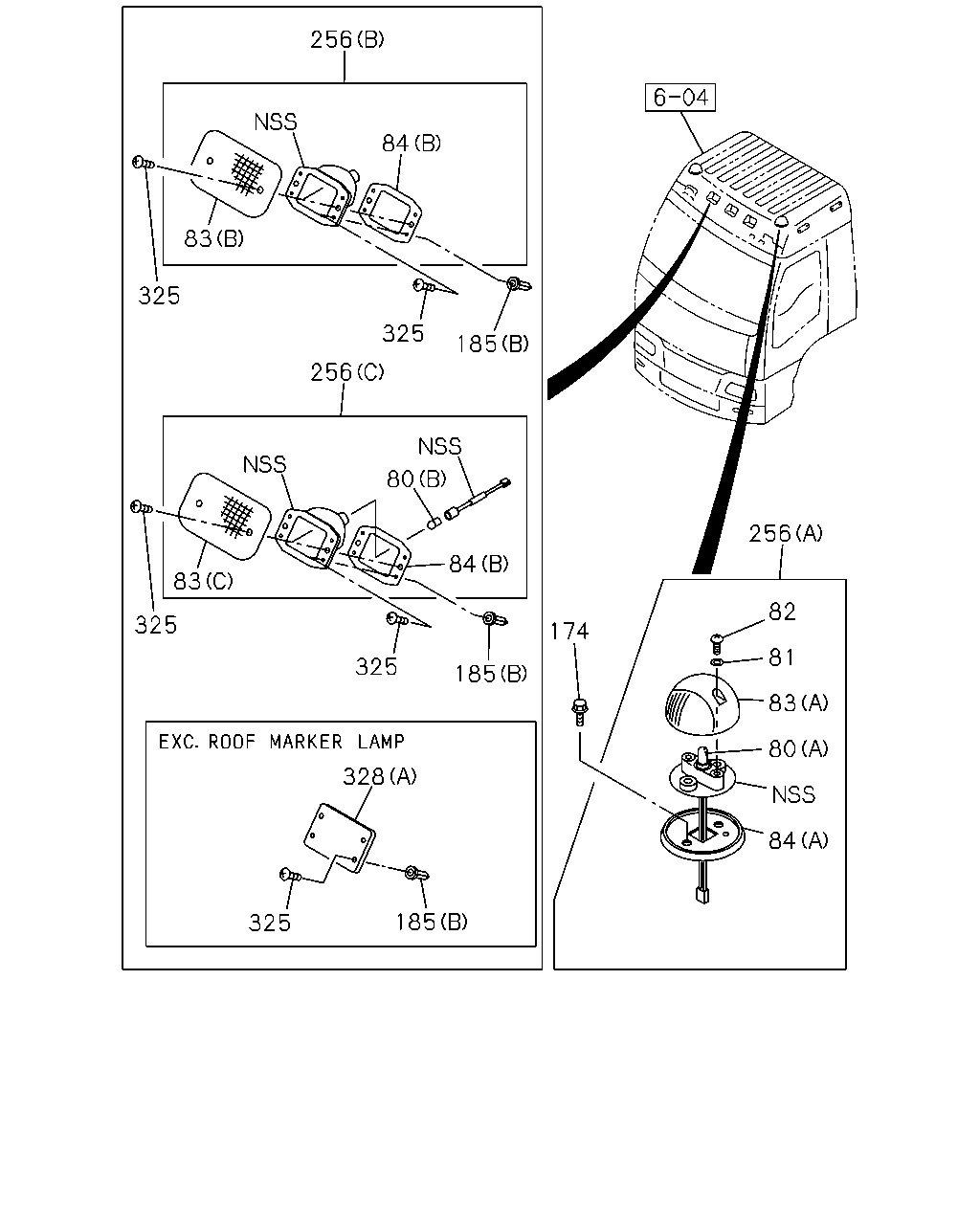

256 84 83 325 325 185 256 80 256 84 83 82 325 174 81 325 185 83 80 328 84 185 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	BULB; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A) 24V 5W	8-94135-397-0	02	1	9603-	●
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W	8-94135-397-0	02	1	9603-		●
80	BULB; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (B) 24V 12W	9-82691-302-0	02	1	9603-	●
81	SEAT; SCREW LAMPS FOUR ROOF MARKER<PJ5>	1-82219-012-0	04	1	9603-	●
81	SEAT; SCREW LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	9603-		●
82	SCREW; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>	1-82219-011-0	04	1	9603-	●
82	SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-011-0	04	1	9603-		●
83	LENS; MARKER LAMP HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-321-0	03	1	9905-	●
83	LENS; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-321-0	03	1	9905-		●
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A)	1-82215-048-0	02	1	9603-	●
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (C)	1-82215-068-0	02	1	9603-9904	●
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (C)	1-82215-068-0	02	1	9905-	●
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (B)	1-82215-069-0	01	1	9603-9904	●
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B)	1-82215-069-0	01	1	9905-	●
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C)	1-86830-320-0	02	1	9905-	●
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (B)	1-86830-321-0	01	1	9905-	●
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-82215-046-0	02	1	9603-		●
84	GASKET; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-153-0	03	1	9603-9904	●
84	GASKET; MARKER LAMP HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-153-0	03	1	9905-	●
84	GASKET; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-153-0	03	1	9905-	●
84	GASKET; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-153-0	03	1	9905-		●
84	GASKET; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A)	1-86830-288-0	02	1	9603-	●
84	GASKET; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-288-0	02	1	9603-		●
174	BOLT LAMPS FOUR ROOF MARKER<PJ5> M6X25	8-94279-204-0	04	1	9603-0012	●
174	BOLT LAMPS TWO ROOF MARKER<TEC> M6X25	8-94279-204-0	04	1	9603-0012		●
174	BOLT LAMPS FOUR ROOF MARKER<PJ5> M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0101-	●
174	BOLT LAMPS TWO ROOF MARKER<TEC> M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0101-		●
174	BOLT HEADLAMPS RECTANGULAR<TR4> M8X16 FLANGE	0-28080-816-0	04	1	9612-		●
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	9603-	●	●
185	GROMMET; SCREW EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9603-9606	●	●
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9607-9904	●
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9607-9904		●
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9905-	●	●
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9603-9904	●	●
185	GROMMET; SCREW HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9603-9904		●
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9905-	●	●
185	GROMMET; SCREW HEADLAMPS RECTANGULAR<TR4> (C) M4	5-09470-002-0	04	1	9905-		●
256	LAMP; MARKER HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B)	1-82210-230-0	03	1	9905-	●
256	LAMP; MARKER HIGH ROOF<S2F> (B)	1-82210-230-0	03	1	9905-		●
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (A)	1-86830-129-0	02	1	9603-	●
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-131-0	01	1	9603-9904	●
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B)	1-86830-131-0	01	1	9905-	●
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (C)	1-86830-170-0	02	1	9603-9904	●
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (C)	1-86830-170-0	02	1	9905-	●
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C)	1-82210-229-0	02	1	9905-	●
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (B)	1-82210-230-0	01	1	9905-	●
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-242-1	02	1	9603-		●
325	SCREW; SPD INDICATOR LAMP LAMPS FOUR ROOF MARKER<PJ5> M5X20 TAPPING	0-71090-520-0	18	1	9603-9904	●
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	04	1	9905-9910	●	●
325	SCREW; SPD INDICATOR LAMP LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	04	1	9905-9910	●
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	9911-	●	●
325	SCREW; SPD INDICATOR LAMP LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	9911-	●
325	SCREW; SPD INDICATOR LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5> M5X14 TAPPING	9-07066-514-0	12	1	9603-9904	●
325	SCREW; SPD INDICATOR LAMP M5X14 TAPPING	9-07066-514-0	12	1	9603-9904		●
325	SCREW; SPD INDICATOR LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> M5X14 TAPPING	9-07066-514-0	04	1	9905-9910	●
325	SCREW; SPD INDICATOR LAMP EXC. HIGH ROOF<S2F> M5X14 TAPPING	9-07066-514-0	04	1	9905-9910		●
325	SCREW; SPD INDICATOR LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> M5X14 TAPPING	9-07066-514-0	12	1	9911-	●
325	SCREW; SPD INDICATOR LAMP EXC. HIGH ROOF<S2F> M5X14 TAPPING	9-07066-514-0	12	1	9911-		●
328	COVER; LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5> (A)	1-76217-122-0	03	1	9603-9904	●
328	COVER; LAMP (A)	1-76217-122-0	03	1	9603-9904		●
328	COVER; LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> (A)	1-76217-122-0	04	1	9905-9910	●
328	COVER; LAMP EXC. HIGH ROOF<S2F> (A)	1-76217-122-0	04	1	9905-9910		●
328	COVER; LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> (A)	1-76217-122-0	03	1	9911-	●
328	COVER; LAMP EXC. HIGH ROOF<S2F> (A)	1-76217-122-0	03	1	9911-		●
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-124-0	01	1	9612-0001		●
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-134-0	01	1	0002-		●
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-125-0	01	1	9612-0001		●
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-135-0	01	1	0002-		●

328 32 49 39 57 36 15 54 42 53 58 52 57 55 44 44 328 32 49 15 39 277 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BULB; FOG LAMP 24V 55W	1-82194-079-0	02	1	9603-	●
15	BULB; FOG LAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 55W	1-82194-079-0	02	1	9603-		●
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 55W	8-97093-860-0	02	1	9701-0001		●
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> 24V 70W	8-97203-926-0	02	1	0002-		●
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97080-777-1	01	1	9701-0001		●
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97181-942-0	01	1	0002-		●
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97080-776-1	01	1	9701-0001		●
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97181-940-0	01	1	0002-		●
36	CORD; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97095-518-0	02	1	9701-0001		●
39	UNIT; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97104-061-0	02	1	9701-9904		●
39	UNIT; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97119-301-0	01	1	9905-0001		●
39	UNIT; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97104-061-0	01	1	9905-0001		●
39	UNIT; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-929-0	02	1	0002-		●
42	SCREW; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97104-089-0	04	1	9701-0001		●
42	SCREW; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-931-0	04	1	0002-		●
44	NUT; FOG LAMP HEADLAMPS RECTANGULAR<TR4> M5 CAP NUT	9-61167-090-0	02	1	0002-		●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-100-0	02	1	9603-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-102-0	01	1	9603-	●	●
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-101-0	01	1	9603-	●	●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	8-97104-091-0	01	1	9701-0001		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	8-97104-090-0	01	1	9701-0001		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (D)	1-82117-149-0	01	1	0002-0004		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (D)	1-82117-151-0	01	1	0005-		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (D)	1-82117-150-0	01	1	0002-0004		●
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (D)	1-82117-152-0	01	1	0005-		●
52	RING; MTG,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97104-062-0	02	1	9701-0001		●
53	NUT; MTG RING,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-94379-802-0	04	1	9701-0001		●
54	BOLT; MTG RING,FOG LAMP HEADLAMPS RECTANGULAR<TR4> M5X12	8-94379-803-0	04	1	9701-0001		●
55	SCREW; ADJ,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97104-087-0	02	1	9701-0001		●
57	NUT; UNIT TO SCREW,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-94379-806-0	06	1	9701-0001		●
58	HOLDER; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97104-088-0	02	1	9701-0001		●
277	CLIP; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-930-0	02	1	0002-		●
328	COVER; LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5> (A)	1-76217-122-0	03	1	9603-9904	●
328	COVER; LAMP (A)	1-76217-122-0	03	1	9603-9904		●
328	COVER; LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> (A)	1-76217-122-0	04	1	9905-9910	●
328	COVER; LAMP EXC. HIGH ROOF<S2F> (A)	1-76217-122-0	04	1	9905-9910		●
328	COVER; LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> (A)	1-76217-122-0	03	1	9911-	●
328	COVER; LAMP EXC. HIGH ROOF<S2F> (A)	1-76217-122-0	03	1	9911-		●
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-124-0	01	1	9612-0001		●
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-134-0	01	1	0002-		●
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-125-0	01	1	9612-0001		●
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-135-0	01	1	0002-		●

175 1 16 1 160 162 140 19 1 6 22 25 21 5 20 4 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD (A)	1-82110-306-4	01	1	9603-9609	●
1	LAMP ASM; HEAD (A)	1-82110-305-4	01	1	9603-9609	●
1	LAMP ASM; HEAD (A)	1-82110-326-1	01	1	9610-9807	●
1	LAMP ASM; HEAD (A)	1-82110-396-2	01	1	9808-	●
1	LAMP ASM; HEAD (A)	1-82110-325-1	01	1	9610-9807	●
1	LAMP ASM; HEAD (A)	1-82110-395-2	01	1	9808-	●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	9603-		●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	9603-		●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	9603-		●
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (B) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	9603-		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-310-0	01	1	9603-9609		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-309-0	01	1	9603-9609		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-330-0	01	1	9610-9807		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-400-2	01	1	9808-		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-329-0	01	1	9610-9807		●
1	LAMP ASM; HEAD EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82110-399-2	01	1	9808-		●
4	HEADLAMP UNIT	1-82119-114-0	01	1	9603-9609	●
4	HEADLAMP UNIT	1-82119-113-0	01	1	9603-9710	●
4	HEADLAMP UNIT 24V 75/70W	1-82119-128-0	01	1	9711-	●
4	HEADLAMP UNIT 24V 75/70W	1-82119-129-0	01	1	9610-	●
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> INNER TYPE 1 24V 70W	1-82191-032-0	02	1	9603-		●
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> OUTER TYPE 2 24V 75/70W	1-82191-037-0	02	1	9603-		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-122-0	01	1	9603-9609		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-121-0	01	1	9603-9609		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-133-0	01	1	9610-		●
4	HEADLAMP UNIT EXC. HEADLAMPS RECTANGULAR<TR4>	1-82119-132-0	01	1	9610-		●
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9603-9807	●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	9603-9807		●
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9808-9904	●
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9905-	●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	9905-		●
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> OUTER 24V 75/70W	1-82193-006-0	02	1	9603-		●
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> INNER 24V 70W	1-82193-007-0	02	1	9603-		●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	01	1	9808-9904		●
5	BULB; HEADLAMP EXC. HEADLAMPS RECTANGULAR<TR4> 24V 75/70W	8-94405-657-0	01	1	9808-9904		●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-024-0	01	1	9603-	●	●
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-023-0	01	1	9603-	●	●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-079-0	01	1	9603-9904		●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-079-0	01	1	9905-		●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-078-0	01	1	9603-9904		●
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-078-0	01	1	9905-		●
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) INNER 24V 70W	1-82114-018-0	02	1	9603-		●
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) OUTER 24V 75/70W	1-82114-019-0	02	1	9603-		●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-82117-120-2	01	1	9905-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-82117-119-2	01	1	9905-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-082-5	02	1	9603-9606	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-116-1	02	1	9607-9904	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-82117-116-1	02	1	9905-	●	●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-103-1	04	1	9603-9904		●
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B)	1-82117-103-1	04	1	9905-		●
19	NUT; HEADLAMP (A) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-	●	●
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	9603-		●
20	SCREW; HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-104-0	16	1	9603-9704		●
20	SCREW; HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-023-0	16	1	9705-		●
21	SPRING; ADJ HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-021-0	04	1	9603-9704		●
21	SPRING; ADJ HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-105-0	04	1	9705-		●
22	SCREW; ADJ,HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-095-0	08	1	9603-		●
25	SCREW; LAMP BUMPER W/HEADLAMPS<SLB>	1-09104-031-0	08	1	9603-9904		●
25	SCREW; LAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-09104-031-0	08	1	9905-		●
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-110-0	02	1	9607-9608	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10 FLANGE	0-91150-210-0	02	1	9609-	●	●
140	NUT BUMPER W/HEADLAMPS<SLB> (B) M5 FLANGE	1-09984-170-0	12	1	9603-9904		●
140	NUT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) M5 FLANGE	1-09984-170-0	12	1	9905-		●
160	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M8X16 FLANGE	0-28080-816-0	08	1	9603-9904		●
160	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M8X16 FLANGE	0-28080-816-0	08	1	9905-		●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-086-0	08	1	9603-	●	●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> (B)	1-82117-304-0	16	1	9603-9904		●
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B)	1-82117-304-1	16	1	9905-		●
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	9603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
