Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#58696) — 353 parça

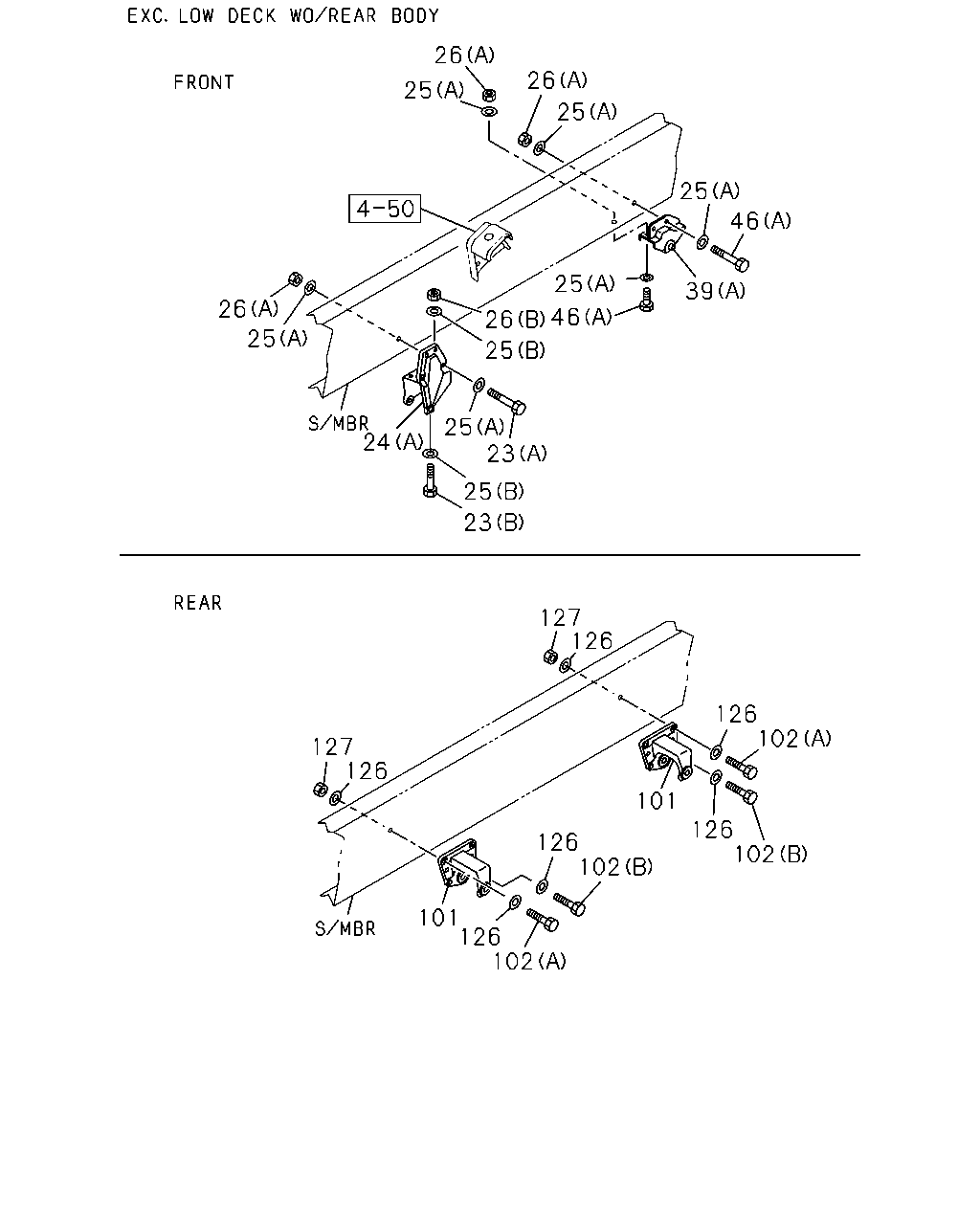

26 25 26 25 25 46 39 25 46 26 25 26 25 25 24 23 25 23 127 126 126 102 101 126 102 102 126 101 126 102 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	BOLT; BRKT,SPR (B) M16X55	9-91066-655-0	04	1	0909-	●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (B) M16X55	9-91066-655-0	04	1	0909-		●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	08	1	0909-	●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X45	9-92061-445-0	08	1	0909-		●
23	BOLT; BRKT,SPR LOW DECK WO/REAR BODY<PK4> (D) M14X50	0-20951-450-0	02	1	0909-		●
23	BOLT; BRKT,SPR LOW DECK WO/REAR BODY<PK4> (C) M14X60	0-20951-460-0	10	1	0909-		●
24	BRACKET; FRT SPR,FRT (A)	1-53351-178-0	01	1	0909-	●
24	BRACKET; FRT SPR,FRT EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53351-178-0	01	1	0909-		●
24	BRACKET; FRT SPR,FRT (A)	1-53351-179-0	01	1	0909-	●
24	BRACKET; FRT SPR,FRT EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53351-179-0	01	1	0909-		●
24	BRACKET; FRT SPR,FRT LOW DECK WO/REAR BODY<PK4> (B)	1-53354-067-0	01	1	0909-		●
24	BRACKET; FRT SPR,FRT LOW DECK WO/REAR BODY<PK4> (B)	1-53354-068-0	01	1	0909-		●
25	WASHER; PL,BRKT MZW6P M/T(RSZ) EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=15	9-09651-069-0	32	1	1501-	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0909-	●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=16.2	1-09503-223-0	08	1	0909-		●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	32	1	0909-1201	●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=15	9-09651-069-0	32	1	0909-1201		●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	32	1	1202-1412	●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=15	8-98010-627-1	32	1	1202-1412		●
25	WASHER; PL,BRKT MLD6Q M/T(X5J) EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=15	8-98010-627-1	32	1	1501-	●	●
25	WASHER; PL,BRKT FULLER FS6306 M/T(MWO) (A) ID=15	8-98010-627-1	32	1	1501-	●
25	WASHER; PL,BRKT LOW DECK WO/REAR BODY<PK4> (C) ID=15	8-98010-627-1	48	1	0909-		●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	0909-	●
26	NUT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (A) M14	0-91110-514-0	16	1	0909-		●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0909-	●
26	NUT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (B) M16	0-91110-516-0	04	1	0909-		●
26	NUT; BRKT,SPR LOW DECK WO/REAR BODY<PK4> (A) M14	0-91110-514-0	24	1	0909-		●
39	BRACKET; FRT SPR,RR (A)	1-53352-152-0	01	1	0909-	●
39	BRACKET; FRT SPR,RR EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53352-152-0	01	1	0909-		●
39	BRACKET; FRT SPR,RR (A)	1-53352-153-0	01	1	0909-	●
39	BRACKET; FRT SPR,RR EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53352-153-0	01	1	0909-		●
39	BRACKET; FRT SPR,RR LOW DECK WO/REAR BODY<PK4> (B)	8-98070-025-0	02	1	0909-		●
46	BOLT; BRKT FIX (A) M14X45	9-92061-445-0	08	1	0909-	●
46	BOLT; BRKT FIX EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X45	9-92061-445-0	08	1	0909-		●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY<PK4> (C) M6X30 FLANGE	0-28650-630-0	04	1	0909-0910		●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY<PK4> (B) M14X60	0-20951-460-0	12	1	0909-		●
101	BRACKET; RR SPR,FRT MZW6P M/T(RSZ)	8-98134-229-0	02	1	1501-	●	●
101	BRACKET; RR SPR,FRT MZW6P M/T(RSZ)	8-98134-230-0	02	1	1501-	●	●
101	BRACKET; RR SPR,FRT	1-53354-067-0	02	1	0909-1412	●	●
101	BRACKET; RR SPR,FRT FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J)	1-53354-067-0	02	1	1501-	●
101	BRACKET; RR SPR,FRT MLD6Q M/T(X5J)	1-53354-067-0	02	1	1501-		●
101	BRACKET; RR SPR,FRT	1-53354-068-0	02	1	0909-1412	●	●
101	BRACKET; RR SPR,FRT FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J)	1-53354-068-0	02	1	1501-	●
101	BRACKET; RR SPR,FRT MLD6Q M/T(X5J)	1-53354-068-0	02	1	1501-		●
102	BOLT; BRKT,RR SPR MZW6P M/T(RSZ) (A) M16X60	9-91066-660-0	20	1	1501-	●	●
102	BOLT; BRKT,RR SPR MZW6P M/T(RSZ) (B) M16X50	9-92061-650-0	04	1	1501-	●	●
102	BOLT; BRKT,RR SPR (B) M14X50	0-10956-450-0	04	1	0909-1412	●
102	BOLT; BRKT,RR SPR EXC. LOW DECK WO/REAR BODY<PK4> (B) M14X50	0-10956-450-0	04	1	0909-1412		●
102	BOLT; BRKT,RR SPR MLD6Q M/T(X5J) EXC. LOW DECK WO/REAR BODY<PK4> (B) M14X50	0-10956-450-0	04	1	1501-	●	●
102	BOLT; BRKT,RR SPR FULLER FS6306 M/T(MWO) (B) M14X50	0-10956-450-0	04	1	1501-	●
102	BOLT; BRKT,RR SPR (A) M14X55	9-91066-455-0	20	1	0909-1412	●
102	BOLT; BRKT,RR SPR EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X55	9-91066-455-0	20	1	0909-1412		●
102	BOLT; BRKT,RR SPR MLD6Q M/T(X5J) EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X55	9-91066-455-0	20	1	1501-	●	●
102	BOLT; BRKT,RR SPR FULLER FS6306 M/T(MWO) (A) M14X55	9-91066-455-0	20	1	1501-	●
102	BOLT; BRKT,RR SPR LOW DECK WO/REAR BODY<PK4> (B) M14X50	0-20951-450-0	04	1	0909-1412		●
102	BOLT; BRKT,RR SPR MLD6Q M/T(X5J) LOW DECK WO/REAR BODY<PK4> (B) M14X50	0-20951-450-0	04	1	1501-		●
102	BOLT; BRKT,RR SPR LOW DECK WO/REAR BODY<PK4> (A) M14X60	0-20951-460-0	20	1	0909-1412		●
102	BOLT; BRKT,RR SPR MLD6Q M/T(X5J) LOW DECK WO/REAR BODY<PK4> (A) M14X60	0-20951-460-0	20	1	1501-		●
126	WASHER; PL,BRKT MZW6P M/T(RSZ) ID=16.2	1-09503-223-0	48	1	1501-	●	●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	0909-1201	●
126	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> ID=15	9-09651-069-0	48	1	0909-1201		●
126	WASHER; PL,BRKT LOW DECK WO/REAR BODY<PK4> ID=15	8-98010-627-1	48	1	0909-1201		●
126	WASHER; PL,BRKT ID=15	8-98010-627-1	48	1	1202-1412	●	●
126	WASHER; PL,BRKT FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J) ID=15	8-98010-627-1	48	1	1501-	●
126	WASHER; PL,BRKT MLD6Q M/T(X5J) ID=15	8-98010-627-1	48	1	1501-		●
127	NUT; BRKT MZW6P M/T(RSZ) M16	9-99110-516-0	24	1	1501-	●	●
127	NUT; BRKT M14	0-91110-514-0	24	1	0909-1412	●	●
127	NUT; BRKT FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J) M14	0-91110-514-0	24	1	1501-	●
127	NUT; BRKT MLD6Q M/T(X5J) M14	0-91110-514-0	24	1	1501-		●

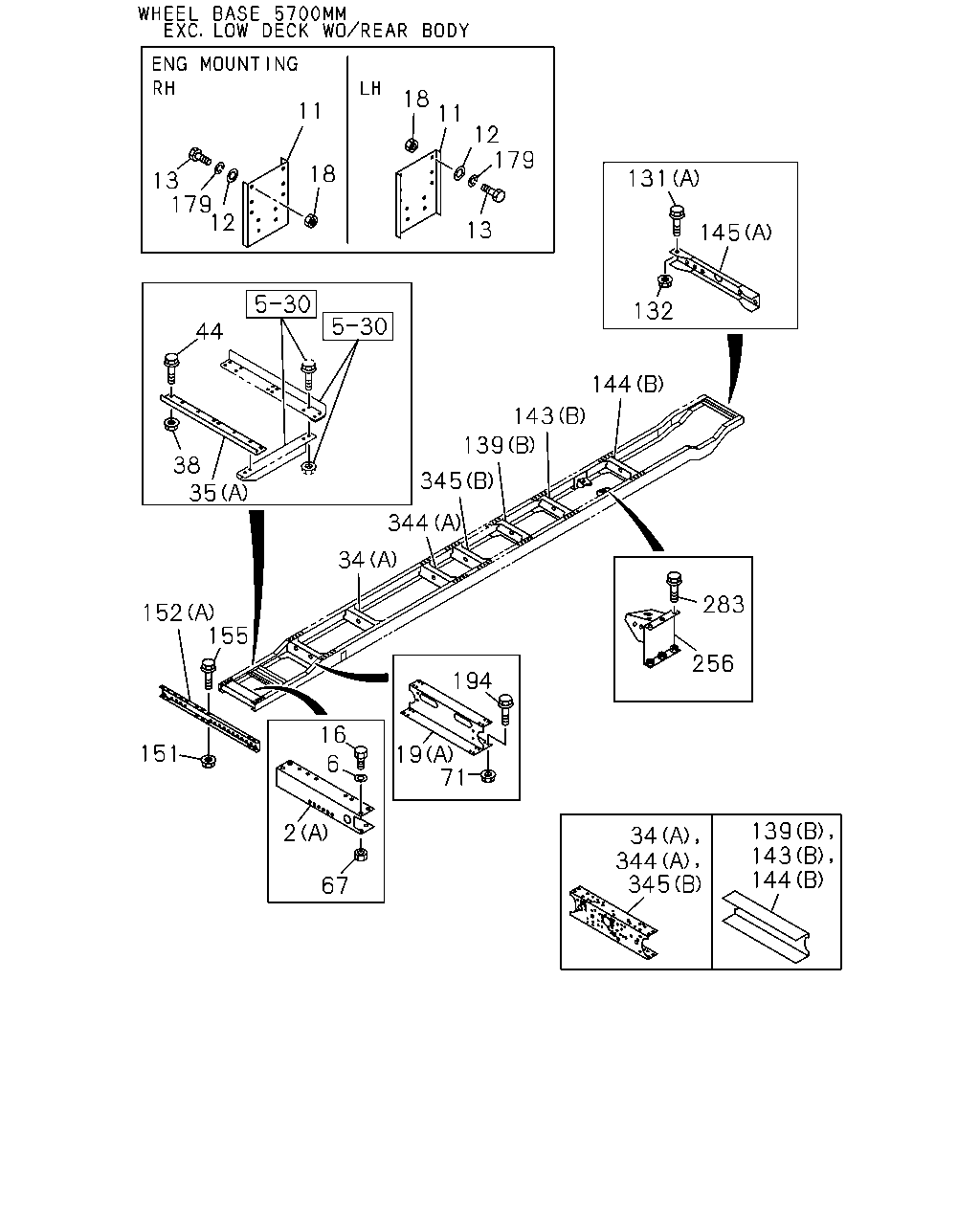

11 18 12 179 13 44 35 38 19 344 155 152 15 16 6 67 2 19 143 144 139 344 345 77 77 145 454 314 455 34 345 143 139 144 77 77 283 256 32 46 130 132 131 179 13 12 11 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST (A)	1-53182-078-3	01	1	0909-	●
2	MEMBER; CROSS,1ST EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-078-3	01	1	0909-		●
2	MEMBER; CROSS,1ST LOW DECK WO/REAR BODY<PK4> (B)	8-98069-070-0	01	1	0909-		●
6	WASHER; LK,1ST C/MBR ID=14.2	0-91510-614-0	02	1	0909-	●
6	WASHER; LK,1ST C/MBR EXC. LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-614-0	02	1	0909-		●
6	WASHER; LK,1ST C/MBR LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-814-0	02	1	0909-0911		●
6	WASHER; LK,1ST C/MBR LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-814-0	04	1	0912-		●
11	BRACKET; ENG MTG	1-53221-188-1	01	1	0909-	●	●
11	BRACKET; ENG MTG	1-53221-220-1	01	1	0909-	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	12	1	0909-1201	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	12	1	1202-	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	12	1	0909-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20851-430-0	02	1	0909-	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. LOW DECK WO/REAR BODY<PK4> M14X30	0-20851-430-0	02	1	0909-		●
16	BOLT; 1ST C/MBR TO S/MBR LOW DECK WO/REAR BODY<PK4> M14X30	0-20951-430-0	02	1	0909-		●
18	NUT; BRKT,ENG MTG M14	0-91110-514-0	06	1	0909-	●	●
19	MEMBER; CROSS,2ND (A)	1-53182-079-1	01	1	0909-	●
19	MEMBER; CROSS,2ND EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-079-1	01	1	0909-		●
19	MEMBER; CROSS,2ND LOW DECK WO/REAR BODY<PK4> (B)	8-98069-071-0	01	1	0909-		●
32	NUT; BRKT FIX LOW DECK WO/REAR BODY<PK4> M6 FLANGE	0-91180-206-0	04	1	0909-0910		●
34	MEMBER; CROSS,3RD (A)	1-53181-731-8	01	1	0909-	●
34	MEMBER; CROSS,3RD EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53181-731-8	01	1	0909-		●
34	MEMBER; CROSS,3RD LOW DECK WO/REAR BODY<PK4> (B)	8-98069-072-0	01	1	0909-		●
35	MEMBER; UNDER LOW DECK WO/REAR BODY<PK4> (B)	8-98085-826-0	01	1	0909-		●
35	MEMBER; UNDER (A)	1-53618-064-1	01	1	0909-	●
35	MEMBER; UNDER EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53618-064-1	01	1	0909-		●
38	NUT; UNDER MBR M12 FLANGE	0-91180-212-0	02	1	0909-	●	●
44	BOLT; UNDER MBR M12X30 FLANGE	0-28651-230-0	04	1	0909-	●	●
46	BOLT; BRKT FIX (A) M14X45	9-92061-445-0	08	1	0909-	●
46	BOLT; BRKT FIX EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X45	9-92061-445-0	08	1	0909-		●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY<PK4> (C) M6X30 FLANGE	0-28650-630-0	04	1	0909-0910		●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY<PK4> (B) M14X60	0-20951-460-0	12	1	0909-		●
67	NUT; C/MBR M14	0-91110-514-0	02	1	0909-	●	●
77	MEMBER; CROSS,TRUNNION RR MZW6P M/T(RSZ) LOW DECK WO/REAR BODY<PK4> (B)	8-98134-014-1	01	1	1501-		●
77	MEMBER; CROSS,TRUNNION RR LOW DECK WO/REAR BODY<PK4> (B)	1-53182-080-3	01	1	0909-1412		●
77	MEMBER; CROSS,TRUNNION RR MLD6Q M/T(X5J) LOW DECK WO/REAR BODY<PK4> (B)	1-53182-080-3	01	1	1501-		●
77	MEMBER; CROSS,TRUNNION RR LOW DECK WO/REAR BODY<PK4> (A)	8-98057-557-0	01	1	0909-		●
130	MEMBER; CROSS,END LOW DECK WO/REAR BODY<PK4>	1-53182-094-0	01	1	0909-		●
131	BOLT; END C/MBR (A) M12X35 FLANGE	0-28651-235-0	08	1	0909-	●
131	BOLT; END C/MBR EXC. LOW DECK WO/REAR BODY<PK4> (A) M12X35 FLANGE	0-28651-235-0	08	1	0909-		●
131	BOLT; END C/MBR LOW DECK WO/REAR BODY<PK4> (B) M12X35 FLANGE	0-28661-235-0	08	1	0909-		●
132	NUT; END C/MBR M12 FLANGE	0-91180-212-0	08	1	0909-	●	●
139	MEMBER; CROSS,6TH (A)	8-98057-557-0	01	1	0909-	●
139	MEMBER; CROSS,6TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-073-0	01	1	0909-		●
139	MEMBER; CROSS,6TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53181-733-9	01	1	0909-		●
143	MEMBER; CROSS,7TH MZW6P M/T(RSZ) (A)	8-98134-014-1	01	1	1501-	●
143	MEMBER; CROSS,7TH FULLER FS6306 M/T(MWO) (A)	1-53181-777-5	01	1	1006-	●
143	MEMBER; CROSS,7TH (A)	1-53182-080-3	01	1	0909-1005	●
143	MEMBER; CROSS,7TH MLD6Q M/T(X5J) (A)	1-53182-080-3	01	1	1006-	●
143	MEMBER; CROSS,7TH LOW DECK WO/REAR BODY<PK4> (C)	8-98085-824-0	01	1	0909-		●
143	MEMBER; CROSS,7TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	8-98057-557-0	01	1	0909-		●
144	MEMBER; CROSS,8TH MZW6P M/T(RSZ) EXC. LOW DECK WO/REAR BODY<PK4> (B)	8-98134-014-1	01	1	1501-		●
144	MEMBER; CROSS,8TH (A)	1-53182-094-0	01	1	0909-	●
144	MEMBER; CROSS,8TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-074-0	01	1	0909-		●
144	MEMBER; CROSS,8TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53182-080-3	01	1	0909-1412		●
144	MEMBER; CROSS,8TH MLD6Q M/T(X5J) EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53182-080-3	01	1	1501-		●
145	MEMBER; CROSS,9TH LOW DECK WO/REAR BODY<PK4> (B)	8-98069-075-0	01	1	0909-		●
145	MEMBER; CROSS,9TH EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-094-0	01	1	0909-		●
152	OUTRIGGER LOW DECK WO/REAR BODY<PK4> (B)	8-98072-366-0	01	1	0909-		●
152	OUTRIGGER (A)	1-53456-455-1	01	1	0909-	●
152	OUTRIGGER EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53456-455-1	01	1	0909-		●
155	BOLT; OUTRIGGER M12X35 FLANGE	0-28651-235-0	02	1	0909-	●	●
179	WASHER; LK ID=14.2	0-91510-614-0	12	1	0909-	●	●
256	BRACKET; S/ABS	1-51681-479-1	01	1	0909-	●	●
256	BRACKET; S/ABS	1-51681-480-2	01	1	0909-	●	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28651-235-0	12	1	0909-	●
283	BOLT; BRKT,S/ABS EXC. LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE	0-28651-235-0	12	1	0909-		●
283	BOLT; BRKT,S/ABS LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE	0-28661-235-0	12	1	0909-		●
314	WASHER; PL,C/MBR LOW DECK WO/REAR BODY<PK4> ID=12.5 OD=22	0-91610-512-0	08	1	0909-		●
344	MEMBER; CROSS,4TH (A)	1-53181-732-9	01	1	0909-	●
344	MEMBER; CROSS,4TH EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53181-732-9	01	1	0909-		●
344	MEMBER; CROSS,4TH LOW DECK WO/REAR BODY<PK4> (B)	8-98069-071-0	01	1	0909-		●
345	MEMBER; CROSS,5TH (A)	1-53181-733-9	01	1	0909-	●
345	MEMBER; CROSS,5TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-073-0	01	1	0909-		●
345	MEMBER; CROSS,5TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53181-732-9	01	1	0909-		●
454	BOLT; 9TH C/MBR LOW DECK WO/REAR BODY<PK4> M12X35	0-20951-235-0	04	1	0909-		●
455	NUT; 9TH C/MBR LOW DECK WO/REAR BODY<PK4> M12	0-91110-512-0	04	1	0909-		●

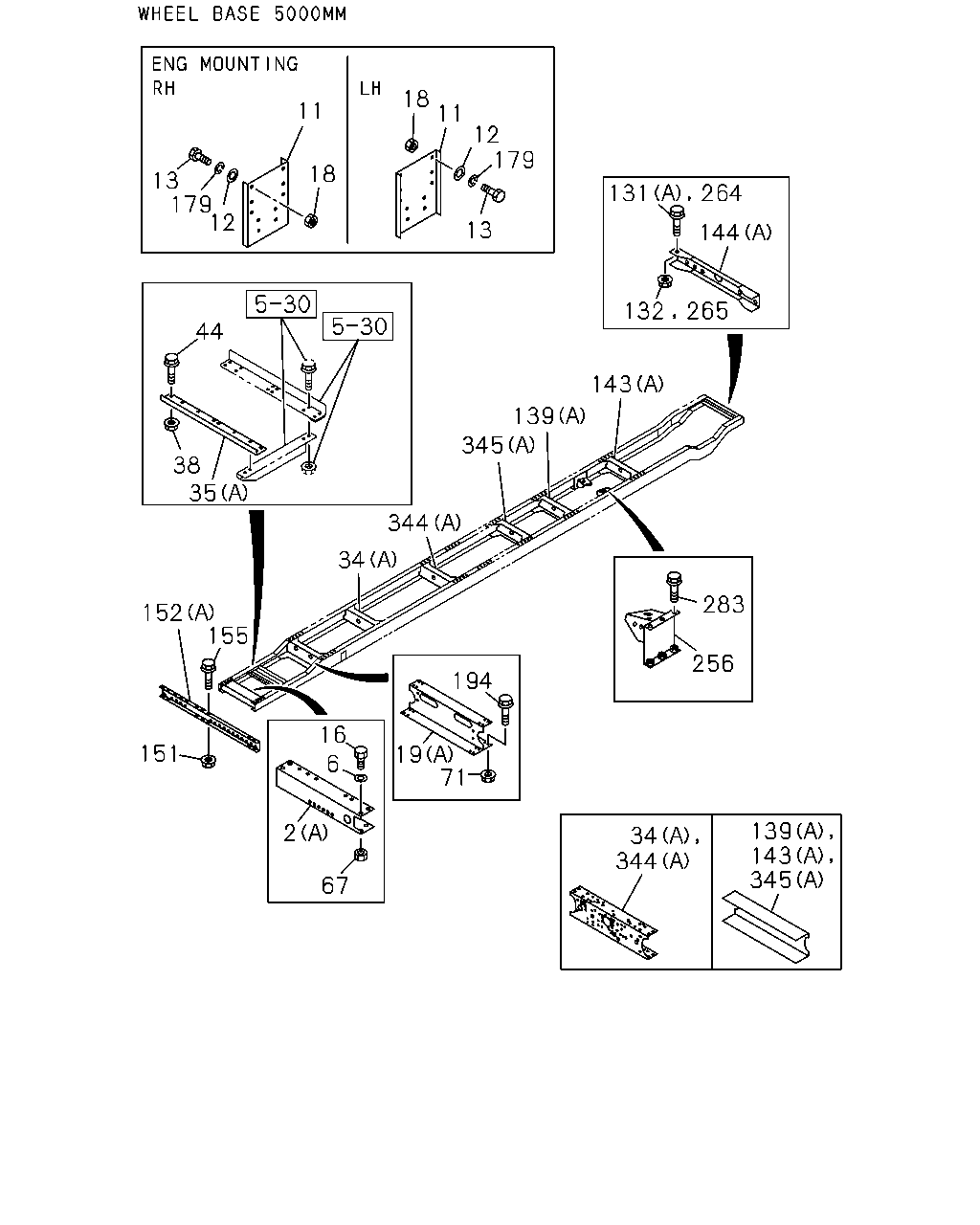

11 18 12 179 13 18 11 12 179 13 131 264 144 265 132 143 139 345 344 34 152 155 151 16 6 2 67 19 71 194 283 256 34 344 139 143 345 44 38 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST (A)	1-53182-078-3	01	1	0909-	●
2	MEMBER; CROSS,1ST EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-078-3	01	1	0909-		●
2	MEMBER; CROSS,1ST LOW DECK WO/REAR BODY<PK4> (B)	8-98069-070-0	01	1	0909-		●
6	WASHER; LK,1ST C/MBR ID=14.2	0-91510-614-0	02	1	0909-	●
6	WASHER; LK,1ST C/MBR EXC. LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-614-0	02	1	0909-		●
6	WASHER; LK,1ST C/MBR LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-814-0	02	1	0909-0911		●
6	WASHER; LK,1ST C/MBR LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-814-0	04	1	0912-		●
11	BRACKET; ENG MTG	1-53221-188-1	01	1	0909-	●	●
11	BRACKET; ENG MTG	1-53221-220-1	01	1	0909-	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	12	1	0909-1201	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	12	1	1202-	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	12	1	0909-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20851-430-0	02	1	0909-	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. LOW DECK WO/REAR BODY<PK4> M14X30	0-20851-430-0	02	1	0909-		●
16	BOLT; 1ST C/MBR TO S/MBR LOW DECK WO/REAR BODY<PK4> M14X30	0-20951-430-0	02	1	0909-		●
18	NUT; BRKT,ENG MTG M14	0-91110-514-0	06	1	0909-	●	●
19	MEMBER; CROSS,2ND (A)	1-53182-079-1	01	1	0909-	●
19	MEMBER; CROSS,2ND EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-079-1	01	1	0909-		●
19	MEMBER; CROSS,2ND LOW DECK WO/REAR BODY<PK4> (B)	8-98069-071-0	01	1	0909-		●
34	MEMBER; CROSS,3RD (A)	1-53181-731-8	01	1	0909-	●
34	MEMBER; CROSS,3RD EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53181-731-8	01	1	0909-		●
34	MEMBER; CROSS,3RD LOW DECK WO/REAR BODY<PK4> (B)	8-98069-072-0	01	1	0909-		●
35	MEMBER; UNDER LOW DECK WO/REAR BODY<PK4> (B)	8-98085-826-0	01	1	0909-		●
35	MEMBER; UNDER (A)	1-53618-064-1	01	1	0909-	●
35	MEMBER; UNDER EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53618-064-1	01	1	0909-		●
38	NUT; UNDER MBR M12 FLANGE	0-91180-212-0	02	1	0909-	●	●
44	BOLT; UNDER MBR M12X30 FLANGE	0-28651-230-0	04	1	0909-	●	●
67	NUT; C/MBR M14	0-91110-514-0	02	1	0909-	●	●
71	NUT; 2ND C/MBR M14 FLANGE	0-91150-214-0	02	1	0909-	●
71	NUT; 2ND C/MBR EXC. LOW DECK WO/REAR BODY<PK4> M14 FLANGE	0-91150-214-0	02	1	0909-		●
131	BOLT; END C/MBR (A) M12X35 FLANGE	0-28651-235-0	08	1	0909-	●
131	BOLT; END C/MBR EXC. LOW DECK WO/REAR BODY<PK4> (A) M12X35 FLANGE	0-28651-235-0	08	1	0909-		●
131	BOLT; END C/MBR LOW DECK WO/REAR BODY<PK4> (B) M12X35 FLANGE	0-28661-235-0	08	1	0909-		●
132	NUT; END C/MBR M12 FLANGE	0-91180-212-0	08	1	0909-	●	●
139	MEMBER; CROSS,6TH (A)	8-98057-557-0	01	1	0909-	●
139	MEMBER; CROSS,6TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-073-0	01	1	0909-		●
139	MEMBER; CROSS,6TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53181-733-9	01	1	0909-		●
143	MEMBER; CROSS,7TH MZW6P M/T(RSZ) (A)	8-98134-014-1	01	1	1501-	●
143	MEMBER; CROSS,7TH FULLER FS6306 M/T(MWO) (A)	1-53181-777-5	01	1	1006-	●
143	MEMBER; CROSS,7TH (A)	1-53182-080-3	01	1	0909-1005	●
143	MEMBER; CROSS,7TH MLD6Q M/T(X5J) (A)	1-53182-080-3	01	1	1006-	●
143	MEMBER; CROSS,7TH LOW DECK WO/REAR BODY<PK4> (C)	8-98085-824-0	01	1	0909-		●
143	MEMBER; CROSS,7TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	8-98057-557-0	01	1	0909-		●
144	MEMBER; CROSS,8TH MZW6P M/T(RSZ) EXC. LOW DECK WO/REAR BODY<PK4> (B)	8-98134-014-1	01	1	1501-		●
144	MEMBER; CROSS,8TH (A)	1-53182-094-0	01	1	0909-	●
144	MEMBER; CROSS,8TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-074-0	01	1	0909-		●
144	MEMBER; CROSS,8TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53182-080-3	01	1	0909-1412		●
144	MEMBER; CROSS,8TH MLD6Q M/T(X5J) EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53182-080-3	01	1	1501-		●
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	02	1	0909-	●	●
152	OUTRIGGER LOW DECK WO/REAR BODY<PK4> (B)	8-98072-366-0	01	1	0909-		●
152	OUTRIGGER (A)	1-53456-455-1	01	1	0909-	●
152	OUTRIGGER EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53456-455-1	01	1	0909-		●
155	BOLT; OUTRIGGER M12X35 FLANGE	0-28651-235-0	02	1	0909-	●	●
179	WASHER; LK ID=14.2	0-91510-614-0	12	1	0909-	●	●
194	BOLT; 2ND C/MBR M14X35 FLANGE	0-28651-435-0	02	1	0909-	●
194	BOLT; 2ND C/MBR EXC. LOW DECK WO/REAR BODY<PK4> M14X35 FLANGE	0-28651-435-0	02	1	0909-		●
256	BRACKET; S/ABS	1-51681-479-1	01	1	0909-	●	●
256	BRACKET; S/ABS	1-51681-480-2	01	1	0909-	●	●
264	BOLT; FRT C/MBR M12X35 FLANGE	0-28651-235-0	08	1	0909-	●
265	NUT; FRT C/MBR M12 FLANGE	0-91180-212-0	08	1	0909-	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28651-235-0	12	1	0909-	●
283	BOLT; BRKT,S/ABS EXC. LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE	0-28651-235-0	12	1	0909-		●
283	BOLT; BRKT,S/ABS LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE	0-28661-235-0	12	1	0909-		●
344	MEMBER; CROSS,4TH (A)	1-53181-732-9	01	1	0909-	●
344	MEMBER; CROSS,4TH EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53181-732-9	01	1	0909-		●
344	MEMBER; CROSS,4TH LOW DECK WO/REAR BODY<PK4> (B)	8-98069-071-0	01	1	0909-		●
345	MEMBER; CROSS,5TH (A)	1-53181-733-9	01	1	0909-	●
345	MEMBER; CROSS,5TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-073-0	01	1	0909-		●
345	MEMBER; CROSS,5TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53181-732-9	01	1	0909-		●

16 6 2 67 151 155 152 34 19 194 71 34 344 345 139 143 144 256 283 144 143 139 345 344 35 38 44 12 179 13 11 18 13 179 12 11 18 131 145 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST (A)	1-53182-078-3	01	1	0909-	●
2	MEMBER; CROSS,1ST EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-078-3	01	1	0909-		●
2	MEMBER; CROSS,1ST LOW DECK WO/REAR BODY<PK4> (B)	8-98069-070-0	01	1	0909-		●
6	WASHER; LK,1ST C/MBR ID=14.2	0-91510-614-0	02	1	0909-	●
6	WASHER; LK,1ST C/MBR EXC. LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-614-0	02	1	0909-		●
6	WASHER; LK,1ST C/MBR LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-814-0	02	1	0909-0911		●
6	WASHER; LK,1ST C/MBR LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-814-0	04	1	0912-		●
11	BRACKET; ENG MTG	1-53221-188-1	01	1	0909-	●	●
11	BRACKET; ENG MTG	1-53221-220-1	01	1	0909-	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	12	1	0909-1201	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	12	1	1202-	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	12	1	0909-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20851-430-0	02	1	0909-	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. LOW DECK WO/REAR BODY<PK4> M14X30	0-20851-430-0	02	1	0909-		●
16	BOLT; 1ST C/MBR TO S/MBR LOW DECK WO/REAR BODY<PK4> M14X30	0-20951-430-0	02	1	0909-		●
18	NUT; BRKT,ENG MTG M14	0-91110-514-0	06	1	0909-	●	●
19	MEMBER; CROSS,2ND (A)	1-53182-079-1	01	1	0909-	●
19	MEMBER; CROSS,2ND EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-079-1	01	1	0909-		●
19	MEMBER; CROSS,2ND LOW DECK WO/REAR BODY<PK4> (B)	8-98069-071-0	01	1	0909-		●
34	MEMBER; CROSS,3RD (A)	1-53181-731-8	01	1	0909-	●
34	MEMBER; CROSS,3RD EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53181-731-8	01	1	0909-		●
34	MEMBER; CROSS,3RD LOW DECK WO/REAR BODY<PK4> (B)	8-98069-072-0	01	1	0909-		●
35	MEMBER; UNDER LOW DECK WO/REAR BODY<PK4> (B)	8-98085-826-0	01	1	0909-		●
35	MEMBER; UNDER (A)	1-53618-064-1	01	1	0909-	●
35	MEMBER; UNDER EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53618-064-1	01	1	0909-		●
38	NUT; UNDER MBR M12 FLANGE	0-91180-212-0	02	1	0909-	●	●
44	BOLT; UNDER MBR M12X30 FLANGE	0-28651-230-0	04	1	0909-	●	●
67	NUT; C/MBR M14	0-91110-514-0	02	1	0909-	●	●
71	NUT; 2ND C/MBR M14 FLANGE	0-91150-214-0	02	1	0909-	●
71	NUT; 2ND C/MBR EXC. LOW DECK WO/REAR BODY<PK4> M14 FLANGE	0-91150-214-0	02	1	0909-		●
131	BOLT; END C/MBR (A) M12X35 FLANGE	0-28651-235-0	08	1	0909-	●
131	BOLT; END C/MBR EXC. LOW DECK WO/REAR BODY<PK4> (A) M12X35 FLANGE	0-28651-235-0	08	1	0909-		●
131	BOLT; END C/MBR LOW DECK WO/REAR BODY<PK4> (B) M12X35 FLANGE	0-28661-235-0	08	1	0909-		●
132	NUT; END C/MBR M12 FLANGE	0-91180-212-0	08	1	0909-	●	●
139	MEMBER; CROSS,6TH (A)	8-98057-557-0	01	1	0909-	●
139	MEMBER; CROSS,6TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-073-0	01	1	0909-		●
139	MEMBER; CROSS,6TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53181-733-9	01	1	0909-		●
143	MEMBER; CROSS,7TH MZW6P M/T(RSZ) (A)	8-98134-014-1	01	1	1501-	●
143	MEMBER; CROSS,7TH FULLER FS6306 M/T(MWO) (A)	1-53181-777-5	01	1	1006-	●
143	MEMBER; CROSS,7TH (A)	1-53182-080-3	01	1	0909-1005	●
143	MEMBER; CROSS,7TH MLD6Q M/T(X5J) (A)	1-53182-080-3	01	1	1006-	●
143	MEMBER; CROSS,7TH LOW DECK WO/REAR BODY<PK4> (C)	8-98085-824-0	01	1	0909-		●
143	MEMBER; CROSS,7TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	8-98057-557-0	01	1	0909-		●
144	MEMBER; CROSS,8TH MZW6P M/T(RSZ) EXC. LOW DECK WO/REAR BODY<PK4> (B)	8-98134-014-1	01	1	1501-		●
144	MEMBER; CROSS,8TH (A)	1-53182-094-0	01	1	0909-	●
144	MEMBER; CROSS,8TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-074-0	01	1	0909-		●
144	MEMBER; CROSS,8TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53182-080-3	01	1	0909-1412		●
144	MEMBER; CROSS,8TH MLD6Q M/T(X5J) EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53182-080-3	01	1	1501-		●
145	MEMBER; CROSS,9TH LOW DECK WO/REAR BODY<PK4> (B)	8-98069-075-0	01	1	0909-		●
145	MEMBER; CROSS,9TH EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-094-0	01	1	0909-		●
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	02	1	0909-	●	●
152	OUTRIGGER LOW DECK WO/REAR BODY<PK4> (B)	8-98072-366-0	01	1	0909-		●
152	OUTRIGGER (A)	1-53456-455-1	01	1	0909-	●
152	OUTRIGGER EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53456-455-1	01	1	0909-		●
155	BOLT; OUTRIGGER M12X35 FLANGE	0-28651-235-0	02	1	0909-	●	●
179	WASHER; LK ID=14.2	0-91510-614-0	12	1	0909-	●	●
194	BOLT; 2ND C/MBR M14X35 FLANGE	0-28651-435-0	02	1	0909-	●
194	BOLT; 2ND C/MBR EXC. LOW DECK WO/REAR BODY<PK4> M14X35 FLANGE	0-28651-435-0	02	1	0909-		●
256	BRACKET; S/ABS	1-51681-479-1	01	1	0909-	●	●
256	BRACKET; S/ABS	1-51681-480-2	01	1	0909-	●	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28651-235-0	12	1	0909-	●
283	BOLT; BRKT,S/ABS EXC. LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE	0-28651-235-0	12	1	0909-		●
283	BOLT; BRKT,S/ABS LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE	0-28661-235-0	12	1	0909-		●
344	MEMBER; CROSS,4TH (A)	1-53181-732-9	01	1	0909-	●
344	MEMBER; CROSS,4TH EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53181-732-9	01	1	0909-		●
344	MEMBER; CROSS,4TH LOW DECK WO/REAR BODY<PK4> (B)	8-98069-071-0	01	1	0909-		●
345	MEMBER; CROSS,5TH (A)	1-53181-733-9	01	1	0909-	●
345	MEMBER; CROSS,5TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-073-0	01	1	0909-		●
345	MEMBER; CROSS,5TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53181-732-9	01	1	0909-		●

26 25 25 23 23 25 24 46 25 39 25 26 127 126 126 102 102 126 101 102 126 101 126 102 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	BOLT; BRKT,SPR (B) M16X55	9-91066-655-0	04	1	0909-	●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (B) M16X55	9-91066-655-0	04	1	0909-		●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	08	1	0909-	●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X45	9-92061-445-0	08	1	0909-		●
23	BOLT; BRKT,SPR LOW DECK WO/REAR BODY<PK4> (D) M14X50	0-20951-450-0	02	1	0909-		●
23	BOLT; BRKT,SPR LOW DECK WO/REAR BODY<PK4> (C) M14X60	0-20951-460-0	10	1	0909-		●
24	BRACKET; FRT SPR,FRT (A)	1-53351-178-0	01	1	0909-	●
24	BRACKET; FRT SPR,FRT EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53351-178-0	01	1	0909-		●
24	BRACKET; FRT SPR,FRT (A)	1-53351-179-0	01	1	0909-	●
24	BRACKET; FRT SPR,FRT EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53351-179-0	01	1	0909-		●
24	BRACKET; FRT SPR,FRT LOW DECK WO/REAR BODY<PK4> (B)	1-53354-067-0	01	1	0909-		●
24	BRACKET; FRT SPR,FRT LOW DECK WO/REAR BODY<PK4> (B)	1-53354-068-0	01	1	0909-		●
25	WASHER; PL,BRKT MZW6P M/T(RSZ) EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=15	9-09651-069-0	32	1	1501-	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0909-	●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=16.2	1-09503-223-0	08	1	0909-		●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	32	1	0909-1201	●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=15	9-09651-069-0	32	1	0909-1201		●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	32	1	1202-1412	●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=15	8-98010-627-1	32	1	1202-1412		●
25	WASHER; PL,BRKT MLD6Q M/T(X5J) EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=15	8-98010-627-1	32	1	1501-	●	●
25	WASHER; PL,BRKT FULLER FS6306 M/T(MWO) (A) ID=15	8-98010-627-1	32	1	1501-	●
25	WASHER; PL,BRKT LOW DECK WO/REAR BODY<PK4> (C) ID=15	8-98010-627-1	48	1	0909-		●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	0909-	●
26	NUT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (A) M14	0-91110-514-0	16	1	0909-		●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0909-	●
26	NUT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (B) M16	0-91110-516-0	04	1	0909-		●
26	NUT; BRKT,SPR LOW DECK WO/REAR BODY<PK4> (A) M14	0-91110-514-0	24	1	0909-		●
39	BRACKET; FRT SPR,RR (A)	1-53352-152-0	01	1	0909-	●
39	BRACKET; FRT SPR,RR EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53352-152-0	01	1	0909-		●
39	BRACKET; FRT SPR,RR (A)	1-53352-153-0	01	1	0909-	●
39	BRACKET; FRT SPR,RR EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53352-153-0	01	1	0909-		●
39	BRACKET; FRT SPR,RR LOW DECK WO/REAR BODY<PK4> (B)	8-98070-025-0	02	1	0909-		●
46	BOLT; BRKT FIX (A) M14X45	9-92061-445-0	08	1	0909-	●
46	BOLT; BRKT FIX EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X45	9-92061-445-0	08	1	0909-		●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY<PK4> (C) M6X30 FLANGE	0-28650-630-0	04	1	0909-0910		●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY<PK4> (B) M14X60	0-20951-460-0	12	1	0909-		●
101	BRACKET; RR SPR,FRT MZW6P M/T(RSZ)	8-98134-229-0	02	1	1501-	●	●
101	BRACKET; RR SPR,FRT MZW6P M/T(RSZ)	8-98134-230-0	02	1	1501-	●	●
101	BRACKET; RR SPR,FRT	1-53354-067-0	02	1	0909-1412	●	●
101	BRACKET; RR SPR,FRT FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J)	1-53354-067-0	02	1	1501-	●
101	BRACKET; RR SPR,FRT MLD6Q M/T(X5J)	1-53354-067-0	02	1	1501-		●
101	BRACKET; RR SPR,FRT	1-53354-068-0	02	1	0909-1412	●	●
101	BRACKET; RR SPR,FRT FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J)	1-53354-068-0	02	1	1501-	●
101	BRACKET; RR SPR,FRT MLD6Q M/T(X5J)	1-53354-068-0	02	1	1501-		●
102	BOLT; BRKT,RR SPR MZW6P M/T(RSZ) (A) M16X60	9-91066-660-0	20	1	1501-	●	●
102	BOLT; BRKT,RR SPR MZW6P M/T(RSZ) (B) M16X50	9-92061-650-0	04	1	1501-	●	●
102	BOLT; BRKT,RR SPR (B) M14X50	0-10956-450-0	04	1	0909-1412	●
102	BOLT; BRKT,RR SPR EXC. LOW DECK WO/REAR BODY<PK4> (B) M14X50	0-10956-450-0	04	1	0909-1412		●
102	BOLT; BRKT,RR SPR MLD6Q M/T(X5J) EXC. LOW DECK WO/REAR BODY<PK4> (B) M14X50	0-10956-450-0	04	1	1501-	●	●
102	BOLT; BRKT,RR SPR FULLER FS6306 M/T(MWO) (B) M14X50	0-10956-450-0	04	1	1501-	●
102	BOLT; BRKT,RR SPR (A) M14X55	9-91066-455-0	20	1	0909-1412	●
102	BOLT; BRKT,RR SPR EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X55	9-91066-455-0	20	1	0909-1412		●
102	BOLT; BRKT,RR SPR MLD6Q M/T(X5J) EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X55	9-91066-455-0	20	1	1501-	●	●
102	BOLT; BRKT,RR SPR FULLER FS6306 M/T(MWO) (A) M14X55	9-91066-455-0	20	1	1501-	●
102	BOLT; BRKT,RR SPR LOW DECK WO/REAR BODY<PK4> (B) M14X50	0-20951-450-0	04	1	0909-1412		●
102	BOLT; BRKT,RR SPR MLD6Q M/T(X5J) LOW DECK WO/REAR BODY<PK4> (B) M14X50	0-20951-450-0	04	1	1501-		●
102	BOLT; BRKT,RR SPR LOW DECK WO/REAR BODY<PK4> (A) M14X60	0-20951-460-0	20	1	0909-1412		●
102	BOLT; BRKT,RR SPR MLD6Q M/T(X5J) LOW DECK WO/REAR BODY<PK4> (A) M14X60	0-20951-460-0	20	1	1501-		●
126	WASHER; PL,BRKT MZW6P M/T(RSZ) ID=16.2	1-09503-223-0	48	1	1501-	●	●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	0909-1201	●
126	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> ID=15	9-09651-069-0	48	1	0909-1201		●
126	WASHER; PL,BRKT LOW DECK WO/REAR BODY<PK4> ID=15	8-98010-627-1	48	1	0909-1201		●
126	WASHER; PL,BRKT ID=15	8-98010-627-1	48	1	1202-1412	●	●
126	WASHER; PL,BRKT FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J) ID=15	8-98010-627-1	48	1	1501-	●
126	WASHER; PL,BRKT MLD6Q M/T(X5J) ID=15	8-98010-627-1	48	1	1501-		●
127	NUT; BRKT MZW6P M/T(RSZ) M16	9-99110-516-0	24	1	1501-	●	●
127	NUT; BRKT M14	0-91110-514-0	24	1	0909-1412	●	●
127	NUT; BRKT FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J) M14	0-91110-514-0	24	1	1501-	●
127	NUT; BRKT MLD6Q M/T(X5J) M14	0-91110-514-0	24	1	1501-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
