4-65 — REAR LEAF SPRING (#58694) — 84 parça

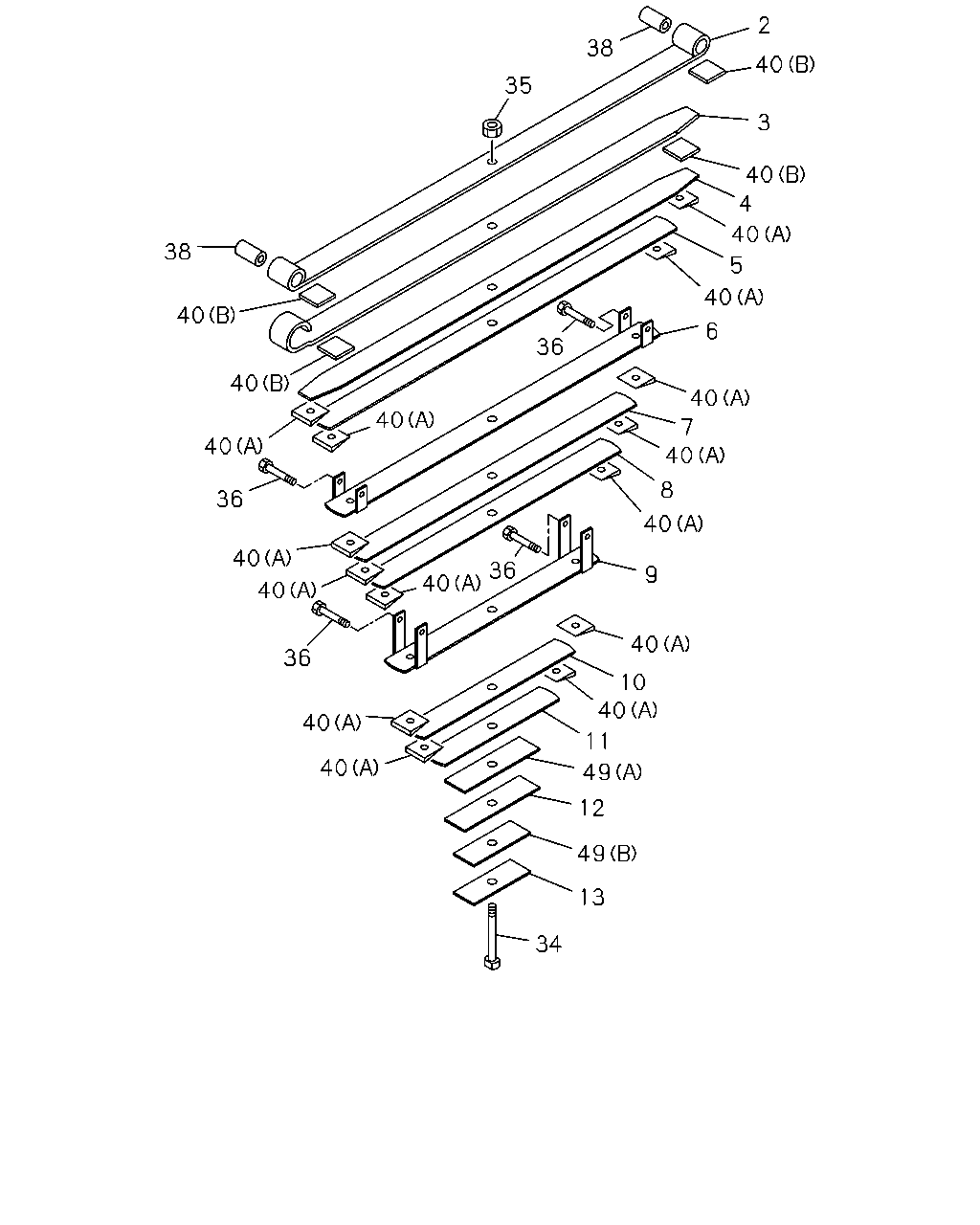

38 40 40 40 36 40 40 36 40 40 40 40 36 36 35 38 2 3 40 40 40 4 5 40 6 40 7 40 8 9 40 40 10 40 11 49 12 49 13 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51310-726-0	1-51311-726-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98073-398-2, G = 8-98202-921-0	8-98098-329-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98096-766-1, F = 8-98202-919-0	8-98099-132-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-98133-454-0, H = 8-98205-937-0	8-98142-551-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: E = 8-98133-456-0, I = 8-98205-939-0	8-98142-556-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51310-726-0	1-51312-726-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98073-398-2, G = 8-98202-921-0	8-98098-330-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-98096-766-1, F = 8-98202-919-0	8-98099-133-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-98133-454-0, H = 8-98205-937-0	8-98142-552-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-98133-456-0, I = 8-98205-939-0	8-98142-557-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51310-726-0	1-51313-726-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98073-398-2, G = 8-98202-921-0	8-98098-331-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-98096-766-1, F = 8-98202-919-0	8-98099-134-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-98133-454-0, H = 8-98205-937-0	8-98142-553-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-98133-456-0, I = 8-98205-939-0	8-98142-558-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51310-726-0	1-51314-726-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-98073-398-2, G = 8-98202-921-0	8-98098-332-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-98096-766-1, F = 8-98202-919-0	8-98099-135-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-98133-454-0, H = 8-98205-937-0	8-98142-554-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: E = 8-98133-456-0, I = 8-98205-939-0	8-98142-559-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51310-726-0	1-51315-726-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-98073-398-2, G = 8-98202-921-0	8-98098-333-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-98096-766-1, F = 8-98202-919-0	8-98099-136-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: D = 8-98133-454-0, H = 8-98205-937-0	8-98142-555-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: E = 8-98133-456-0, I = 8-98205-939-0	8-98142-560-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51310-726-0	1-51316-726-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51310-726-0	1-51317-726-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51310-726-0	1-51318-726-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51310-726-0	1-51319-726-0	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: A = 1-51310-726-0	1-51320-726-0	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN ASM PART: A = 1-51310-726-0	1-51321-726-0	01	1	-
13	SPRING; LEAF,NO 12,RR MAIN ASM PART: A = 1-51310-726-0	1-51322-726-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=190 ASM PART: A = 1-51310-726-0	1-51156-229-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=150 ASM PART: B = 8-98073-398-2, C = 8-98096-766-1, F = 8-98202-919-0, G = 8-98202-921-0	8-98098-336-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=155 ASM PART: D = 8-98133-454-0, E = 8-98133-456-0, H = 8-98205-937-0, I = 8-98205-939-0	8-98142-561-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51310-726-0, B = 8-98073-398-2, C = 8-98096-766-1, D = 8-98133-454-0, E = 8-98133-456-0, F = 8-98202-919-0, G = 8-98202-921-0, H = 8-98205-937-0, I = 8-98205-939-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X97 ASM PART: A = 1-51310-726-0	1-09000-294-0	04	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X103 ASM PART: B = 8-98073-398-2, C = 8-98096-766-1, D = 8-98133-454-0, E = 8-98133-456-0, F = 8-98202-919-0, G = 8-98202-921-0, H = 8-98205-937-0, I = 8-98205-939-0	1-09000-536-0	02	1	-
38	BUSHING; LEAF SPR,RR OD=38 ASM PART: A = 1-51310-726-0, B = 8-98073-398-2, C = 8-98096-766-1, D = 8-98133-454-0, E = 8-98133-456-0, F = 8-98202-919-0, G = 8-98202-921-0, H = 8-98205-937-0, I = 8-98205-939-0	1-51351-009-0	02	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 1-51310-726-0	1-51159-022-0	14	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: B = 8-98073-398-2, C = 8-98096-766-1, D = 8-98133-454-0, E = 8-98133-456-0	1-51159-023-0	08	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 1-51310-726-0	1-51159-023-0	04	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: F = 8-98202-919-0, G = 8-98202-921-0, H = 8-98205-937-0, I = 8-98205-939-0	8-98202-886-1	08	1	-
49	SPRING; LEAF,INTER,RR SPR (A) ASM PART: A = 1-51310-726-0	1-51159-043-0	01	1	-
49	SPRING; LEAF,INTER,RR SPR (B) ASM PART: A = 1-51310-726-0	1-51159-044-0	01	1	-

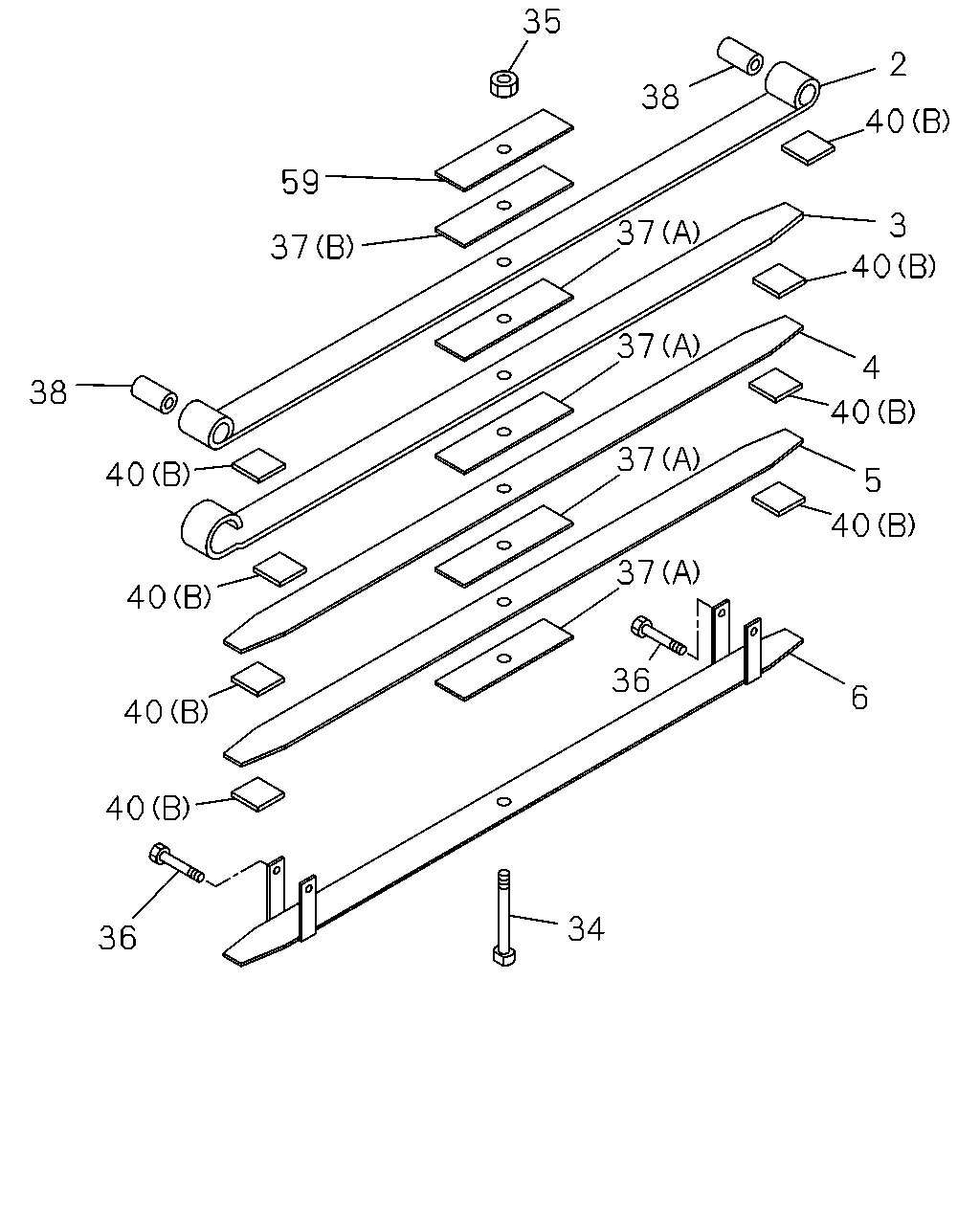

59 35 38 2 40 3 40 4 40 5 40 6 37 37 37 37 37 40 40 40 40 36 38 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51310-726-0	1-51311-726-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98073-398-2, G = 8-98202-921-0	8-98098-329-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98096-766-1, F = 8-98202-919-0	8-98099-132-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-98133-454-0, H = 8-98205-937-0	8-98142-551-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: E = 8-98133-456-0, I = 8-98205-939-0	8-98142-556-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51310-726-0	1-51312-726-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98073-398-2, G = 8-98202-921-0	8-98098-330-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-98096-766-1, F = 8-98202-919-0	8-98099-133-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-98133-454-0, H = 8-98205-937-0	8-98142-552-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-98133-456-0, I = 8-98205-939-0	8-98142-557-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51310-726-0	1-51313-726-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98073-398-2, G = 8-98202-921-0	8-98098-331-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-98096-766-1, F = 8-98202-919-0	8-98099-134-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-98133-454-0, H = 8-98205-937-0	8-98142-553-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-98133-456-0, I = 8-98205-939-0	8-98142-558-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51310-726-0	1-51314-726-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-98073-398-2, G = 8-98202-921-0	8-98098-332-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-98096-766-1, F = 8-98202-919-0	8-98099-135-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-98133-454-0, H = 8-98205-937-0	8-98142-554-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: E = 8-98133-456-0, I = 8-98205-939-0	8-98142-559-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51310-726-0	1-51315-726-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-98073-398-2, G = 8-98202-921-0	8-98098-333-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-98096-766-1, F = 8-98202-919-0	8-98099-136-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: D = 8-98133-454-0, H = 8-98205-937-0	8-98142-555-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: E = 8-98133-456-0, I = 8-98205-939-0	8-98142-560-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=190 ASM PART: A = 1-51310-726-0	1-51156-229-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=150 ASM PART: B = 8-98073-398-2, C = 8-98096-766-1, F = 8-98202-919-0, G = 8-98202-921-0	8-98098-336-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=155 ASM PART: D = 8-98133-454-0, E = 8-98133-456-0, H = 8-98205-937-0, I = 8-98205-939-0	8-98142-561-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51310-726-0, B = 8-98073-398-2, C = 8-98096-766-1, D = 8-98133-454-0, E = 8-98133-456-0, F = 8-98202-919-0, G = 8-98202-921-0, H = 8-98205-937-0, I = 8-98205-939-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X97 ASM PART: A = 1-51310-726-0	1-09000-294-0	04	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X103 ASM PART: B = 8-98073-398-2, C = 8-98096-766-1, D = 8-98133-454-0, E = 8-98133-456-0, F = 8-98202-919-0, G = 8-98202-921-0, H = 8-98205-937-0, I = 8-98205-939-0	1-09000-536-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR (A) ASM PART: B = 8-98073-398-2, C = 8-98096-766-1, D = 8-98133-454-0, E = 8-98133-456-0, F = 8-98202-919-0, G = 8-98202-921-0, H = 8-98205-937-0, I = 8-98205-939-0	8-98098-339-0	04	1	-
37	SPACER; CENTER,LEAF SPR,RR (B) ASM PART: B = 8-98073-398-2, C = 8-98096-766-1, D = 8-98133-454-0, E = 8-98133-456-0, F = 8-98202-919-0, G = 8-98202-921-0, H = 8-98205-937-0, I = 8-98205-939-0	8-98098-340-0	01	1	-
38	BUSHING; LEAF SPR,RR OD=38 ASM PART: A = 1-51310-726-0, B = 8-98073-398-2, C = 8-98096-766-1, D = 8-98133-454-0, E = 8-98133-456-0, F = 8-98202-919-0, G = 8-98202-921-0, H = 8-98205-937-0, I = 8-98205-939-0	1-51351-009-0	02	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 1-51310-726-0	1-51159-022-0	14	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: B = 8-98073-398-2, C = 8-98096-766-1, D = 8-98133-454-0, E = 8-98133-456-0	1-51159-023-0	08	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 1-51310-726-0	1-51159-023-0	04	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: F = 8-98202-919-0, G = 8-98202-921-0, H = 8-98205-937-0, I = 8-98205-939-0	8-98202-886-1	08	1	-
59	SEAT; RR SPRING,SUB T=9 ASM PART: B = 8-98073-398-2, C = 8-98096-766-1, D = 8-98133-454-0, E = 8-98133-456-0, F = 8-98202-919-0, G = 8-98202-921-0, H = 8-98205-937-0, I = 8-98205-939-0	8-98098-341-0	01	1	-
