◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11206 - LT134 LHD EURO2/3/5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#58692) — 44 parça

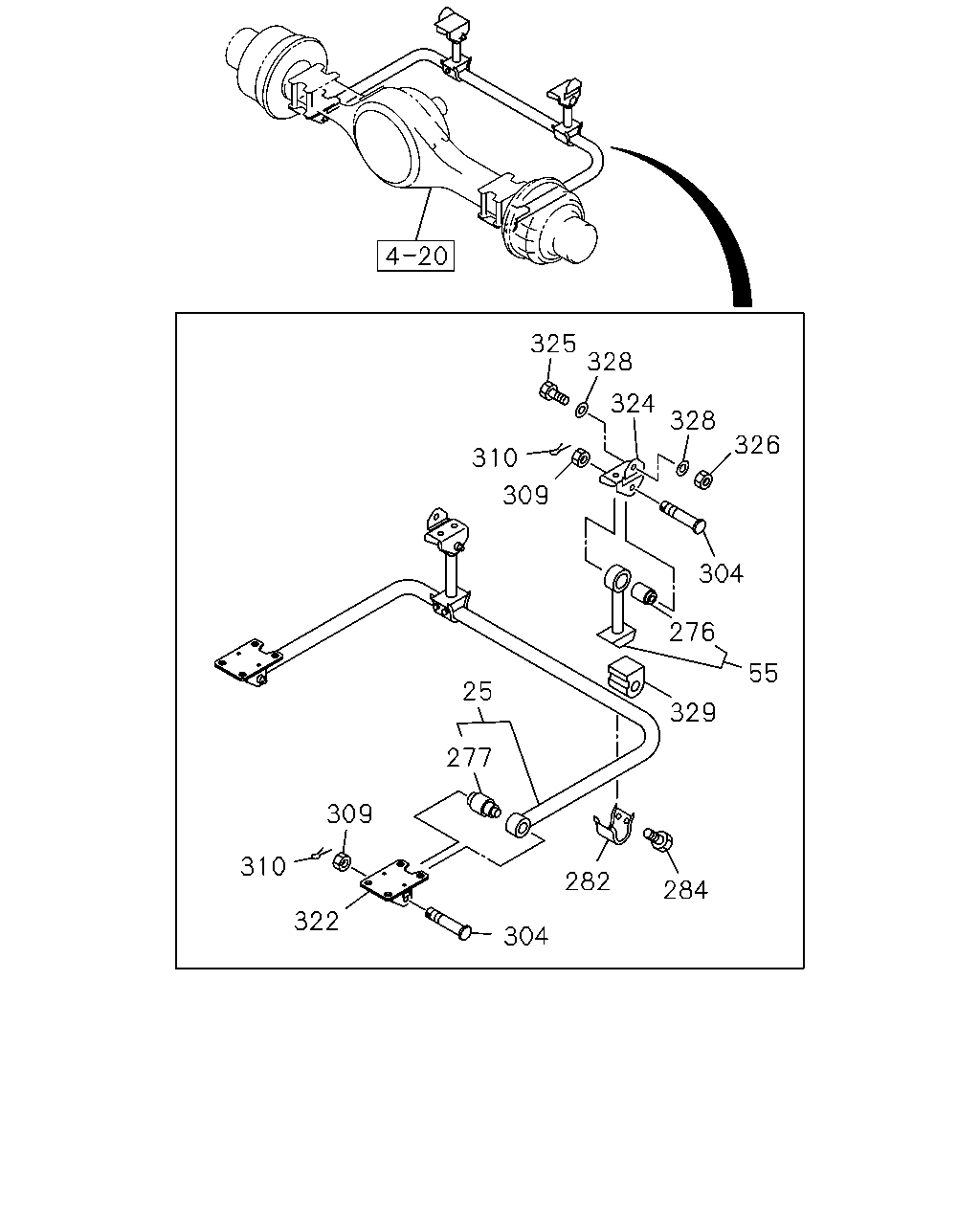

çizim 163370
325 328 324 328 326 310 309 304 276 55 329 25 277 282 284 304 322 310 309
BalonParca AdiParca NoAdetTipApplied Date
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-188-0 01 1 0909-
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-024-1 02 1 0909-
276 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-019-0 02 1 0909-
277 BUSHING; STAB,RR UPR
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-067-0 02 1 0909-
282 RETAINER; STAB BAR
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-015-2 02 1 0909-
284 BOLT; RET TO RET
STABILIZER SHAFT FRT&RR<FE6> M10X25 		8-94463-351-0 08 1 0909-
304 PIN; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-020-2 04 1 0909-
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> M24 		9-99116-424-0 04 1 0909-
310 PIN; SPLIT,STAB ROD
STABILIZER SHAFT FRT&RR<FE6> OD=4.6 L=45 		0-81125-045-0 04 1 0909-
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-038-1 01 1 0909-
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-128-0 01 1 0909-
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-059-0 02 1 0909-
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X40 		0-20951-440-0 06 1 0909-
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14 		0-91110-514-0 06 1 0909-
328 WASHER; PL,BRKT
STABILIZER SHAFT FRT&RR<FE6> ID=15 		9-09651-069-0 12 1 0909-1201
328 WASHER; PL,BRKT
STABILIZER SHAFT FRT&RR<FE6> ID=15 		8-98010-627-1 12 1 1202-
329 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-017-0 02 1 0909-

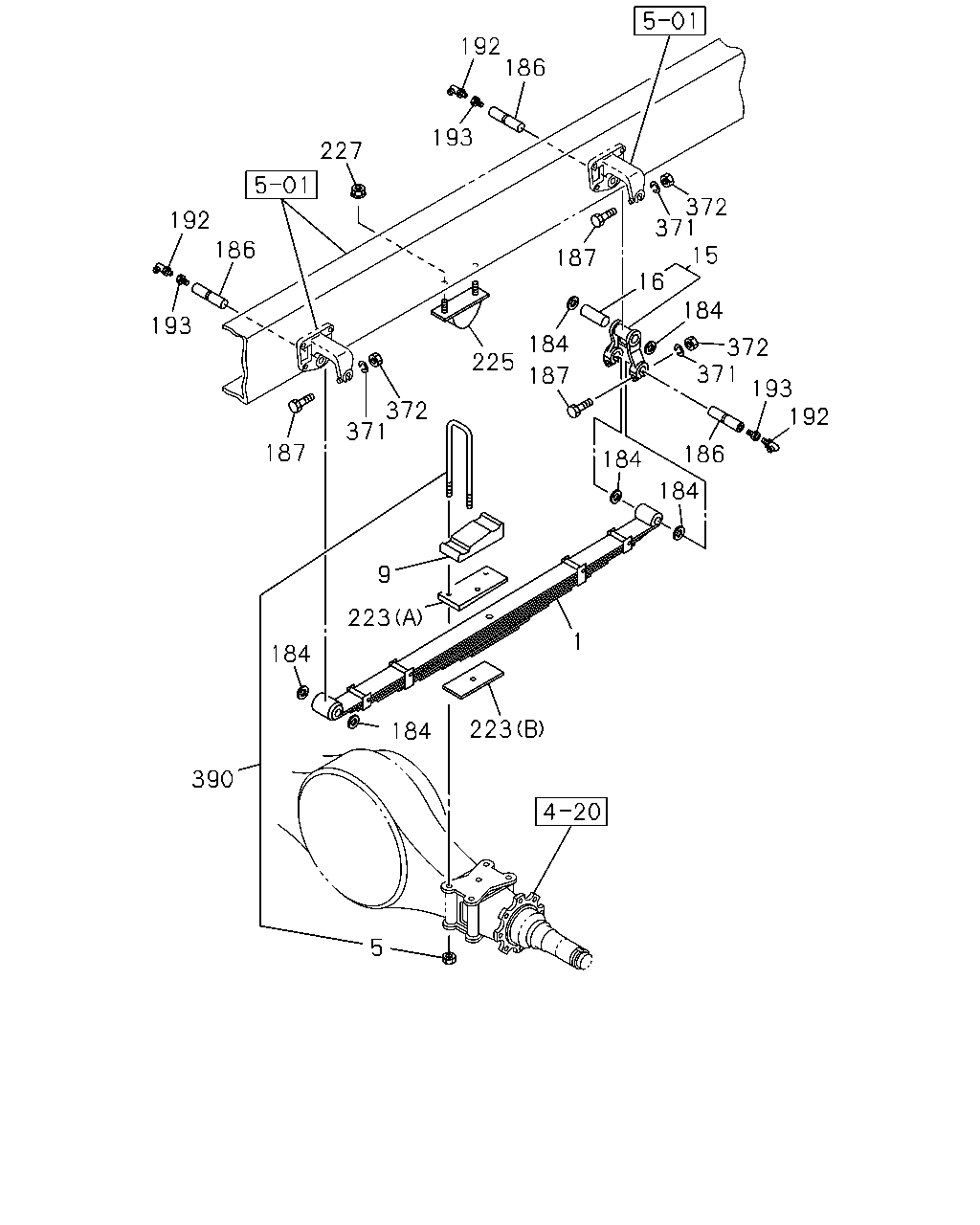

çizim 163386
192 186 193 227 192 186 193 187 371 372 225 184 187 187 371 372 15 16 184 372 371 193 192 186 184 184 1 223 184 223 9 184 390 5
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) LOW DECK WO/REAR BODY<PK4> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98133-454-0 02 1 0909-1210
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) LOW DECK WO/REAR BODY<PK4> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98205-937-0 02 1 1211-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) TAPER LEAF SUSP RR<SAT> EXC. LOW DECK WO/REAR BODY<PK4> 5-LEAF 		8-98133-456-0 02 1 0909-1210
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) TAPER LEAF SUSP RR<SAT> EXC. LOW DECK WO/REAR BODY<PK4> 5-LEAF 		8-98205-939-0 02 1 1211-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. LOW DECK WO/REAR BODY<PK4> TAPER LEAF SUSP RR<SAT> EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98073-398-2 02 1 0909-1210
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. LOW DECK WO/REAR BODY<PK4> TAPER LEAF SUSP RR<SAT> EXC. REAR SPRING HEAVY DUTY(G50) 5-LEAF 		8-98202-921-0 02 1 1211-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> 12-LEAF 		1-51310-726-0 02 1 0909-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. REAR SPRING HEAVY DUTY(G50),LOW DECK WO/REAR BODY<PK4> 5-LEAF 		8-98096-766-1 02 1 0909-1210
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. REAR SPRING HEAVY DUTY(G50),LOW DECK WO/REAR BODY<PK4> 5-LEAF 		8-98202-919-0 02 1 1211-
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0909-
9 PAD; U BOLT,RR SPR 1-51372-052-0 02 1 0909-
15 SHACKLE; RR SPR 1-51162-029-5 02 1 0909-
16 BUSHING; SHACKLE,RR SPR
OD=38 		8-98081-829-0 02 1 0909-
184 WASHER; SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0909-
186 PIN; SHACKLE,RR SPR 1-51161-031-0 06 1 0909-
187 BOLT; SPR & SHACKLE
M12X80 		0-10856-280-0 08 1 0909-
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 		0-90301-610-0 06 1 0909-
193 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0909-
223 SPACER; U BOLT,RR SPR
(B) 		1-51377-177-0 02 1 0909-
223 SPACER; U BOLT,RR SPR
(A) 		1-51377-194-1 02 1 0909-
225 RUBBER; CUSHION,RR SPR 9-53366-088-3 02 1 0909-
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 04 1 0909-
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-812-0 08 1 0909-
372 NUT; SHACKLE
M12 		0-91110-512-0 08 1 0909-
390 U-BOLT SET; RR SPRING
STABILIZER SHAFT FRT&RR<FE6> TAPER LEAF SUSP RR<SAT> M24 L=425 		1-87870-281-1 04 1 0909-
390 U-BOLT SET; RR SPRING
MULTI LEAF SUSP RR<SAS> L=445 		1-87870-323-1 04 1 0909-
390 U-BOLT SET; RR SPRING
TAPER LEAF SUSP RR<SAT> EXC. STABILIZER SHAFT FRT&RR<FE6> L=395 		1-87870-292-1 04 1 0909-
