◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11206 - LT134 LHD EURO2/3/5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#58690) — 157 parça
çizim 163357
73 14 62 65 68 18 18 65 68 211 68 68 211 180 73 111 168 65
BalonParca AdiParca NoAdetTipApplied Date
14 NUT; S/ABS,UPR
EXC. LOW DECK WO/REAR BODY<PK4> M14 		9-99111-414-0 02 1 0909-
18 WASHER; CENTERING,S/ABS
EXC. LOW DECK WO/REAR BODY<PK4> ID=24 		1-51631-067-0 04 1 0909-
62 ABSORBER ASM; SHOCK,FRT
LOW DECK WO/REAR BODY<PK4> (B) 		8-98072-849-0 02 1 0909-
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-51630-417-0 02 1 0909-
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> (A) 		8-98096-780-0 02 1 0909-
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY<PK4> (A) BEST VALUE PARTS 		1-87610-154-0 02 1 0909-
65 WASHER; S/ABS
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16.5 		1-09503-266-0 02 1 0909-
65 WASHER; S/ABS
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=16.5 		1-51631-068-0 04 1 0909-
68 BUSHING; S/ABS
LOW DECK WO/REAR BODY<PK4> (C) 		1-51631-084-0 02 1 0909-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0909-
68 BUSHING; S/ABS
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16 T=25 		1-51631-069-0 04 1 0909-
73 NUT; BRKT,SHOCK
(B) M20 		0-91110-520-0 02 1 0909-
73 NUT; BRKT,SHOCK
EXC. LOW DECK WO/REAR BODY<PK4> (A) M14 		0-91111-514-0 02 1 0909-
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98077-988-0 01 1 0909-1004
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98158-456-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98077-989-0 01 1 0909-1004
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98158-455-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		1-51681-722-1 01 1 0909-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		8-98153-483-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		1-51681-723-1 01 1 0909-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		8-98153-484-0 01 1 1005-
168 BRACKET; S/ABS,FRT SUSP
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-51681-616-0 02 1 0909-
168 BRACKET; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		1-51681-757-2 02 1 0909-
168 BRACKET; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (C) 		8-98086-440-1 01 1 0909-
168 BRACKET; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (C) 		8-98086-441-1 01 1 0909-
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0909-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0909-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0909-

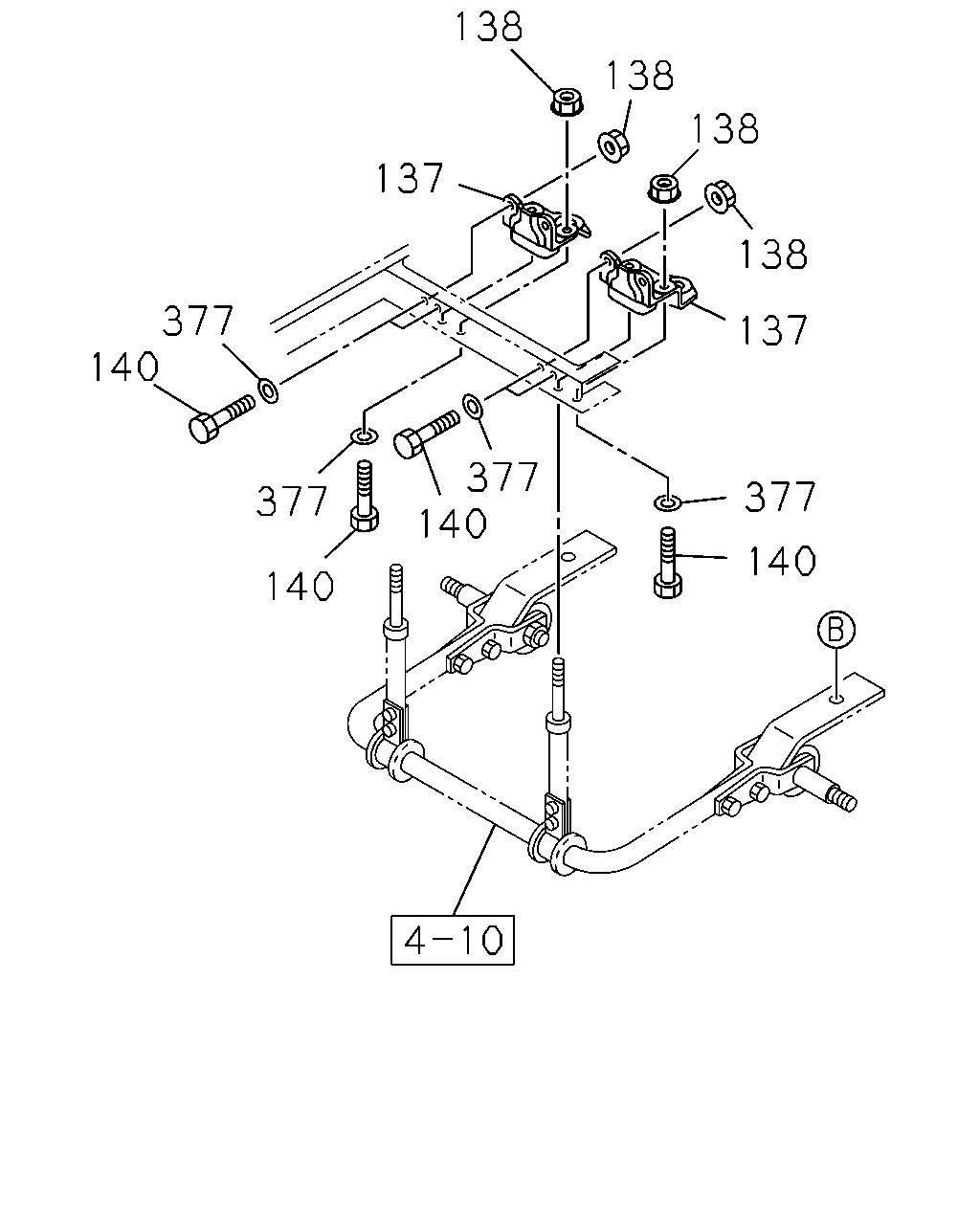

çizim 163363
138 138 137 377 140 377 140 140 377 137 138 138 377 140
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-112-0 01 1 0909-
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-112-0 01 1 0909-
137 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-134-0 01 1 0909-
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-134-0 01 1 0909-
138 NUT; BRKT
STABILIZER SHAFT FRT&RR<FE6> M14 		0-91110-514-0 08 1 0909-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 08 1 0909-
140 BOLT; BRKT
STABILIZER SHAFT FRT&RR<FE6> M14X45 		0-20801-445-0 08 1 0909-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 		0-20801-445-0 08 1 0909-
377 WASHER; LK,BRKT
STABILIZER SHAFT FRT&RR<FE6> ID=14.2 		0-91510-514-0 08 1 0909-
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=14.2 		0-91510-514-0 08 1 0909-

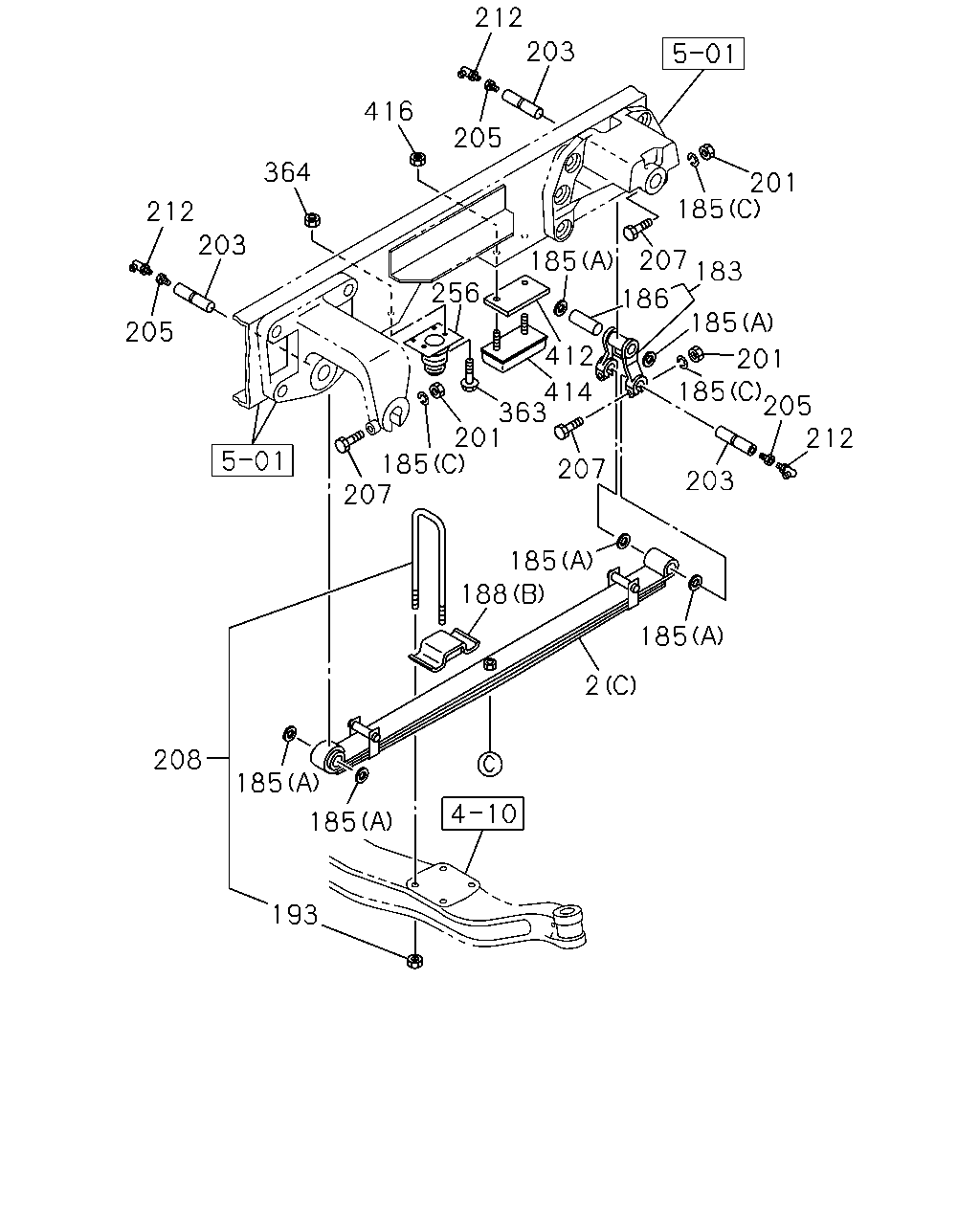

çizim 163373
212 203 205 416 364 203 212 205 207 185 201 363 414 412 186 185 207 183 185 201 201 185 185 205 212 203 207 185 188 185 2 185 185 208 193 256
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) LOW DECK WO/REAR BODY<PK4> (C) 3-LEAF 		8-98133-453-0 02 1 0909-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) LOW DECK WO/REAR BODY<PK4> (C) 3-LEAF 		8-98205-936-0 02 1 1211-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> (B) 3-LEAF 		8-98133-455-0 02 1 0909-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> (B) 3-LEAF 		8-98205-938-0 02 1 1211-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY<PK4> EXC. REAR SPRING HEAVY DUTY(G50) (C) 3-LEAF 		8-98072-392-0 02 1 0909-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY<PK4> EXC. REAR SPRING HEAVY DUTY(G50) (C) 3-LEAF 		8-98202-923-0 02 1 1211-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY<PK4> (A) 8-LEAF 		1-51130-830-0 02 1 0909-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. REAR SPRING HEAVY DUTY(G50),LOW DECK WO/REAR BODY<PK4> (B) 3-LEAF 		8-98096-765-0 02 1 0909-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. REAR SPRING HEAVY DUTY(G50),LOW DECK WO/REAR BODY<PK4> (B) 3-LEAF 		8-98202-922-0 02 1 1211-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0909-
185 WASHER; LK,PIN
LOW DECK WO/REAR BODY<PK4> (C) ID=12.2 		0-91510-612-0 08 1 0909-
185 WASHER; LK,PIN
(A) ID=32.4 		1-51169-018-0 12 1 0909-
185 WASHER; LK,PIN
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=12.2 		0-91510-612-0 12 1 0909-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0909-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
STABILIZER SHAFT FRT&RR<FE6> (A) 		1-51172-121-0 02 1 1109-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT STABILIZER SHAFT<F59> (A) 		1-51172-121-0 02 1 1109-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
LOW DECK WO/REAR BODY<PK4> (B) 		1-51172-111-0 02 1 0909-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		9-51172-067-1 02 1 0909-1108
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		9-51172-067-1 02 1 1109-
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0909-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
201 NUT; PIN LK
LOW DECK WO/REAR BODY<PK4> M12 		0-91110-512-0 08 1 0909-
201 NUT; PIN LK
EXC. LOW DECK WO/REAR BODY<PK4> M12 		0-91110-512-0 12 1 0909-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0909-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0909-
207 BOLT; SPR TO SHACKLE
LOW DECK WO/REAR BODY<PK4> M12X80 		0-10856-280-0 08 1 0909-
207 BOLT; SPR TO SHACKLE
EXC. LOW DECK WO/REAR BODY<PK4> M12X80 		0-10856-280-0 12 1 0909-
208 U-BOLT SET; FRT SPRING
TAIWAN EQUIPMENT(WW5) EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-309-2 02 1 1501-
208 U-BOLT SET; FRT SPRING
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) L=190 		1-87870-439-2 04 1 1501-
208 U-BOLT SET; FRT SPRING
STABILIZER SHAFT FRT&RR<FE6> L=210 		1-87870-309-1 04 1 0909-1108
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> L=210 		1-87870-309-1 04 1 0909-1108
208 U-BOLT SET; FRT SPRING
STABILIZER SHAFT FRT&RR<FE6> L=210 		1-87870-380-2 04 1 1109-
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> L=210 		1-87870-380-2 04 1 1109-
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY<PK4> L=170 		1-87870-170-3 04 1 0909-1206
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY<PK4> L=170 		1-87870-502-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> L=190 		1-87870-439-2 04 1 0909-1412
208 U-BOLT SET; FRT SPRING
TAIWAN EQUIPMENT(WW5) EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> L=190 		1-87870-439-2 02 1 1501-
212 NIPPLE; GREASE,ELBOW
LOW DECK WO/REAR BODY<PK4> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 0909-
212 NIPPLE; GREASE,ELBOW
EXC. LOW DECK WO/REAR BODY<PK4> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 06 1 0909-
256 RUBBER; CUSHION,FRT SPR
LOW DECK WO/REAR BODY<PK4> 		1-53366-133-0 02 1 0909-
363 BOLT; HELPER RUBBER BRKT
LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28050-825-0 08 1 0909-
364 NUT; BRKT,HELPER RUBBER
LOW DECK WO/REAR BODY<PK4> M8 		0-91110-508-0 08 1 0909-
412 PLATE; SETTING
LOW DECK WO/REAR BODY<PK4> 		8-98072-869-0 02 1 0909-
414 RUBBER; BUFFER
LOW DECK WO/REAR BODY<PK4> 		1-53366-049-2 02 1 0909-
416 NUT; RUBBER
LOW DECK WO/REAR BODY<PK4> M12 		0-91110-512-0 04 1 0909-

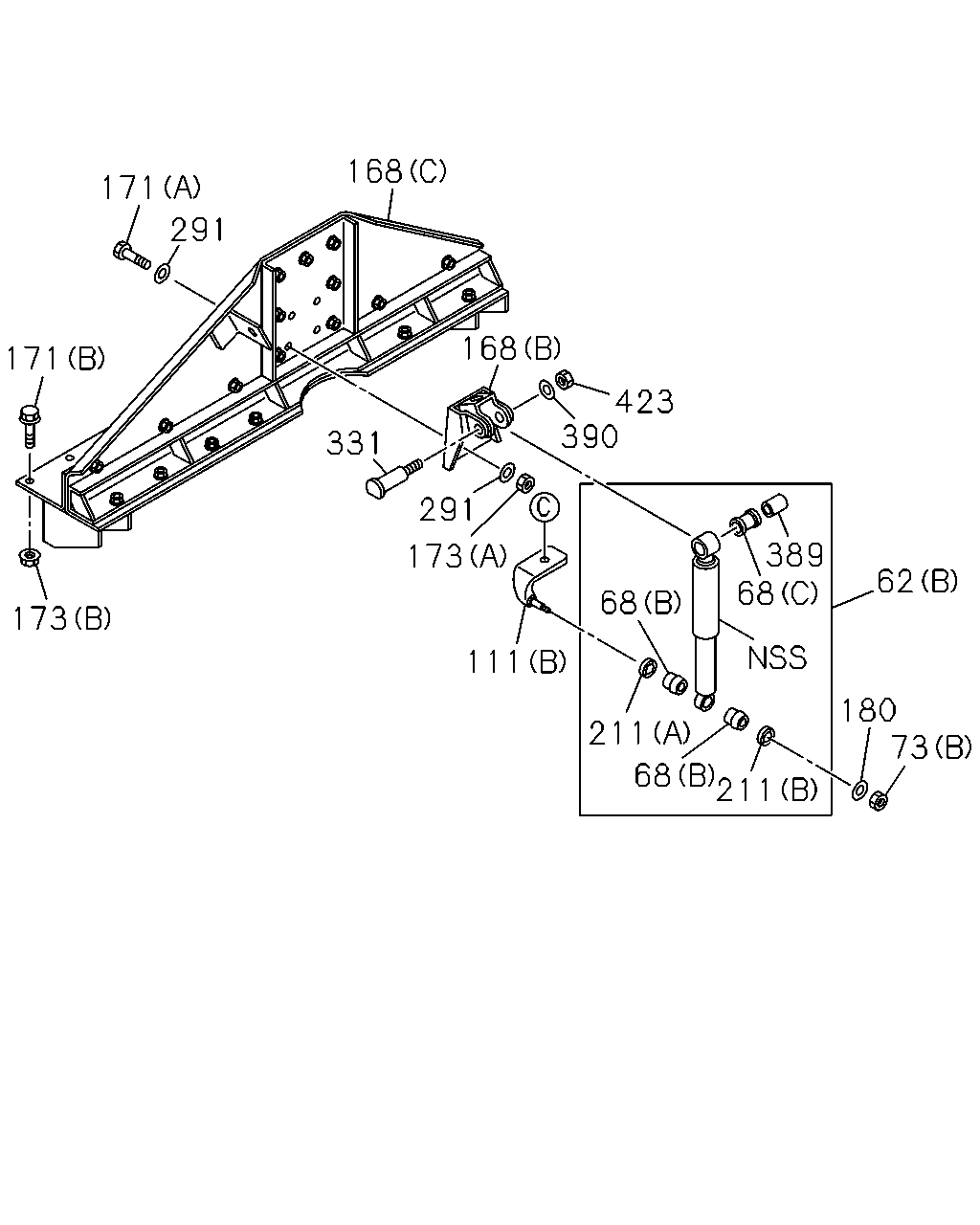

çizim 163374
168 168 423 390 291 173 331 291 171 171 173 111 211 68 389 68 62 180 73 211 68
BalonParca AdiParca NoAdetTipApplied Date
62 ABSORBER ASM; SHOCK,FRT
LOW DECK WO/REAR BODY<PK4> (B) 		8-98072-849-0 02 1 0909-
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-51630-417-0 02 1 0909-
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> (A) 		8-98096-780-0 02 1 0909-
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY<PK4> (A) BEST VALUE PARTS 		1-87610-154-0 02 1 0909-
68 BUSHING; S/ABS
LOW DECK WO/REAR BODY<PK4> (C) 		1-51631-084-0 02 1 0909-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0909-
68 BUSHING; S/ABS
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16 T=25 		1-51631-069-0 04 1 0909-
73 NUT; BRKT,SHOCK
(B) M20 		0-91110-520-0 02 1 0909-
73 NUT; BRKT,SHOCK
EXC. LOW DECK WO/REAR BODY<PK4> (A) M14 		0-91111-514-0 02 1 0909-
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98077-988-0 01 1 0909-1004
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98158-456-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98077-989-0 01 1 0909-1004
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98158-455-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		1-51681-722-1 01 1 0909-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		8-98153-483-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		1-51681-723-1 01 1 0909-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		8-98153-484-0 01 1 1005-
168 BRACKET; S/ABS,FRT SUSP
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-51681-616-0 02 1 0909-
168 BRACKET; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		1-51681-757-2 02 1 0909-
168 BRACKET; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (C) 		8-98086-440-1 01 1 0909-
168 BRACKET; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (C) 		8-98086-441-1 01 1 0909-
171 BOLT; S/ABS BRKT
LOW DECK WO/REAR BODY<PK4> (A) M14X40 		0-20951-440-0 08 1 0909-
171 BOLT; S/ABS BRKT
LOW DECK WO/REAR BODY<PK4> (B) M14X40 FLANGE 		0-28661-440-0 26 1 0909-
173 NUT; S/ABS
LOW DECK WO/REAR BODY<PK4> (A) M14 		0-91110-514-0 08 1 0909-
173 NUT; S/ABS
LOW DECK WO/REAR BODY<PK4> (B) M14 FLANGE 		0-91180-214-0 26 1 0909-
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0909-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0909-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0909-
291 WASHER; PL,BRKT
LOW DECK WO/REAR BODY<PK4> ID=15 		9-09651-069-0 16 1 0909-1201
291 WASHER; PL,BRKT
LOW DECK WO/REAR BODY<PK4> ID=15 		8-98010-627-1 16 1 1202-
331 PIN; UPR,S/ABS
LOW DECK WO/REAR BODY<PK4> M20X110 		1-51361-029-2 02 1 0909-
389 COLLER; S/ABS
LOW DECK WO/REAR BODY<PK4> 		1-51631-083-0 02 1 0909-
390 WASHER; PL,S/ABS,UPR
LOW DECK WO/REAR BODY<PK4> ID=21 		9-09164-520-0 02 1 0909-
423 NUT; S/ABS
LOW DECK WO/REAR BODY<PK4> M20 FLANGE 		8-98010-392-0 02 1 0909-

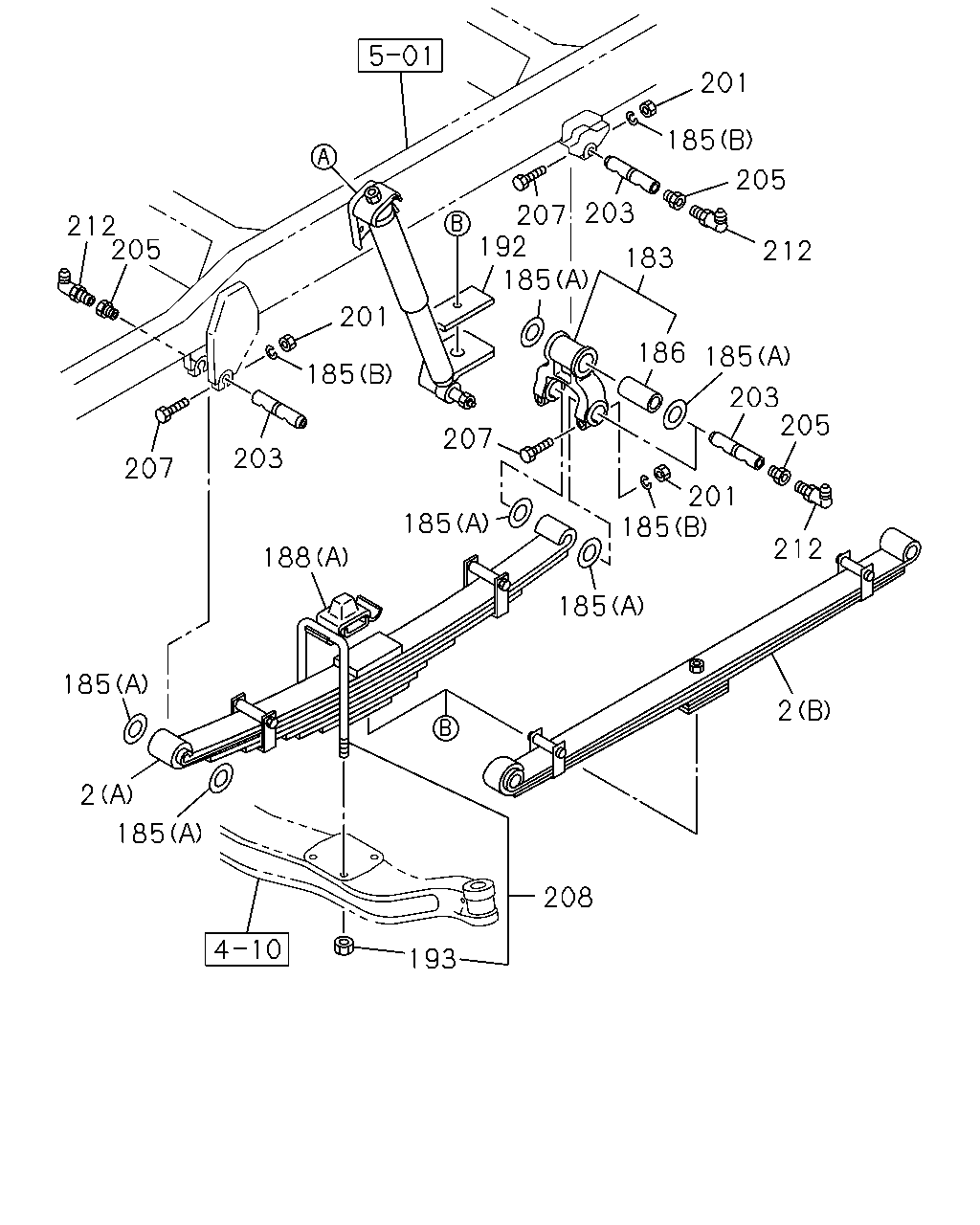

çizim 163377
201 185 207 185 188 203 207 205 212 185 2 185 208 193 2 212 201 185 185 205 203 185 186 212 205 185 201 203 183 185 192 207
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) LOW DECK WO/REAR BODY<PK4> (C) 3-LEAF 		8-98133-453-0 02 1 0909-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) LOW DECK WO/REAR BODY<PK4> (C) 3-LEAF 		8-98205-936-0 02 1 1211-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> (B) 3-LEAF 		8-98133-455-0 02 1 0909-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> (B) 3-LEAF 		8-98205-938-0 02 1 1211-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY<PK4> EXC. REAR SPRING HEAVY DUTY(G50) (C) 3-LEAF 		8-98072-392-0 02 1 0909-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY<PK4> EXC. REAR SPRING HEAVY DUTY(G50) (C) 3-LEAF 		8-98202-923-0 02 1 1211-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY<PK4> (A) 8-LEAF 		1-51130-830-0 02 1 0909-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. REAR SPRING HEAVY DUTY(G50),LOW DECK WO/REAR BODY<PK4> (B) 3-LEAF 		8-98096-765-0 02 1 0909-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. REAR SPRING HEAVY DUTY(G50),LOW DECK WO/REAR BODY<PK4> (B) 3-LEAF 		8-98202-922-0 02 1 1211-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0909-
185 WASHER; LK,PIN
LOW DECK WO/REAR BODY<PK4> (C) ID=12.2 		0-91510-612-0 08 1 0909-
185 WASHER; LK,PIN
(A) ID=32.4 		1-51169-018-0 12 1 0909-
185 WASHER; LK,PIN
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=12.2 		0-91510-612-0 12 1 0909-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0909-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
STABILIZER SHAFT FRT&RR<FE6> (A) 		1-51172-121-0 02 1 1109-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT STABILIZER SHAFT<F59> (A) 		1-51172-121-0 02 1 1109-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
LOW DECK WO/REAR BODY<PK4> (B) 		1-51172-111-0 02 1 0909-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		9-51172-067-1 02 1 0909-1108
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		9-51172-067-1 02 1 1109-
192 PIECE; DIST
TAIWAN EQUIPMENT(WW5) EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> 		8-98088-278-0 01 1 1501-
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0909-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
201 NUT; PIN LK
LOW DECK WO/REAR BODY<PK4> M12 		0-91110-512-0 08 1 0909-
201 NUT; PIN LK
EXC. LOW DECK WO/REAR BODY<PK4> M12 		0-91110-512-0 12 1 0909-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0909-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0909-
207 BOLT; SPR TO SHACKLE
LOW DECK WO/REAR BODY<PK4> M12X80 		0-10856-280-0 08 1 0909-
207 BOLT; SPR TO SHACKLE
EXC. LOW DECK WO/REAR BODY<PK4> M12X80 		0-10856-280-0 12 1 0909-
208 U-BOLT SET; FRT SPRING
TAIWAN EQUIPMENT(WW5) EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-309-2 02 1 1501-
208 U-BOLT SET; FRT SPRING
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) L=190 		1-87870-439-2 04 1 1501-
208 U-BOLT SET; FRT SPRING
STABILIZER SHAFT FRT&RR<FE6> L=210 		1-87870-309-1 04 1 0909-1108
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> L=210 		1-87870-309-1 04 1 0909-1108
208 U-BOLT SET; FRT SPRING
STABILIZER SHAFT FRT&RR<FE6> L=210 		1-87870-380-2 04 1 1109-
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> L=210 		1-87870-380-2 04 1 1109-
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY<PK4> L=170 		1-87870-170-3 04 1 0909-1206
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY<PK4> L=170 		1-87870-502-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> L=190 		1-87870-439-2 04 1 0909-1412
208 U-BOLT SET; FRT SPRING
TAIWAN EQUIPMENT(WW5) EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZER SHAFT<F59>,LOW DECK WO/REAR BODY<PK4> L=190 		1-87870-439-2 02 1 1501-
212 NIPPLE; GREASE,ELBOW
LOW DECK WO/REAR BODY<PK4> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 0909-
212 NIPPLE; GREASE,ELBOW
EXC. LOW DECK WO/REAR BODY<PK4> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 06 1 0909-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
