Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#58686) — 400 parça

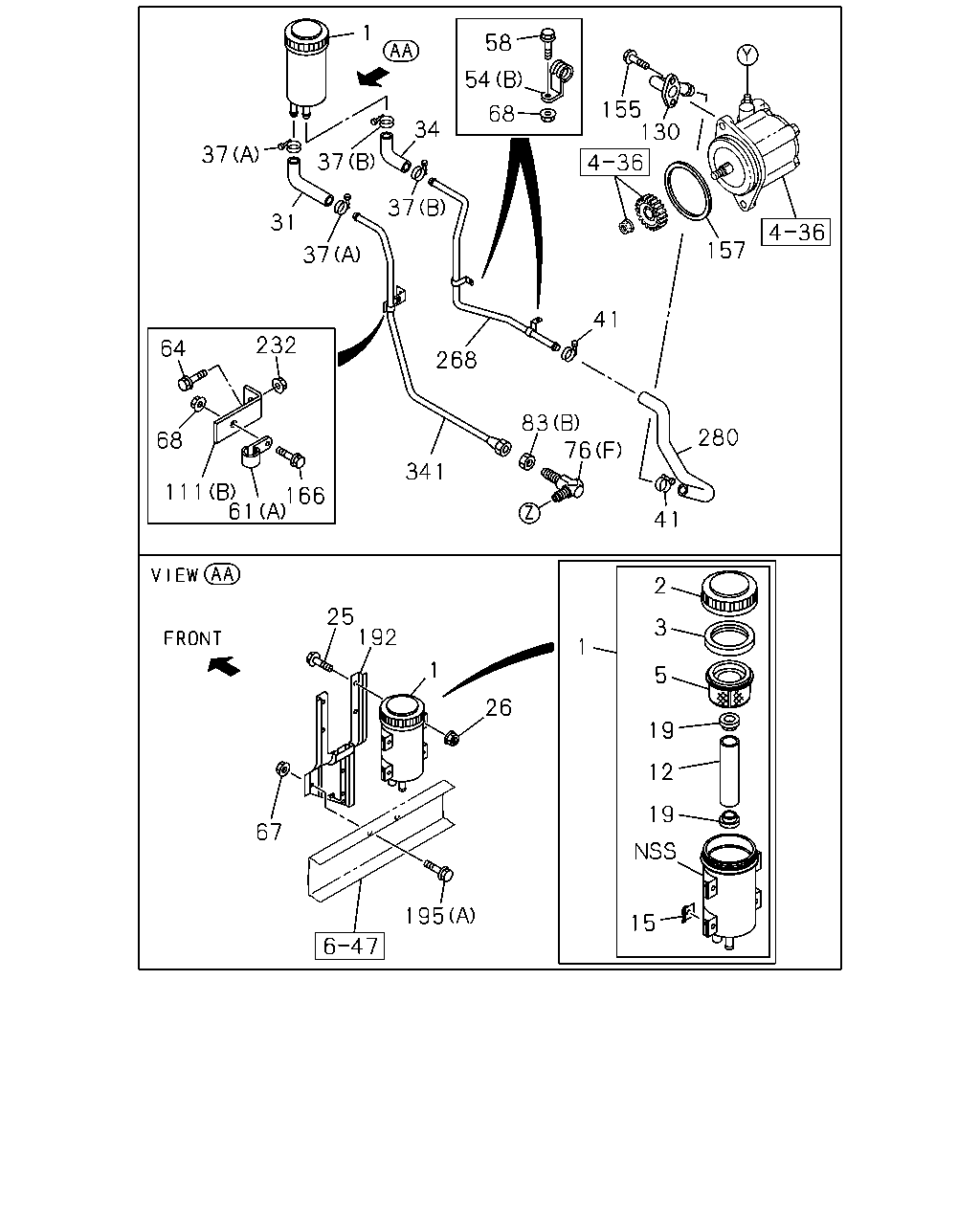

1 37 31 37 34 37 37 232 268 83 341 76 41 280 41 157 130 155 68 54 58 64 68 111 166 61 25 192 1 26 1 195 67 2 3 5 19 12 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-237-2	01	1	0909-1006
1	TANK ASM; OIL,P/S	8-98166-927-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0909-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0909-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0909-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0909-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0909-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0909-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0909-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	0909-
31	HOSE; P/S OIL TANK,INL	1-21115-101-0	01	1	0909-
34	HOSE; P/S OIL TANK,OUTLET	1-21116-093-1	01	1	0909-
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	0909-
37	CLIP; HOSE,P/S (B) ID=36	1-09704-094-0	02	1	0909-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0909-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
54	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
54	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0909-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0909-
54	CLIP; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0909-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0909-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0909-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	01	1	0909-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0909-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	02	1	0909-
58	BOLT; CLIP WHEEL BASE 5000MM(50W) M8X40 FLANGE	0-28650-840-0	01	1	0909-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	0909-
58	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X40 FLANGE	0-28650-840-0	03	1	0909-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0909-
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	02	1	0909-
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	04	1	0909-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0909-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0909-
67	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0909-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0909-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0909-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	03	1	0909-1410
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	02	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	03	1	0909-1410
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	01	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (G) M20 2WAY	1-09654-218-1	01	1	0909-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0909-
76	UNION; OIL PIPE (F) M22X2 ELBOW	0-92135-215-0	01	1	0909-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	0909-1410
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	1411-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	0909-1410
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	02	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	02	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	02	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	01	1	0909-1410
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	03	1	0909-1410
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	02	1	1411-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0909-1410
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	1411-
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	01	1	1411-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	0909-
111	BRACKET; OIL PIPE (A)	1-47475-427-1	02	1	0909-
111	BRACKET; OIL PIPE (B) L=76	1-47475-588-0	01	1	0909-
130	ADAPTER; P/S PUMP	8-94390-583-0	01	1	0909-
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0909-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0909-
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0909-
166	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0909-
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	0909-
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0909-
195	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	03	1	0909-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0909-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=509	8-98057-088-0	01	1	0909-
280	HOSE; P/S OIL PUMP,INL	1-21117-881-0	01	1	0909-
341	PIPE; OIL,UNION TO OIL TANK	1-21117-875-0	01	1	0909-

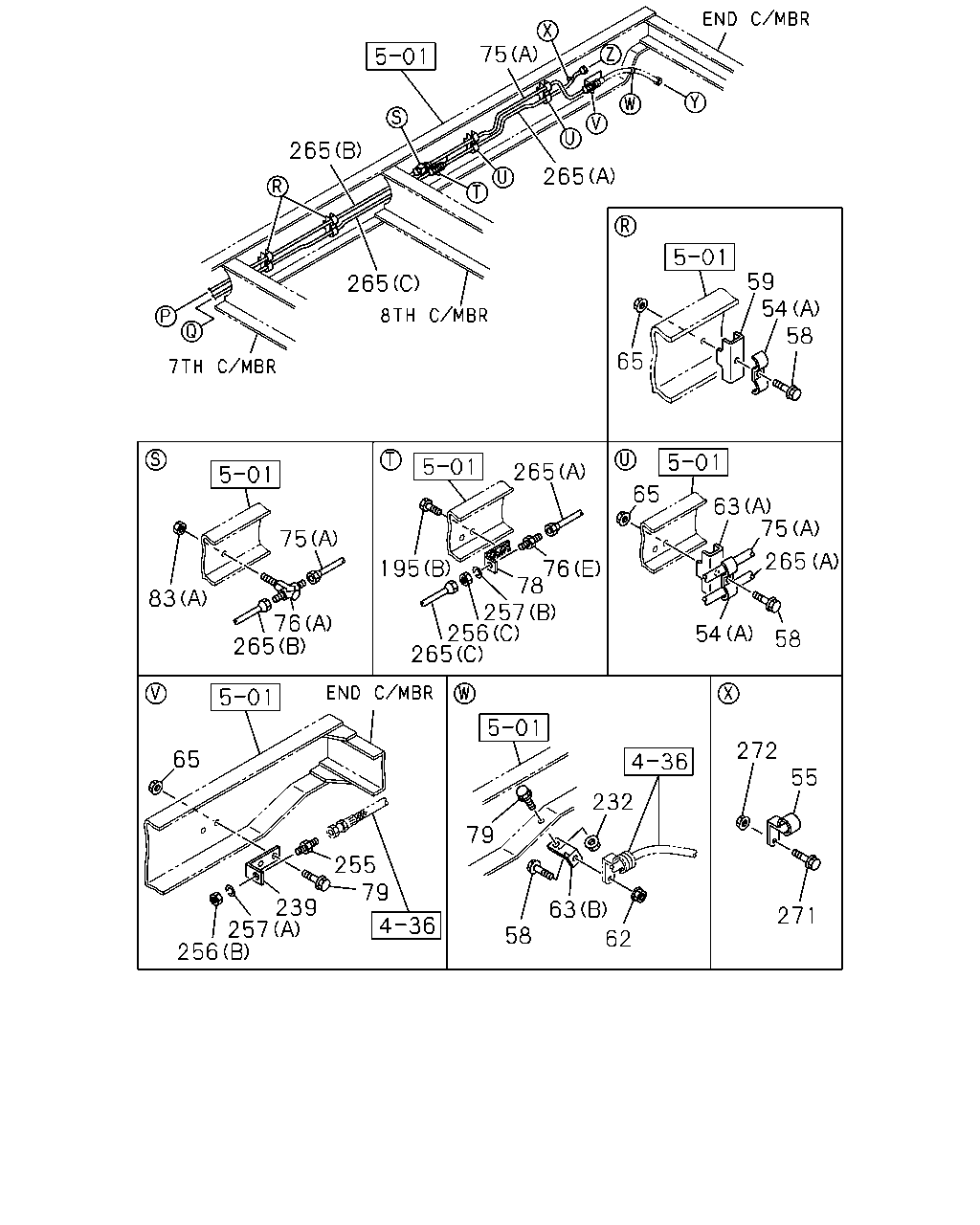

75 265 265 265 59 58 54 63 75 265 54 58 65 265 76 78 257 256 265 76 75 265 83 79 232 272 55 271 62 63 58 79 255 239 257 256 65 195 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
54	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
54	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0909-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0909-
54	CLIP; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0909-
55	CLIP; P/S RUBBER HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	0909-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0909-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0909-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	01	1	0909-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0909-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	02	1	0909-
58	BOLT; CLIP WHEEL BASE 5000MM(50W) M8X40 FLANGE	0-28650-840-0	01	1	0909-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	0909-
58	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X40 FLANGE	0-28650-840-0	03	1	0909-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0909-
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	02	1	0909-
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	04	1	0909-
59	BRACKET; CLIP,OIL PIPE LOW DECK WO/REAR BODY<PK4>	1-47475-427-1	01	1	0909-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	03	1	0909-
59	BRACKET; CLIP,OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4>	1-47475-427-1	02	1	0909-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0909-
62	NUT; CLIP FIX LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0909-
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0909-
62	NUT; CLIP FIX WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0909-
62	NUT; CLIP FIX EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0909-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	0909-
63	BRACKET; CLIP,P/S LOW DECK WO/REAR BODY<PK4> (A)	1-47475-427-1	02	1	0909-
63	BRACKET; CLIP,P/S WHEEL BASE 5000MM(50W) (A)	1-47475-427-1	01	1	0909-
63	BRACKET; CLIP,P/S WHEEL BASE 5700MM(57W) (A)	1-47475-427-1	03	1	0909-
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	0909-
63	BRACKET; CLIP,P/S EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-47475-427-1	04	1	0909-
65	NUT; BRKT LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	01	1	0909-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0909-
65	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	02	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1973 SERVICED BY L=2000	1-49115-492-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=1740 SERVICED BY L=1800	1-49115-491-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (E) L=1504 SERVICED BY L=1600	1-49115-490-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (G) L=1058 SERVICED BY L=1100	1-49115-486-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (H) L=950	8-98072-435-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (F) L=1070	8-98072-436-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (D) L=1836	8-98072-438-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (C) L=820	1-21117-877-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (D) L=900	1-21117-878-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (C) L=1522	1-21115-401-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (D) L=1602	1-21115-408-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1246 SERVICED BY L=1300	1-49115-488-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (F) L=906	1-21117-873-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (E) L=1506 SERVICED BY L=1600	1-49115-490-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	0909-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	03	1	0909-1410
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	02	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	03	1	0909-1410
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	01	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (G) M20 2WAY	1-09654-218-1	01	1	0909-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0909-
76	UNION; OIL PIPE (F) M22X2 ELBOW	0-92135-215-0	01	1	0909-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	0909-1410
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	1411-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	0909-1410
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	02	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	02	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	02	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	01	1	0909-1410
78	BRACKET; UNION	1-47476-729-1	01	1	0909-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0909-
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	03	1	0909-1410
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	02	1	1411-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0909-1410
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	1411-
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	01	1	1411-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	0909-
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0909-
195	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	03	1	0909-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0909-
239	BRACKET; FLEX HOSE	1-47478-324-0	01	1	0909-
255	UNION; FLEX HOSE	1-09650-045-1	01	1	0909-
256	NUT; UNION LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	03	1	0909-1410
256	NUT; UNION LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	01	1	1411-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0909-1410
256	NUT; UNION (A) M14	0-91111-514-0	02	1	1411-
256	NUT; UNION LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	02	1	1411-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0909-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0909-
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	01	1	0909-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1597 SERVICED BY L=1600	1-49115-490-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (F) L=926 SERVICED BY L=1000	1-49115-485-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (E) L=1648	8-98072-437-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (D) L=1990	8-98072-439-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION (A) L=1337	8-98057-087-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (E) L=1579	8-98057-083-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (C) L=2456	8-98057-086-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (D) L=1428	8-98057-084-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=1428	8-98057-084-0	01	1	0909-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	01	1	0909-
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	0909-

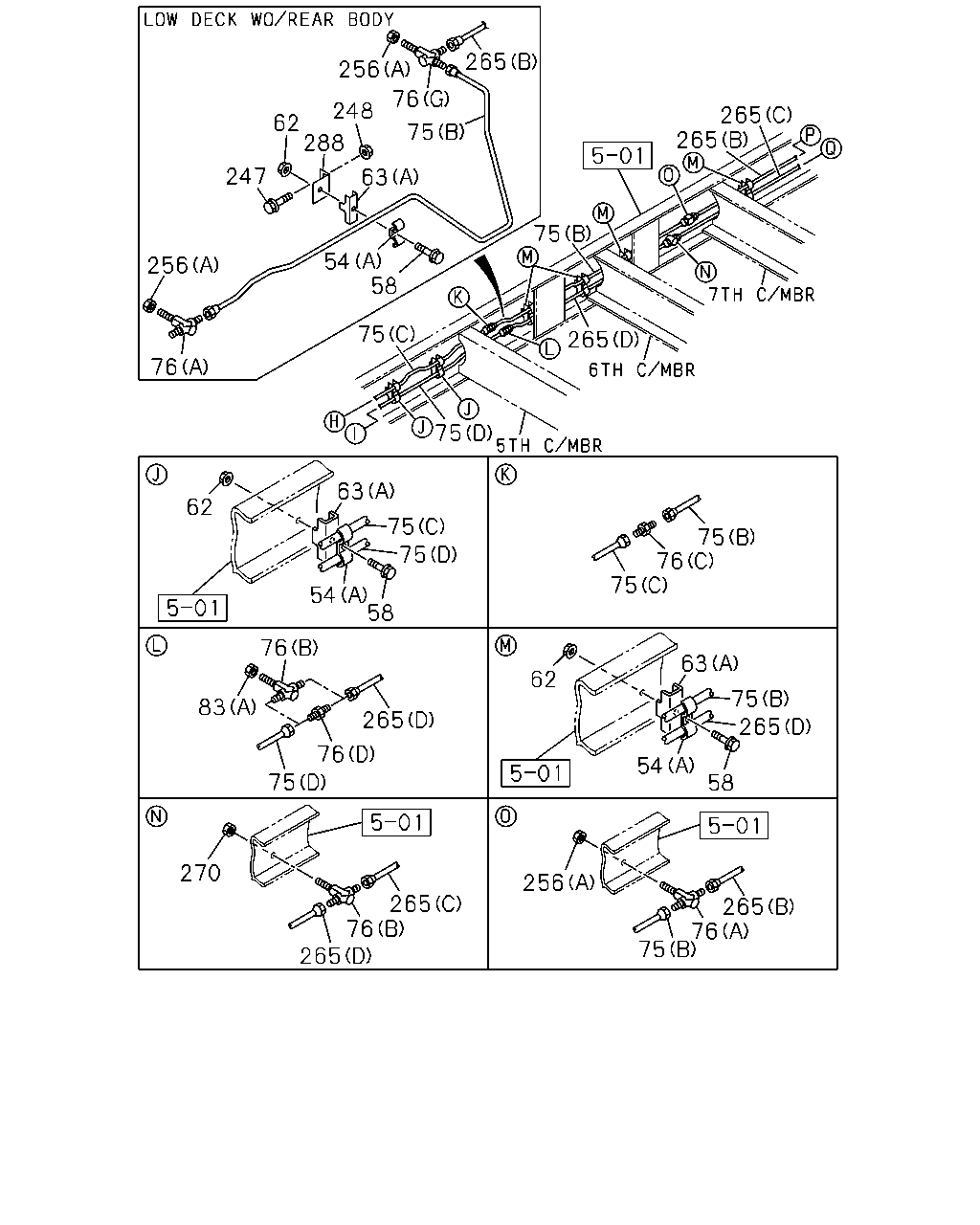

76 248 256 62 247 63 288 75 54 75 58 265 75 265 265 75 63 75 75 75 75 76 63 75 265 54 58 265 76 75 256 265 76 265 270 75 265 76 76 83 58 54 62 62 76 256 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
54	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
54	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0909-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0909-
54	CLIP; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0909-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0909-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0909-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	01	1	0909-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0909-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	02	1	0909-
58	BOLT; CLIP WHEEL BASE 5000MM(50W) M8X40 FLANGE	0-28650-840-0	01	1	0909-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	0909-
58	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X40 FLANGE	0-28650-840-0	03	1	0909-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0909-
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	02	1	0909-
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	04	1	0909-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0909-
62	NUT; CLIP FIX LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0909-
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0909-
62	NUT; CLIP FIX WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0909-
62	NUT; CLIP FIX EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0909-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	0909-
63	BRACKET; CLIP,P/S LOW DECK WO/REAR BODY<PK4> (A)	1-47475-427-1	02	1	0909-
63	BRACKET; CLIP,P/S WHEEL BASE 5000MM(50W) (A)	1-47475-427-1	01	1	0909-
63	BRACKET; CLIP,P/S WHEEL BASE 5700MM(57W) (A)	1-47475-427-1	03	1	0909-
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	0909-
63	BRACKET; CLIP,P/S EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-47475-427-1	04	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1973 SERVICED BY L=2000	1-49115-492-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=1740 SERVICED BY L=1800	1-49115-491-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (E) L=1504 SERVICED BY L=1600	1-49115-490-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (G) L=1058 SERVICED BY L=1100	1-49115-486-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (H) L=950	8-98072-435-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (F) L=1070	8-98072-436-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (D) L=1836	8-98072-438-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (C) L=820	1-21117-877-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (D) L=900	1-21117-878-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (C) L=1522	1-21115-401-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (D) L=1602	1-21115-408-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1246 SERVICED BY L=1300	1-49115-488-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (F) L=906	1-21117-873-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (E) L=1506 SERVICED BY L=1600	1-49115-490-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	0909-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	03	1	0909-1410
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	02	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	03	1	0909-1410
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	01	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (G) M20 2WAY	1-09654-218-1	01	1	0909-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0909-
76	UNION; OIL PIPE (F) M22X2 ELBOW	0-92135-215-0	01	1	0909-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	0909-1410
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	1411-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	0909-1410
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	02	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	02	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	02	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	01	1	0909-1410
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	03	1	0909-1410
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	02	1	1411-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0909-1410
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	1411-
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	01	1	1411-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	0909-
247	BOLT; BRKT,CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	02	1	0909-
248	NUT; BRKT,CLIP LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	02	1	0909-
256	NUT; UNION LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	03	1	0909-1410
256	NUT; UNION LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	01	1	1411-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0909-1410
256	NUT; UNION (A) M14	0-91111-514-0	02	1	1411-
256	NUT; UNION LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	02	1	1411-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0909-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1597 SERVICED BY L=1600	1-49115-490-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (F) L=926 SERVICED BY L=1000	1-49115-485-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (E) L=1648	8-98072-437-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (D) L=1990	8-98072-439-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION (A) L=1337	8-98057-087-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (E) L=1579	8-98057-083-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (C) L=2456	8-98057-086-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (D) L=1428	8-98057-084-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=1428	8-98057-084-0	01	1	0909-
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	0909-
288	BRACKET; CLIP,P/S LOW DECK WO/REAR BODY<PK4>	1-47478-408-0	01	1	0909-

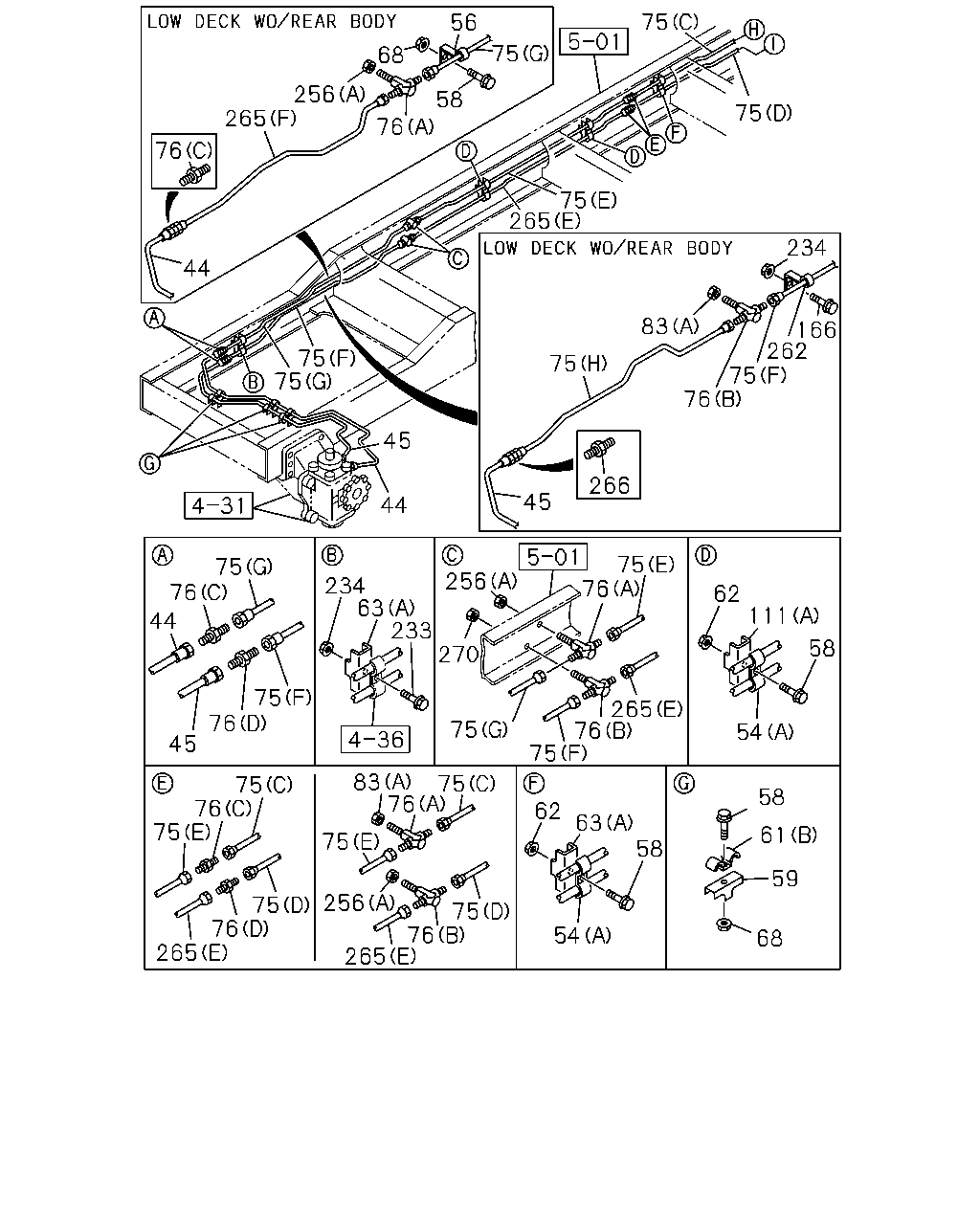

265 75 75 75 56 58 76 256 265 44 76 75 75 45 44 234 63 233 270 75 75 63 62 75 265 76 54 58 111 62 75 76 256 45 75 83 76 75 262 166 234 58 61 59 68 54 75 76 256 75 76 75 75 76 45 75 76 75 83 76 44 75 76 68 58 265 265 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE LOW DECK WO/REAR BODY<PK4> L=1598	8-98072-433-0	01	1	0909-
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. LOW DECK WO/REAR BODY<PK4> L=1630	1-21117-870-0	01	1	0909-
45	PIPE; OIL,P/S UNIT TO UNION LOW DECK WO/REAR BODY<PK4> L=1617	8-98072-434-0	01	1	0909-
45	PIPE; OIL,P/S UNIT TO UNION EXC. LOW DECK WO/REAR BODY<PK4> L=1645	1-21117-872-0	01	1	0909-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
54	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
54	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0909-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0909-
54	CLIP; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0909-
56	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=13 H=40 L=25	1-09700-620-0	01	1	0909-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0909-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0909-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	01	1	0909-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0909-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	02	1	0909-
58	BOLT; CLIP WHEEL BASE 5000MM(50W) M8X40 FLANGE	0-28650-840-0	01	1	0909-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	0909-
58	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X40 FLANGE	0-28650-840-0	03	1	0909-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0909-
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	02	1	0909-
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	04	1	0909-
59	BRACKET; CLIP,OIL PIPE LOW DECK WO/REAR BODY<PK4>	1-47475-427-1	01	1	0909-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	03	1	0909-
59	BRACKET; CLIP,OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4>	1-47475-427-1	02	1	0909-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0909-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0909-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0909-
62	NUT; CLIP FIX LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0909-
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0909-
62	NUT; CLIP FIX WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0909-
62	NUT; CLIP FIX EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0909-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	0909-
63	BRACKET; CLIP,P/S LOW DECK WO/REAR BODY<PK4> (A)	1-47475-427-1	02	1	0909-
63	BRACKET; CLIP,P/S WHEEL BASE 5000MM(50W) (A)	1-47475-427-1	01	1	0909-
63	BRACKET; CLIP,P/S WHEEL BASE 5700MM(57W) (A)	1-47475-427-1	03	1	0909-
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	0909-
63	BRACKET; CLIP,P/S EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-47475-427-1	04	1	0909-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0909-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1973 SERVICED BY L=2000	1-49115-492-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=1740 SERVICED BY L=1800	1-49115-491-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (E) L=1504 SERVICED BY L=1600	1-49115-490-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (G) L=1058 SERVICED BY L=1100	1-49115-486-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (H) L=950	8-98072-435-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (F) L=1070	8-98072-436-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (D) L=1836	8-98072-438-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (C) L=820	1-21117-877-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (D) L=900	1-21117-878-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (C) L=1522	1-21115-401-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (D) L=1602	1-21115-408-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1246 SERVICED BY L=1300	1-49115-488-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (F) L=906	1-21117-873-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (E) L=1506 SERVICED BY L=1600	1-49115-490-0	01	1	0909-
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	0909-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	03	1	0909-1410
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	02	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	03	1	0909-1410
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	01	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (G) M20 2WAY	1-09654-218-1	01	1	0909-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0909-
76	UNION; OIL PIPE (F) M22X2 ELBOW	0-92135-215-0	01	1	0909-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	0909-1410
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	1411-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	0909-1410
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	1411-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	02	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	02	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	02	1	0909-1410
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	01	1	0909-1410
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	03	1	0909-1410
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	02	1	1411-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0909-1410
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	1411-
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	01	1	1411-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	0909-
111	BRACKET; OIL PIPE (A)	1-47475-427-1	02	1	0909-
111	BRACKET; OIL PIPE (B) L=76	1-47475-588-0	01	1	0909-
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0909-
166	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0909-
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28650-840-0	01	1	0909-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0909-
234	NUT; PIPE CLIP,P/S LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	01	1	0909-
256	NUT; UNION LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	03	1	0909-1410
256	NUT; UNION LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	01	1	1411-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0909-1410
256	NUT; UNION (A) M14	0-91111-514-0	02	1	1411-
256	NUT; UNION LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	02	1	1411-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0909-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0909-
262	CLIP; P/S PIPE LOW DECK WO/REAR BODY<PK4> D=15 L=45	5-09700-076-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1597 SERVICED BY L=1600	1-49115-490-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (F) L=926 SERVICED BY L=1000	1-49115-485-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (E) L=1648	8-98072-437-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (D) L=1990	8-98072-439-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION (A) L=1337	8-98057-087-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (E) L=1579	8-98057-083-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (C) L=2456	8-98057-086-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (D) L=1428	8-98057-084-0	01	1	0909-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=1428	8-98057-084-0	01	1	0909-
266	UNION; OIL PIPE,P/S LOW DECK WO/REAR BODY<PK4> M22 L=51	0-92123-015-0	01	1	0909-
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	0909-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
