Isuzu WW
▶
BUSES
▶
LT
▶
11206 - LT134 LHD EURO2/3/5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶

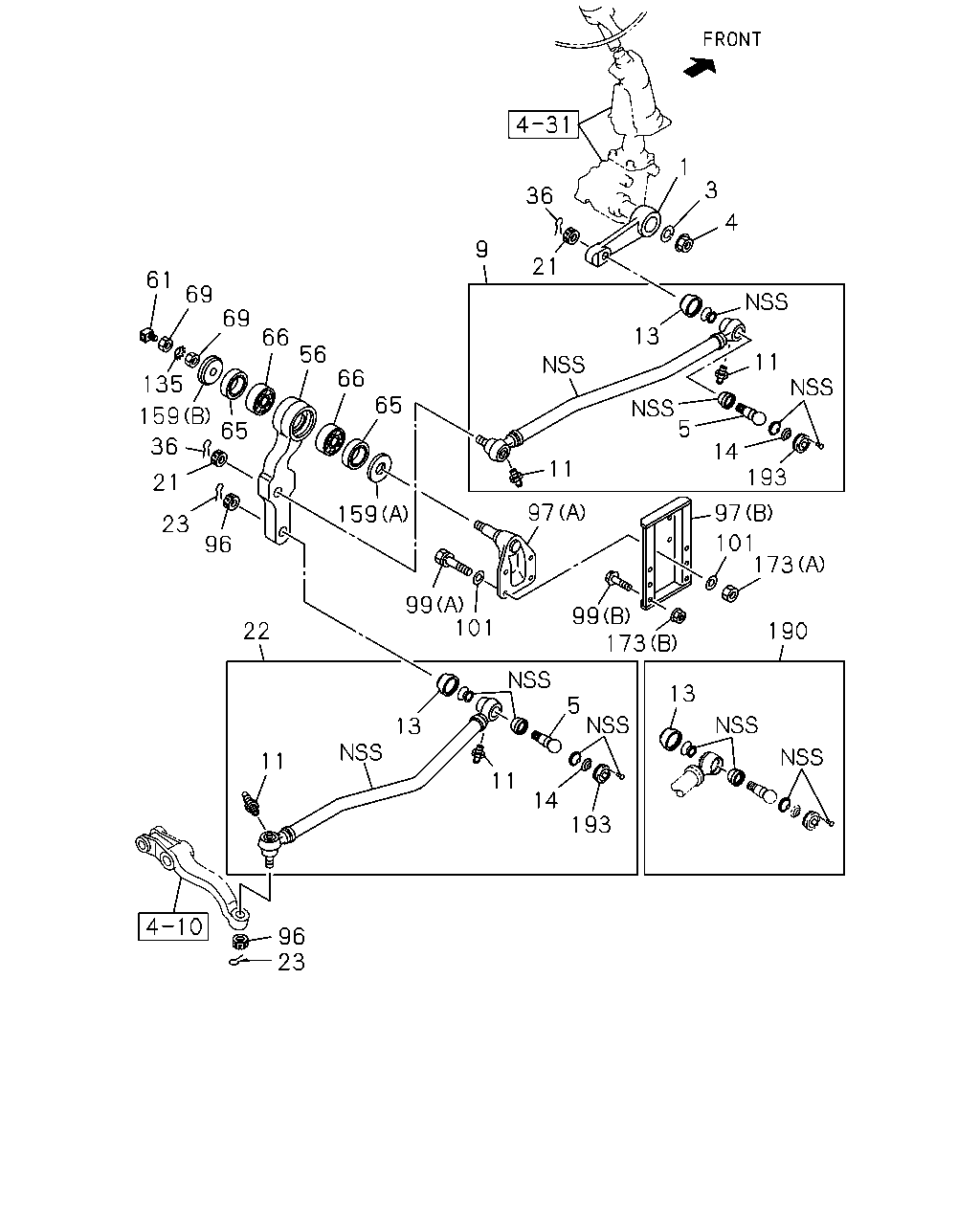

4-33 — STEERING LINKAGE
(#58685) — 33 parça
1
4
3
21
36
9
13
11
14
5
193
97
101
173
190
173
99
101
99
159
65
66
56
66
69
69
61
135
36
23
96
21
159
65
22
11
13
11
14
193
13
5
96
23
11
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
LOW DECK WO/REAR BODY<PK4>
8-98072-635-0
01
1
0909-
1
ARM; PITMAN,STRG
EXC. LOW DECK WO/REAR BODY<PK4>
1-44341-502-0
01
1
0909-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0909-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0909-
5
BALL; JOINT,DRAG LINK
1-44361-105-1
04
1
0909-
9
LINK; DRAG
LOW DECK WO/REAR BODY<PK4>
8-98071-047-3
01
1
0909-
9
LINK; DRAG
EXC. LOW DECK WO/REAR BODY<PK4>
8-98098-096-2
01
1
0909-
11
NIPPLE; GREASE,DRAG LINK
1-43159-132-0
04
1
0909-
13
BOOT; DRAG LINK
1-43159-131-0
04
1
0909-
14
SPRING; COIL,DRAG LINK
1-43159-129-0
04
1
0909-
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0909-
22
LINK; DRAG,2ND
LOW DECK WO/REAR BODY<PK4>
8-98077-522-2
01
1
0909-
22
LINK; DRAG,2ND
EXC. LOW DECK WO/REAR BODY<PK4>
8-98098-097-1
01
1
0909-
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
0-81125-035-0
02
1
0909-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0909-
56
ARM; LINK,FRT,W/JOINT BALL
1-44345-191-0
01
1
0909-
61
NIPPLE; PIN LINK ARM
PT1/8 ELBOW
0-90301-610-0
01
1
0909-
65
SEAL; DUST,LINK ARM
9-44349-040-1
02
1
0909-
66
BEARING; LINK ARM
9-00030-207-0
02
1
0909-
69
NUT; LINK ARM
M24
9-09840-264-0
02
1
0909-
96
NUT; LINK ARM
M24
1-09442-032-0
02
1
0909-
97
BRACKET; LINK ARM
LOW DECK WO/REAR BODY<PK4> (B)
8-98086-189-0
01
1
0909-
97
BRACKET; LINK ARM
(A)
1-44348-078-1
01
1
0909-
99
BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (B) M14X35 FLANGE
0-28661-435-0
06
1
0909-
99
BOLT; BRKT
(A) M14X50
0-20951-450-0
04
1
0909-
101
WASHER; PL,BRKT
ID=14.2
1-09503-050-0
08
1
0909-
135
WASHER; LK,PIN SET,LINK ARM
9-09853-842-0
01
1
0909-
159
WASHER; LINK ARM
(B) ID=24 T=8
9-44349-039-0
01
1
0909-
159
WASHER; LINK ARM
(A) ID=35 T=9
9-44349-046-0
01
1
0909-
173
NUT; BRKT,LINK ASM
LOW DECK WO/REAR BODY<PK4> (B) M14 FLANGE
0-91180-214-0
06
1
0909-
173
NUT; BRKT,LINK ASM
(A) M14
0-91110-514-0
04
1
0909-
190
REPAIR KIT; DRAG LINK
1-85574-089-0
04
1
0909-
193
PLUG; END,DRAG LINK
1-43159-130-0
04
1
0909-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
