◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#5868) — 50 parça

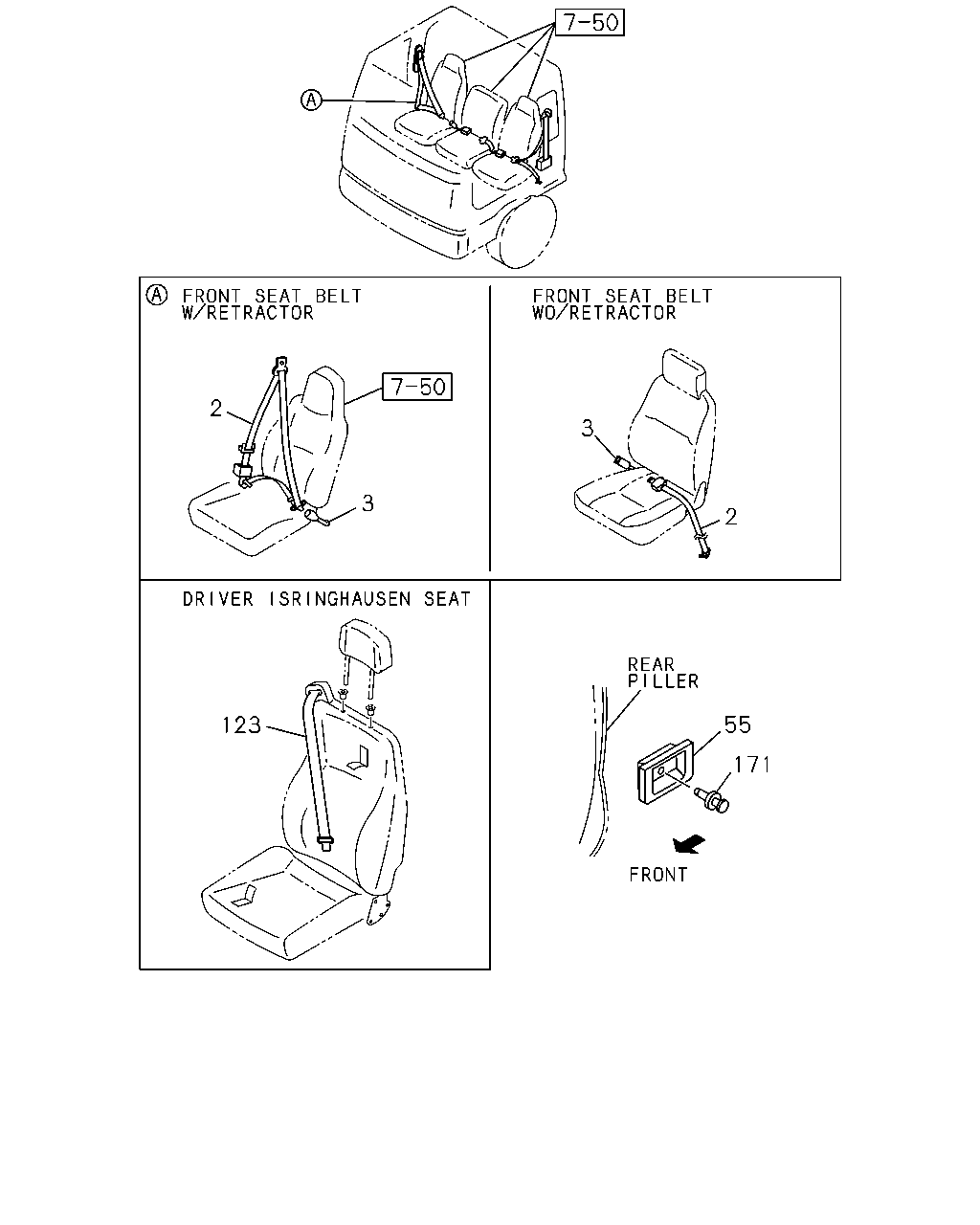

çizim 6347
2 3 3 2 55 123 171
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-509-2 01 1 9603-9904 ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-509-5 01 1 9905- ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-780-4 01 1 9603- ● ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-514-2 01 1 9603-9904 ●
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-514-5 01 1 9905- ●
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-779-0 01 1 9603-9801 ● ●
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-779-0 01 1 9802-9904 ● ●
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. ISRINGHAUSEN SEAT(SJA),SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-779-0 01 1 9905- ● ●
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-735-2 01 1 9802-9904 ●
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) SAUDI ARABIA EQUIPMENT(WH1) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-735-2 01 1 9905- ●
55 GUIDE; SEAT BELT
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) 		1-75617-513-0 01 1 9905- ● ●
55 GUIDE; SEAT BELT
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-513-0 02 1 9603- ● ●
123 BELT ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75617-570-0 01 1 9905- ●
123 BELT ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75617-569-0 01 1 9905- ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9603- ● ●

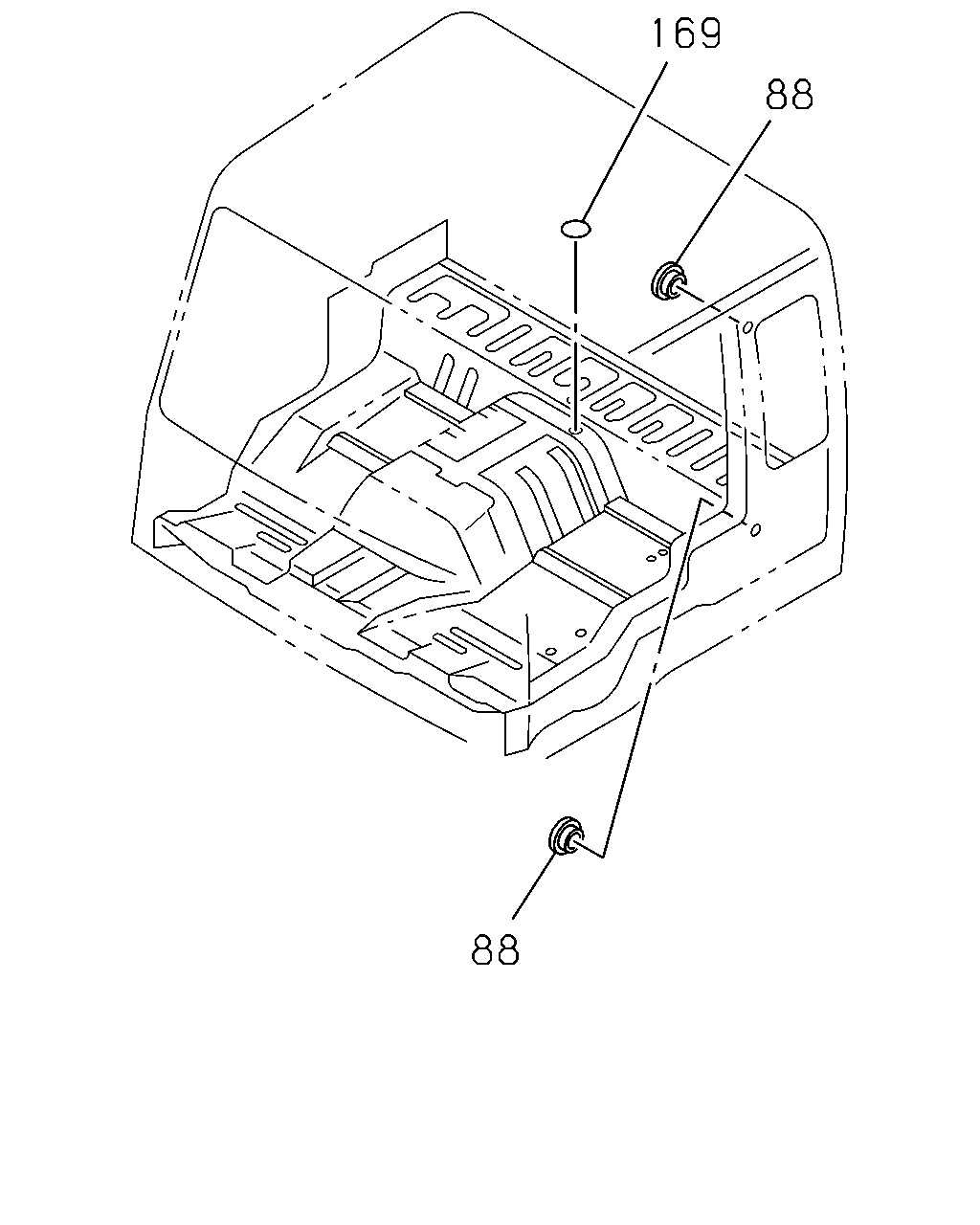

çizim 7826
169 88 88
BalonParca AdiParca NoAdetTipApplied Date A B
88 PLUG; HOLE
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 9603-9709 ● ●
88 PLUG; HOLE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=31.6 		8-94198-177-0 02 1 9603-9709 ● ●
88 PLUG; HOLE
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 9710- ● ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 9905- ●
169 SEAL
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 9603-9904 ●
169 SEAL
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) OD=25 BLACK 		1-76798-019-0 02 1 9905- ● ●
169 SEAL
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=25 BLACK 		1-76798-019-0 05 1 9603-9904 ● ●
169 SEAL
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=25 BLACK 		1-76798-019-0 04 1 9905- ● ●

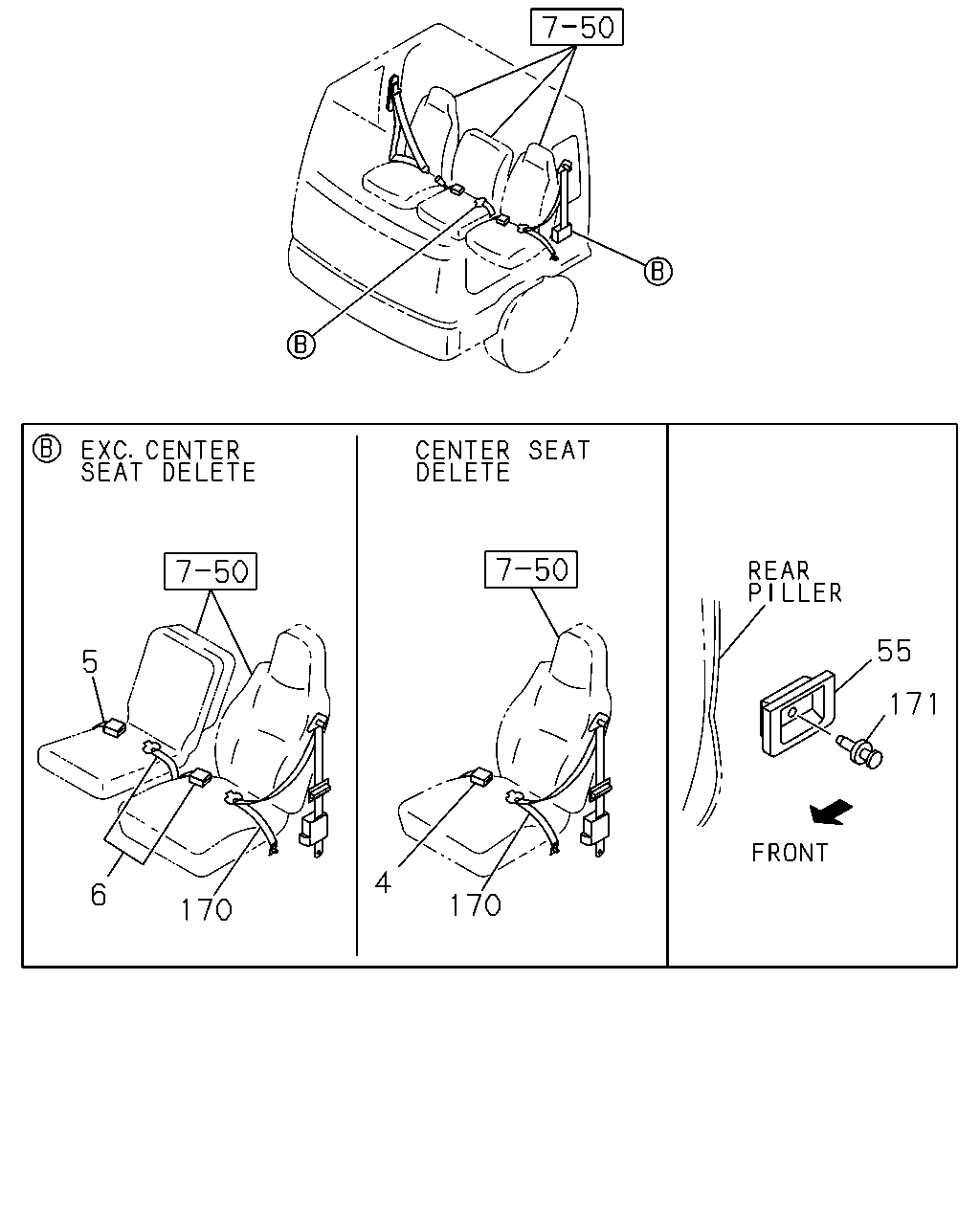

çizim 7863
55 5 171 4 6 170 170
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) 		1-75617-566-0 01 1 9905-0012 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75617-566-1 01 1 0101- ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9) 		1-75618-752-0 01 1 9603-9904 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-752-0 01 1 9905-0012 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) 		1-75618-752-1 01 1 0101- ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-752-1 01 1 0101- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CENTER SEAT DELETE(SP9) 		1-75618-739-0 01 1 9603- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75617-567-0 01 1 9905-0012 ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5),CENTER SEAT DELETE(SP9) 		1-75617-567-1 01 1 0101- ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75618-798-2 01 1 0101- ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CENTER SEAT DELETE(SP9) 		1-75618-737-2 01 1 9603-9904 ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) 		1-75618-737-4 01 1 9905- ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) 		1-75617-562-1 01 1 9905- ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75617-511-2 01 1 9603-9904 ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-511-4 01 1 9905- ●
55 GUIDE; SEAT BELT
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) 		1-75617-513-0 01 1 9905- ● ●
55 GUIDE; SEAT BELT
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-513-0 02 1 9603- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-738-4 01 1 9603-9904 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-738-6 01 1 9905- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) 		1-75617-565-0 01 1 9905-0012 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75617-565-1 01 1 0101- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75617-515-2 01 1 0101- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-780-4 01 1 9603- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-509-2 01 1 9603-9904 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-509-5 01 1 9905- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) 		1-75617-561-1 01 1 9905- ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9603- ● ●
