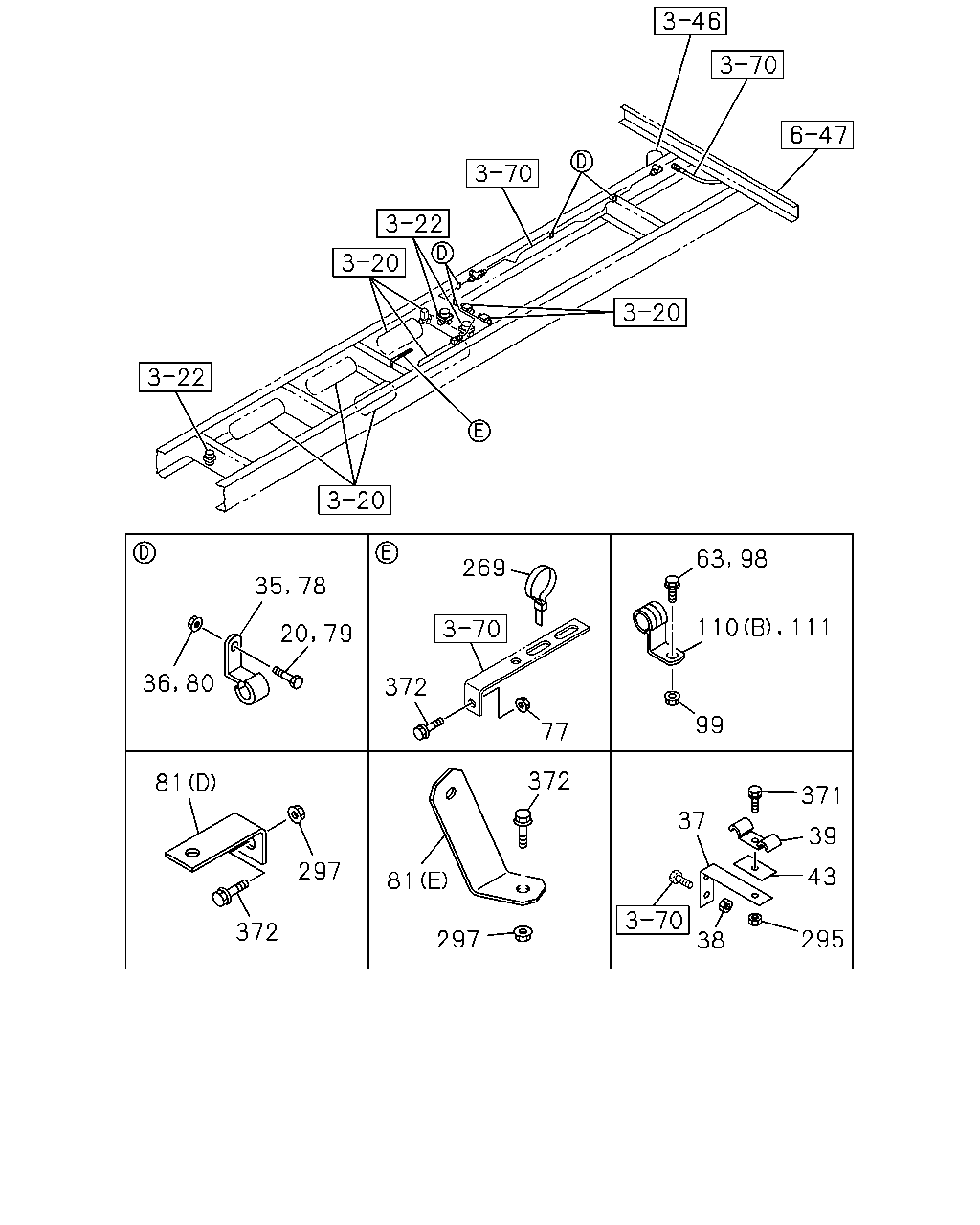

3-78 — FIXING PARTS; AIR PIPING (#58677) — 114 parça

372 297 372 387 81 297 81 297 372 372 81 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	0909-
81	BRACKET; CLIP (C)	8-98053-702-0	01	1	0909-
81	BRACKET; CLIP EXC. LOW DECK WO/REAR BODY<PK4> (D) L=55	1-47476-177-0	01	1	0909-
81	BRACKET; CLIP EXC. LOW DECK WO/REAR BODY<PK4> (E)	1-47476-550-1	01	1	0909-
81	BRACKET; CLIP EXC. LOW DECK WO/REAR BODY<PK4> (A)	8-97614-149-0	01	1	0909-
297	NUT; BRKT ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	02	1	0909-
297	NUT; BRKT LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	06	1	0909-
297	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	10	1	0909-
297	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M10 FLANGE	0-91180-210-0	02	1	0909-
372	BOLT; CLIP BRKT LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	06	1	0909-
372	BOLT; CLIP BRKT EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	02	1	0909-
372	BOLT; CLIP BRKT EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	10	1	0909-
372	BOLT; CLIP BRKT EXC. LOW DECK WO/REAR BODY<PK4> M10X30 FLANGE	0-28651-030-0	02	1	0909-
387	STAY LOW DECK WO/REAR BODY<PK4>	8-98088-705-0	01	1	0909-
387	STAY EXC. LOW DECK WO/REAR BODY<PK4>	1-47471-434-0	01	1	0909-

35 78 20 79 36 80 81 297 372 81 297 372 77 269 372 63 98 110 111 99 37 371 39 43 295 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0909-1412
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1501-
20	BOLT; CLIP EURO5 SPECIFICATION(NT5) M8X25 FLANGE	0-28650-825-0	02	1	1501-
35	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0909-
36	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0909-
37	BRACKET; PIPE CLIP	1-47475-105-2	01	1	0909-
38	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0909-
39	CLIP; AIR PIPE ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0909-
43	PLATE; CLIP,AIR PIPE L=50	1-47475-299-2	01	1	0909-
63	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0909-
77	NUT; CLIP BRKT EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	02	1	0909-
78	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0909-
79	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0909-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	0909-
81	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	0909-
81	BRACKET; CLIP (C)	8-98053-702-0	01	1	0909-
81	BRACKET; CLIP EXC. LOW DECK WO/REAR BODY<PK4> (D) L=55	1-47476-177-0	01	1	0909-
81	BRACKET; CLIP EXC. LOW DECK WO/REAR BODY<PK4> (E)	1-47476-550-1	01	1	0909-
81	BRACKET; CLIP EXC. LOW DECK WO/REAR BODY<PK4> (A)	8-97614-149-0	01	1	0909-
98	BOLT; PIPE CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0909-
99	NUT; PIPE CLIP LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	01	1	0909-
110	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (A) L=250	1-09707-126-0	02	1	0909-
110	CLIP; BAND,NYLON TUBE LOW DECK WO/REAR BODY<PK4> (B) ID=18 L=25 H=50	1-09701-096-0	01	1	0909-
110	CLIP; BAND,NYLON TUBE LOW DECK WO/REAR BODY<PK4> (A) L=250	1-09707-126-0	01	1	0909-
110	CLIP; BAND,NYLON TUBE WHEEL BASE 5000MM(50W) (A) L=350	1-09707-183-0	03	1	0909-
110	CLIP; BAND,NYLON TUBE WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (A) L=350	1-09707-183-0	04	1	0909-
110	CLIP; BAND,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=250	1-09707-126-0	03	1	0909-
111	CLIP; AIR PIPE LOW DECK WO/REAR BODY<PK4> ID=18 L=25 H=50	1-09701-096-0	01	1	0909-
269	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> L=350	1-09707-183-0	09	1	0909-
269	CLIP; BAND,NYLON TUBE LOW DECK WO/REAR BODY<PK4> L=350	1-09707-183-0	15	1	0909-
269	CLIP; BAND,NYLON TUBE DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=350	1-09707-183-0	01	1	0909-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5000MM(50W) L=350	1-09707-183-0	14	1	0909-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> L=350	1-09707-183-0	16	1	0909-
269	CLIP; BAND,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM<BFA> L=350	1-09707-183-0	03	1	0909-
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	0909-
297	NUT; BRKT ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	02	1	0909-
297	NUT; BRKT LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	06	1	0909-
297	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	10	1	0909-
297	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M10 FLANGE	0-91180-210-0	02	1	0909-
371	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	02	1	0909-
372	BOLT; CLIP BRKT LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	06	1	0909-
372	BOLT; CLIP BRKT EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	02	1	0909-
372	BOLT; CLIP BRKT EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	10	1	0909-
372	BOLT; CLIP BRKT EXC. LOW DECK WO/REAR BODY<PK4> M10X30 FLANGE	0-28651-030-0	02	1	0909-

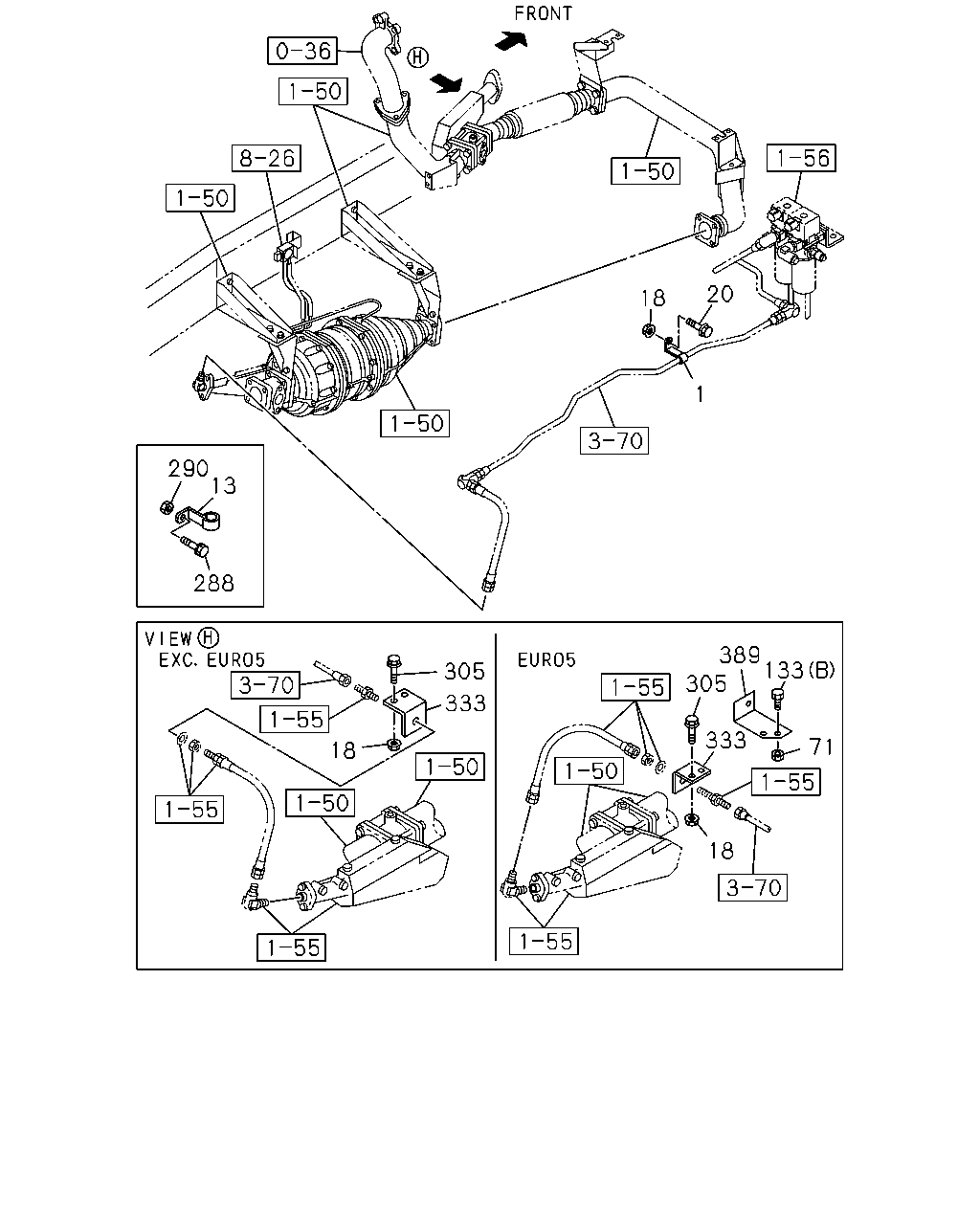

18 20 1 290 288 13 18 305 333 389 133 71 333 18 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE EURO5 SPECIFICATION(NT5) ID=6 H=20 L=20	1-09700-603-0	02	1	1501-
13	CLIP; AIR PIPE EURO2 SPECIFICATION(NT2) ID=6 H=20 L=20	1-09700-603-0	02	1	0909-
18	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0909-1412
18	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1501-
18	NUT; CLIP EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	02	1	1501-
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0909-1412
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1501-
20	BOLT; CLIP EURO5 SPECIFICATION(NT5) M8X25 FLANGE	0-28650-825-0	02	1	1501-
71	NUT; BRKT EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	02	1	1501-
133	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M8X30 FLANGE	0-28650-830-0	02	1	1501-
133	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (A) M8X25 FLANGE	0-28650-825-0	02	1	0909-
288	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION(NT2) M8X25 FLANGE	0-28650-825-0	02	1	0909-
290	NUT; CLIP,AIR PIPE EURO2 SPECIFICATION(NT2) M8 FLANGE	0-91180-108-0	02	1	0909-
305	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0909-
333	BRACKET; BRK AIR PIPE	8-98057-110-0	01	1	0909-
389	BRACKET; UNION EURO5 SPECIFICATION(NT5)	1-47475-721-0	01	1	1501-

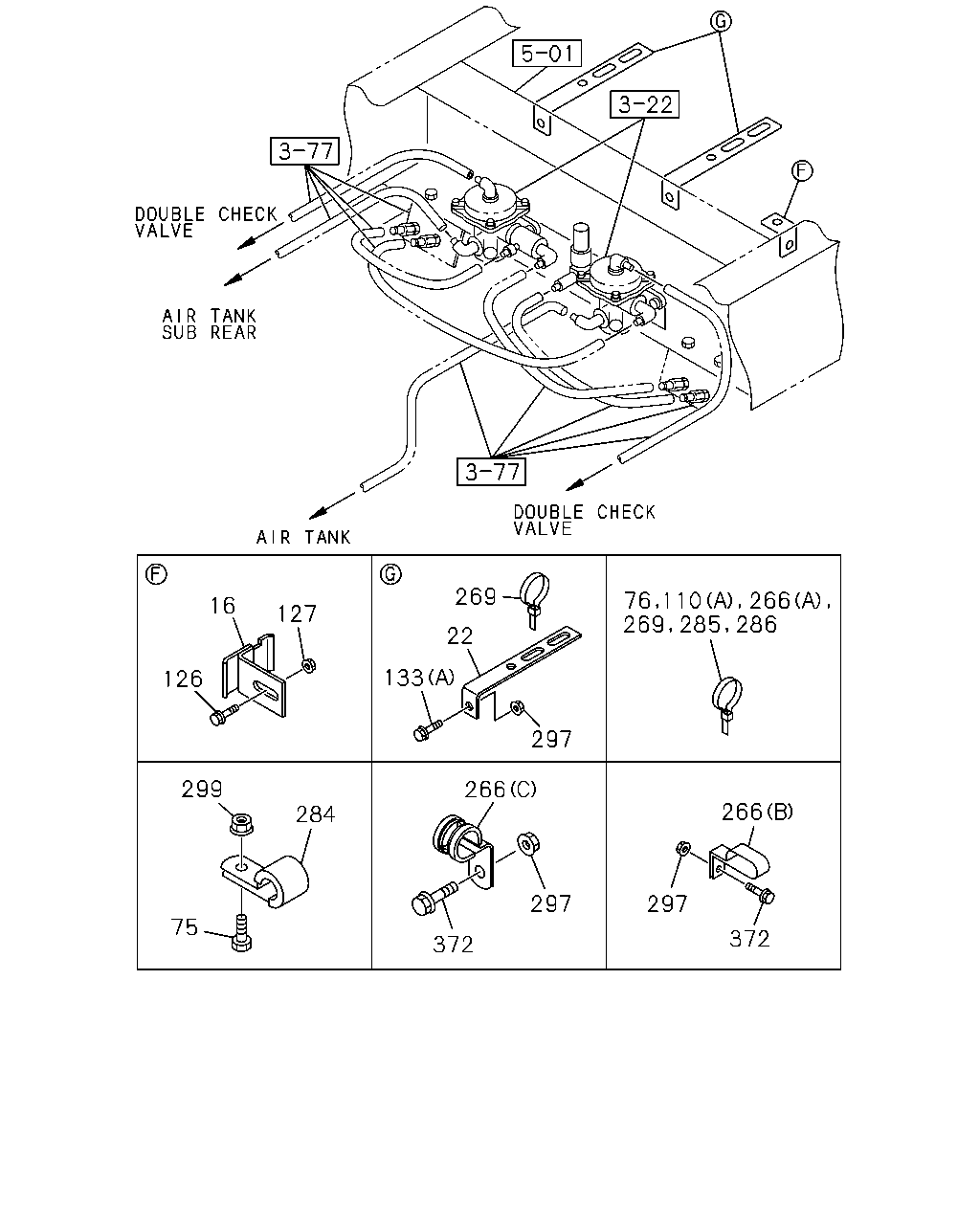

16 127 126 299 284 75 269 22 133 297 266 297 372 297 372 266 76 110 266 269 285 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4>	1-47479-693-0	01	1	0909-
22	BRACKET; CLIP ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> L=225	1-47477-646-3	02	1	0909-
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0909-
76	CLIP; NYLON TUBE LOW DECK WO/REAR BODY<PK4> L=350	1-09707-183-0	14	1	0909-
76	CLIP; NYLON TUBE DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=350	1-09707-183-0	02	1	0909-
76	CLIP; NYLON TUBE AIR HORN(WB8) L=350	1-09707-183-0	02	1	0909-
76	CLIP; NYLON TUBE EXC. LOW DECK WO/REAR BODY<PK4> L=350	1-09707-183-0	21	1	0909-
110	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (A) L=250	1-09707-126-0	02	1	0909-
110	CLIP; BAND,NYLON TUBE LOW DECK WO/REAR BODY<PK4> (B) ID=18 L=25 H=50	1-09701-096-0	01	1	0909-
110	CLIP; BAND,NYLON TUBE LOW DECK WO/REAR BODY<PK4> (A) L=250	1-09707-126-0	01	1	0909-
110	CLIP; BAND,NYLON TUBE WHEEL BASE 5000MM(50W) (A) L=350	1-09707-183-0	03	1	0909-
110	CLIP; BAND,NYLON TUBE WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (A) L=350	1-09707-183-0	04	1	0909-
110	CLIP; BAND,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=250	1-09707-126-0	03	1	0909-
126	BOLT; CLIP BRKT ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0909-
127	NUT; CLIP BRKT ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	01	1	0909-
133	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M8X30 FLANGE	0-28650-830-0	02	1	1501-
133	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> (A) M8X25 FLANGE	0-28650-825-0	02	1	0909-
266	CLIP; NYLON TUBE (C) ID=39 H=28 L=32	1-09701-263-0	01	1	0909-
266	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	11	1	0909-
266	CLIP; NYLON TUBE EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=19 L=60	0-95235-896-0	01	1	0909-
266	CLIP; NYLON TUBE EXC. LOW DECK WO/REAR BODY<PK4> (A) L=350	1-09707-183-0	08	1	0909-
269	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> L=350	1-09707-183-0	09	1	0909-
269	CLIP; BAND,NYLON TUBE LOW DECK WO/REAR BODY<PK4> L=350	1-09707-183-0	15	1	0909-
269	CLIP; BAND,NYLON TUBE DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=350	1-09707-183-0	01	1	0909-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5000MM(50W) L=350	1-09707-183-0	14	1	0909-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> L=350	1-09707-183-0	16	1	0909-
269	CLIP; BAND,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM<BFA> L=350	1-09707-183-0	03	1	0909-
284	CLIP; FLEX HOSE ID=14.5 L=20	1-09701-012-0	04	1	0909-
285	CLIP; BAND L=140	5-09707-031-1	01	1	0909-
286	CLIP; NYLON TUBE EURO5 SPECIFICATION(NT5) L=350	1-09707-183-0	04	1	1501-
297	NUT; BRKT ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	02	1	0909-
297	NUT; BRKT LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	06	1	0909-
297	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	10	1	0909-
297	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M10 FLANGE	0-91180-210-0	02	1	0909-
299	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0909-
372	BOLT; CLIP BRKT LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	06	1	0909-
372	BOLT; CLIP BRKT EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	02	1	0909-
372	BOLT; CLIP BRKT EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	10	1	0909-
372	BOLT; CLIP BRKT EXC. LOW DECK WO/REAR BODY<PK4> M10X30 FLANGE	0-28651-030-0	02	1	0909-
