11206 - LT134 LHD EURO2/3/5
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#58676) — 23 parça
◀

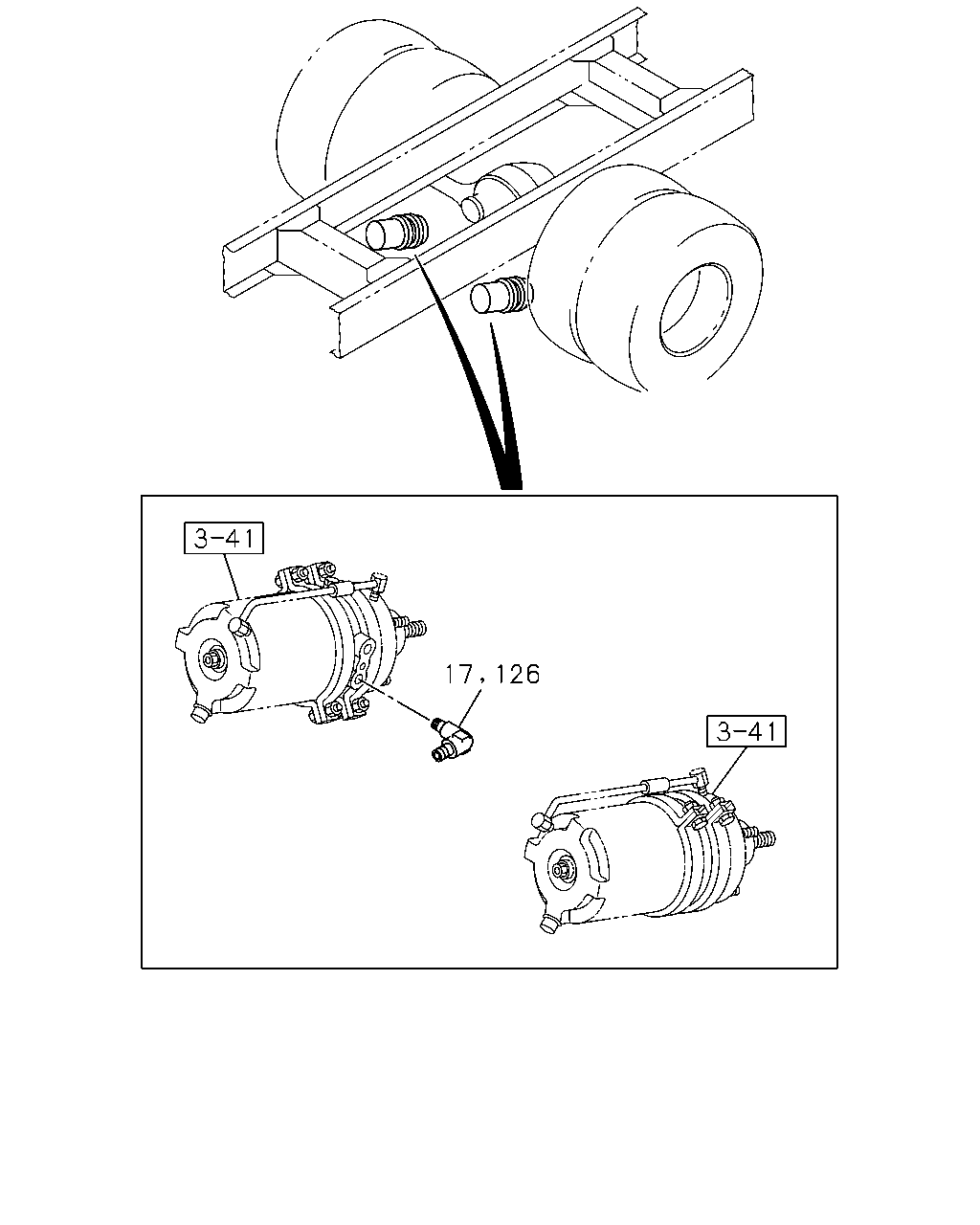

[377A] NO.2 (2 parça)
[377A] NO.1 (21 parça)
▶
17
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
UNION; AIR PIPE
M16 & PT3/8 ELBOW
1-09650-438-0
02
1
0909-
126
UNION; NYLON TUBE
M16 & PT3/8 ELBOW
1-09650-438-0
02
1
0909-
192
192
223
192
192
192
192
192
192
192
74
204
224
61
60
64
64
80
72
20
181
76
192
64
80
64
224
204
61
60
74
192
192
181
76
72
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
WASHER; LK,PIPE UNION
ID=16.2
0-91510-516-0
02
1
0909-
60
NUT; NIPPLE,AIR PIPE
M16
0-91111-516-0
02
1
0909-
61
WASHER; LK,NIPPLE
ID=16.2
0-91510-516-0
02
1
0909-
64
GASKET; FLEX HOSE
ID=17.5
9-09572-515-0
04
1
0909-1510
72
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0909-
74
ADAPTER; UNION TO NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0909-
76
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0909-
80
HOSE; FLEX,POWER CHAMBER
LOW DECK WO/REAR BODY<PK4> L=700
1-09363-604-1
01
1
0909-
80
HOSE; FLEX,POWER CHAMBER
LOW DECK WO/REAR BODY<PK4> L=660
1-09363-921-0
01
1
0909-
80
HOSE; FLEX,POWER CHAMBER
EXC. LOW DECK WO/REAR BODY<PK4> L=660
1-09363-921-0
02
1
0909-
181
NUT; TUBE UNION
M16
0-91111-516-0
02
1
0909-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0909-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0909-
204
BRACKET; TUBE UNION
LOW DECK WO/REAR BODY<PK4>
8-98088-192-0
01
1
0909-
204
BRACKET; TUBE UNION
LOW DECK WO/REAR BODY<PK4>
8-98088-193-0
01
1
0909-
204
BRACKET; TUBE UNION
EXC. LOW DECK WO/REAR BODY<PK4>
1-47479-377-1
01
1
0909-
204
BRACKET; TUBE UNION
EXC. LOW DECK WO/REAR BODY<PK4>
1-47479-378-1
01
1
0909-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0909-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0909-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0909-
224
BOLT; TUBE UNION
M10X30 FLANGE
0-28651-030-0
04
1
0909-
