◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#5867) — 1872 parça
çizim 8168
506 360 175 176 188 189 188 359 16 403 179 182
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-057-1 01 1 9603-9605 ●
16 ADJUSTER ASM; RECLINING 1-75418-057-1 01 1 9603-9605 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-057-1 01 1 9606-9904 ●
16 ADJUSTER ASM; RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75417-602-0 01 1 9905- ●
16 ADJUSTER ASM; RECLINING 1-75418-062-0 01 1 9606-9904 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-0 01 1 9905- ●
16 ADJUSTER ASM; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-062-0 01 1 9905- ●
16 ADJUSTER ASM; RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75417-601-0 01 1 9905- ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75028-587-1 01 1 9603-9605 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75028-925-0 01 1 9606-9904 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75027-864-0 01 1 9905-0003 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75207-257-0 01 1 0004- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75028-592-0 01 1 9603-9605 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75028-924-0 01 1 9606-9904 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75027-598-1 01 1 9905-0003 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75207-255-0 01 1 0004- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75116-258-1 01 1 9603-9904 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75117-941-0 01 1 9905-0003 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75127-077-0 01 1 0004- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75116-257-0 01 1 9603-9904 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75116-884-0 01 1 9905-0003 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75127-075-0 01 1 0004- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75116-309-1 01 1 9603-9904 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75117-934-0 01 1 9905-0003 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75127-071-0 01 1 0004- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75116-310-0 01 1 9603-9904 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75117-933-0 01 1 9905-0003 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75127-070-0 01 1 0004- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75117-859-0 01 1 9603-9904 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75117-931-0 01 1 9905-0003 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75127-068-0 01 1 0004- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75117-858-1 01 1 9603-9904 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75117-932-0 01 1 9905-0003 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75127-069-0 01 1 0004- ●
182 CUSHION ASM; CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75028-767-2 01 1 9603-9904 ●
182 CUSHION ASM; CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75027-860-0 01 1 9905-0003 ●
182 CUSHION ASM; CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75207-250-1 01 1 0004- ●
182 CUSHION ASM; CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75028-766-1 01 1 9603-9904 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75027-859-0 01 1 9905-0003 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75207-249-1 01 1 0004- ●
182 CUSHION ASM; CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75027-519-0 01 1 9603-9904 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75027-830-0 01 1 9905-0003 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75207-247-1 01 1 0004- ●
182 CUSHION ASM; CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75027-518-1 01 1 9603-9904 ●
182 CUSHION ASM; CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75027-858-0 01 1 9905-0003 ●
182 CUSHION ASM; CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75207-248-1 01 1 0004- ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 9603- ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 9603- ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 9603- ●
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 9603- ●

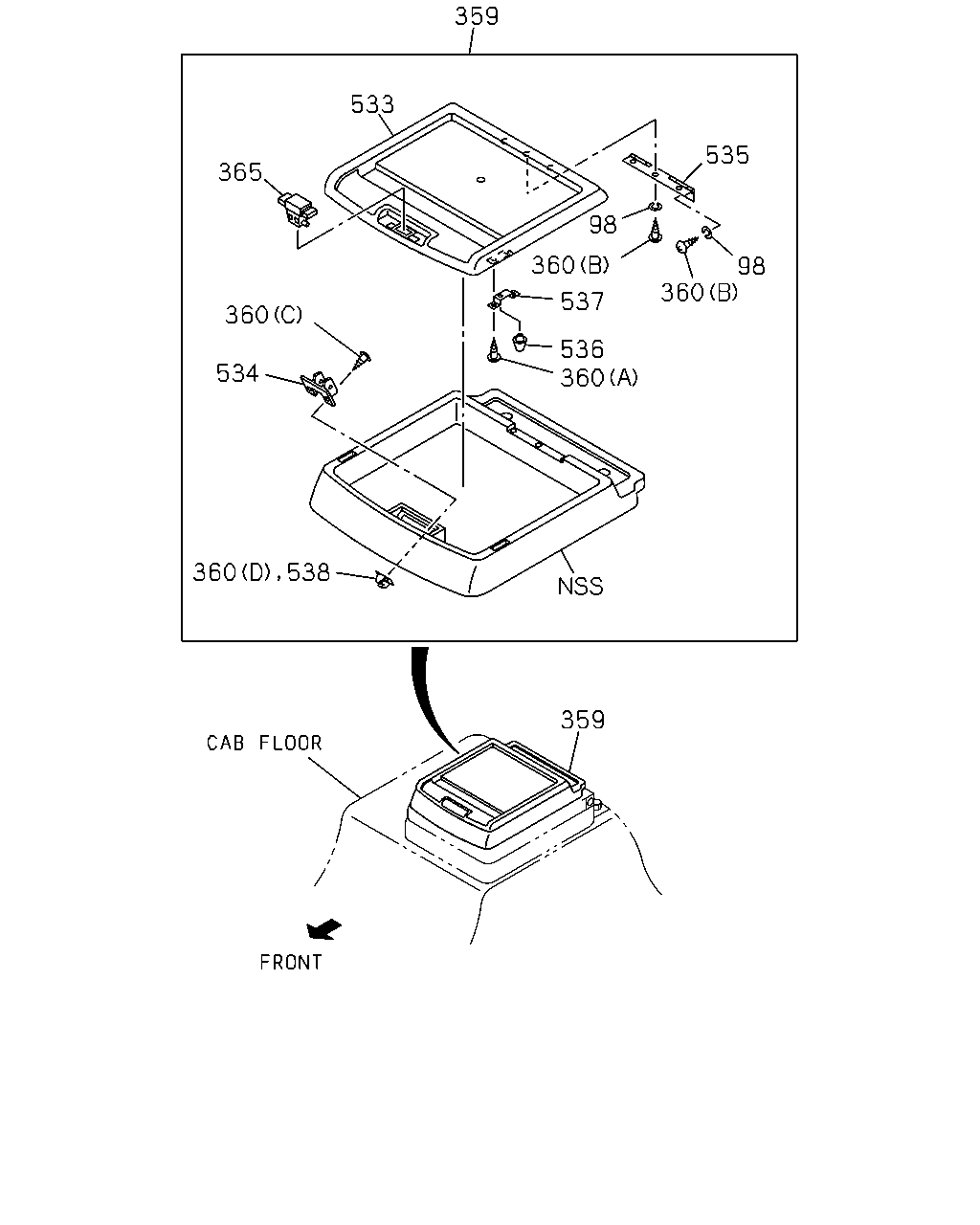

359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-157-4 01 1 9603- ●
359 BOX; PARCEL 1-72538-157-4 01 1 9603- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9603- ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9603- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 9603- ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9603- ●
360 SCREW; PARCEL
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9603-9904 ●
360 SCREW; PARCEL
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9603-9904 ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9603-9904 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9905- ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9905- ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 9603- ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-504-1 04 1 9603-9606 ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		8-94279-504-1 04 1 9607- ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-504-1 04 1 9607- ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-164-2 04 1 9603- ●
506 CAP; PARCEL BOX 1-09983-164-2 04 1 9603- ●

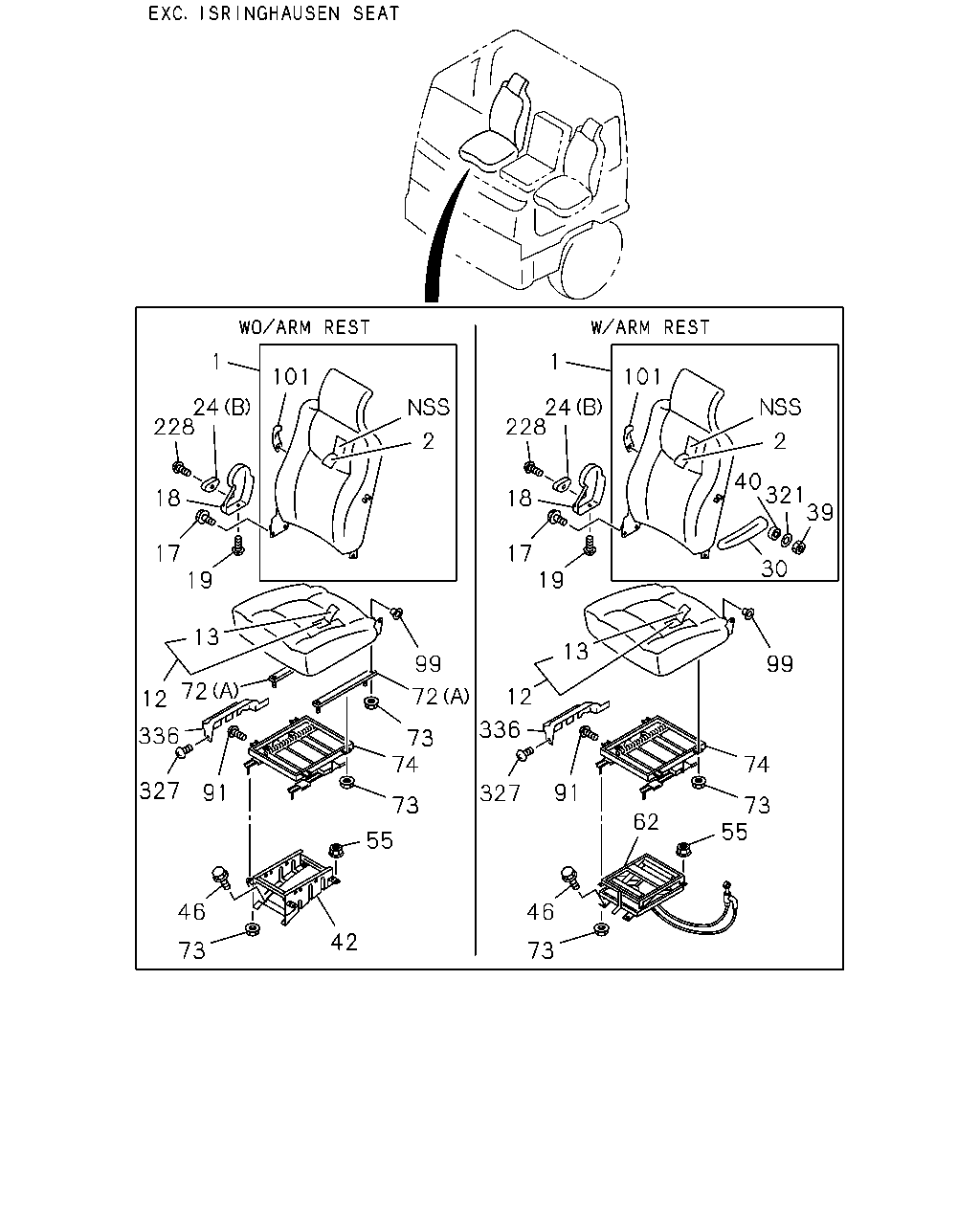

çizim 8394
1 1 101 101 24 228 24 228 2 2 40 321 39 18 18 30 17 19 17 19 13 13 99 99 72 72 12 12 336 336 73 74 74 327 91 91 327 73 55 73 62 55 46 46 42 73 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-512-2 01 1 9603-9904 ●
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-941-0 01 1 9905- ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-511-1 01 1 9603-9904 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-563-2 01 1 9905-9910 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-563-2 01 1 9911-0003 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-563-2 01 1 9911-0003 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0004-0102 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0004-0012 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75207-267-0 01 1 0101-0102 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0101-0102 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75207-267-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-760-1 01 1 9603-9904 ●
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-862-0 01 1 9905-9910 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-862-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-171-0 01 1 0004-0102 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-171-0 01 1 0101-0102 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-171-0 01 1 0103- ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-171-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-559-1 01 1 9603-9904 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9905-9910 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0102 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0012 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0101-0102 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0101-0102 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-576-1 01 1 9603-9904 ●
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-940-0 01 1 9905- ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0101-0102 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0103- ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0103- ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-624-2 01 1 9603-9904 ●
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9905-9910 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0004-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75116-277-2 01 1 9603-9904 ●
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9905- ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-848-1 01 1 9603-9904 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-870-1 01 1 9905-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-870-1 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-870-1 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0004-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0004-0012 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-038-0 01 1 0101-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0101-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-038-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-296-1 01 1 9603-9904 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-938-0 01 1 9905-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75117-938-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-043-0 01 1 0004-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-043-0 01 1 0101-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-043-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-043-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-236-1 01 1 9603-9904 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9905-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0012 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0101-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0101-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-253-1 01 1 9603-9904 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0101-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-276-2 01 1 9603-9904 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9905-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0004-0102 ●
12 CUSHION; SEAT,FRT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75028-764-2 01 1 9603-9904 ●
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-824-0 01 1 9905-9910 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-824-0 01 1 9911-9912 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-562-1 01 1 0001-0003 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-151-0 01 1 0004-0102 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0004-0012 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75207-150-0 01 1 0101-0102 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0101-0102 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75207-150-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-75028-763-1 01 1 9603-9904 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-560-1 01 1 9905-9910 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-560-1 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-560-1 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0004-0102 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-151-0 01 1 0101-0102 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-151-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-151-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9905- ● ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-0 01 1 0101-0102 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0101-0102 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-600-1 01 1 9603-9904 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9905-9910 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0102 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0101-0102 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9603-9904 ●
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9905-9910 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0004-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75116-301-1 01 1 9603-9904 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-916-0 01 1 9905-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75117-916-0 01 1 9911-9912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75117-869-0 01 1 0001-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-099-0 01 1 0004-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0004-0012 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-098-0 01 1 0101-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0101-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-098-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-75117-835-0 01 1 9603-9904 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-867-0 01 1 9905-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-867-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-867-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0004-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-099-0 01 1 0101-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-099-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-099-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9905- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0012 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0101-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0101-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75117-842-0 01 1 9603-9904 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9905-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0101-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9603-9904 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9905-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0004-0102 ●
17 BOLT; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) M8X18 		8-94279-109-1 02 1 9603-9904 ●
17 BOLT; RECLINING
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X18 		8-94279-109-1 02 1 9603-9904 ●
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9905-0003 ● ●
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004-0012 ● ●
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0101-0102 ● ●
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0103- ● ●
17 BOLT; RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 02 1 0103- ●
17 BOLT; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0103- ●
17 BOLT; RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0103- ●
17 BOLT; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0103- ●
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004-0102 ● ●
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-050-0 01 1 0004-0102 ●
18 COVER; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-75418-050-0 01 1 9603-9904 ●
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 9905-0003 ●
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-050-0 01 1 0004-0012 ●
18 COVER; RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75418-050-0 01 1 0101-0102 ●
18 COVER; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75418-050-0 01 1 0101-0102 ●
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-050-0 01 1 0101-0102 ●
18 COVER; RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75418-050-0 01 1 0103- ●
18 COVER; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75418-050-0 01 1 0103- ●
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 0103- ●
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0004-0102 ●
18 COVER; RECLINING
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 9603-9904 ●
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-052-0 01 1 9905-0003 ●
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0004-0012 ●
18 COVER; RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0101-0102 ●
18 COVER; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75418-052-0 01 1 0101-0102 ●
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0101-0102 ●
18 COVER; RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0103- ●
18 COVER; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75418-052-0 01 1 0103- ●
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-052-0 01 1 0103- ●
19 SCREW; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9603-9904 ●
19 SCREW; COVER
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9603-9904 ●
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9905-0003 ● ●
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004-0012 ● ●
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-0102 ● ●
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103- ● ●
19 SCREW; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103- ●
19 SCREW; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103- ●
19 SCREW; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103- ●
19 SCREW; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103- ●
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004-0102 ● ●

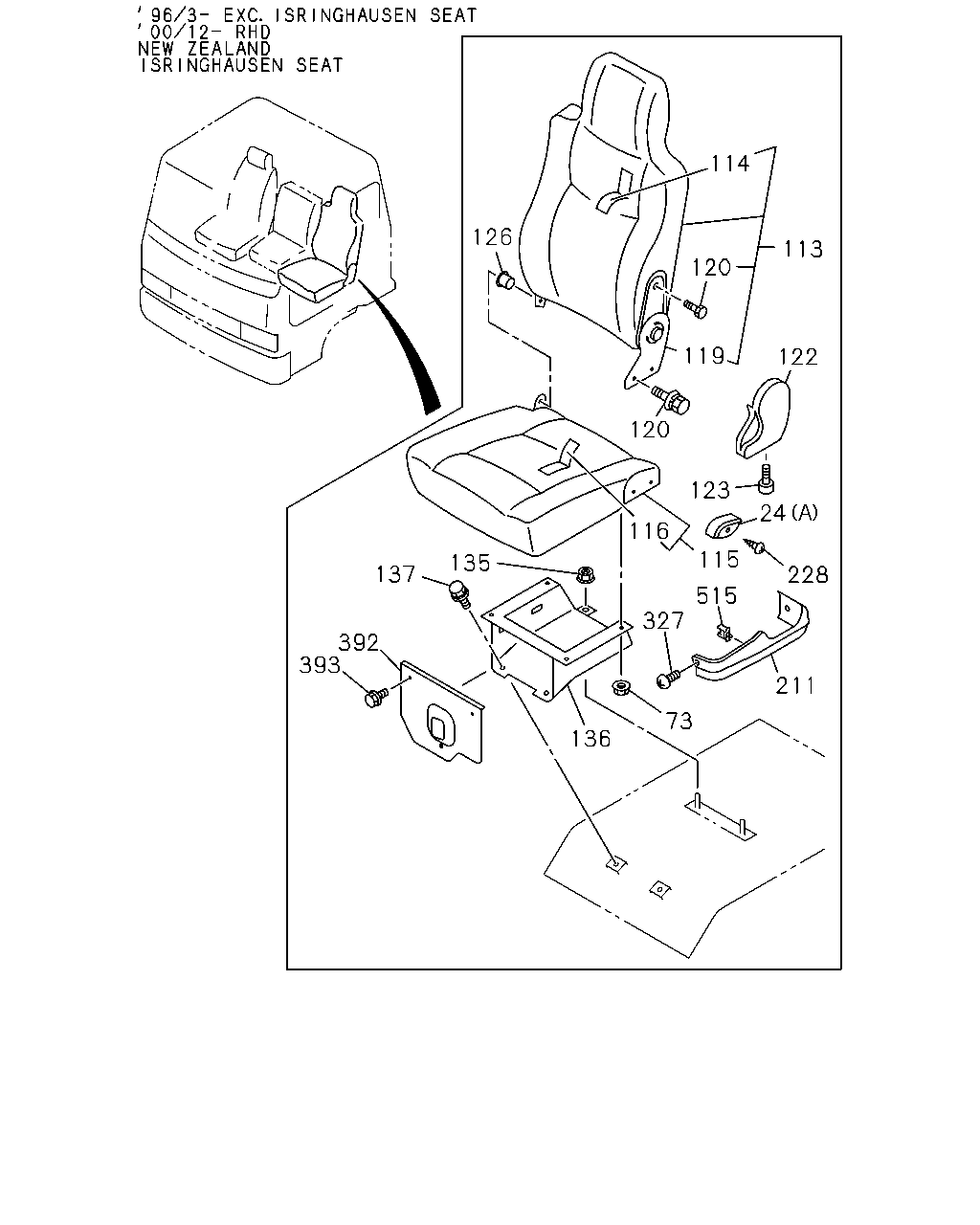

24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 01 1 0004-0102 ●
24 KNOB; RECLINING,FRT,SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) (A) DARK GRAY 		8-97859-019-0 01 1 0012- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 9603-9904 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-056-0 01 1 9603-9904 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 9905-0003 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-056-0 01 1 9905-0003 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 0004-0012 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-056-0 01 1 0004-0012 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-056-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75418-056-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-056-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-056-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75418-056-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-056-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75418-059-0 01 1 9603-9904 ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-059-0 01 1 9603-9904 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 9905-0003 ● ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0004-0012 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 01 1 0004-0012 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0004-0012 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75418-059-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-059-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0103- ● ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75418-059-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-059-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-056-0 01 1 0004-0102 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-321-0 01 1 9603-9904 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-906-0 01 1 9905-9910 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-906-0 01 1 9911-0003 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-906-0 01 1 9911-0003 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-010-0 01 1 0004-0102 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-010-0 01 1 0004-0012 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-010-0 01 1 0101-0102 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-010-0 01 1 0101-0102 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-010-0 01 1 0103- ●
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-010-0 01 1 0103- ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-010-0 01 1 0103- ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-320-0 01 1 9603-9904 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9905-9910 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9911-0003 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9911-0003 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0004-0102 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0004-0012 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-012-0 01 1 0101-0102 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0101-0102 ●
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0103- ●
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-012-0 01 1 0103- ●
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0103- ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		9-09110-410-0 01 1 0004-0102 ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		9-09110-410-0 01 1 0004-0102 ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 		1-75147-657-0 01 1 0004-0012 ● ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 		1-75147-657-0 01 1 0101-0102 ● ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M8 		1-75147-657-0 01 1 0101-0102 ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 		1-75147-657-0 01 1 0101-0102 ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 		1-75147-657-0 01 1 0103- ● ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 		1-75147-657-0 01 1 0103- ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M8 		1-75147-657-0 01 1 0103- ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 		1-75147-657-0 01 1 0103- ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 		1-75147-657-0 01 1 0103- ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		9-09110-410-0 01 1 0004-0012 ● ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		9-09110-410-0 01 1 0101-0102 ● ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M10 		9-09110-410-0 01 1 0101-0102 ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M10 		9-09110-410-0 01 1 0101-0102 ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		9-09110-410-0 01 1 0103- ● ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		9-09110-410-0 01 1 0103- ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M10 		9-09110-410-0 01 1 0103- ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		9-09110-410-0 01 1 0103- ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M10 		9-09110-410-0 01 1 0103- ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94279-521-0 01 1 9603-9904 ● ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94279-521-0 01 1 9905-9910 ● ●
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94279-521-0 01 1 9911-0003 ● ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94279-521-0 01 1 9911-0003 ● ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 		1-75147-657-0 01 1 0004-0102 ●
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 		1-75147-657-0 01 1 0004-0102 ●
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0004-0012 ● ●
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0101-0102 ● ●
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		8-94285-921-0 02 1 0101-0102 ●
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-94285-921-0 02 1 0101-0102 ●
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0103- ● ●
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0103- ●
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		8-94285-921-0 02 1 0103- ●
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0103- ●
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-94285-921-0 02 1 0103- ●
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9603-9904 ● ●
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9905-9910 ● ●
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9911-0003 ● ●
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9911-0003 ● ●
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0004-0102 ●
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0004-0102 ●
42 STAND; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-491-4 01 1 9603-9904 ●
42 STAND; DRIVER SEAT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-491-4 01 1 9603-9904 ●
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-491-4 01 1 9905-0003 ● ●
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0004-0102 ● ●
42 STAND; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-607-0 01 1 0103- ●
42 STAND; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75558-604-0 01 1 0101-0102 ●
42 STAND; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-0 01 1 0101-0102 ●
42 STAND; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0101-0102 ●
42 STAND; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-0 01 1 0101-0102 ●
42 STAND; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0103- ●
42 STAND; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75558-604-0 01 1 0103- ●
42 STAND; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-0 01 1 0103- ●
42 STAND; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0103- ●
42 STAND; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-0 01 1 0103- ●
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0103- ●
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9603- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9603- ● ●

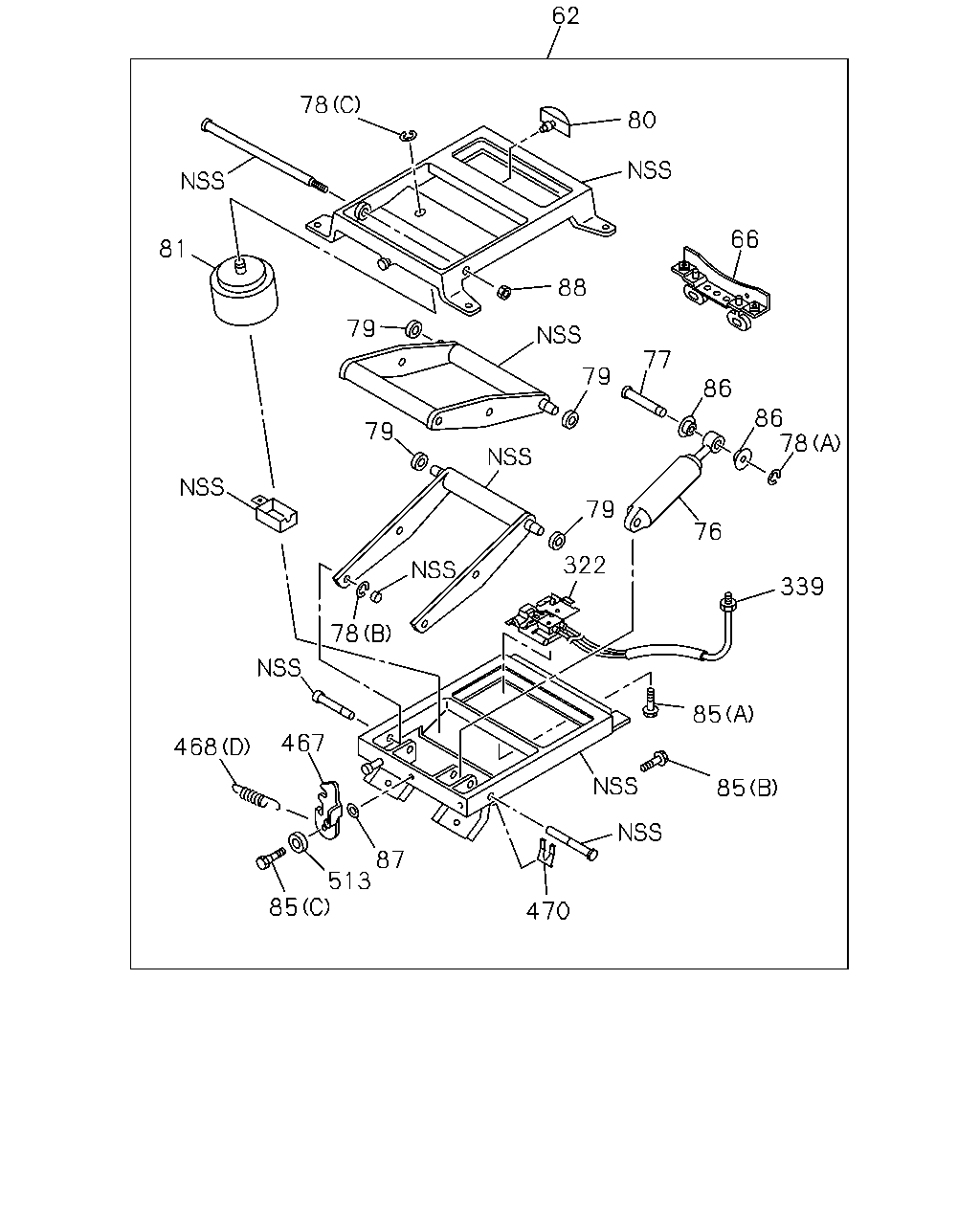

62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-240-3 01 1 9603-9712 ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-254-0 01 1 9801-9804 ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-258-0 01 1 9805-9904 ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-4 01 1 9905- ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-241-3 01 1 9603-9712 ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-255-0 01 1 9801-9804 ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-259-0 01 1 9805-9904 ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-4 01 1 9905- ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75517-911-0 02 1 9603-9904 ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75517-911-0 02 1 9905-0003 ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75517-911-0 02 1 0004-0012 ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75517-911-0 02 1 0101-0102 ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75517-911-0 02 1 0103- ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75517-911-0 02 1 0103- ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75517-911-0 02 1 0103- ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75517-911-0 02 1 0004-0102 ●
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-334-0 02 1 0103- ● ●
72 SPACER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-334-0 02 1 0103- ●
72 SPACER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-334-0 02 1 0103- ●
72 SPACER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-334-0 02 1 0103- ●
72 SPACER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-334-0 02 1 0103- ●
72 SPACER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-269-0 02 1 9603-9904 ●
72 SPACER; SEAT ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-269-0 02 1 9603-9904 ●
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-269-0 02 1 9905-0003 ● ●
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-269-0 02 1 0004-0012 ● ●
72 SPACER; SEAT ADJ
(A) 		1-75518-269-0 02 1 0101-0102 ● ●
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-269-0 02 1 0004-0102 ● ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		8-94279-518-0 12 1 9603-9904 ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 12 1 9905-0003 ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0004-0012 ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 12 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 12 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 12 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 12 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0004-0102 ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0004-0102 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		8-94279-518-0 08 1 9603-9904 ●
73 NUT; ADJ,HEIGHT CONT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		8-94279-518-0 08 1 9603-9904 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 08 1 9905-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 08 1 9905-0003 ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 24 1 0004-0102 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 08 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 08 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 08 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 08 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 08 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 08 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 0004-0012 ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 04 1 0004-0012 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 04 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 04 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 04 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 04 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9603-9904 ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9905-0003 ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0004-0011 ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0012- ● ●
73 NUT; ADJ,HEIGHT CONT

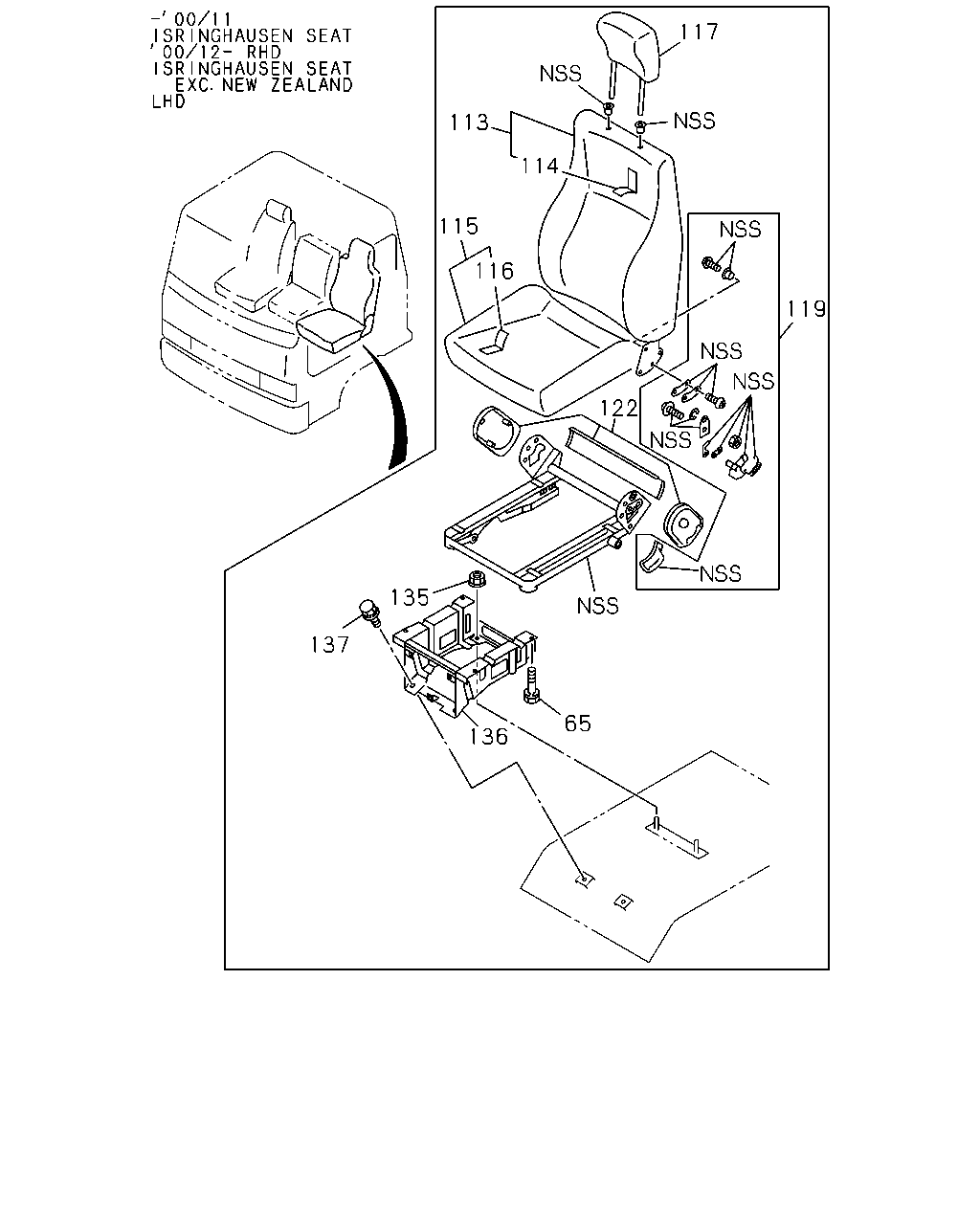

NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0012- ●

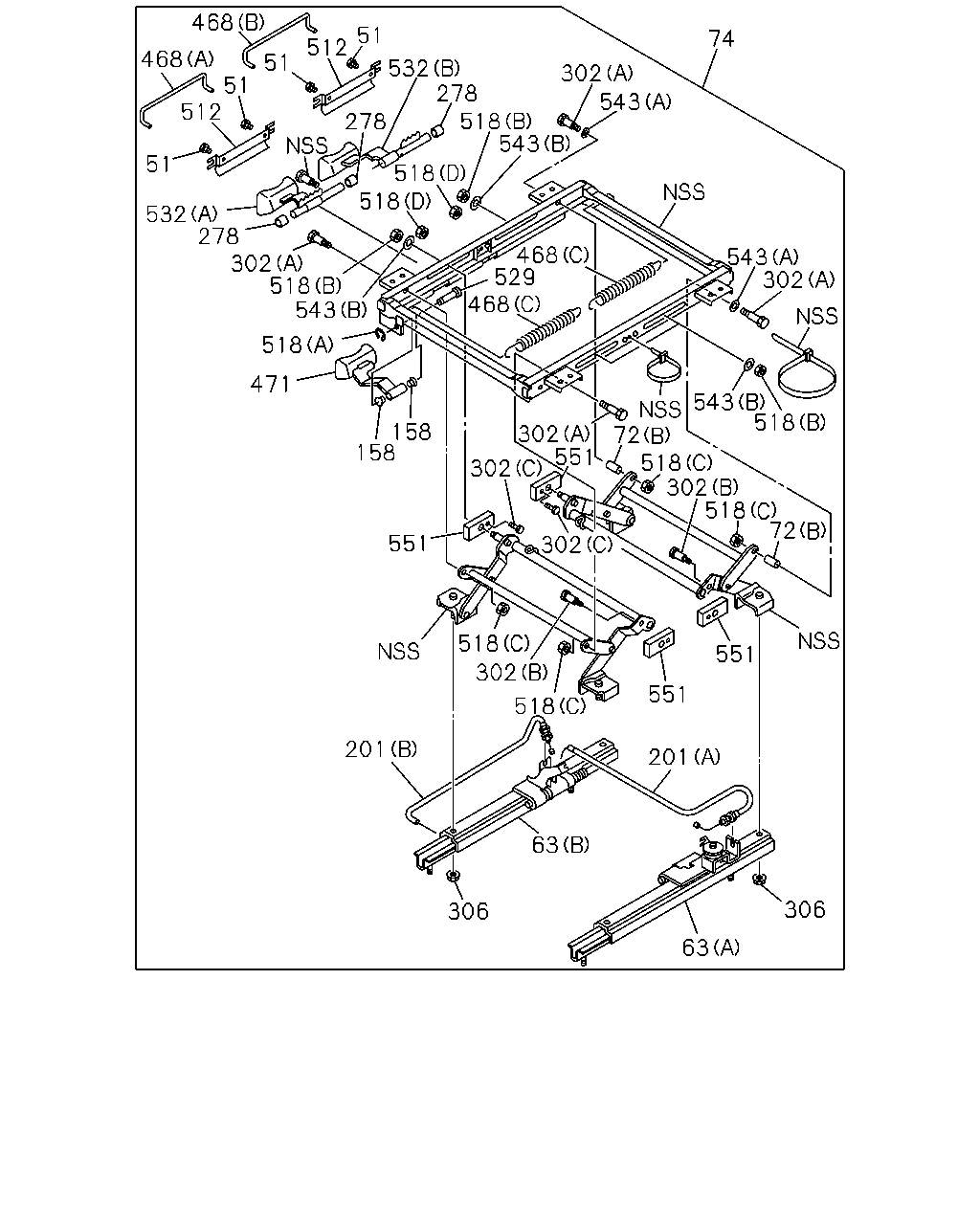

74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-920-1 01 1 9603-9705 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-929-0 01 1 9706-9712 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-934-0 01 1 9801-9904 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75517-934-0 01 1 9905-9912 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75517-955-0 01 1 0001-0003 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75517-955-1 01 1 0004-0012 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-955-1 01 1 0101-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75517-959-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75517-959-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75517-959-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75517-955-1 01 1 0004-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-330-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-330-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-330-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-259-1 01 1 9603-9705 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-275-0 01 1 9706-9712 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-299-0 01 1 9801-9904 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-299-0 01 1 9905-9912 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-317-0 01 1 0001-0003 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-317-1 01 1 0004-0012 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-317-1 01 1 0101-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-317-1 01 1 0004-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-255-1 01 1 9603-9705 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-276-0 01 1 9706-9712 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-300-0 01 1 9801-9904 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9905-9912 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0012 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-318-1 01 1 0101-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-331-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-331-0 01 1 0103- ●
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0004-0102 ●
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0004-0102 ●
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9603-9904 ●
91 SCREW; SEAT ADJ COVER
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9603-9904 ●
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9905-0003 ●
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9905-0003 ●
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0004-0012 ●
91 SCREW; SEAT ADJ COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0004-0012 ●
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102 ●
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102 ●
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102 ●
91 SCREW; SEAT ADJ COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102 ●
91 SCREW; SEAT ADJ COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102 ●
91 SCREW; SEAT ADJ COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102 ●
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103- ●
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103- ●
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103- ●
91 SCREW; SEAT ADJ COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103- ●
91 SCREW; SEAT ADJ COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103- ●
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103- ●
99 BUSHING; SEAT BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		8-97854-087-0 01 1 9603-9904 ●
99 BUSHING; SEAT BACK
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 9603-9904 ●
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9905-0003 ● ●
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0004-0012 ● ●
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0101-0102 ● ●
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 0103- ● ●
99 BUSHING; SEAT BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		8-97854-087-0 01 1 0103- ●
99 BUSHING; SEAT BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0103- ●
99 BUSHING; SEAT BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0103- ●
99 BUSHING; SEAT BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0103- ●
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0004-0102 ● ●
101 LEVER ASM; LUMBAR
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		5-75190-138-0 01 1 9603-9904 ●
101 LEVER ASM; LUMBAR
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 9603-9904 ●
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 9905-0003 ● ●
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0004-0012 ● ●
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 0101-0102 ● ●
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 0103- ● ●
101 LEVER ASM; LUMBAR
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		5-75190-138-0 01 1 0103- ●
101 LEVER ASM; LUMBAR
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0103- ●
101 LEVER ASM; LUMBAR
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0103- ●
101 LEVER ASM; LUMBAR
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0103- ●
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0004-0102 ● ●
228 SCREW; KNOB
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) M4X6 		8-97042-273-0 01 1 9603-9904 ●
228 SCREW; KNOB
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 9603-9904 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9905-0003 ● ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 9905-0003 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9905-0003 ●
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0011 ● ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0004-0011 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004-0011 ●
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0012-0012 ● ●
228 SCREW; KNOB
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0012-0012 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0012-0012 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0012-0012 ●
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0101-0102 ● ●
228 SCREW; KNOB
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103- ● ●
228 SCREW; KNOB
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0102 ● ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0004-0102 ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0004-0102 ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0004-0012 ● ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0101-0102 ● ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) ID=10.5 OD=22 		9-09160-610-0 01 1 0101-0102 ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=10.5 OD=22 		9-09160-610-0 01 1 0101-0102 ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0103- ● ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0103- ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) ID=10.5 OD=22 		9-09160-610-0 01 1 0103- ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0103- ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=10.5 OD=22 		9-09160-610-0 01 1 0103- ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0004-0012 ● ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0101-0102 ● ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) ID=8.4 OD=22 		9-09164-708-0 01 1 0101-0102 ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=8.4 OD=22 		9-09164-708-0 01 1 0101-0102 ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0103- ● ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0103- ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) ID=8.4 OD=22 		9-09164-708-0 01 1 0103- ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0103- ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=8.4 OD=22 		9-09164-708-0 01 1 0103- ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9603-9904 ● ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9905-9910 ● ●
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9911-0003 ● ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9911-0003 ● ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0004-0102 ●
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0004-0102 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 01 1 9603-9904 ●
327 CLIP; COVER
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 9603-9904 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9905-0003 ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9905-0003 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004-0012 ●
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004-0012 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 01 1 0101-0102 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0101-0102 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0101-0102 ●
327 CLIP; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0101-0102 ●
327 CLIP; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0101-0102 ●
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0101-0102 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 01 1 0103- ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0103- ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 0103- ●
327 CLIP; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0103- ●
327 CLIP; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0103- ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 0103- ●
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 04 1 0004-0102 ●
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 9603-9904 ●
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-09987-249-0 02 1 9905-0003 ●
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 9905-0003 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0004-0012 ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0004-0012 ●
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 02 1 0101-0102 ●
327 CLIP; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0101-0102 ●
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0101-0102 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0101-0102 ●
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0101-0102 ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0101-0102 ●
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 02 1 0103- ●
327 CLIP; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0103- ●
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0103- ●
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0103- ●
327 CLIP; COVER
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-09987-273-0 02 1 0012- ●
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0004-0012 ●
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0004-0012 ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75517-902-0 01 1 9603-9904 ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9905- ● ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75517-902-0 01 1 0004-0102 ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75517-902-0 01 1 9911-9912 ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (D) 		1-75517-902-0 01 1 0001-0003 ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75517-902-0 01 1 0004-0012 ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75517-902-0 01 1 0101-0102 ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (D) 		1-75517-902-0 01 1 0103- ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (D) 		1-75517-902-0 01 1 0103- ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (D) 		1-75517-902-0 01 1 0103- ●
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-066-3 01 1 9603-9904 ●
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-066-3 01 1 9905-9910 ●
336 COVER; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-066-3 01 1 9911-9912 ●
336 COVER; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-066-3 01 1 9911-9912 ●
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-066-3 01 1 9911-9912 ●
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-066-3 01 1 0001-0003 ●
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-066-3 01 1 0004-0012 ●
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-066-3 01 1 0101-0102 ●
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-066-3 01 1 0103- ●
336 COVER; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-066-3 01 1 0103- ●
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-066-3 01 1 0103- ●
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-066-3 01 1 0004-0102 ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-208-0 01 1 9905- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-210-0 01 1 9905- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-212-0 01 1 9905- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-207-0 01 1 9905- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-209-0 01 1 9905- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-211-0 01 1 9905- ●
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0004-0102 ●
336 COVER; DRIVER SEAT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 9603-9904 ●
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-194-2 01 1 9905-0003 ●
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0004-0012 ●
336 COVER; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0101-0102 ●
336 COVER; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-194-2 01 1 0101-0102 ●
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0101-0102 ●
336 COVER; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0103- ●
336 COVER; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-194-2 01 1 0103- ●
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-194-2 01 1 0103- ●
çizim 8395
468 51 74 512 468 51 532 278 518 543 302 51 512 543 278 51 518 518 532 278 302 518 543 468 529 468 543 302 518 471 543 518 551 518 302 158 158 302 551 302 518 551 302 551 518 201 201 63 306 306 63 302 72 518 72
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-0 04 1 0004-0102 ●
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-0 04 1 0004-0012 ●
51 SCREW; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-325-0 04 1 0101-0102 ●
51 SCREW; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-325-0 04 1 0101-0102 ●
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-0 04 1 0101-0102 ●
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-325-0 04 1 0103- ● ●
51 SCREW; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-325-0 04 1 0103- ●
51 SCREW; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-325-0 04 1 0103- ●
51 SCREW; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-0 04 1 0103- ●
51 SCREW; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-325-0 04 1 0103- ●
51 SCREW; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9603-9904 ●
51 SCREW; COVER
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9603-9904 ●
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9905-0003 ● ●
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0004-0012 ●
51 SCREW; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0101-0102 ●
51 SCREW; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0101-0102 ●
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0101-0102 ●
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0004-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 04 1 0004-0012 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 02 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-199-1 01 1 0004-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-323-0 01 1 0004-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-198-0 01 1 9603-9705 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-294-0 01 1 9706-9904 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-294-0 01 1 9905-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-323-0 01 1 0001-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-323-0 01 1 0004-0012 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-323-0 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-323-0 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-323-0 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-323-0 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-323-0 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-323-0 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-199-0 01 1 9603-9904 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-199-0 01 1 9905-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-199-1 01 1 0004-0012 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-199-1 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-199-1 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-199-1 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-199-1 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-199-1 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-199-1 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
ISRINGHAUSEN SEAT(SJA) 		1-75517-953-0 01 1 9905- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9603-9904 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-226-0 01 1 9905-9910 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-0 01 1 0001-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004-0012 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-1 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-227-0 01 1 9603-9705 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-295-0 01 1 9706-9904 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-295-0 01 1 9905-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-324-0 01 1 0001-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 01 1 0004-0012 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-324-0 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-324-0 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-324-0 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-0 01 1 9911-9912 ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75517-911-0 02 1 9603-9904 ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75517-911-0 02 1 9905-0003 ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75517-911-0 02 1 0004-0012 ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> (B) 		1-75517-911-0 02 1 0101-0102 ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75517-911-0 02 1 0103- ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75517-911-0 02 1 0103- ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75517-911-0 02 1 0103- ●
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75517-911-0 02 1 0004-0102 ●
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-334-0 02 1 0103- ● ●
72 SPACER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-334-0 02 1 0103- ●
72 SPACER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-334-0 02 1 0103- ●
72 SPACER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-334-0 02 1 0103- ●
72 SPACER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-334-0 02 1 0103- ●
72 SPACER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-269-0 02 1 9603-9904 ●
72 SPACER; SEAT ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-269-0 02 1 9603-9904 ●
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-269-0 02 1 9905-0003 ● ●
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-269-0 02 1 0004-0012 ● ●
72 SPACER; SEAT ADJ
(A) 		1-75518-269-0 02 1 0101-0102 ● ●
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-269-0 02 1 0004-0102 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-920-1 01 1 9603-9705 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-929-0 01 1 9706-9712 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-934-0 01 1 9801-9904 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75517-934-0 01 1 9905-9912 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75517-955-0 01 1 0001-0003 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75517-955-1 01 1 0004-0012 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-955-1 01 1 0101-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75517-959-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75517-959-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75517-959-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75517-955-1 01 1 0004-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-330-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-330-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-330-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-259-1 01 1 9603-9705 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-275-0 01 1 9706-9712 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-299-0 01 1 9801-9904 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-299-0 01 1 9905-9912 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-317-0 01 1 0001-0003 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-317-1 01 1 0004-0012 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-317-1 01 1 0101-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-317-1 01 1 0004-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-255-1 01 1 9603-9705 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-276-0 01 1 9706-9712 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-300-0 01 1 9801-9904 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9905-9912 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0012 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-318-1 01 1 0101-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-331-0 01 1 0103- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-331-0 01 1 0103- ●
158 BUSHING; LINK ARM
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-75518-209-0 02 1 9603-9904 ●
158 BUSHING; LINK ARM
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 9603-9904 ●
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-209-0 02 1 9905-0003 ● ●
158 BUSHING; LINK ARM
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0004-0012 ● ●
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0101-0102 ● ●
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-209-0 02 1 0103- ● ●
158 BUSHING; LINK ARM
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-209-0 02 1 0103- ●
158 BUSHING; LINK ARM
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-209-0 02 1 0103- ●
158 BUSHING; LINK ARM
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0103- ●
158 BUSHING; LINK ARM
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-209-0 02 1 0103- ●
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0004-0102 ● ●
201 CABLE; ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) L=667 		1-75518-201-0 01 1 9603-9705 ●
201 CABLE; ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-201-0 01 1 9603-9705 ●
201 CABLE; ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) L=667 		1-75518-288-0 01 1 9706-9904 ●
201 CABLE; ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 9706-9904 ●
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) L=667 		1-75518-288-0 01 1 9905-0003 ● ●
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0004-0012 ● ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0101-0102 ● ●
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) L=667 		1-75518-288-0 01 1 0103- ● ●
201 CABLE; ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) L=667 		1-75518-288-0 01 1 0103- ●
201 CABLE; ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) L=667 		1-75518-288-0 01 1 0103- ●
201 CABLE; ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0103- ●
201 CABLE; ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) L=667 		1-75518-288-0 01 1 0103- ●
201 CABLE; ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (B) L=605 		1-75518-202-1 01 1 9603-9705 ●
201 CABLE; ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-202-1 01 1 9603-9705 ●
201 CABLE; ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (B) L=605 		1-75518-289-0 01 1 9706-9904 ●
201 CABLE; ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-0 01 1 9706-9904 ●
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) L=605 		1-75518-289-0 01 1 9905-0003 ● ●
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-0 01 1 0004-0012 ● ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-0 01 1 0101-0102 ● ●
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) L=605 		1-75518-289-1 01 1 0103- ● ●
201 CABLE; ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) L=605 		1-75518-289-1 01 1 0103- ●
201 CABLE; ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) L=605 		1-75518-289-1 01 1 0103- ●
201 CABLE; ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0103- ●
201 CABLE; ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) L=605 		1-75518-289-1 01 1 0103- ●
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0004-0102 ● ●
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-0 01 1 0004-0102 ● ●
278 COLLAR; FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-75518-244-0 03 1 9603-9904 ●
278 COLLAR; FRT SEAT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 9603-9904 ●
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-244-0 03 1 9905-0003 ● ●
278 COLLAR; FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0004-0012 ● ●
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 0101-0102 ● ●
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-244-0 03 1 0103- ● ●
278 COLLAR; FRT SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-244-0 03 1 0103- ●
278 COLLAR; FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-244-0 03 1 0103- ●
278 COLLAR; FRT SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0103- ●
278 COLLAR; FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-244-0 03 1 0103- ●
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0004-0102 ● ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (C) 		1-75518-266-0 02 1 9603-9904 ●
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 02 1 9603-9904 ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-266-0 02 1 9905-0003 ● ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 02 1 0004-0012 ● ●
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-0 02 1 0101-0102 ● ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-266-1 02 1 0103- ● ●
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (C) 		1-75518-266-1 02 1 0103- ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-266-1 02 1 0103- ●
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-1 02 1 0103- ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-266-1 02 1 0103- ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-270-0 04 1 9603-9904 ●
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 9603-9904 ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-270-0 04 1 9905-0003 ● ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0004-0012 ● ●
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-0 04 1 0101-0102 ● ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-270-0 04 1 0103- ● ●
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-270-0 04 1 0103- ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-270-0 04 1 0103- ●
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0103- ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-270-0 04 1 0103- ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-271-1 02 1 9603-9904 ●
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 02 1 9603-9904 ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-271-1 02 1 9905-0003 ● ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 02 1 0004-0012 ● ●
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-271-1 02 1 0101-0102 ● ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-336-0 02 1 0103- ● ●
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-336-0 02 1 0103- ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-336-0 02 1 0103- ●
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-0 02 1 0103- ●
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-336-0 02 1 0103- ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 02 1 0004-0102 ● ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0004-0102 ● ●
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 04 1 0004-0102 ● ●
306 NUT; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		8-94279-518-0 04 1 9603-9904 ●
306 NUT; SEAT ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		8-94279-518-0 04 1 9603-9904 ●
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9905-9912 ● ●
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 06 1 0001-0003 ● ●
306 NUT; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0004-0012 ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 06 1 0101-0102 ● ●
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 06 1 0103- ● ●
306 NUT; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 06 1 0103- ●
306 NUT; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 06 1 0103- ●
306 NUT; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0103- ●
306 NUT; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 06 1 0103- ●
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0004-0102 ● ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-206-0 01 1 9603-9904 ●
468 SPRING; RETURN
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 9603-9904 ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 9905-0003 ● ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0012 ● ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0101-0102 ● ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 0103- ● ●
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-206-0 01 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0103- ●
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-207-0 01 1 9603-9904 ●
468 SPRING; RETURN
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 9603-9904 ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 9905-0003 ● ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0012 ● ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0101-0102 ● ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 0103- ● ●
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-207-0 01 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0103- ●
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (C) 		1-75518-208-0 02 1 9603-9904 ●
468 SPRING; RETURN
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 9603-9904 ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 9905-0003 ● ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0012 ● ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0101-0102 ● ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 0103- ● ●
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (C) 		1-75518-208-0 02 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0103- ●
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0103- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0102 ● ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0102 ● ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0102 ● ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9603-9904 ● ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9905- ● ●
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-291-0 01 1 0004-0102 ●
471 LEVER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-75518-205-1 01 1 9603-9705 ●
471 LEVER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-75518-291-0 01 1 9706-9904 ●
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-291-0 01 1 9905-0003 ●
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-291-0 01 1 0004-0012 ●
471 LEVER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-291-0 01 1 0101-0102 ●
471 LEVER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-291-0 01 1 0101-0102 ●
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-291-0 01 1 0101-0102 ●
471 LEVER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-291-0 01 1 0103- ●
471 LEVER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-291-0 01 1 0103- ●
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-291-0 01 1 0103- ●
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0004-0102 ●
471 LEVER; SEAT ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-220-1 01 1 9603-9705 ●
471 LEVER; SEAT ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 9706-9904 ●
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-290-0 01 1 9905-0003 ●
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0004-0012 ●
471 LEVER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0101-0102 ●
471 LEVER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-290-0 01 1 0101-0102 ●
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0101-0102 ●
471 LEVER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0103- ●
471 LEVER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-290-0 01 1 0103- ●
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-290-0 01 1 0103- ●
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-243-0 02 1 0004-0102 ●
512 COVER; LEVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-75518-243-0 02 1 9603-9904 ●
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-243-0 02 1 9905-0003 ●
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-243-0 02 1 0004-0012 ●
512 COVER; LEVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-243-0 02 1 0101-0102 ●
512 COVER; LEVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-243-0 02 1 0101-0102 ●
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-243-0 02 1 0101-0102 ●
512 COVER; LEVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-243-1 02 1 0103- ●
512 COVER; LEVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-243-1 02 1 0103- ●
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-243-1 02 1 0103- ●
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 0004-0102 ●
512 COVER; LEVER
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 9603-9904 ●
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-245-0 02 1 9905-0003 ●
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 0004-0012 ●
512 COVER; LEVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 0101-0102 ●
512 COVER; LEVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-245-0 02 1 0101-0102 ●
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 0101-0102 ●
512 COVER; LEVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-1 02 1 0103- ●
512 COVER; LEVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-245-1 02 1 0103- ●
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-245-1 02 1 0103- ●
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-263-0 01 1 9603-9904 ●
518 NUT; TILT ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 9603-9904 ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-263-0 01 1 9905-0003 ● ●
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0004-0012 ● ●
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0101-0102 ● ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-263-0 01 1 0103- ● ●
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-263-0 01 1 0103- ●
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-263-0 01 1 0103- ●
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0103- ●
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-263-0 01 1 0103- ●
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-264-0 04 1 9603-9904 ●
518 NUT; TILT ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 9603-9904 ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-264-0 04 1 9905-0003 ● ●
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0004-0012 ● ●
518 NUT; TILT ADJ
(B) 		1-75518-264-0 04 1 0101-0102 ● ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-264-0 04 1 0103- ● ●
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-264-0 04 1 0103- ●
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-264-0 04 1 0103- ●
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0103- ●
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-264-0 04 1 0103- ●
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9603-9904 ●
518 NUT; TILT ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9603-9904 ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9905-0003 ● ●
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0004-0012 ● ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 0101-0102 ● ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0103- ● ●
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0103- ●
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0103- ●
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0103- ●
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0103- ●
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (C) M8 FLANGE 		8-94152-886-0 04 1 9603-9904 ●
518 NUT; TILT ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 9603-9904 ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (C) M8 FLANGE 		8-94152-886-0 04 1 9905-0003 ● ●
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0004-0012 ● ●
518 NUT; TILT ADJ
(C) M8 FLANGE 		8-94152-886-0 04 1 0101-0102 ● ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (C) M8 FLANGE 		8-94152-886-0 04 1 0103- ● ●
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (C) M8 FLANGE 		8-94152-886-0 04 1 0103- ●
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (C) M8 FLANGE 		8-94152-886-0 04 1 0103- ●
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0103- ●
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) M8 FLANGE 		8-94152-886-0 04 1 0103- ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0004-0102 ● ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0004-0102 ● ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0004-0102 ● ●
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0004-0102 ● ●
529 PIN; LINK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-75518-262-0 01 1 9603-9904 ●
529 PIN; LINK
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 9603-9904 ●
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-262-0 01 1 9905-0003 ● ●
529 PIN; LINK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0004-0012 ● ●
529 PIN; LINK 1-75518-262-0 01 1 0101-0102 ● ●
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-262-0 01 1 0103- ● ●
529 PIN; LINK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-262-0 01 1 0103- ●
529 PIN; LINK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-262-0 01 1 0103- ●
529 PIN; LINK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0103- ●
529 PIN; LINK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-262-0 01 1 0103- ●
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0004-0102 ● ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-203-0 01 1 0004-0102 ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-204-1 01 1 0004-0102 ●
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-203-0 01 1 9603-9904 ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-203-0 01 1 9905-0003 ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-203-0 01 1 0004-0012 ●
532 LEVER ASM; TILT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-203-0 01 1 0101-0102 ●
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-203-0 01 1 0101-0102 ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-203-0 01 1 0101-0102 ●
532 LEVER ASM; TILT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-203-0 01 1 0103- ●
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-203-0 01 1 0103- ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-203-0 01 1 0103- ●
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-204-1 01 1 9603-9904 ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-204-1 01 1 9905-0003 ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-204-1 01 1 0004-0012 ●
532 LEVER ASM; TILT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-204-1 01 1 0101-0102 ●
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-204-1 01 1 0101-0102 ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-204-1 01 1 0101-0102 ●
532 LEVER ASM; TILT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-204-1 01 1 0103- ●
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-204-1 01 1 0103- ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-204-1 01 1 0103- ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0004-0102 ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0004-0102 ●
532 LEVER ASM; TILT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 9603-9904 ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-221-0 01 1 9905-0003 ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0004-0012 ●
532 LEVER ASM; TILT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0101-0102 ●
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-221-0 01 1 0101-0102 ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0101-0102 ●
532 LEVER ASM; TILT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0103- ●
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-221-0 01 1 0103- ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-221-0 01 1 0103- ●
532 LEVER ASM; TILT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 9603-9904 ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-222-1 01 1 9905-0003 ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0004-0012 ●
532 LEVER ASM; TILT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0101-0102 ●
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-222-1 01 1 0101-0102 ●
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0101-0102 ●
532 LEVER ASM; TILT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0103- ●
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-222-1 01 1 0103- ●
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-222-1 01 1 0103- ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (B) ID=6.4 		9-09160-506-0 04 1 9603-9904 ●
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4 		9-09160-506-0 04 1 9603-9904 ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (B) ID=6.4 		9-09160-506-0 04 1 9905-0003 ● ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4 		9-09160-506-0 04 1 0004-0012 ● ●
543 WASHER; HEIGHT ADJUSTER
(B) ID=6.4 		9-09160-506-0 04 1 0101-0102 ● ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (B) ID=6.4 		9-09160-506-0 04 1 0103- ● ●
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) ID=6.4 		9-09160-506-0 04 1 0103- ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) ID=6.4 		9-09160-506-0 04 1 0103- ●
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4 		9-09160-506-0 04 1 0103- ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) ID=6.4 		9-09160-506-0 04 1 0103- ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) ID=10.5 		9-09164-510-0 02 1 9603-9904 ●
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 		9-09164-510-0 02 1 9603-9904 ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (A) ID=10.5 		9-09164-510-0 02 1 9905-0003 ● ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 		9-09164-510-0 02 1 0004-0012 ● ●
543 WASHER; HEIGHT ADJUSTER
(A) ID=10.5 		9-09164-510-0 02 1 0101-0102 ● ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-335-0 02 1 0103- ● ●
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-335-0 02 1 0103- ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-335-0 02 1 0103- ●
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-335-0 02 1 0103- ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-335-0 02 1 0103- ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4 		9-09160-506-0 04 1 0004-0102 ● ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 		9-09164-510-0 02 1 0004-0102 ● ●
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-337-0 02 1 0103- ● ●
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-337-0 02 1 0103- ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-337-0 02 1 0103- ●
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-337-0 02 1 0103- ●
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-337-0 02 1 0103- ●
551 SLIDER; HEIGHT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-75518-265-0 04 1 9603-9904 ●
551 SLIDER; HEIGHT ADJ
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 9603-9904 ●
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-265-0 04 1 9905-0003 ● ●
551 SLIDER; HEIGHT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0004-0012 ● ●
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 0101-0102 ● ●
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-265-0 04 1 0103- ● ●
551 SLIDER; HEIGHT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-265-0 04 1 0103- ●
551 SLIDER; HEIGHT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-265-0 04 1 0103- ●
551 SLIDER; HEIGHT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0103- ●
551 SLIDER; HEIGHT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-265-0 04 1 0103- ●
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0004-0102 ● ●
çizim 41255
27 12 2 13 1 336 590 336 587 16 336 325 336 63 81 76 582 582 582 581 582
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-512-2 01 1 9603-9904 ●
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-941-0 01 1 9905- ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-511-1 01 1 9603-9904 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-563-2 01 1 9905-9910 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-563-2 01 1 9911-0003 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-563-2 01 1 9911-0003 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0004-0102 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0004-0012 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75207-267-0 01 1 0101-0102 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0101-0102 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75207-267-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-760-1 01 1 9603-9904 ●
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-862-0 01 1 9905-9910 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-862-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-171-0 01 1 0004-0102 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-171-0 01 1 0101-0102 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-171-0 01 1 0103- ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-171-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-559-1 01 1 9603-9904 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9905-9910 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0102 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0012 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0101-0102 ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0101-0102 ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0103- ●
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-576-1 01 1 9603-9904 ●
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-940-0 01 1 9905- ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0101-0102 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0103- ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0103- ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-624-2 01 1 9603-9904 ●
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9905-9910 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9911-0003 ●
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0004-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75116-277-2 01 1 9603-9904 ●
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9905- ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-848-1 01 1 9603-9904 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-870-1 01 1 9905-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-870-1 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-870-1 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0004-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0004-0012 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-038-0 01 1 0101-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0101-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-038-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-296-1 01 1 9603-9904 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-938-0 01 1 9905-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75117-938-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-043-0 01 1 0004-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-043-0 01 1 0101-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-043-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-043-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-236-1 01 1 9603-9904 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9905-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0012 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0101-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0101-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-253-1 01 1 9603-9904 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0101-0102 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0103- ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-276-2 01 1 9603-9904 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9905-9910 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9911-0003 ●
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0004-0102 ●
12 CUSHION; SEAT,FRT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75028-764-2 01 1 9603-9904 ●
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-824-0 01 1 9905-9910 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-824-0 01 1 9911-9912 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-562-1 01 1 0001-0003 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-151-0 01 1 0004-0102 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0004-0012 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75207-150-0 01 1 0101-0102 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0101-0102 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75207-150-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-75028-763-1 01 1 9603-9904 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-560-1 01 1 9905-9910 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-560-1 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-560-1 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0004-0102 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-151-0 01 1 0101-0102 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-151-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-151-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9905- ● ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-0 01 1 0101-0102 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0101-0102 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-600-1 01 1 9603-9904 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9905-9910 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0102 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0101-0102 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0103- ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9603-9904 ●
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9905-9910 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003 ●
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0004-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75116-301-1 01 1 9603-9904 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-916-0 01 1 9905-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75117-916-0 01 1 9911-9912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75117-869-0 01 1 0001-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-099-0 01 1 0004-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0004-0012 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-098-0 01 1 0101-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0101-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-098-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-75117-835-0 01 1 9603-9904 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-867-0 01 1 9905-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-867-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-867-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0004-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-099-0 01 1 0101-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-099-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-099-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9905- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0012 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0101-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0101-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75117-842-0 01 1 9603-9904 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9905-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0101-0102 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0103- ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9603-9904 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9905-9910 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9911-0003 ●
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0004-0102 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-057-1 01 1 9603-9605 ●
16 ADJUSTER ASM; RECLINING 1-75418-057-1 01 1 9603-9605 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-057-1 01 1 9606-9904 ●
16 ADJUSTER ASM; RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75417-602-0 01 1 9905- ●
16 ADJUSTER ASM; RECLINING 1-75418-062-0 01 1 9606-9904 ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-0 01 1 9905- ●
16 ADJUSTER ASM; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-062-0 01 1 9905- ●
16 ADJUSTER ASM; RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75417-601-0 01 1 9905- ●
27 REST; HD,FRT SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75657-029-0 01 1 9905- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 04 1 0004-0012 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 02 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-199-1 01 1 0004-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-323-0 01 1 0004-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-198-0 01 1 9603-9705 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-294-0 01 1 9706-9904 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-294-0 01 1 9905-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-323-0 01 1 0001-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-323-0 01 1 0004-0012 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-323-0 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-323-0 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-323-0 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-323-0 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-323-0 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-323-0 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-199-0 01 1 9603-9904 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-199-0 01 1 9905-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-199-1 01 1 0004-0012 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-199-1 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-199-1 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-199-1 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-199-1 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-199-1 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-199-1 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
ISRINGHAUSEN SEAT(SJA) 		1-75517-953-0 01 1 9905- ● ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9603-9904 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-226-0 01 1 9905-9910 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-0 01 1 0001-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004-0012 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-1 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-227-0 01 1 9603-9705 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-295-0 01 1 9706-9904 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-295-0 01 1 9905-9912 ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-324-0 01 1 0001-0003 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 01 1 0004-0012 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-324-0 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 01 1 0101-0102 ●
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-324-0 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-324-0 01 1 0103- ●
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-0 01 1 9911-9912 ●
76 DAMPER; AIR SUSP
ISRINGHAUSEN SEAT(SJA) 		1-75537-276-0 01 1 9905- ● ●
76 DAMPER; AIR SUSP
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 9603-9904 ● ●
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 9905- ● ●
81 SPRING; AIR
ISRINGHAUSEN SEAT(SJA) 		1-75537-275-0 01 1 9905- ● ●
81 SPRING; AIR
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-1 01 1 9603-9904 ● ●
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-1 01 1 9905- ● ●
325 COVER; SUSPENSION DEVICE
ISRINGHAUSEN SEAT(SJA) 		1-75537-274-0 01 1 9905- ● ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75517-902-0 01 1 9603-9904 ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9905- ● ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75517-902-0 01 1 0004-0102 ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75517-902-0 01 1 9911-9912 ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (D) 		1-75517-902-0 01 1 0001-0003 ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75517-902-0 01 1 0004-0012 ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> (D) 		1-75517-902-0 01 1 0101-0102 ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (D) 		1-75517-902-0 01 1 0103- ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (D) 		1-75517-902-0 01 1 0103- ●
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (D) 		1-75517-902-0 01 1 0103- ●
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-066-3 01 1 9603-9904 ●
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-066-3 01 1 9905-9910 ●
336 COVER; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-066-3 01 1 9911-9912 ●
336 COVER; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-066-3 01 1 9911-9912 ●
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-066-3 01 1 9911-9912 ●
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-066-3 01 1 0001-0003 ●
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-066-3 01 1 0004-0012 ●
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-066-3 01 1 0101-0102 ●
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-066-3 01 1 0103- ●
336 COVER; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-066-3 01 1 0103- ●
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-066-3 01 1 0103- ●
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-066-3 01 1 0004-0102 ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-208-0 01 1 9905- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-210-0 01 1 9905- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-212-0 01 1 9905- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-207-0 01 1 9905- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-209-0 01 1 9905- ●
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-211-0 01 1 9905- ●
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0004-0102 ●
336 COVER; DRIVER SEAT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 9603-9904 ●
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-194-2 01 1 9905-0003 ●
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0004-0012 ●
336 COVER; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0101-0102 ●
336 COVER; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-194-2 01 1 0101-0102 ●
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0101-0102 ●
336 COVER; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0103- ●
336 COVER; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-194-2 01 1 0103- ●
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-194-2 01 1 0103- ●
581 PIPE; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-73907-605-2 01 1 9905- ●
581 PIPE; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-73907-606-2 01 1 0012- ●
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-09980-619-1 02 1 9905-0011 ●
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-09980-619-1 02 1 0012- ● ●
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905-0011 ●
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0012- ● ●
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9905-0011 ●
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0012- ● ●
587 VALVE; LUMBAR SUPPORT
ISRINGHAUSEN SEAT(SJA) 		1-75197-007-0 01 1 9905- ●
587 VALVE; LUMBAR SUPPORT
ISRINGHAUSEN SEAT(SJA) 		1-75197-006-0 01 1 9905- ●
590 KNOB KIT; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75417-600-0 01 1 9905- ●
590 KNOB KIT; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75417-599-0 01 1 9905- ●
çizim 41811
359 533 535 365 98 360 98 360 537 360 536 360 534 359 360 538
BalonParca AdiParca NoAdetTipApplied Date A B
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9603- ●
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9603- ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-157-4 01 1 9603- ●
359 BOX; PARCEL 1-72538-157-4 01 1 9603- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9603- ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9603- ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 9603- ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9603- ●
360 SCREW; PARCEL
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9603-9904 ●
360 SCREW; PARCEL
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9603-9904 ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9603-9904 ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9905- ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9905- ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 9603- ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 9603- ●
365 LOCK ASM; SEAT 1-72538-180-0 01 1 9603- ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-194-2 01 1 9603- ●
533 LID; PARCEL BOX 1-72538-194-2 01 1 9603- ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-181-0 01 1 9603- ●
534 STRIKER; PARCEL BOX 1-72538-181-0 01 1 9603- ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 9603- ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 9603- ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 9603- ●
536 RUBBER; CUSHION 5-09983-002-1 02 1 9603- ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 9603- ●
537 BRACKET; RUBBER 1-72548-057-1 02 1 9603- ●
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 9603- ●
çizim 42556
62 78 80 66 81 88 79 77 79 86 86 78 79 79 76 322 339 78 85 467 468 85 87 513 85 470
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-240-3 01 1 9603-9712 ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-254-0 01 1 9801-9804 ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-258-0 01 1 9805-9904 ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-4 01 1 9905- ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-241-3 01 1 9603-9712 ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-255-0 01 1 9801-9804 ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-259-0 01 1 9805-9904 ●
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-4 01 1 9905- ●
66 RUBBER; LWR STOPPER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 9603-9904 ● ●
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 9905- ● ●
76 DAMPER; AIR SUSP
ISRINGHAUSEN SEAT(SJA) 		1-75537-276-0 01 1 9905- ● ●
76 DAMPER; AIR SUSP
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 9603-9904 ● ●
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 9905- ● ●
77 PIN; DAMPER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 9603-9904 ● ●
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 9905- ● ●
78 RING; SNAP
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 9603-9904 ● ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 9905- ● ●
78 RING; SNAP
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10 		9-09185-410-0 02 1 9603-9904 ● ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10 		9-09185-410-0 02 1 9905- ● ●
78 RING; SNAP
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 		9-09185-415-0 01 1 9603-9904 ● ●
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 		9-09185-415-0 01 1 9905- ● ●
79 ROLLER ASM; AIR SUSP
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 9603-9904 ● ●
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 9905- ● ●
80 RUBBER; STOPPER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-123-0 01 1 9603-9904 ● ●
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-123-0 01 1 9905- ● ●
81 SPRING; AIR
ISRINGHAUSEN SEAT(SJA) 		1-75537-275-0 01 1 9905- ● ●
81 SPRING; AIR
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-1 01 1 9603-9904 ● ●
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-1 01 1 9905- ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75538-208-0 02 1 0004-0102 ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75538-208-0 02 1 0103- ● ●
85 BOLT; AIR SUSP
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9603-9904 ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9905-0003 ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 0004-0102 ●
85 BOLT; AIR SUSP
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9603-9904 ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9905-0003 ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004- ● ●
85 BOLT; AIR SUSP
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-0 01 1 9603-9904 ● ●
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-0 01 1 9905- ● ●
86 BUSHING; GUIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9603-9904 ● ●
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9905- ● ●
87 WASHER; AIR SUSP
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 9603-9904 ● ●
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 9905- ● ●
88 NUT; AIR SUSP
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		8-94279-519-0 01 1 9603-9904 ● ●
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-273-1 01 1 9905- ● ●
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-154-0 01 1 9603-9804 ●
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-186-2 01 1 9805- ●
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-148-1 01 1 9603-9804 ●
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-187-2 01 1 9805- ●
339 UNION; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-0 01 1 9603-9904 ● ●
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-1 01 1 9905- ● ●
467 LEVER; LOCK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 9603-9904 ● ●
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 9905- ● ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-206-0 01 1 9603-9904 ●
468 SPRING; RETURN
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 9603-9904 ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 9905-0003 ● ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0012 ● ●
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0101-0102 ● ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 0103- ● ●
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-206-0 01 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0103- ●
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-207-0 01 1 9603-9904 ●
468 SPRING; RETURN
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 9603-9904 ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 9905-0003 ● ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0012 ● ●
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0101-0102 ● ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 0103- ● ●
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-207-0 01 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0103- ●
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (C) 		1-75518-208-0 02 1 9603-9904 ●
468 SPRING; RETURN
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 9603-9904 ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 9905-0003 ● ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0012 ● ●
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0101-0102 ● ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 0103- ● ●
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (C) 		1-75518-208-0 02 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0103- ●
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0103- ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0103- ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0102 ● ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0102 ● ●
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0102 ● ●
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9603-9904 ● ●
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9905- ● ●
470 CLIP; HOSE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 9603-9904 ● ●
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 9905- ● ●
513 SPACER; LEVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 9603-9904 ● ●
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 9905- ● ●
çizim 42872
117 113 114 115 116 119 122 135 137 65 136
BalonParca AdiParca NoAdetTipApplied Date A B
65 SCREW; ADJ TO SEAT
ISRINGHAUSEN SEAT(SJA) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905-0011 ● ●
65 SCREW; ADJ TO SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0012- ●
65 SCREW; ADJ TO SEAT
ISRINGHAUSEN SEAT(SJA) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0012- ●
113 BACK ASM; SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75026-796-0 01 1 0012- ●
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75027-515-1 01 1 9603-9904 ●
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-586-2 01 1 9905-0003 ●
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-223-0 01 1 0004- ●
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-761-1 01 1 9603-9904 ●
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-863-0 01 1 9905-0003 ●
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-227-0 01 1 0004- ●
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) 		1-75028-615-2 01 1 9603-9904 ●
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75028-615-2 01 1 9905-0003 ●
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75026-720-0 01 1 0004- ●
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 9905-0011 ● ●
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75026-267-0 01 1 0012- ●
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 0012- ●
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-586-1 01 1 9603-9904 ●
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-832-0 01 1 9905-0003 ●
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-226-0 01 1 0004- ●
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-590-2 01 1 9603-9904 ●
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75028-590-2 01 1 9905-0003 ●
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75026-721-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75116-709-1 01 1 0012- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) 		1-75117-850-1 01 1 9603-9904 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-878-1 01 1 9905-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-057-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75116-297-0 01 1 9603-9904 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-940-0 01 1 9905-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-058-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) 		1-75116-273-1 01 1 9603-9904 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75116-273-1 01 1 9905-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75116-599-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 9905-0011 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75116-464-0 01 1 0012- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 0012- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75116-256-0 01 1 9603-9904 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-939-0 01 1 9905-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-056-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75116-277-2 01 1 9603-9904 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75116-277-2 01 1 9905-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75116-600-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75026-784-1 01 1 0012- ●
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75027-516-1 01 1 9603-9904 ●
115 CUSHION ASM; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-584-0 01 1 9905-0003 ●
115 CUSHION ASM; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-209-1 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75027-580-0 01 1 9905-0003 ●
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75207-205-1 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-765-1 01 1 9603-9904 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-857-0 01 1 9905-0003 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-211-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) 		1-75028-800-2 01 1 9603-9904 ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75028-800-2 01 1 9905-0003 ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75026-773-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 9905-0011 ● ●
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75026-268-0 01 1 0012- ●
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 0012- ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-583-2 01 1 9603-9904 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-829-0 01 1 9905-0003 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-210-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-531-2 01 1 9603-9904 ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75028-531-2 01 1 9905-0003 ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75026-771-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75116-691-1 01 1 0012- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) 		1-75117-851-0 01 1 9603-9904 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-877-0 01 1 9905-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-025-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75117-873-0 01 1 9905-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75127-021-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75116-298-0 01 1 9603-9904 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-930-0 01 1 9905-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-027-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) 		1-75116-319-1 01 1 9603-9904 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75116-319-1 01 1 9905-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75116-577-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 9905-0011 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75116-465-0 01 1 0012- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 0012- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75117-841-1 01 1 9603-9904 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-929-0 01 1 9905-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-026-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75116-225-1 01 1 9603-9904 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75116-225-1 01 1 9905-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75116-575-0 01 1 0004- ●
117 REST; HD
ISRINGHAUSEN SEAT(SJA) 		1-75658-052-0 01 1 9905-0011 ● ●
117 REST; HD
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75658-052-0 01 1 0012- ●
117 REST; HD
ISRINGHAUSEN SEAT(SJA) 		1-75658-052-0 01 1 0012- ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75417-603-0 01 1 9905-0011 ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75417-603-0 01 1 0012- ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
PASSENGER SEAT MULTI USED(WX9) 		1-75417-597-0 01 1 9603-9904 ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75417-597-0 01 1 9905- ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75418-064-0 01 1 9905- ●
122 COVER; ADJ,RECLINING
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) DARK GRAY 		8-97859-018-0 01 1 0012- ●
122 COVER; ADJ,RECLINING
PASSENGER SEAT MULTI USED(WX9) 		1-75417-596-0 01 1 9603-9904 ●
122 COVER; ADJ,RECLINING
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75417-596-0 01 1 9905- ●
122 COVER; ADJ,RECLINING
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75418-052-0 01 1 9603-9904 ●
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75418-052-0 01 1 9905-0003 ●
122 COVER; ADJ,RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75418-052-0 01 1 0004- ●
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 9905-0011 ● ●
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75418-063-0 01 1 0012- ●
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 0012- ●
122 COVER; ADJ,RECLINING 1-75418-050-0 01 1 9603-9904 ●
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 9905-0003 ●
122 COVER; ADJ,RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 0004- ●
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 0004- ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9603- ● ●
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75557-585-0 01 1 9905-0003 ●
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-585-3 01 1 0004- ●
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-485-0 01 1 9905-0011 ●
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75557-485-0 01 1 0012- ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75558-482-7 01 1 9603-9609 ●
136 STAND; PASSENGER SEAT 1-75558-550-3 01 1 9610-9904 ● ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75558-550-3 01 1 9905-9905 ●
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75558-550-3 01 1 9905-9905 ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75558-550-3 01 1 9905-9905 ●
136 STAND; PASSENGER SEAT 1-75558-550-3 01 1 9905-9905 ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75558-550-4 01 1 9905-0011 ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75558-550-4 01 1 9905-0011 ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-4 01 1 9905-0011 ●
136 STAND; PASSENGER SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75558-550-4 01 1 0012- ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75558-550-4 01 1 0012- ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75558-550-4 01 1 0012- ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-4 01 1 0012- ●
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75558-547-1 01 1 9603-9609 ●
136 STAND; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75558-547-1 01 1 9603-9609 ●
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-486-0 01 1 9905- ●
136 STAND; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75558-521-5 01 1 9603-9609 ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9603- ● ●
çizim 44391
114 126 113 120 119 122 120 123 24 116 115 135 137 228 515 327 392 393 211 73 136
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 01 1 0004-0102 ●
24 KNOB; RECLINING,FRT,SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) (A) DARK GRAY 		8-97859-019-0 01 1 0012- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 9603-9904 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-056-0 01 1 9603-9904 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 9905-0003 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-056-0 01 1 9905-0003 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 0004-0012 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-056-0 01 1 0004-0012 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-056-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75418-056-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-056-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-056-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75418-056-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-056-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75418-059-0 01 1 9603-9904 ●
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-059-0 01 1 9603-9904 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 9905-0003 ● ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0004-0012 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 01 1 0004-0012 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0004-0012 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75418-059-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-059-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0101-0102 ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0103- ● ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75418-059-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-059-0 01 1 0103- ●
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-056-0 01 1 0004-0102 ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		8-94279-518-0 12 1 9603-9904 ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 12 1 9905-0003 ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0004-0012 ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 12 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 12 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 12 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 12 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0004-0102 ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0004-0102 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		8-94279-518-0 08 1 9603-9904 ●
73 NUT; ADJ,HEIGHT CONT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		8-94279-518-0 08 1 9603-9904 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 08 1 9905-0003 ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 08 1 9905-0003 ●
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 24 1 0004-0102 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 08 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 08 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 08 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 08 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 08 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 08 1 0103- ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 0004-0012 ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 04 1 0004-0012 ●
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 04 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 04 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 04 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 04 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 04 1 0101-0102 ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9603-9904 ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9905-0003 ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0004-0011 ● ●
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0012- ● ●
73 NUT; ADJ,HEIGHT CONT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0012- ●
113 BACK ASM; SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75026-796-0 01 1 0012- ●
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75027-515-1 01 1 9603-9904 ●
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-586-2 01 1 9905-0003 ●
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-223-0 01 1 0004- ●
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-761-1 01 1 9603-9904 ●
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-863-0 01 1 9905-0003 ●
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-227-0 01 1 0004- ●
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) 		1-75028-615-2 01 1 9603-9904 ●
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75028-615-2 01 1 9905-0003 ●
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75026-720-0 01 1 0004- ●
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 9905-0011 ● ●
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75026-267-0 01 1 0012- ●
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 0012- ●
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-586-1 01 1 9603-9904 ●
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-832-0 01 1 9905-0003 ●
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-226-0 01 1 0004- ●
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-590-2 01 1 9603-9904 ●
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75028-590-2 01 1 9905-0003 ●
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75026-721-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75116-709-1 01 1 0012- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) 		1-75117-850-1 01 1 9603-9904 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-878-1 01 1 9905-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-057-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75116-297-0 01 1 9603-9904 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-940-0 01 1 9905-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-058-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) 		1-75116-273-1 01 1 9603-9904 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75116-273-1 01 1 9905-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75116-599-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 9905-0011 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75116-464-0 01 1 0012- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 0012- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75116-256-0 01 1 9603-9904 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-939-0 01 1 9905-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-056-0 01 1 0004- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75116-277-2 01 1 9603-9904 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75116-277-2 01 1 9905-0003 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75116-600-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75026-784-1 01 1 0012- ●
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75027-516-1 01 1 9603-9904 ●
115 CUSHION ASM; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-584-0 01 1 9905-0003 ●
115 CUSHION ASM; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-209-1 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75027-580-0 01 1 9905-0003 ●
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75207-205-1 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-765-1 01 1 9603-9904 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-857-0 01 1 9905-0003 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-211-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) 		1-75028-800-2 01 1 9603-9904 ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75028-800-2 01 1 9905-0003 ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75026-773-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 9905-0011 ● ●
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75026-268-0 01 1 0012- ●
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 0012- ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-583-2 01 1 9603-9904 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-829-0 01 1 9905-0003 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-210-0 01 1 0004- ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75028-531-2 01 1 9603-9904 ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75028-531-2 01 1 9905-0003 ●
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75026-771-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75116-691-1 01 1 0012- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) 		1-75117-851-0 01 1 9603-9904 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-877-0 01 1 9905-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-025-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75117-873-0 01 1 9905-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75127-021-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75116-298-0 01 1 9603-9904 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-930-0 01 1 9905-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-027-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) 		1-75116-319-1 01 1 9603-9904 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75116-319-1 01 1 9905-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75116-577-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 9905-0011 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75116-465-0 01 1 0012- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 0012- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75117-841-1 01 1 9603-9904 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-929-0 01 1 9905-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-026-0 01 1 0004- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75116-225-1 01 1 9603-9904 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75116-225-1 01 1 9905-0003 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA) 		1-75116-575-0 01 1 0004- ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75417-603-0 01 1 9905-0011 ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75417-603-0 01 1 0012- ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
PASSENGER SEAT MULTI USED(WX9) 		1-75417-597-0 01 1 9603-9904 ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75417-597-0 01 1 9905- ●
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75418-064-0 01 1 9905- ●
120 BOLT; RECLINING ADJ
PASSENGER SEAT MULTI USED(WX9) M8X20 		1-09980-438-0 04 1 9603-9904 ●
120 BOLT; RECLINING ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 04 1 9905-0003 ●
120 BOLT; RECLINING ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 04 1 0004- ●
120 BOLT; RECLINING ADJ
EXC. PASSENGER SEAT MULTI USED(WX9) M8X18 		8-94279-109-1 02 1 9603-9904 ●
120 BOLT; RECLINING ADJ
M8X18 		8-94279-109-1 02 1 9603-9904 ●
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M8X18 		8-94279-109-1 02 1 9905-0003 ●
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9905-0003 ●
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 02 1 0004-0011 ●
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0004-0011 ●
120 BOLT; RECLINING ADJ
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0012- ●
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 02 1 0012- ●
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0012- ●
122 COVER; ADJ,RECLINING
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) DARK GRAY 		8-97859-018-0 01 1 0012- ●
122 COVER; ADJ,RECLINING
PASSENGER SEAT MULTI USED(WX9) 		1-75417-596-0 01 1 9603-9904 ●
122 COVER; ADJ,RECLINING
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75417-596-0 01 1 9905- ●
122 COVER; ADJ,RECLINING
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75418-052-0 01 1 9603-9904 ●
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75418-052-0 01 1 9905-0003 ●
122 COVER; ADJ,RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75418-052-0 01 1 0004- ●
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 9905-0011 ● ●
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75418-063-0 01 1 0012- ●
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 0012- ●
122 COVER; ADJ,RECLINING 1-75418-050-0 01 1 9603-9904 ●
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 9905-0003 ●
122 COVER; ADJ,RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 0004- ●
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 0004- ●
123 SCREW; COVER,RECLINING
PASSENGER SEAT MULTI USED(WX9) M6X12 		9-03490-612-0 01 1 9603-9904 ●
123 SCREW; COVER,RECLINING
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) M6X12 		9-03490-612-0 01 1 9905- ●
123 SCREW; COVER,RECLINING
EXC. PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9603-9904 ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9603-9904 ●
123 SCREW; COVER,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9905-0011 ●
123 SCREW; COVER,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9905-0011 ●
123 SCREW; COVER,RECLINING
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0012- ●
123 SCREW; COVER,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0012- ●
123 SCREW; COVER,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0012- ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 9603-9904 ● ●
126 BUSHING; HINGE,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9905-0011 ● ●
126 BUSHING; HINGE,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 0012- ● ●
126 BUSHING; HINGE,RECLINING
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 0012- ●
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9603- ● ●
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75557-585-0 01 1 9905-0003 ●
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-585-3 01 1 0004- ●
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-485-0 01 1 9905-0011 ●
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75557-485-0 01 1 0012- ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75558-482-7 01 1 9603-9609 ●
136 STAND; PASSENGER SEAT 1-75558-550-3 01 1 9610-9904 ● ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75558-550-3 01 1 9905-9905 ●
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75558-550-3 01 1 9905-9905 ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75558-550-3 01 1 9905-9905 ●
136 STAND; PASSENGER SEAT 1-75558-550-3 01 1 9905-9905 ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75558-550-4 01 1 9905-0011 ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75558-550-4 01 1 9905-0011 ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-4 01 1 9905-0011 ●
136 STAND; PASSENGER SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75558-550-4 01 1 0012- ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75558-550-4 01 1 0012- ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75558-550-4 01 1 0012- ●
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-4 01 1 0012- ●
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75558-547-1 01 1 9603-9609 ●
136 STAND; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75558-547-1 01 1 9603-9609 ●
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-486-0 01 1 9905- ●
136 STAND; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) 		1-75558-521-5 01 1 9603-9609 ●
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9603- ● ●
211 COVER; FRT SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-72538-274-0 01 1 0012- ●
211 COVER; FRT SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-72537-151-0 01 1 9603-9904 ●
211 COVER; FRT SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-72537-151-0 01 1 9905- ●
228 SCREW; KNOB
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) M4X6 		8-97042-273-0 01 1 9603-9904 ●
228 SCREW; KNOB
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 9603-9904 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9905-0003 ● ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 9905-0003 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9905-0003 ●
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0011 ● ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0004-0011 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004-0011 ●
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0012-0012 ● ●
228 SCREW; KNOB
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0012-0012 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0012-0012 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0012-0012 ●
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0101-0102 ● ●
228 SCREW; KNOB
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0101-0102 ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103- ● ●
228 SCREW; KNOB
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103- ●
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0102 ● ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 01 1 9603-9904 ●
327 CLIP; COVER
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 9603-9904 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9905-0003 ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9905-0003 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004-0012 ●
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004-0012 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 01 1 0101-0102 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0101-0102 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0101-0102 ●
327 CLIP; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0101-0102 ●
327 CLIP; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0101-0102 ●
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0101-0102 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 01 1 0103- ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0103- ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 0103- ●
327 CLIP; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0103- ●
327 CLIP; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0103- ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 0103- ●
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 04 1 0004-0102 ●
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 9603-9904 ●
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-09987-249-0 02 1 9905-0003 ●
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 9905-0003 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0004-0012 ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0004-0012 ●
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 02 1 0101-0102 ●
327 CLIP; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0101-0102 ●
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0101-0102 ●
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0101-0102 ●
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0101-0102 ●
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0101-0102 ●
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 02 1 0103- ●
327 CLIP; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0103- ●
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0103- ●
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0103- ●
327 CLIP; COVER
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-09987-273-0 02 1 0012- ●
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0004-0012 ●
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0004-0012 ●
392 COVER; STAND,PASSENGER SEAT 1-75558-523-4 01 1 9610-9904 ●
392 COVER; STAND,PASSENGER SEAT 1-75558-535-3 01 1 9610-9904 ●
393 BOLT; COVER,SEAT STAND
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9610-9904 ● ●
515 CLIP; PIPE
PASSENGER SEAT MULTI USED(WX9) BLACK 		8-94227-248-1 01 1 9603-9904 ●
515 CLIP; PIPE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> BLACK 		8-94227-248-1 01 1 9905-0003 ●
515 CLIP; PIPE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) BLACK 		8-94227-248-1 01 1 0004-0011 ●
515 CLIP; PIPE
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) BLACK 		8-94227-248-1 01 1 0012- ●
515 CLIP; PIPE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) BLACK 		8-94227-248-1 01 1 0012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
