1-50 — EXHAUST PIPE AND SILENCER (#58666) — 129 parça

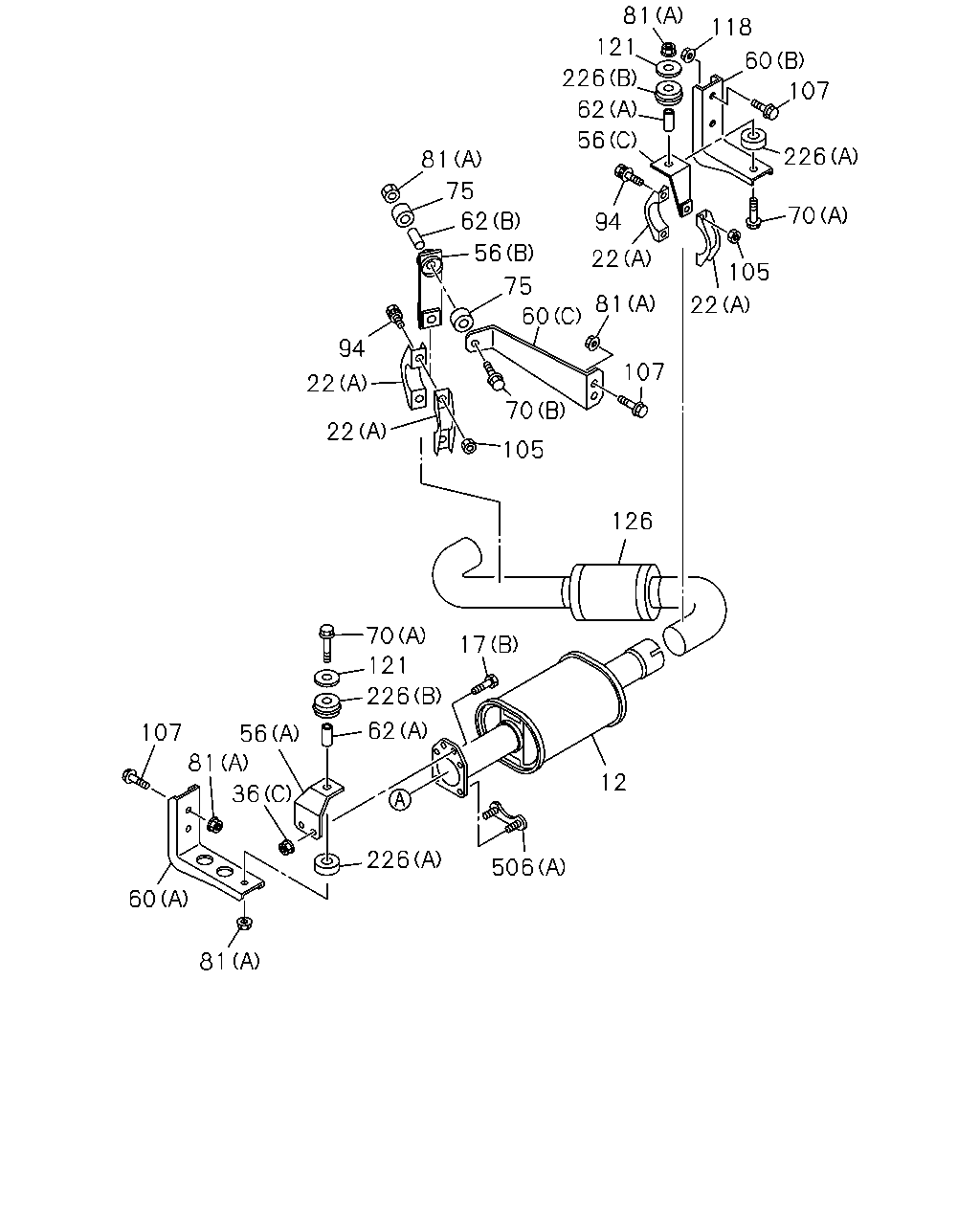

çizim 148737
81 60 107 56 81 36 226 506 12 62 226 121 70 17 126 105 70 22 22 94 60 75 56 62 81 107 75 81 22 105 22 94 70 226 107 60 56 62 226 121 81 118
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-98101-274-1 01 1 0809-1011
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> 		8-98101-274-1 01 1 1012-
12 SILENCER ASM; EXH
EURO3 SPECIFICATION<NT3> 		8-98090-389-2 01 1 1012-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0809-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
22 CLAMP; EXH PIPE
TURBO - CONVENTIONAL<Q5T> (B) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0809-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0809-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0809-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-584-0 01 1 0809-1309
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-522-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98073-291-0 01 1 0809-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 0809-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0809-
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-753-1 01 1 0809-1309
60 BRACKET; FRAME TO BRKT
(B) 		8-98245-530-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0809-1309
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0809-0906
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0809-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0809-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0809-
81 NUT; BRKT
TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 03 1 0911-1007
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1008-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1304
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1304
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1304
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0809-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0809-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0809-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0809-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0809-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 0809-
126 PIPE; EXH,RR 8-98073-427-0 01 1 0809-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0809-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0809-
506 BRACKET; STUD
TURBO - CONVENTIONAL<Q5T> (B) 		8-97615-333-1 01 1 1305-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0809-

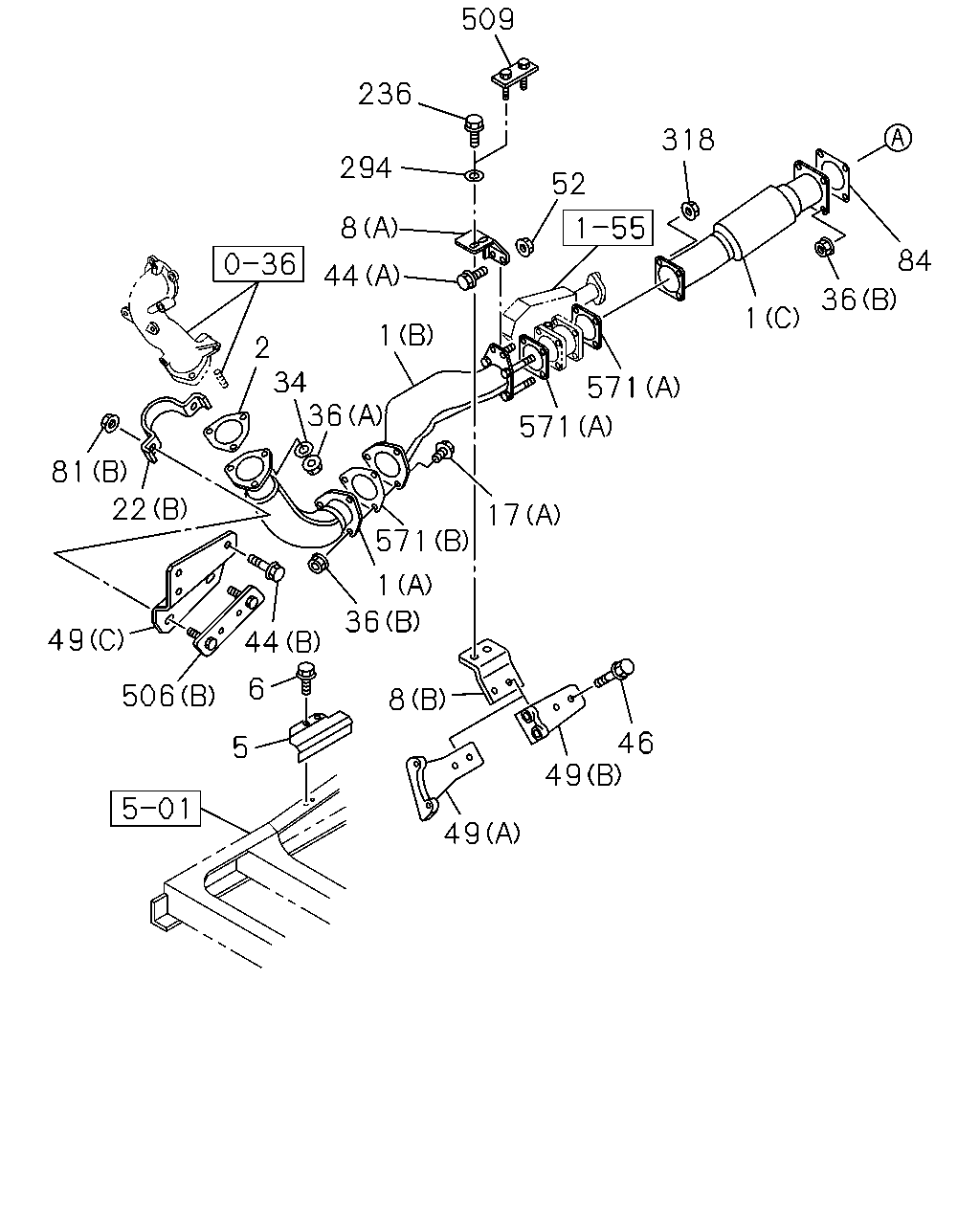

çizim 148740
509 236 294 8 52 44 318 84 36 1 571 571 17 46 49 49 8 36 571 5 44 6 506 49 22 81 34 2 1 36 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(A) 		8-98073-006-3 01 1 0809-1011
1 PIPE; EXH
TURBO - CONVENTIONAL<Q5T> (A) 		8-98073-006-3 01 1 1012-
1 PIPE; EXH
(B) 		8-98073-007-0 01 1 0809-1309
1 PIPE; EXH
(B) 		8-98245-501-0 01 1 1310-
1 PIPE; EXH
(C) 		8-98097-032-0 01 1 0809-
1 PIPE; EXH
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98090-385-0 01 1 1012-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0809-
5 PROTECTOR; HEAT 8-98044-124-0 01 1 0809-1011
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-124-0 01 1 1012-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0809-1011
6 BOLT; HEAT PROTECTOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (A) 		8-98113-013-0 01 1 0809-1301
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (A) 		8-98113-013-0 01 1 1302-1304
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98233-345-0 01 1 1305-1310
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98259-873-0 01 1 1311-
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98114-390-0 01 1 0809-1301
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98114-390-0 01 1 1302-1304
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (A) 		8-98233-348-0 01 1 1305-
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) (A) 		8-98089-802-0 01 1 0809-0811
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) (B) 		8-98122-677-0 01 1 0812-0906
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98122-677-0 01 1 0907-1304
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98233-626-0 01 1 1305-1310
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98259-870-0 01 1 1311-
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) (A) 		8-98122-679-0 01 1 0812-0906
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98122-679-1 01 1 0907-1304
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98233-627-0 01 1 1305-1404
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98275-817-0 01 1 1405-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0809-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
22 CLAMP; EXH PIPE
TURBO - CONVENTIONAL<Q5T> (B) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0809-
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0809-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0809-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0809-
44 BOLT; BRKT
TURBO - CONVENTIONAL<Q5T> (B) M10X20 FLANGE 		0-28751-020-0 03 1 1305-
44 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0809-0907
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0908-
46 BOLT; BRKT,EXH PIPE
MLD6W M/T(Y2C) M10X30 FLANGE 		0-28051-030-0 02 1 0809-0811
46 BOLT; BRKT,EXH PIPE
M10X30 FLANGE 		0-28051-030-0 02 1 0812-
49 BRACKET; EXH PIPE TO TRANS
TURBO - CONVENTIONAL<Q5T> (C) 		8-97629-970-0 01 1 1305-
49 BRACKET; EXH PIPE TO TRANS
MLD6W M/T(Y2C) (B) 		8-98113-008-0 01 1 0809-
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) (A) 		8-98085-317-2 01 1 0809-0811
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) (A) 		8-98122-671-0 01 1 0812-0906
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98122-671-0 01 1 0907-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
81 NUT; BRKT
TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0809-0910
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 03 1 0911-1007
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1008-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-0910
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0911-1007
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1304
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1304
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-1304
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1305-
84 GASKET; EXH PIPE 8-98096-305-0 01 1 0809-
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0809-1301
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 1302-1304
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0809-
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0809-
506 BRACKET; STUD
TURBO - CONVENTIONAL<Q5T> (B) 		8-97615-333-1 01 1 1305-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0809-
509 STUD; BRKT 8-98233-625-0 01 1 1305-1311
509 STUD; BRKT 8-98259-983-0 01 1 1312-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0809-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0809-
