◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11417 - FSR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#58664) — 167 parça
çizim 148728
304 304 303 345 345 418 39 41 65 29 41 39 279 228
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) (C) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
29 HOSE; FUEL
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0809-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0809-
39 PIPE; FUEL 8-97358-699-0 02 1 0809-0903
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0809-1011
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 06 1 0809-0910
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 0911-1003
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 0911-1003
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 1004-1011
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 0902-1011
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1004-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) L=1900 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 1012-1107
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 1108-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W) L=3350 SERVICED BY L=8000 		0-01260-800-0 01 1 0809-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0809-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 0809-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0809-1005
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE 		0-28651-030-0 01 1 0809-1005
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE 		0-28651-030-0 01 1 1006-1006
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1007-
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE 		0-28651-030-0 01 1 1007-
303 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
303 BOLT; BRKT
WHEEL BASE 4800MM(48W) M8X30 FLANGE 		0-28650-830-0 01 1 0809-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0809-0810
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0811-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-1005
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91180-210-0 01 1 0809-1005
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91180-210-0 01 1 1006-1006
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1007-
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91180-210-0 01 1 1007-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0809-1009
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
WHEEL BASE 4800MM(48W) M8 FLANGE 		0-91180-108-0 01 1 0809-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 0809-
418 BRACKET; PRE FUEL FILTER 8-98114-787-0 01 1 0809-

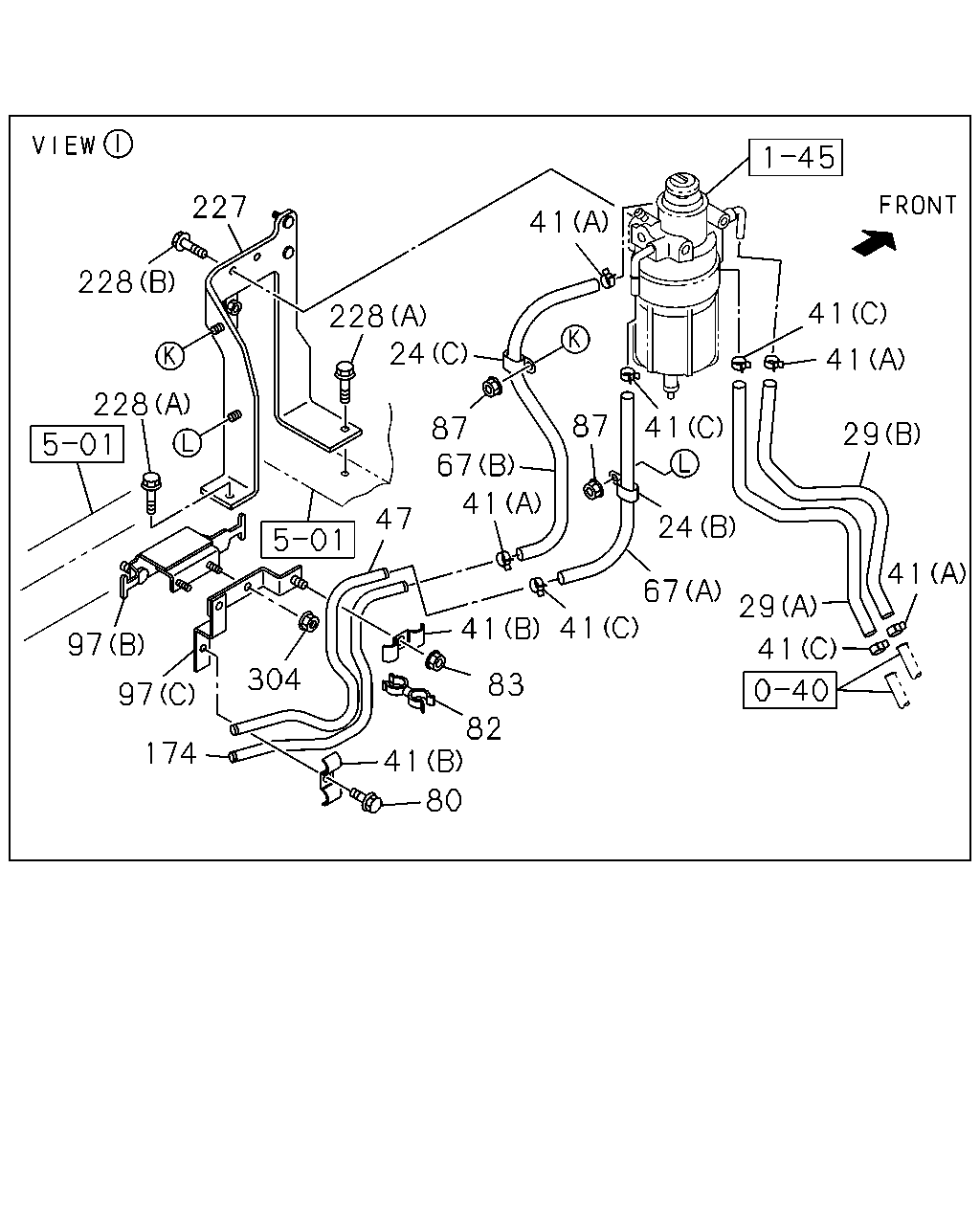

çizim 148735
228 227 228 24 87 67 41 47 41 41 83 82 41 80 174 97 97 304 228 41 87 41 24 67 29 41 41 29 41 41
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0809-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809-
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0809-1011
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0809-1011
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 1012-
24 CLIP; FUEL HOSE
WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5 		1-09701-246-1 03 1 0809-
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 0809-
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) (C) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
29 HOSE; FUEL
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0809-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0809-1011
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 06 1 0809-0910
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 0911-1003
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 0911-1003
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 1004-1011
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 0902-1011
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1004-
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 0809-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 0809-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 0809-
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0809-0810
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0809-
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0809-1005
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1007-
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (E) 		8-98100-216-1 01 1 0809-
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W) (A) 		8-98083-349-0 01 1 0809-
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0809-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 0809-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0809-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0809-0810
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0811-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-1005
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91180-210-0 01 1 0809-1005
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91180-210-0 01 1 1006-1006
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1007-
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91180-210-0 01 1 1007-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0809-1009
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
WHEEL BASE 4800MM(48W) M8 FLANGE 		0-91180-108-0 01 1 0809-

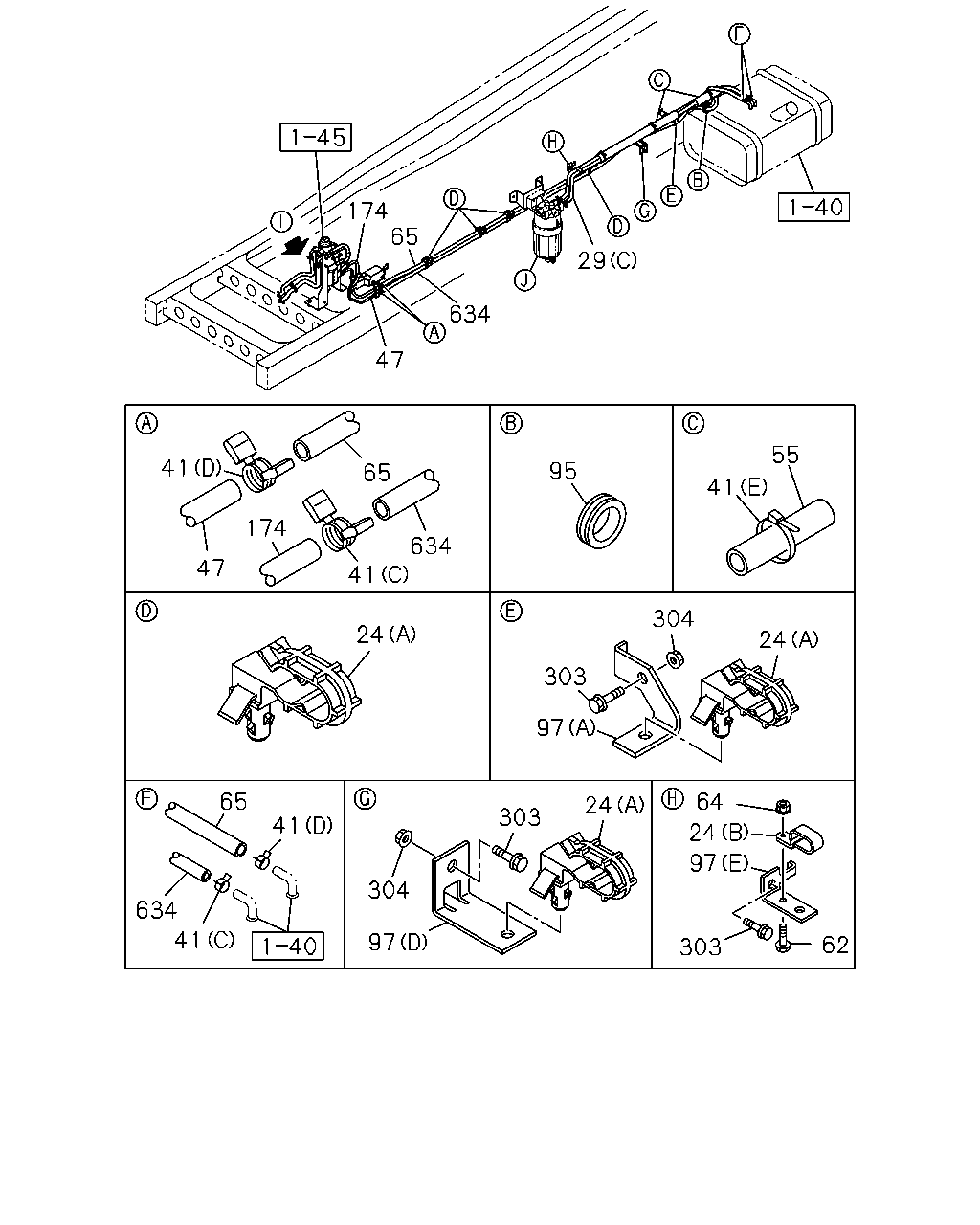

çizim 148742
174 65 634 47 29 41 47 174 65 634 41 95 41 55 24 303 304 24 97 65 41 634 41 304 97 303 24 64 24 97 303 62
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0809-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809-
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0809-1011
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 0809-1011
24 CLIP; FUEL HOSE
WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5 		1-09701-246-1 08 1 1012-
24 CLIP; FUEL HOSE
WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5 		1-09701-246-1 03 1 0809-
24 CLIP; FUEL HOSE
WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5 		1-09701-246-1 05 1 0809-
29 HOSE; FUEL
WHEEL BASE 3700MM(37W) (C) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
29 HOSE; FUEL
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0809-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0809-1011
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 06 1 0809-0910
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 0911-1003
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 0911-1003
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 03 1 1004-1011
41 CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2> (E) L=140 		5-09707-031-1 03 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 0902-1011
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1004-
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 0809-
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0809-0901
55 COVER; PIPE,FUEL TANK
ID=27 L=500 		8-98119-327-0 01 1 0809-1003
55 COVER; PIPE,FUEL TANK
L=800 		1-09361-018-0 01 1 1004-
62 BOLT; CLIP FIX
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
64 NUT; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M8 FLANGE 		0-91180-108-0 01 1 0809-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) L=1900 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 1012-1107
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 1108-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4300MM(43W) L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
65 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 4800MM(48W) L=3350 SERVICED BY L=8000 		0-01260-800-0 01 1 0809-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0809-
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 0809-0810
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 0809-
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 0809-1005
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1007-
97 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (E) 		8-98100-216-1 01 1 0809-
97 BRACKET; CLIP
WHEEL BASE 4800MM(48W) (A) 		8-98083-349-0 01 1 0809-
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 0809-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0809-1005
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE 		0-28651-030-0 01 1 0809-1005
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE 		0-28651-030-0 01 1 1006-1006
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1007-
303 BOLT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE 		0-28651-030-0 01 1 1007-
303 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
303 BOLT; BRKT
WHEEL BASE 4800MM(48W) M8X30 FLANGE 		0-28650-830-0 01 1 0809-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0809-0810
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0811-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-1005
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91180-210-0 01 1 0809-1005
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91180-210-0 01 1 1006-1006
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1007-
304 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE 		0-91180-210-0 01 1 1007-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0809-1009
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
WHEEL BASE 4800MM(48W) M8 FLANGE 		0-91180-108-0 01 1 0809-
634 HOSE; RUBBER RETURN
WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-
634 HOSE; RUBBER RETURN
WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-
634 HOSE; RUBBER RETURN
WHEEL BASE 4800MM(48W) L=2850 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
