Isuzu WW
▶
TRUCKS
▶
FSR
▶
11417 - FSR(MIDDLE EAST)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#58661) — 63 parça
◀

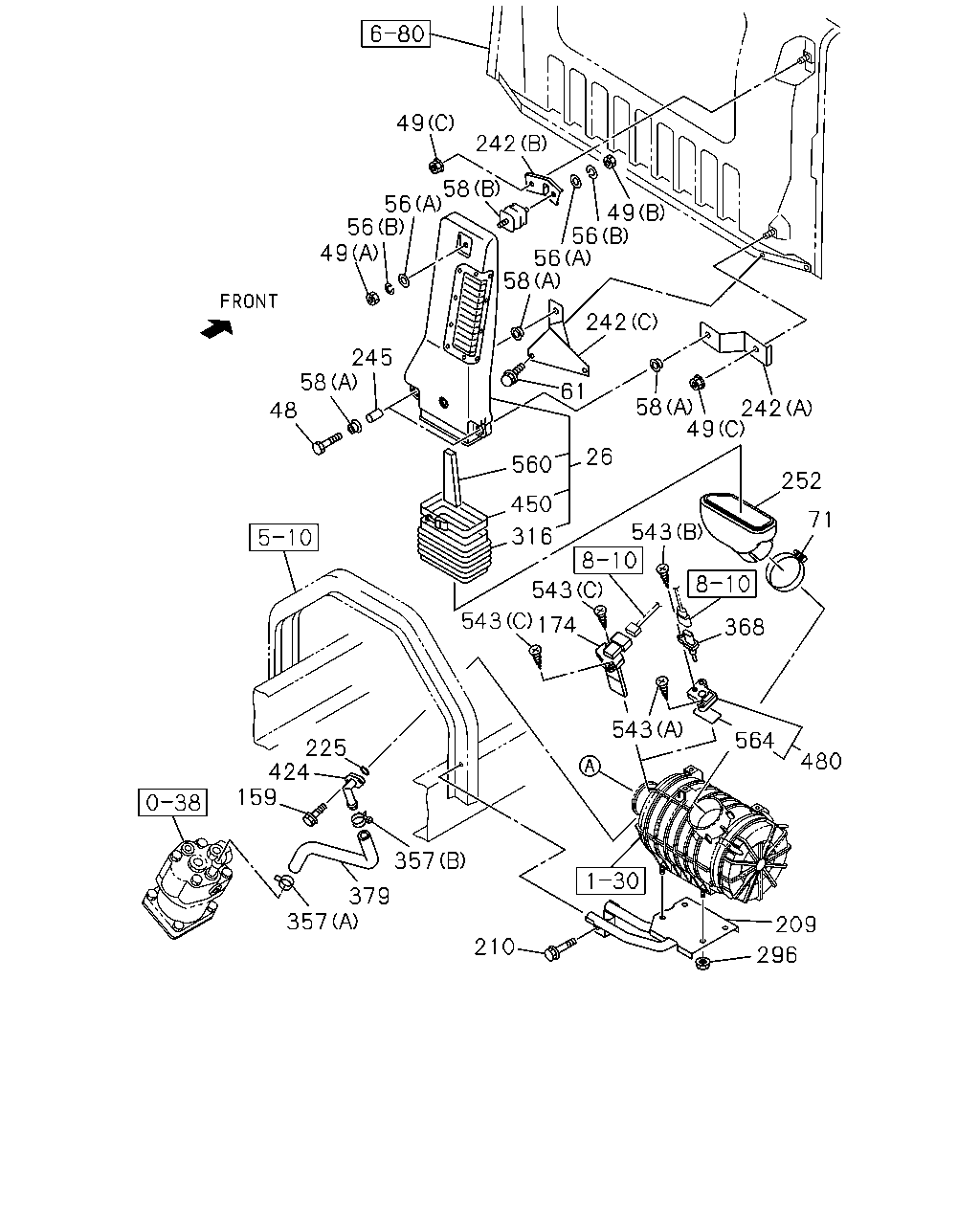

[131A] DUCT FIXING (42 parça)
[131A] PIPING (21 parça)
▶
49
242
58
56
56
49
49
56
56
58
242
245
61
58
242
49
58
48
26
560
252
450
71
543
316
543
543
174
368
543
564
225
424
159
480
357
379
357
209
210
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
0809-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
0809-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
0809-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
0809-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
0809-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
0809-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
0809-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
0809-
58
SUPPORT; AIR INL DUCT
(B)
1-14119-452-0
01
1
0809-0810
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
0811-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
0809-
71
CLIP; AIR DUCT
ID=104-139
1-09707-200-0
01
1
0809-0812
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
0901-
159
BOLT; AIR PIPE
M6X16 FLANGE
0-28050-616-0
02
1
0809-
174
SENSOR; AIR FLOW CONT
EURO3 SPECIFICATION<NT3>
8-97601-967-0
01
1
1012-
209
BRACKET; ACL
8-98099-677-0
01
1
0809-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
03
1
0809-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
0809-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
0809-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
0809-
242
BRACKET; AIR DUCT
(A)
8-98019-303-1
01
1
0809-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0809-
252
DUCT; AIR INT
8-98019-843-0
01
1
0809-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0809-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
0908-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
0809-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
0809-
368
SENSOR; TEMP
8-98065-377-0
01
1
0809-1011
368
SENSOR; TEMP
EURO2 SPECIFICATION<NT2>
8-98065-377-0
01
1
1012-
379
HOSE; RUBBER
8-98063-172-0
01
1
0809-
424
PIPE; AIR,INL
8-98081-834-0
01
1
0809-
450
CLAMP; HOSE
9-09915-504-1
01
1
0809-
480
ADAPTER
8-98086-417-0
01
1
0809-1011
480
ADAPTER
EURO2 SPECIFICATION<NT2>
8-98086-417-0
01
1
1012-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
0809-1011
543
SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1012-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
0809-1011
543
SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1012-
543
SCREW; SENSOR
EURO3 SPECIFICATION<NT3> (C) M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1012-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
0809-
564
GASKET; ADAPTER
8-98071-416-0
01
1
0809-1011
564
GASKET; ADAPTER
EURO2 SPECIFICATION<NT2>
8-98071-416-0
01
1
1012-
353
353
353
353
488
353
353
353
353
548
320
5
5
5
5
320
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(C) ID=87-113
1-09707-199-0
01
1
0809-0811
5
CLIP; AIR DUCT
(C) ID=90-110
8-98133-365-0
01
1
0812-1001
5
CLIP; AIR DUCT
(C) ID=87-116
1-09707-138-0
01
1
1002-1011
5
CLIP; AIR DUCT
(C) ID=87-116
1-09707-138-0
01
1
1012-
5
CLIP; AIR DUCT
(A) ID=104-139
1-09707-200-0
01
1
0809-0812
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
01
1
0901-1001
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-139-0
01
1
1002-
5
CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (B) ID=114
8-15178-030-0
01
1
1012-1101
5
CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=114
8-15178-030-0
01
1
1102-
320
HOSE; CONN,ACL
(A)
8-98072-934-0
01
1
0809-1011
320
HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (A)
8-98072-934-0
01
1
1012-
320
HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> (A)
8-98172-359-0
01
1
1012-1107
320
HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)
8-98172-359-0
01
1
1108-
320
HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)
8-98077-619-1
01
1
1108-
353
CLIP; RUBBER HOSE
ID=58-76
1-09707-203-0
08
1
0809-0811
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
0812-1001
353
CLIP; RUBBER HOSE
ID=58-79
1-09707-136-0
08
1
1002-
488
HOSE; RUBBER,PIPE
8-98017-224-1
01
1
0809-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98017-223-2
01
1
0809-1101
548
HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2>
8-98017-223-2
01
1
1102-
548
HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2>
8-98181-973-1
01
1
1102-
