Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11417 - FSR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

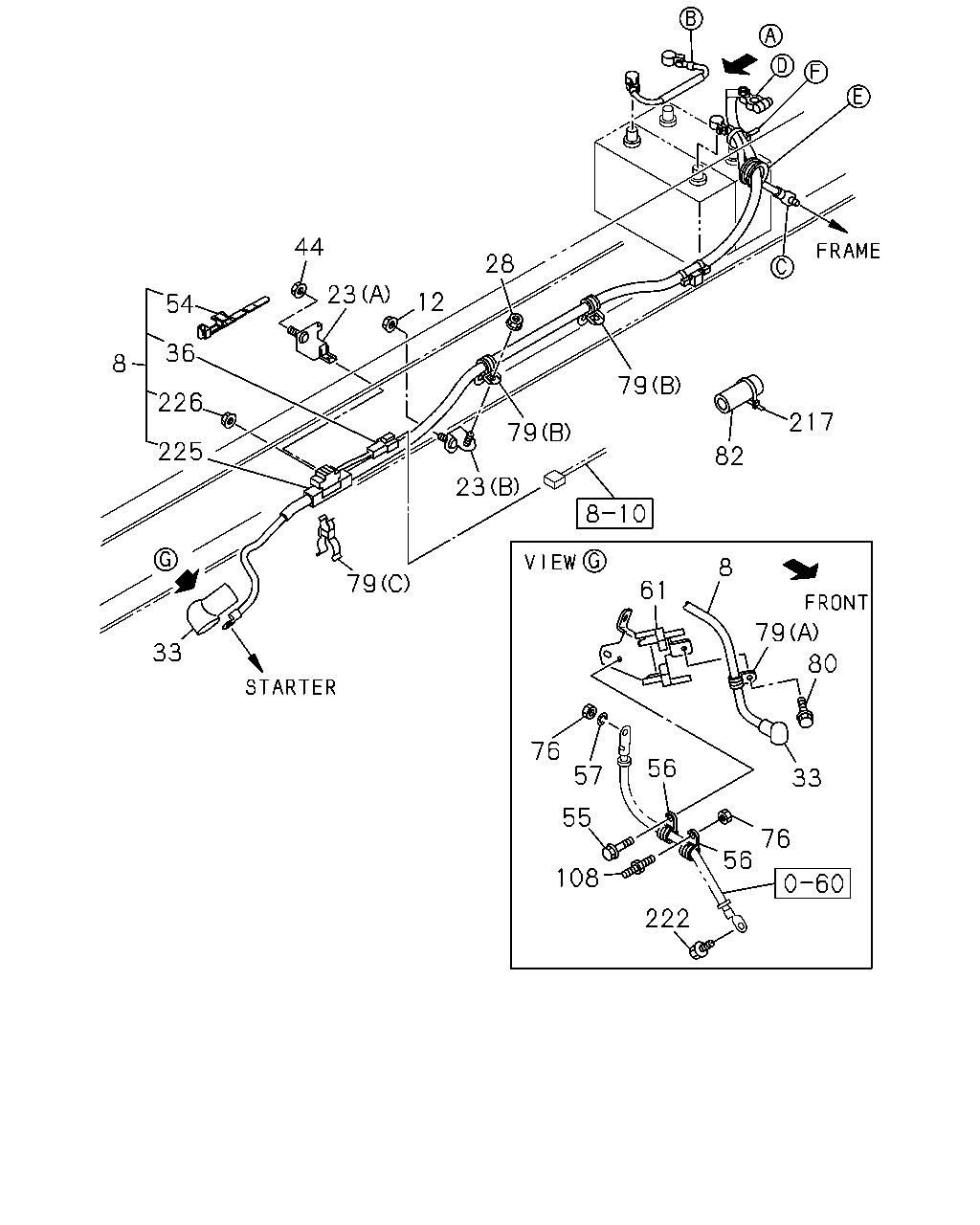

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#58654) — 69 parça

44 28 23 12 54 36 8 79 226 217 79 225 82 23 8 79 61 79 33 80 76 56 57 33 55 76 56 108 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2085	8-98114-532-1	01	1	0809-1004
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2085	8-98159-379-0	01	1	1005-1011
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2085	8-98159-379-0	01	1	1012-1502
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98295-476-0	01	1	1503-
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1840	8-98114-531-1	01	1	0809-1004
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1840	8-98159-378-0	01	1	1005-1011
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1840	8-98159-378-0	01	1	1012-1502
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98295-475-0	01	1	1503-
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1770	8-98156-652-0	01	1	1012-1502
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1770	8-98295-450-1	01	1	1503-
8	CABLE; BATTERY,STARTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BATTERY 115E41L<8MA> L=2010	8-98156-653-0	01	1	1012-1502
8	CABLE; BATTERY,STARTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BATTERY 115E41L<8MA> L=2010	8-98295-451-1	01	1	1503-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98051-381-2	02	1	0809-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98092-593-0	01	1	0809-1011
23	BRACKET; CABLE CLIP TO FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98092-593-0	01	1	1012-
23	BRACKET; CABLE CLIP TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98147-440-0	01	1	1012-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0809-
33	CAP; INSULATOR	1-82699-431-0	01	1	0809-
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	0809-1502
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1503-
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-
54	CLIP; BAND,BATTERY CABLE L=175	1-09707-176-1	01	1	0809-1004
55	BOLT; CLIP,BATTERY CABLE EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	01	1	1012-
55	BOLT; CLIP,BATTERY CABLE EURO3 SPECIFICATION<NT3> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	01	1	1012-
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	02	1	0809-1011
56	CLIP; BATTERY CABLE EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=16 L=28	1-09700-872-0	02	1	1012-
56	CLIP; BATTERY CABLE EURO2 SPECIFICATION<NT2> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=16 L=28	1-09700-872-0	01	1	1012-
56	CLIP; BATTERY CABLE EURO3 SPECIFICATION<NT3> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=16 L=28	1-09700-872-0	01	1	1012-
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	0809-
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	0809-
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	01	1	0809-1011
76	NUT; BATTERY CABLE EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	01	1	1012-
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	0809-
79	CLIP; BATTERY CABLE (A) ID=16 L=28	1-09700-872-0	01	1	0809-1004
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1005-
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	02	1	0809-
79	CLIP; BATTERY CABLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=21 & 9.8	8-97309-945-0	01	1	1012-
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0809-
82	PROTECTOR; HEAT,BATTERY CABLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6 OD=10 L=70	1-09376-512-0	01	1	1012-
108	STUD; EARTH BATTERY CABLE M8X15 M8X17 L=40	8-97366-633-0	01	1	0809-1011
108	STUD; EARTH BATTERY CABLE EURO2 SPECIFICATION<NT2> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X15 M8X17 L=40	8-97366-633-0	01	1	1012-
217	CLIP; BAND,CABLE L=250	5-09707-030-1	01	1	0809-
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0809-
225	BLOCK; TERMINAL	8-98029-689-0	01	1	0809-1502
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1503-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	0809-1502
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1503-

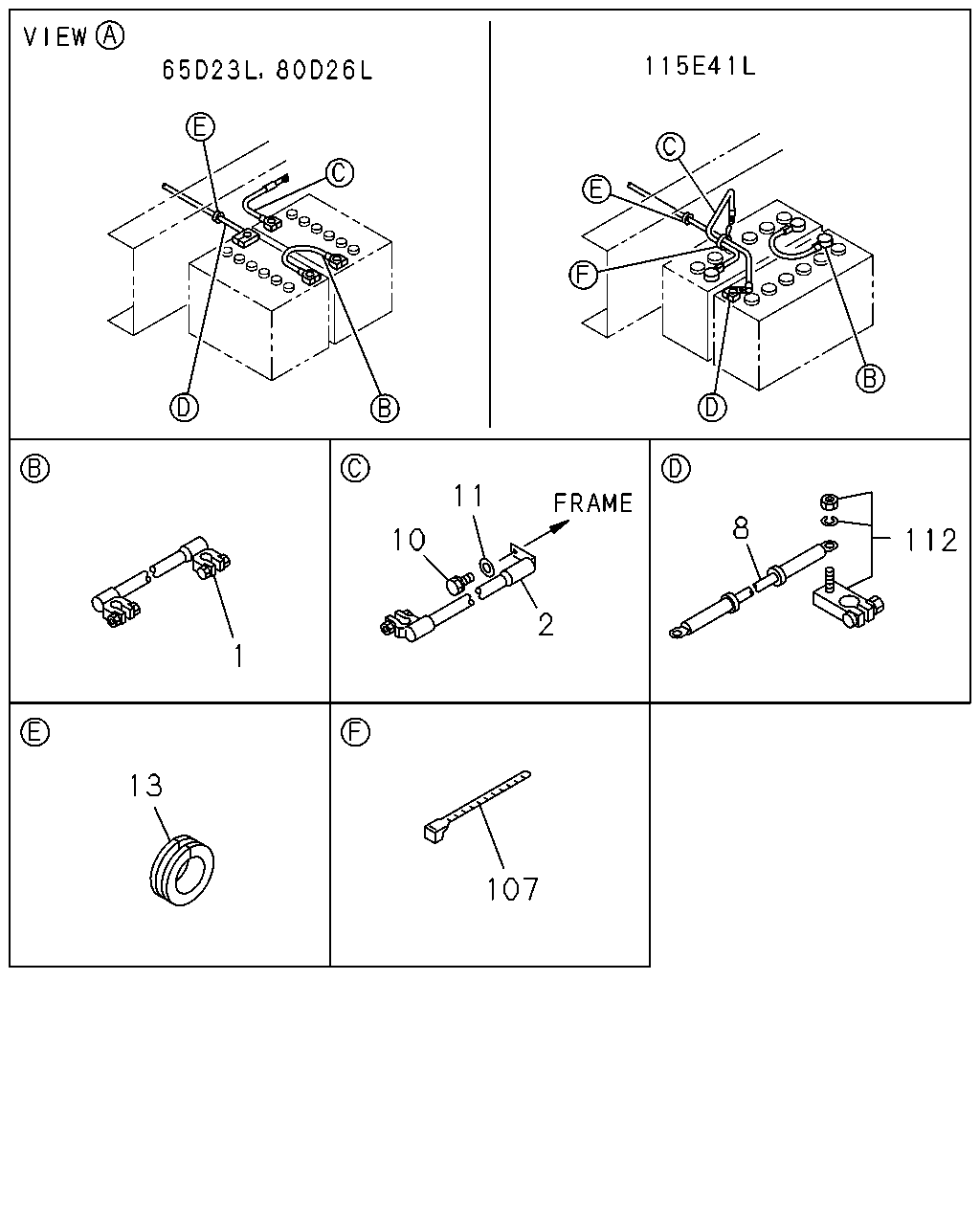

11 10 2 107 8 112 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	0809-
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=400	8-97619-733-1	01	1	0809-
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=250	8-97619-729-2	01	1	0809-
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2085	8-98114-532-1	01	1	0809-1004
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> L=2085	8-98159-379-0	01	1	1005-1011
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2085	8-98159-379-0	01	1	1012-1502
8	CABLE; BATTERY,STARTER BATTERY 115E41L<8MA> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98295-476-0	01	1	1503-
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1840	8-98114-531-1	01	1	0809-1004
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1840	8-98159-378-0	01	1	1005-1011
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1840	8-98159-378-0	01	1	1012-1502
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98295-475-0	01	1	1503-
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1770	8-98156-652-0	01	1	1012-1502
8	CABLE; BATTERY,STARTER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1770	8-98295-450-1	01	1	1503-
8	CABLE; BATTERY,STARTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BATTERY 115E41L<8MA> L=2010	8-98156-653-0	01	1	1012-1502
8	CABLE; BATTERY,STARTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> BATTERY 115E41L<8MA> L=2010	8-98295-451-1	01	1	1503-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0809-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0809-
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-
107	CLIP; BAND L=140	5-09707-031-1	01	1	0809-
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	0809-1408
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1409-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
