Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#5865) — 262 parça

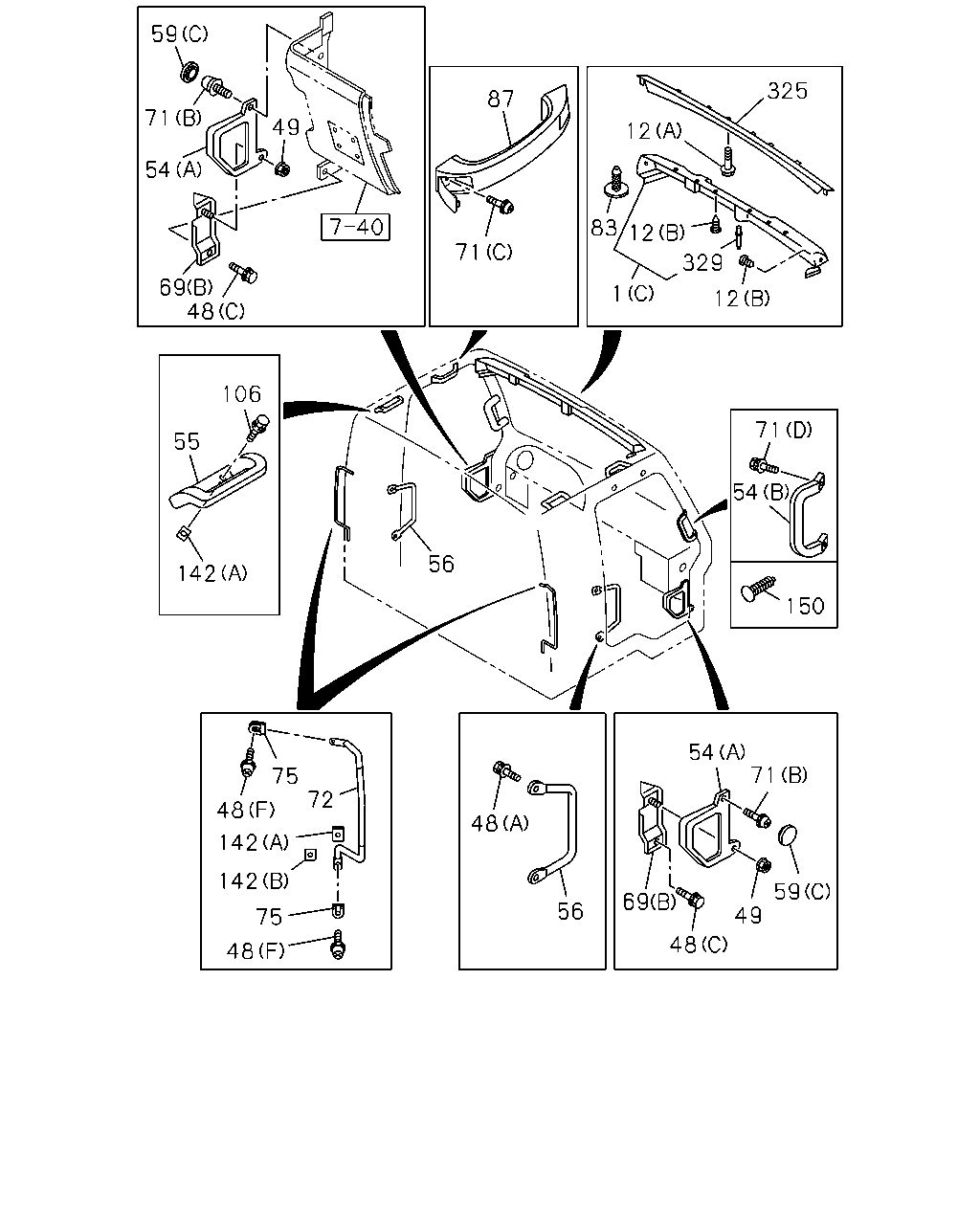

59 325 87 71 49 12 54 83 12 71 329 69 48 1 12 106 71 55 54 56 142 150 54 71 75 72 48 48 142 142 59 56 49 75 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-657-2	01	1	9603-	●
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72447-718-0	01	1	9905-0011	●
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72447-718-0	01	1	0012-	●
1	BOARD; HEADER SHELF (A)	1-72448-578-3	01	1	9603-9704	●	●
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9603-9704	●	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9705-9904	●	●
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-597-2	01	1	9905-0011	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9905-0011		●
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-597-2	01	1	0012-	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	0012-		●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9705-9904	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9905-0011	●
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-596-2	01	1	9905-0011		●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	0012-	●
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-596-2	01	1	0012-		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	9905-	●	●
1	BOARD; HEADER SHELF (B)	1-72447-700-0	01	1	9603-		●
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72448-556-3	01	1	9905-0011		●
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72448-556-3	01	1	0012-		●
12	SCREW; HEADER SHELF (A) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9603-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	9905-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9603-	●
48	BOLT; ASSIST GRIP (E) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9603-9603	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-9904	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9905-	●
48	BOLT; ASSIST GRIP 10PE1S(60L) GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9603-9709	●
48	BOLT; ASSIST GRIP 6WA1 TC-S(56L) GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9603-9709		●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9710-0002	●	●
48	BOLT; ASSIST GRIP V TYPE ENG<91L> GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0003-	●
48	BOLT; ASSIST GRIP L TYPE ENG<90L> GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0003-		●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9603-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9603-9607	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9603-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-		●
48	BOLT; ASSIST GRIP (E) M6X40 LK&PL WASHER	8-94279-215-0	02	1	9603-9603		●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9604-9904		●
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9905-		●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	9603-	●
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	9701-	●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	9603-		●
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) (B)	1-73618-158-2	01	1	9712-9904	●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9905-	●	●
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9905-	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-067-0	01	1	9603-	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-066-0	01	1	9603-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-0	02	1	9603-	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9603-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	9603-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	9603-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9603-	●	●
69	BRACKET; ASSIST GRIP (B)	1-73618-178-2	01	1	9603-	●	●
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	0010-	●	●
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	0010-	●	●
69	BRACKET; ASSIST GRIP (B)	1-73618-181-1	01	1	9603-		●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9603-	●
71	SCREW CHEAPER CAB(WY1) (A) M5X14	8-94279-325-0	03	1	9905-0011	●
71	SCREW EXC. SUN VISOR PASSENGER<D20> (A) M5X14	8-94279-325-0	03	1	0012-	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) (D) M6X20 W/LK&PL WASHER	1-09981-509-0	02	1	9712-9904	●
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-	●	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-	●
71	SCREW (C) M6X37 W/PL WASHER	1-09981-423-0	04	1	9603-9702	●	●
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9603-9904	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-0011	●	●
71	SCREW EXC. CHEAPER CAB(WY1) (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-0011	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-	●	●
71	SCREW SUN VISOR PASSENGER<D20> (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9603-		●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-288-2	01	1	9603-9612	●
72	GRIP; ASSIST,CAB ENTRY,BACK 10PE1S(60L) GRIP OUT SIDE<W52>	1-71907-288-2	01	1	9701-9702	●
72	GRIP; ASSIST,CAB ENTRY,BACK 10PE1S(60L) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-288-2	01	1	9703-9703	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-288-2	01	1	9704-9711	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-540-0	01	1	9712-	●
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-S(56L) GRIP OUT SIDE<W52>	1-71907-494-0	01	1	9701-9702	●
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-S(56L) PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-494-0	01	1	9703-9703	●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-494-0	01	1	9704-9711	●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	9712-	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-400-0	01	1	9603-9612		●
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-S(56L) GRIP OUT SIDE<W52>	1-71907-400-0	01	1	9701-9702		●
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-S(56L) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-400-0	01	1	9703-9703		●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-400-0	01	1	9704-9711		●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-543-0	01	1	9712-		●
72	GRIP; ASSIST,CAB ENTRY,BACK 10PE1S(60L) GRIP OUT SIDE<W52>	1-71907-495-0	01	1	9701-9702		●
72	GRIP; ASSIST,CAB ENTRY,BACK 10PE1S(60L) PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-495-0	01	1	9703-9703		●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-495-0	01	1	9704-9711		●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-545-0	01	1	9712-		●
75	SHEET; ASSIST GRIP,CAB ENTRY V TYPE ENG<91L> GRIP OUT SIDE<W52>	1-71997-548-0	02	1	0003-	●
75	SHEET; ASSIST GRIP,CAB ENTRY L TYPE ENG<90L> GRIP OUT SIDE<W52>	1-71997-548-0	02	1	0003-		●
75	SHEET; ASSIST GRIP,CAB ENTRY 10PE1S(60L) GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9603-9709	●
75	SHEET; ASSIST GRIP,CAB ENTRY 6WA1 TC-S(56L) GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9603-9709		●
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9710-0002	●	●
75	SHEET; ASSIST GRIP,CAB ENTRY L TYPE ENG<90L> GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0003-	●
75	SHEET; ASSIST GRIP,CAB ENTRY V TYPE ENG<91L> GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0003-		●
83	PLUG HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	05	1	0002-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	02	1	9603-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9603-	●	●
142	SEAL; ASSIST GRIP V TYPE ENG<91L> GRIP OUT SIDE<W52> (B)	1-71997-691-1	01	1	0003-	●
142	SEAL; ASSIST GRIP L TYPE ENG<90L> GRIP OUT SIDE<W52> (B)	1-71997-691-1	01	1	0003-		●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	9603-0002	●	●
142	SEAL; ASSIST GRIP L TYPE ENG<90L> GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0003-	●
142	SEAL; ASSIST GRIP V TYPE ENG<91L> GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0003-		●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB ENTRY BACK 25X25	8-94272-533-0	03	1	9603-9709	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB SIDE UPPER 25X25	8-94272-533-0	04	1	9603-9709	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB ENTRY BACK 25X25	8-94272-533-0	07	1	9710-9904	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB ENTRY BACK 25X25	8-94272-533-0	03	1	9905-0002	●	●
142	SEAL; ASSIST GRIP V TYPE ENG<91L> GRIP OUT SIDE<W52> (A) CAB ENTRY BACK 25X25	8-94272-533-0	02	1	0003-	●
142	SEAL; ASSIST GRIP L TYPE ENG<90L> GRIP OUT SIDE<W52> (A) CAB ENTRY BACK 25X25	8-94272-533-0	02	1	0003-		●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB SIDE UPPER 25X25	8-94272-533-0	04	1	9905-	●	●
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	9909-		●
150	CLIP; ASSIST GRIP HOLE EXC. NEW ZEALAND EQUIPMENT(PK5) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9712-0009	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9712-0009		●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9603-9711	●	●
150	CLIP; ASSIST GRIP HOLE NEW ZEALAND EQUIPMENT(PK5) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9712-0009	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,NEW ZEALAND EQUIPMENT(PK5) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	0010-	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	0010-		●
325	RAIL ASM HIGH ROOF<S2F>	1-72447-636-4	01	1	9905-	●	●
329	RIVET HIGH ROOF<S2F>	1-09987-128-0	09	1	9905-	●	●

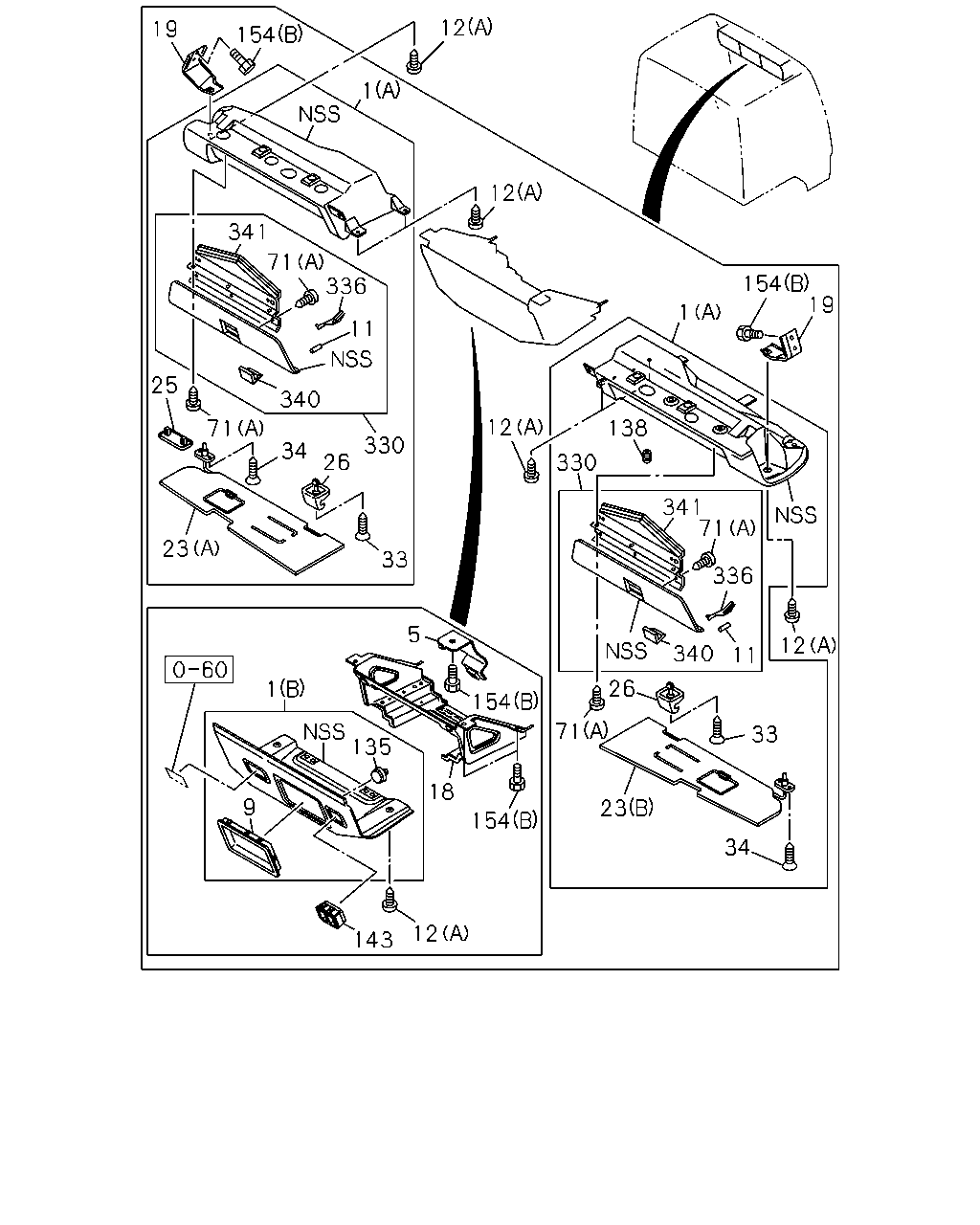

12 19 154 1 12 341 71 336 154 19 1 11 25 340 12 138 71 330 34 26 330 341 71 23 33 336 5 12 340 11 26 1 154 71 135 33 18 9 23 154 34 12 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-657-2	01	1	9603-	●
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72447-718-0	01	1	9905-0011	●
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72447-718-0	01	1	0012-	●
1	BOARD; HEADER SHELF (A)	1-72448-578-3	01	1	9603-9704	●	●
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9603-9704	●	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9705-9904	●	●
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-597-2	01	1	9905-0011	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9905-0011		●
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-597-2	01	1	0012-	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	0012-		●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9705-9904	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9905-0011	●
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-596-2	01	1	9905-0011		●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	0012-	●
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-596-2	01	1	0012-		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	9905-	●	●
1	BOARD; HEADER SHELF (B)	1-72447-700-0	01	1	9603-		●
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72448-556-3	01	1	9905-0011		●
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72448-556-3	01	1	0012-		●
5	BRACKET; HEADER SHELF FRAME	1-72447-677-2	01	1	9603-9904	●	●
5	BRACKET; HEADER SHELF FRAME EXC. HIGH ROOF<S2F>	1-72447-677-2	01	1	9905-	●	●
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-679-2	01	1	9905-	●	●
9	COVER; HOLE,HEADER SHELF CENTER	1-72447-663-2	01	1	9603-	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9603-9904	●	●
11	CAP; HEADER SHELF	8-94270-538-0	02	1	9905-	●	●
12	SCREW; HEADER SHELF (A) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9603-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	9905-	●	●
18	SUPPORT; HEADER SHELF CENTER	1-72447-702-2	01	1	9603-9604	●	●
18	SUPPORT; HEADER SHELF CENTER	1-72447-739-0	01	1	9605-	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9603-	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9603-	●	●
23	SUN VISOR (A)	1-73138-150-1	01	1	9603-9904	●	●
23	SUN VISOR EXC. CHEAPER CAB(WY1) (A)	1-73138-150-1	01	1	9905-0011	●
23	SUN VISOR (A)	1-73138-150-1	01	1	9905-0011		●
23	SUN VISOR SUN VISOR PASSENGER<D20> (A)	1-73138-150-1	01	1	0012-	●
23	SUN VISOR (A)	1-73138-150-1	01	1	0012-		●
23	SUN VISOR (B)	1-73138-148-1	01	1	9603-9904	●	●
23	SUN VISOR (B)	1-73138-148-1	01	1	9905-0011	●
23	SUN VISOR EXC. CHEAPER CAB(WY1) (B)	1-73138-148-1	01	1	9905-0011		●
23	SUN VISOR (B)	1-73138-148-1	01	1	0012-	●
23	SUN VISOR SUN VISOR PASSENGER<D20> (B)	1-73138-148-1	01	1	0012-		●
25	COVER; HOLE,SUN VISOR CHEAPER CAB(WY1)	1-73318-614-0	01	1	9905-0011	●	●
25	COVER; HOLE,SUN VISOR EXC. SUN VISOR PASSENGER<D20>	1-73318-614-0	01	1	0012-	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9603-9904	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	9905-0011	●	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(WY1)	1-73138-142-0	01	1	9905-0011	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	0012-	●	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-142-0	01	1	0012-	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9603-9904	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9905-0011	●	●
33	SCREW; HOLDER,SUN VISOR EXC. CHEAPER CAB(WY1) M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9905-0011	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-	●	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9603-9904	●	●
34	SCREW; SUN VISOR EXC. CHEAPER CAB(WY1) M6X25	1-09981-441-0	04	1	9905-0011	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	04	1	0012-	●	●
34	SCREW; SUN VISOR CHEAPER CAB(WY1) M6X25	1-09981-441-0	02	1	9905-0011	●	●
34	SCREW; SUN VISOR EXC. SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	0012-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9603-	●
71	SCREW CHEAPER CAB(WY1) (A) M5X14	8-94279-325-0	03	1	9905-0011	●
71	SCREW EXC. SUN VISOR PASSENGER<D20> (A) M5X14	8-94279-325-0	03	1	0012-	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) (D) M6X20 W/LK&PL WASHER	1-09981-509-0	02	1	9712-9904	●
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-	●	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-	●
71	SCREW (C) M6X37 W/PL WASHER	1-09981-423-0	04	1	9603-9702	●	●
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9603-9904	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-0011	●	●
71	SCREW EXC. CHEAPER CAB(WY1) (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-0011	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-	●	●
71	SCREW SUN VISOR PASSENGER<D20> (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9603-		●
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	04	1	9603-9705	●
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	04	1	9706-	●	●
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	05	1	9603-9705		●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9603-9904	●	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	9905-0011	●	●
138	NUT; BRKT,HEADER SHELF EXC. CHEAPER CAB(WY1)	1-09984-166-0	02	1	9905-0011	●	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	0012-	●	●
138	NUT; BRKT,HEADER SHELF SUN VISOR PASSENGER<D20>	1-09984-166-0	02	1	0012-	●	●
143	BEZEL	1-72448-411-0	01	1	9603-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9603-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9603-9904	●	●
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9603-9904	●	●
330	LID; HEADER SHELF	1-72448-360-3	02	1	9603-9904	●	●
330	LID; HEADER SHELF	1-72448-360-3	01	1	9905-	●	●
336	STAY; LID	1-72448-379-3	04	1	9603-9904	●	●
336	STAY; LID	1-72448-379-3	02	1	9905-	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9603-9904	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	9905-	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9603-9904	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	01	1	9905-	●	●

64 64 62 48 48 154 142 66 103 48 68 69 59 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9603-	●
48	BOLT; ASSIST GRIP (E) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9603-9603	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-9904	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9905-	●
48	BOLT; ASSIST GRIP 10PE1S(60L) GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9603-9709	●
48	BOLT; ASSIST GRIP 6WA1 TC-S(56L) GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9603-9709		●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9710-0002	●	●
48	BOLT; ASSIST GRIP V TYPE ENG<91L> GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0003-	●
48	BOLT; ASSIST GRIP L TYPE ENG<90L> GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0003-		●
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9603-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9603-9607	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9603-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-		●
48	BOLT; ASSIST GRIP (E) M6X40 LK&PL WASHER	8-94279-215-0	02	1	9603-9603		●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9604-9904		●
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9905-		●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	9603-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	9603-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9603-	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71997-895-1	02	1	9603-9610	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	9611-	●
62	GRIP; ASSIST,ROOF PANEL	1-71997-895-1	01	1	9603-9610		●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	01	1	9611-9904		●
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	01	1	9905-		●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9603-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9603-	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9603-0009	●	●
69	BRACKET; ASSIST GRIP (B)	1-73618-178-2	01	1	9603-	●	●
69	BRACKET; ASSIST GRIP (A)	1-65570-243-0	01	1	0010-	●	●
69	BRACKET; ASSIST GRIP (A)	1-65570-242-0	01	1	0010-	●	●
69	BRACKET; ASSIST GRIP (B)	1-73618-181-1	01	1	9603-		●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	9603-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	9603-	●	●
142	SEAL; ASSIST GRIP V TYPE ENG<91L> GRIP OUT SIDE<W52> (B)	1-71997-691-1	01	1	0003-	●
142	SEAL; ASSIST GRIP L TYPE ENG<90L> GRIP OUT SIDE<W52> (B)	1-71997-691-1	01	1	0003-		●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	9603-0002	●	●
142	SEAL; ASSIST GRIP L TYPE ENG<90L> GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0003-	●
142	SEAL; ASSIST GRIP V TYPE ENG<91L> GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0003-		●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB ENTRY BACK 25X25	8-94272-533-0	03	1	9603-9709	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB SIDE UPPER 25X25	8-94272-533-0	04	1	9603-9709	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB ENTRY BACK 25X25	8-94272-533-0	07	1	9710-9904	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB ENTRY BACK 25X25	8-94272-533-0	03	1	9905-0002	●	●
142	SEAL; ASSIST GRIP V TYPE ENG<91L> GRIP OUT SIDE<W52> (A) CAB ENTRY BACK 25X25	8-94272-533-0	02	1	0003-	●
142	SEAL; ASSIST GRIP L TYPE ENG<90L> GRIP OUT SIDE<W52> (A) CAB ENTRY BACK 25X25	8-94272-533-0	02	1	0003-		●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB SIDE UPPER 25X25	8-94272-533-0	04	1	9905-	●	●
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	9909-		●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9603-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9603-9904	●	●
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9603-9904	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
