Isuzu WW
▶
TRUCKS
▶
FSR
▶
11417 - FSR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

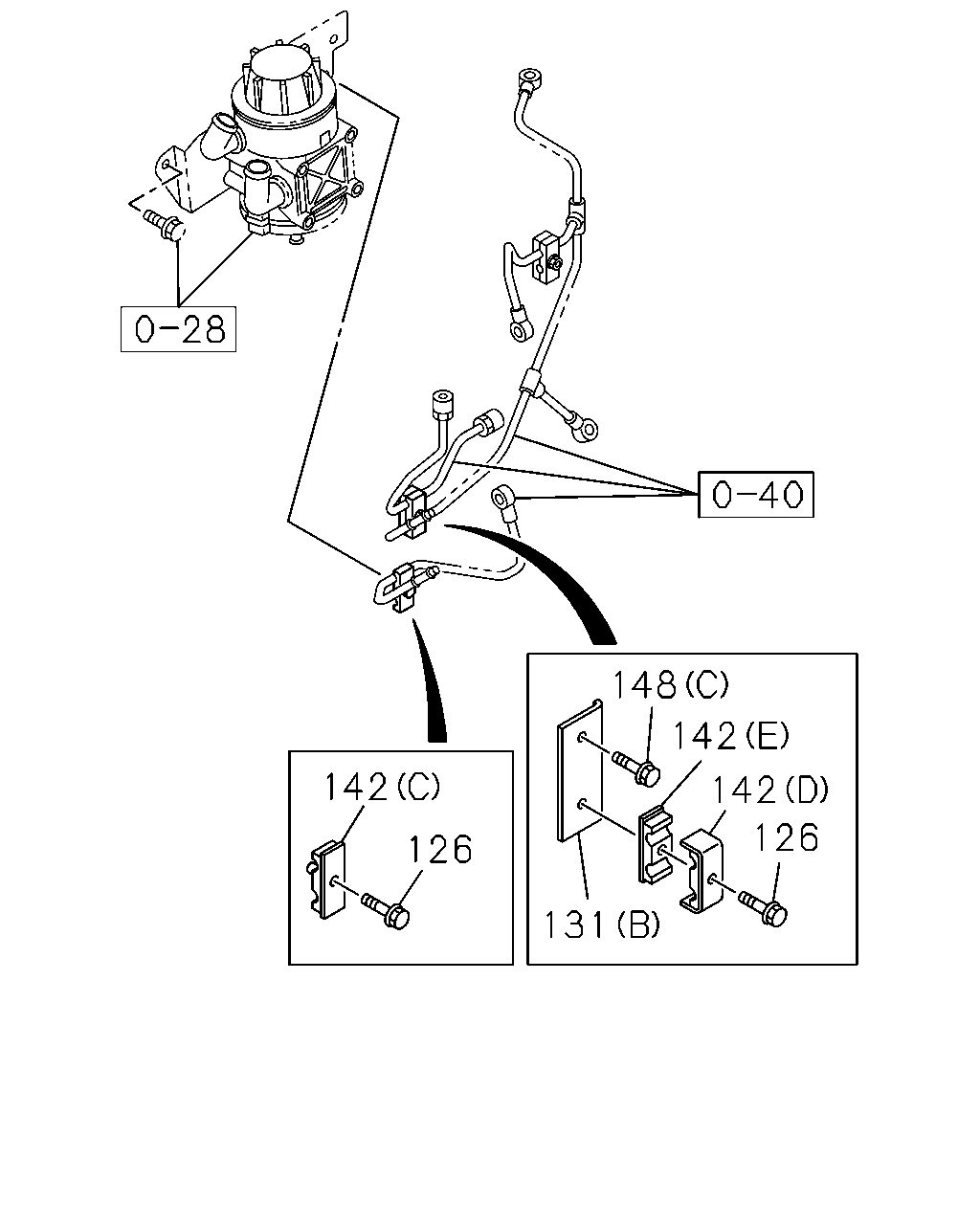

0-42 — FUEL PUMP AND PIPE
(#58648) — 38 parça
◀
[042A] EURO2 (19 parça)
[042A] EURO3 (19 parça)
▶
142
142
131
126
148
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
01
1
0809-1011
126
BOLT; CLIP,FUEL PIPE
EURO2 SPECIFICATION<NT2> M6X35 FLANGE
0-28650-635-0
01
1
1012-
126
BOLT; CLIP,FUEL PIPE
EURO3 SPECIFICATION<NT3> M10X25 FLANGE
0-28151-025-0
01
1
1012-
126
BOLT; CLIP,FUEL PIPE
EURO3 SPECIFICATION<NT3> M6X35 FLANGE
0-28650-635-0
02
1
1012-
131
BRACKET; FUEL PIPE CLIP
(A)
8-98059-806-0
01
1
0809-1011
131
BRACKET; FUEL PIPE CLIP
EURO2 SPECIFICATION<NT2> (A)
8-98059-806-0
01
1
1012-
131
BRACKET; FUEL PIPE CLIP
EURO3 SPECIFICATION<NT3> (B)
1-15419-391-1
01
1
1012-
142
CLIP; FUEL PIPE
(B) ID=9 & 9 L=25
1-09701-180-0
01
1
0809-1011
142
CLIP; FUEL PIPE
EURO2 SPECIFICATION<NT2> (B) ID=9 & 9 L=25
1-09701-180-0
01
1
1012-
142
CLIP; FUEL PIPE
(A) ID=9 & 9 L=25
8-94393-280-3
01
1
0809-1011
142
CLIP; FUEL PIPE
EURO2 SPECIFICATION<NT2> (A) ID=9 & 9 L=25
8-94393-280-3
01
1
1012-
142
CLIP; FUEL PIPE
EURO3 SPECIFICATION<NT3> (C) L=48
5-09709-103-0
01
1
1012-
142
CLIP; FUEL PIPE
EURO3 SPECIFICATION<NT3> (D) ID=7 & 9 L=25
8-98000-010-2
01
1
1012-
142
CLIP; FUEL PIPE
EURO3 SPECIFICATION<NT3> (E) ID=7 & 9 L=25
8-98000-011-2
01
1
1012-
148
BOLT; BRKT
(B) M10X16 FLANGE
0-28151-016-0
01
1
0809-1011
148
BOLT; BRKT
EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE
0-28151-016-0
01
1
1012-
148
BOLT; BRKT
(A) M10X25 FLANGE
0-28151-025-0
01
1
0809-1011
148
BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X25 FLANGE
0-28151-025-0
01
1
1012-
148
BOLT; BRKT
EURO3 SPECIFICATION<NT3> (C) M8X12 FLANGE
0-28050-812-0
01
1
1012-
148
142
142
142
126
126
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28650-635-0
01
1
0809-1011
126
BOLT; CLIP,FUEL PIPE
EURO2 SPECIFICATION<NT2> M6X35 FLANGE
0-28650-635-0
01
1
1012-
126
BOLT; CLIP,FUEL PIPE
EURO3 SPECIFICATION<NT3> M10X25 FLANGE
0-28151-025-0
01
1
1012-
126
BOLT; CLIP,FUEL PIPE
EURO3 SPECIFICATION<NT3> M6X35 FLANGE
0-28650-635-0
02
1
1012-
131
BRACKET; FUEL PIPE CLIP
(A)
8-98059-806-0
01
1
0809-1011
131
BRACKET; FUEL PIPE CLIP
EURO2 SPECIFICATION<NT2> (A)
8-98059-806-0
01
1
1012-
131
BRACKET; FUEL PIPE CLIP
EURO3 SPECIFICATION<NT3> (B)
1-15419-391-1
01
1
1012-
142
CLIP; FUEL PIPE
(B) ID=9 & 9 L=25
1-09701-180-0
01
1
0809-1011
142
CLIP; FUEL PIPE
EURO2 SPECIFICATION<NT2> (B) ID=9 & 9 L=25
1-09701-180-0
01
1
1012-
142
CLIP; FUEL PIPE
(A) ID=9 & 9 L=25
8-94393-280-3
01
1
0809-1011
142
CLIP; FUEL PIPE
EURO2 SPECIFICATION<NT2> (A) ID=9 & 9 L=25
8-94393-280-3
01
1
1012-
142
CLIP; FUEL PIPE
EURO3 SPECIFICATION<NT3> (C) L=48
5-09709-103-0
01
1
1012-
142
CLIP; FUEL PIPE
EURO3 SPECIFICATION<NT3> (D) ID=7 & 9 L=25
8-98000-010-2
01
1
1012-
142
CLIP; FUEL PIPE
EURO3 SPECIFICATION<NT3> (E) ID=7 & 9 L=25
8-98000-011-2
01
1
1012-
148
BOLT; BRKT
(B) M10X16 FLANGE
0-28151-016-0
01
1
0809-1011
148
BOLT; BRKT
EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE
0-28151-016-0
01
1
1012-
148
BOLT; BRKT
(A) M10X25 FLANGE
0-28151-025-0
01
1
0809-1011
148
BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X25 FLANGE
0-28151-025-0
01
1
1012-
148
BOLT; BRKT
EURO3 SPECIFICATION<NT3> (C) M8X12 FLANGE
0-28050-812-0
01
1
1012-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
