Isuzu WW
▶
TRUCKS
▶
FSR
▶
11417 - FSR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

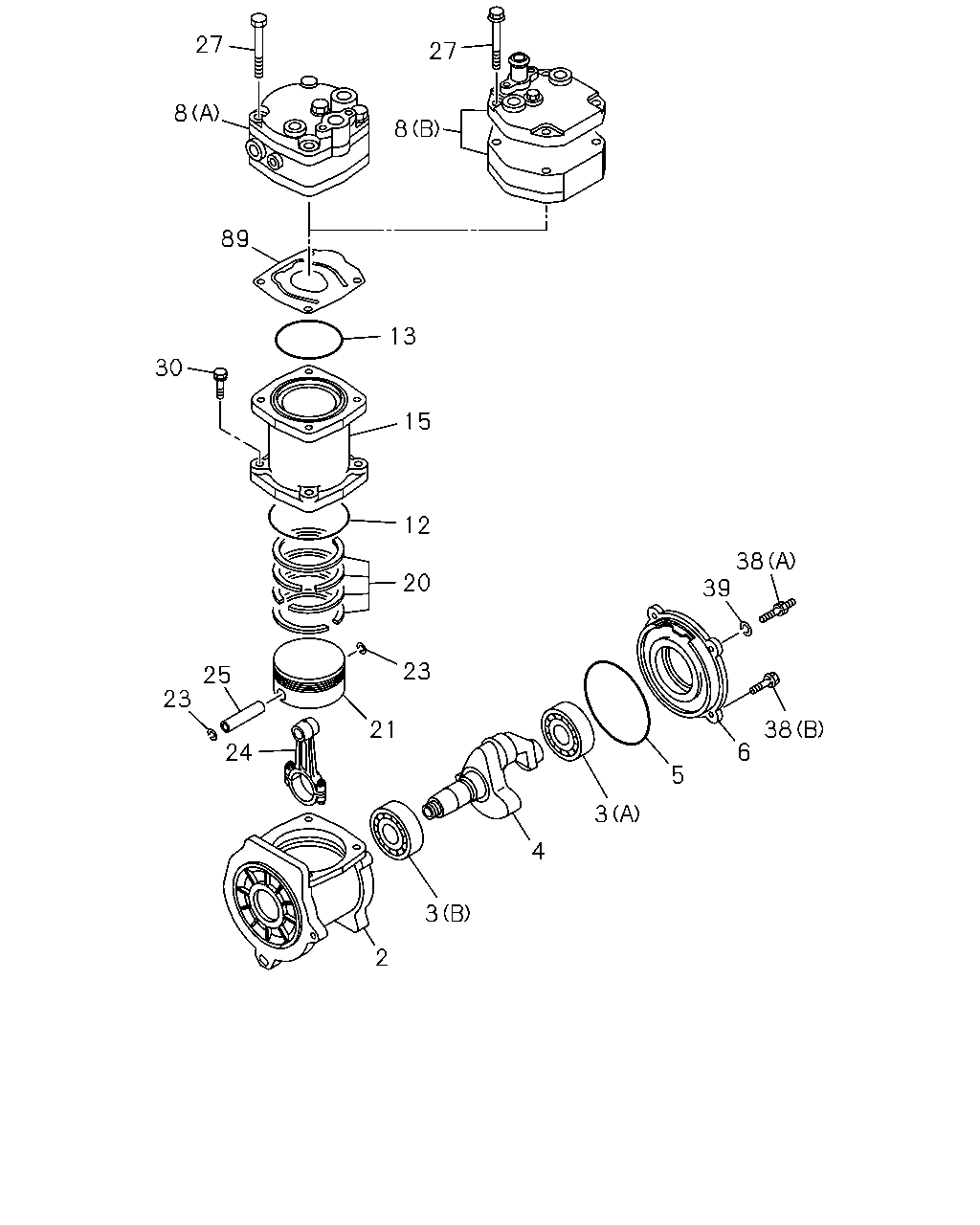

0-39 — AIR COMPRESSOR; BRAKE
(#58646) — 32 parça
27
27
8
8
89
30
13
15
12
20
23
21
24
25
23
2
3
4
3
5
6
38
38
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CRANKCASE; AIR CMPR
1-19151-274-0
01
1
0809-
3
BEARING; AIR CMPR
(A)
9-00006-206-0
01
1
0809-
3
BEARING; AIR CMPR
(B)
9-00090-152-0
01
1
0809-
4
CRANKSHAFT; AIR CMPR
1-19171-096-0
01
1
0809-
5
GASKET; AIR CMPR
1-09623-361-0
01
1
0809-1107
5
GASKET; AIR CMPR
8-98192-460-0
01
1
1108-
6
COVER ASM; BRG,AIR CMPR
1-19156-039-0
01
1
0809-
8
HEAD ASM; CYL,AIR CMPR
(A)
8-97619-779-1
01
1
0809-1011
8
HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<NT2> (A)
8-97619-779-1
01
1
1012-1012
8
HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<NT2> (A)
8-98167-014-0
01
1
1101-1101
8
HEAD ASM; CYL,AIR CMPR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)
8-98167-014-0
01
1
1102-
8
HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<NT2> (A)
8-98167-014-0
01
1
1102-
8
HEAD ASM; CYL,AIR CMPR
EURO3 SPECIFICATION<NT3> (B)
8-98038-657-2
01
1
1012-1012
8
HEAD ASM; CYL,AIR CMPR
EURO3 SPECIFICATION<NT3> (B)
8-98167-015-0
01
1
1101-1101
8
HEAD ASM; CYL,AIR CMPR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)
8-98167-015-0
01
1
1102-
12
GASKET; AIR CMPR
1-09623-539-0
01
1
0809-1107
12
GASKET; AIR CMPR
8-98185-684-0
01
1
1108-
13
GASKET; AIR CMPR
1-09623-615-0
01
1
0809-1107
13
GASKET; AIR CMPR
8-98048-640-0
01
1
1108-
15
CYLINDER; AIR CMPR
8-98038-668-0
01
1
0809-
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
0809-
21
PISTON; AIR CMPR
1-19161-027-0
01
1
0809-
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
0809-
24
ROD ASM; CONN,AIR CMPR
1-19173-010-0
01
1
0809-
25
PIN; PISTON,AIR CMPR
1-19167-003-0
01
1
0809-
27
BOLT; HD
M10X80
8-98038-666-0
04
1
0809-1012
27
BOLT; HD
M10X75
8-98167-018-0
04
1
1101-
30
BOLT; CYL TO CRANKCASE
M10X25
8-98038-763-0
04
1
0809-
38
BOLT; COVER FIX
(A)
8-97617-894-0
02
1
0809-
38
BOLT; COVER FIX
(B) M8X20
8-97617-895-0
02
1
0809-
39
WASHER; LK,COVER FIX
8-97617-893-0
02
1
0809-
89
VALVE; SUCTION
1-19119-045-0
01
1
0809-
