0-13 — OIL PAN AND LEVEL GAUGE (#58630) — 72 parça

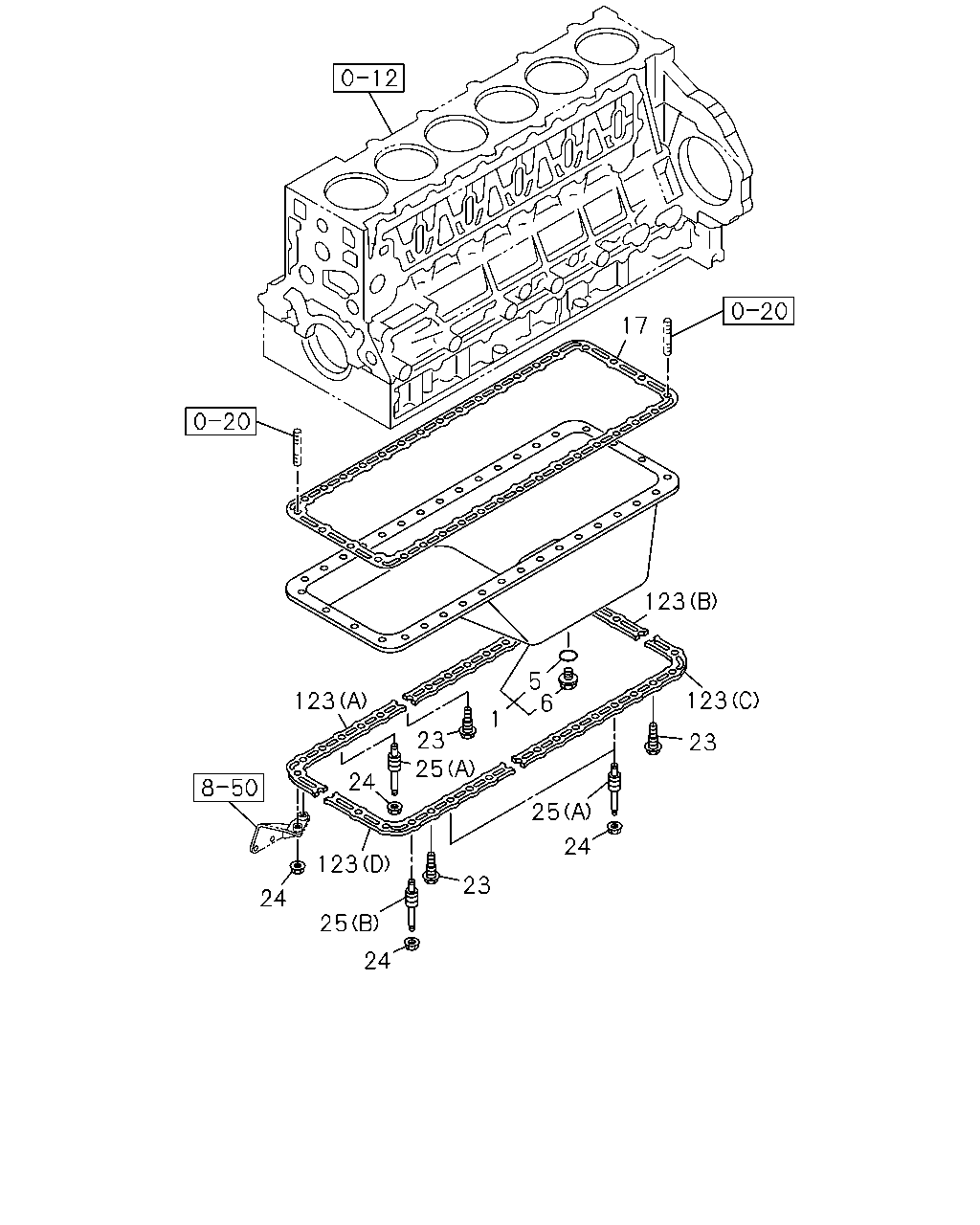

17 123 5 6 123 123 1 23 25 23 24 25 24 123 23 24 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAN ASM; OIL	8-98061-363-0	01	1	0809-1011
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2>	8-98061-363-0	01	1	1012-
1	PAN ASM; OIL EURO3 SPECIFICATION<NT3>	8-98061-543-0	01	1	1012-
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	1012-
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0809-
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-617-1	01	1	0809-
23	BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	0809-1011
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	1012-
23	BOLT; OIL PAN EURO3 SPECIFICATION<NT3> M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1012-
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	12	1	0809-1011
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	12	1	1012-
24	NUT; OIL PAN EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	14	1	1012-
25	STUD; OIL PAN (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	0809-1011
25	STUD; OIL PAN EURO2 SPECIFICATION<NT2> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	1012-
25	STUD; OIL PAN (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	01	1	0809-1011
25	STUD; OIL PAN EURO2 SPECIFICATION<NT2> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	01	1	1012-
25	STUD; OIL PAN EURO3 SPECIFICATION<NT3> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1012-
25	STUD; OIL PAN EURO3 SPECIFICATION<NT3> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1012-
123	RUBBER; SEAL OIL (A)	8-94391-755-0	01	1	0809-
123	RUBBER; SEAL OIL (B)	8-94391-757-0	01	1	0809-
123	RUBBER; SEAL OIL (C)	8-94391-758-0	01	1	0809-
123	RUBBER; SEAL OIL (D)	8-94392-548-0	01	1	0809-

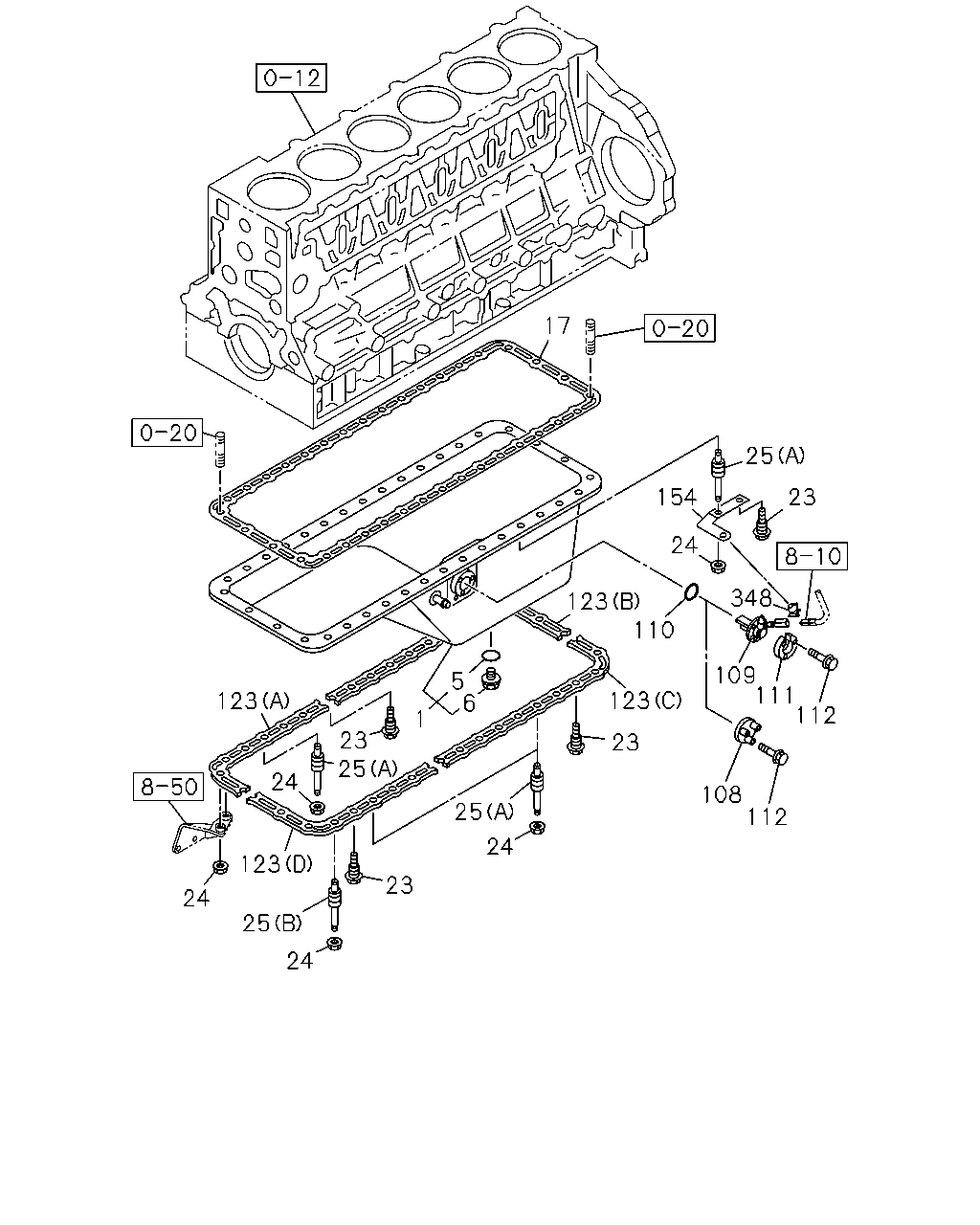

154 24 123 17 5 6 1 23 123 25 25 24 23 123 24 24 25 24 23 123 110 109 111 112 112 108 23 25 348

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAN ASM; OIL	8-98061-363-0	01	1	0809-1011
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2>	8-98061-363-0	01	1	1012-
1	PAN ASM; OIL EURO3 SPECIFICATION<NT3>	8-98061-543-0	01	1	1012-
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	1012-
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0809-
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-617-1	01	1	0809-
23	BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	0809-1011
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	1012-
23	BOLT; OIL PAN EURO3 SPECIFICATION<NT3> M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1012-
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	12	1	0809-1011
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	12	1	1012-
24	NUT; OIL PAN EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	14	1	1012-
25	STUD; OIL PAN (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	0809-1011
25	STUD; OIL PAN EURO2 SPECIFICATION<NT2> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	1012-
25	STUD; OIL PAN (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	01	1	0809-1011
25	STUD; OIL PAN EURO2 SPECIFICATION<NT2> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	01	1	1012-
25	STUD; OIL PAN EURO3 SPECIFICATION<NT3> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1012-
25	STUD; OIL PAN EURO3 SPECIFICATION<NT3> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1012-
108	COVER; OIL PAN EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97609-994-0	01	1	1102-1402
109	SWITCH; OIL LEVEL EURO3 SPECIFICATION<NT3>	8-97601-121-0	01	1	1012-1101
109	SWITCH; OIL LEVEL EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97601-121-0	01	1	1102-
110	GASKET; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> ID=27	8-98056-488-0	01	1	1012-1402
110	GASKET; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=27	8-98056-488-0	01	1	1403-
111	SPACER; SW,OIL LEVEL EURO3 SPECIFICATION<NT3>	5-11369-072-0	01	1	1012-1101
111	SPACER; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	5-11369-072-0	01	1	1102-
112	BOLT; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> M6X25 FLANGE	0-28050-625-0	03	1	1012-1402
112	BOLT; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M6X25 FLANGE	0-28050-625-0	03	1	1403-
123	RUBBER; SEAL OIL (A)	8-94391-755-0	01	1	0809-
123	RUBBER; SEAL OIL (B)	8-94391-757-0	01	1	0809-
123	RUBBER; SEAL OIL (C)	8-94391-758-0	01	1	0809-
123	RUBBER; SEAL OIL (D)	8-94392-548-0	01	1	0809-
154	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3>	8-98064-103-0	01	1	1012-1101
154	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98064-103-0	01	1	1102-
348	CONNECTOR EURO3 SPECIFICATION<NT3> OD=9 H=6	1-09709-178-0	01	1	1012-1101
348	CONNECTOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> OD=9 H=6	1-09709-178-0	01	1	1102-

10 8 49 2 193 192 193 9 9 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	GAUGE; OIL LEVEL	8-98092-125-1	01	1	0809-
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-97618-220-1	01	1	0809-1011
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97618-220-1	01	1	1012-
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO2 SPECIFICATION<NT2> (A)	8-97618-220-1	01	1	1012-
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98063-554-0	01	1	0809-
8	TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-98177-509-0	01	1	1012-
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0809-
10	BOLT; GUIDE TUBE (A) M10X35 FLANGE	0-28151-035-0	01	1	0809-
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28650-820-0	01	1	0809-
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	01	1	0809-
192	HOSE; GUIDE TUBE L=310	8-98092-068-0	01	1	0809-1011
192	HOSE; GUIDE TUBE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> L=310	8-98092-068-0	01	1	1012-
192	HOSE; GUIDE TUBE EURO2 SPECIFICATION<NT2> L=310	8-98092-068-0	01	1	1012-
192	HOSE; GUIDE TUBE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98177-980-0	01	1	1012-
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0809-
