◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#5863) — 311 parça

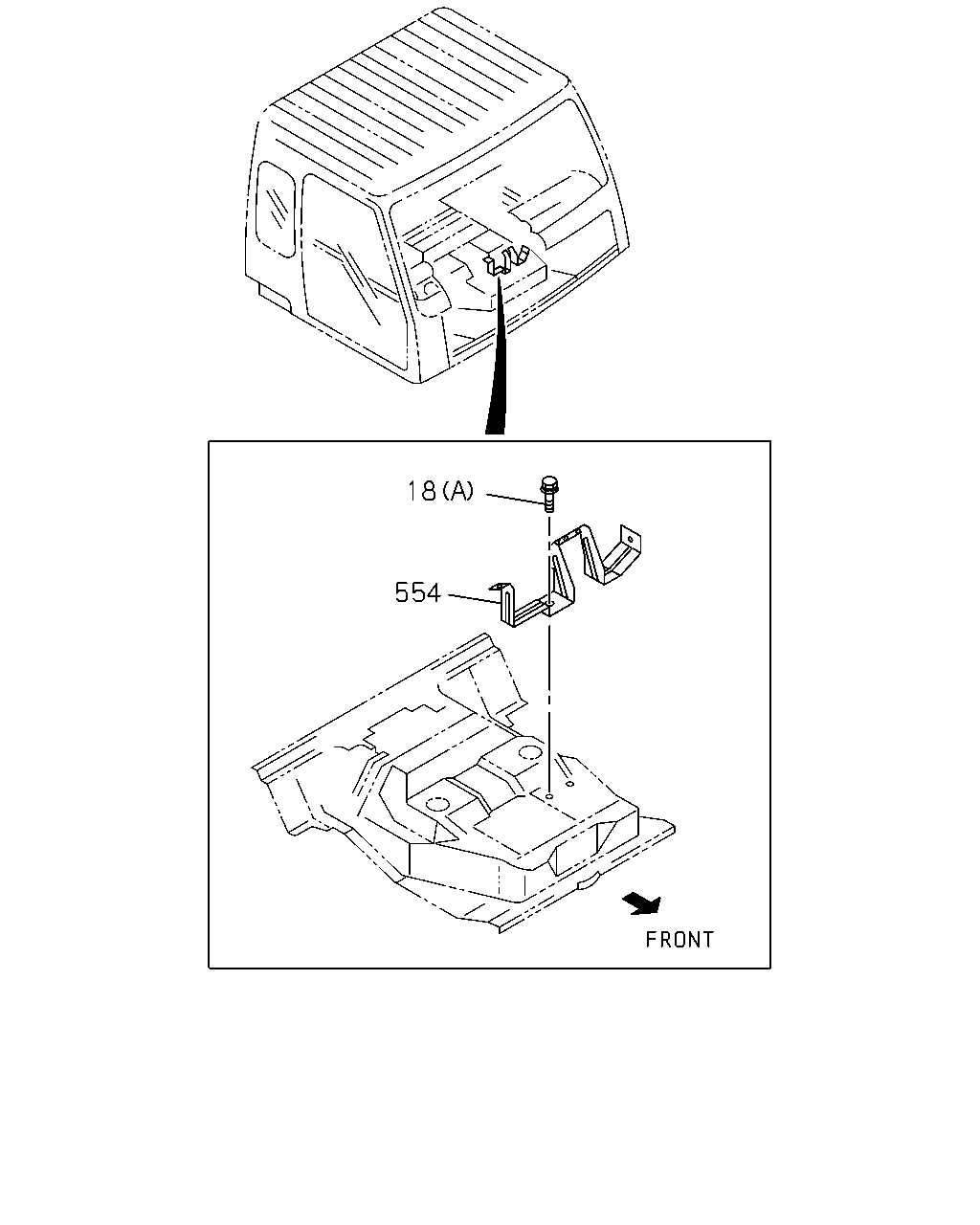

çizim 6337
18 554
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ●
18 BOLT; BRKT
DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9603- ● ●
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 9603- ●
554 BRACKET; CENTER BEZEL 1-65671-733-0 01 1 9603- ●

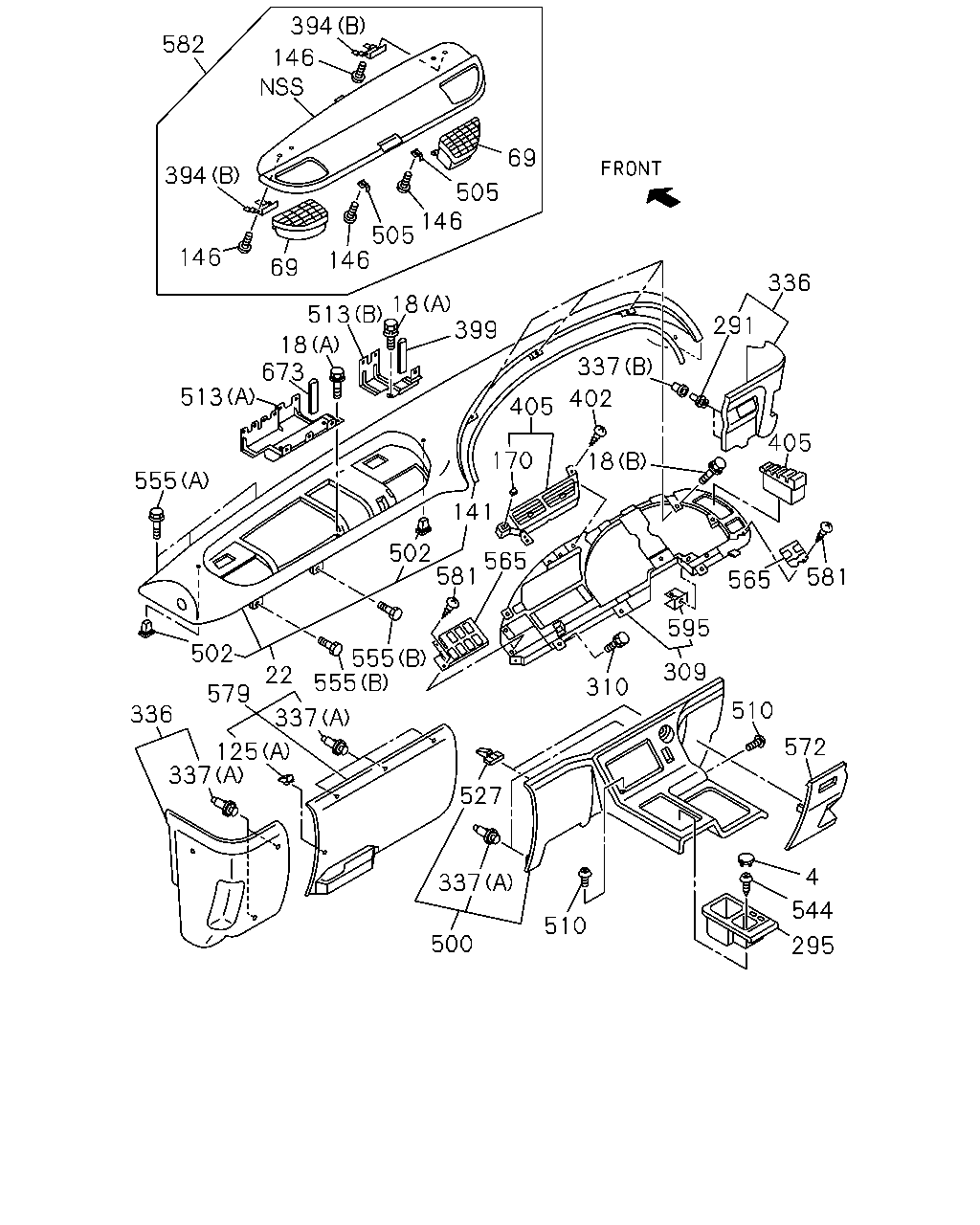

çizim 6682
394 582 146 69 394 505 146 505 146 146 69 336 18 399 513 291 18 673 337 513 402 405 405 18 170 555 141 565 581 502 581 565 595 555 555 502 309 22 310 579 510 336 337 572 125 337 527 4 337 544 510 500 295
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL 1-72537-106-0 01 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ●
18 BOLT; BRKT
DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9603- ● ●
22 PAD; INST 1-72317-344-1 01 1 9603- ●
22 PAD; INST 1-72317-337-2 01 1 9603- ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9603- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9603- ● ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9901-9901 ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 10 1 9902- ● ●
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9603-9812 ● ●
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9901-9901 ●
125 CLIP; INST PANEL
(B) 		8-97853-939-4 10 1 9603-9812 ● ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 01 1 9901- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9603- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9603- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 9603- ●
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 9603- ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 9603- ●
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 9603- ●
309 PANEL; SW,INST 1-72418-009-6 01 1 9603- ●
309 PANEL; SW,INST 1-72418-018-3 01 1 9603- ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9603- ●
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9603- ●
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9603- ●
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9603- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 9603-9606 ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 9607- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 9607- ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9603- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 9603- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9603- ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 9603- ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9603- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9603- ● ●
399 FINISHER; HARNESS
DELUXE CAB(W14) L=30 		8-94273-221-0 01 1 0006-0009 ●
399 FINISHER; HARNESS
DELUXE CAB(W14) L=50 		8-94270-377-1 01 1 0010- ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9603- ●
405 GRILLE ASM; METER VENT 1-76367-062-1 01 1 9603- ●
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 9603- ●
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 9603- ●
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 9603- ●
500 CLUSTER; INST CENTER 1-72437-590-0 01 1 9603-9606 ●
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-590-1 01 1 9607- ●
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-545-8 01 1 9607- ●
500 CLUSTER; INST CENTER
INTAKE HEATER<SL2> 		1-72437-594-1 01 1 9603- ●
500 CLUSTER; INST CENTER
EXC. INTAKE HEATER<SL2> 		1-72437-573-1 01 1 9603- ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9603- ● ●
505 LOCK; LID 1-72558-024-2 02 1 9603- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 9603- ● ●
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 9603- ●
513 BRACKET; RELAY
DELUXE CAB(W14) (B) 		1-73907-327-3 01 1 9905- ●
513 BRACKET; RELAY 1-73908-056-3 01 1 9603-9604 ●
513 BRACKET; RELAY 8-97865-168-2 01 1 9605- ●
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9603-9812 ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901- ●
527 CLIP; INST CLUSTER 8-97853-939-4 05 1 9603-9812 ●
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 9901- ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 9603- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9603- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
565 BEZEL; SW PANEL 1-72418-010-1 01 1 9603- ●
565 BEZEL; SW PANEL 1-72418-011-2 01 1 9603- ●
565 BEZEL; SW PANEL 1-72418-021-0 01 1 9603- ●
565 BEZEL; SW PANEL 1-72418-020-0 01 1 9603- ●
572 COVER; INSPECTION 1-72437-098-3 01 1 9603-9808 ●
572 COVER; INSPECTION 1-72437-633-0 01 1 9809- ●
579 COVER; INST PNL 1-72437-542-3 01 1 9603- ●
579 COVER; INST PNL 1-72438-128-1 01 1 9603- ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9603- ● ●
582 LID; FUSE & RELAY 1-72547-115-8 01 1 9603- ●
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9603- ●
595 NUT; HOOK 1-72418-013-0 11 1 9603- ●
595 NUT; HOOK 1-72418-013-0 10 1 9603- ●
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009 ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010- ● ●

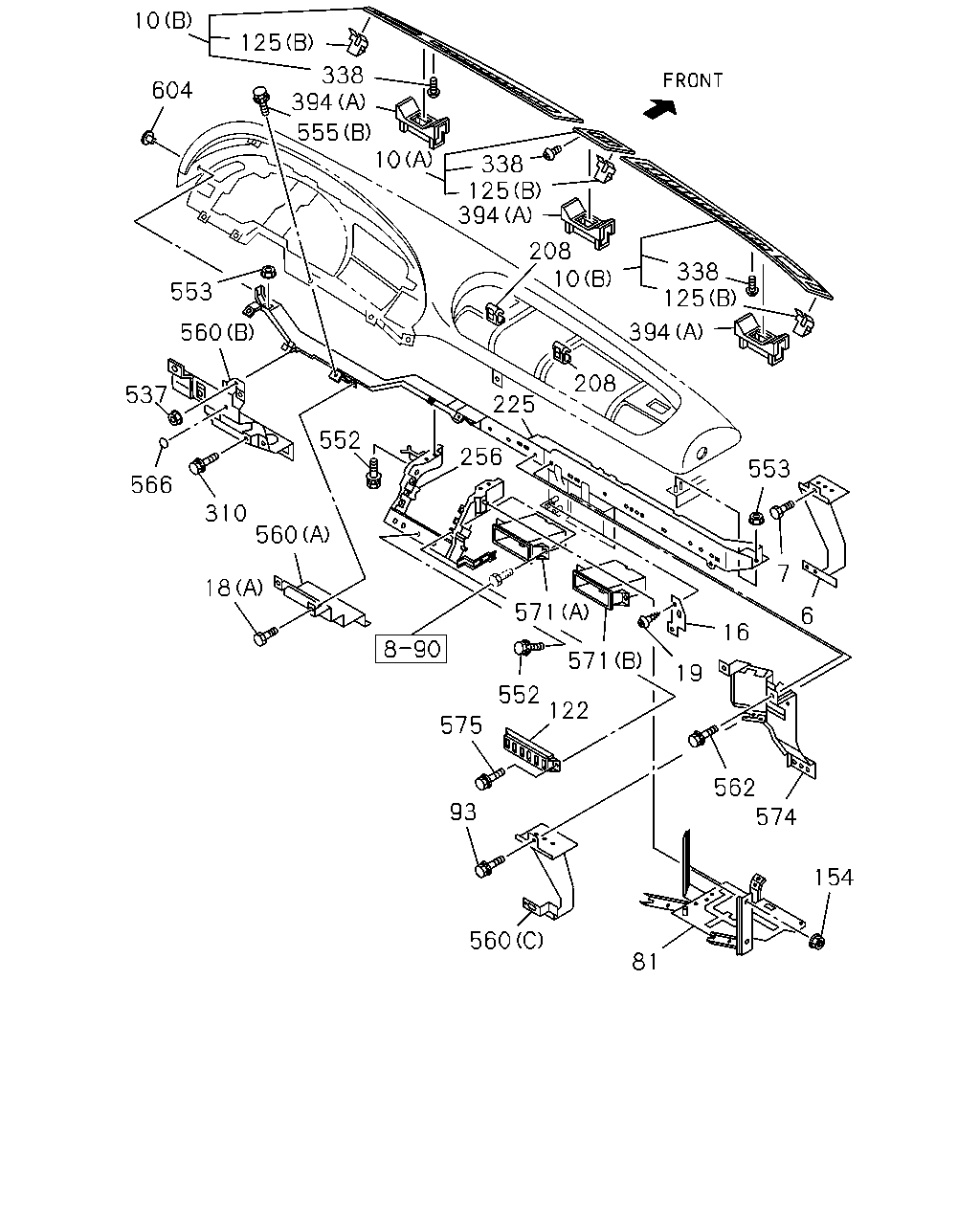

çizim 6683
10 125 338 394 604 555 10 338 125 394 208 10 338 125 553 560 394 208 537 225 552 256 553 566 310 560 7 18 571 6 16 571 19 552 122 575 562 93 574 154 560 81
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-064-2 01 1 9603- ●
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-063-3 01 1 9603- ●
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-062-2 01 1 9603- ●
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-061-2 01 1 9603- ●
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 9603- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 9603- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 9603- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-6 01 1 9603- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-5 01 1 9603- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-5 01 1 9603- ● ●
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ●
18 BOLT; BRKT
DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9603- ● ●
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 9603- ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-276-9 01 1 9603-0003 ●
81 BRACKET; ELEC CONT UNIT 1-73907-655-5 01 1 0004- ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73907-416-7 01 1 9603- ●
81 BRACKET; ELEC CONT UNIT
EXC. INTAKE HEATER<SL2> 		1-73907-405-7 01 1 9603- ●
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 9603- ● ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9901-9901 ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 10 1 9902- ● ●
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9603-9812 ● ●
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9901-9901 ●
125 CLIP; INST PANEL
(B) 		8-97853-939-4 10 1 9603-9812 ● ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 01 1 9901- ● ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 9603- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9603- ● ●
225 FRAME; FACIA 1-65671-725-6 01 1 9603- ●
225 FRAME; FACIA 1-65671-727-3 01 1 9603- ●
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 9603- ●
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 9603- ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 9603- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9603- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9603- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9603- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9603- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9603- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9603- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
560 BRACKET
(A) 		1-65680-976-2 01 1 9603- ●
560 BRACKET
(B) 		1-65671-717-6 01 1 9603-9609 ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65671-717-8 01 1 9610- ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-715-9 01 1 9610-9701 ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-756-0 01 1 9702-9904 ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-760-2 01 1 9905- ●
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-751-0 01 1 9603- ●
560 BRACKET
(A) 		1-65681-045-6 01 1 9603- ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-755-1 01 1 9610-9904 ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65681-160-0 01 1 9905- ●
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-749-0 01 1 9603- ●
560 BRACKET
INTAKE HEATER<SL2> (B) 		1-65671-742-1 01 1 9603- ●
560 BRACKET
EXC. INTAKE HEATER<SL2> (B) 		1-65681-043-2 01 1 9603-9609 ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5),INTAKE HEATER<SL2> (B) 		1-65681-043-2 01 1 9610- ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9603- ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INTAKE HEATER<SL2> OD=36 BLACK 		1-76798-018-0 01 1 9705-9806 ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INTAKE HEATER<SL2> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807- ●
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9603-9812 ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9603-9812 ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-1 01 1 9901- ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-1 01 1 9901- ● ●
574 PANEL; RELAY BOX 1-73907-365-6 01 1 9603- ●
574 PANEL; RELAY BOX 1-73907-407-3 01 1 9603- ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9603- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9603- ● ●

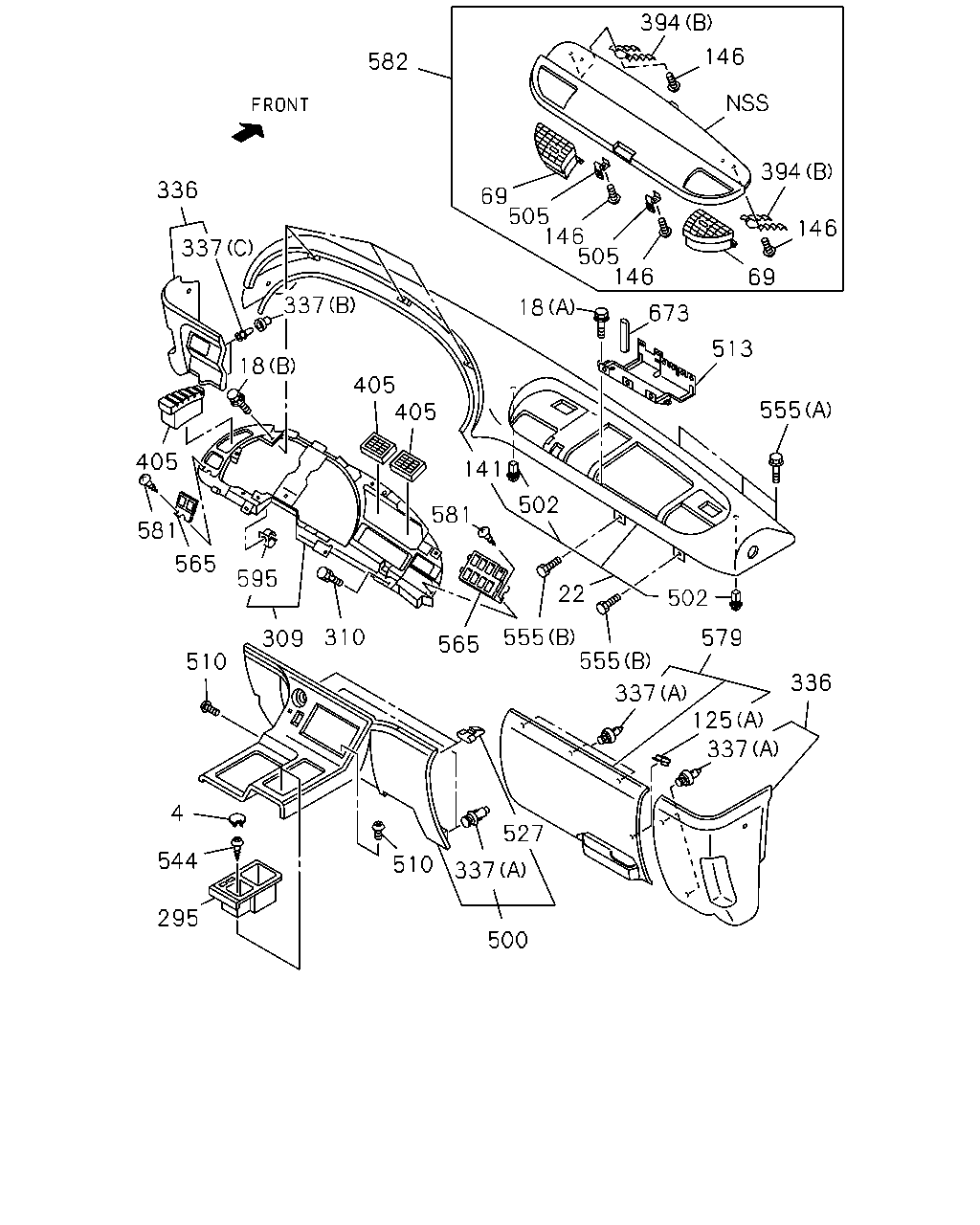

çizim 8393
394 146 582 394 336 69 505 146 146 146 337 69 337 18 673 513 18 405 405 555 405 141 581 502 581 565 595 22 502 310 555 555 579 309 565 510 336 337 125 337 4 527 544 510 337 295 500 505
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL 1-72537-106-0 01 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ●
18 BOLT; BRKT
DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9603- ● ●
22 PAD; INST 1-72317-344-1 01 1 9603- ●
22 PAD; INST 1-72317-337-2 01 1 9603- ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9603- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9603- ● ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9901-9901 ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 10 1 9902- ● ●
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9603-9812 ● ●
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9901-9901 ●
125 CLIP; INST PANEL
(B) 		8-97853-939-4 10 1 9603-9812 ● ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 01 1 9901- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9603- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9603- ● ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 9603- ●
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 9603- ●
309 PANEL; SW,INST 1-72418-009-6 01 1 9603- ●
309 PANEL; SW,INST 1-72418-018-3 01 1 9603- ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9603- ●
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9603- ●
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9603- ●
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9603- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 9603-9606 ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 9607- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 9607- ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9603- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 9603- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9603- ●
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 9603- ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9603- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9603- ● ●
405 GRILLE ASM; METER VENT 1-76367-062-1 01 1 9603- ●
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 9603- ●
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 9603- ●
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 9603- ●
500 CLUSTER; INST CENTER 1-72437-590-0 01 1 9603-9606 ●
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-590-1 01 1 9607- ●
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-545-8 01 1 9607- ●
500 CLUSTER; INST CENTER
INTAKE HEATER<SL2> 		1-72437-594-1 01 1 9603- ●
500 CLUSTER; INST CENTER
EXC. INTAKE HEATER<SL2> 		1-72437-573-1 01 1 9603- ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9603- ● ●
505 LOCK; LID 1-72558-024-2 02 1 9603- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 9603- ● ●
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 9603- ●
513 BRACKET; RELAY
DELUXE CAB(W14) (B) 		1-73907-327-3 01 1 9905- ●
513 BRACKET; RELAY 1-73908-056-3 01 1 9603-9604 ●
513 BRACKET; RELAY 8-97865-168-2 01 1 9605- ●
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9603-9812 ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901- ●
527 CLIP; INST CLUSTER 8-97853-939-4 05 1 9603-9812 ●
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 9901- ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 9603- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9603- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
565 BEZEL; SW PANEL 1-72418-010-1 01 1 9603- ●
565 BEZEL; SW PANEL 1-72418-011-2 01 1 9603- ●
565 BEZEL; SW PANEL 1-72418-021-0 01 1 9603- ●
565 BEZEL; SW PANEL 1-72418-020-0 01 1 9603- ●
579 COVER; INST PNL 1-72437-542-3 01 1 9603- ●
579 COVER; INST PNL 1-72438-128-1 01 1 9603- ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9603- ● ●
582 LID; FUSE & RELAY 1-72547-115-8 01 1 9603- ●
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9603- ●
595 NUT; HOOK 1-72418-013-0 11 1 9603- ●
595 NUT; HOOK 1-72418-013-0 10 1 9603- ●
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009 ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010- ● ●

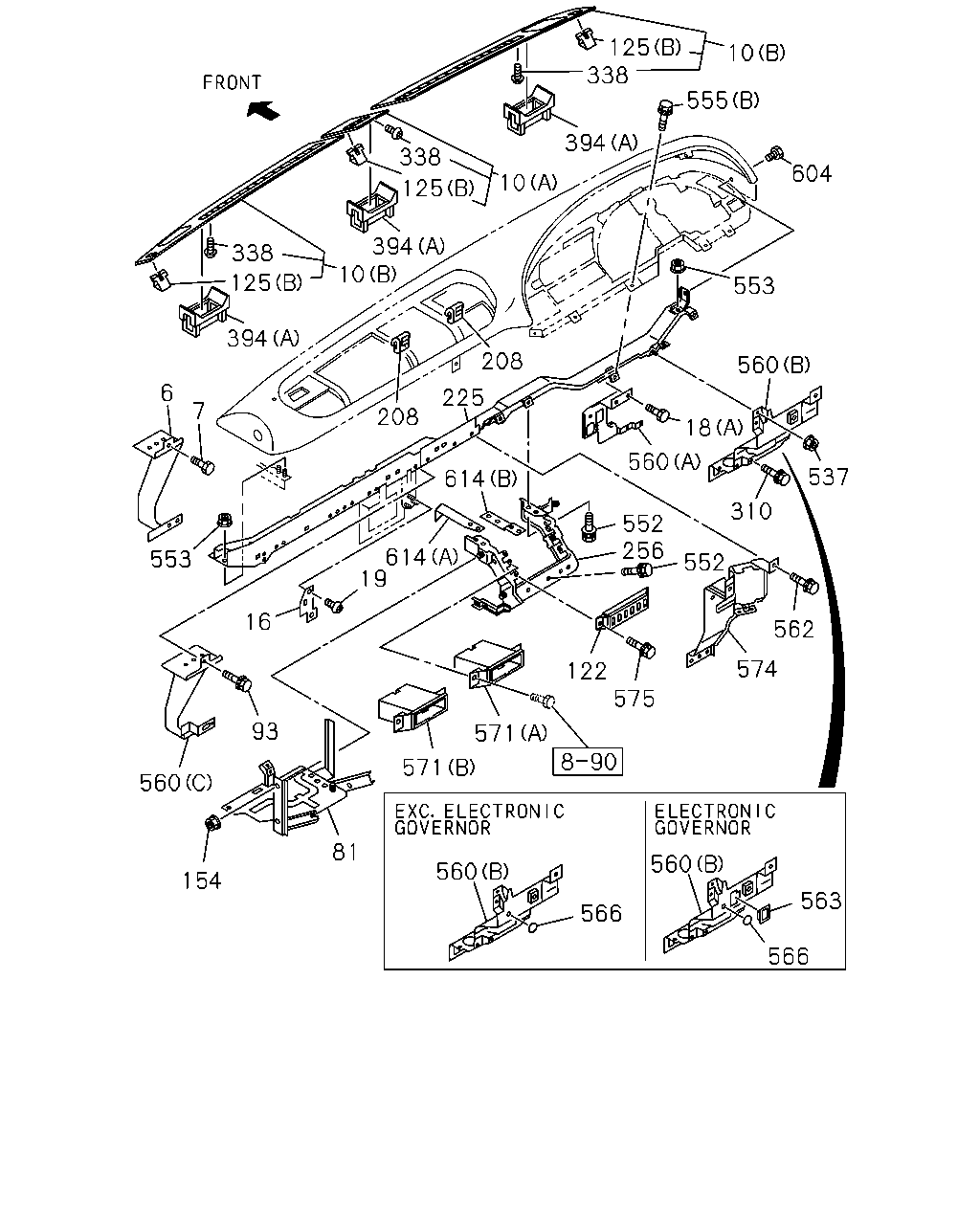

çizim 8505
125 338 10 555 394 338 604 10 125 338 394 10 125 553 394 208 560 6 225 7 208 18 614 560 537 310 552 256 614 19 553 552 16 562 574 122 575 93 571 571 560 81 560 560 154 563 566 566
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-064-2 01 1 9603- ●
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-063-3 01 1 9603- ●
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-062-2 01 1 9603- ●
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-061-2 01 1 9603- ●
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 9603- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 9603- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 9603- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-6 01 1 9603- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-5 01 1 9603- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-5 01 1 9603- ● ●
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ●
18 BOLT; BRKT
DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9603- ● ●
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 9603- ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-276-9 01 1 9603-0003 ●
81 BRACKET; ELEC CONT UNIT 1-73907-655-5 01 1 0004- ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73907-416-7 01 1 9603- ●
81 BRACKET; ELEC CONT UNIT
EXC. INTAKE HEATER<SL2> 		1-73907-405-7 01 1 9603- ●
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 9603- ● ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9901-9901 ●
125 CLIP; INST PANEL
(A) 		8-97217-066-0 10 1 9902- ● ●
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9603-9812 ● ●
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9901-9901 ●
125 CLIP; INST PANEL
(B) 		8-97853-939-4 10 1 9603-9812 ● ●
125 CLIP; INST PANEL
(B) 		8-97217-066-0 01 1 9901- ● ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 9603- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9603- ● ●
225 FRAME; FACIA 1-65671-725-6 01 1 9603- ●
225 FRAME; FACIA 1-65671-727-3 01 1 9603- ●
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 9603- ●
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 9603- ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 9603- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9603- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9603- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9603- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9603- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9603- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9603- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
560 BRACKET
(A) 		1-65680-976-2 01 1 9603- ●
560 BRACKET
(B) 		1-65671-717-6 01 1 9603-9609 ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65671-717-8 01 1 9610- ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-715-9 01 1 9610-9701 ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-756-0 01 1 9702-9904 ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-760-2 01 1 9905- ●
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-751-0 01 1 9603- ●
560 BRACKET
(A) 		1-65681-045-6 01 1 9603- ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-755-1 01 1 9610-9904 ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65681-160-0 01 1 9905- ●
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-749-0 01 1 9603- ●
560 BRACKET
INTAKE HEATER<SL2> (B) 		1-65671-742-1 01 1 9603- ●
560 BRACKET
EXC. INTAKE HEATER<SL2> (B) 		1-65681-043-2 01 1 9603-9609 ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5),INTAKE HEATER<SL2> (B) 		1-65681-043-2 01 1 9610- ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
563 BEZEL; BRKT
ELECTRONIC GOV RED3(KG5) 		1-72448-410-3 01 1 9610- ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9603- ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INTAKE HEATER<SL2> OD=36 BLACK 		1-76798-018-0 01 1 9705-9806 ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INTAKE HEATER<SL2> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9807- ●
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9603-9812 ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9603-9812 ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-1 01 1 9901- ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-1 01 1 9901- ● ●
574 PANEL; RELAY BOX 1-73907-365-6 01 1 9603- ●
574 PANEL; RELAY BOX 1-73907-407-3 01 1 9603- ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9603- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9603- ● ●
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 9603- ●
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 9603- ●
çizim 41006
18 296 554
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ●
18 BOLT; BRKT
DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9603- ● ●
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 9906- ●
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 9603- ●
554 BRACKET; CENTER BEZEL 1-65671-733-0 01 1 9603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
