◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11417 - FSR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#58628) — 69 parça

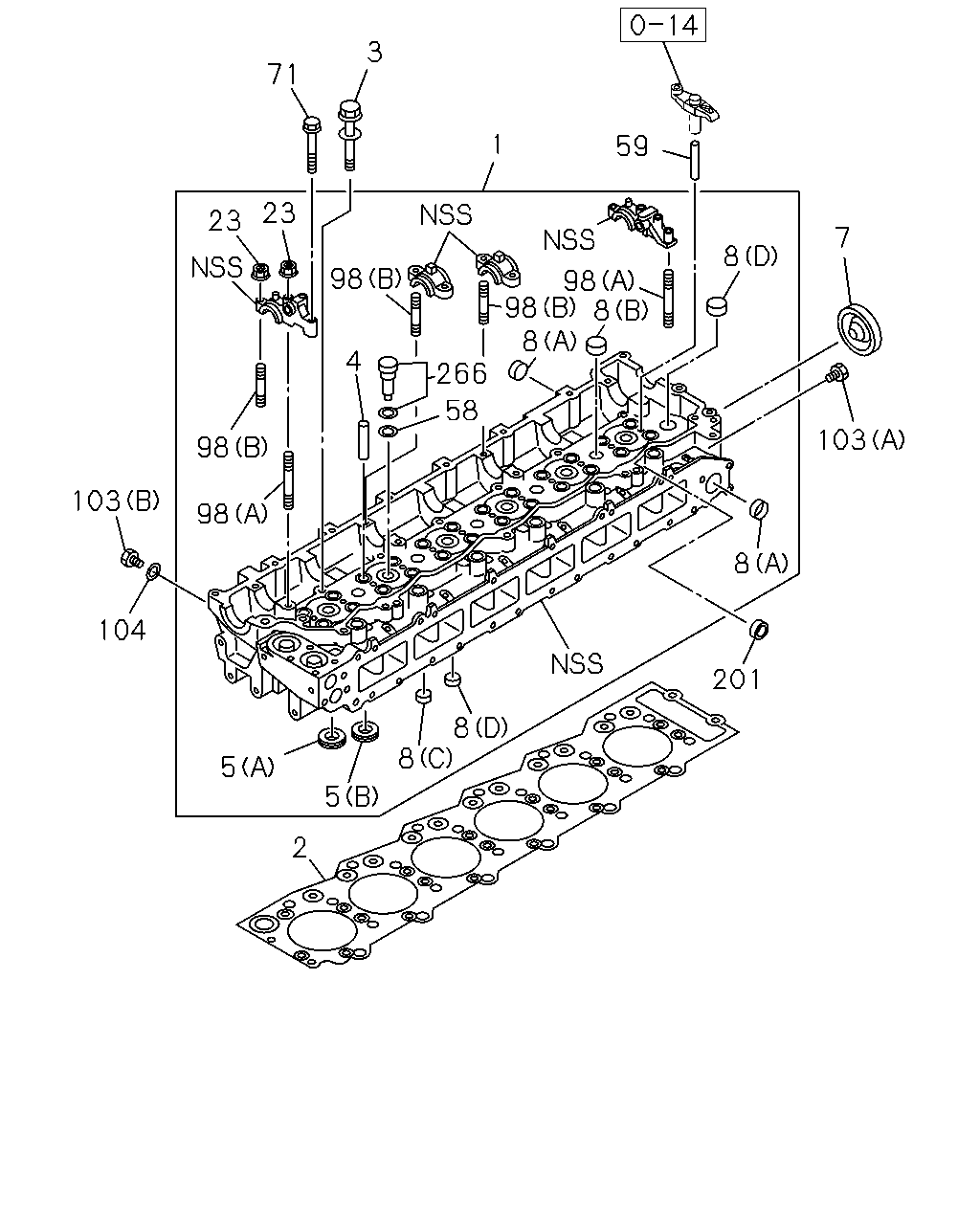

çizim 148648
201 8 8 8 5 2 5 104 103 98 98 23 23 7 103 8 98 59 1 8 98 266 8 58 4 98 3 71
BalonParca AdiParca NoAdetTipApplied Date
1 HEAD ASM; CYL 8-97604-903-7 01 1 0809-1305
1 HEAD ASM; CYL 8-98243-824-0 01 1 1306-
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97601-819-5 01 1 0809-
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0809-0901
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-98260-005-0 26 1 1408-
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0809-
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 12 1 0809-
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0809-
7 CUP; SEALING,CYL HEAD
OD=51 		8-97096-826-0 01 1 0809-
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 07 1 0809-
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0809-
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0809-
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0809-
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0809-
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 06 1 0809-
59 GUIDE; BRIDGE 8-97381-603-1 12 1 0809-
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0809-
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0809-
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0809-
103 PLUG; HD
(A) M8X10 		8-98003-416-0 01 1 0809-
103 PLUG; HD
(B) M14X14 		9-09862-156-0 01 1 0809-1011
103 PLUG; HD
EURO2 SPECIFICATION<NT2> (B) M14X14 		9-09862-156-0 01 1 1012-1101
103 PLUG; HD
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M14X14 		9-09862-156-0 01 1 1102-
103 PLUG; HD
EURO2 SPECIFICATION<NT2> (B) M14X14 		9-09862-156-0 01 1 1102-
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 01 1 0809-1011
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=14.2 OD=19.2 		1-09630-085-0 01 1 1012-1101
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=14.2 OD=19.2 		1-09630-085-0 01 1 1102-1312
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=14.2 OD=19.2 		1-09630-085-0 01 1 1102-1312
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401-
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401-
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 06 1 0809-
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 06 1 0809-

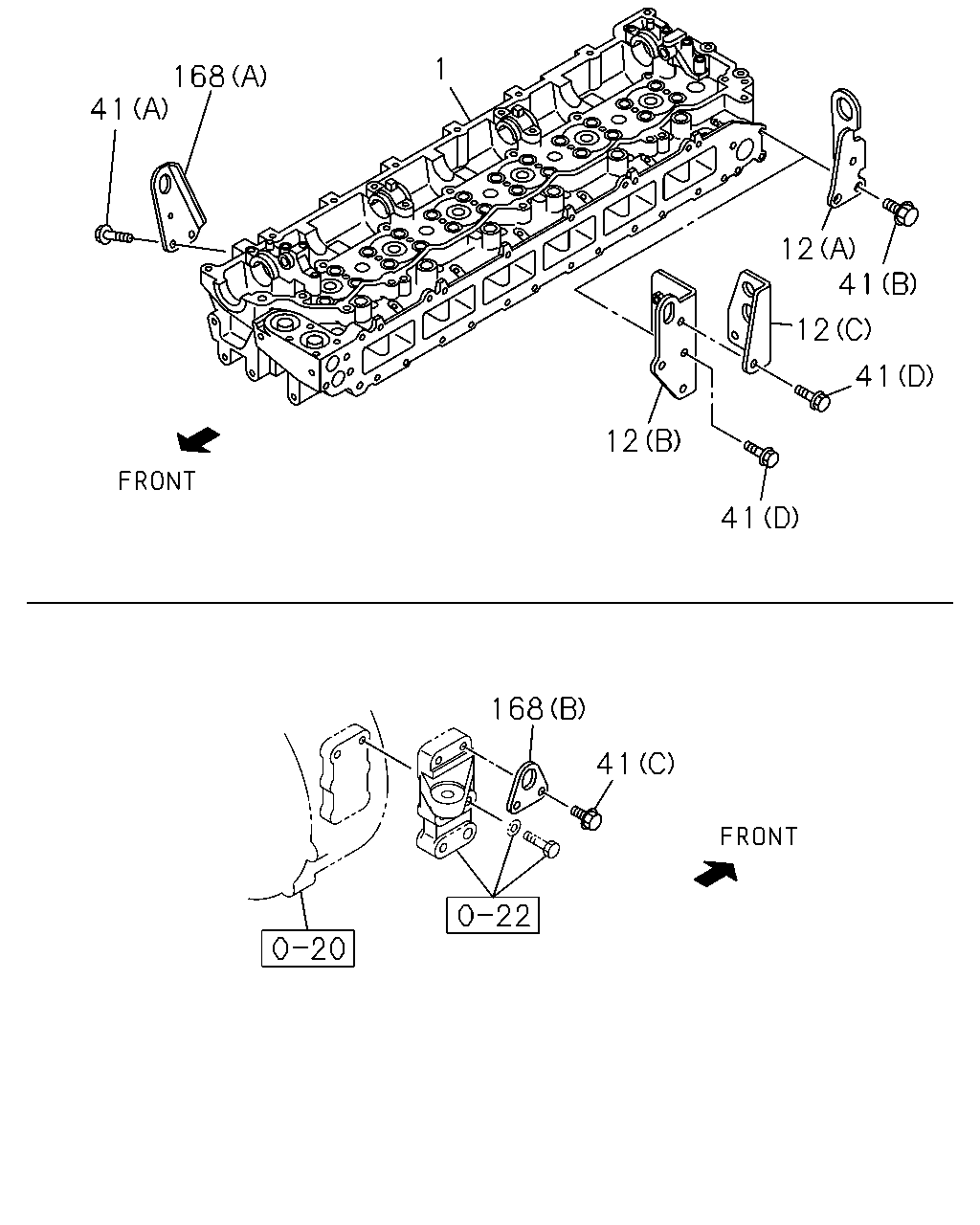

çizim 148660
41 168 41 12 41 12 41 12 1 41 168
BalonParca AdiParca NoAdetTipApplied Date
1 HEAD ASM; CYL 8-97604-903-7 01 1 0809-1305
1 HEAD ASM; CYL 8-98243-824-0 01 1 1306-
12 HANGER; ENG,RR
(A) 		8-94392-081-1 01 1 0809-1101
12 HANGER; ENG,RR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-94392-081-1 01 1 1102-
12 HANGER; ENG,RR
EURO2 SPECIFICATION<NT2> (A) 		8-94392-081-1 01 1 1102-
12 HANGER; ENG,RR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) 		8-97600-639-1 01 1 1102-
12 HANGER; ENG,RR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) 		8-98167-925-0 01 1 1102-
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0809-
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0809-
41 BOLT; ENG HANGER
(C) M12X25 FLANGE 		0-28751-225-0 02 1 0809-
41 BOLT; ENG HANGER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) M12X30 FLANGE 		0-28751-230-0 06 1 1102-
168 HANGER; ENG,FRT
(A) 		8-94394-071-2 01 1 0809-1011
168 HANGER; ENG,FRT
EURO2 SPECIFICATION<NT2> (A) 		8-94394-071-2 01 1 1012-1101
168 HANGER; ENG,FRT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) 		8-94394-071-2 01 1 1102-
168 HANGER; ENG,FRT
EURO2 SPECIFICATION<NT2> (A) 		8-94394-071-2 01 1 1102-
168 HANGER; ENG,FRT
(B) 		8-94394-398-0 01 1 0809-1011
168 HANGER; ENG,FRT
EURO3 SPECIFICATION<NT3> (A) 		8-98043-134-0 01 1 1012-1101
168 HANGER; ENG,FRT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98043-134-0 01 1 1102-
168 HANGER; ENG,FRT
(B) 		8-94394-398-1 01 1 1012-

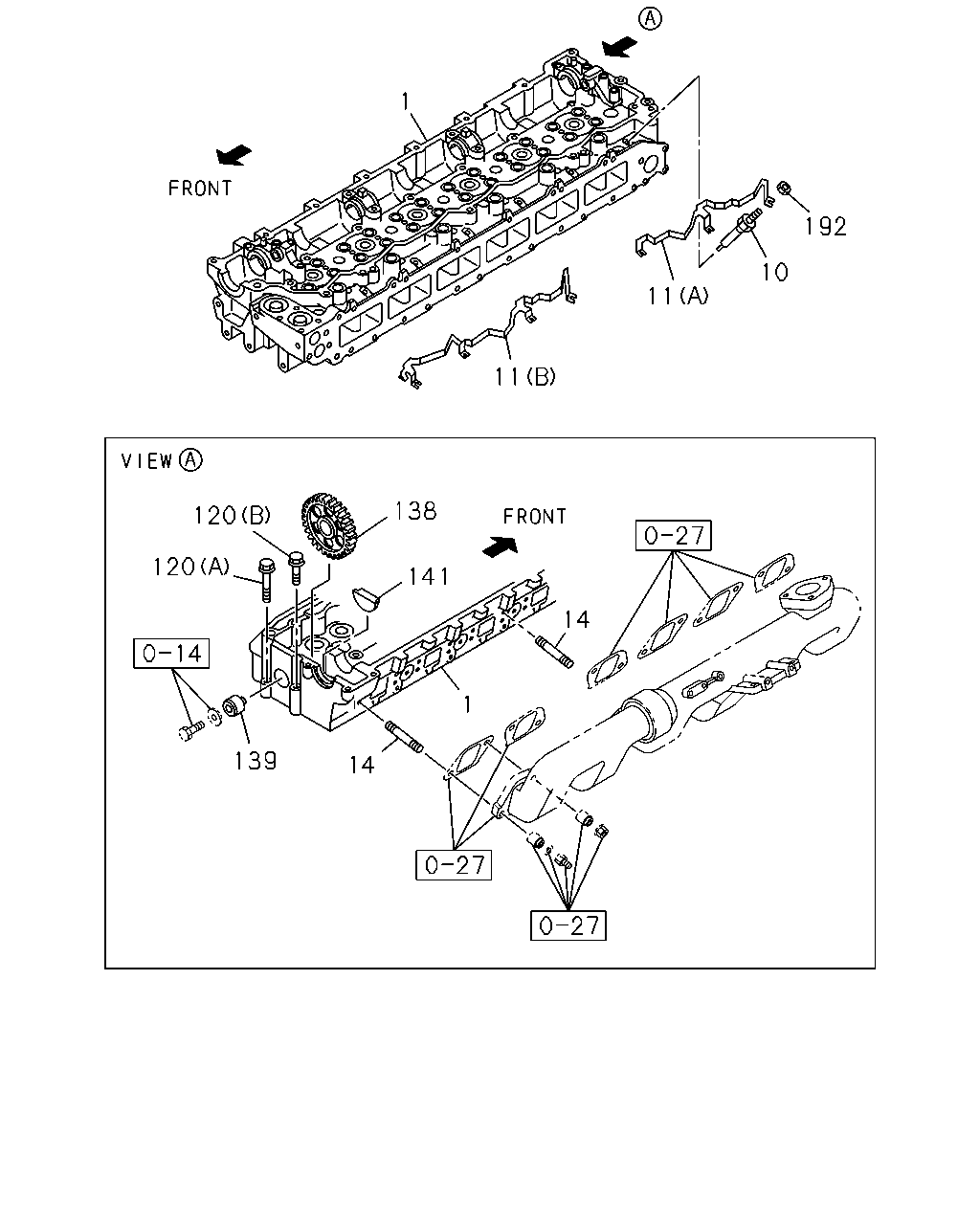

çizim 148662
1 11 11 10 192 138 141 14 1 14 139 120 120
BalonParca AdiParca NoAdetTipApplied Date
1 HEAD ASM; CYL 8-97604-903-7 01 1 0809-1305
1 HEAD ASM; CYL 8-98243-824-0 01 1 1306-
10 PLUG; GLOW
NGK 		8-94390-777-6 06 1 0809-
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-648-0 01 1 0809-
11 CONNECTOR; GLOW PLUG
(A) 		8-98040-649-0 01 1 0809-
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0809-
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0809-
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0809-
138 GEAR; IDLE
Z=41 		8-97606-929-0 01 1 0809-1011
138 GEAR; IDLE
EURO2 SPECIFICATION<NT2> Z=41 		8-97606-929-0 01 1 1012-
138 GEAR; IDLE
EURO3 SPECIFICATION<NT3> Z=41 		8-98058-321-1 01 1 1012-
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0809-1011
139 SHAFT; IDLE GEAR
EURO2 SPECIFICATION<NT2> 		8-97186-398-1 01 1 1012-
139 SHAFT; IDLE GEAR
EURO3 SPECIFICATION<NT3> 		8-97606-990-1 01 1 1012-
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0809-1005
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006-
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 06 1 0809-
