◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#5862) — 12 parça

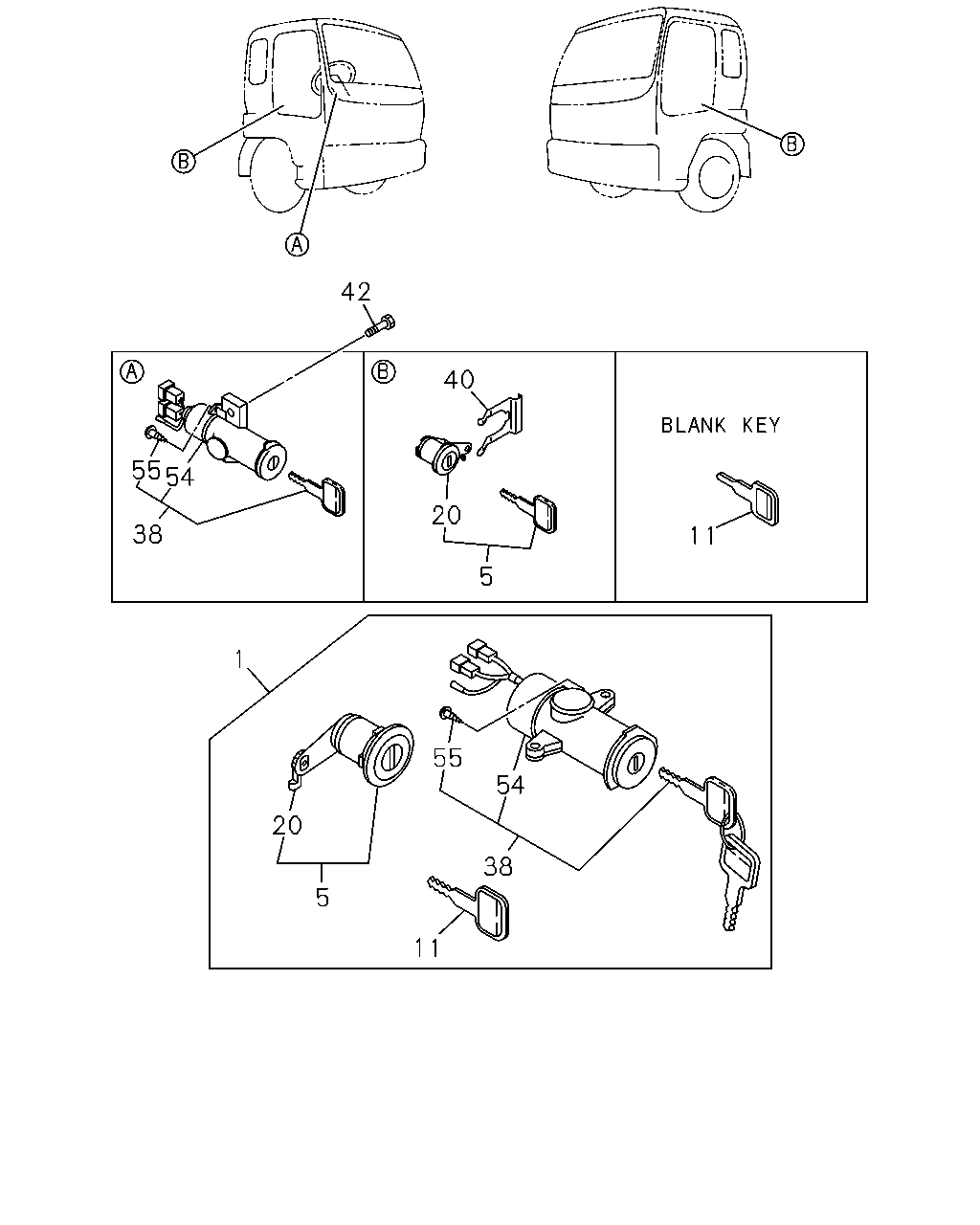

çizim 39096
42 40 55 54 20 38 11 5 1 55 54 20 38 5 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK 1-79138-199-2 01 1 9603- ● ●
5 CYLINDER ASM; DOOR LOCK 1-79138-203-1 01 1 9603- ● ●
5 CYLINDER ASM; DOOR LOCK 1-79138-202-1 01 1 9603- ● ●
11 KEY; BLANK
WO/RESIN 		1-79137-129-1 AR 1 9603- ● ●
11 KEY; BLANK
W/RESIN(BLACK) 		1-79137-130-1 AR 1 9603- ● ●
20 SNAP; DOOR LOCK CYL
GREEN 		1-79138-193-0 01 1 9603- ● ●
20 SNAP; DOOR LOCK CYL
PINK 		1-79138-192-0 01 1 9603- ● ●
38 LOCK ASM; STRG 1-79138-201-1 01 1 9603- ● ●
40 CLIP; CYL LK 1-79137-033-1 02 1 9603- ● ●
42 BOLT; STRG LOCK
M8X30 W/PL WASHER 		1-09981-482-2 02 1 9603- ● ●
54 SWITCH ASM; STRG LOCK CYL 1-79137-050-0 01 1 9603- ● ●
55 SCREW; SWITCH
M3X10 W/LK WASHER 		9-03910-310-0 02 1 9603- ● ●
