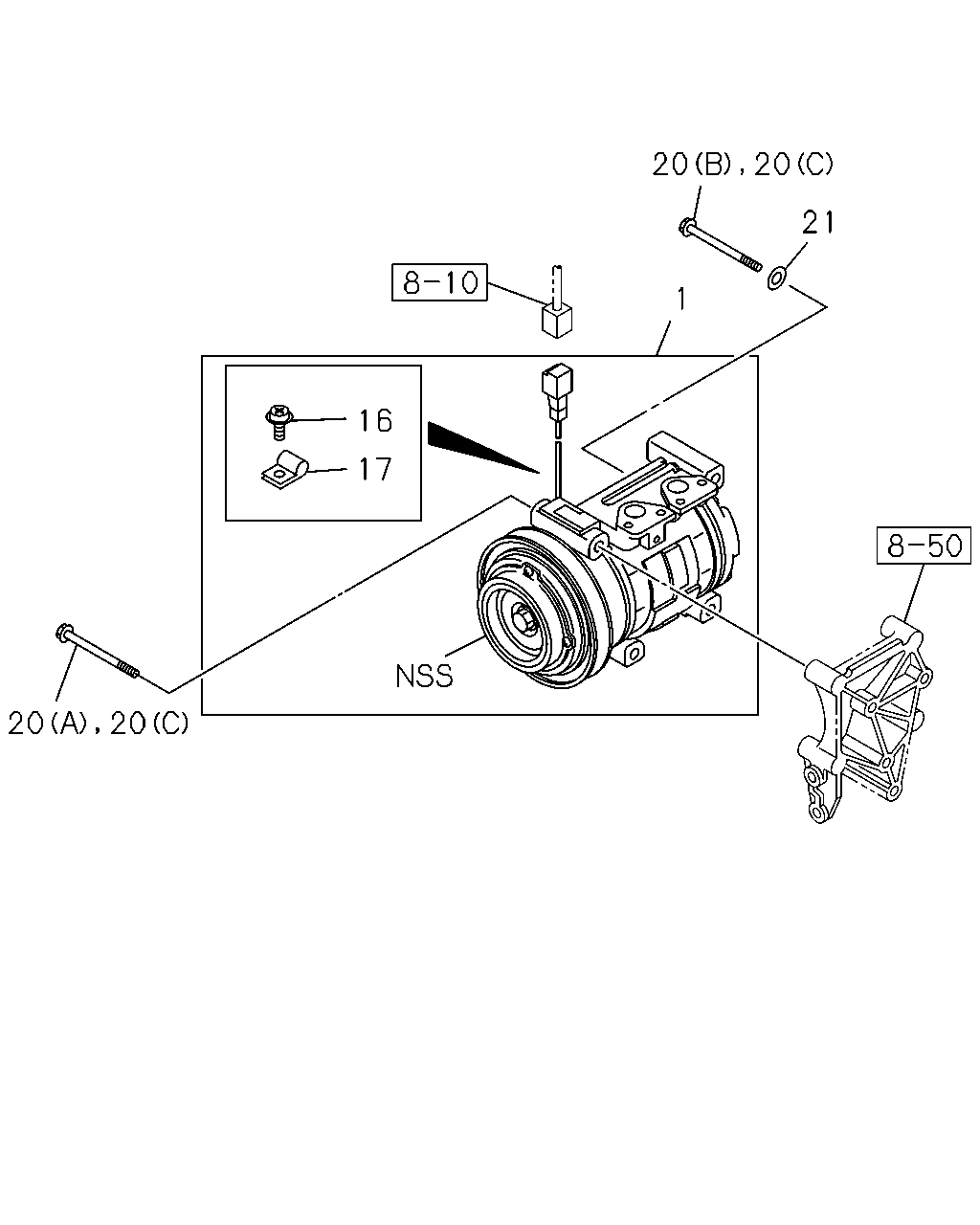

8-71 — COMPRESSOR; AIR CONDITIONING (#58619) — 8 parça

21 1 16 17 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83532-326-1	01	1	0710-	●	●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83579-893-0	01	1	0710-	●	●
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	5-81129-130-0	02	1	0710-	●	●
20	BOLT; CMPR (A) M8X70 FLANGE	0-28050-870-0	03	1	0710-0711	●	●
20	BOLT; CMPR (C) M8X75 FLANGE	1-09044-073-0	04	1	0712-0808	●	●
20	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M8X75 FLANGE	1-09044-073-0	04	1	0809-	●	●
20	BOLT; CMPR (B) M8X80 FLANGE	0-28050-880-0	01	1	0710-0711	●	●
21	WASHER; COOLER CMPR ID=8.4 OD=16	0-91610-508-0	01	1	0710-0711	●	●
