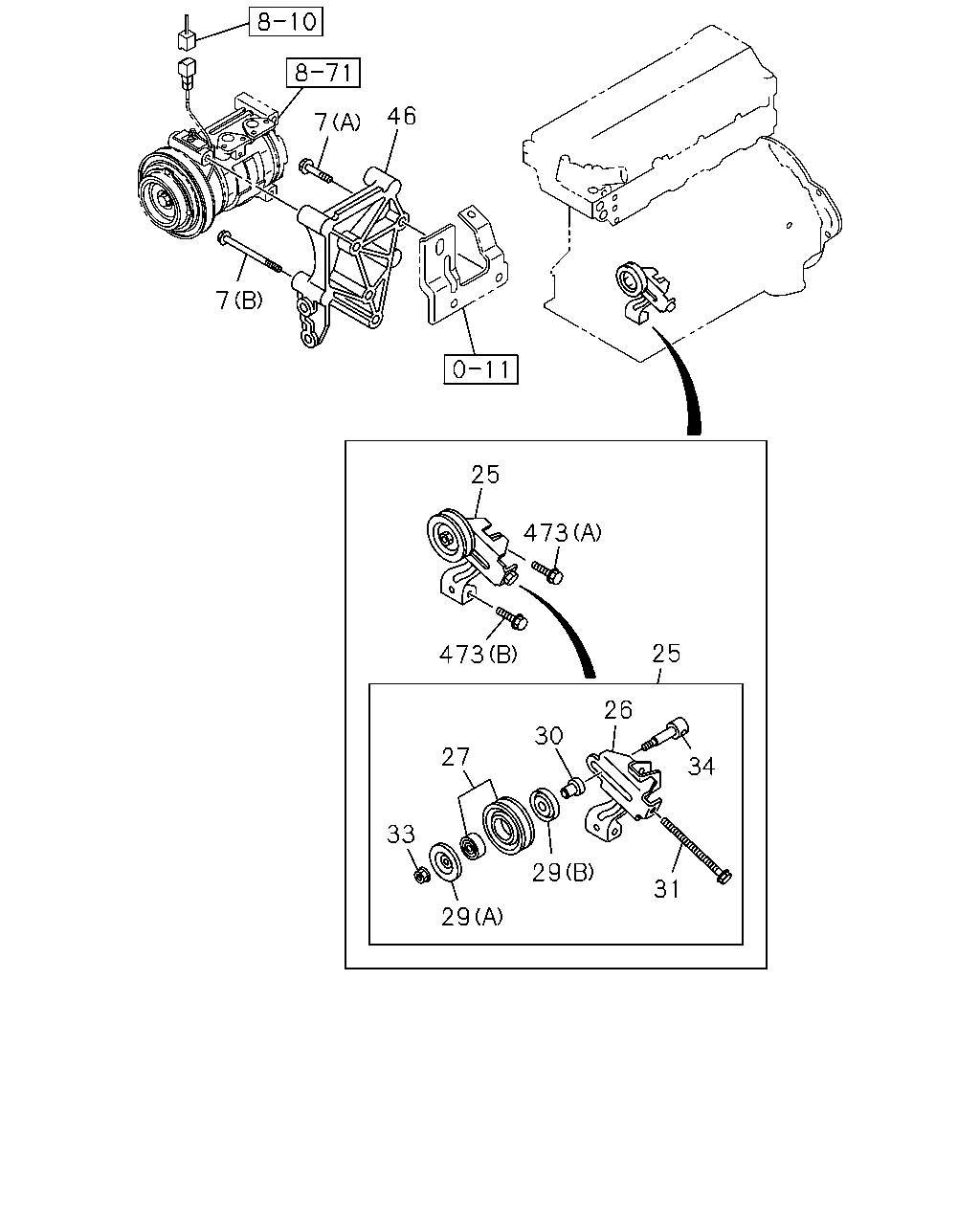

8-50 — AIR CONDITIONING SYSTEM; FRONT (#58615) — 40 parça

46 7 7 25 473 25 473 26 30 27 34 33 29 31 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BOLT; BRKT EXC. GENERATOR 24V90A(K44) (B) M10X80 FLANGE	0-28151-080-0	02	1	0804-	●	●
7	BOLT; BRKT (A) M10X45 FLANGE	0-28151-045-0	02	1	0710-	●	●
7	BOLT; BRKT (B) M10X80 FLANGE	0-28151-080-0	02	1	0710-0803	●	●
7	BOLT; BRKT GENERATOR 24V90A(K44) (B) M10X80 FLANGE	0-28151-080-0	01	1	0804-	●	●
7	BOLT; BRKT GENERATOR 24V90A(K44) (B) M10X130 FLANGE	0-28156-013-0	01	1	0804-	●	●
25	PULLEY ASM; IDLER,CMPR 1-GROOVE	8-97161-198-1	01	1	0710-0808	●	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 1-GROOVE	8-97161-198-1	01	1	0809-	●	●
26	BRACKET; IDLE PULLEY,A/C	8-97161-031-1	01	1	0710-0808	●	●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97161-031-1	01	1	0809-	●	●
27	PULLEY; IDLE,A/C	8-97386-869-0	01	1	0710-0808	●	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97386-869-0	01	1	0809-	●	●
29	COVER; DUST,IDLE PULLEY (A)	8-97384-114-0	01	1	0710-0808	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97384-114-0	01	1	0809-	●	●
29	COVER; DUST,IDLE PULLEY (B)	8-97384-115-0	01	1	0710-0808	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97384-115-0	01	1	0809-	●	●
30	COLLAR; IDLE PULLEY	8-97384-117-0	01	1	0710-0808	●	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97384-117-0	01	1	0809-	●	●
31	BOLT; ADJ,IDLE PULLEY	8-97384-113-0	01	1	0710-0808	●	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97384-113-0	01	1	0809-	●	●
33	NUT; IDLER PULLEY	8-97384-118-0	01	1	0710-0808	●	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97384-118-0	01	1	0809-	●	●
34	SHAFT; IDLE PULLEY	8-97384-116-0	01	1	0710-0808	●	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97384-116-0	01	1	0809-	●	●
46	BRACKET; CMPR	8-97382-614-1	01	1	0710-0711	●	●
46	BRACKET; CMPR	8-98101-364-0	01	1	0712-0803	●	●
46	BRACKET; CMPR EXC. GENERATOR 24V90A(K44)	8-98101-364-0	01	1	0804-	●	●
46	BRACKET; CMPR GENERATOR 24V90A(K44)	8-98101-365-0	01	1	0804-	●	●
473	BOLT; TENSIONER (A) M8X50 FLANGE	0-28050-850-0	01	1	0804-0808	●	●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X50 FLANGE	0-28050-850-0	01	1	0809-	●	●
473	BOLT; TENSIONER (B) M10X65 FLANGE	8-94344-540-1	01	1	0804-0808	●	●
473	BOLT; TENSIONER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X65 FLANGE	8-94344-540-1	01	1	0809-	●	●

71 378 378

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98017-234-1	01	1	0710-	●	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98041-759-0	01	1	0710-1111	●	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98204-846-0	01	1	1112-	●	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98041-428-0	01	1	0710-	●	●

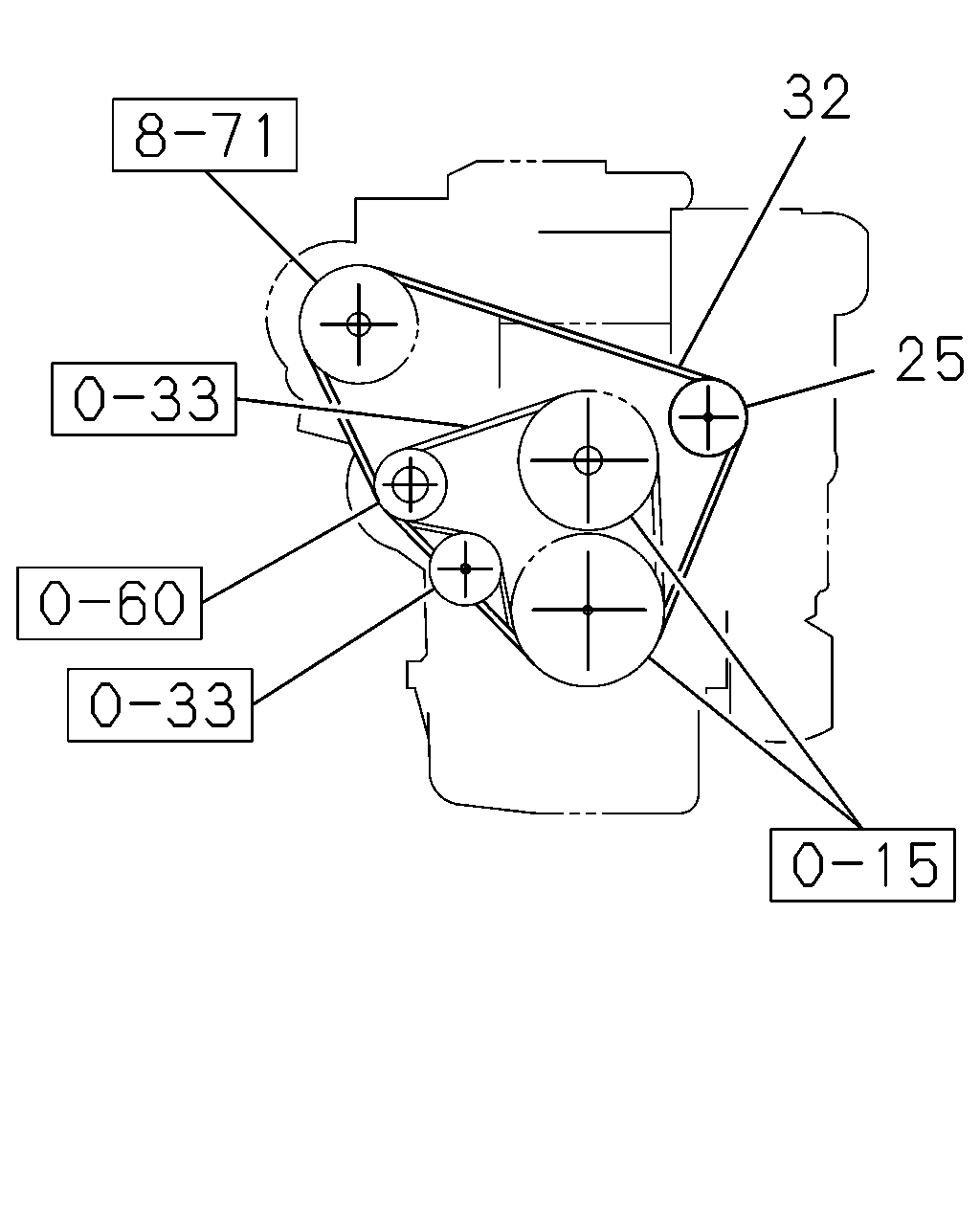

32 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	PULLEY ASM; IDLER,CMPR 1-GROOVE	8-97161-198-1	01	1	0710-0808	●	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 1-GROOVE	8-97161-198-1	01	1	0809-	●	●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) BEST VALUE PARTS	1-87610-100-0	01	1	1207-	●	●
32	BELT; A/C CMPR L=1594	8-97383-577-0	01	1	0710-0808	●	●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1594	8-97383-577-1	01	1	0809-	●	●
