8-15 — FIXING PARTS; WIRING HARNESS (#58606) — 552 parça

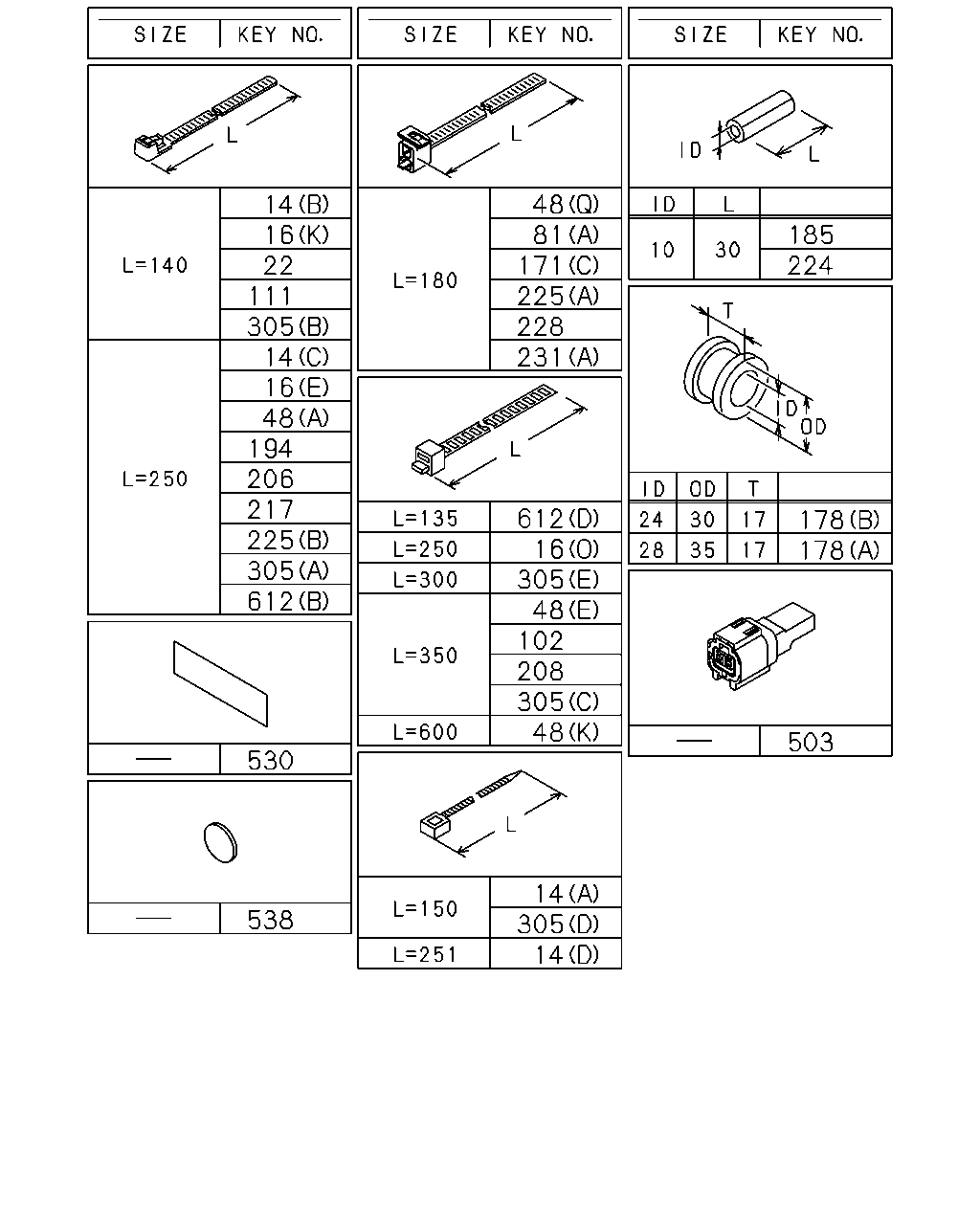

çizim 145558
14 16 22 111 305 14 16 48 194 206 217 225 305 612 48 81 171 225 228 231 185 224 612 16 305 48 102 208 305 48 178 178 503 530 14 305 14 538
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 02 1 0710- ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 03 1 0710-0711 ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 03 1 0712-0803 ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 03 1 0712-0803 ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 04 1 0804- ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 04 1 0804- ●
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 01 1 0710- ● ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 0710- ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 0803-0808 ● ●
14 CLIP; BAND,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=140 		5-09707-031-1 02 1 0809-1107 ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1108- ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 01 1 0710-0711 ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 04 1 0712-0803 ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 05 1 0804- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
16 CLIP; HARNESS
(G) ID=11 L=60 		0-95235-096-0 01 1 0710-0807 ● ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		1-09700-734-0 01 1 0710- ● ●
16 CLIP; HARNESS
(R) ID=19 L=39 H=21 		1-09700-972-1 01 1 0710-0807 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0710-0801 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 01 1 0802-0808 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0809- ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 01 1 0710-0806 ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 0807- ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 03 1 0710-0911 ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 02 1 0710-0911 ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 01 1 0912- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ● ●
16 CLIP; HARNESS
(T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0710- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0710-0712 ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(U) L=36.5 		8-97019-892-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710- ● ●
16 CLIP; HARNESS
(W) ID=25 L=55 		9-09917-573-0 01 1 0802-0811 ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (V) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710- ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 03 1 0710-0803 ● ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 0804- ● ●
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(G) ID=11 L=20 		0-95235-035-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=35 L=50 		1-09701-214-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0710-0905 ●
48 CLIP; FRAME HARNESS
(C) ID=21 L=24 		8-94176-807-1 03 1 0710- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 14 1 0710-0804 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 14 1 0710-0804 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 13 1 0805-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 13 1 0805-1007 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 11 1 1008- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0710-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 06 1 0710-0809 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(O) ID=18-24 L=22 		1-09709-295-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (N) ID=14 L=44 		9-09917-427-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=42 		5-09700-358-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0710-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0710-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1003- ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) L=180 		1-09707-162-1 01 1 0806-0809 ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0806-0809 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 07 1 0710-0809 ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50 		1-09701-055-1 01 1 0710- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=20 L=50 		9-09917-430-0 04 1 0710-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 07 1 0810-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (N) ID=14 L=44 		9-09917-427-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=20 L=50 		9-09917-430-0 05 1 0710-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 10 1 0710-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (N) ID=14 L=44 		9-09917-427-0 10 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (P) ID=13-18 L=22 		1-09709-292-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (N) ID=14 L=44 		9-09917-427-0 13 1 1008- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0712-0901 ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0803-1007 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 1008- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712- ● ●
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0710-0911 ● ●
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 03 1 0710-0807 ● ●
171 CLIP; STARTER HARNESS
(A) OD=8 H=3.8 		1-09709-309-0 01 1 0710-0803 ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0804- ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0710-0710 ● ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0711-0803 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1102 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0806- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0710- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0710- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0710- ● ●
185 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0710-0711 ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0710-0901 ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0902- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0710-0810 ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 01 1 0710-0810 ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 0811- ● ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0710- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0710- ● ●
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0710-0803 ● ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0710- ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 0710-0811 ● ●
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0710-0803 ● ●
231 CLIP; BAND,OIL PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0710-0711 ● ●
231 CLIP; BAND,OIL PRESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0710-0711 ● ●
305 CLIP; ENG HARNESS
(A) L=250 		5-09707-030-1 01 1 0710-0803 ● ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 01 1 0804-0905 ● ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 02 1 0906- ● ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 01 1 0710-0710 ● ●
305 CLIP; ENG HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=140 		5-09707-031-1 01 1 0711-0803 ● ●
305 CLIP; ENG HARNESS
MZX6P M/T(RSW) (A) L=250 		5-09707-030-1 01 1 0804-0809 ● ●
305 CLIP; ENG HARNESS
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 01 1 0810-0906 ● ●
305 CLIP; ENG HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 01 1 0907- ● ●
305 CLIP; ENG HARNESS
(C) L=350 		8-94152-256-1 01 1 0712-0905 ● ●
305 CLIP; ENG HARNESS
(E) L=300 		1-09707-001-1 01 1 0906- ● ●
305 CLIP; ENG HARNESS
(D) L=150 		8-97355-273-0 01 1 0712-0905 ● ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82691-191-0 01 1 0710- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0710-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 15 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0710-1305 ● ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0710- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0710- ● ●
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0710-0804 ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0710- ● ●
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803- ● ●

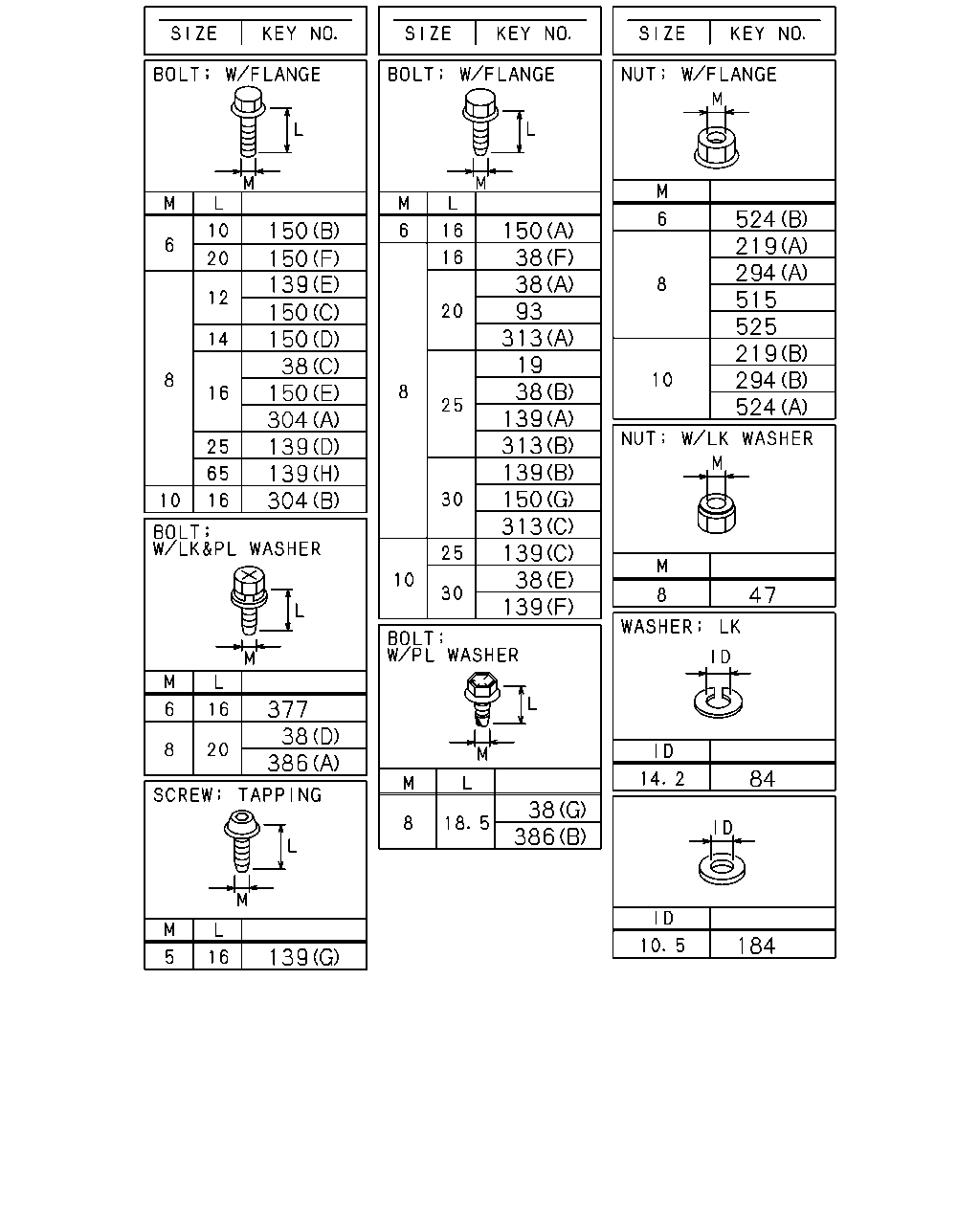

çizim 145571
150 150 139 150 150 38 150 304 139 139 304 377 38 386 139 150 38 38 93 313 19 38 139 313 139 150 313 139 38 139 38 386 524 219 294 515 525 219 294 524 47 84 184
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0807 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0710- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
38 BOLT; CLIP,HARNESS
(E) M10X30 FLANGE 		0-28651-030-0 01 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0710-1201 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X16 FLANGE 		8-98076-109-0 01 1 0710-0710 ● ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
84 WASHER; LK BRKT,HARNESS
ID=14.2 		0-91510-814-0 02 1 0710- ● ●
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0801 ● ●
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0802-0808 ● ●
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0809- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0802 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0710- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0710- ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 0710- ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 0710- ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0710- ● ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) M8X65 FLANGE 		1-09044-072-1 01 1 0809- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
150 BOLT; CLIP
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0710-0803 ● ●
150 BOLT; CLIP
(F) M6X20 FLANGE 		0-28050-620-0 01 1 0710-1004 ● ●
150 BOLT; CLIP
(F) M6X20 FLANGE 		0-28050-620-0 02 1 1005- ● ●
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ●
150 BOLT; CLIP
POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ●
150 BOLT; CLIP
(E) M8X16 FLANGE 		0-28050-816-0 01 1 0710- ● ●
150 BOLT; CLIP
(D) M8X14 FLANGE 		0-28080-814-0 01 1 0710-0803 ● ●
150 BOLT; CLIP
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ●
150 BOLT; CLIP
(G) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0806- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710- ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
219 NUT
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE 		0-91180-210-0 01 1 0806- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0902- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0912 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0912 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1001- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 0710-1010 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0902- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1011- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0803 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0710-0803 ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0710- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
524 NUT; HARNESS
(B) M6 FLANGE 		0-91180-106-0 04 1 0710- ● ●
524 NUT; HARNESS
(A) M10 FLANGE 		0-91180-110-0 01 1 0809- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0804-1008 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009- ● ●
çizim 145576
16 16 483 16 183 171 483 16 16 483 483
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
16 CLIP; HARNESS
(G) ID=11 L=60 		0-95235-096-0 01 1 0710-0807 ● ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		1-09700-734-0 01 1 0710- ● ●
16 CLIP; HARNESS
(R) ID=19 L=39 H=21 		1-09700-972-1 01 1 0710-0807 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0710-0801 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 01 1 0802-0808 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0809- ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 01 1 0710-0806 ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 0807- ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 03 1 0710-0911 ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 02 1 0710-0911 ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 01 1 0912- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ● ●
16 CLIP; HARNESS
(T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0710- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0710-0712 ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(U) L=36.5 		8-97019-892-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710- ● ●
16 CLIP; HARNESS
(W) ID=25 L=55 		9-09917-573-0 01 1 0802-0811 ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (V) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710- ●
171 CLIP; STARTER HARNESS
(A) OD=8 H=3.8 		1-09709-309-0 01 1 0710-0803 ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0804- ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0710-0710 ● ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0711-0803 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1102 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0806- ● ●
183 CLIP; CONNECTOR
L=175 		1-09707-178-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(I) ID=18 L=25 		8-94121-004-1 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0710-0711 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0710-0711 ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0712- ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0712- ●
483 CLIP; ENG HARNESS
(F) ID=14.5 & 6 		8-94312-791-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
(J) 		1-09701-124-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(K) 		1-09987-281-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(M) ID=21 L=24 		1-09701-201-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-94225-185-0 02 1 0710-0801 ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-97367-985-1 02 1 0802- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (H) 		8-97101-436-0 01 1 0710- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 0712- ●

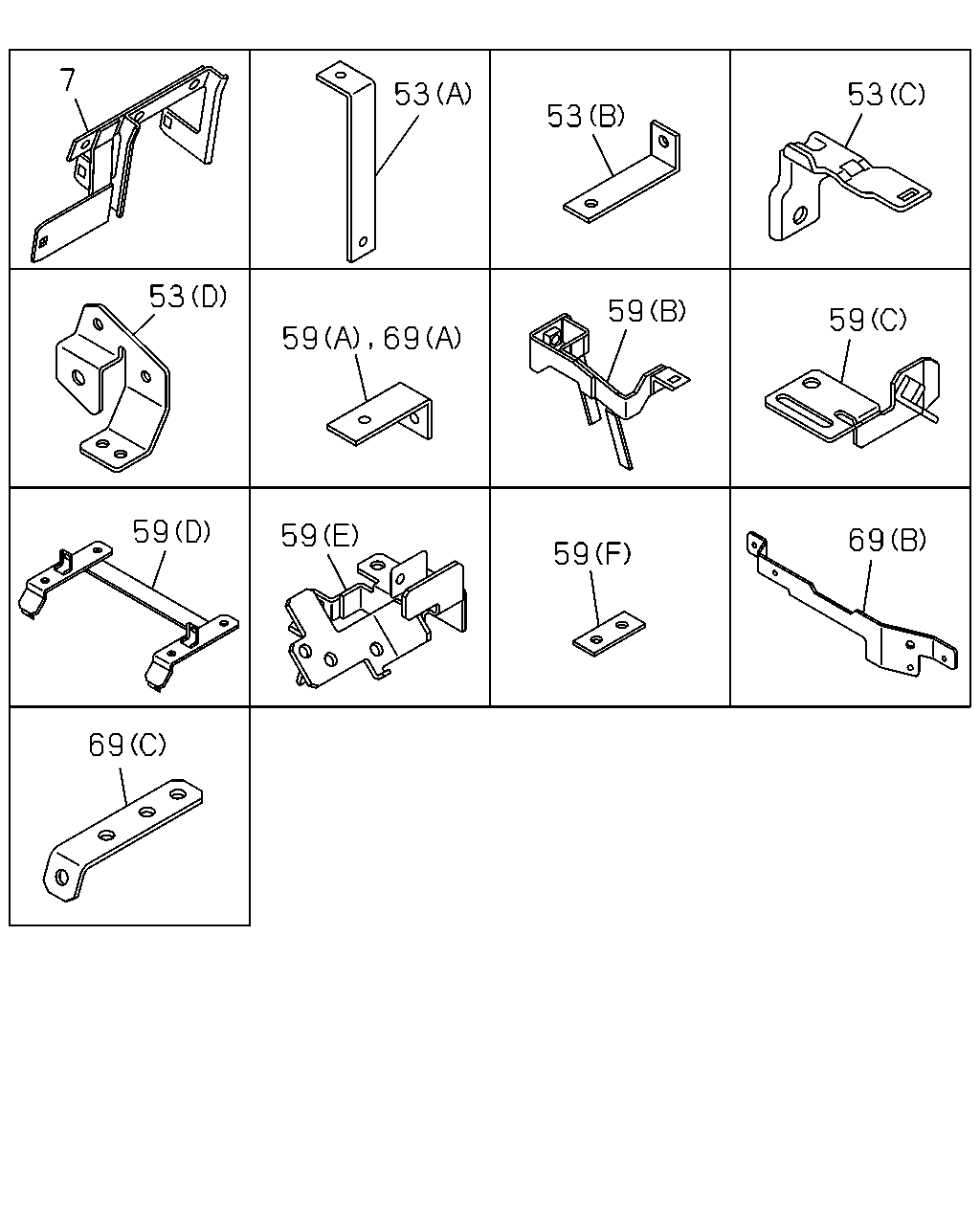

çizim 145578
7 53 53 53 53 59 59 59 69 59 59 69 59 69
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0710- ● ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 0710- ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 0710- ●
53 BRACKET; HARNESS
(B) L=95 		1-82699-085-0 01 1 0710- ●
53 BRACKET; HARNESS
(C) 		8-98052-458-0 01 1 0710- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98084-590-0 01 1 0801- ● ●
59 BRACKET; FRAME HARNESS
(A) L=55 		1-47475-304-0 01 1 0710-0807 ● ●
59 BRACKET; FRAME HARNESS
(A) L=55 		1-47475-304-0 01 1 0808-0811 ● ●
59 BRACKET; FRAME HARNESS
(A) L=55 		1-47475-304-0 01 1 0812-0912 ● ●
59 BRACKET; FRAME HARNESS
(F) L=85 		8-98044-743-0 01 1 1001- ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 0710-0802 ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-98099-963-0 01 1 0803- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97616-305-0 01 1 0710- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97619-533-0 01 1 0710- ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-97619-535-0 01 1 0710- ● ●
69 BRACKET; CLIP
(B) 		8-97614-738-0 01 1 0710- ● ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=55 		1-47475-304-0 01 1 0803-0803 ● ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		1-82698-167-0 01 1 0804- ● ●

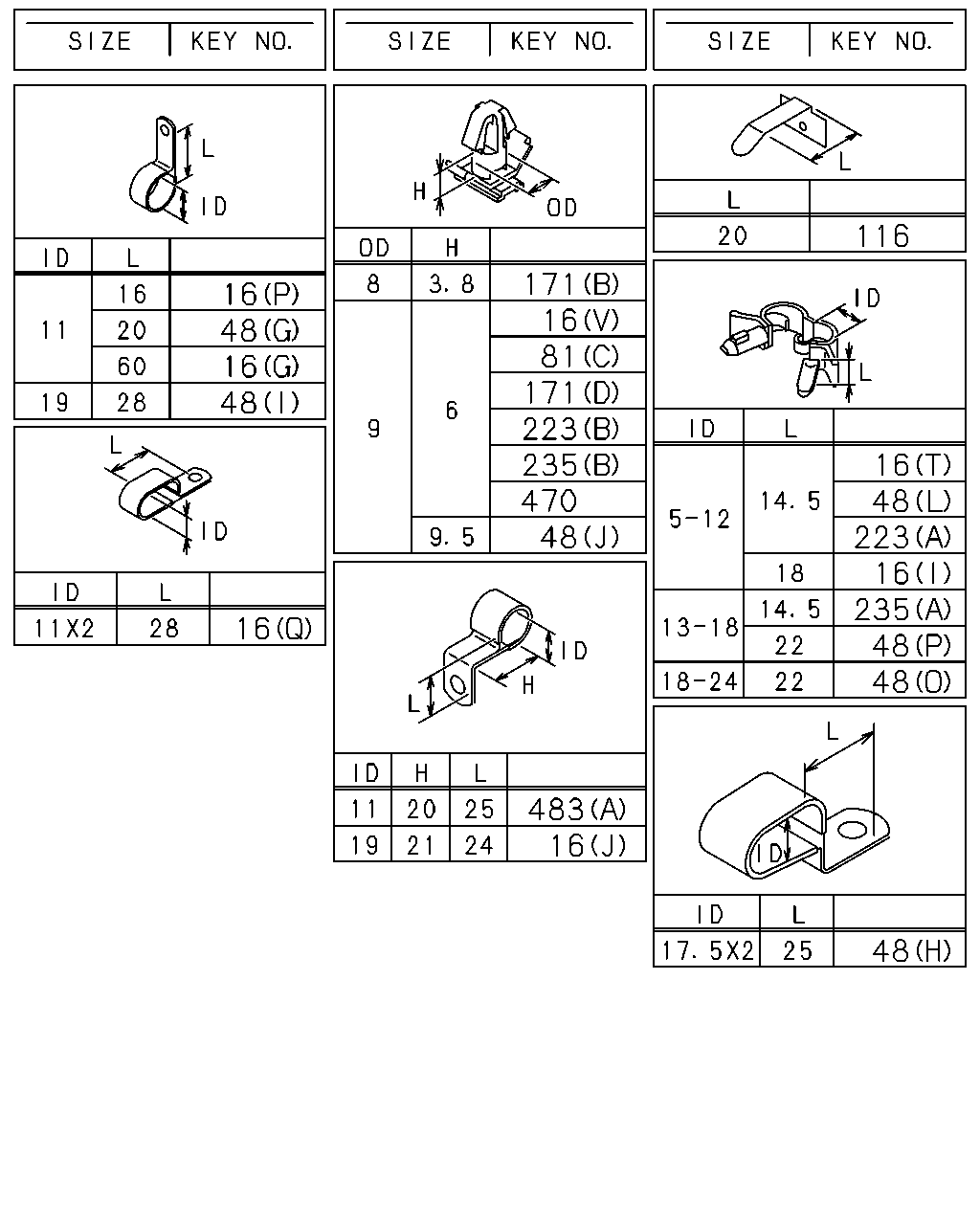

çizim 145580
116 171 16 81 171 223 235 470 48 16 48 16 48 16 48 223 16 235 48 48 16 483 16 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
16 CLIP; HARNESS
(G) ID=11 L=60 		0-95235-096-0 01 1 0710-0807 ● ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		1-09700-734-0 01 1 0710- ● ●
16 CLIP; HARNESS
(R) ID=19 L=39 H=21 		1-09700-972-1 01 1 0710-0807 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0710-0801 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 01 1 0802-0808 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0809- ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 01 1 0710-0806 ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 0807- ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 03 1 0710-0911 ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 02 1 0710-0911 ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 01 1 0912- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ● ●
16 CLIP; HARNESS
(T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0710- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0710-0712 ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(U) L=36.5 		8-97019-892-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710- ● ●
16 CLIP; HARNESS
(W) ID=25 L=55 		9-09917-573-0 01 1 0802-0811 ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (V) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(G) ID=11 L=20 		0-95235-035-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=35 L=50 		1-09701-214-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0710-0905 ●
48 CLIP; FRAME HARNESS
(C) ID=21 L=24 		8-94176-807-1 03 1 0710- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 14 1 0710-0804 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 14 1 0710-0804 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 13 1 0805-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 13 1 0805-1007 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 11 1 1008- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0710-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 06 1 0710-0809 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(O) ID=18-24 L=22 		1-09709-295-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (N) ID=14 L=44 		9-09917-427-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=42 		5-09700-358-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0710-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0710-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1003- ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) L=180 		1-09707-162-1 01 1 0806-0809 ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0806-0809 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 07 1 0710-0809 ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50 		1-09701-055-1 01 1 0710- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=20 L=50 		9-09917-430-0 04 1 0710-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 07 1 0810-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (N) ID=14 L=44 		9-09917-427-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=20 L=50 		9-09917-430-0 05 1 0710-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 10 1 0710-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (N) ID=14 L=44 		9-09917-427-0 10 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (P) ID=13-18 L=22 		1-09709-292-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (N) ID=14 L=44 		9-09917-427-0 13 1 1008- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0712-0901 ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0803-1007 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 1008- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710- ● ●
171 CLIP; STARTER HARNESS
(A) OD=8 H=3.8 		1-09709-309-0 01 1 0710-0803 ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0804- ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0710-0710 ● ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0711-0803 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1102 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0806- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 0710- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 1002- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 02 1 0710- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0710-1205 ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ● ●
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(I) ID=18 L=25 		8-94121-004-1 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0710-0711 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0710-0711 ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0712- ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0712- ●
483 CLIP; ENG HARNESS
(F) ID=14.5 & 6 		8-94312-791-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
(J) 		1-09701-124-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(K) 		1-09987-281-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(M) ID=21 L=24 		1-09701-201-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-94225-185-0 02 1 0710-0801 ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-97367-985-1 02 1 0802- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (H) 		8-97101-436-0 01 1 0710- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 0712- ●

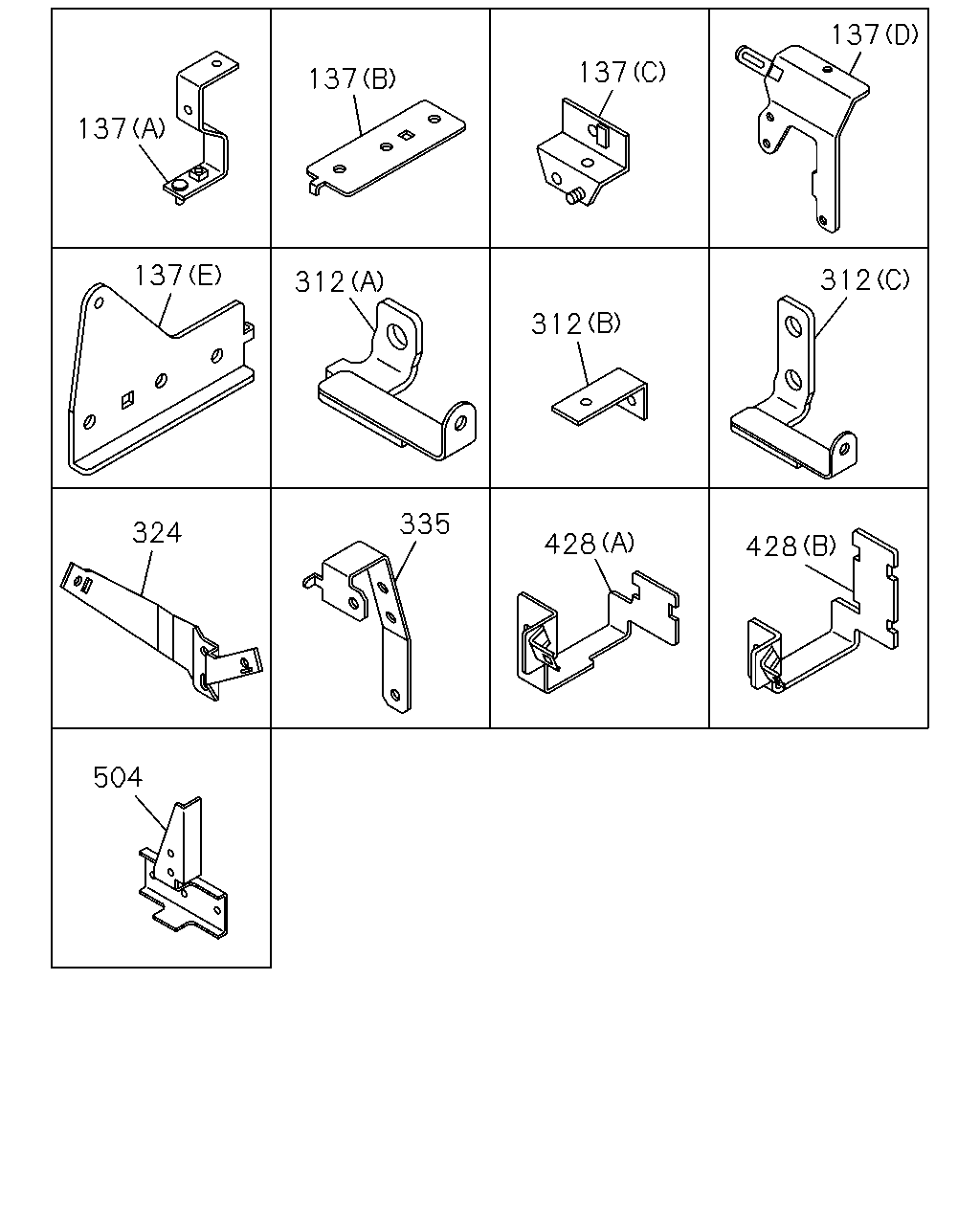

çizim 145584
137 137 137 137 137 312 312 335 324 504 312 428 428
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(B) 		8-97614-688-1 01 1 0710-0712 ● ●
137 BRACKET; HARNESS CLAMP
(E) 		8-97624-016-0 01 1 0801- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 0710- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-98058-354-1 01 1 0710- ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97618-098-2 01 1 0710- ● ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0710- ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-98092-257-0 01 1 0710-0710 ● ●
312 BRACKET; CLIP HARNESS
(C) 		8-98094-804-0 01 1 0711- ● ●
324 BRACKET; CLIP 8-98061-654-2 01 1 0710- ● ●
324 BRACKET; CLIP 8-98061-653-2 01 1 0710- ● ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0710- ● ●
428 BRACKET
(A) 		8-98090-951-0 01 1 0710-0806 ● ●
428 BRACKET
(B) 		8-98116-461-0 01 1 0807- ● ●
504 PROTECTOR; HARNESS 8-98042-155-0 01 1 0710-0807 ●

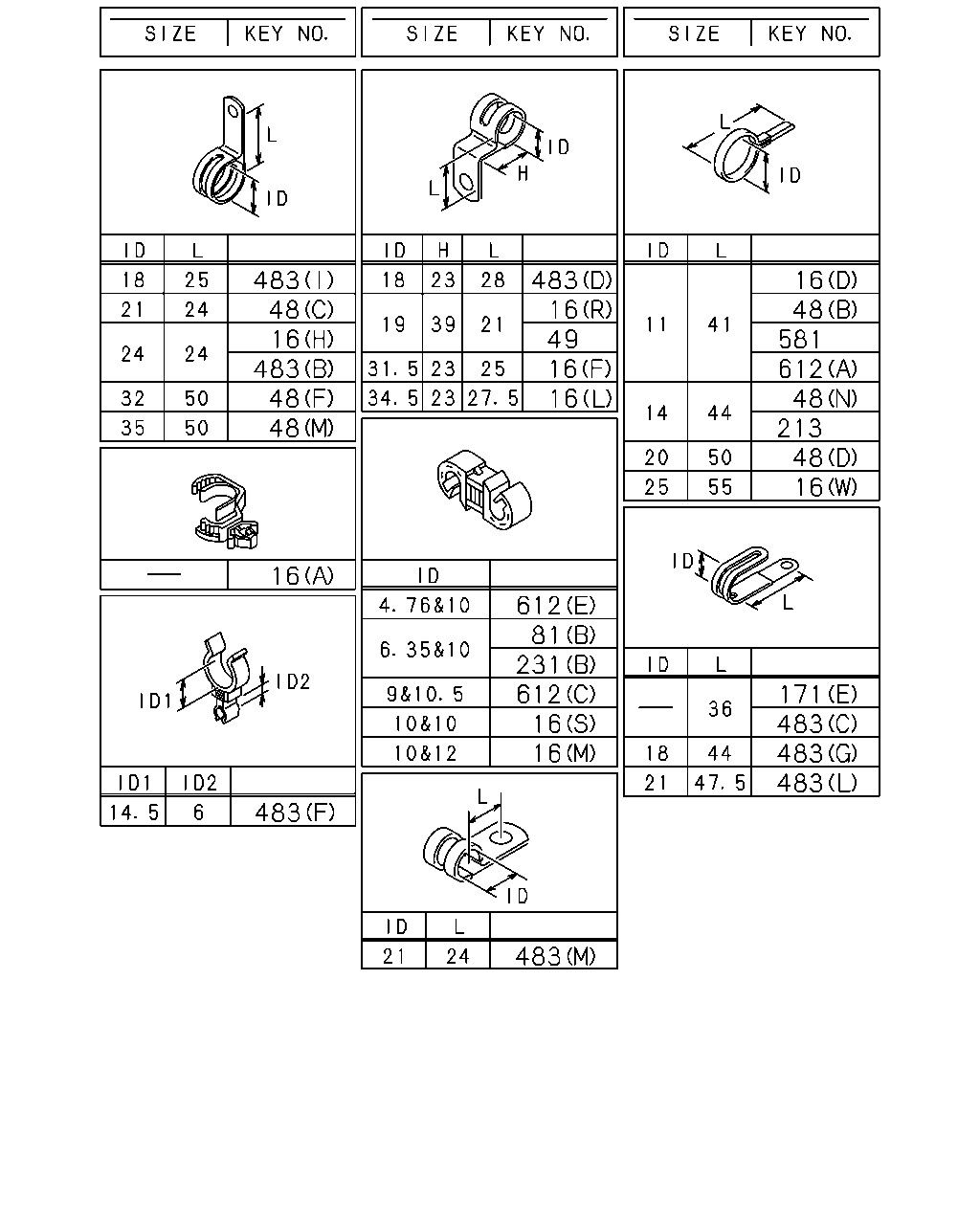

çizim 145628
483 48 16 483 48 48 483 16 49 16 16 16 48 581 612 48 213 48 16 16 612 81 231 612 16 16 171 483 483 483 483 483
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 0710- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
16 CLIP; HARNESS
(G) ID=11 L=60 		0-95235-096-0 01 1 0710-0807 ● ●
16 CLIP; HARNESS
(Q) ID=11X2 L=16 		1-09700-734-0 01 1 0710- ● ●
16 CLIP; HARNESS
(R) ID=19 L=39 H=21 		1-09700-972-1 01 1 0710-0807 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0710-0801 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 01 1 0802-0808 ● ●
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 0809- ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 01 1 0710-0806 ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 0807- ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 03 1 0710-0911 ● ●
16 CLIP; HARNESS
(S) ID=10 & 10 		1-09709-277-1 04 1 0912- ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 02 1 0710-0911 ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 01 1 0912- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ● ●
16 CLIP; HARNESS
(T) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 0710- ● ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0710-0712 ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
(N) L=60 		8-94449-165-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(U) L=36.5 		8-97019-892-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710- ● ●
16 CLIP; HARNESS
(W) ID=25 L=55 		9-09917-573-0 01 1 0802-0811 ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (V) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(G) ID=11 L=20 		0-95235-035-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 0710- ●
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=35 L=50 		1-09701-214-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 0710-0905 ●
48 CLIP; FRAME HARNESS
(C) ID=21 L=24 		8-94176-807-1 03 1 0710- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 14 1 0710-0804 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 14 1 0710-0804 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 13 1 0805-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 13 1 0805-1007 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 11 1 1008- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0710-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 06 1 0710-0809 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (D) ID=20 L=50 		9-09917-430-0 06 1 0810-1007 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(O) ID=18-24 L=22 		1-09709-295-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (N) ID=14 L=44 		9-09917-427-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0901 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=42 		5-09700-358-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0710-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 0710-1002 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 01 1 1003- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1003- ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) L=180 		1-09707-162-1 01 1 0806-0809 ● ●
48 CLIP; FRAME HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0806-0809 ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 07 1 0710-0809 ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 04 1 1008- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50 		1-09701-055-1 01 1 0710- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=20 L=50 		9-09917-430-0 04 1 0710-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (D) ID=20 L=50 		9-09917-430-0 07 1 0810-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (N) ID=14 L=44 		9-09917-427-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=20 L=50 		9-09917-430-0 05 1 0710-0809 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 10 1 0710-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (N) ID=14 L=44 		9-09917-427-0 10 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (P) ID=13-18 L=22 		1-09709-292-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (N) ID=14 L=44 		9-09917-427-0 13 1 1008- ●
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 0808- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0712-0901 ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0803-1007 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 1008- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712- ● ●
171 CLIP; STARTER HARNESS
(A) OD=8 H=3.8 		1-09709-309-0 01 1 0710-0803 ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0804- ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 0710-0710 ● ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0711-0803 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907-1102 ● ●
171 CLIP; STARTER HARNESS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=180 		1-09707-162-1 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) OD=9 H=6 		1-09709-178-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=36 		8-94224-891-1 01 1 0806- ● ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0710- ● ●
231 CLIP; BAND,OIL PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0710-0711 ● ●
231 CLIP; BAND,OIL PRESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0710-0711 ● ●
483 CLIP; ENG HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(I) ID=18 L=25 		8-94121-004-1 01 1 0710- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0710-0711 ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0710-0711 ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 0712- ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 01 1 0712- ●
483 CLIP; ENG HARNESS
(F) ID=14.5 & 6 		8-94312-791-0 01 1 0710-0803 ● ●
483 CLIP; ENG HARNESS
(J) 		1-09701-124-0 01 1 0712-0803 ● ●
483 CLIP; ENG HARNESS
(K) 		1-09987-281-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ● ●
483 CLIP; ENG HARNESS
(M) ID=21 L=24 		1-09701-201-0 01 1 1005- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-94225-185-0 02 1 0710-0801 ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44 		8-97367-985-1 02 1 0802- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (H) 		8-97101-436-0 01 1 0710- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36 		8-94224-891-1 02 1 0712- ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0710- ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0710- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0710- ● ●
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0710-0804 ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0710- ● ●
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
