◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶

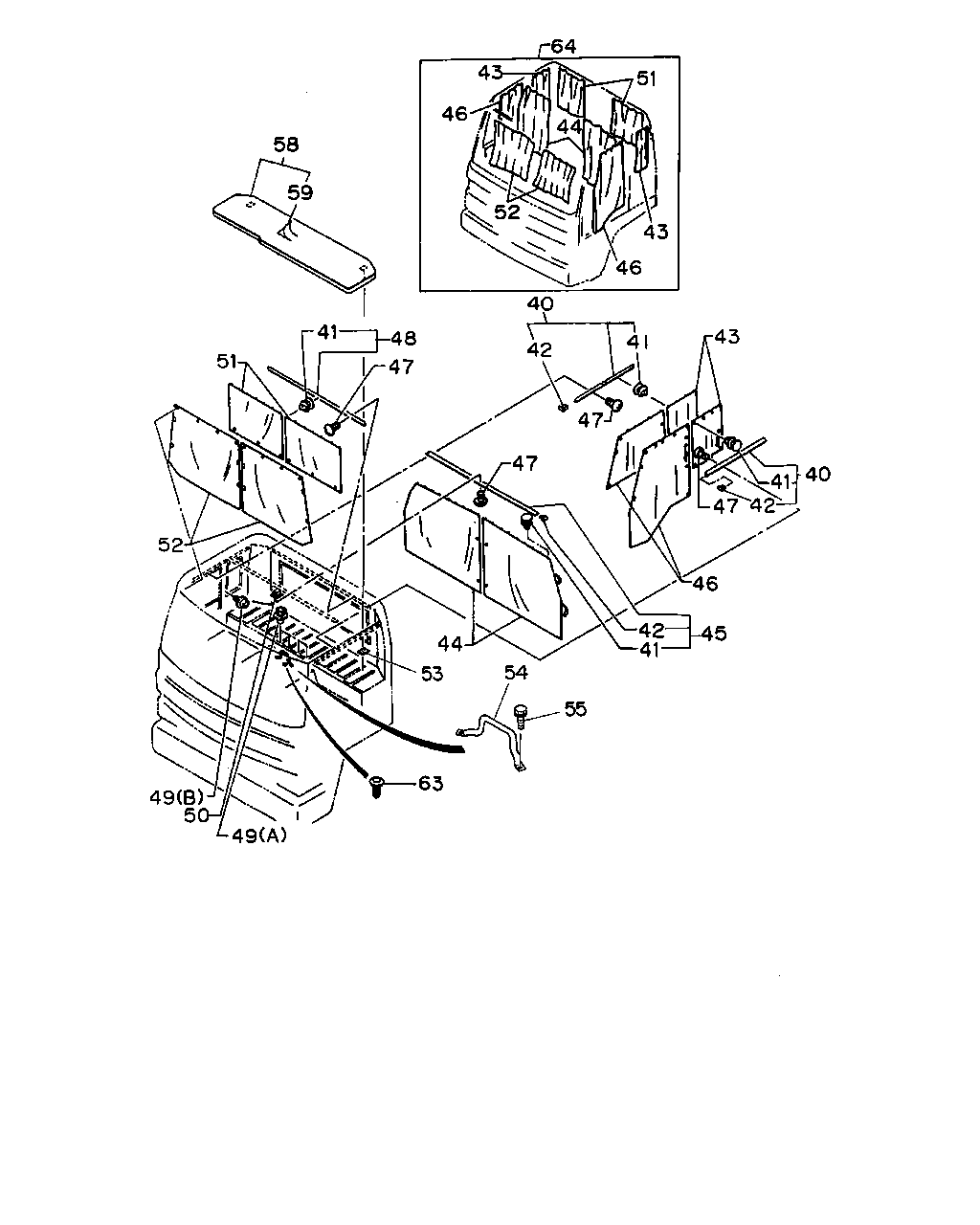

7-70 — SEPARATER AND BED (#586) — 106 parça

64 43 46 51 43 46 52 44 58 59 41 51 48 47 52 49 50 49 63 53 44 54 55 41 42 45 46 47 47 42 41 40 43 41 47 42 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73997-743-0	01	1	8712-9001
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73997-742-0	01	1	8712-9001
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-154-0	01	1	9002-9306
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-153-0	01	1	9002-9306
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-334-0	01	1	9307-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-333-0	01	1	9307-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-641-0	02	1	8712-9001
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-940-0	02	1	9002-9306
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-182-0	02	1	9307-
41	HOOK; CURTAIN RAIL	1-73997-658-0	02	1	8712-9001
41	HOOK; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-658-0	02	1	8712-9001
41	HOOK; CURTAIN RAIL	1-73907-245-0	26	1	9307-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>	1-73997-658-0	14	1	8712-9001
41	HOOK; CURTAIN RAIL	1-73997-980-0	28	1	9002-9306
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>	1-73997-980-0	14	1	9002-9306
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>	1-73997-245-0	07	1	9307-
41	HOOK; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-980-0	06	1	9002-9306
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> GRAY	1-73907-245-0	07	1	9307-
41	HOOK; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-245-0	06	1	9307-
42	STOPPER; CURTAIN RAIL CENTER	1-73997-660-0	01	1	8712-9001
42	STOPPER; CURTAIN RAIL CENTER	1-73997-652-0	01	1	8712-9001
42	STOPPER; CURTAIN RAIL CENTER	1-73997-982-0	01	1	9002-9306
42	STOPPER; CURTAIN RAIL CENTER	1-73997-981-0	01	1	9002-9306
42	STOPPER; CURTAIN RAIL CENTER	1-73907-250-0	01	1	9307-
42	STOPPER; CURTAIN RAIL CENTER	1-73907-249-0	01	1	9307-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> SIDE	1-73907-163-0	01	1	9002-9306
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> SIDE	1-73907-162-0	01	1	9002-9306
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> SIDE	1-73907-340-0	01	1	9307-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> SIDE	1-73907-339-0	01	1	9307-
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40>	1-73997-750-0	01	1	8712-9001
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40>	1-73997-749-0	01	1	8712-9001
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40>	1-73997-990-0	01	1	9002-9306
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40>	1-73997-991-0	01	1	9002-9306
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40>	1-73907-254-0	01	1	9307-
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40>	1-73907-253-0	01	1	9307-
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40>	1-73997-748-1	01	1	8712-9001
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40>	1-73997-747-1	01	1	8712-9001
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40>	1-73997-989-1	01	1	9002-9306
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40>	1-73997-988-1	01	1	9002-9306
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40>	1-73907-242-2	01	1	9307-
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40>	1-73907-240-2	01	1	9307-
45	RAIL; CURTAIN,FRT	1-73997-640-2	01	1	8712-9001
45	RAIL; CURTAIN,FRT	1-73997-939-0	01	1	9002-9306
45	RAIL; CURTAIN,FRT	1-73907-180-1	01	1	9307-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73997-756-0	01	1	8712-9001
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73997-755-0	01	1	8712-9001
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-167-0	01	1	9002-9306
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-166-0	01	1	9002-9306
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-346-0	01	1	9307-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-345-0	01	1	9307-
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-474-0	22	1	8712-9001
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-475-0	22	1	9002-9207
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-477-0	22	1	9208-
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-474-0	16	1	8712-9001
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-475-0	16	1	9002-9207
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-477-0	16	1	9208-
48	RAIL; CURTAIN,BACK	1-73997-642-1	01	1	8712-9001
48	RAIL; CURTAIN,BACK	1-73997-941-0	01	1	9002-9306
48	RAIL; CURTAIN,BACK	1-73907-181-0	01	1	9307-
49	HOOK; CURTAIN MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-09981-286-0	02	1	8712-9001
49	HOOK; CURTAIN MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>,INTERIOR FULL TRIM<WM3> (B)	1-09981-286-0	02	1	9002-
49	HOOK; CURTAIN INTERIOR FULL TRIM<WM3> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-09981-286-0	02	1	9002-
49	HOOK; CURTAIN WINDOW CURTAIN ROUND<BW4> (B)	1-09981-286-0	04	1	8712-9202
49	HOOK; CURTAIN WINDOW CURTAIN ROUND<BW4> (B)	1-09981-286-0	06	1	9203-
49	HOOK; CURTAIN WINDOW CURTAIN ROUND<BW4> (A) NYLON 6	8-94291-778-0	07	1	9203-
50	GROMMET; SCREW,CURTAIN RAIL M4	5-09470-002-0	01	1	8712-
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40>	1-73997-752-0	01	1	8712-9001
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40>	1-73997-751-0	01	1	8712-9001
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40>	1-73997-993-0	01	1	9002-9306
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40>	1-73997-992-0	01	1	9002-9306
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40>	1-73907-256-0	01	1	9307-
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40>	1-73907-255-0	01	1	9307-
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73997-754-1	01	1	8712-9001
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73997-753-1	01	1	8712-9001
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73907-165-0	01	1	9002-9306
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73907-164-0	01	1	9002-9306
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73907-344-0	01	1	9307-
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73907-343-0	01	1	9307-
53	FASTENER; BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-235-0	02	1	8712-
54	PIPE; SUPPORT,BED MAT DELUXE CAB<W14> EXC. FULL TRACTOR TRUCK<RD6>,PASSENGER SEAT MULTI USED(WX9)	1-75597-015-2	01	1	9002-9002
55	BOLT; SUPPORT DELUXE CAB<W14> EXC. FULL TRACTOR TRUCK<RD6>,PASSENGER SEAT MULTI USED(WX9) M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9002-9002
58	BED; MAT DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-561-3	01	1	9002-9306
58	BED; MAT DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-750-0	01	1	9307-
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB<W14>	1-75117-615-1	01	1	9002-9306
58	BED; MAT PASSENGER SEAT MULTI USED(WX9)	1-75117-615-1	01	1	9002-9306
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB<W14>	1-75117-724-1	01	1	9307-
58	BED; MAT PASSENGER SEAT MULTI USED(WX9)	1-75117-724-1	01	1	9307-
58	BED; MAT MATTRESS SLEEPER CAB<E40> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5)	1-75117-460-3	01	1	8712-9001
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5)	1-75117-459-3	01	1	8712-9001
59	COVER ASM; TRIM,BED MAT DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-565-0	01	1	9002-9306
59	COVER ASM; TRIM,BED MAT DELUXE CAB<W14> EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-769-0	01	1	9307-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB<W14>	1-75117-664-0	01	1	9002-9306
59	COVER ASM; TRIM,BED MAT PASSENGER SEAT MULTI USED(WX9)	1-75117-664-0	01	1	9002-9306
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB<W14>	1-75117-739-1	01	1	9307-
59	COVER ASM; TRIM,BED MAT PASSENGER SEAT MULTI USED(WX9)	1-75117-739-1	01	1	9307-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5)	1-75117-398-2	01	1	8712-9001
63	PLUG; SUPPORT D4.7X11	1-76378-154-0	01	1	9003-
63	PLUG; SUPPORT FULL TRACTOR TRUCK<RD6> D4.7X11	1-76378-154-0	01	1	9002-9002
63	PLUG; SUPPORT DELUXE CAB<W14> EXC. FULL TRACTOR TRUCK<RD6> D4.7X11	1-76378-154-0	01	1	9002-9002
63	PLUG; SUPPORT EXC. FULL TRACTOR TRUCK<RD6>,DELUXE CAB<W14> D4.7X11	1-76378-154-0	03	1	9002-9002
64	CURTAIN KIT MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-757-1	01	1	8712-9001
64	CURTAIN KIT MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-987-1	01	1	9002-9306
64	CURTAIN KIT MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-238-2	01	1	9307-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73997-746-1	01	1	8712-9001
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-150-1	01	1	9002-9306
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-332-1	01	1	9307-
