◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11416 - FRR AUSTRALIA EURO4 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#58594) — 176 parça

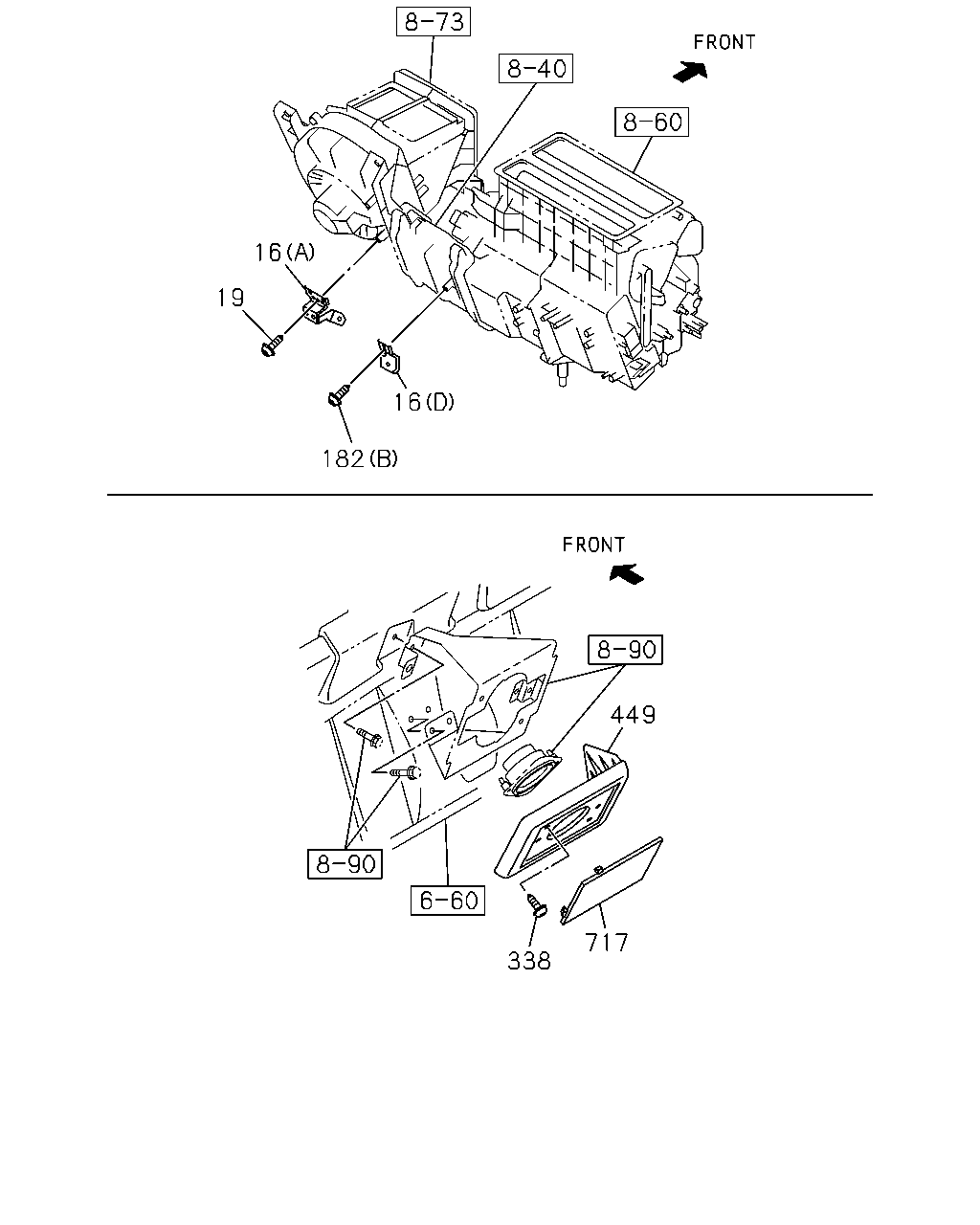

çizim 145527
16 19 16 182 449 717 338
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 0710-0712 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 0801- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0710- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0710- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0710- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0710- ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0710-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0712 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0710- ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> M6X16 TAPPING 		1-09981-524-0 02 1 0710- ● ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 0710- ● ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 0710- ● ●

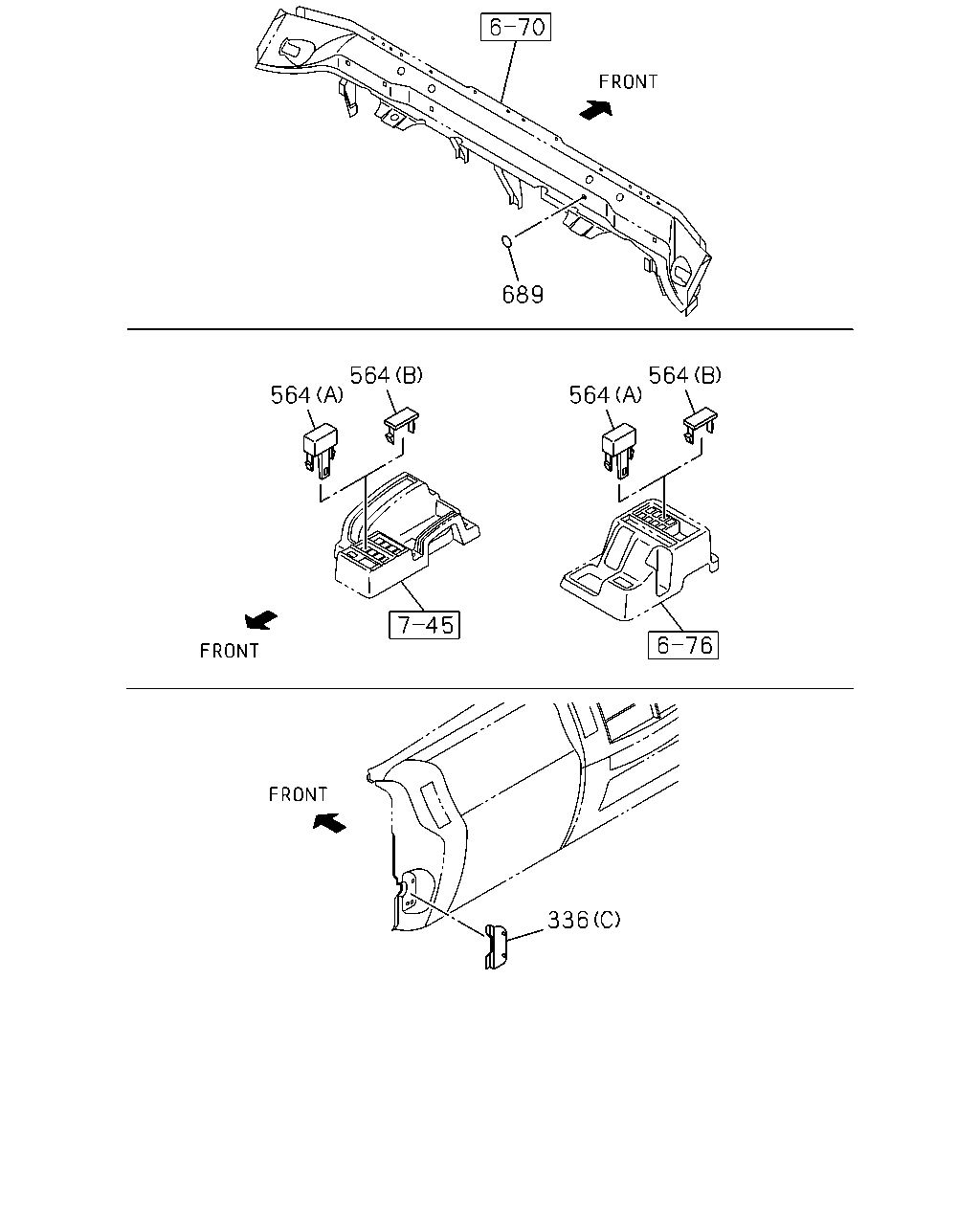

çizim 145534
689 564 564 564 564 336
BalonParca AdiParca NoAdetTipApplied Date A B
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0710- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0710-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0710- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0710- ● ●
564 COVER; SW
(B) 		8-97043-732-1 02 1 0710-0710 ● ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 0710- ● ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0710- ● ●
689 SEAL; INST
OD=25 BLACK 		1-76798-019-0 01 1 0710-0710 ● ●

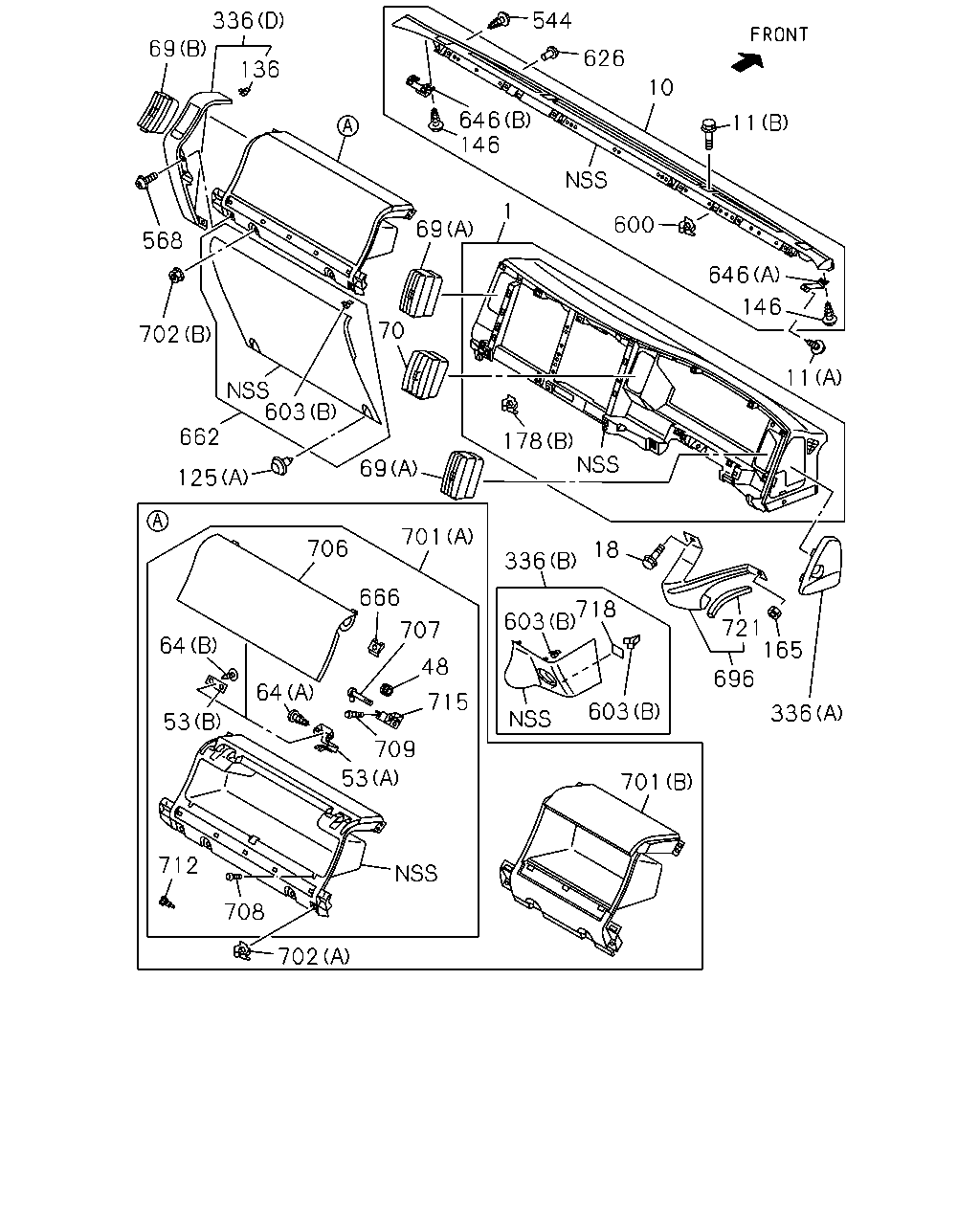

çizim 145543
336 69 136 1 69 70 69 603 702 662 125 568 706 701 666 707 48 715 709 53 702 708 712 53 64 64 336 603 718 603 701 696 721 165 336 18 178 600 646 146 11 11 10 626 544 646 146
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0710- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97407-424-9 01 1 0710-0710 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-685-0 01 1 0710-1008 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-0 01 1 1009- ● ●
11 BOLT; INST PNL
(A) SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0710- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0710- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0710- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0710-1005 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1006-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0710-1005 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1006-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 0805-1005 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1006-1405 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 0805-1005 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1006-1405 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0710- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0710- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0710- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0710-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0710- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0710- ● ●
146 SCREW; TAP
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0710- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0710- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0710-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0710- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0710- ● ●
544 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710- ● ●
568 BOLT; COVER
SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710- ● ●
600 NUT; PANEL 8-98037-629-0 02 1 0710-1008 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0710- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0710- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0710- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0710- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0710- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0710- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 0710- ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0710-1005 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1006-1311 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0710- ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97412-914-2 01 1 0710-0905 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-1 01 1 0906-1005 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-1 01 1 1006- ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97412-913-0 01 1 0710-0804 ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-4 01 1 0805-1005 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1006-1405 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-0 01 1 1406- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0710- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0710- ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97405-372-2 01 1 0710-0804 ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 0805-1005 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1006-1405 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 0710-1005 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1006-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0710-1005 ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1006- ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0710-1005 ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1006- ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0710-1005 ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1006- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0710-1005 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1006-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0710-1005 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1006-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0710- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0710- ● ●

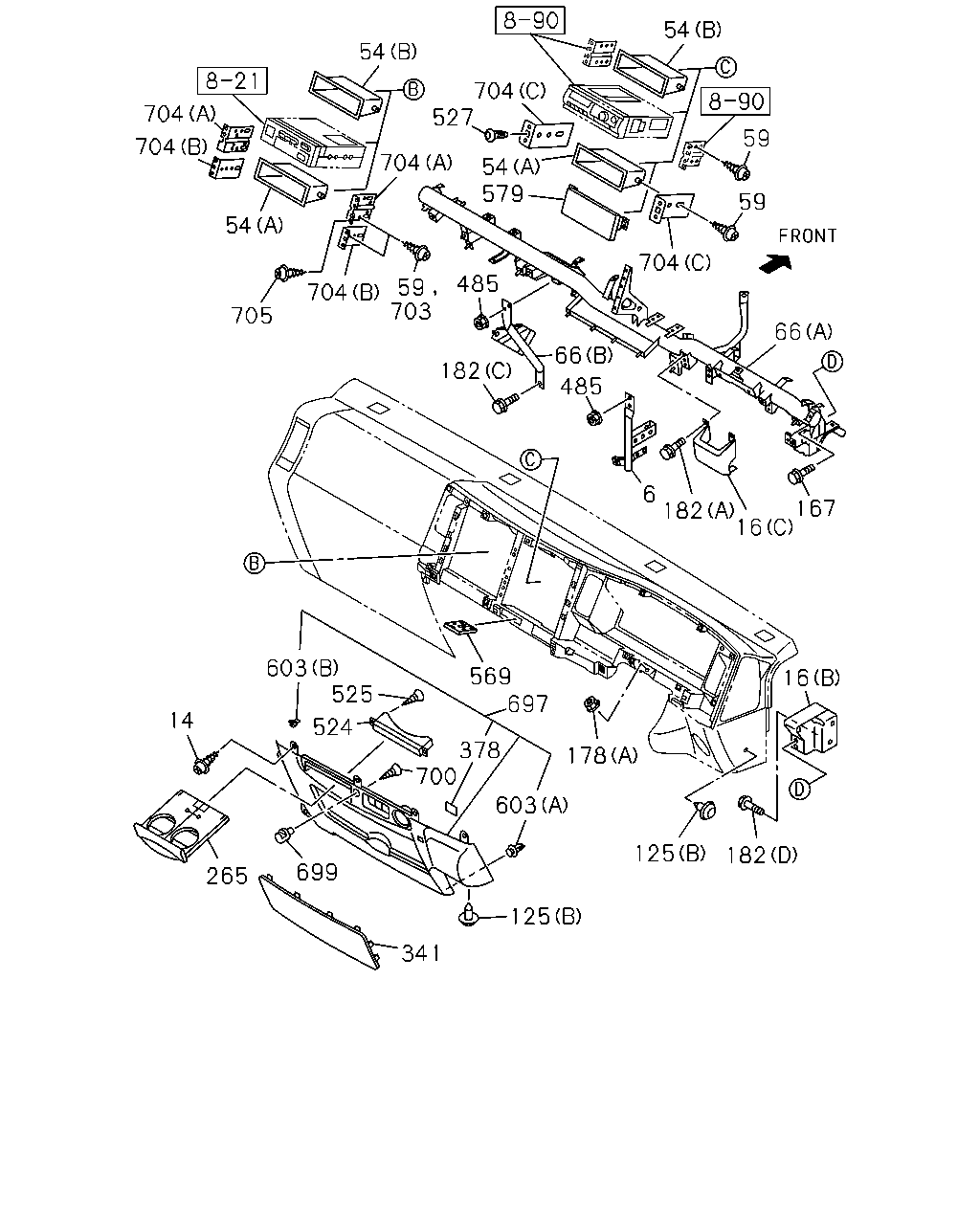

çizim 145552
54 704 704 704 704 704 704 703 705 54 54 59 59 59 54 527 579 66 6 167 16 182 66 485 182 485 603 525 524 700 697 569 178 125 182 16 603 378 125 341 699 265 14
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0710-1109 ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110- ● ●
14 SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0710- ● ●
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 0710-0712 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 0801- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0710- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0710- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0710- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0710- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 02 1 0710-0710 ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0710- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0710- ● ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 0710-0712 ● ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 0801- ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) H=69.8 BLACK 		8-97408-865-2 01 1 0801- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0710- ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0710-0712 ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0710-0909 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-580-2 01 1 0910- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-566-9 01 1 0710-1111 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98170-399-0 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-604-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98009-970-9 01 1 0710-1111 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98170-401-0 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-605-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98151-167-0 01 1 0910- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0710-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0710- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0710- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0710- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0710-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0712 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0710- ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0710-0909 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0710-1010 ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0710- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0710- ● ●
525 SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 0710- ● ●
569 HOLDER; CARD 8-97410-276-0 01 1 0710- ● ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) BLACK 		8-97408-909-0 01 1 0710-0712 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0710- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0710- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0710- ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0710-1010 ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0710- ● ●
700 BOLT; HOOK
SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710- ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0710-0712 ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0801- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0710- ● ●
704 BRACKET; CENTER POCKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 02 1 0710-0712 ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0801- ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 01 1 0710-0712 ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98073-822-0 02 1 0710-0712 ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98107-549-0 02 1 0801- ● ●
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0710- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
