7-30 — LOCK CYLINDER SET (#58593) — 18 parça

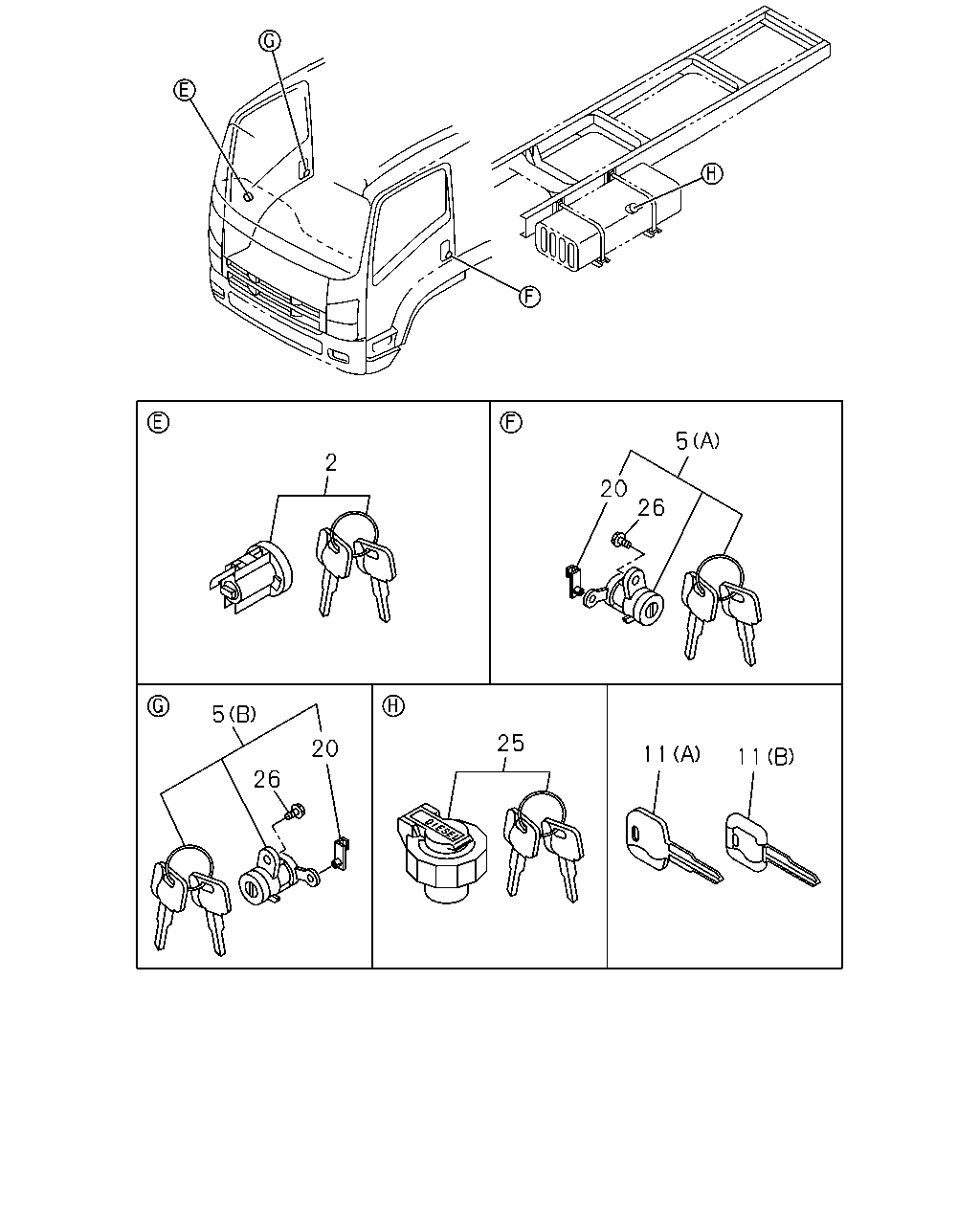

çizim 145536
5 2 20 26 5 25 20 11 11 26
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK 8-98055-147-0 01 1 0710-1203 ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1204- ● ●
5 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0710- ● ●
5 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0710- ● ●
11 KEY; BLANK
(B) IMMOBILIZER 		8-98055-168-0 AR 1 0710- ● ●
11 KEY; BLANK
(A) 		8-98055-170-0 AR 1 0710- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0710- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0710- ● ●
25 CAP; FUEL TANK,W/KEY 8-98033-157-0 01 1 0710-0804 ● ●
25 CAP; FUEL TANK,W/KEY 8-98088-982-0 01 1 0805-0911 ● ●
25 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 0912- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0710- ● ●

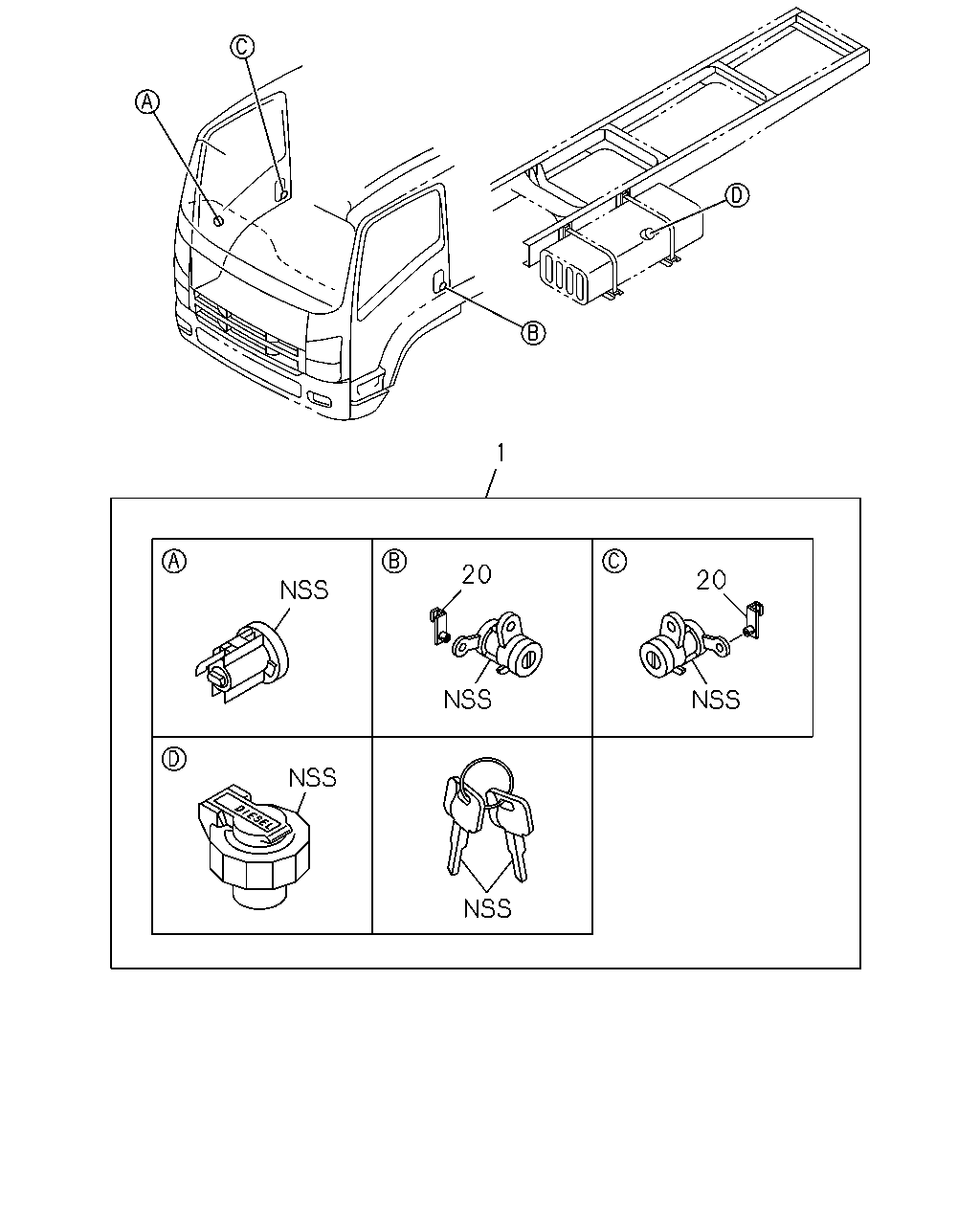

çizim 145541
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK 8-98029-406-1 01 1 0710-0804 ● ●
1 CYLINDER SET; CAR LOCK 8-98088-949-0 01 1 0805-0911 ● ●
1 CYLINDER SET; CAR LOCK 8-98145-977-0 01 1 0912-1203 ● ●
1 CYLINDER SET; CAR LOCK 8-98201-214-0 01 1 1204- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0710- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0710- ● ●
