◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11416 - FRR AUSTRALIA EURO4 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#58592) — 87 parça

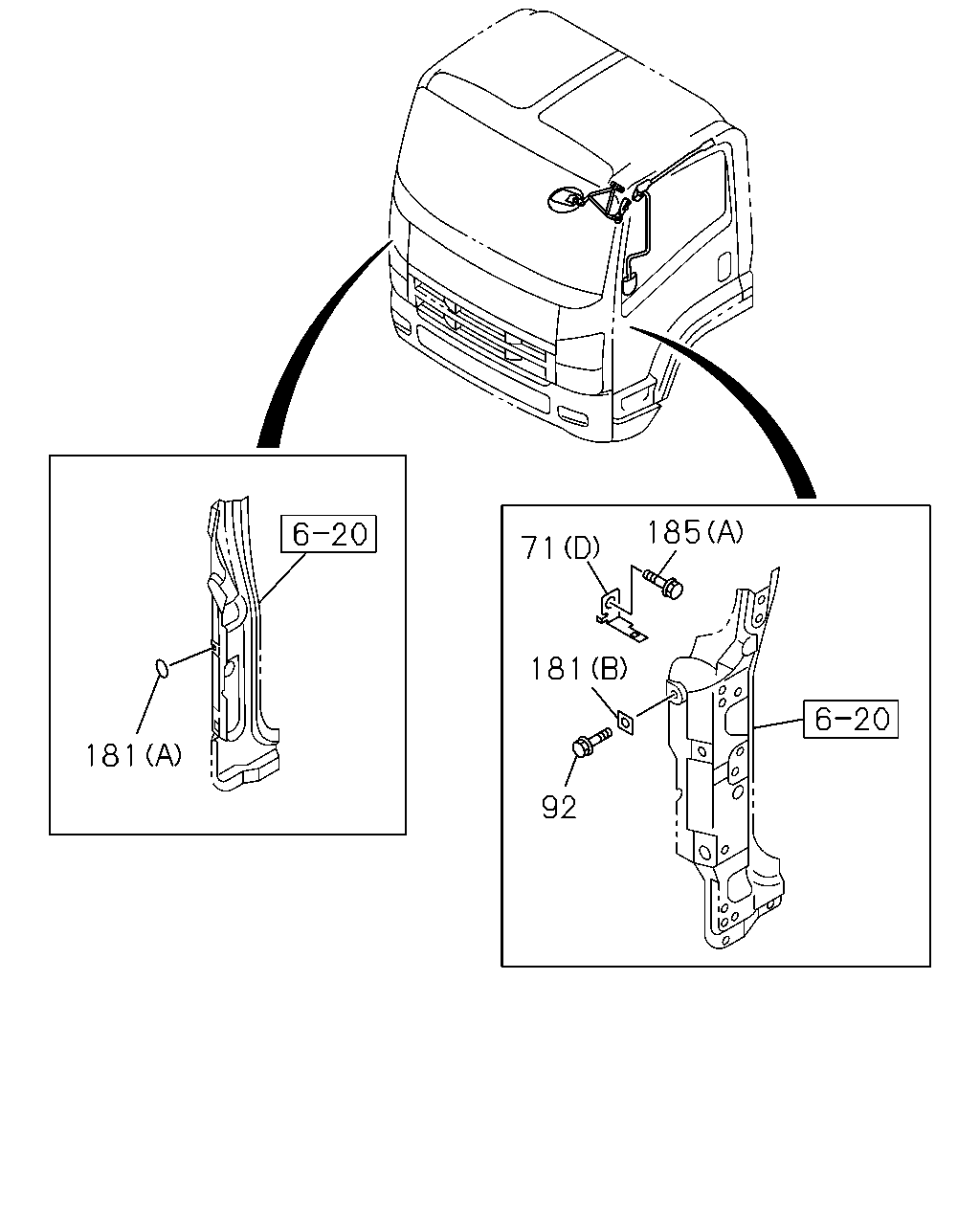

çizim 145524
185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 0710-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (D) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0710- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0710- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 0710- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 0710- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0710- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0710- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0710-0710 ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0710-0808 ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0809- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-1202 ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ●
185 BOLT; BRKT
(B) SCREW M8X23 		8-97310-216-1 08 1 0710-0807 ● ●

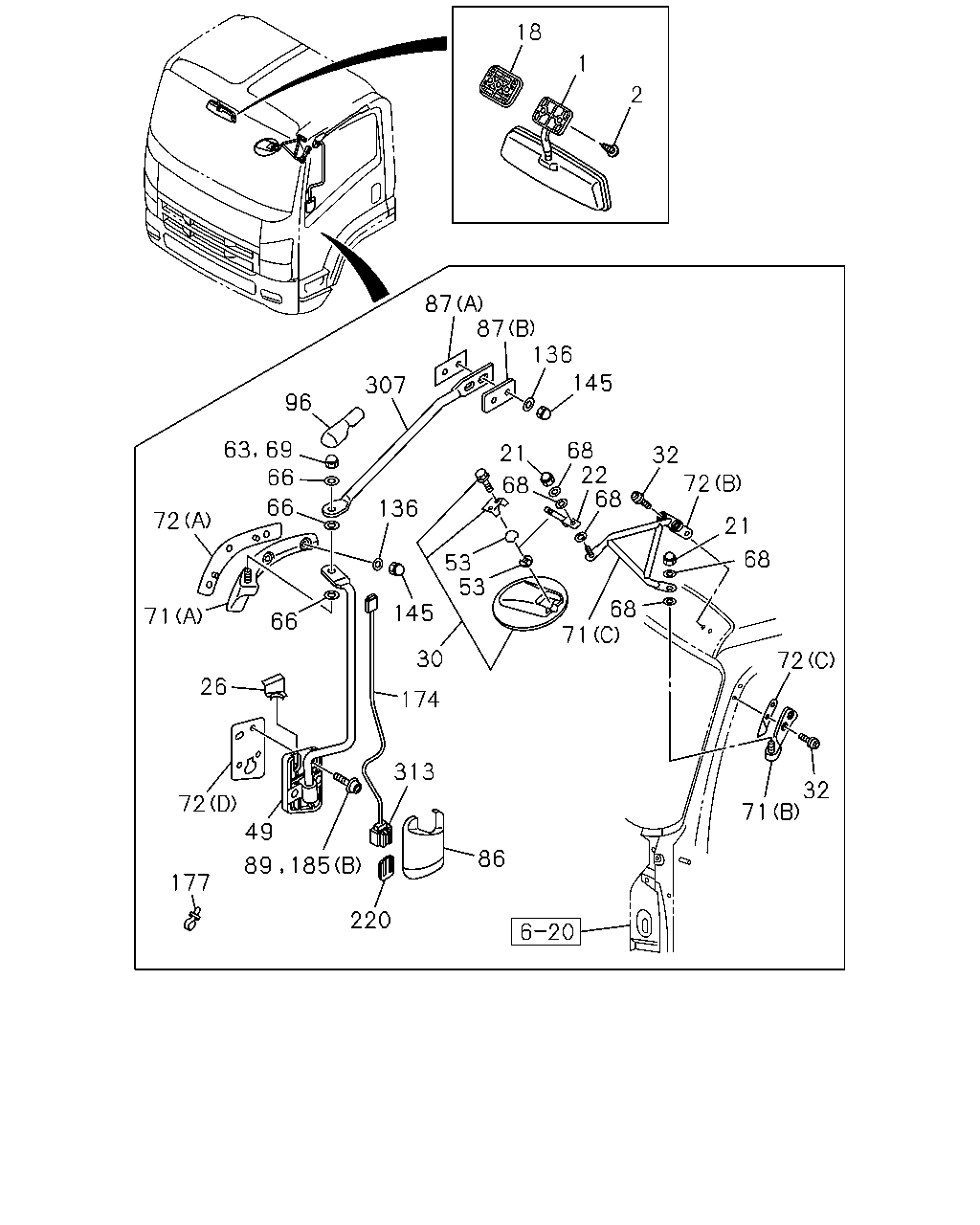

çizim 145528
18 1 2 87 87 136 145 307 96 66 68 22 68 21 32 72 68 66 136 72 21 68 53 53 68 71 145 71 66 30 72 26 174 313 32 71 72 49 86 177 220 89 185 63 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
RR VIEW MIRROR<D31> DARK GRAY 		8-97405-193-1 01 1 0710-0802 ● ●
1 MIRROR; ROOM
RR VIEW MIRROR<D31> DARK GRAY 		8-98097-534-1 01 1 0803- ● ●
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X26 		8-98033-674-0 02 1 0710- ● ●
18 CLIP; MIRROR
RR VIEW MIRROR<D31> DARK GRAY 		8-97408-241-0 01 1 0710- ● ●
21 NUT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 0710- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-493-0 01 1 0710- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0710- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0710- ● ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98055-994-0 01 1 0710- ● ●
32 SCREW; UNDER MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 0710- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-055-0 01 1 0710-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-054-0 01 1 0710-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-069-0 01 1 0710-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-068-0 01 1 0710-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-779-0 01 1 0710-1006 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-779-0 01 1 1007-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-778-0 01 1 0710-1006 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-778-0 01 1 1007-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 0710- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0808- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0710- ● ●
68 WASHER; STAY
O/SIDE MIRROR UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 05 1 0710-0805 ● ●
68 WASHER; STAY
O/SIDE MIRROR UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0806- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 02 1 0710-0807 ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98039-277-2 02 1 0710-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (D) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0710- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0710- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 0710- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98092-492-3 01 1 0710- ● ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98101-865-0 01 1 0805-1006 ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98101-865-0 01 1 0805-1006 ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98101-865-0 01 1 1007- ● ●
72 SHEET
(D) 		8-98080-418-0 02 1 0710-0804 ● ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98101-864-0 01 1 0805-1006 ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98101-864-0 01 1 0805-1006 ●
72 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98101-864-0 01 1 1007- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 0710- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 0710- ● ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (B) 		8-98060-245-1 01 1 0710- ● ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98064-776-0 01 1 0710- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0710- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0710- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0710- ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 0710- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0808- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0710- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0710- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0710- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 0902-1006 ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 0902-1006 ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1007- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 0902- ● ●
177 CLIP; HARNESS
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> L=140 		5-09707-031-1 02 1 0902-1006 ●
177 CLIP; HARNESS
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> L=140 		5-09707-031-1 02 1 0902-1006 ●
177 CLIP; HARNESS
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> L=140 		5-09707-031-1 02 1 1007- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-1202 ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ●
185 BOLT; BRKT
(B) SCREW M8X23 		8-97310-216-1 08 1 0710-0807 ● ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94479-375-0 02 1 0902-1006 ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94479-375-0 02 1 0902-1006 ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94479-375-0 02 1 1007- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0710- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0710- ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94479-370-0 02 1 0902-1006 ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94479-370-0 02 1 0902-1006 ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-94479-370-0 02 1 1007- ● ●
