◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11416 - FRR AUSTRALIA EURO4 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#58591) — 12 parça

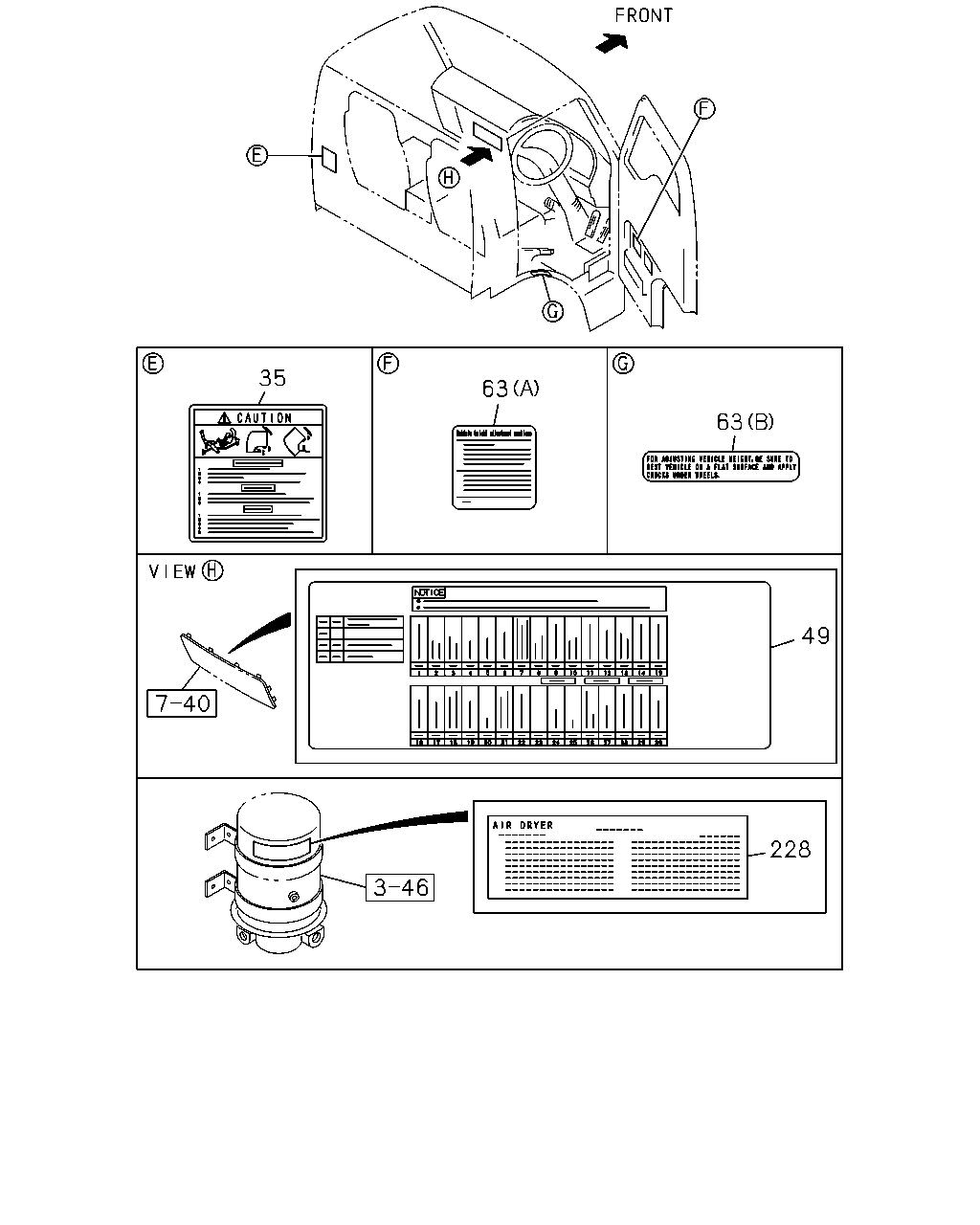

çizim 145521
35 63 63 49 228
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 0710- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98060-853-0 01 1 0710-0805 ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0806- ● ●
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-823-0 01 1 0710- ●
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-861-0 01 1 0710- ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0710-1001 ● ●

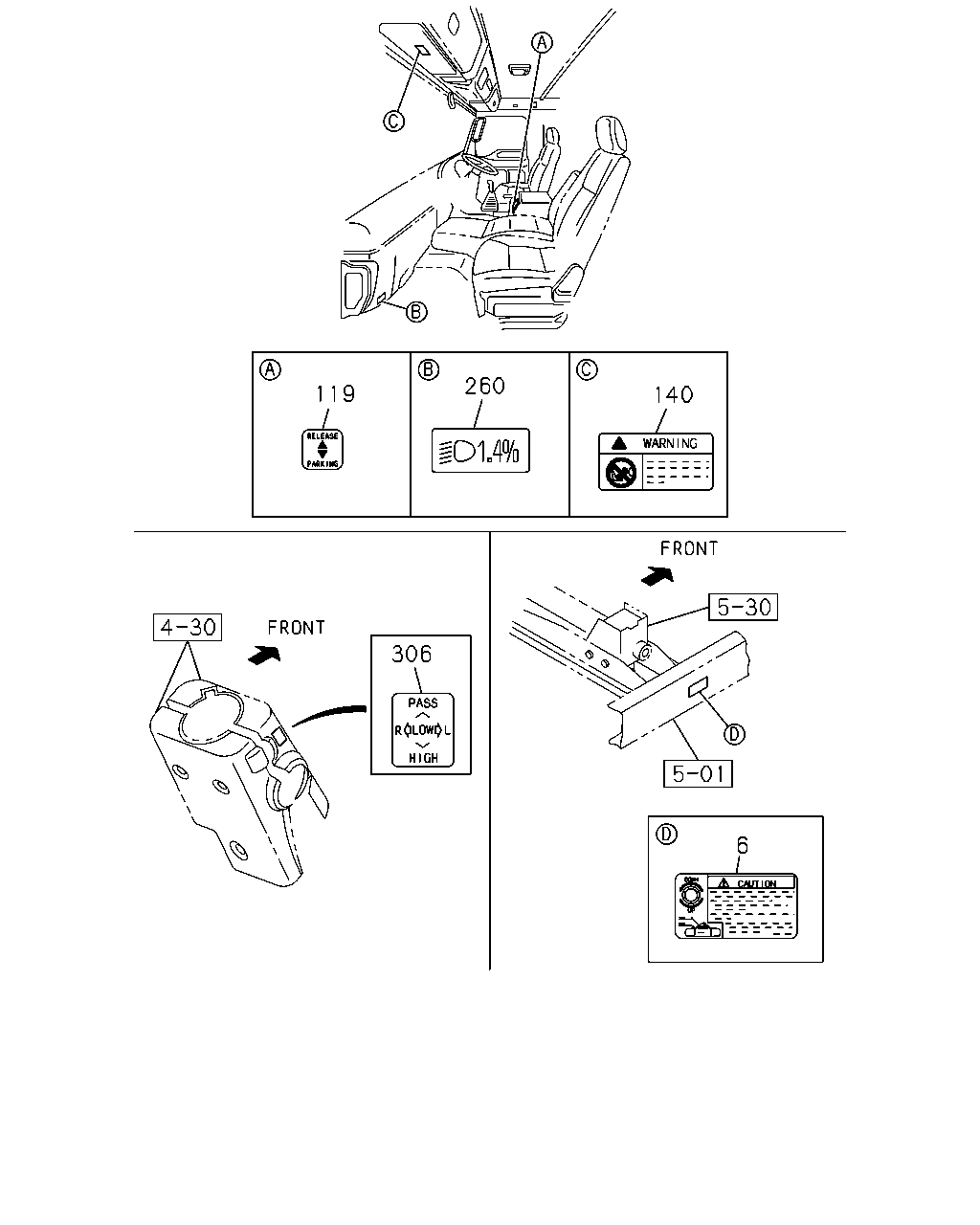

çizim 145523
260 119 140 306 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0710- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0710- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 01 1 0710-0712 ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0801- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 0710- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0710- ● ●
