7-01 — EMBLEM AND NAME PLATE (#5859) — 21 parça
çizim 7122
103 4 4 70 245 70 137
BalonParca AdiParca NoAdetTipApplied Date A B
4 EMBLEM; RAD GRILLE
(A) 		1-76210-634-0 01 1 9603-9705 ● ●
4 EMBLEM; RAD GRILLE
(A) 		1-76210-634-0 01 1 9706-9904 ●
4 EMBLEM; RAD GRILLE
EXC. CHEV BRAND PACKAGE<PS2> (A) 		1-76210-634-0 01 1 9706-9904 ●
4 EMBLEM; RAD GRILLE
(A) 		1-76210-668-2 01 1 9905-0006 ●
4 EMBLEM; RAD GRILLE
EXC. CHEV BRAND PACKAGE<PS2> (A) 		1-76210-668-2 01 1 9905-0006 ●
4 EMBLEM; RAD GRILLE
(A) 		1-76210-668-3 01 1 0007- ●
4 EMBLEM; RAD GRILLE
EXC. CHEV BRAND PACKAGE<PS2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-76210-668-3 01 1 0007- ●
4 EMBLEM; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 1<NBH>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-76210-689-1 01 1 0009- ●
4 EMBLEM; RAD GRILLE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76217-132-0 01 1 9603-0006 ●
4 EMBLEM; RAD GRILLE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-76217-132-0 01 1 0007- ●
70 DECAL; INTERCOOLER
6WA1 TC-S(56L) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-76218-114-0 01 1 9603-9707 ● ●
70 DECAL; INTERCOOLER
L TYPE ENG<90L> (A) 		1-76218-114-0 01 1 9708- ●
70 DECAL; INTERCOOLER
L TYPE ENG<90L> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-76218-114-0 01 1 9708- ●
70 DECAL; INTERCOOLER
L TYPE ENG<90L> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		8-97857-435-1 01 1 9603-0006 ●
103 EMBLEM; "CHEVROLET"
CHEV BRAND PACKAGE<PS2> 		8-97865-065-0 01 1 9706- ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 9603- ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 9603- ● ●
245 DECAL; MODEL 1-76217-137-0 01 1 9603- ● ●

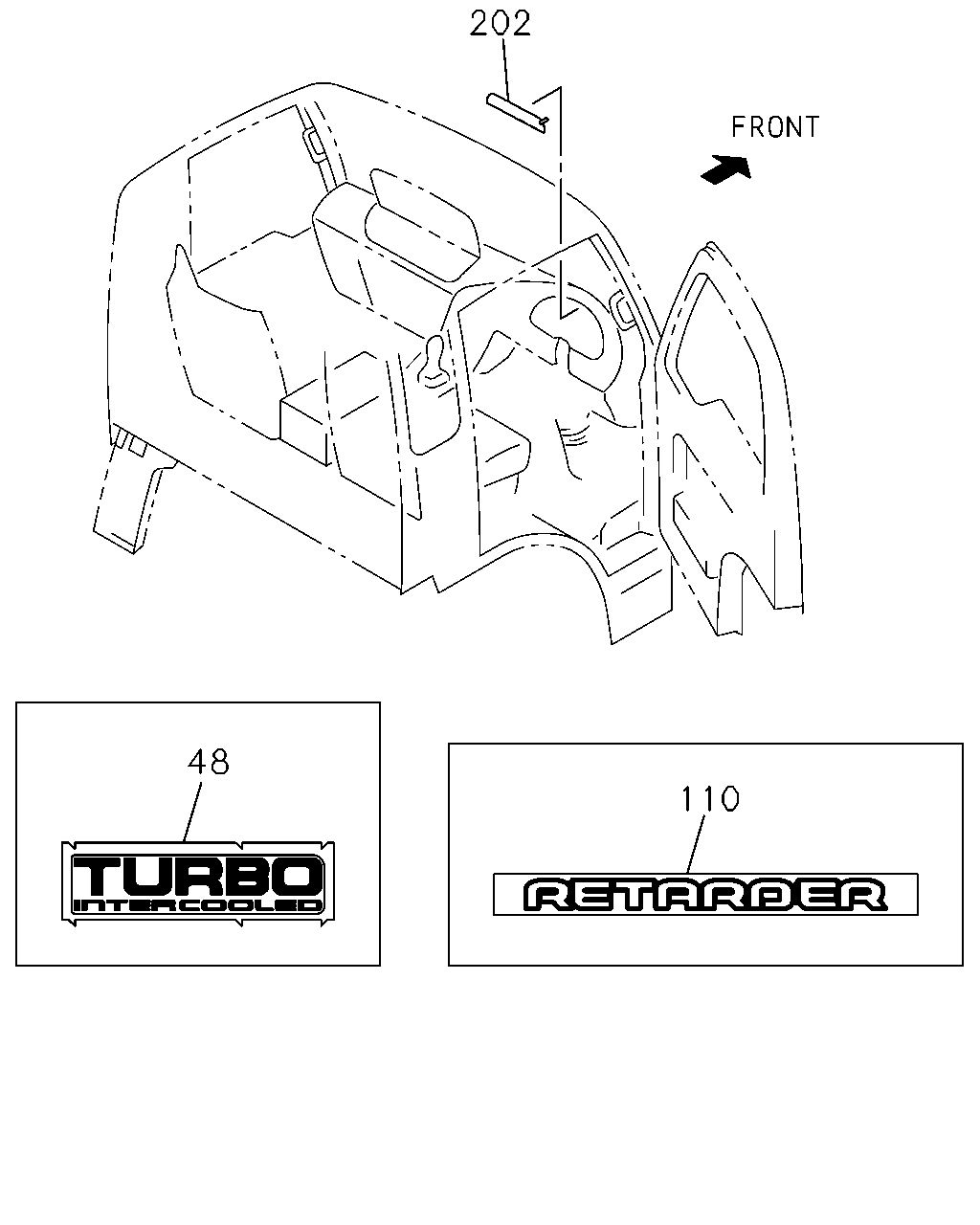

çizim 10115
202 48 110
BalonParca AdiParca NoAdetTipApplied Date A B
48 DECAL; TURBOCHARGER
6WA1 TC-C(55L) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) 		8-97857-435-1 01 1 0007- ●
110 EMBLEM; "ISUZU",RR BODY
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-76230-242-0 01 1 9905- ●
202 DECAL; METER CLUSTER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-016-1 01 1 9905- ●
