6-60 — ROOF PANEL (#58580) — 10 parça

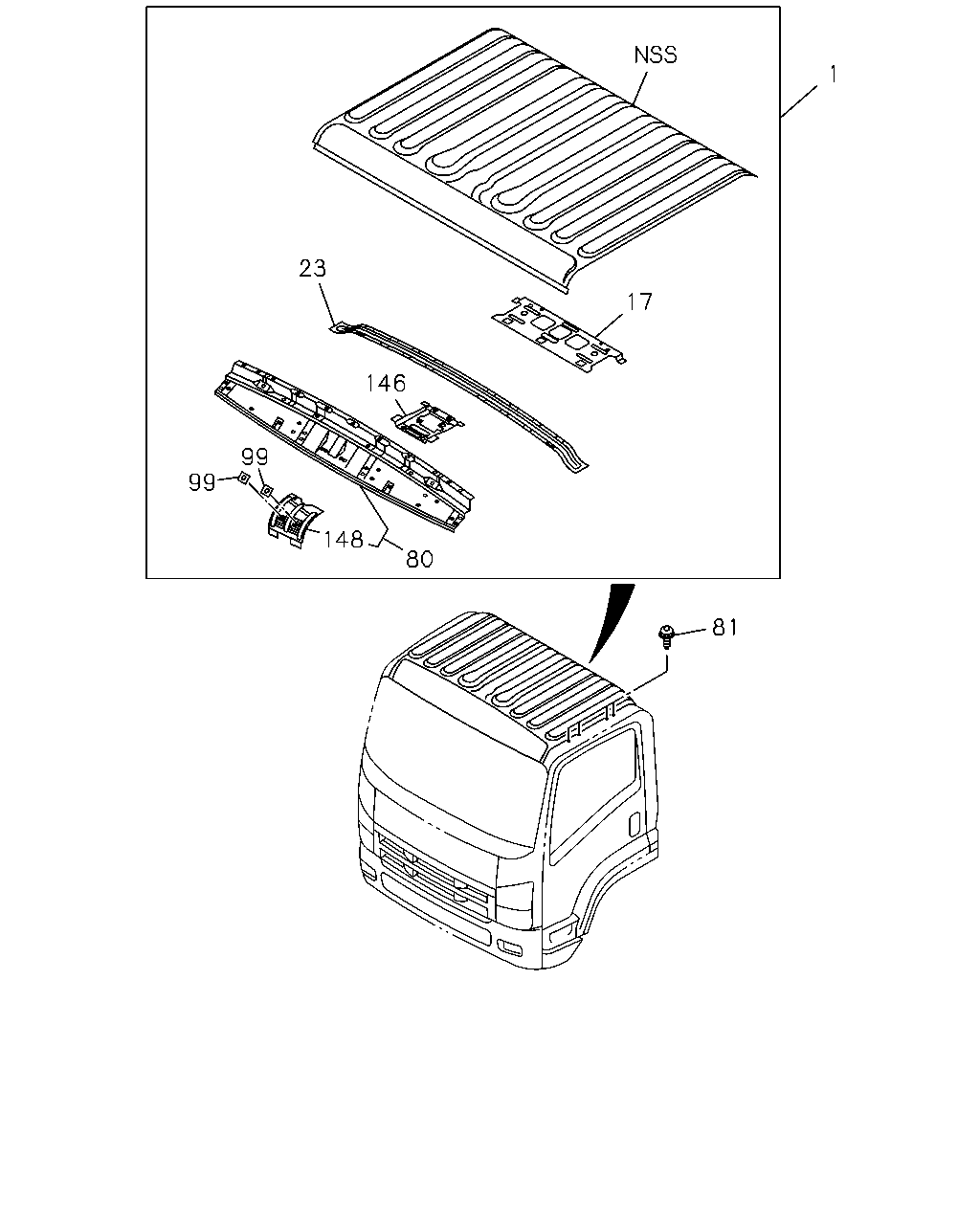

çizim 145512
1 23 17 146 99 99 148 80 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-167-6 01 1 0710- ● ●
1 PANEL; ROOF
EXC. O/SIDE MIRROR UNDER VIEW<RR9> 		8-98031-835-5 01 1 0710- ● ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0710- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 0710- ● ●
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-191-4 01 1 0710- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0710-0910 ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 0911- ● ●
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0710- ● ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 0710- ● ●
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-97411-015-1 01 1 0710- ● ●
