Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#58579) — 56 parça

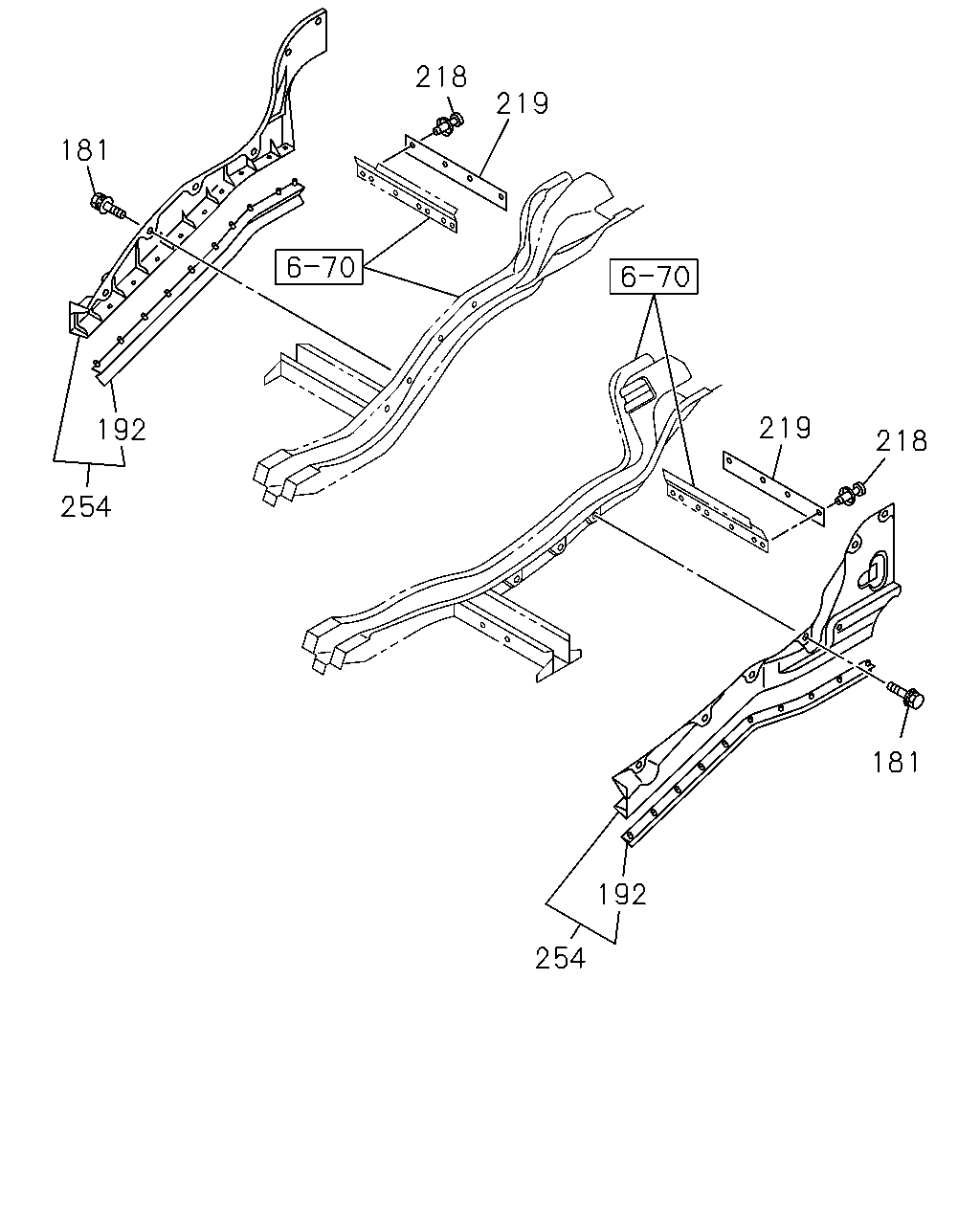

218 219 181 219 192 218 254 181 192 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	12	1	0710-	●	●
192	SEAL; MUD COVER	8-98041-157-2	01	1	0710-	●	●
192	SEAL; MUD COVER	8-98041-156-2	01	1	0710-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0710-	●	●
219	FLAP; MUD GUARD	8-98041-148-1	02	1	0710-	●	●
254	COVER; MUD,VALANCE	8-98039-918-1	01	1	0710-	●	●
254	COVER; MUD,VALANCE	8-98039-917-2	01	1	0710-	●	●

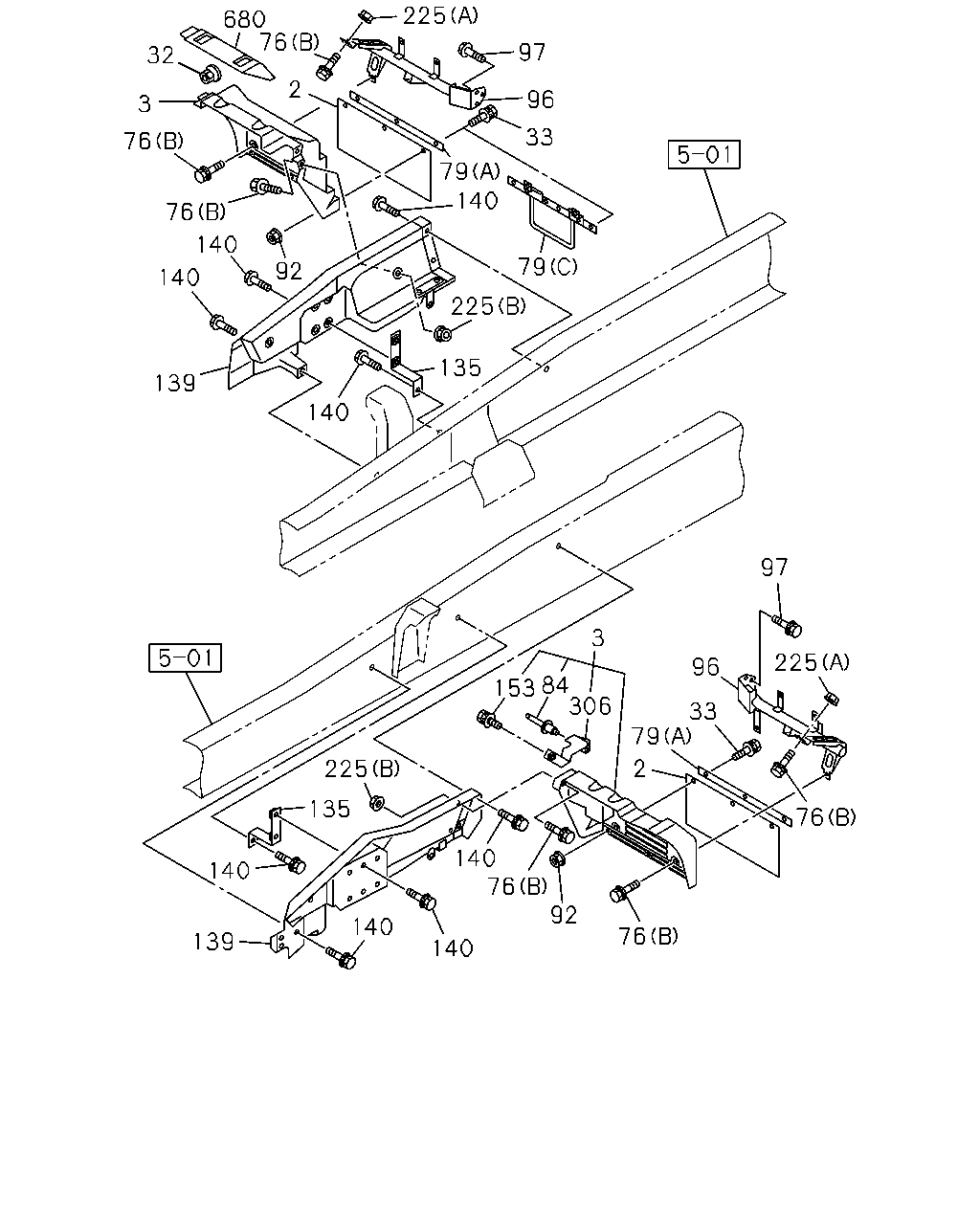

225 97 96 33 79 140 79 225 135 140 139 140 92 140 76 76 3 32 680 76 2 97 225 76 96 33 79 2 306 3 84 153 225 135 140 139 140 140 140 76 92 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR	1-79931-482-0	02	1	0710-	●	●
3	GUARD; MUD,RR	1-79931-471-0	01	1	0710-1212	●	●
3	GUARD; MUD,RR	8-98196-103-0	01	1	1301-	●	●
3	GUARD; MUD,RR	1-79931-472-2	01	1	0710-1302	●	●
3	GUARD; MUD,RR	8-98219-764-0	01	1	1303-	●	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0710-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0710-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0710-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0710-0809	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	01	1	0810-	●	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0710-	●	●
79	RETAINER; MUD COVER (C)	8-98105-000-0	01	1	0810-	●	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1301-	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	06	1	0710-	●	●
96	STAY; MUD GUARD	8-98066-745-2	01	1	0710-	●	●
96	STAY; MUD GUARD	1-79931-479-3	01	1	0710-	●	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	07	1	0710-	●	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0710-	●	●
139	PANEL; SIDE	8-98090-078-0	01	1	0710-	●	●
139	PANEL; SIDE	8-98090-077-0	01	1	0710-	●	●
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	0710-	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1301-	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	0710-	●	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1301-	●	●
680	GUARD; MUD,UPPER	1-79931-477-1	01	1	0710-	●	●

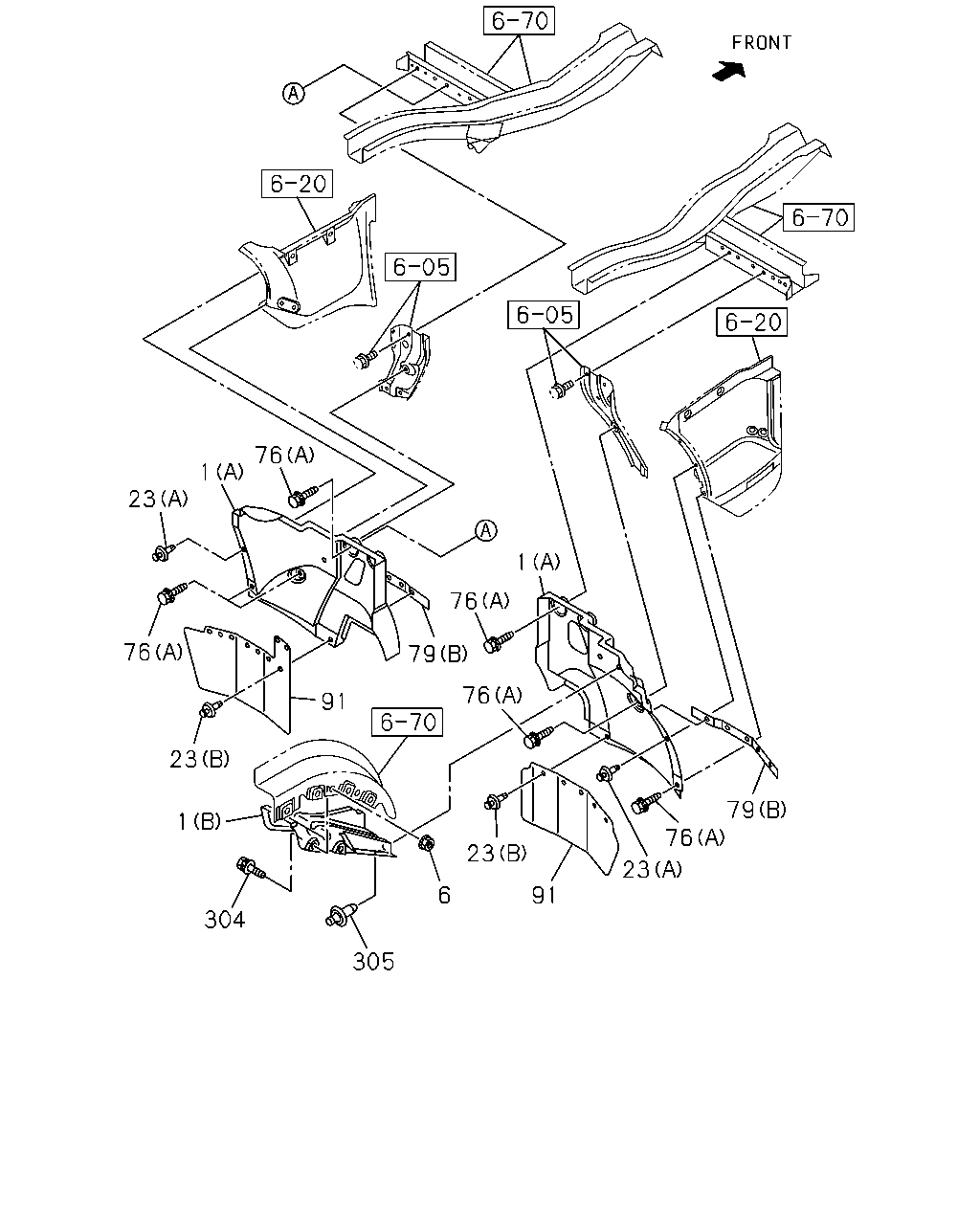

76 1 23 1 76 76 79 76 91 23 79 1 76 23 23 6 91 304 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98075-188-0	01	1	0710-	●	●
1	GUARD; MUD,FRT (A)	8-98039-843-2	01	1	0710-0908	●	●
1	GUARD; MUD,FRT (A)	8-98152-647-0	01	1	0909-	●	●
1	GUARD; MUD,FRT (A)	8-98039-842-2	01	1	0710-0908	●	●
1	GUARD; MUD,FRT (A)	8-98152-646-0	01	1	0909-	●	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0710-	●	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	08	1	0710-	●	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	0710-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0710-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	02	1	0710-0809	●	●
79	RETAINER; MUD COVER (A)	1-79931-484-0	01	1	0810-	●	●
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0710-	●	●
79	RETAINER; MUD COVER (C)	8-98105-000-0	01	1	0810-	●	●
91	COVER; MUD,FRT	8-98093-464-0	01	1	0710-	●	●
91	COVER; MUD,FRT	8-98093-463-0	01	1	0710-	●	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0710-	●	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0710-	●	●
