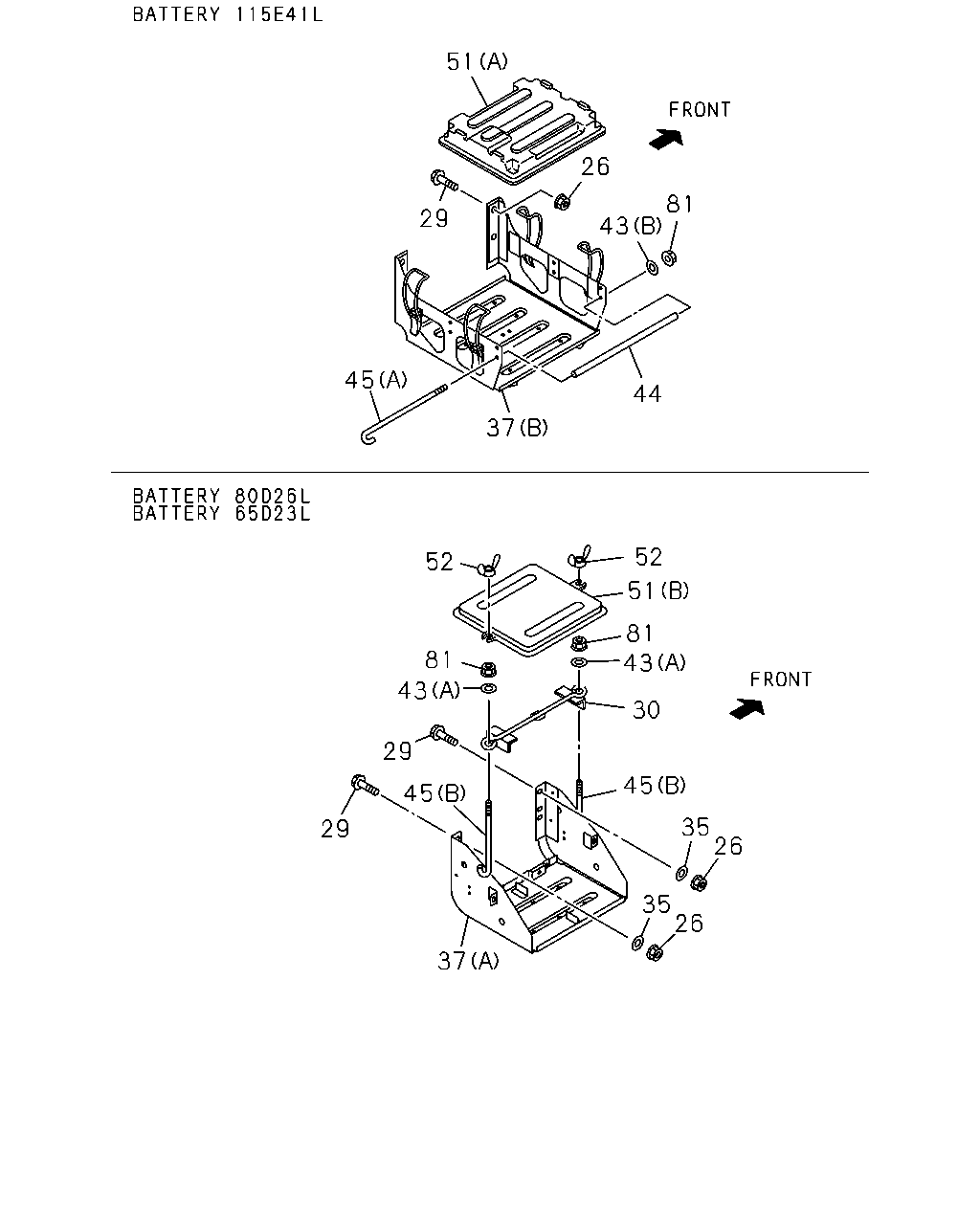

5-20 — BATTERY CARRIER (#58566) — 23 parça

51 29 45 37 44 43 81 26 52 81 43 29 45 29 37 26 35 26 35 45 30 43 81 51 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0710-	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0710-	●	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0710-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0710-0711	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0712-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0911-1405	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0710-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0710-	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	0710-0710	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	0911-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0710-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	0710-0710	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	0911-	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0710-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0710-0710	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0911-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0710-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0710-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0710-0805	●	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE	0-91180-108-0	02	1	0806-0910	●	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	02	1	0911-	●	●
