◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11416 - FRR AUSTRALIA EURO4 SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#58562) — 16 parça

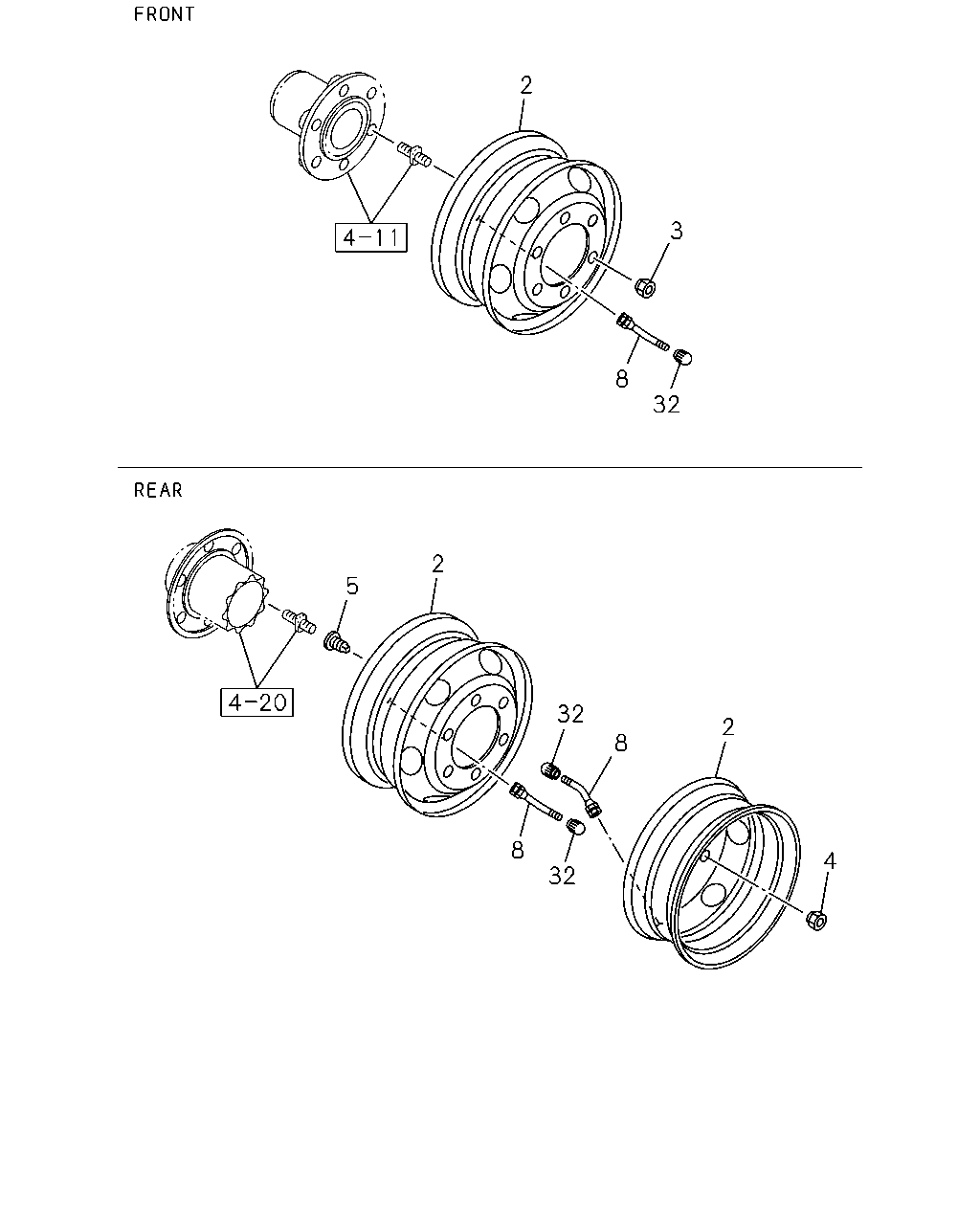

çizim 145473
2 3 8 32 2 5 32 2 8 8 4 32
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
FRONT,REAR 		1-42350-771-0 06 1 0710-0803 ● ●
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR 		1-42350-771-0 06 1 0804- ● ●
2 WHEEL; DISC
EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR 		1-42350-770-0 06 1 0804- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42350-770-0 01 1 0804- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42350-771-0 01 1 0710-0803 ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42350-771-0 01 1 0804- ● ●
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 06 1 0710- ● ●
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 06 1 0710- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 0710- ● ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 0710- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0710- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0710- ● ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-019-3 06 1 0710- ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-019-3 01 1 0710- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0710- ● ●
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 0710- ● ●
