◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11416 - FRR AUSTRALIA EURO4 SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#58543) — 104 parça
çizim 145446
105
BalonParca AdiParca NoAdetTipApplied Date A B
105 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 04 1 0710- ● ●

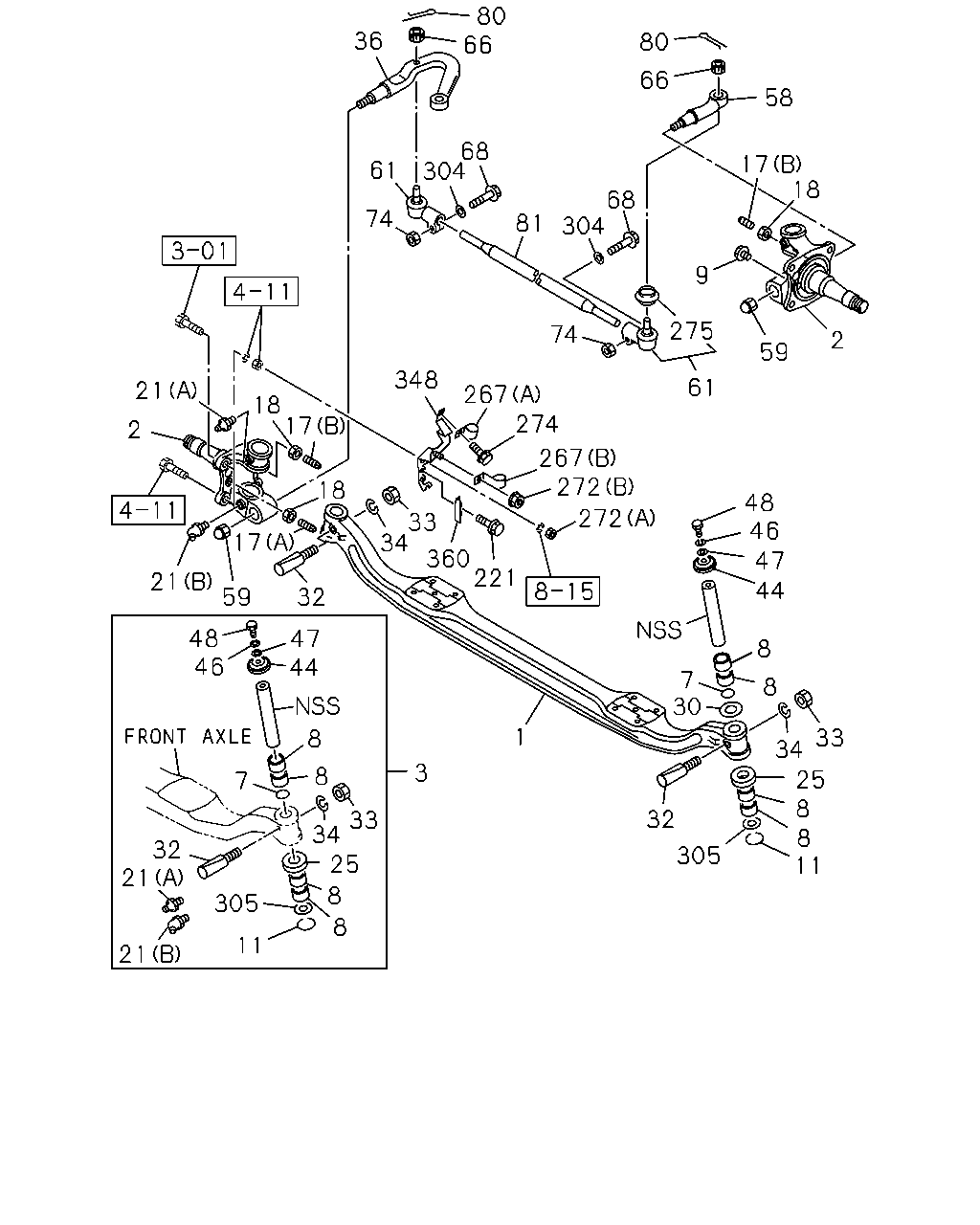

çizim 145456
2 59 61 275 74 9 18 17 58 66 80 68 304 81 74 61 304 68 66 80 36 44 47 46 48 11 8 8 25 33 34 8 8 30 7 1 32 305 3 8 8 25 34 33 8 8 44 47 46 48 7 305 32 21 21 11 32 59 21 2 21 17 18 17 18 34 33 360 221 272 272 267 274 267 348
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 8-98057-479-2 01 1 0710- ● ●
2 KNUCKLE; FRT AXLE 1-43131-127-1 01 1 0710- ● ●
2 KNUCKLE; FRT AXLE 1-43132-127-1 01 1 0710- ● ●
3 KING PIN SET 1-87831-295-2 01 1 0710- ● ●
3 KING PIN SET 1-87831-296-2 01 1 0710- ● ●
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 0710- ● ●
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 0710- ● ●
9 PLUG; KNUCKLE
M14X14 		8-97329-621-0 01 1 0710- ● ●
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 0710- ● ●
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-058-0 01 1 0710-0805 ● ●
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-191-0 01 1 0806- ● ●
17 BOLT; STOPPER KNUCKLE
(B) M14X53 		8-98065-261-0 02 1 0710- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M14 		0-91112-814-0 03 1 0710- ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0710- ● ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 0710- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 0710- ● ●
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 0710- ● ●
32 BOLT; KEY,KING PIN 1-43116-013-0 02 1 0710- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0710- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0710- ● ●
36 ARM; KNUCKLE 8-98037-304-1 01 1 0710- ● ●
44 COVER; KING PIN 1-43175-031-0 02 1 0710- ● ●
46 WASHER; LK,COVER
ID=12.2 		0-91510-812-0 02 1 0710- ● ●
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		0-91614-712-0 02 1 0710- ● ●
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 0710- ● ●
58 ARM; TIE ROD 8-98037-296-2 01 1 0710- ● ●
59 NUT; TIE ROD ARM
M27 FLANGE 		1-09449-082-0 02 1 0710- ● ●
61 ROD END; TIE ROD 1-43150-748-1 01 1 0710- ● ●
61 ROD END; TIE ROD 1-43150-749-1 01 1 0710- ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-021-1 02 1 0710-0805 ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-031-0 02 1 0806- ● ●
68 BOLT; TIE ROD END
M12X45 FLANGE 		0-28061-245-0 02 1 0710-1106 ● ●
68 BOLT; TIE ROD END
M12X45 FLANGE 		0-28061-245-0 02 1 1107- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 0710-1106 ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 1107- ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		0-81124-022-0 02 1 0710- ● ●
81 ROD; TIE 8-98038-703-1 01 1 0710- ● ●
221 BOLT; BRKT,SENSOR
M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ●
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
267 CLIP; HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 02 1 0710- ● ●
272 NUT; CLIP
(A) M14 		0-91110-514-0 02 1 0710- ● ●
272 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
274 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 0710- ● ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 0710- ● ●
305 COVER; KNUCKLE 1-43175-030-0 02 1 0710- ● ●
348 BRACKET; CLIP 8-98055-138-1 01 1 0710- ● ●
348 BRACKET; CLIP 8-98055-137-1 01 1 0710- ● ●
360 COVER; SENSOR 8-98018-401-0 01 1 0710- ● ●
360 COVER; SENSOR 8-98018-400-0 01 1 0710- ● ●

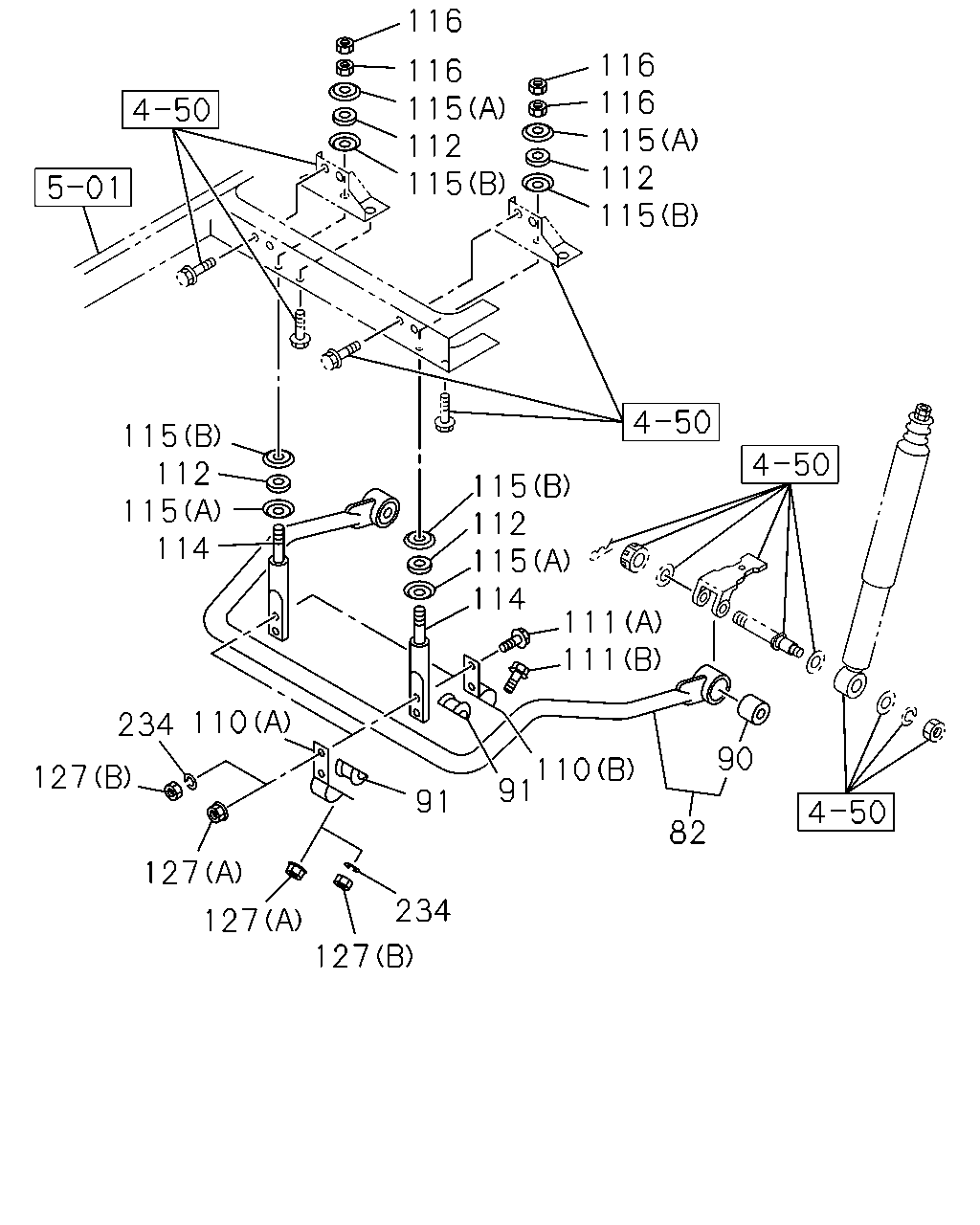

çizim 145491
116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 111 111 110 234 90 110 91 127 91 82 127 234 127 127
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51770-114-0 01 1 0710- ● ●
90 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-066-0 02 1 0710- ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-079-1 04 1 0710- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 0710- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 0710- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X50 FLANGE 		0-28051-250-0 04 1 0710- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE 		0-28651-230-0 02 1 0710-0710 ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE 		0-28051-230-0 02 1 0711- ● ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 0710- ● ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-082-0 02 1 0710- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=16.8 		1-51631-022-0 04 1 0710- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=14.5 		9-51631-051-0 04 1 0710- ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 0710- ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> (A) M12 FLANGE 		0-91180-212-0 06 1 0710-0710 ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> (B) M12 		0-91110-512-0 06 1 0711- ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 0711- ● ●
