3-78 — FIXING PARTS; AIR PIPING (#58541) — 81 parça

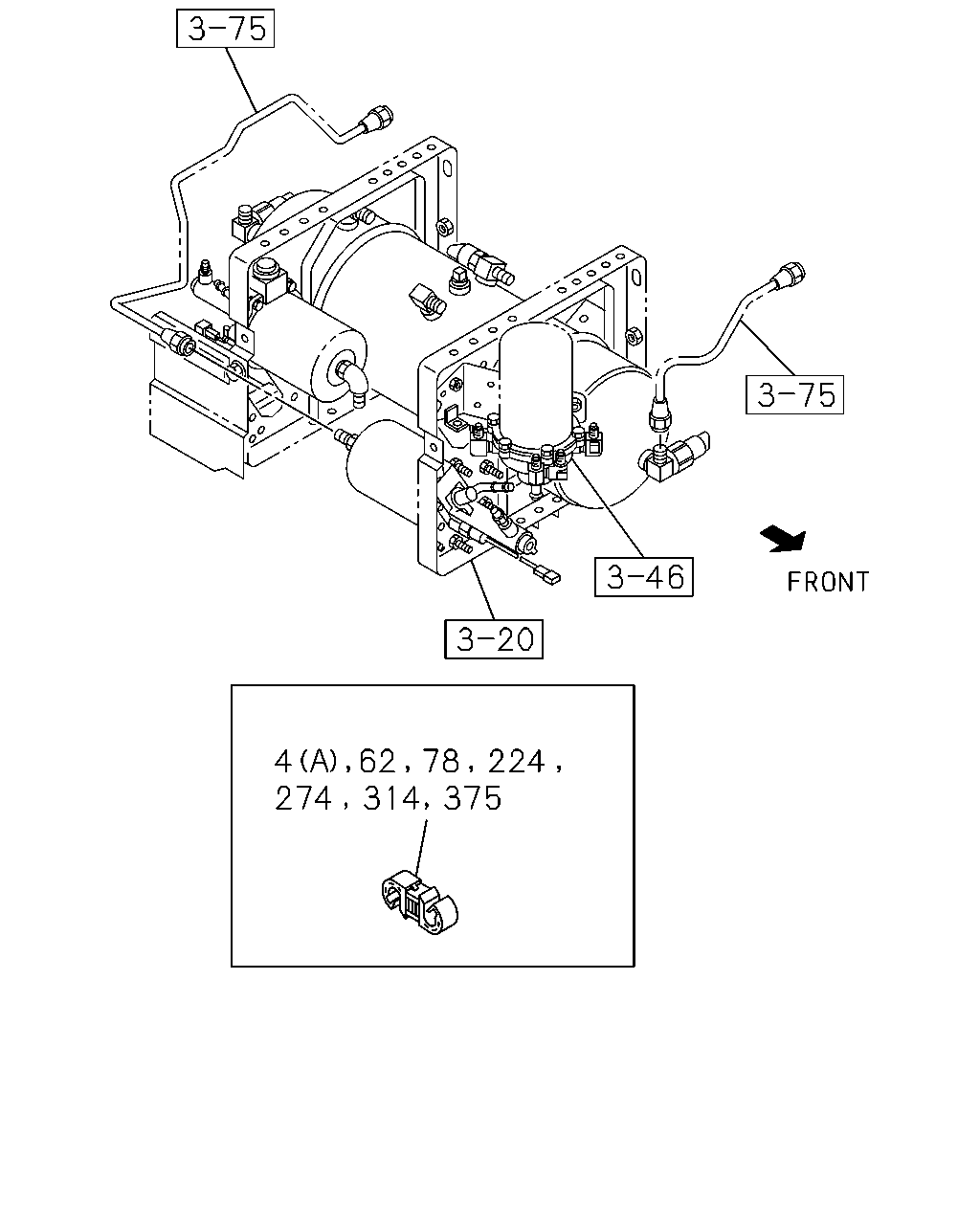

4 62 78 224 274 314 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0710-0803	●	●
4	CLIP; AIR PIPE MZX6P M/T(RSW) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0804-0901	●	●
4	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	02	1	0710-0901	●	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0902-	●	●
4	CLIP; AIR PIPE (A) ID=12 & 12	1-09709-280-1	01	1	0710-0901	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-	●	●
62	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0710-0809	●	●
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	02	1	0810-0901	●	●
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0810-0901	●	●
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0710-0901	●	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	03	1	0710-0901	●	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0710-0901	●	●
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	0902-	●	●
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0902-	●	●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0710-0901	●	●
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0710-0710	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	03	1	0710-	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	02	1	0710-0710	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	04	1	0710-0901	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	05	1	0902-	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0710-	●	●
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0	1-09709-305-0	01	1	0710-	●	●
314	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0710-0901	●	●
375	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0710-0901	●	●

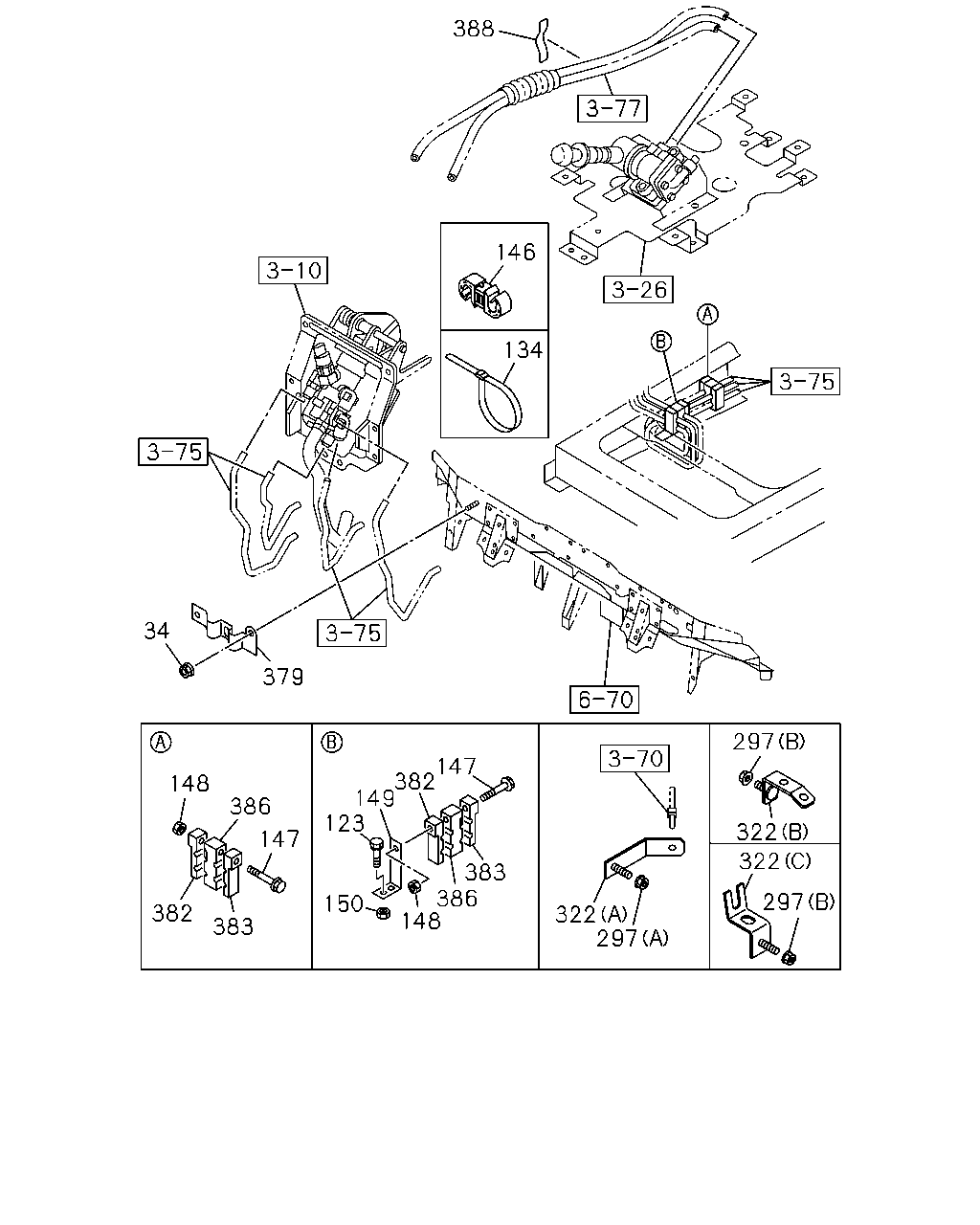

388 146 134 34 379 297 147 382 149 123 148 386 322 147 322 383 386 148 297 150 382 322 297 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0809-	●	●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0710-	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	03	1	0710-	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	0710-1409	●	●
149	BRACKET; PIPE CLIP	8-98296-534-0	01	1	1410-	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
297	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
297	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0710-0710	●	●
297	NUT; BRKT WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	0710-		●
322	BRACKET; CLIP (A)	1-47479-936-1	02	1	0710-0710	●	●
322	BRACKET; CLIP (A)	1-47479-936-1	02	1	0710-	●	●
322	BRACKET; CLIP (B)	8-98021-994-1	01	1	0710-0710	●	●
322	BRACKET; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (C)	8-98096-272-0	01	1	0710-		●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	0710-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	0710-	●	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	03	1	0710-	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	0710-	●	●
388	SEAL 100X40	1-72498-022-1	03	1	0710-	●	●

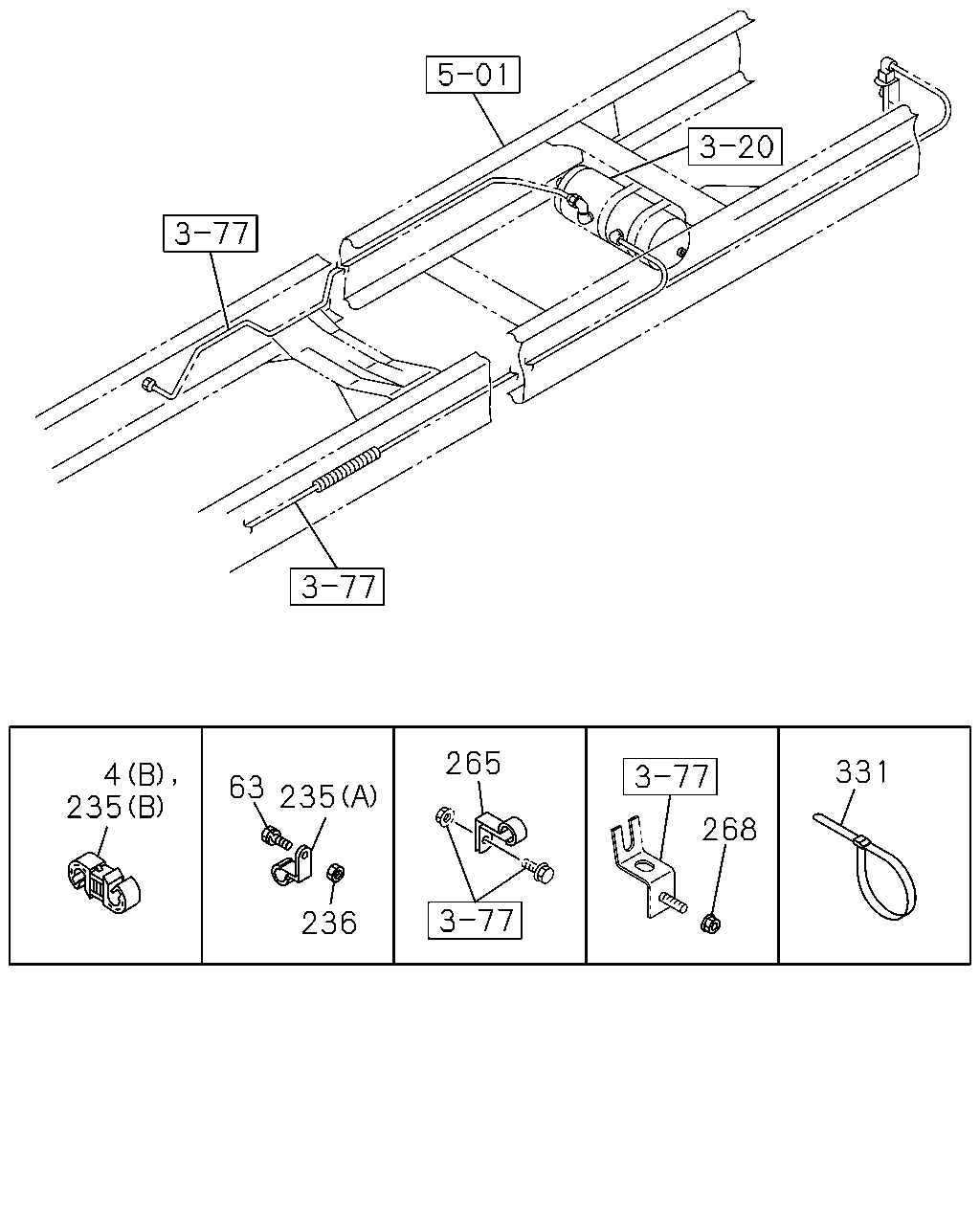

265 331 4 235 63 235 268 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0710-0803	●	●
4	CLIP; AIR PIPE MZX6P M/T(RSW) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0804-0901	●	●
4	CLIP; AIR PIPE (B) ID=10 & 10	1-09709-277-1	02	1	0710-0901	●	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0902-	●	●
4	CLIP; AIR PIPE (A) ID=12 & 12	1-09709-280-1	01	1	0710-0901	●	●
4	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-	●	●
63	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0710-0810	●
63	BOLT; CLIP WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	05	1	0710-0810		●
63	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	06	1	0811-	●
63	BOLT; CLIP WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	06	1	0811-		●
63	BOLT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8X25 FLANGE	0-28650-825-0	03	1	0710-		●
63	BOLT; CLIP WHEEL BASE 4600MM(46W) M8X25 FLANGE	0-28650-825-0	04	1	0710-0810		●
63	BOLT; CLIP WHEEL BASE 4600MM(46W) M8X25 FLANGE	0-28650-825-0	05	1	0811-		●
235	CLIP; AIR PIPE (A) ID=11 H=20 L=20	8-98033-780-0	05	1	0710-0810	●
235	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) (A) ID=11 H=20 L=20	8-98033-780-0	05	1	0710-0810		●
235	CLIP; AIR PIPE (A) ID=11 H=20 L=20	8-98033-780-0	06	1	0811-	●
235	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) (A) ID=11 H=20 L=20	8-98033-780-0	06	1	0811-		●
235	CLIP; AIR PIPE MLD6Q M/T(X5J) (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0806-0806	●	●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) (A) ID=11 H=20 L=20	8-98033-780-0	03	1	0710-		●
235	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) (A) ID=11 H=20 L=20	8-98033-780-0	04	1	0710-0810		●
235	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) (A) ID=11 H=20 L=20	8-98033-780-0	05	1	0811-		●
236	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0710-0810	●
236	NUT; CLIP WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	05	1	0710-0810		●
236	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	0811-	●
236	NUT; CLIP WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	06	1	0811-		●
236	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) M8 FLANGE	0-91180-108-0	03	1	0710-		●
236	NUT; CLIP WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	04	1	0710-0810		●
236	NUT; CLIP WHEEL BASE 4600MM(46W) M8 FLANGE	0-91180-108-0	05	1	0811-		●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0710-	●	●
268	NUT; CLIP BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0710-		●
331	CLIP; NYLON TUBE L=250	1-09707-126-0	24	1	0710-0710	●
331	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) L=250	1-09707-126-0	24	1	0710-0710		●
331	CLIP; NYLON TUBE WHEEL BASE 3700MM(37W) L=250	1-09707-126-0	18	1	0710-0710		●
331	CLIP; NYLON TUBE WHEEL BASE 4000MM(40W) L=250	1-09707-126-0	19	1	0710-0710		●
331	CLIP; NYLON TUBE WHEEL BASE 4600MM(46W) L=250	1-09707-126-0	22	1	0710-0710		●
