◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11350 - FRR(MIDEAST)4H ENG ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#58538) — 188 parça

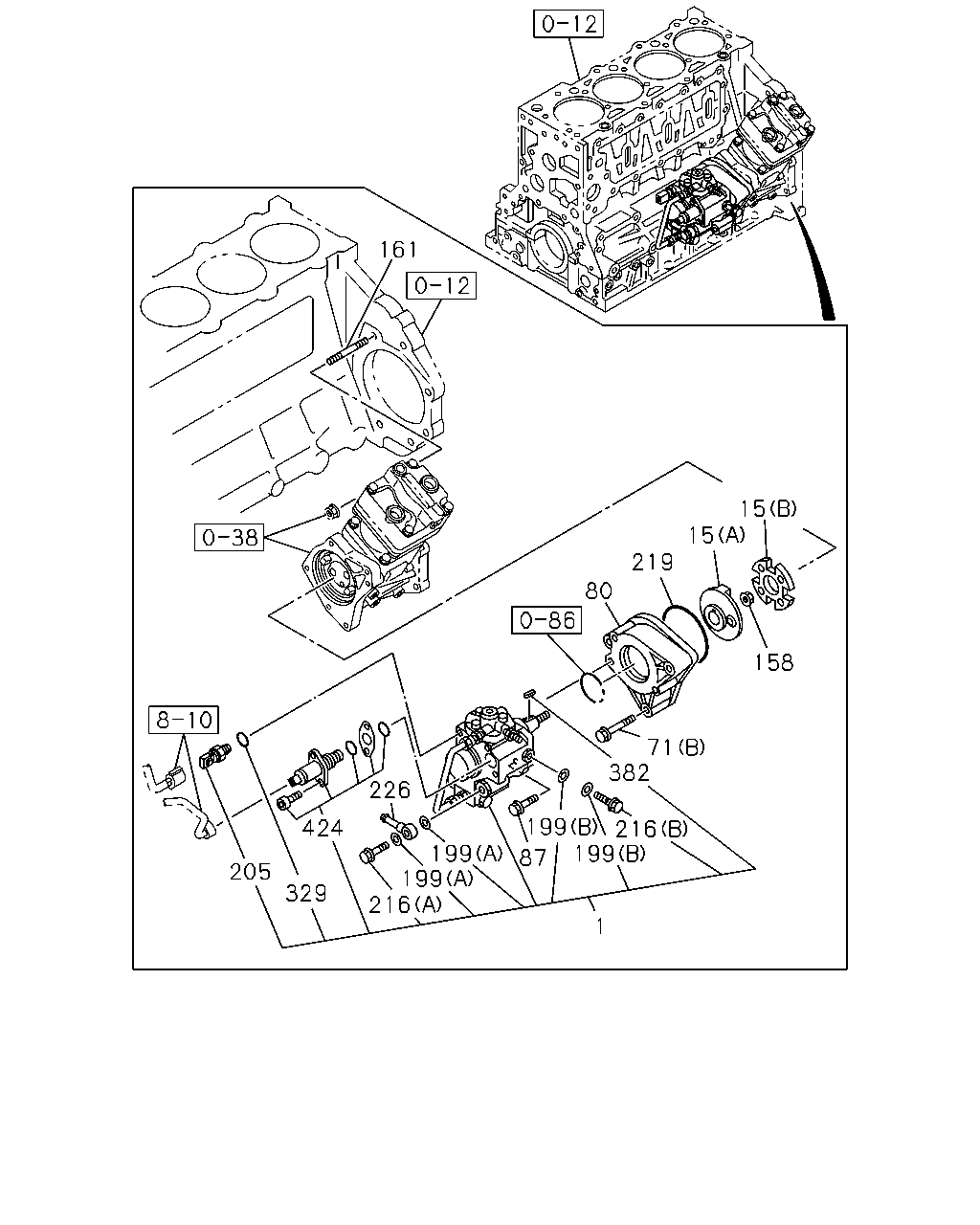

çizim 173304
80 15 219 15 158 71 382 216 199 199 87 199 199 216 329 424 226 205 161 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97386-557-4 01 1 0809-1011 ●
1 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ● ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 0809-1011 ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1012- ● ●
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 0809-1011 ●
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1012- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28050-610-0 02 1 0809-1011 ●
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28050-610-0 02 1 1012- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-1011 ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 0809-1011 ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1012- ● ●
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 0809-1011 ●
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ● ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 0809-1011 ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ● ●
80 BRACKET; PUMP 8-98061-699-0 01 1 0809-1011 ●
80 BRACKET; PUMP 8-98061-699-0 01 1 1012- ● ●
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 0809-1011 ●
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1012- ● ●
87 BOLT; PUMP
M8X40 FLANGE 		0-28650-840-0 02 1 0809-1011 ●
87 BOLT; PUMP
M8X40 FLANGE 		0-28650-840-0 02 1 1012- ● ●
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 0809-1011 ●
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 1012- ● ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0809-0910 ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 0911-1011 ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1012- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0809-1011 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1012- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0809-1011 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1012- ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0809-1011 ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1012- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0809-1011 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1012- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0809-1011 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0809-1011 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1012- ● ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 0809-1011 ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 		1-09623-593-0 01 1 1012- ● ●
226 PIPE; FUEL 8-97353-682-0 01 1 0809-0809 ●
226 PIPE; FUEL 8-98126-332-0 01 1 0809-1011 ●
226 PIPE; FUEL 8-98126-332-0 01 1 1012- ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0809-1011 ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 1012-1201 ● ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0809-1011 ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1012-1201 ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0809-0905 ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-0 01 1 0906-1011 ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1012- ● ●

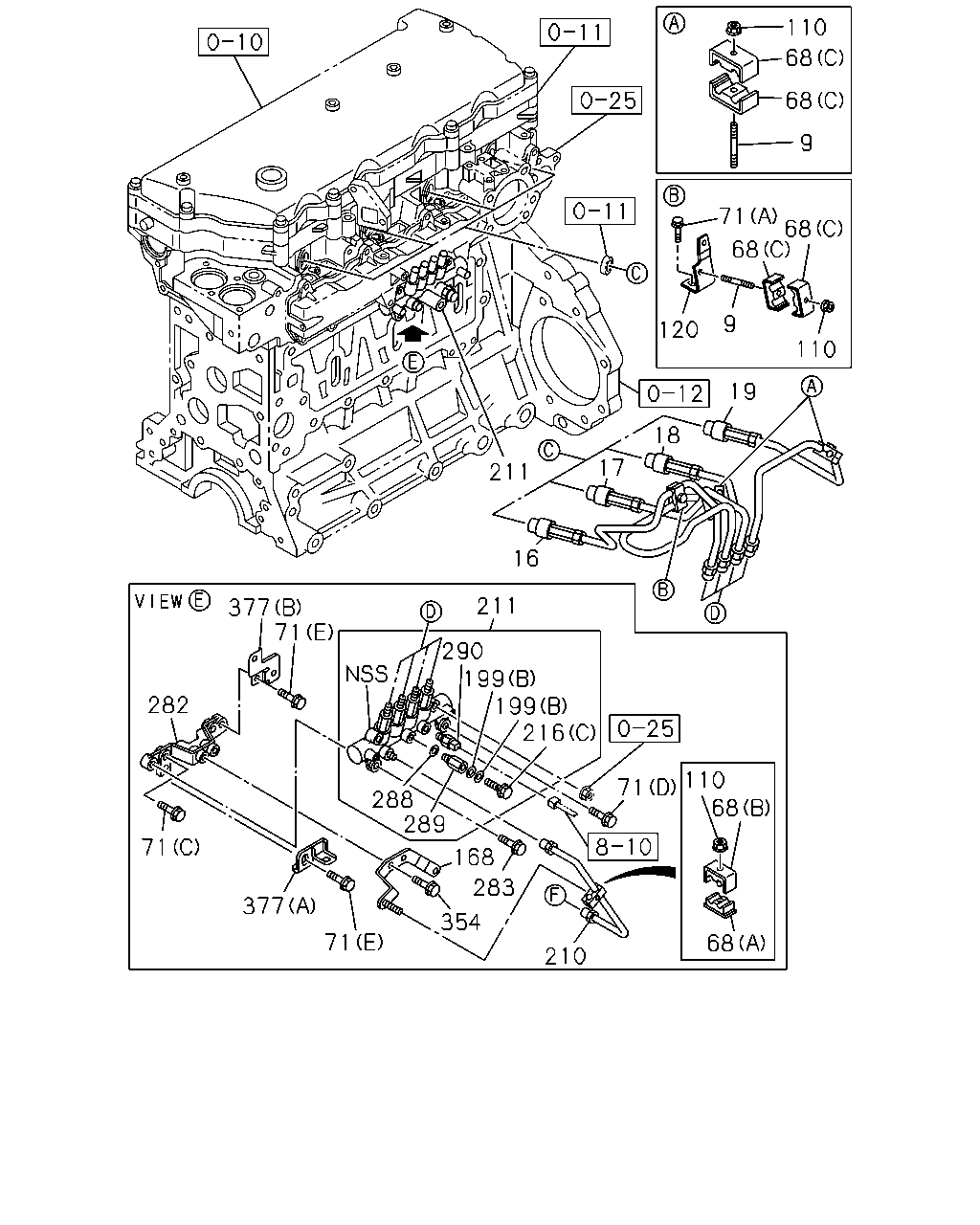

çizim 173305
110 68 68 9 71 68 68 9 120 110 19 18 17 211 16 211 377 71 290 199 199 216 282 110 68 71 288 289 71 168 283 377 354 71 68 210
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 02 1 0809-1011 ●
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 02 1 1012- ● ●
9 STUD; CLIP
M6X35 L=43 		8-97203-278-0 01 1 0809-1011 ●
9 STUD; CLIP
M6X35 L=43 		8-97203-278-0 01 1 1012- ● ●
16 PIPE; INJ NO.1 8-98039-934-0 01 1 0809-1011 ●
16 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ● ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ● ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ● ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 0809-1011 ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ● ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ● ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ● ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 0809-1011 ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ● ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ● ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ● ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 0809-1011 ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ● ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ● ●
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ● ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ● ●
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-1 01 1 0809-1011 ●
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 01 1 1012- ● ●
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-1 01 1 0809-1011 ●
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 01 1 1012- ● ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 0809-1011 ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1012-1405 ● ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28050-610-0 02 1 0809-1011 ●
71 BOLT; BRKT
(E) M6X10 FLANGE 		0-28050-610-0 02 1 1012- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-1011 ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 0809-1011 ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1012- ● ●
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 0809-1011 ●
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ● ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 0809-1011 ●
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 04 1 0809-1011 ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 04 1 1012- ● ●
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 0809-1011 ●
120 BRACKET; INJ PIPE 8-98001-041-0 01 1 1012- ● ●
168 BRACKET; FUEL PIPE 8-98072-403-0 01 1 0809-1011 ●
168 BRACKET; FUEL PIPE 8-98072-403-0 01 1 1012- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0809-1011 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1012- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0809-1011 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1012- ● ●
210 PIPE; INJ,C/R 8-97376-779-0 01 1 0809-1011 ●
210 PIPE; INJ,C/R 8-97376-779-0 01 1 1012- ● ●
211 RAIL ASM; COMMON 8-98011-888-1 01 1 0809-1011 ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0809-1011 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1012- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0809-1011 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0809-1011 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1012- ● ●
282 BRACKET; COMMON RAIL 8-97324-194-0 01 1 0809-1005 ●
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1006-1011 ●
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1012- ● ●
283 BOLT; COMMON RAIL
M8X25 FLANGE 		0-28050-825-0 01 1 0809-1011 ●
283 BOLT; COMMON RAIL
M8X25 FLANGE 		0-28050-825-0 01 1 1012- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0809-1011 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1012- ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0809-1011 ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1012- ● ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0809-0809 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 0810-1011 ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1012- ● ●
354 BOLT; FUEL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0809-1011 ●
354 BOLT; FUEL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1012- ● ●
377 BRACKET; HARNESS
(A) 		8-97310-438-1 01 1 0809-1011 ●
377 BRACKET; HARNESS
(A) 		8-97310-438-1 01 1 1012- ● ●
377 BRACKET; HARNESS
(B) 		8-97379-783-1 01 1 0910-1011 ●
377 BRACKET; HARNESS
(B) 		8-97379-783-1 01 1 1012- ● ●

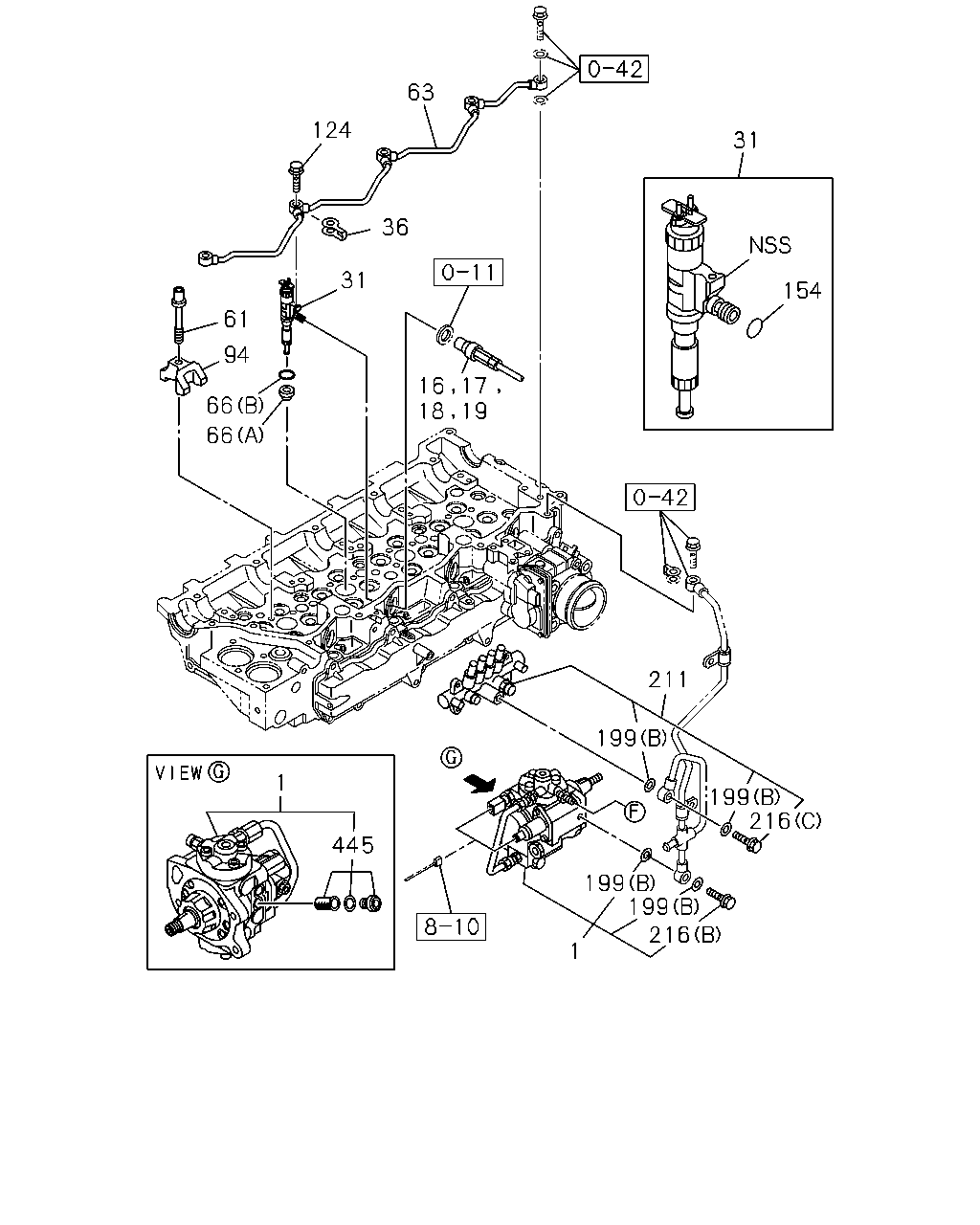

çizim 173307
16 17 18 19 31 154 124 63 36 31 61 66 94 66 199 211 199 216 199 199 216 1 445 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97386-557-4 01 1 0809-1011 ●
1 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ● ●
16 PIPE; INJ NO.1 8-98039-934-0 01 1 0809-1011 ●
16 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ● ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ● ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ● ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 0809-1011 ●
17 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ● ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ● ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ● ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 0809-1011 ●
18 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ● ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ● ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ● ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 0809-1011 ●
19 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ● ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ● ●
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ● ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ● ●
31 NOZZLE ASM; INJ 8-97609-788-4 04 1 0809-1011 ●
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 1012- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 		8-97600-925-0 04 1 0809-0908 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 0909-1011 ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1012- ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 0809-1011 ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1012- ● ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 0809-1011 ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1012- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 0809-1011 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1012- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-97601-447-2 04 1 0809-0909 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 0910-1011 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 0809-1011 ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1012- ● ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 0809-1011 ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1012- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 04 1 0809-1011 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 04 1 1012-1106 ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1107- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0809-1011 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1012- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0809-1011 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1012- ● ●
211 RAIL ASM; COMMON 8-98011-888-1 01 1 0809-1011 ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0809-1011 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1012- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0809-1011 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1012- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0809-1011 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1012- ● ●
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 0809-1011 ●
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
