◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#5853) — 39 parça

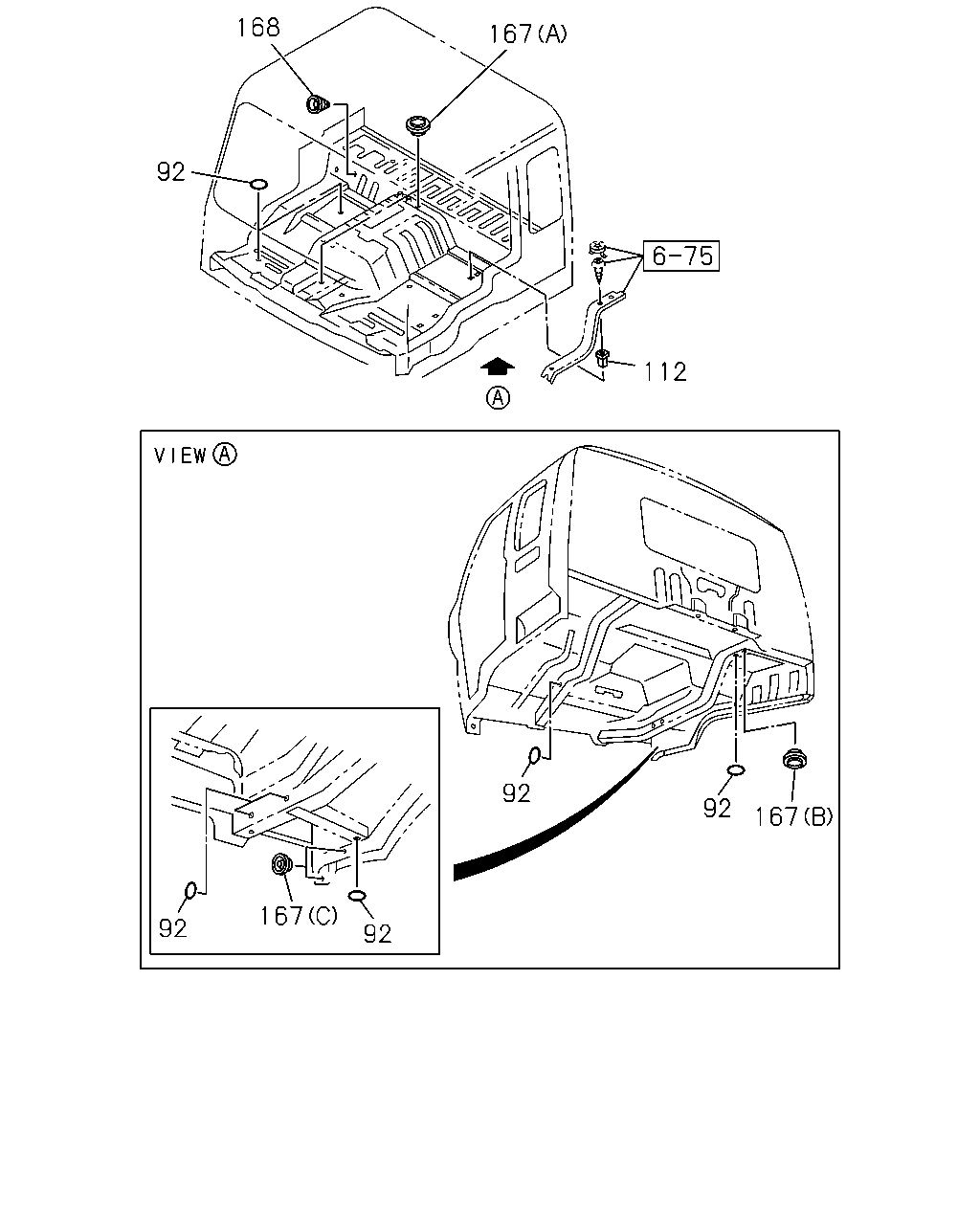

çizim 39298
168 167 92 112 92 92 167 167 92 92
BalonParca AdiParca NoAdetTipApplied Date A B
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 10 1 9603-9612 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 05 1 9701-9712 ● ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> OD=25 BLACK 		1-76798-019-0 05 1 9701-9712 ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9801-9910 ● ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> OD=25 BLACK 		1-76798-019-0 03 1 9801-9910 ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9801-9910 ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9911- ● ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> OD=25 BLACK 		1-76798-019-0 03 1 9911- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 08 1 9603-9612 ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 08 1 9701-9904 ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 07 1 9905- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9603-9612 ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> OD=25 BLACK 		1-76798-019-0 03 1 9701-9712 ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 9701-9712 ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9801-9910 ● ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9911- ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9911- ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> OD=25 BLACK 		1-76798-019-0 05 1 9801-9904 ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 05 1 9905- ●
92 SEAL; LOCATION HOLE
V TYPE ENG<91L> OD=25 BLACK 		1-76798-019-0 01 1 9701-9904 ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 01 1 9905-9910 ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 01 1 9911- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 01 1 9911- ●
92 SEAL; LOCATION HOLE
V TYPE ENG<91L> OD=25 BLACK 		1-76798-019-0 07 1 9701-9904 ●
92 SEAL; LOCATION HOLE
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 04 1 9905- ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9603- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 04 1 9603-9612 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 02 1 9701-9709 ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 9710- ●
167 GROMMET; LOCATION HOLE
(B) OD=35 		8-94122-971-0 04 1 9603-9707 ● ●
167 GROMMET; LOCATION HOLE
(B) OD=35 		8-94122-971-0 06 1 9708- ● ●
167 GROMMET; LOCATION HOLE
(C) OD=15.0 		8-94279-040-0 04 1 9603-9707 ● ●
167 GROMMET; LOCATION HOLE
(C) OD=15.0 		8-94279-040-0 02 1 9708- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 04 1 9701-9709 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 9710- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 03 1 9603-9612 ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-155-0 01 1 9701-9709 ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 01 1 9710- ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 9603- ● ●
