6-76 — FLOOR EQUIPMENT AND SEALING (#5852) — 104 parça

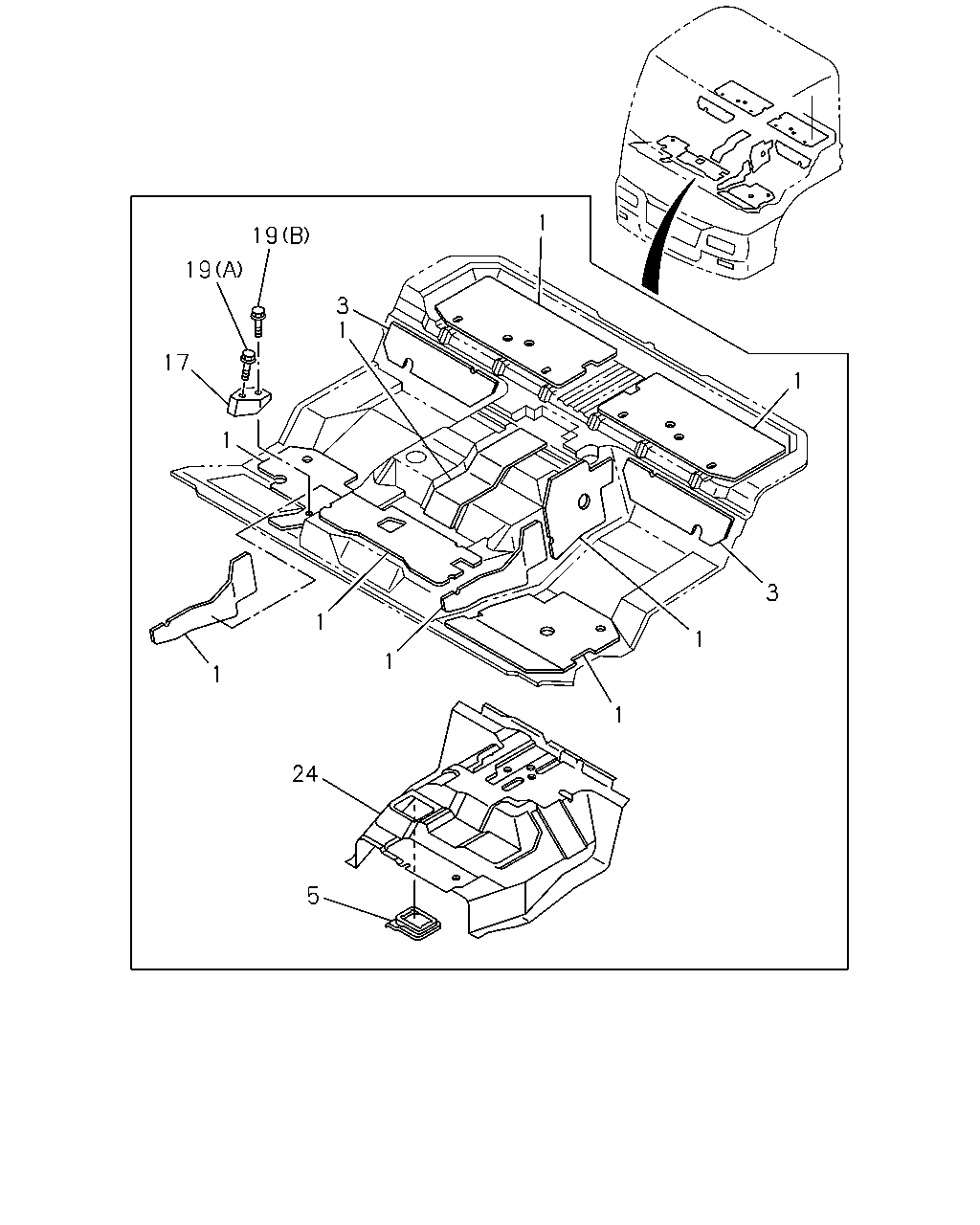

çizim 41923
1 19 19 3 1 17 1 1 3 1 1 1 1 1 24 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9603- ● ●
3 SHEET; MELTING,BED PAN
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9603- ● ●
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 9603- ● ●
17 REST; FOOT,DRIVER 1-73907-176-0 01 1 9603- ●
19 BOLT; FOOT REST
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9603- ●
19 BOLT; FOOT REST
(A) M6X47 		8-94407-876-1 01 1 9603- ●
24 INSULATOR; HEAT,FRT 1-71907-299-5 01 1 9603- ●
24 INSULATOR; HEAT,FRT 1-71907-373-5 01 1 9603- ●

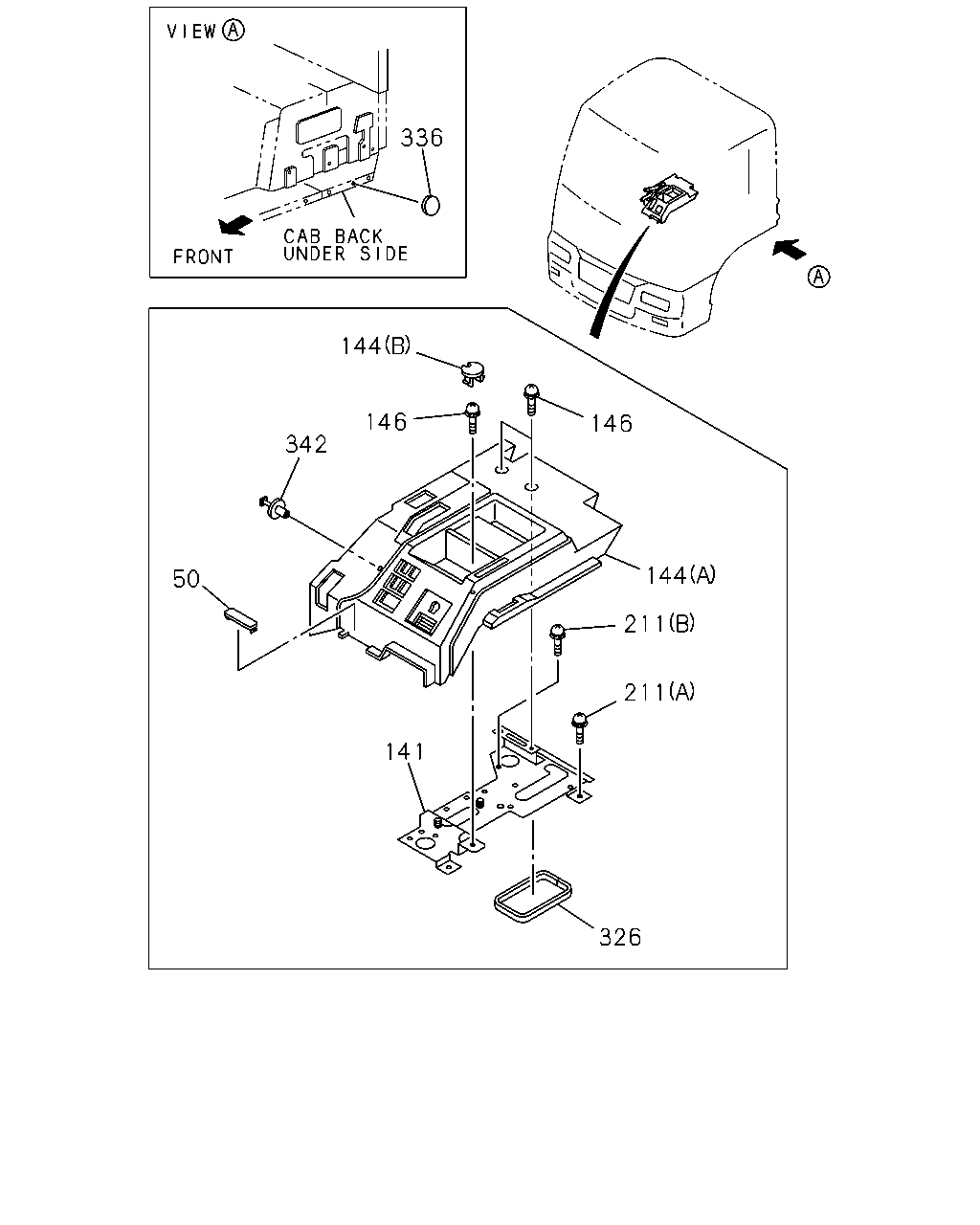

çizim 45046
336 144 146 146 342 144 50 211 211 141 326
BalonParca AdiParca NoAdetTipApplied Date A B
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 9603- ● ●
141 HOLDER 1-79996-101-1 01 1 9603-9904 ●
141 HOLDER 1-79907-076-1 01 1 9905- ●
141 HOLDER 1-79996-111-1 01 1 9603-9904 ●
141 HOLDER 1-79996-438-0 01 1 9905- ●
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 9603-9812 ●
144 COVER; HAND BRK VLV
(B) 		1-72538-166-0 01 1 9901- ●
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-353-0 01 1 9905- ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-332-0 01 1 9603-9904 ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. ELEC OUTLET 12V<TAW> (A) 		1-72417-332-0 01 1 9905- ●
144 COVER; HAND BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-335-0 01 1 9603-9608 ●
144 COVER; HAND BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-337-0 01 1 9609- ●
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 02 1 9603-9812 ●
144 COVER; HAND BRK VLV
(B) 		1-72538-166-0 02 1 9901-9904 ●
144 COVER; HAND BRK VLV
(B) 		1-72538-166-0 02 1 9905- ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-72538-166-0 02 1 9905- ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-317-2 01 1 9603- ●
144 COVER; HAND BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-319-2 01 1 9603- ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9603- ●
146 BOLT; COVER BRKT
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 03 1 9603- ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9603- ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9603-9705 ● ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9706-9904 ● ●
211 BOLT; COVER
BRAKE REGULATION ECE<TDV> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9706-9904 ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9905- ● ●
211 BOLT; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9905- ● ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9603-9904 ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9905- ●
211 BOLT; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9905- ●
211 BOLT; COVER
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9603-9904 ●
211 BOLT; COVER
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905- ●
211 BOLT; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905- ●
326 SEAL; COVER 1-79997-978-1 01 1 9603- ●
326 SEAL; COVER 1-79996-132-0 01 1 9603-9904 ●
326 SEAL; COVER 1-79996-132-0 01 1 9905- ●
326 SEAL; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-79996-132-0 01 1 9905- ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 9603- ● ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9603-9705 ● ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9706-9904 ● ●
342 FASTENER
BRAKE REGULATION ECE<TDV> D8X13.5 		1-09987-248-1 01 1 9706-9904 ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9905- ● ●
342 FASTENER
PARKING BRAKE VALVE LEVER TYPE<W48> D8X13.5 		1-09987-248-1 01 1 9905- ● ●

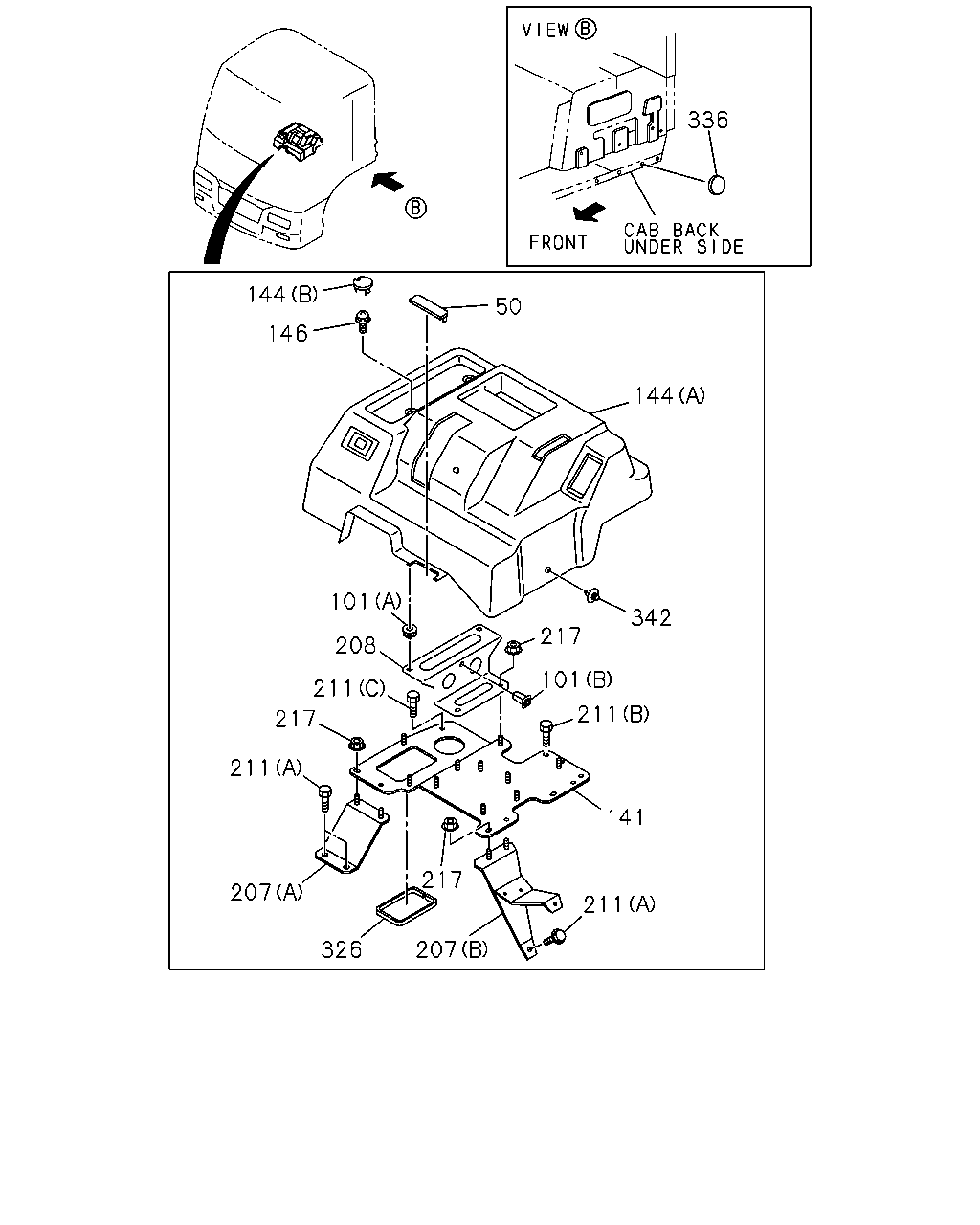

çizim 45650
336 144 50 146 144 101 342 217 208 101 211 211 217 211 141 217 207 211 326 207
BalonParca AdiParca NoAdetTipApplied Date A B
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 9603- ● ●
101 GROMMET; SCREW,FLOOR BOARD
(A) D=7X7 L=7.5 		5-09983-007-0 02 1 9603- ●
101 GROMMET; SCREW,FLOOR BOARD
(B) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 01 1 9603- ●
141 HOLDER 1-79996-101-1 01 1 9603-9904 ●
141 HOLDER 1-79907-076-1 01 1 9905- ●
141 HOLDER 1-79996-111-1 01 1 9603-9904 ●
141 HOLDER 1-79996-438-0 01 1 9905- ●
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 9603-9812 ●
144 COVER; HAND BRK VLV
(B) 		1-72538-166-0 01 1 9901- ●
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-353-0 01 1 9905- ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-332-0 01 1 9603-9904 ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. ELEC OUTLET 12V<TAW> (A) 		1-72417-332-0 01 1 9905- ●
144 COVER; HAND BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-335-0 01 1 9603-9608 ●
144 COVER; HAND BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-337-0 01 1 9609- ●
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 02 1 9603-9812 ●
144 COVER; HAND BRK VLV
(B) 		1-72538-166-0 02 1 9901-9904 ●
144 COVER; HAND BRK VLV
(B) 		1-72538-166-0 02 1 9905- ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-72538-166-0 02 1 9905- ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-317-2 01 1 9603- ●
144 COVER; HAND BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-319-2 01 1 9603- ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9603- ●
146 BOLT; COVER BRKT
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 03 1 9603- ●
207 BRACKET ASM; HAND BRAKE VALVE
(A) 		1-79996-129-0 01 1 9603-9904 ●
207 BRACKET ASM; HAND BRAKE VALVE
(A) 		1-79996-129-0 01 1 9905- ●
207 BRACKET ASM; HAND BRAKE VALVE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-79996-129-0 01 1 9905- ●
207 BRACKET ASM; HAND BRAKE VALVE
(B) 		1-79996-130-0 01 1 9603-9904 ●
207 BRACKET ASM; HAND BRAKE VALVE
(B) 		1-79996-130-0 01 1 9905- ●
207 BRACKET ASM; HAND BRAKE VALVE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-79996-130-0 01 1 9905- ●
208 BRACKET ASM; COVER & BRK VLV 1-79996-347-0 01 1 9603- ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9603- ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9603-9705 ● ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9706-9904 ● ●
211 BOLT; COVER
BRAKE REGULATION ECE<TDV> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9706-9904 ●
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9905- ● ●
211 BOLT; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9905- ● ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9603-9904 ●
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9905- ●
211 BOLT; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9905- ●
211 BOLT; COVER
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9603-9904 ●
211 BOLT; COVER
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905- ●
211 BOLT; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> (C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905- ●
217 NUT
M8 FLANGE 		0-91150-108-0 06 1 9603-9904 ●
217 NUT
M8 FLANGE 		0-91150-108-0 06 1 9905- ●
217 NUT
PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE 		0-91150-108-0 06 1 9905- ●
326 SEAL; COVER 1-79997-978-1 01 1 9603- ●
326 SEAL; COVER 1-79996-132-0 01 1 9603-9904 ●
326 SEAL; COVER 1-79996-132-0 01 1 9905- ●
326 SEAL; COVER
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-79996-132-0 01 1 9905- ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 9603- ● ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9603-9705 ● ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9706-9904 ● ●
342 FASTENER
BRAKE REGULATION ECE<TDV> D8X13.5 		1-09987-248-1 01 1 9706-9904 ●
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9905- ● ●
342 FASTENER
PARKING BRAKE VALVE LEVER TYPE<W48> D8X13.5 		1-09987-248-1 01 1 9905- ● ●
