9-01 — TOOLS (#58515) — 195 parça
çizim 172827
127 126 128 129 143 146 137 156 144 157 151 153 159 158 162 162 161 160
BalonParca AdiParca NoAdetTipApplied Date A B
126 WRENCH; FRT HUB BRG NUT
FRONT AXLE F063(FS7) L=350 B=75 		1-85110-002-1 01 1 0005-0210 ● ●
126 WRENCH; FRT HUB BRG NUT
FRONT AXLE F063(FS7) L=350 B=75 		1-85110-002-1 01 1 0211- ●
127 WRENCH ASM; HUB BRG NUT
B=98 L=305 		9-85113-533-2 01 1 9510-0210 ● ●
127 WRENCH ASM; HUB BRG NUT
B=98 L=305 		9-85113-533-2 01 1 0211- ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9510-0210 ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0211- ●
129 PULLER ASM; PITMAN ARM
FRONT AXLE F063(FS7) 		1-85210-011-0 01 1 9803-0210 ● ●
129 PULLER ASM; PITMAN ARM
FRONT AXLE F063(FS7) 		1-85210-011-0 01 1 0211- ●
137 PLIER; SHOE,RETURN SPRING 1-85210-025-0 01 1 9510-0004 ● ●
143 GUIDE; BOOT,TIE ROD END
FRONT AXLE F063(FS7) 		1-85229-013-0 01 1 0005-0210 ● ●
143 GUIDE; BOOT,TIE ROD END
FRONT AXLE F063(FS7) 		1-85229-013-0 01 1 0211- ●
144 BASE; BOOT GUIDE,TIE ROD END
FRONT AXLE F063(FS7) 		1-85229-009-0 01 1 0005-0210 ● ●
144 BASE; BOOT GUIDE,TIE ROD END
FRONT AXLE F063(FS7) 		1-85229-009-0 01 1 0211- ●
146 REPLACER KIT; LEAF SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85237-017-0 01 1 0107- ●
151 REMOVER; OIL BRK,FRT RETURN SPR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 		1-85237-002-0 01 1 0107- ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0005-0210 ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0211- ●
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0005-0210 ● ●
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0211- ●
157 REPLACER KIT; RETURN SPR
ID=16 		1-85237-002-0 01 1 9510-0004 ● ●
157 REPLACER KIT; RETURN SPR 9-85231-554-0 01 1 0005-0106 ● ●
157 REPLACER KIT; RETURN SPR 9-85231-554-0 01 1 0107-0210 ●
157 REPLACER KIT; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-85231-554-0 01 1 0107-0210 ●
157 REPLACER KIT; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-85231-554-0 01 1 0211- ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0005-0210 ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0211- ●
159 REMOVER; RETURN SPR
ID=12.5 		9-85231-555-0 01 1 0005-0106 ● ●
159 REMOVER; RETURN SPR
ID=12.5 		9-85231-555-0 01 1 0107-0210 ●
159 REMOVER; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.5 		9-85231-555-0 01 1 0107-0210 ●
159 REMOVER; RETURN SPR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.5 		9-85231-555-0 01 1 0211- ●
160 REMOVER; NEEDLE BRG
FRONT AXLE F063(FS7) L=220 		1-85238-001-0 01 1 0005-0210 ● ●
160 REMOVER; NEEDLE BRG
FRONT AXLE F063(FS7) L=220 		1-85238-001-0 01 1 0211- ●
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 9510-0004 ● ●
160 REMOVER; NEEDLE BRG
FRONT AXLE F049(FS4) L=228 		1-85238-010-0 01 1 0005-0210 ● ●
160 REMOVER; NEEDLE BRG
FRONT AXLE F049(FS4) L=228 		1-85238-010-0 01 1 0211- ●
161 REMOVER; TIE ROD ARM
FRONT AXLE F063(FS7) 		1-85176-001-0 01 1 0005-0210 ● ●
161 REMOVER; TIE ROD ARM
FRONT AXLE F063(FS7) 		1-85176-001-0 01 1 0211- ●
162 SETTING TOOL; NEEDLE BRG
(B) L=181 		1-85238-008-0 01 1 9510-0210 ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=181 		1-85238-008-0 01 1 0211- ●
162 SETTING TOOL; NEEDLE BRG
(A) L=213 		1-85238-009-0 01 1 9510-0210 ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=213 		1-85238-009-0 01 1 0211- ●
çizim 172829
274 271 268 209 285 281 280 283 282 284
BalonParca AdiParca NoAdetTipApplied Date A B
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 9510-0210 ● ●
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 0211-0708 ●
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709- ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9510-0210 ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0211-0604 ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 9510-0210 ● ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 0211-0708 ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709- ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9510-0210 ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0211-0604 ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-2 01 1 9510-0210 ● ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-2 01 1 0211-0305 ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 9510-0210 ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 0211-0305 ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 		9-09110-510-0 04 1 9510-9606 ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9607-0210 ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 0211-0305 ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 9510-0210 ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 0211-0305 ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER 		0-50041-020-0 04 1 9510-9606 ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 9607-0210 ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 0211-0305 ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 		9-09110-510-0 04 1 9510-9606 ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9607-0210 ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 0211-0305 ●

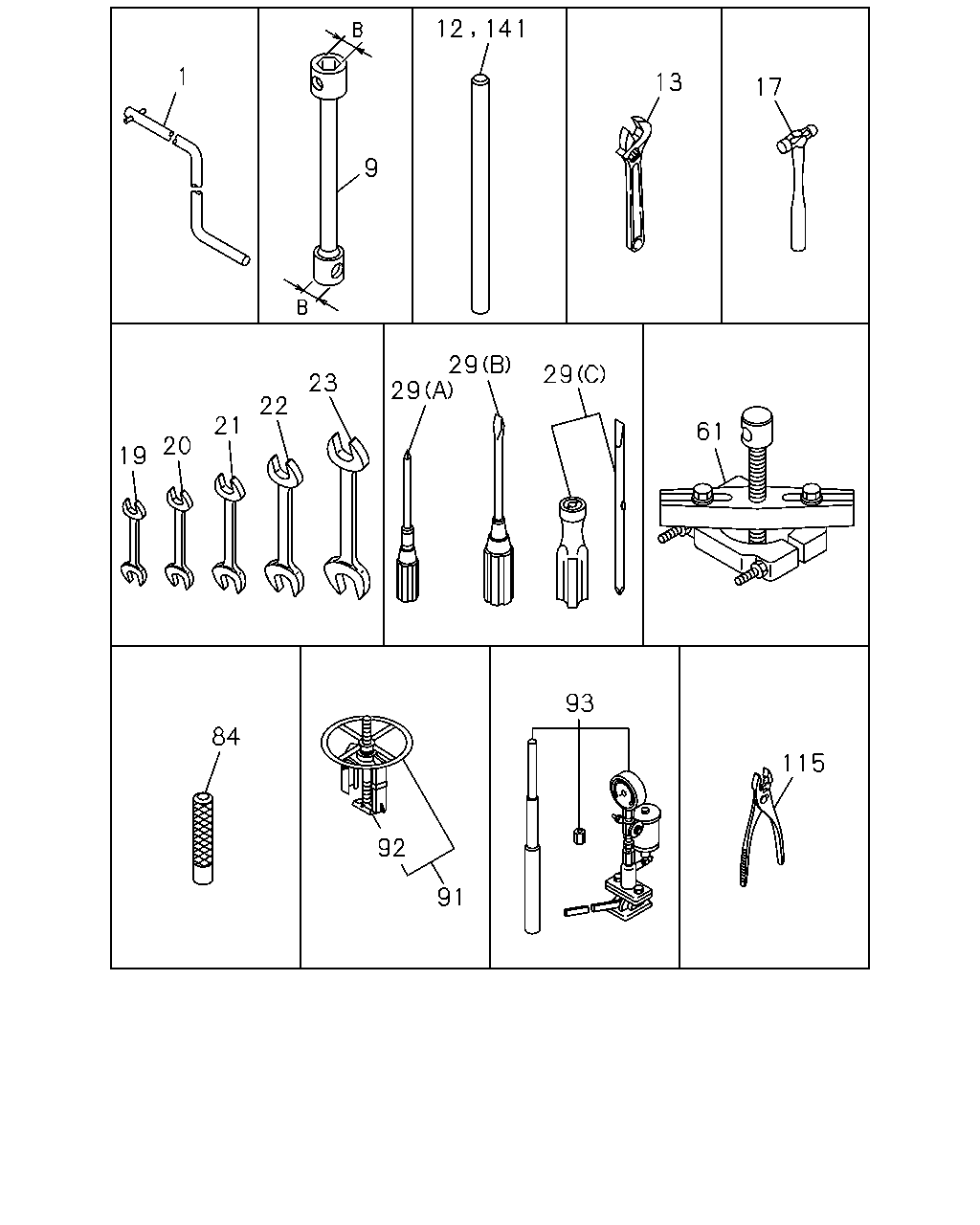

çizim 172832
12 141 1 13 17 9 29 29 23 29 22 21 61 20 19 93 84 115 92 91
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 9510-0210 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 9510-0210 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 0211- ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=33X30 L=450 		1-85111-033-1 01 1 9510-9809 ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 20X7.00T(Q58) B=33X30 L=450 		1-85111-033-1 01 1 9810-0005 ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=33X30 L=450 		1-85111-033-1 01 1 0006-0208 ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TOOL A KIT<SK9>,TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 0209-0210 ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TOOL A KIT<SK9>,TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 0211-1601 ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TOOL A KIT<SK9>,TOOL B KIT<SL1> B=33X30 L=450 		8-98316-700-0 01 1 1602- ●
9 WRENCH; WHEEL PIN
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440 		1-85113-015-1 01 1 9510-9809 ● ●
9 WRENCH; WHEEL PIN
EXC. DISC WHEEL 10STUD 20X7.00T(Q58) B=41X21 L=440 		1-85113-015-1 01 1 9810-0005 ● ●
9 WRENCH; WHEEL PIN
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440 		1-85113-015-1 01 1 0006-0208 ● ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440 		1-85113-015-1 01 1 0209-0210 ● ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440 		1-85113-015-1 01 1 0211-1601 ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=445 		8-98316-703-0 01 1 1602- ●
9 WRENCH; WHEEL PIN
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=445 		8-97118-906-0 01 1 9606-9809 ● ●
9 WRENCH; WHEEL PIN
EXC. DISC WHEEL 10STUD 20X7.00T(Q58) B=41X21 L=445 		8-97118-906-0 01 1 9810-9903 ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9510-0208 ● ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0209-0210 ● ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0211-1501 ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1502- ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9510-0208 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0209-0210 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0211-0211 ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0212-1407 ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408- ●
17 HAMMER 9-85121-406-0 01 1 9510-0208 ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0209-0210 ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0211- ●
19 WRENCH; 7X8
8X10 		9-99592-108-0 01 1 9510-9602 ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9510-0208 ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0209-0210 ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0211-0607 ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0608- ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9510-0208 ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0209-0210 ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0211-0607 ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0608- ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9510-0208 ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0209-0210 ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0211-0607 ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0608- ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9510-0208 ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0209-0210 ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0211-0607 ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0608- ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9510-0208 ● ●
29 DRIVER; SCREW
TOOL A KIT<SK9>,TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0209-0210 ● ●
29 DRIVER; SCREW
TOOL A KIT<SK9>,TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0211- ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 9510-0208 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=190 		9-09595-522-0 01 1 0209-0210 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <+> L=190 		9-09595-522-0 01 1 0211- ●
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 9510-0208 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=285 		1-85151-004-0 01 1 0209-0210 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=285 		1-85151-004-0 01 1 0211-0611 ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <-> L=275 		8-98061-105-0 01 1 0612- ●
61 PULLER ASM; PILOT BRG 1-85210-050-0 01 1 9510-0004 ● ●
61 PULLER ASM; PILOT BRG 1-85210-050-0 01 1 0005-0210 ● ●
61 PULLER ASM; PILOT BRG 1-85210-050-0 01 1 0005-0210 ●
61 PULLER ASM; PILOT BRG 1-85210-050-0 01 1 0211- ●
61 PULLER ASM; PILOT BRG 1-85210-050-0 01 1 0211- ●
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 9510-0210 ● ●
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 0211- ●
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 9510-0210 ● ●
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 0211- ●
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 0005-0210 ● ●
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 0211- ●
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 9510-0004 ● ●
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9510-0210 ● ●
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 0211- ●
115 PLIER 5-85171-001-0 01 1 9510-9602 ● ●
115 PLIER 5-85171-002-0 01 1 9603-0208 ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0209-0210 ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0211-1410 ●
115 PLIER
TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411- ●
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 9510-0210 ● ●
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0211-1501 ●
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502- ●
çizim 172835
163 163 167 174 178 193 208 186 180 230 232 237
BalonParca AdiParca NoAdetTipApplied Date A B
163 TOOL; SETTING
(A) L=195 		1-85221-162-1 01 1 0005-0210 ● ●
163 TOOL; SETTING
(A) L=195 		1-85221-162-1 01 1 0005-0210 ●
163 TOOL; SETTING
(A) L=195 		1-85221-162-1 01 1 0211- ●
163 TOOL; SETTING
(A) L=195 		1-85221-162-1 01 1 0211- ●
163 TOOL; SETTING
(B) L=150 		1-85221-163-0 01 1 0005-0210 ● ●
163 TOOL; SETTING
(B) L=150 		1-85221-163-0 01 1 0005-0210 ●
163 TOOL; SETTING
(B) L=150 		1-85221-163-0 01 1 0211- ●
163 TOOL; SETTING
(B) L=150 		1-85221-163-0 01 1 0211- ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 9510-9802 ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 9803-0004 ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 0005-0210 ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 0005-0210 ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 0211- ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 0211- ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9510-0004 ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0005-0210 ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0005-0210 ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0211- ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0211- ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9510-0004 ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0005-0210 ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0005-0210 ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0211- ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0211- ●
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 9510-0004 ● ●
186 ADJUSTER; BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47165-066-0 01 1 9510-0106 ● ●
186 ADJUSTER; BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47165-066-0 01 1 0107-0208 ●
186 ADJUSTER; BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47165-066-0 01 1 0107-0208 ●
186 ADJUSTER; BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TOOL A KIT<SK9>,TOOL B KIT<SL1> 		1-47165-066-0 01 1 0209-0210 ●
186 ADJUSTER; BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TOOL A KIT<SK9>,TOOL B KIT<SL1> 		1-47165-066-0 01 1 0209-0210 ●
186 ADJUSTER; BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TOOL A KIT<SK9>,TOOL B KIT<SL1> 		1-47165-066-0 01 1 0211- ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> CAUTIONS ARABIAN<WJ7> 10TON 		1-85510-025-0 01 1 0306-0504 ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 9510-0208 ● ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON 		1-85510-013-1 01 1 0209-0210 ● ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON 		1-85510-013-1 01 1 0211-0305 ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> EXC. CAUTIONS ARABIAN<WJ7> 10TON 		1-85510-013-1 01 1 0306-0504 ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON 		8-97607-599-0 01 1 0505- ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9510-0105 ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-0210 ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0211-1107 ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108- ●
230 PUMP; GREASE 1-85556-007-2 01 1 9510-0208 ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-2 01 1 0209-0210 ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0211- ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 9510-0210 ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 0211- ●
237 BAG; TOOL 8-97130-902-0 01 1 9510-0208 ● ●
237 BAG; TOOL
TOOL A KIT<SK9>,TOOL B KIT<SL1> 		8-97130-902-0 01 1 0209-0210 ● ●
237 BAG; TOOL
TOOL A KIT<SK9>,TOOL B KIT<SL1> 		8-97130-902-1 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
