◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#5851) — 61 parça

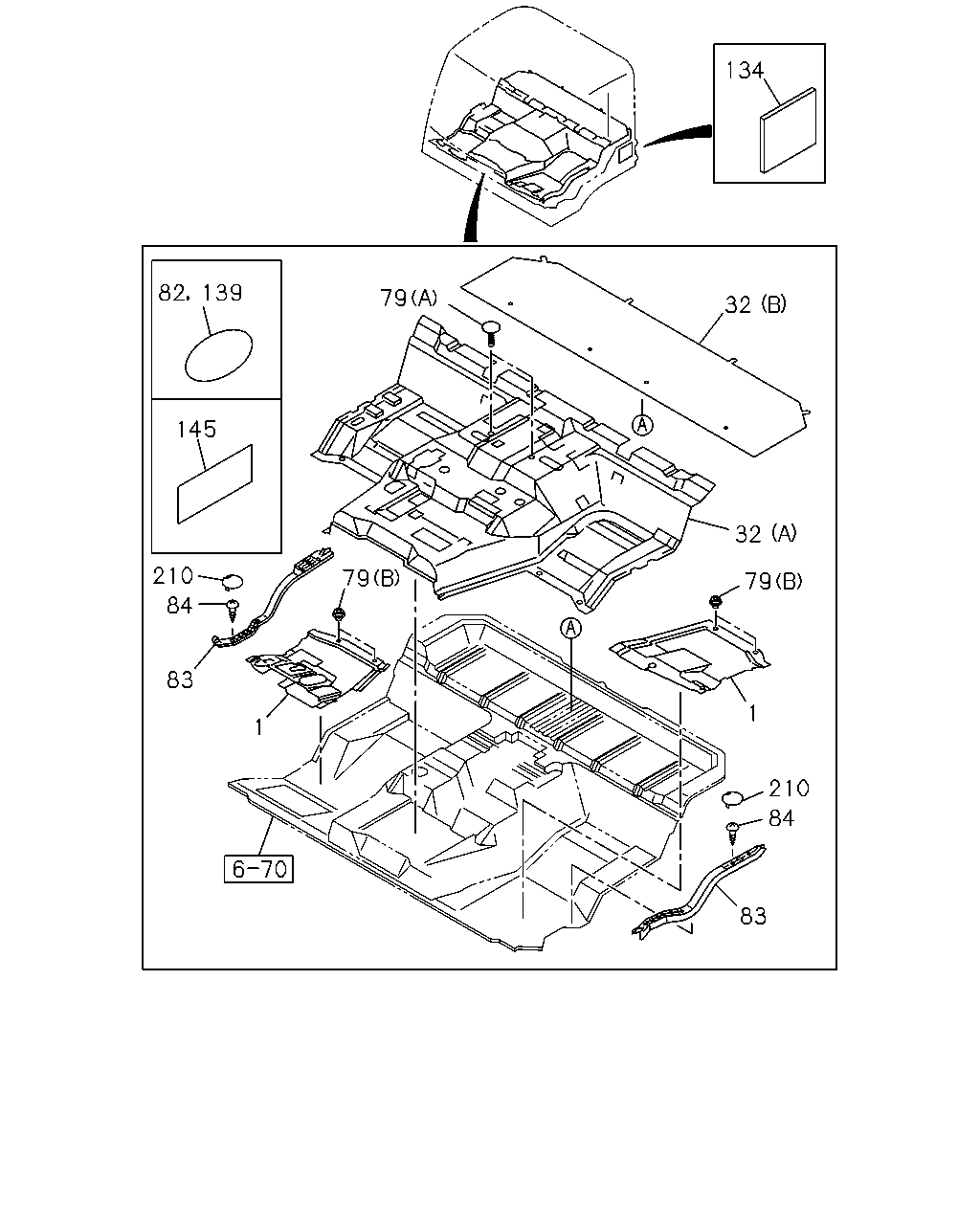

çizim 41238
134 82 139 79 32 145 32 210 79 79 84 83 1 1 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-538-2 01 1 9603- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-537-1 01 1 9603-0006 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-666-0 01 1 0007- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-516-1 01 1 9603- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-515-0 01 1 9603- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		1-73237-507-0 01 1 9603-9606 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-507-5 01 1 9607-9904 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (A) 		1-73237-507-9 01 1 9905- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) (A) 		1-73237-562-5 01 1 9607-9904 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-562-9 01 1 9905- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) (A) 		1-73237-600-7 01 1 9905- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-609-7 01 1 9905- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-539-0 01 1 9603- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		1-73237-519-8 01 1 9603-9904 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-519-9 01 1 9905- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-605-7 01 1 9905- ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9603- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9603- ● ●
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 03 1 9905- ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9603- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9603- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9603- ● ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-0 01 1 9603-9904 ● ●
134 SILENCER; RR FLOOR,SIDE
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-0 01 1 9905- ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-0 01 1 9905- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 9603- ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 9603- ●
145 SEAL; FLOOR PANEL
100X30 		1-72498-014-1 01 1 9603-9903 ● ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 9904- ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9603- ● ●

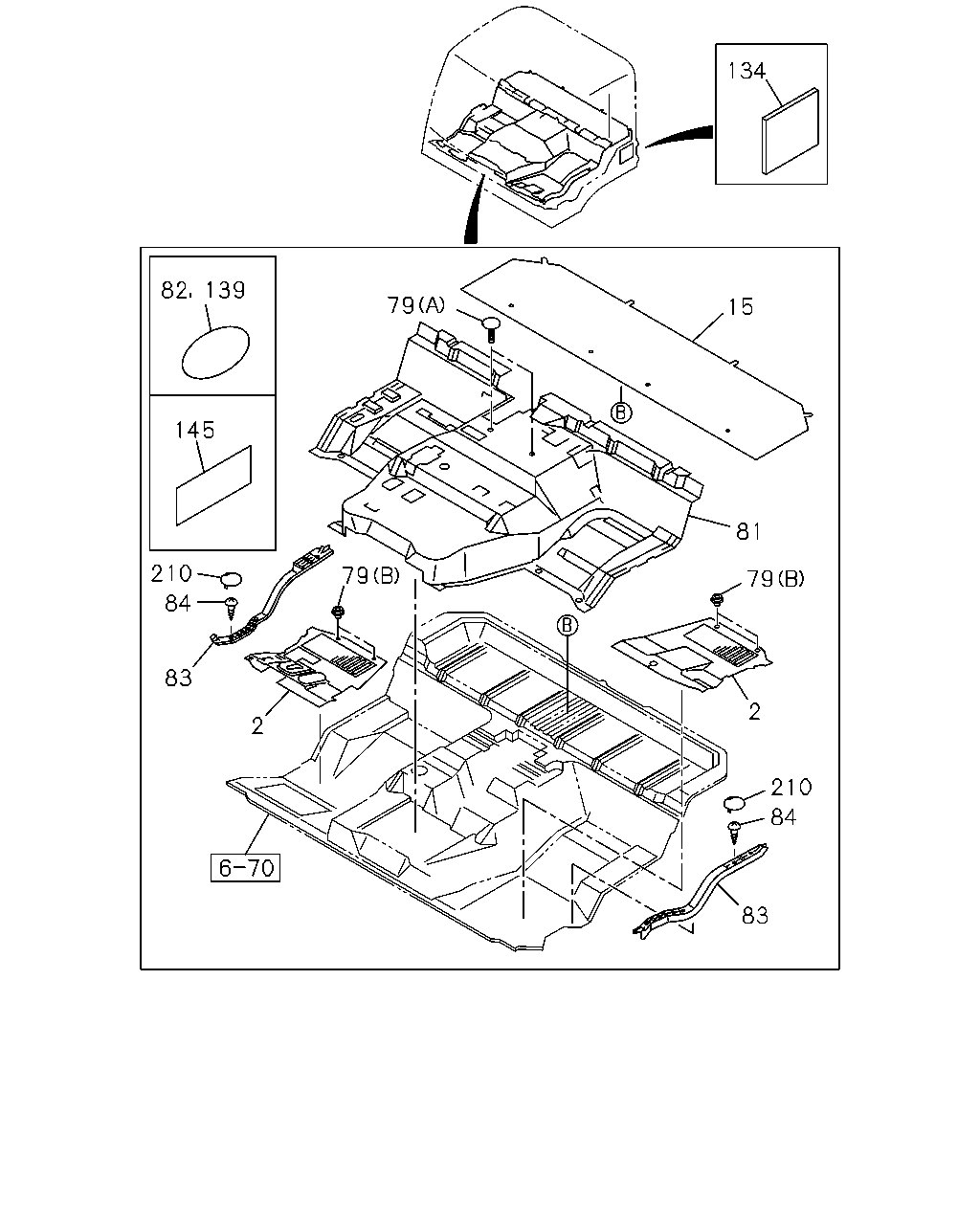

çizim 42797
134 82 139 79 15 145 81 79 210 79 84 83 2 2 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-536-3 01 1 9603- ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-535-2 01 1 9603-0006 ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-675-0 01 1 0007- ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-513-2 01 1 9603- ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-512-1 01 1 9603- ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-517-2 01 1 9603- ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9603- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9603- ● ●
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-563-5 01 1 9607-9904 ●
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,ISRINGHAUSEN SEAT(SJA) 		1-73237-563-7 01 1 9905- ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-508-1 01 1 9603-9606 ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-508-6 01 1 9607-9904 ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,ISRINGHAUSEN SEAT(SJA), CENTER SEAT DELETE(SP9) 		1-73237-508-7 01 1 9905- ●
81 MAT; FLOOR,CENTER
ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-607-5 01 1 9905- ●
81 MAT; FLOOR,CENTER
ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-608-4 01 1 9905- ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-510-9 01 1 9603-9810 ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-621-0 01 1 9811-9904 ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,ISRINGHAUSEN SEAT(SJA) 		1-73237-621-3 01 1 9905- ●
81 MAT; FLOOR,CENTER
ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2> 		1-73237-606-6 01 1 9905- ●
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 03 1 9905- ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9603- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9603- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9603- ● ●
134 SILENCER; RR FLOOR,SIDE 1-73367-016-0 01 1 9603-9904 ● ●
134 SILENCER; RR FLOOR,SIDE
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-0 01 1 9905- ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-0 01 1 9905- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 9603- ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 9603- ●
145 SEAL; FLOOR PANEL
100X30 		1-72498-014-1 01 1 9603-9903 ● ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 9904- ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
